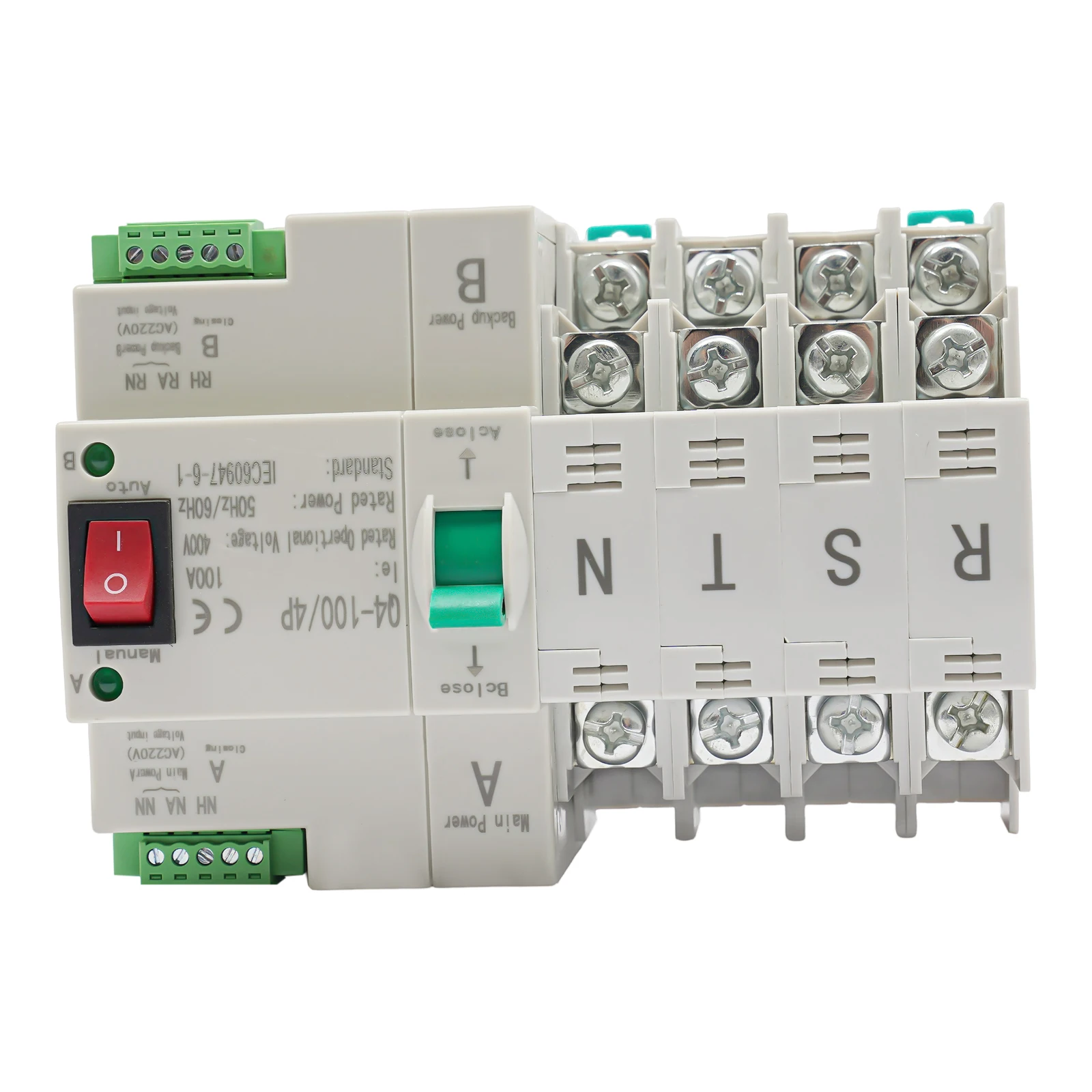

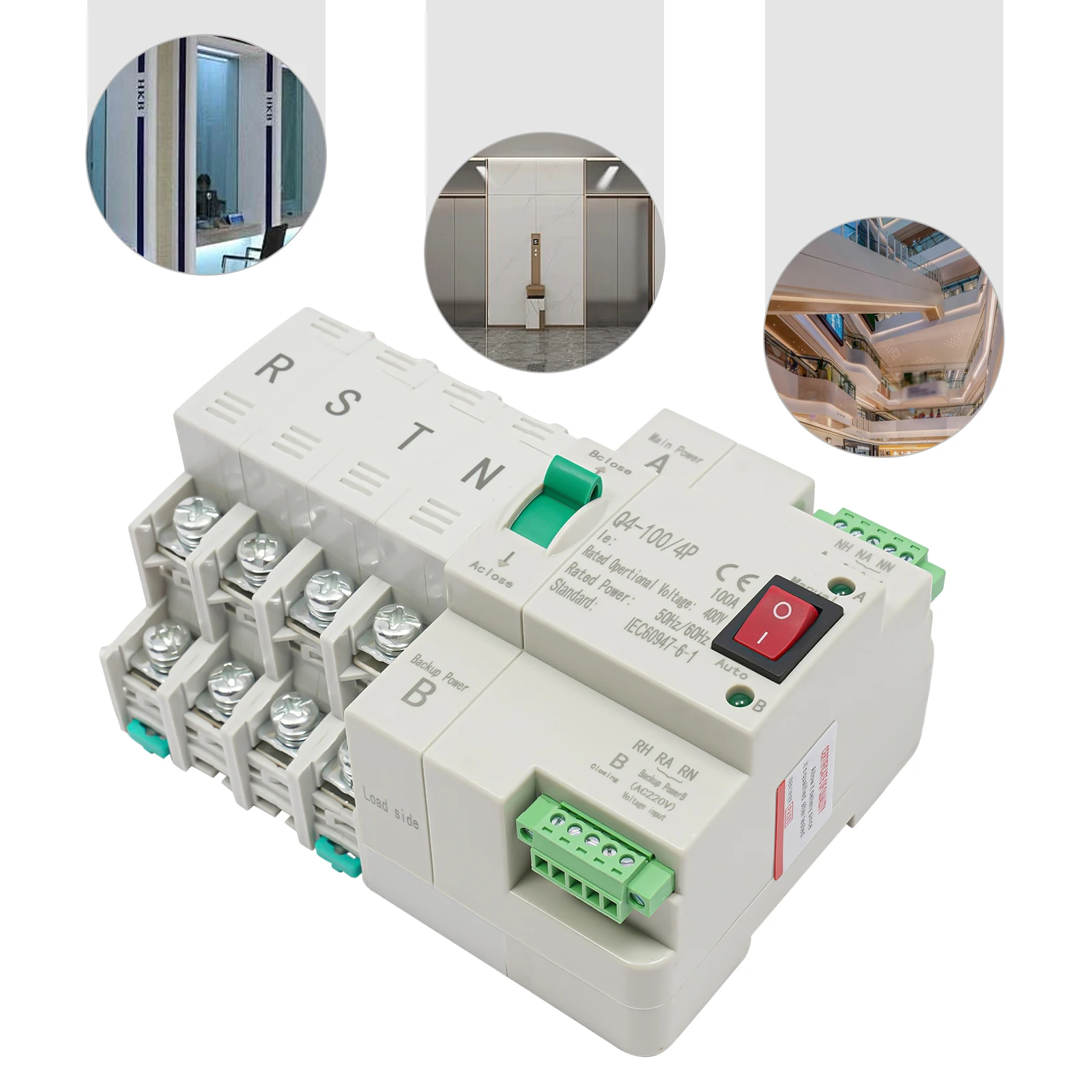

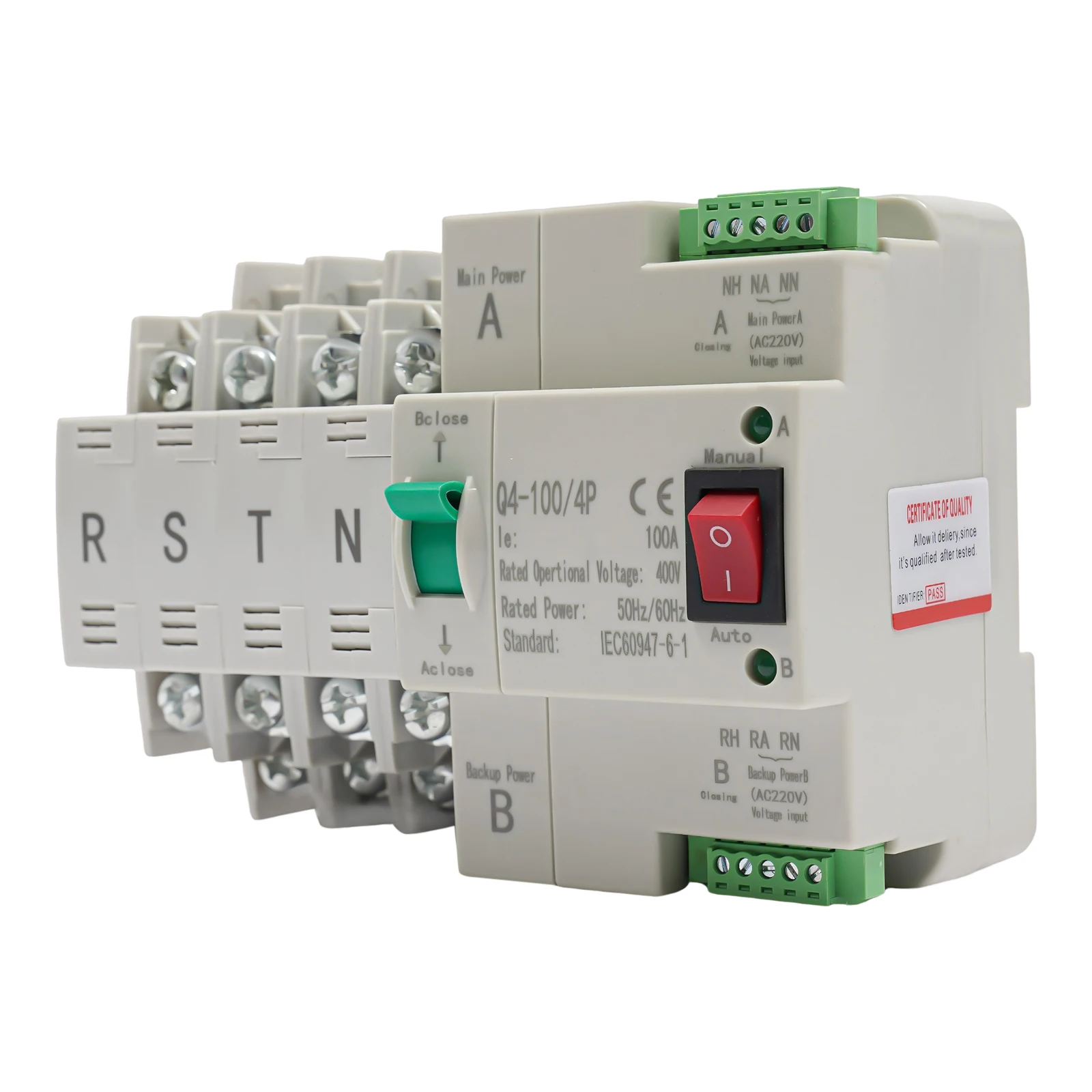

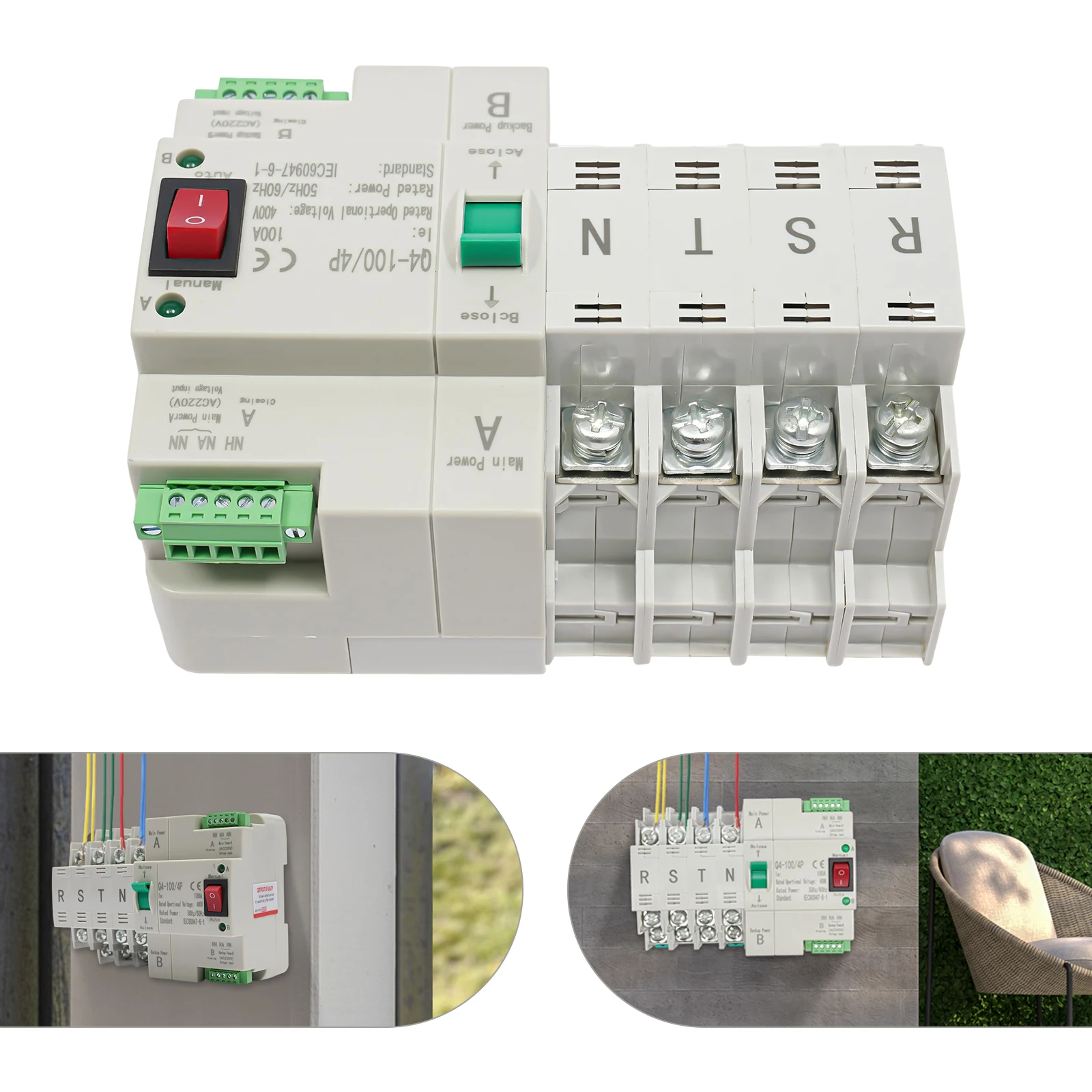

100A 4P Automatic Switch,Dual Power Mini Generator Automatic Transfer Switch Changeover Switch

Dual Power Auto 100A 4P Load Transfer Switch Emergency Power Switch Tool Transfer Switch

Description:

Transfer switch 4p 100a dual power automatic transfer switch

Features and highlights:

* Millisecond-level power-free conversion: automatic switching of main and auxiliary power supplies, uninterrupted power supply

* Automatic switching after power failure <50Ms, truly realizing the power-free switching function

*Automatic and manual adjustment: The switch has two modes, manual and automatic, and the air switch chain lock structure is more sturdy and durable

*Guide rail installation: 35mm standard guide rail installation, which can be easily used with the air switch and installed in the home lighting box

*Industrial silver contacts: The contacts use industrial silver contacts, which greatly improves the service life and conductivity of the product

Specifications:

Rated working current: 100A

Color as shown in the figure

Rated working voltage: 220v

Rated frequency: 50hz/60hz

Insulation voltage: 690v, 50hz

Electrical grade: PC grade

Number of poles: 4p

Weight and size:

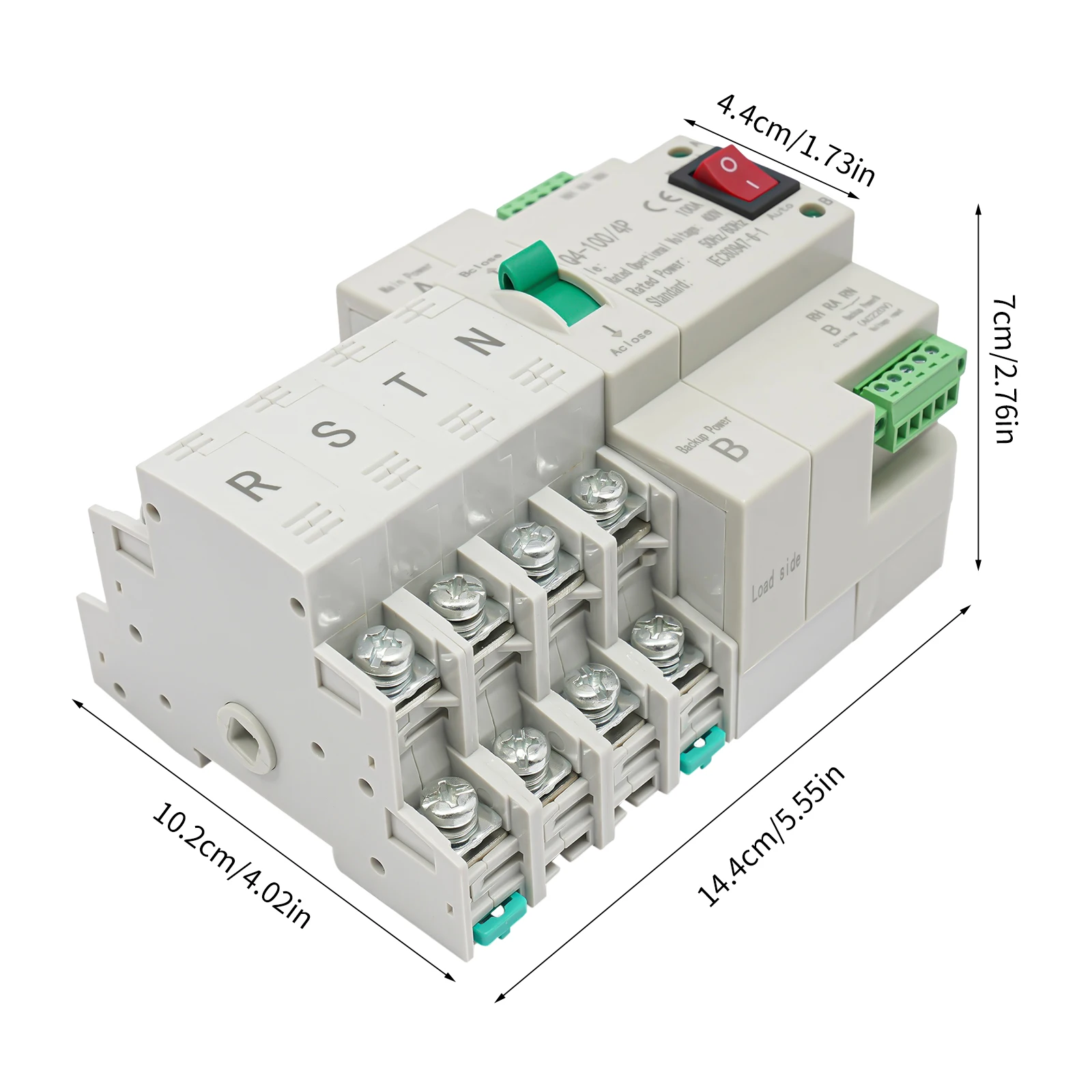

Dimensions: 142X96X76mm

Gross weight: 0.8kg
