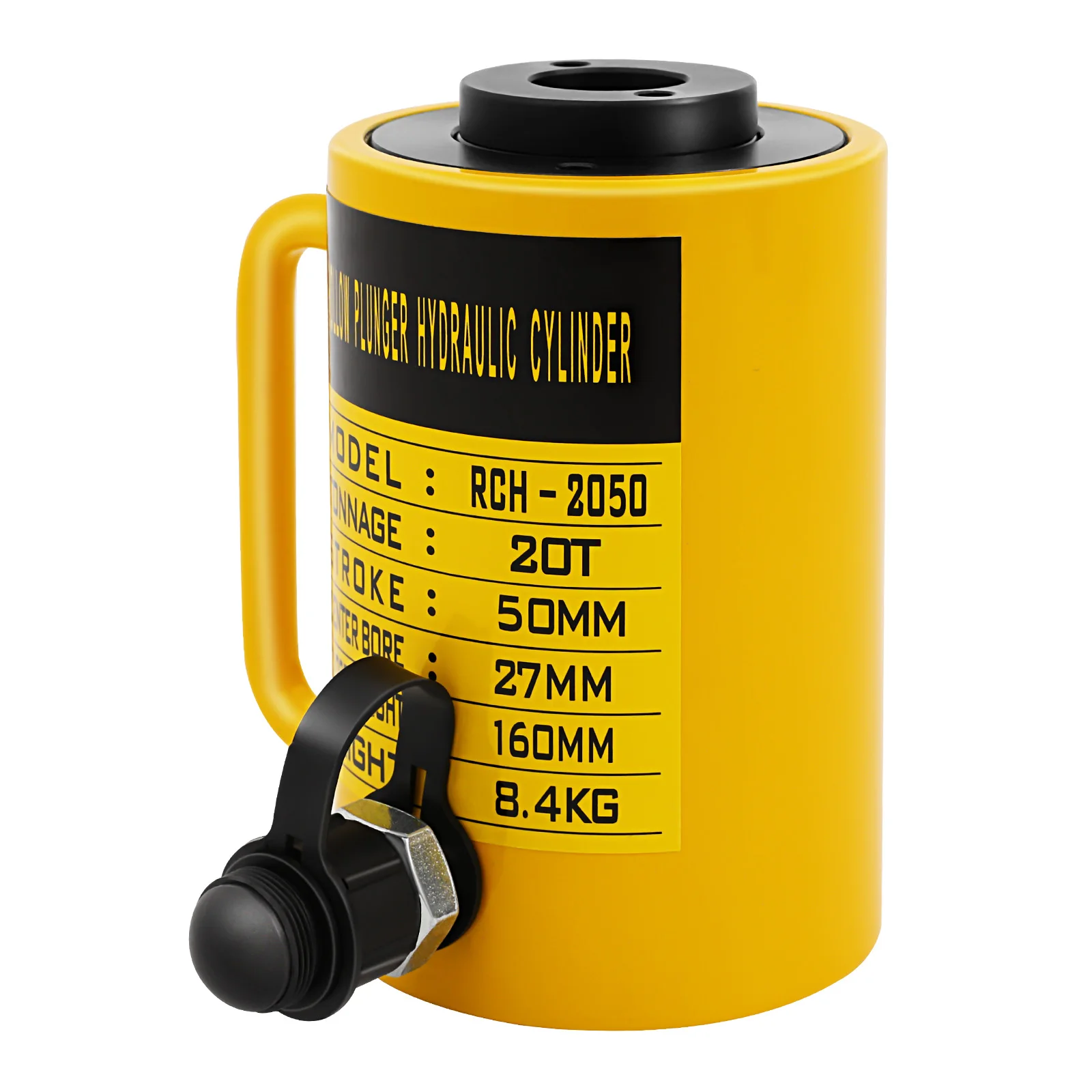

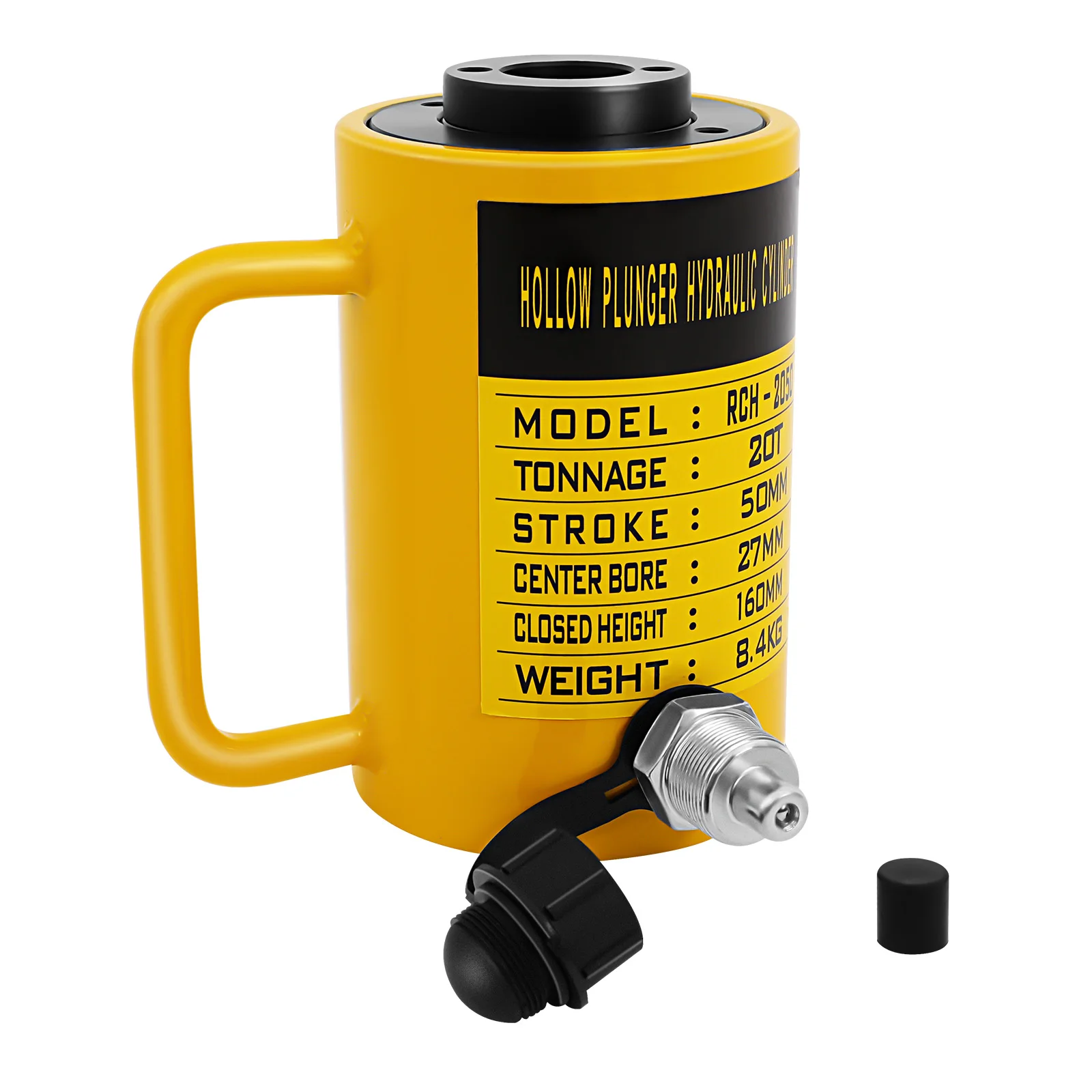

20T Hydraulic Cylinder Jack 900CC Hydraulic Jack RCH2050 Flexible ZG3/8 Quick Coupling for CP-700 Series Hand Pump

20T Hydraulic Cylinder Jack 900CC Hydraulic Jack RCH2050 Flexible ZG3/8 quick coupling for CP-700 Series Hand Pump

Description

This hydraulic jack, made of sturdy materials, combines power with compact portability and is designed for efficient heavy-duty work. It is easy to operate, safe, and reliable, with a variety of functions such as lifting, jacking, pushing, and pulling, which is an indispensable and powerful assistant in your engineering projects.

Key Features

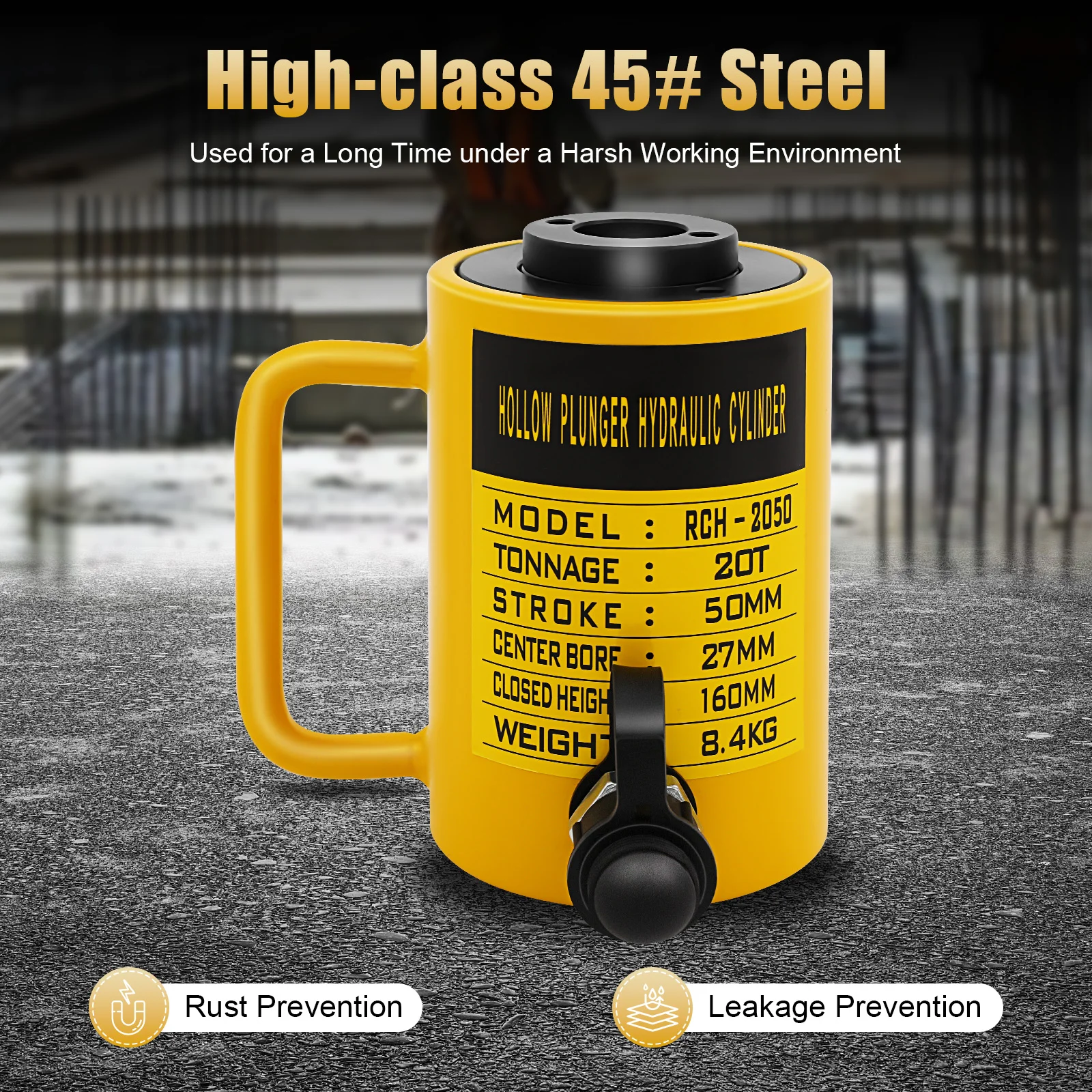

Durable Structure: It is made of sturdy 45# steel, after heat treatment, blackening treatment, and baking paint process, which is rust-resistant and leakage-resistant, with strong durability, and it can be used for a long time under a harsh working environment.

Practical Tool: It has various functions such as lifting, jacking, pushing and pulling, etc. It can be used with a CP-700 series manual pump (not included) and is widely used in construction sites, petroleum, steel, and other industries for the installation and maintenance of large and medium-sized machinery and equipment.

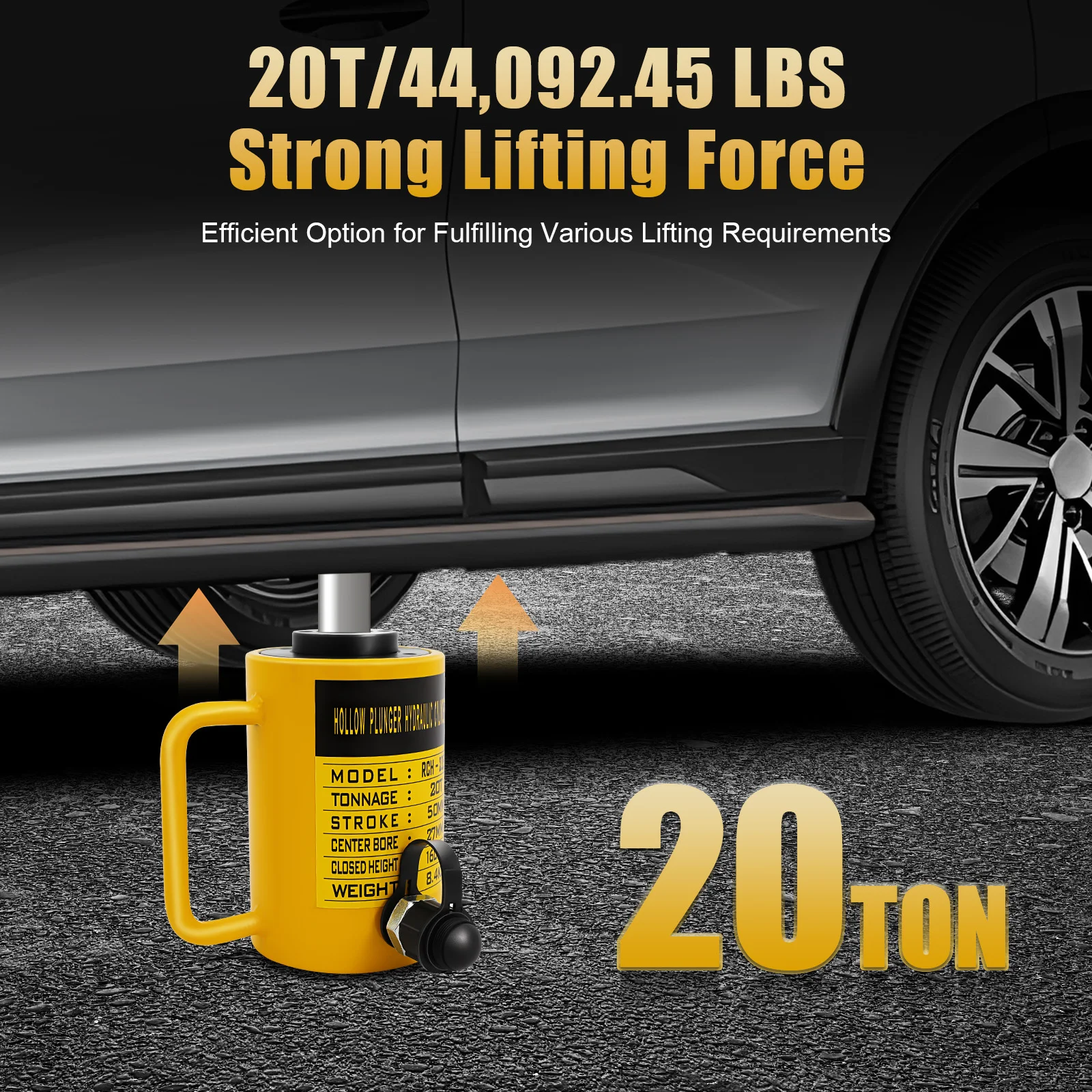

Efficient Work: It is made of high-class materials, can withstand weight up to 20T, and provides up to 2.36 inches lifting height, bringing convenience to your installation and maintenance work.

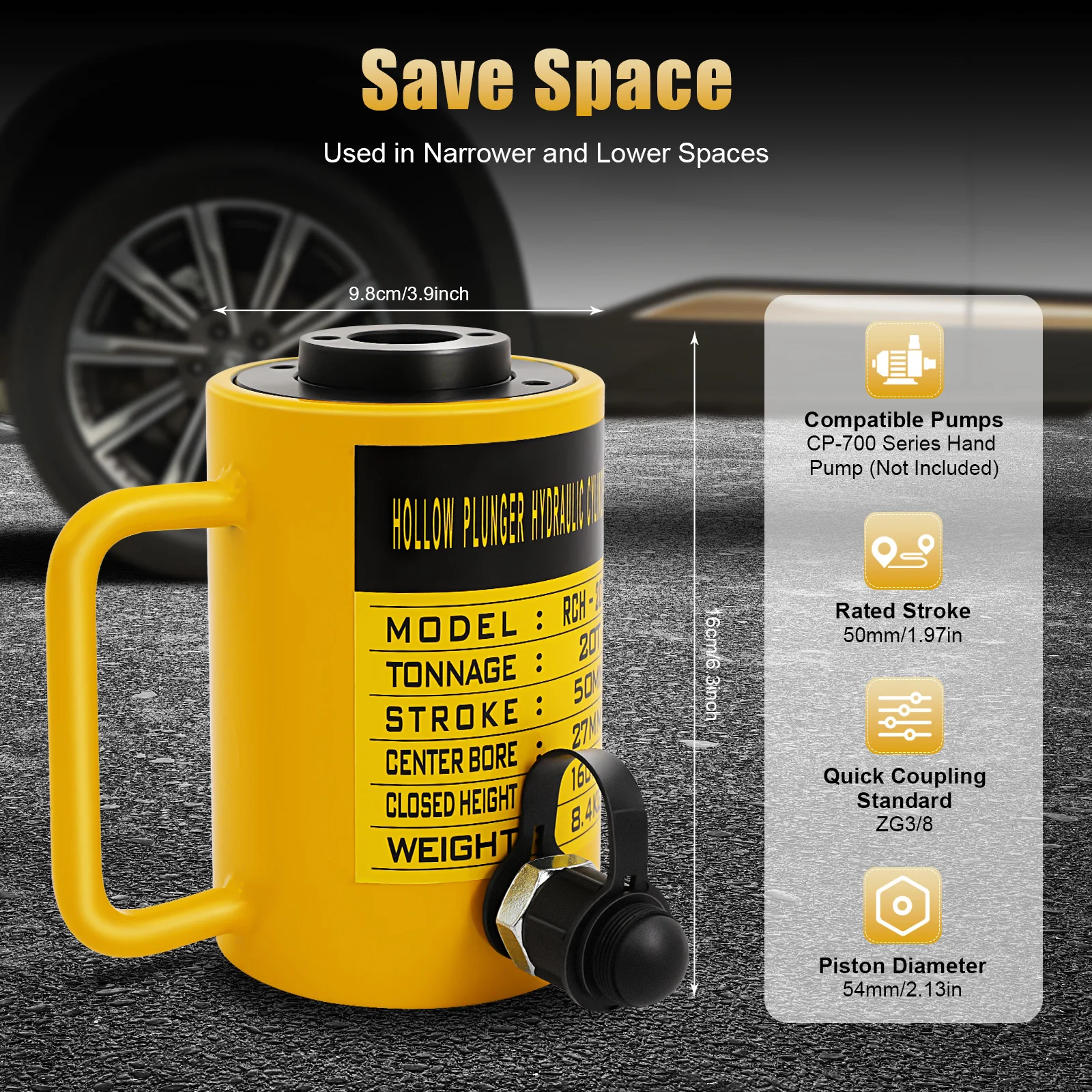

Flexible Use: It can be used vertically, horizontally, and in an inverted orientation. The compact design with an outside diameter of 3.94 inches and a body height of 6.3 inches also allows it to be used flexibly in confined spaces.

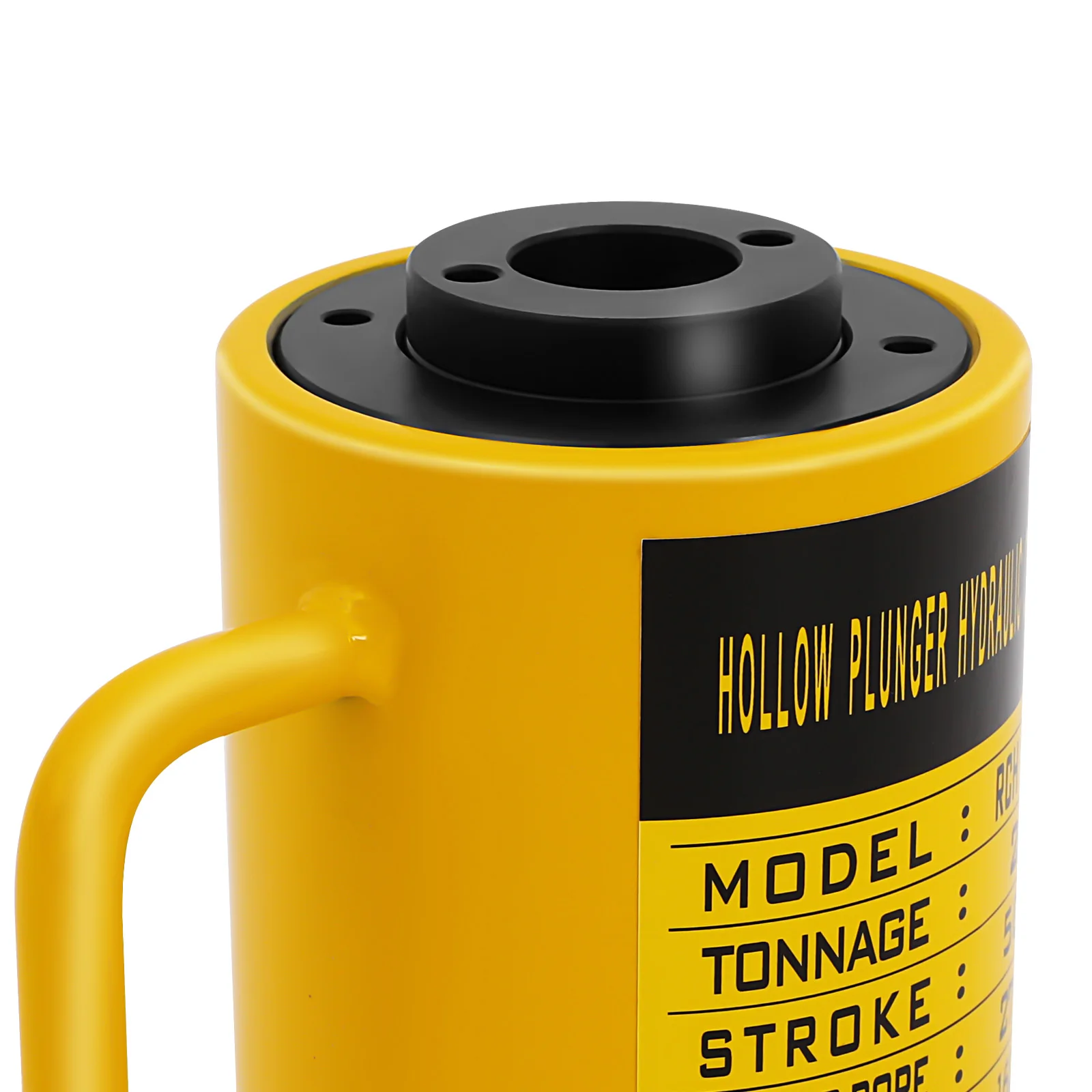

User Friendly: The piston can be reset automatically after the pressure is relieved. The hollow piston design can be used as both pull and push to meet your different usage needs.

Separate Design: Its power pump is separate from the lifting section, allowing flexible operation where space is restricted.

Easy to Carry: Compact size and lightweight (18.52lbs) make it easy for you to carry it to different workplaces.

Easy to Use: Using a standard ZG3/8 threaded quick coupling, it is easy for quick installation.

Through-hole Design: With a through-hole structure, it is not easy to drain pressure and oil leakage, ensuring the safety of use and prolonging the life of the product at the same time.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

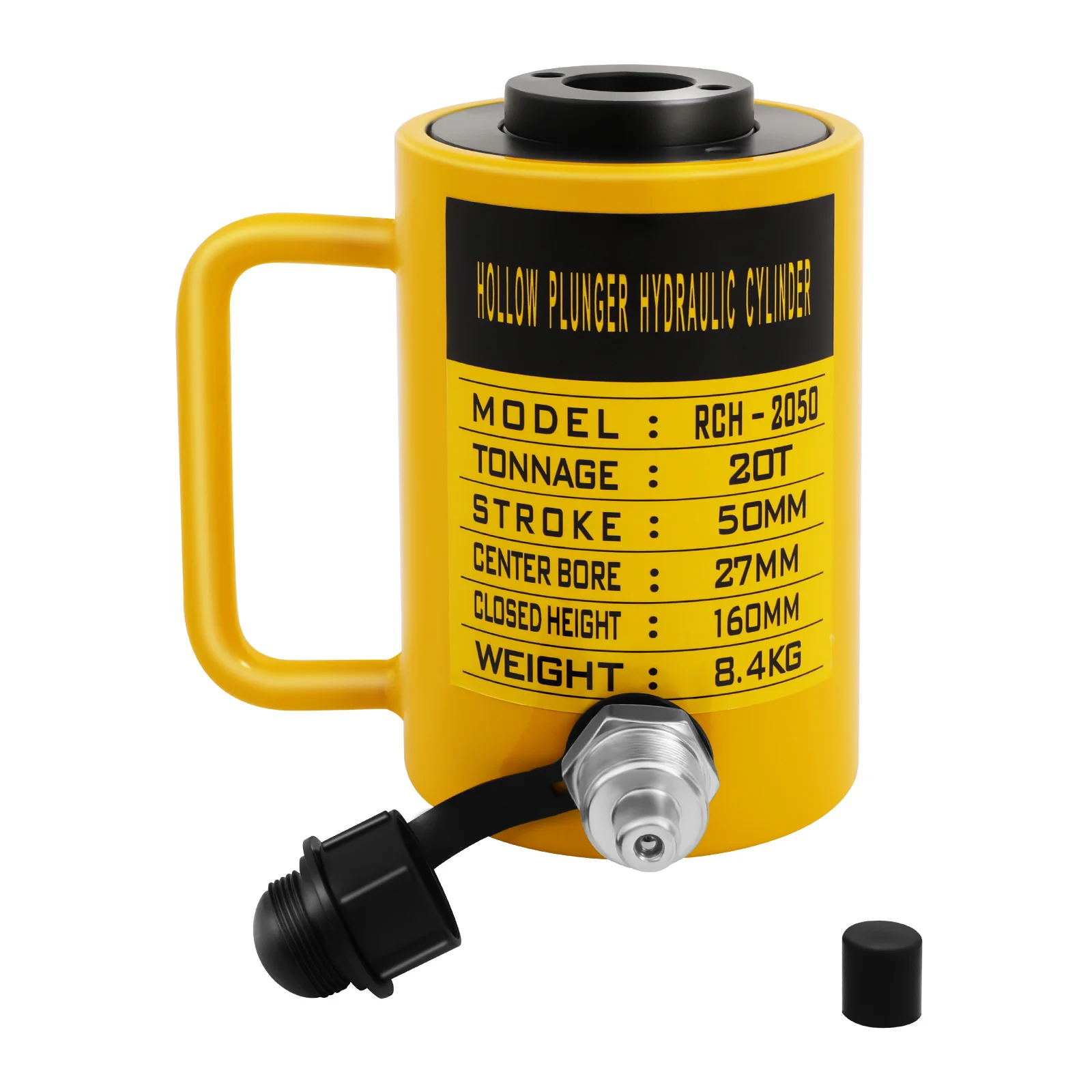

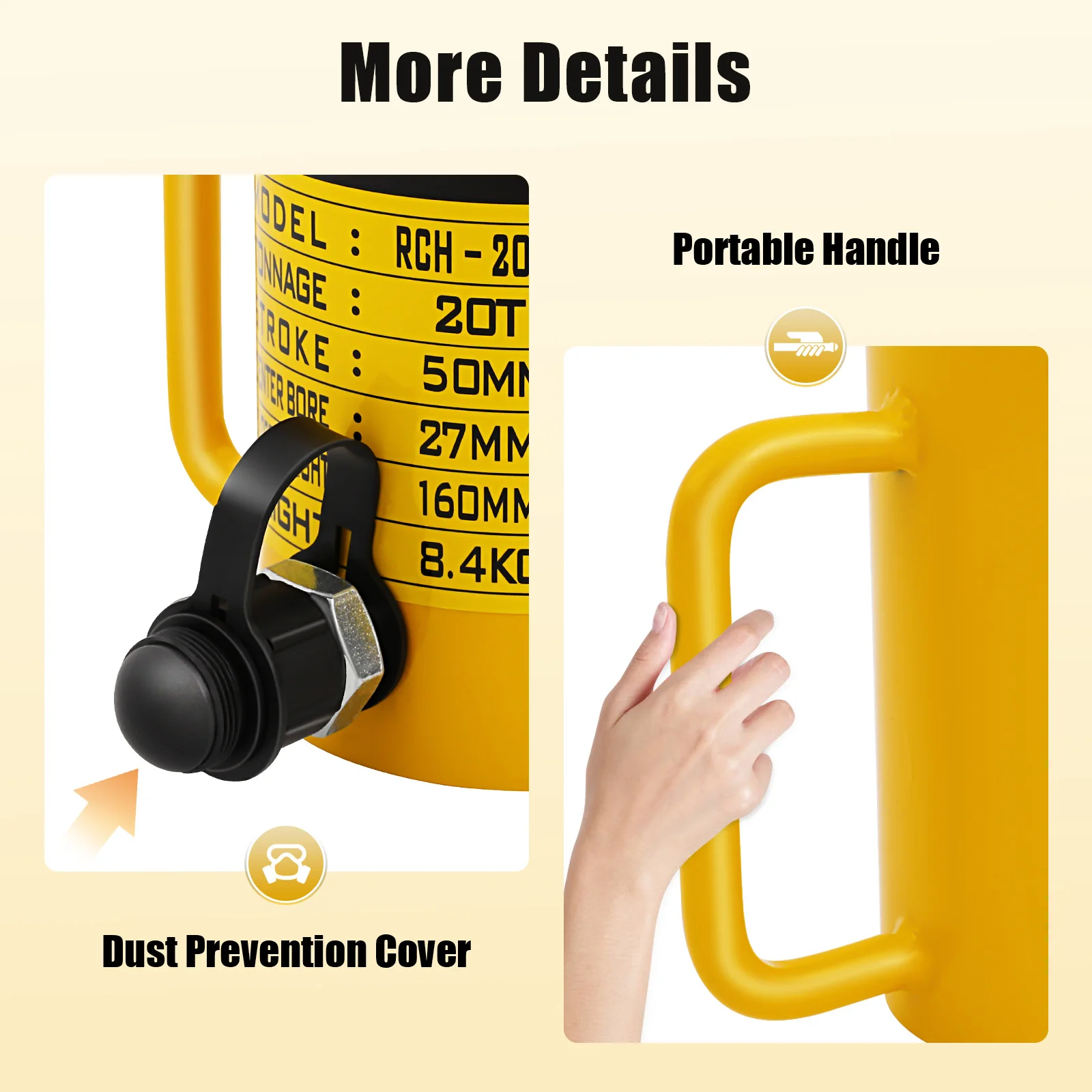

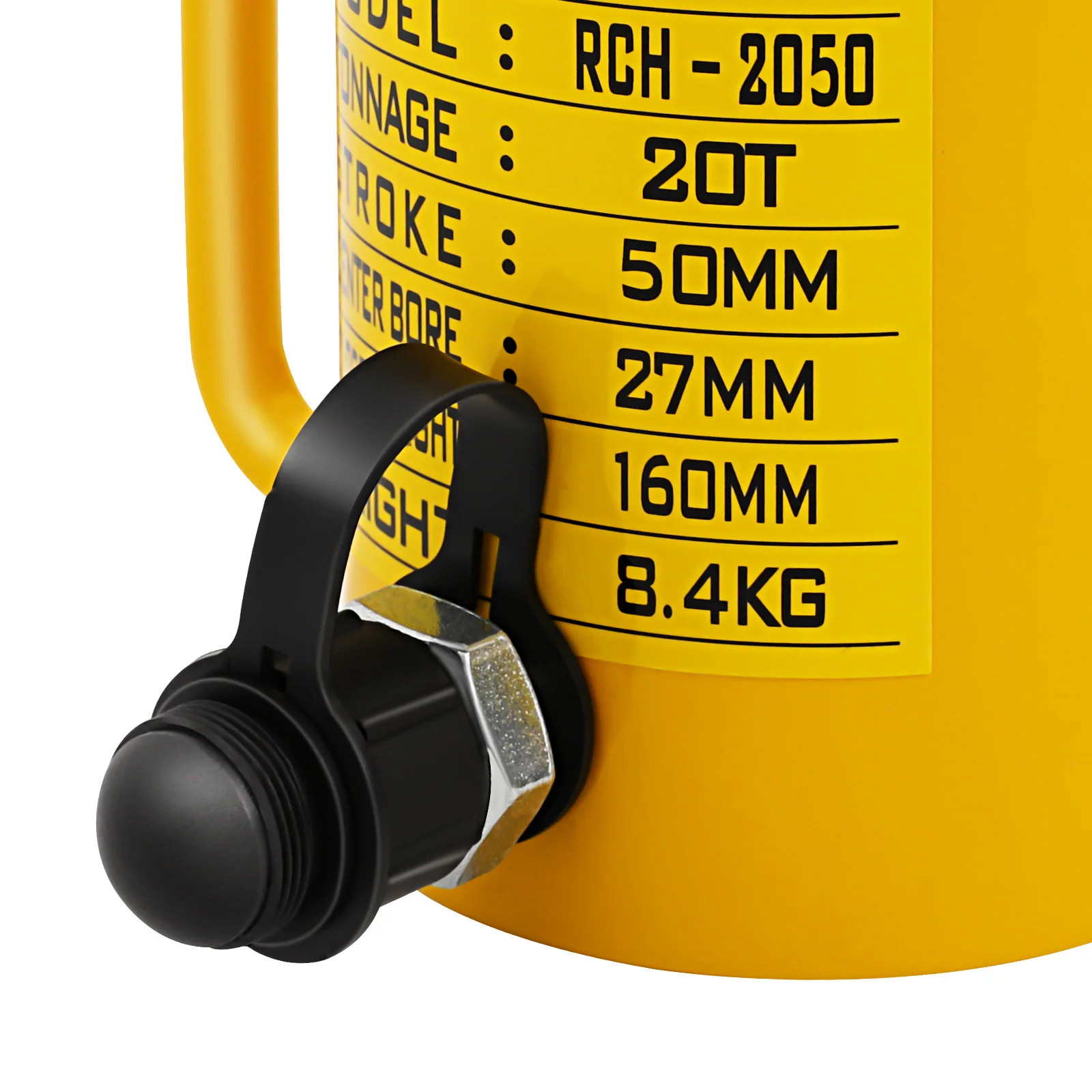

Dustproof Cap: It can prevent dust and other impurities from falling into the ZG3/8 quick coupling.

Smooth Surface: The smooth and burr-free surface ensures the protection of your hands during maintenance and installation.

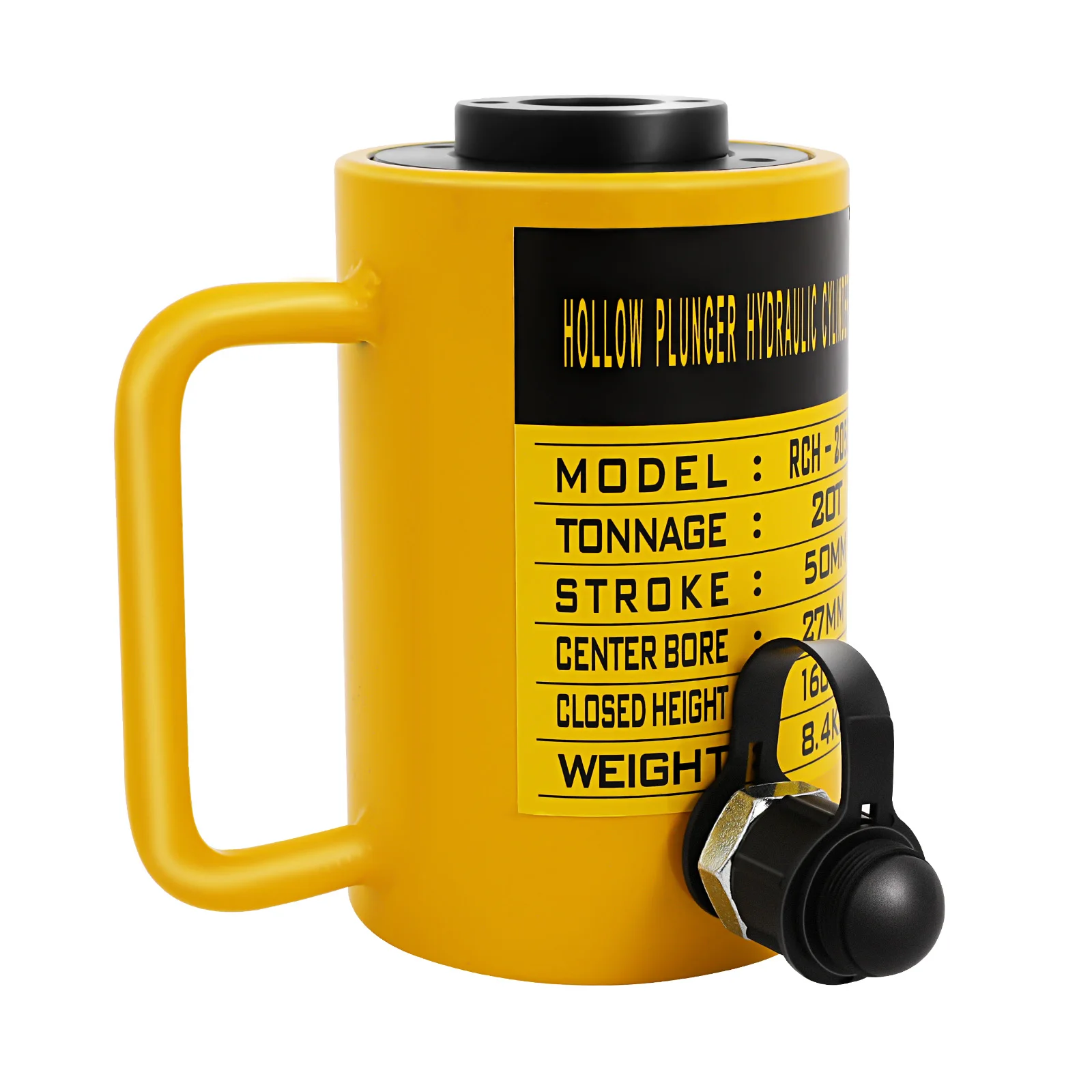

Comfort Grip: It is ergonomically designed to give you a comfortable grip, even for long periods.

Application

It is widely used in construction sites, petroleum, electric power, metallurgy, chemical industry, ships, bridges, steel, and other industries for installation and maintenance of large and medium-sized mechanical equipment.

Specification

Mount Type: Freestanding

Assembly Required: No

Material: 45# Steel

Process: Heat Treatment, Blackening Treatment, Baking Paint

Colour: Yellow, Black

Style: Modern

Applicable Hand Pump: CP-700 Series Hand Pump ( Not Included )

Quick Coupling Standard: ZG3/8

Discharge Force: 20T/44,092.45 lbs

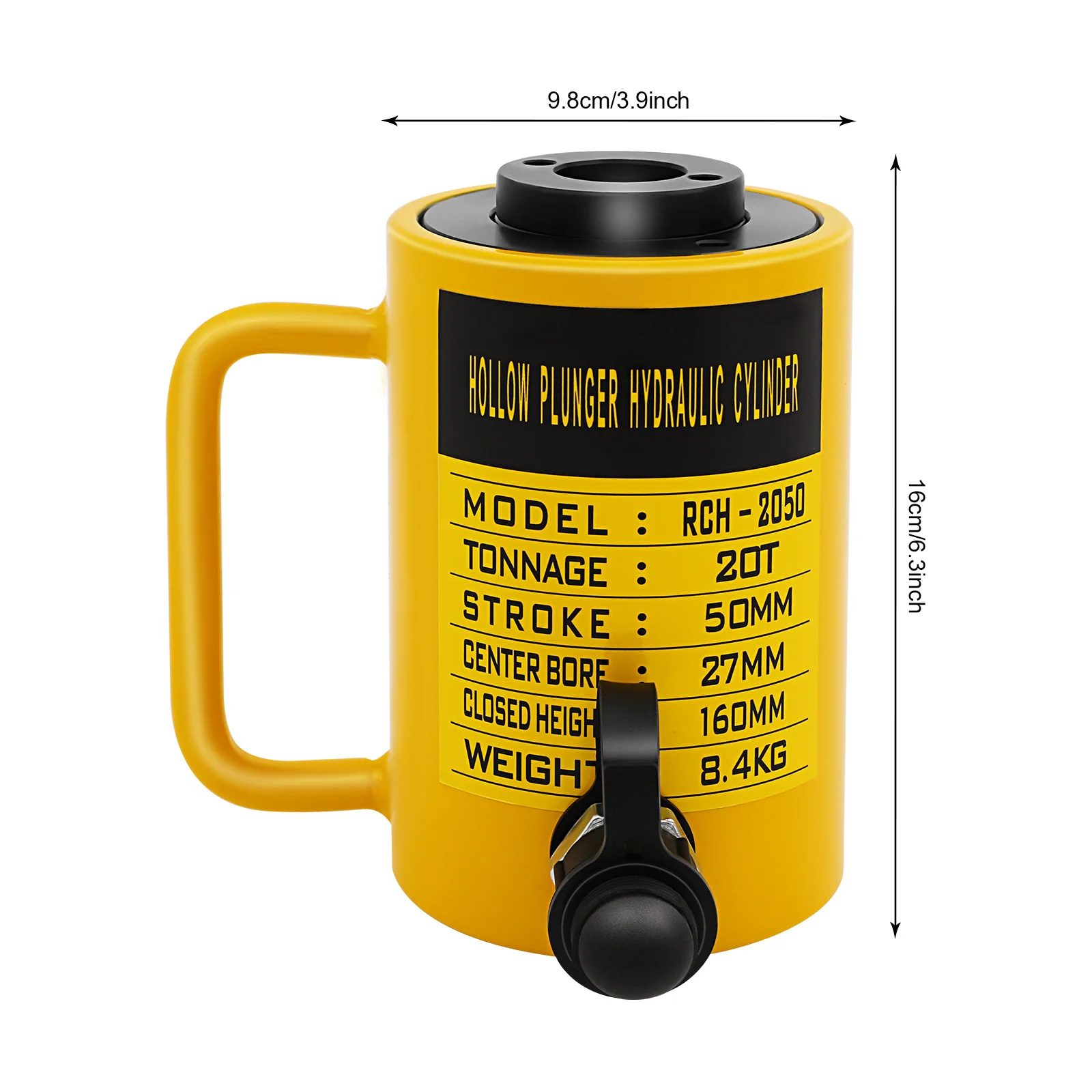

Outside Diameter: 100mm/3.94in
Rated Stroke: 50mm/1.97in
Actual Stroke: 60mm/2.36in
Piston Diameter: 54mm/2.13in
Bore Diameter: 27mm/1.06in
Body Height: 160mm/6.3in
Hand Pump Working Pressure: 70MPa
Hand Pump High-Pressure Flow Rate: 2.2CC
Hand Pump Low-Pressure Flow Rate: 13CC
Hand Pump Reservoir Capacity: 900CC
Net Weight: 8.4kg/18.52lbs
Gross Weight: 8.8kg/19.40lbs
Package Size: 25*23*20cm/9.84*9.06*7.87in


Package Included
1* Hydraulic Jack

Notes
1.Please check the style and size before purchasing.
2.Please note that this product is not suitable for jacking cars.
3.Please tighten the male connector on the jack and the female connector on the pump, otherwise it will leak oil or not reset properly.
4.If there is a bit of oil on the outside of the quick coupling, this is normal and does not affect the normal use of the quick coupling.

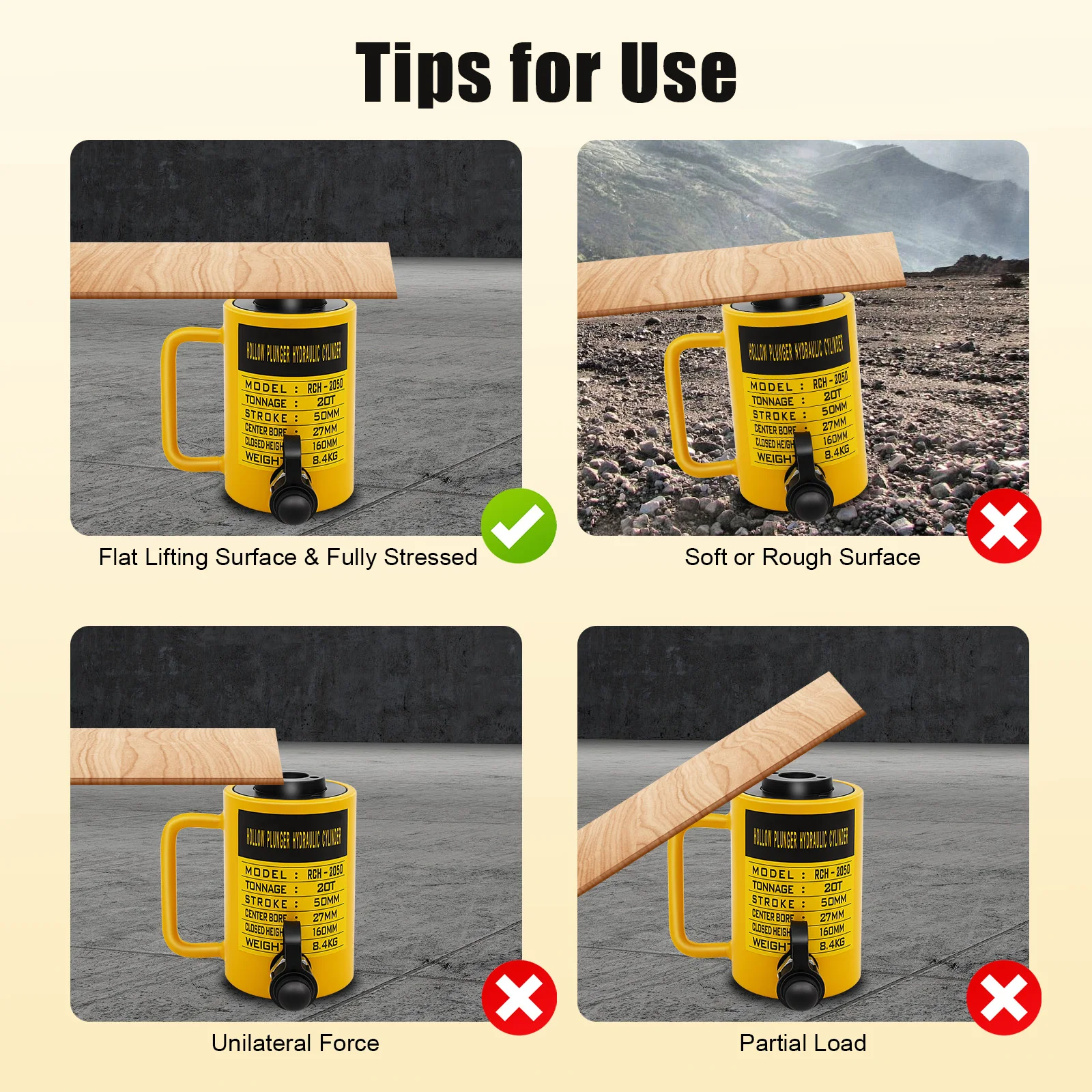

5.In order to operate correctly, please connect all cylinders to a solid, flat jacking surface, if used on sandy, muddy, loose, soft, or rough surfaces it will cause cylinder unloading, uneven force, and lead to oil leakage and damage.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
