BTMETER BT-7200SMART Blue Clamp multimeter Tool AC/DC Voltage & Current Tester with Resistance, Capacitance, and NCV Detection

BTMETER BT-7200SMART Blue Clamp multimeter Tool AC/DC Voltage & Current Tester with Resistance, Capacitance, and NCV Detection

⚡[Auto Select Voltmeter] BT-7200Smart electric tester with auto functions makes troubleshooting easy. Auto ranging avoids meter damage cause by wrong selection. Automatically select between AC and DC. 15 minutes auto shutdown to save battery and extend service time.

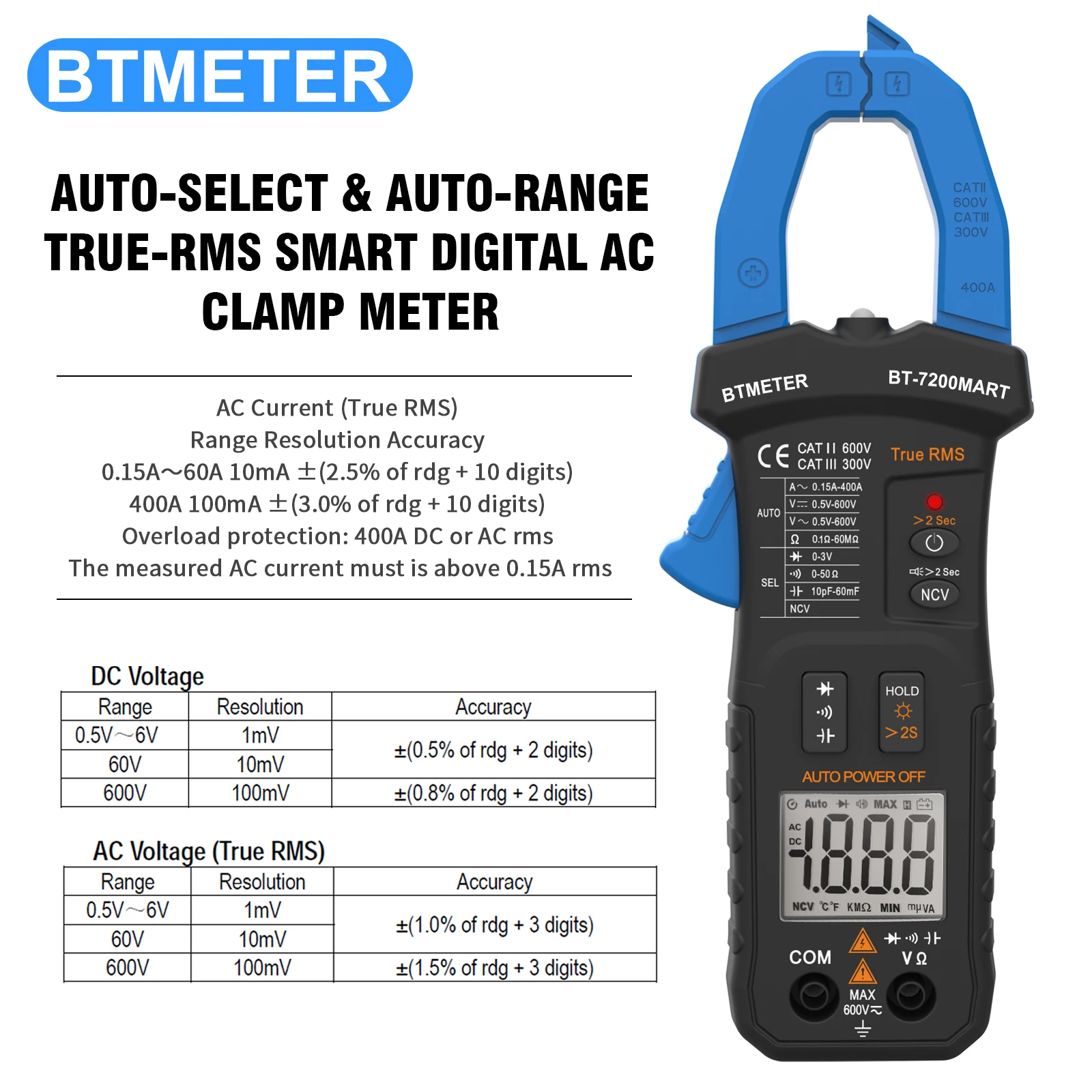

⚡[True RMS Avometer] The 6000 counts clamp multitester is professionally designed for measuring AC/DC Volts 1mV~600V, AC Ampere 0.1A~400A, Ohm 0.1~60MΩ, Capacitor 1pF~60mF, Diode, Non-contact voltage detection. True-rms DMM can accurately test on both linear and non-linear loads.

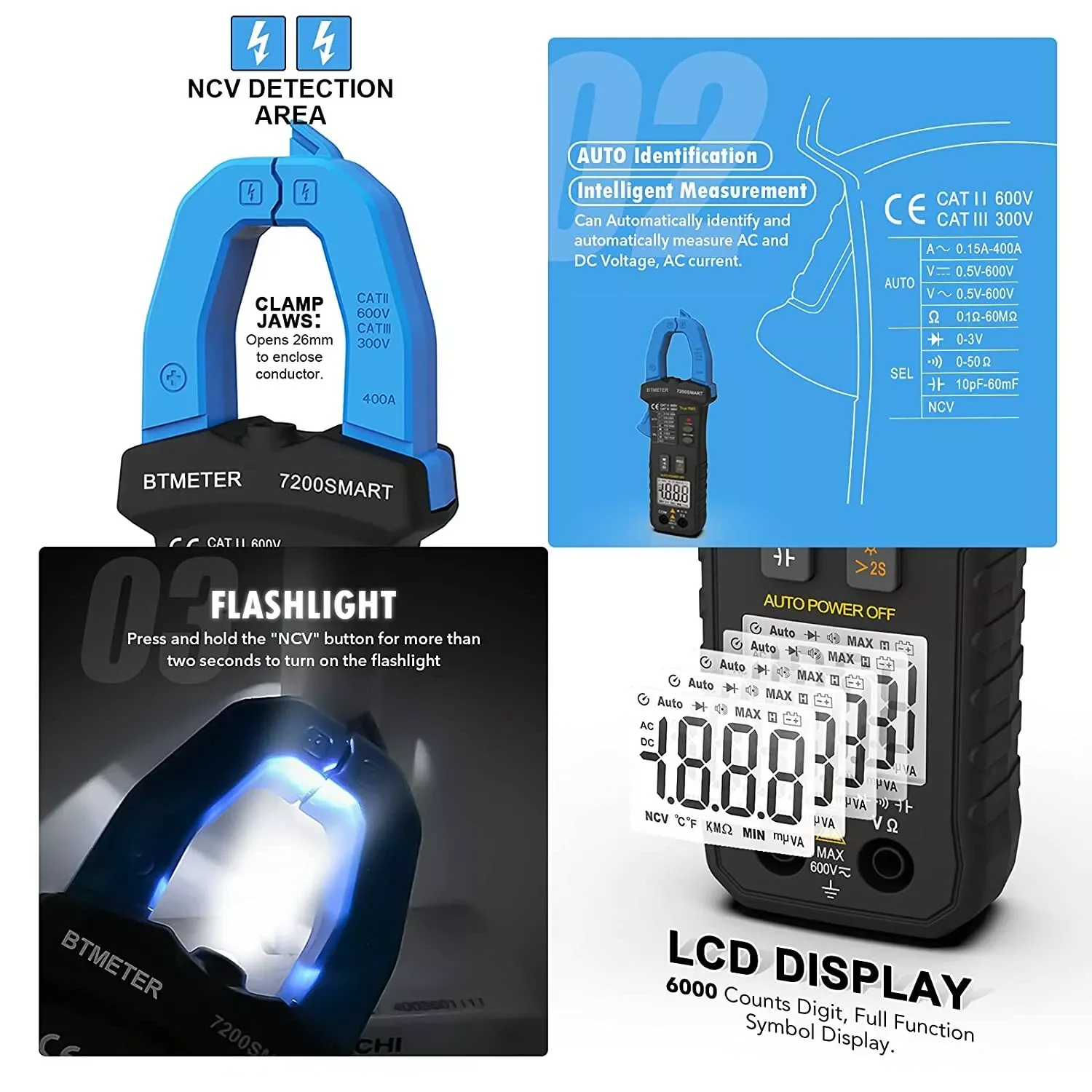

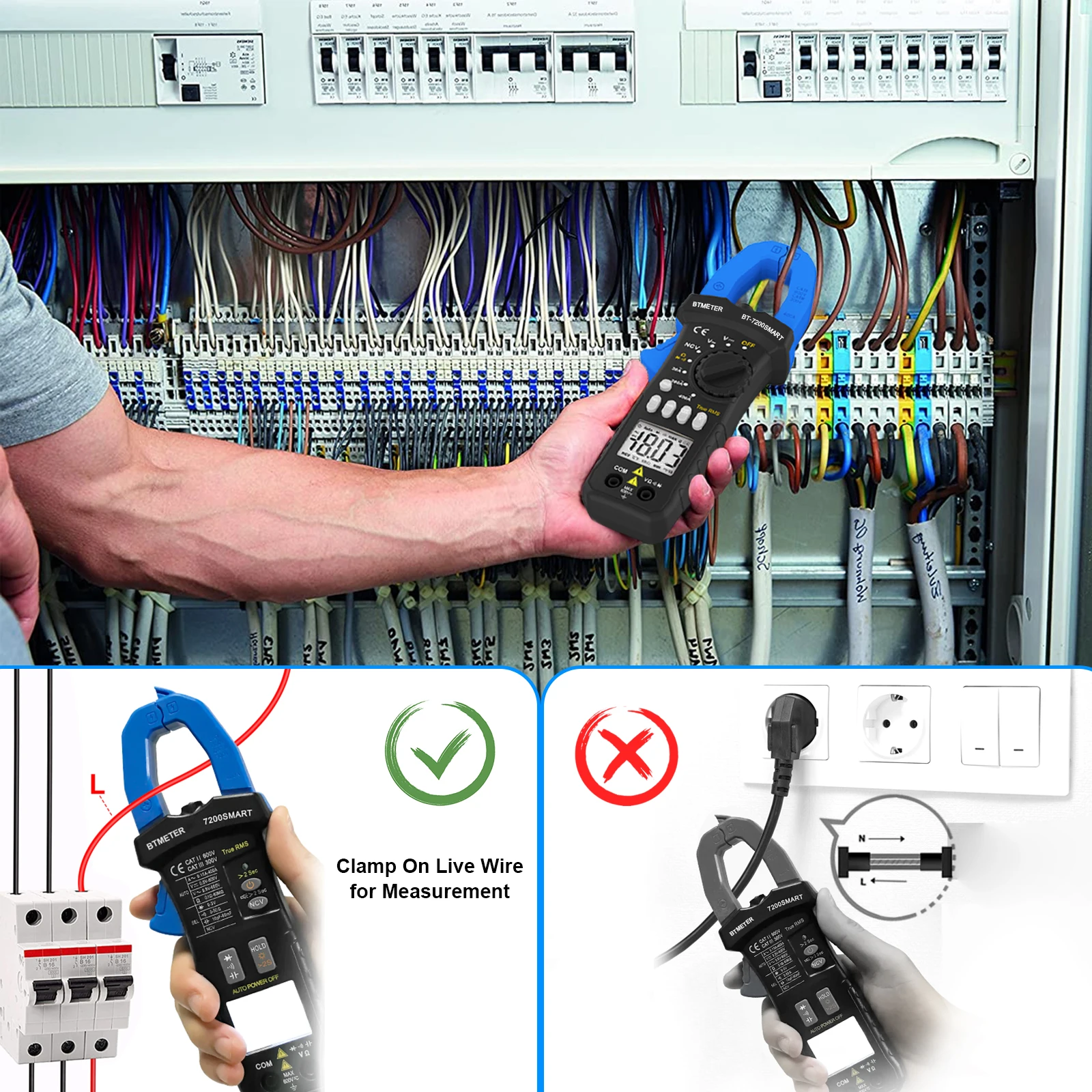

⚡[Safe NCV Detector] Approach the ohmmeter near the socket to safely detect voltage without touching any wires, the LED will light with BEEP sound to alarm you. Clamp on wires to take amps measurement without needing to break into the circuit. Note: Clamp on ONE conductor, or it displays wrong zero reading.

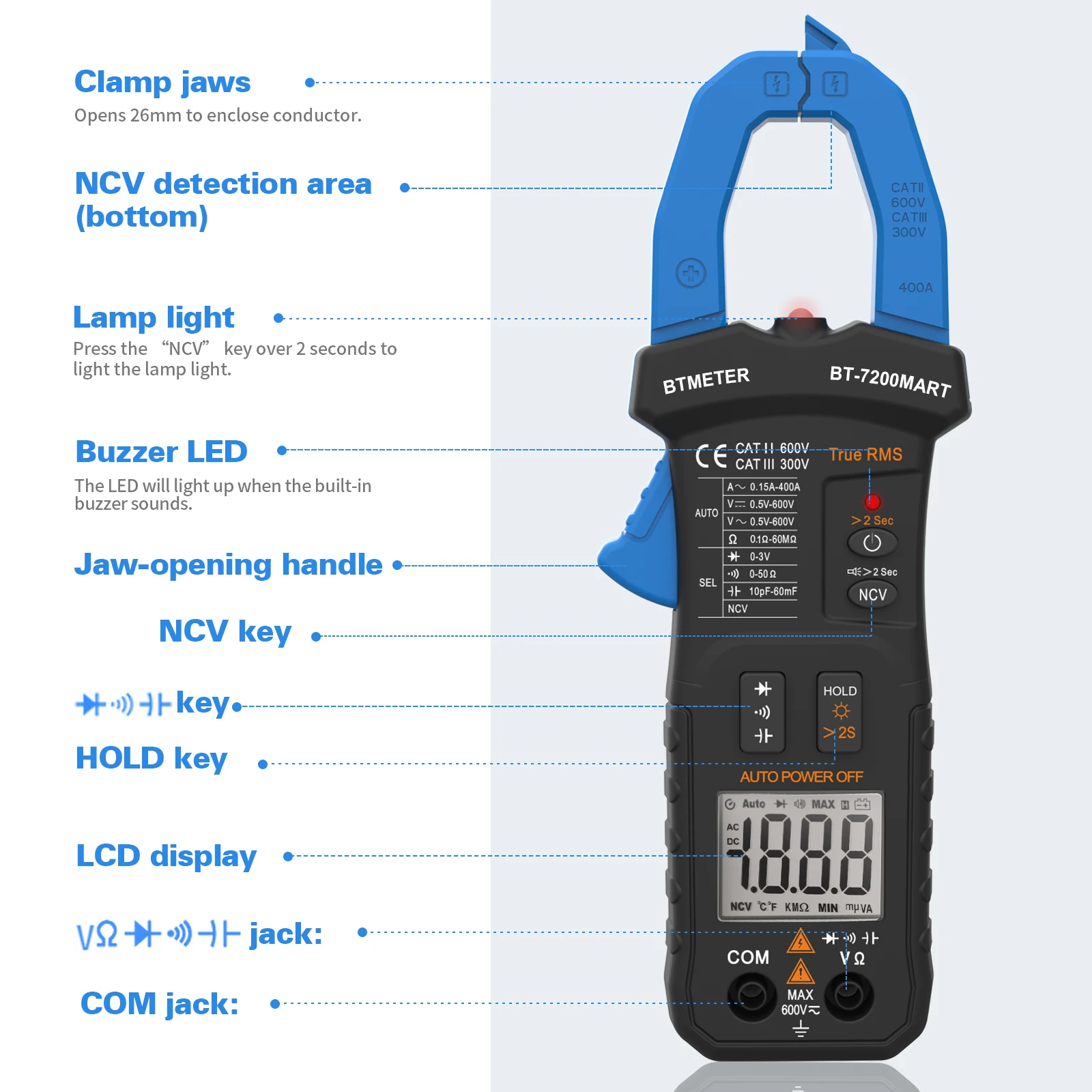

⚡[Easy to Operation] Clamp meter with 26mm/ 1inch large jaw design can easily clamp on thick wires. Built-in lamp light on the top facilitates automotive repair and maintenance. Backlight LCD ensures easy visibility in dim or dark conditions. Data hold to freeze displays readings for later reference.

⚡[Wide Applications] Characterized at slim size and lightweight, the amperage meter with various functions, can be easily carried around in your pockets for trouble shoots electric problem, household appliances, automotive repairs, HVAC system.

Specication:

* Max Voltage between input terminal and Earth Ground: CAT Ⅱ 600V or CAT Ⅲ 300V

* Over-range Indication: display “OL” for the significant digit.

* Automatic display of negative polarity “-”.

* Clamp opening size: 26mm.

* Max LCD display: 6000 counts digit.

* Auto range

* Low Battery Indication

* Auto Power Off

* Data Hold

* Lamp Light

* NCV Detection

* Backlight LCD Screen

* Power supply: 1.5V×2 “AAA” R03P battery(not included)

* Operating Temp.: 0 to 40℃ (relat ℃ ℃ ive humidity <85%)

* Storage Temp.:-10 to 50℃ (relative humidity <85%)

* Guaranteed precision Temp.: 23±5 (relative humidity <70%) ℃

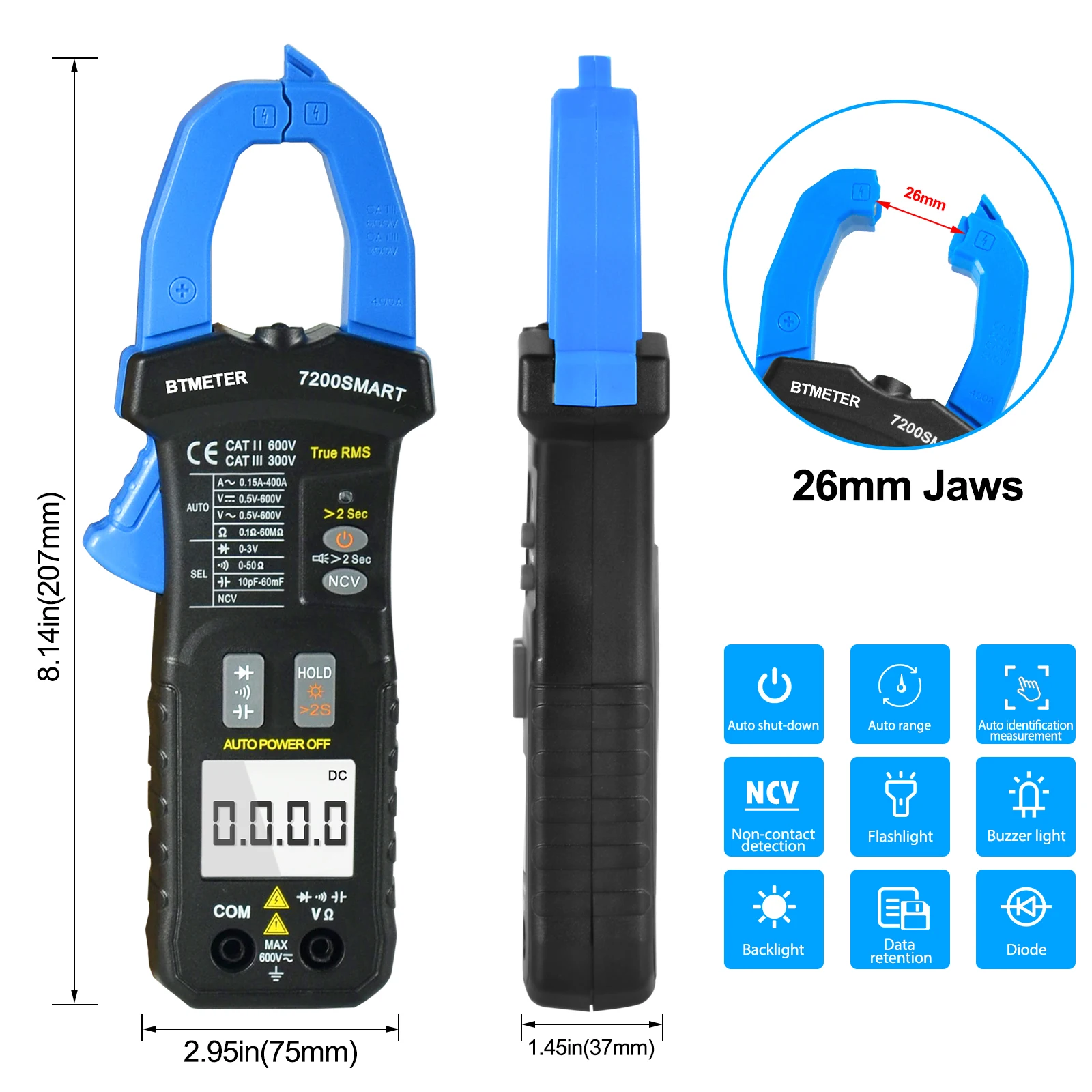

* Dimension: 207(H)×75(W)×37(D)mm.

* Weight: Approx. 280g

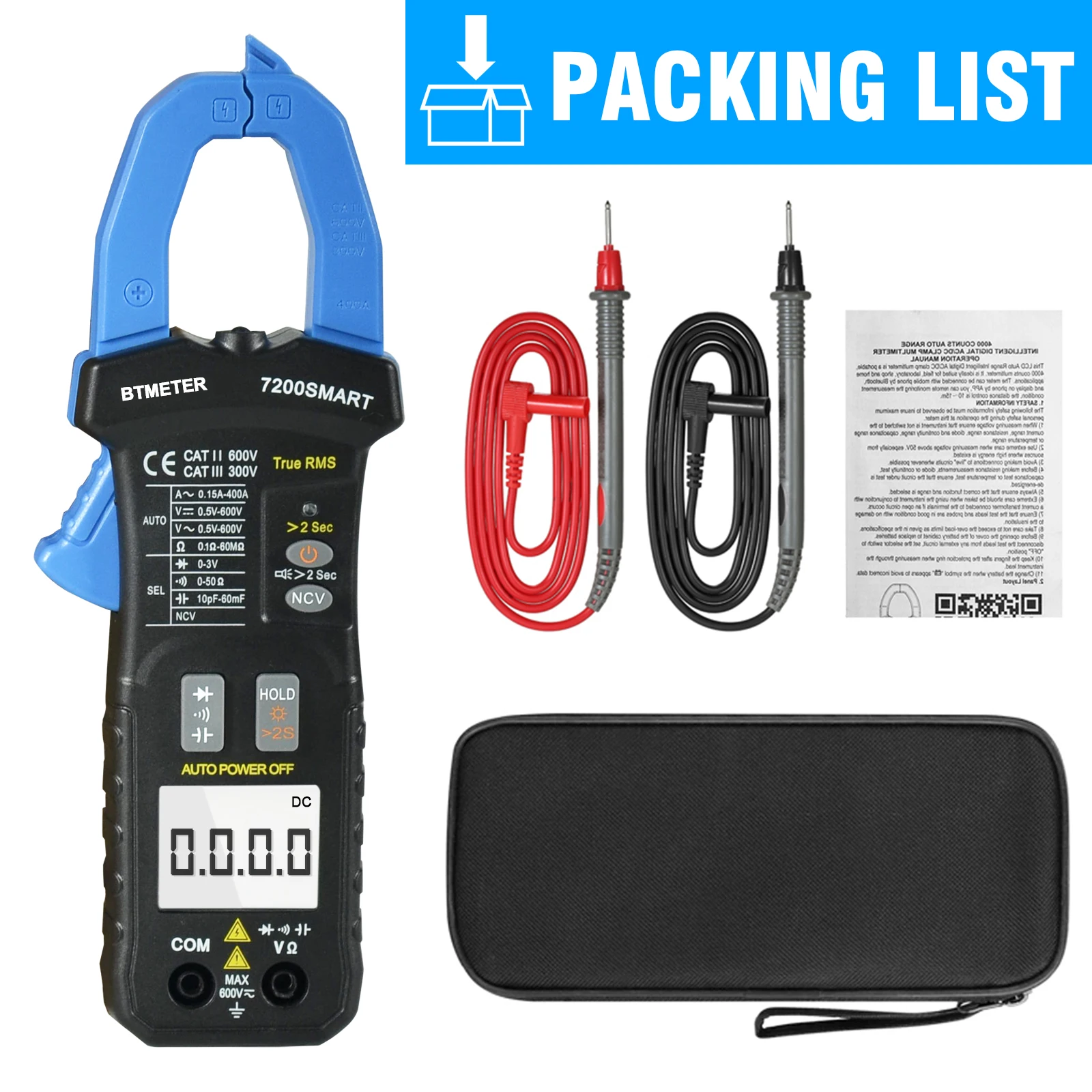

Package List:

* BTMETER BT-7200Smart Clamp Meter X 1

* Storage bag X 1

* Test lead X 1
