Fosi Audio SK02 DAC Headphone Amplifier Preamp Support DSD 256 PCM For 3.5MM & 4.4MM Balanced Headphone

Fosi Audio SK02 DAC Headphone Amplifier Preamp Support DSD 256 PCM For 3.5MM & 4.4MM Balanced Headphone

Features:

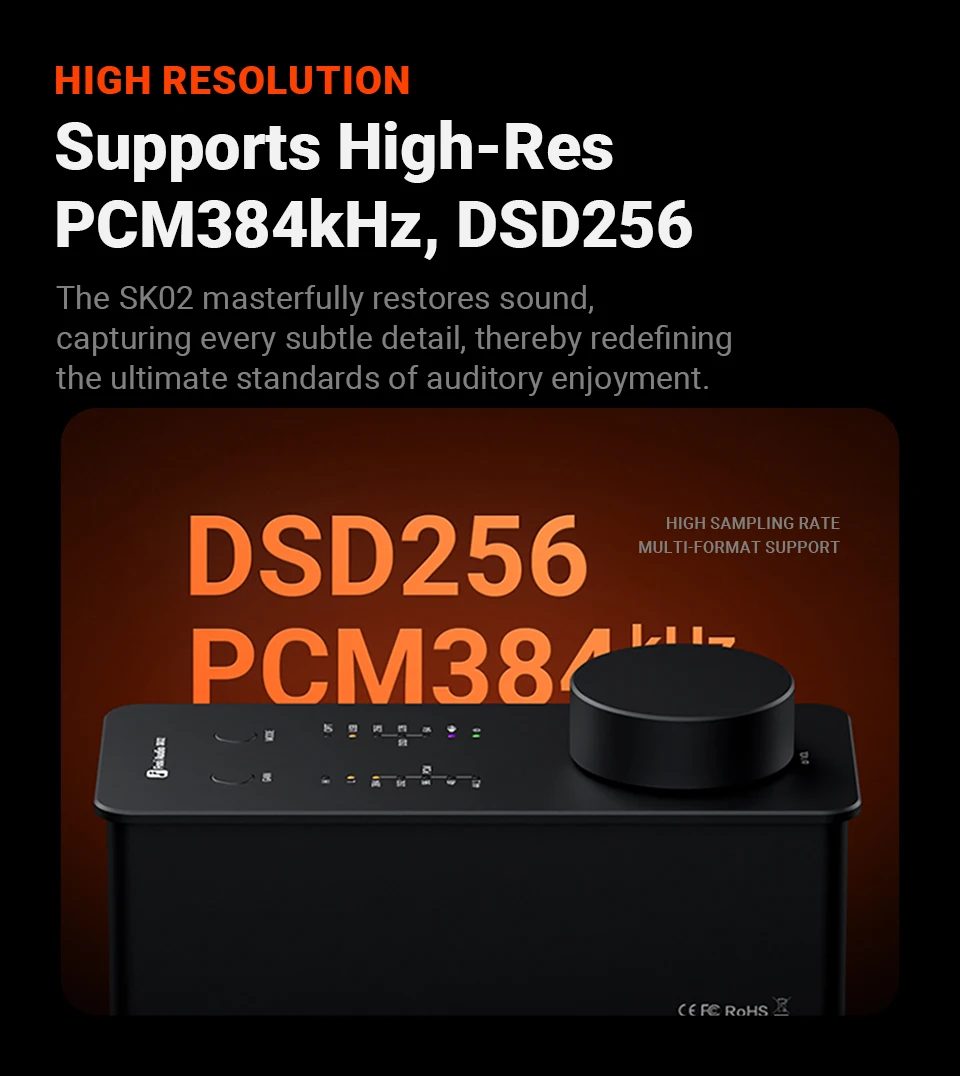

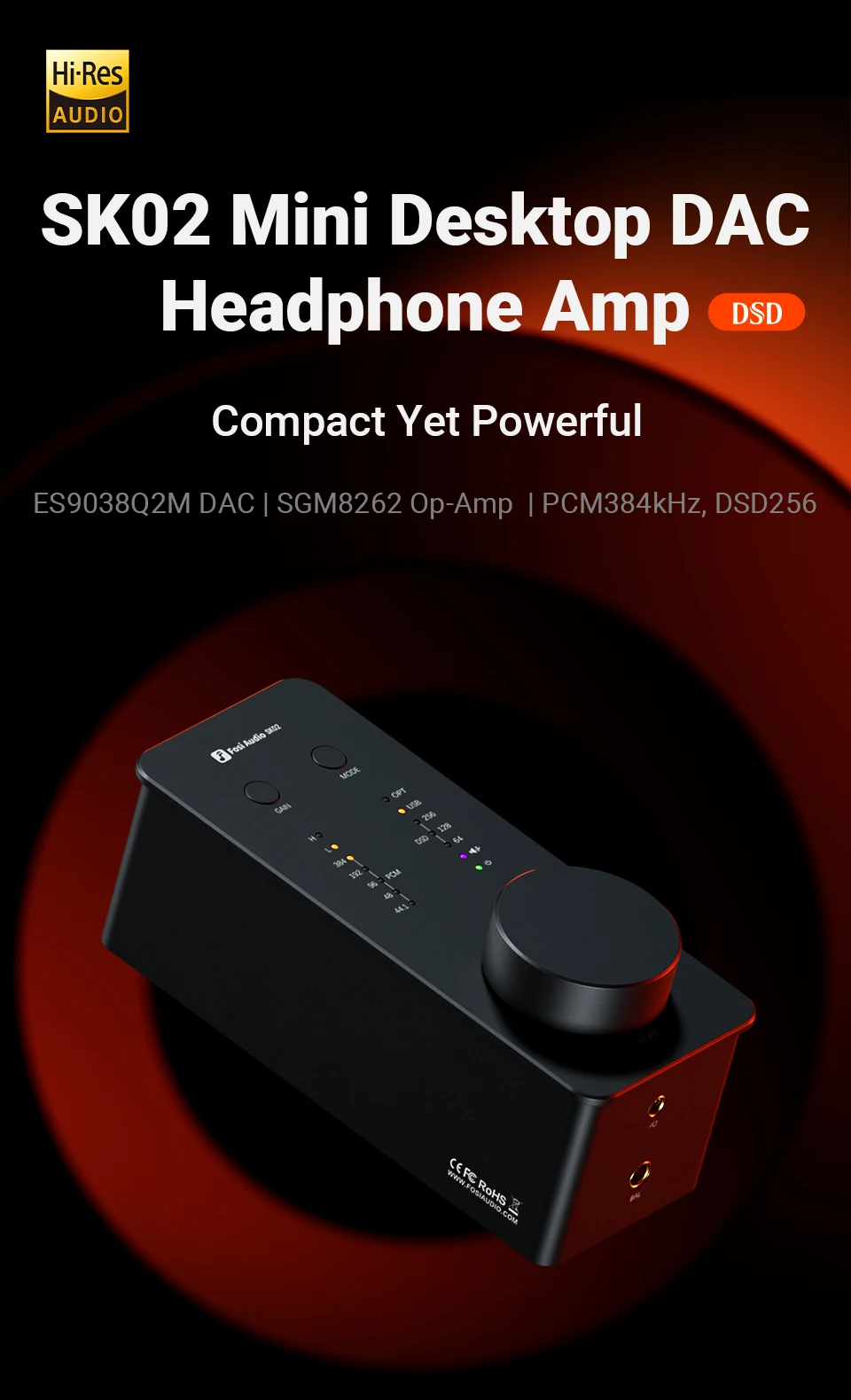

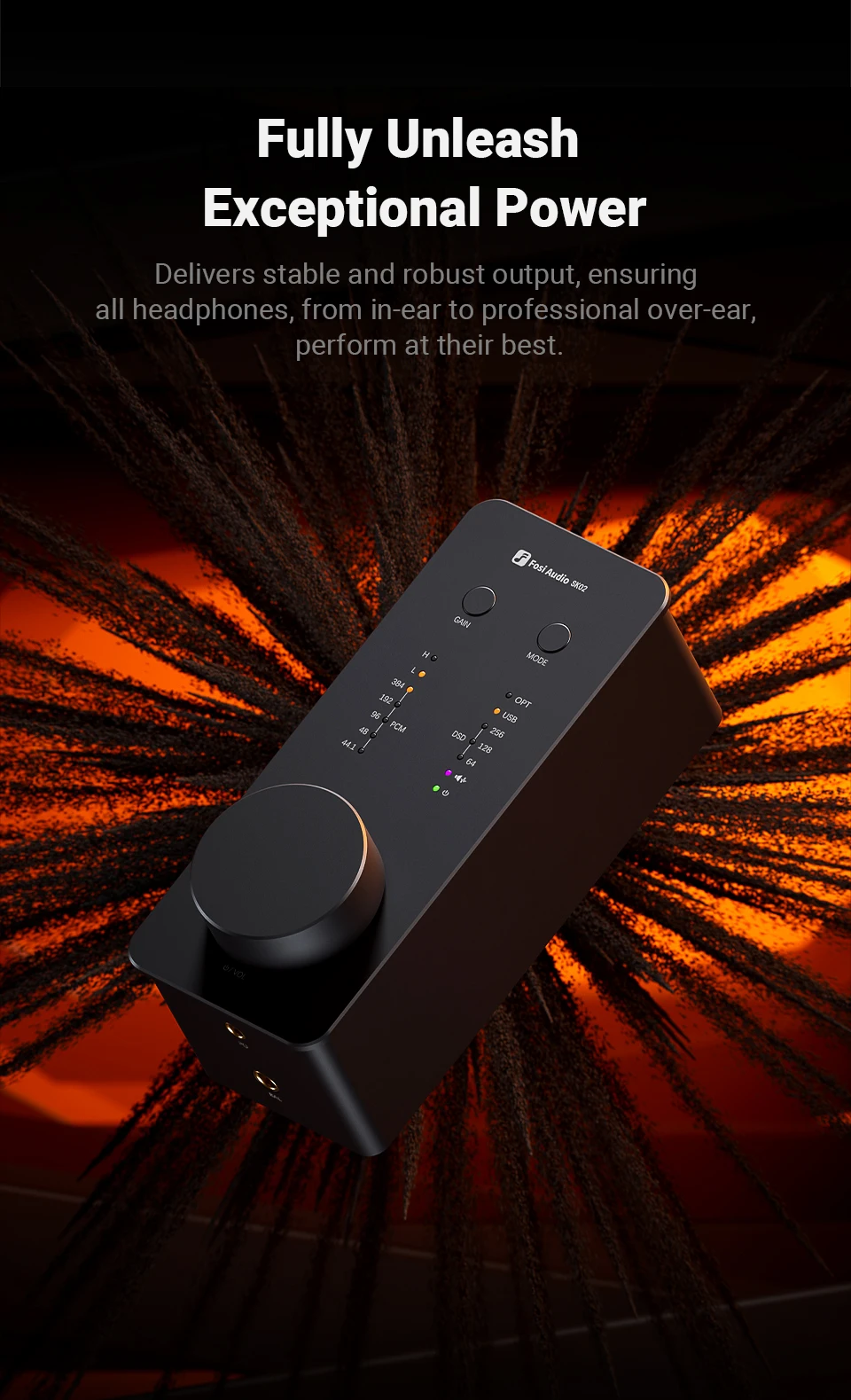

*Compact Yet Powerful: The SK02 employs a minimalist and stylish design language. Despite its small size, it boasts mighty features. It supports DSD256 and PCM 32bit/384kHz high-resolution decoding, along with 3.5mm single-ended and 4.4mm balanced headphone outputs. Its robust power can easily drive wide range of headphones and IEMs with an impedance range of 16-300 ohms.

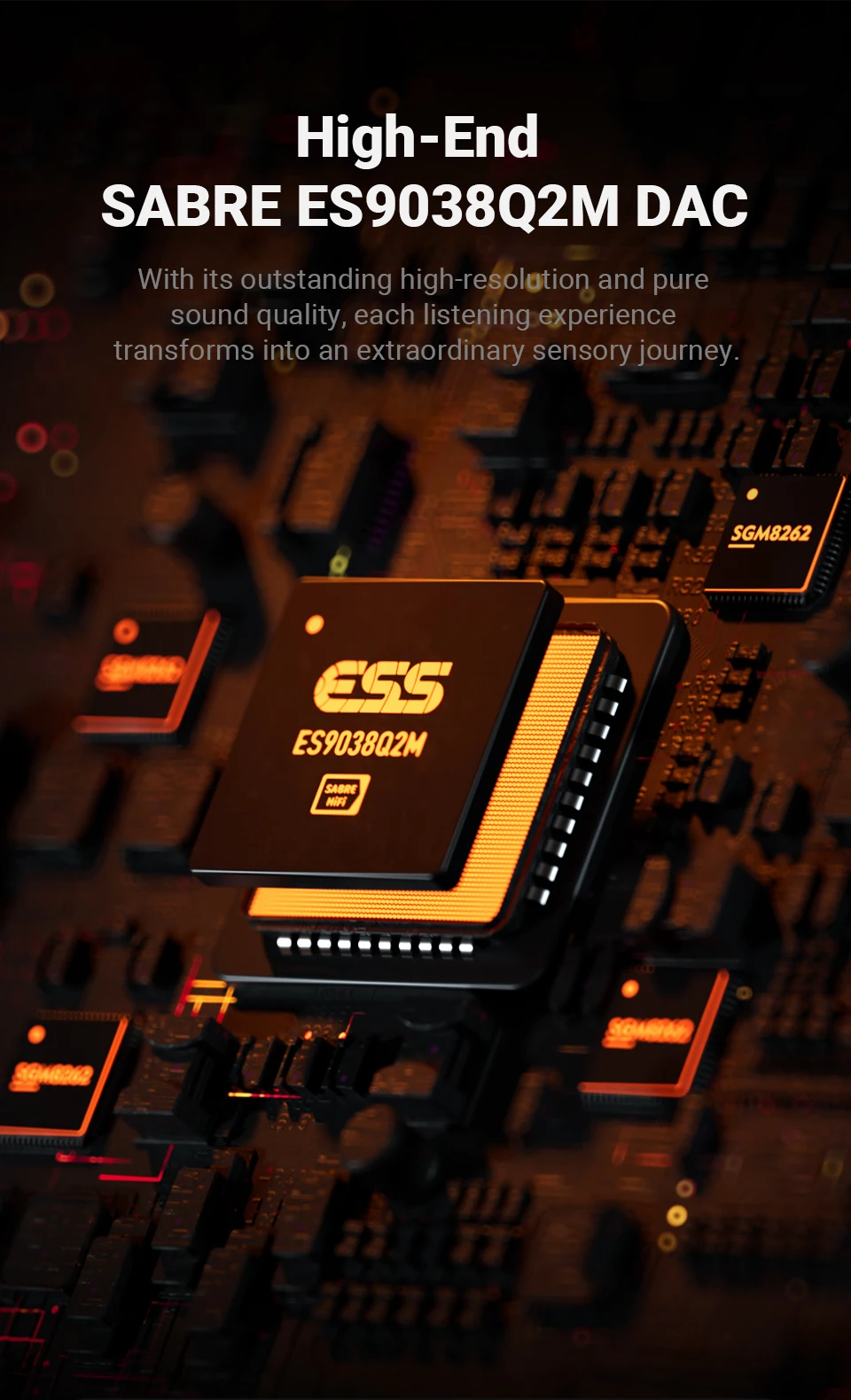

*Stunning Performance: It features a high-end ESS SABRE ES9038Q2M DAC and SGM8262 op-amps. Its excellent circuit design ensures superior parameters with a SNR as high as 120dB, a low noise floor of only 3.7μV, and an incredibly low THD of 0.001%. The 4.4mm balanced output power reaches an impressive 1100mW at 32 ohms. The exceptional high-resolution capability and pure sound quality make every listening experience an extraordinary sensory journey.

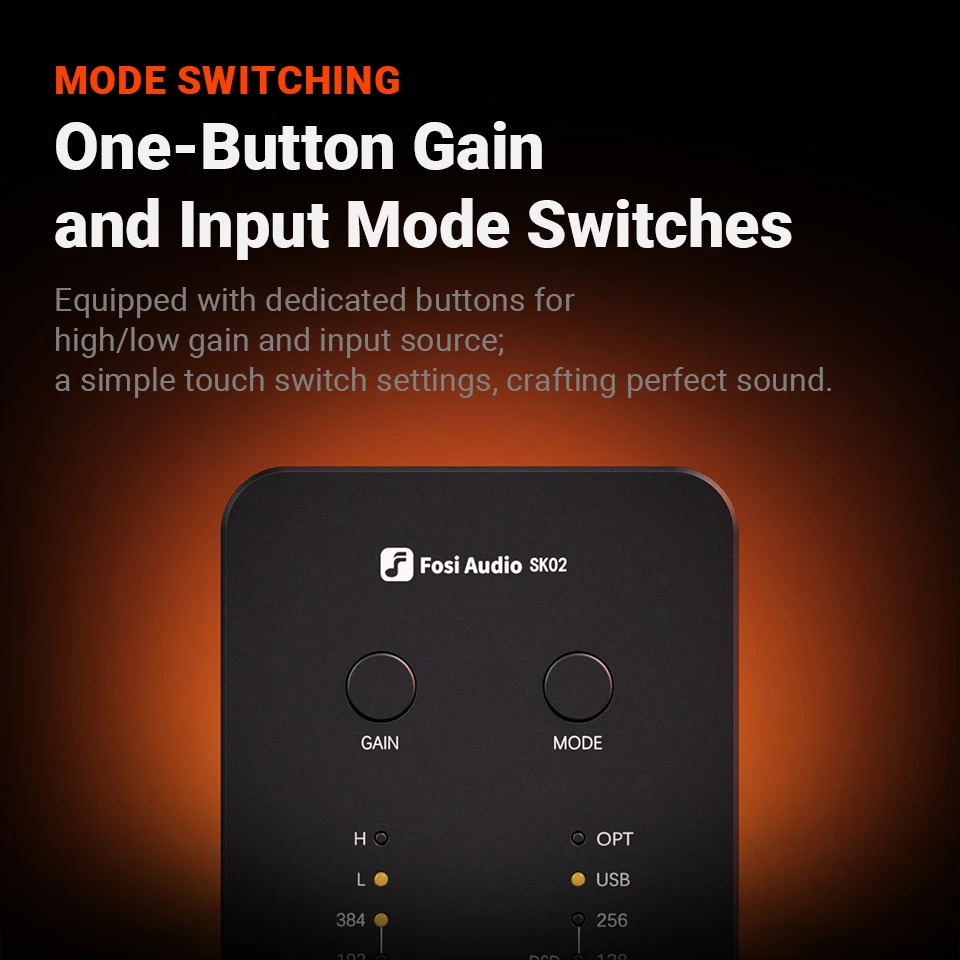

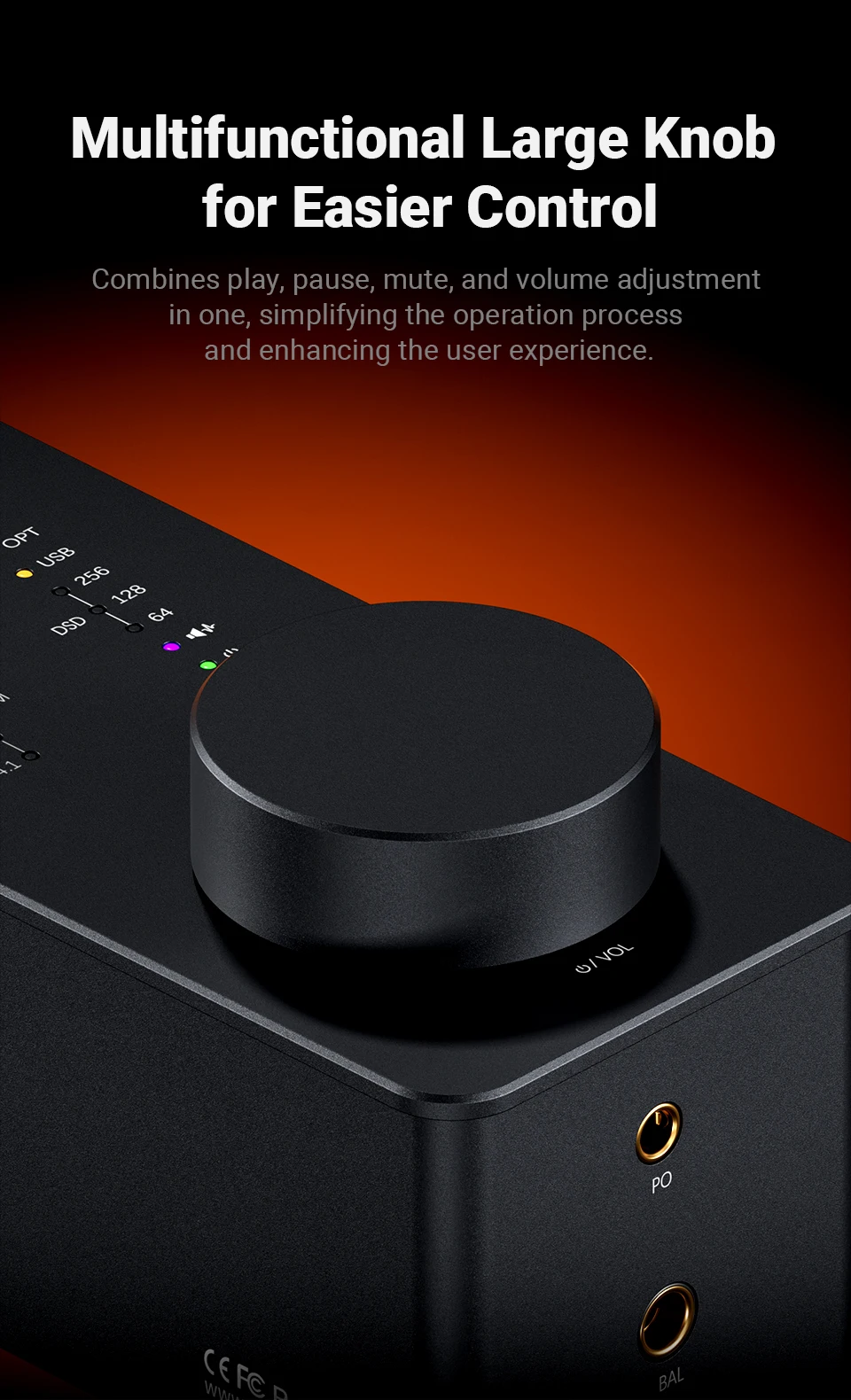

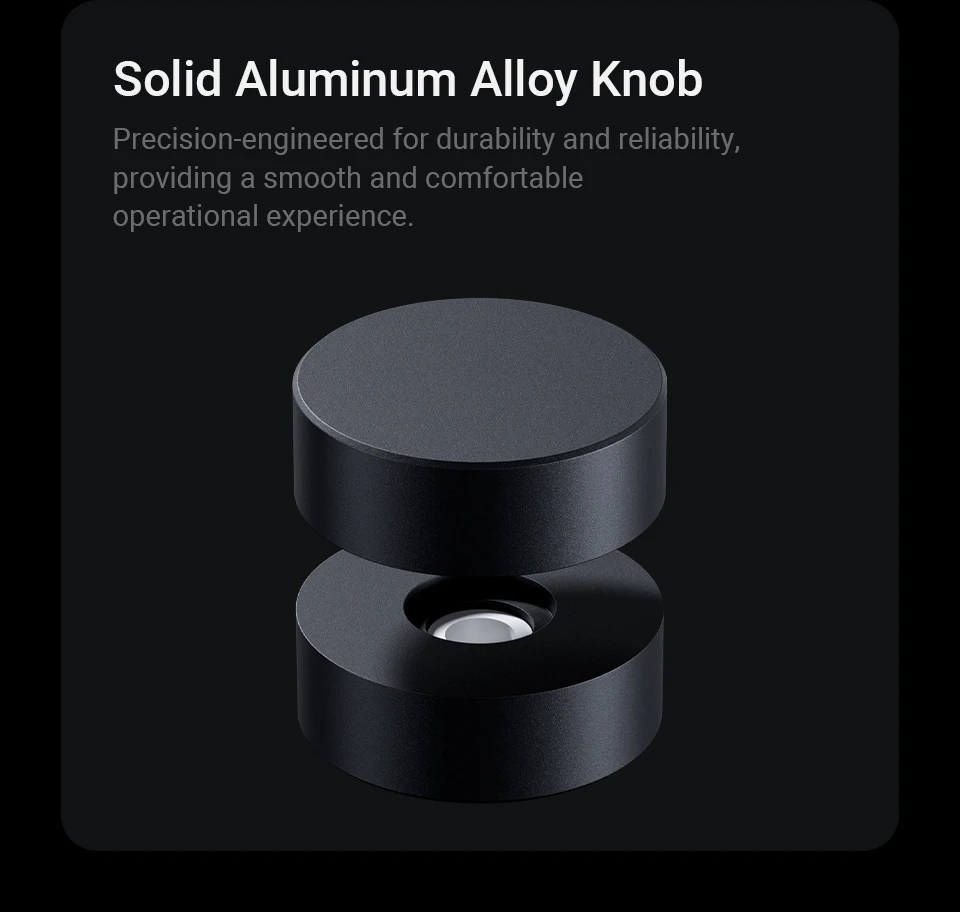

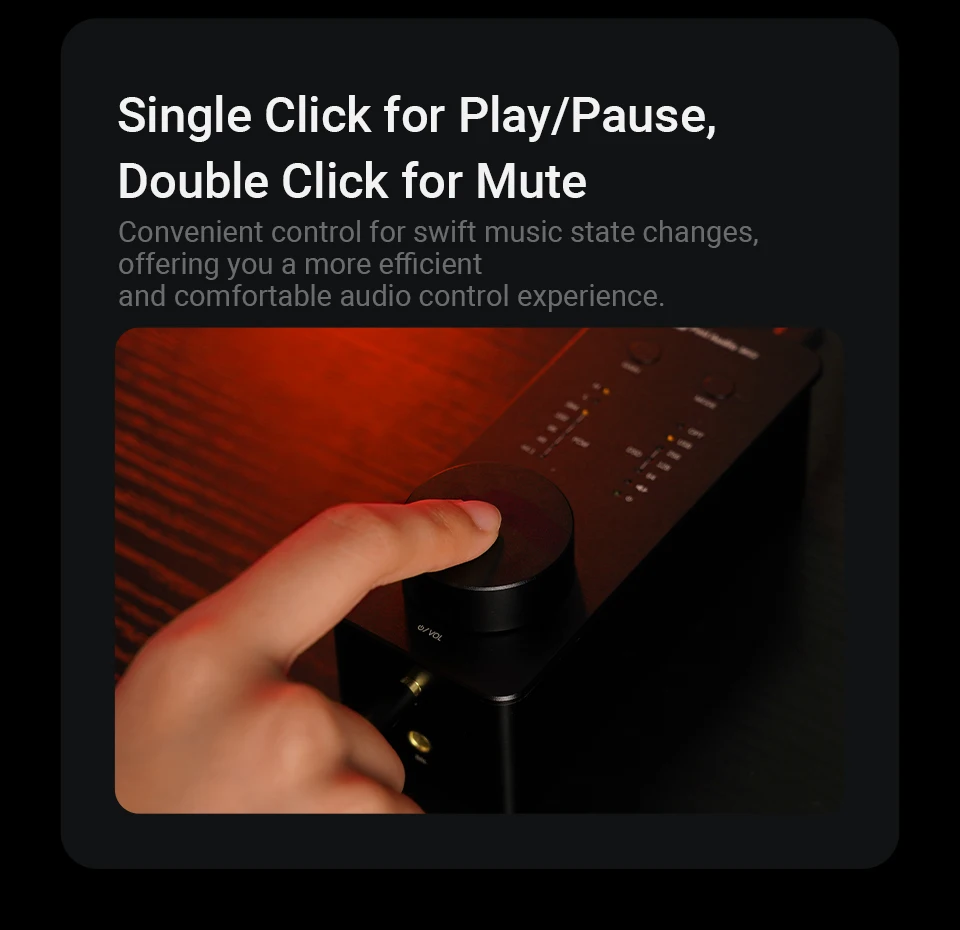

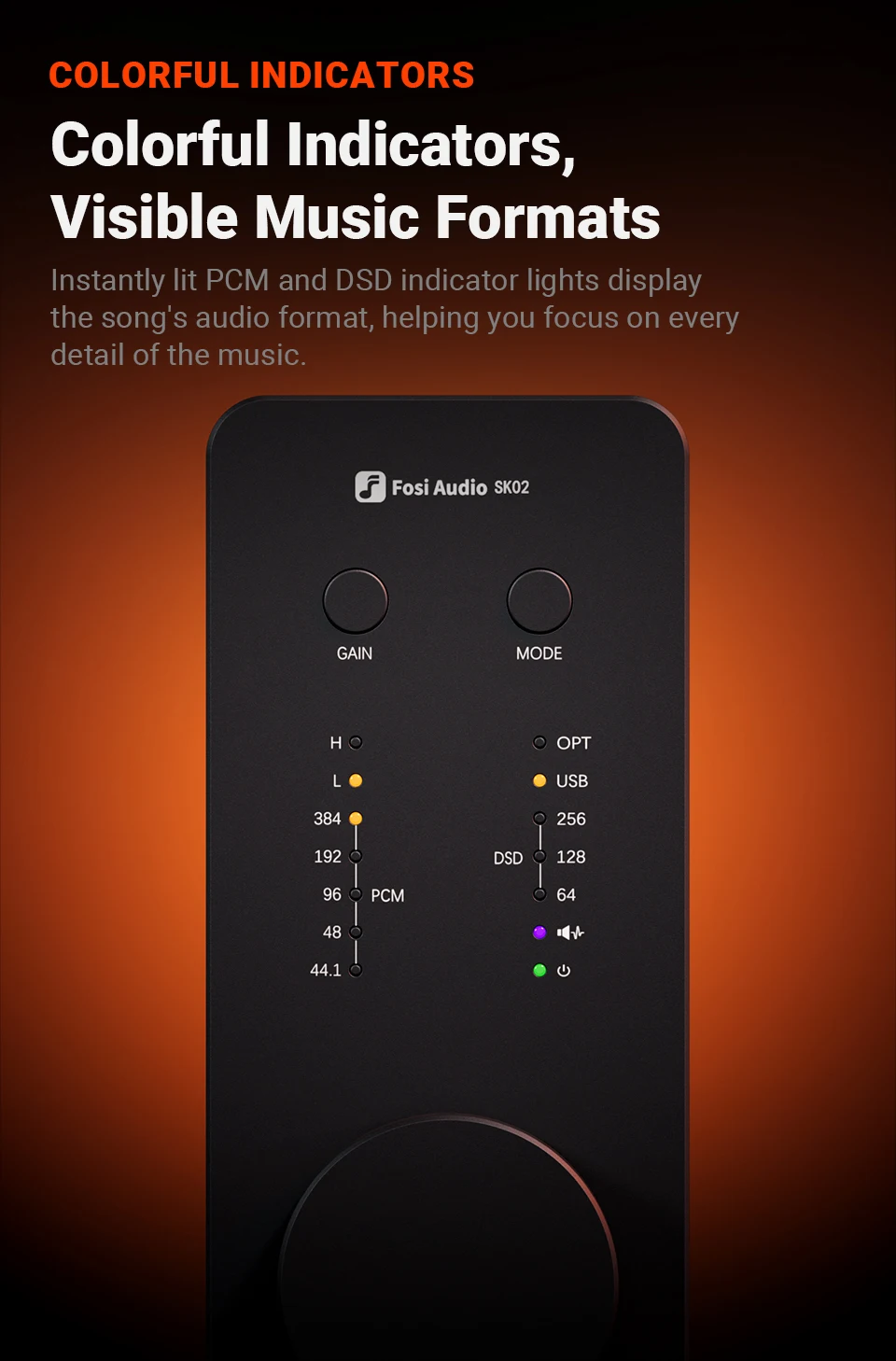

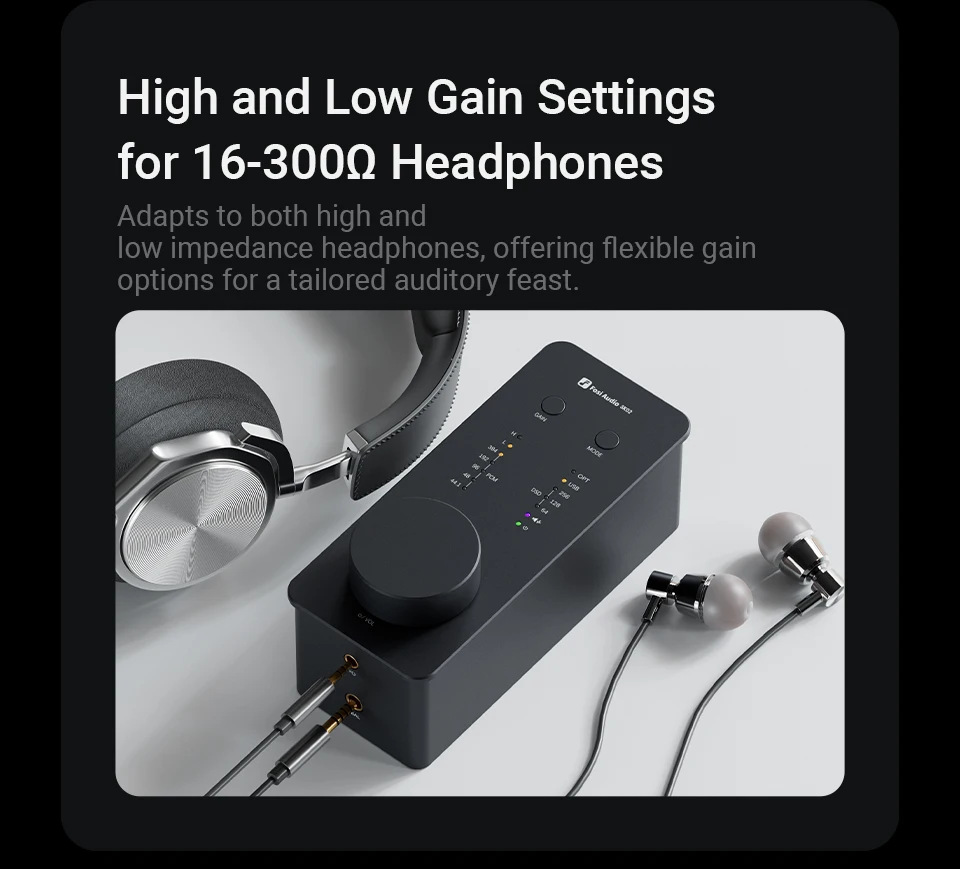

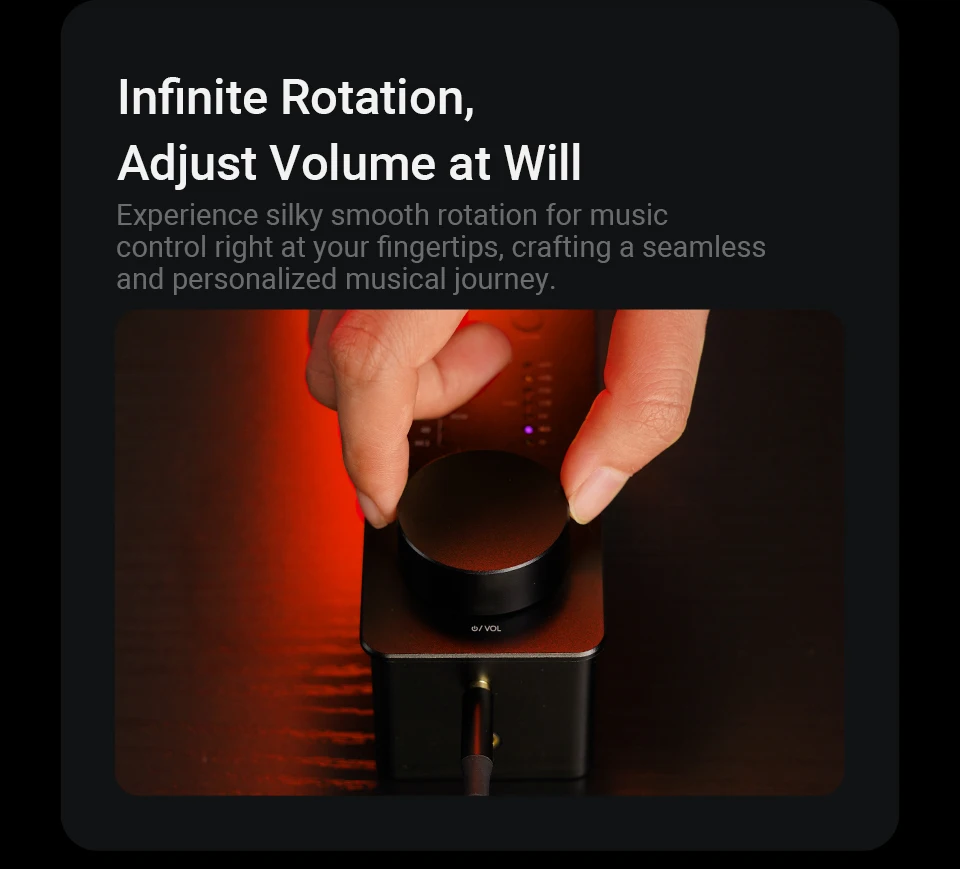

*User-Friendly Design: The SK02 requires no drivers and offers plug-and-play convenience. It integrates a big multi-functional control knob, allowing easy access to power on/off, play/pause, and volume adjustments. The unit features quick-switch buttons for high/low gain and input modes. Additionally, its colorful indicator lights enable effortless identification of the current working mode and the song's sampling rate.

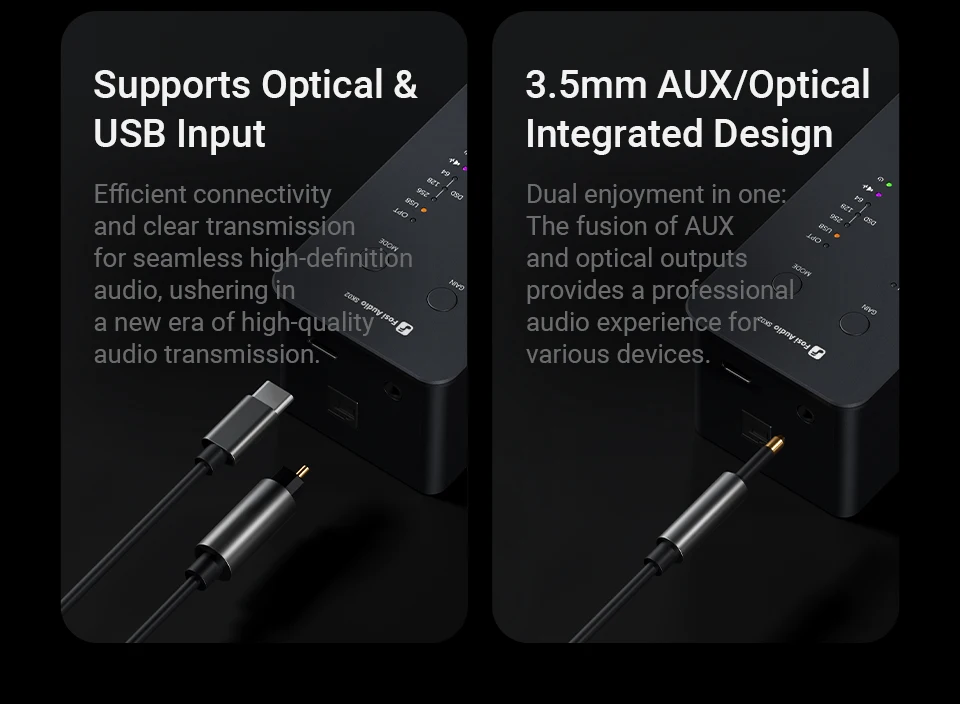

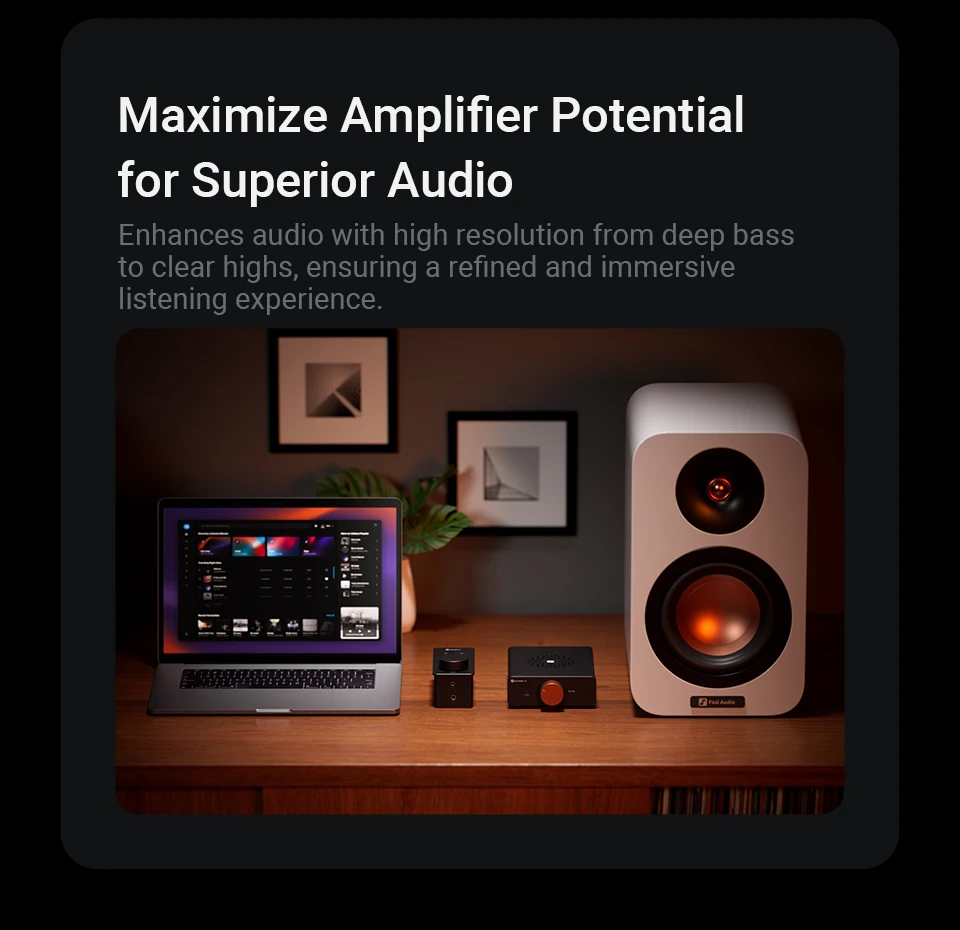

*Remarkable Versatility: Supports USB and optical input, widely applicable for decoding with computers, laptops, CD players, TVs, and projectors. Not only can it function as a headphone amplifier, but it can also serve as a preamp, pairing with active speakers or an amplifier like Fosi Audio V3, ZA3, TB10D amp and passive speakers to form a desktop listening or home audio system.

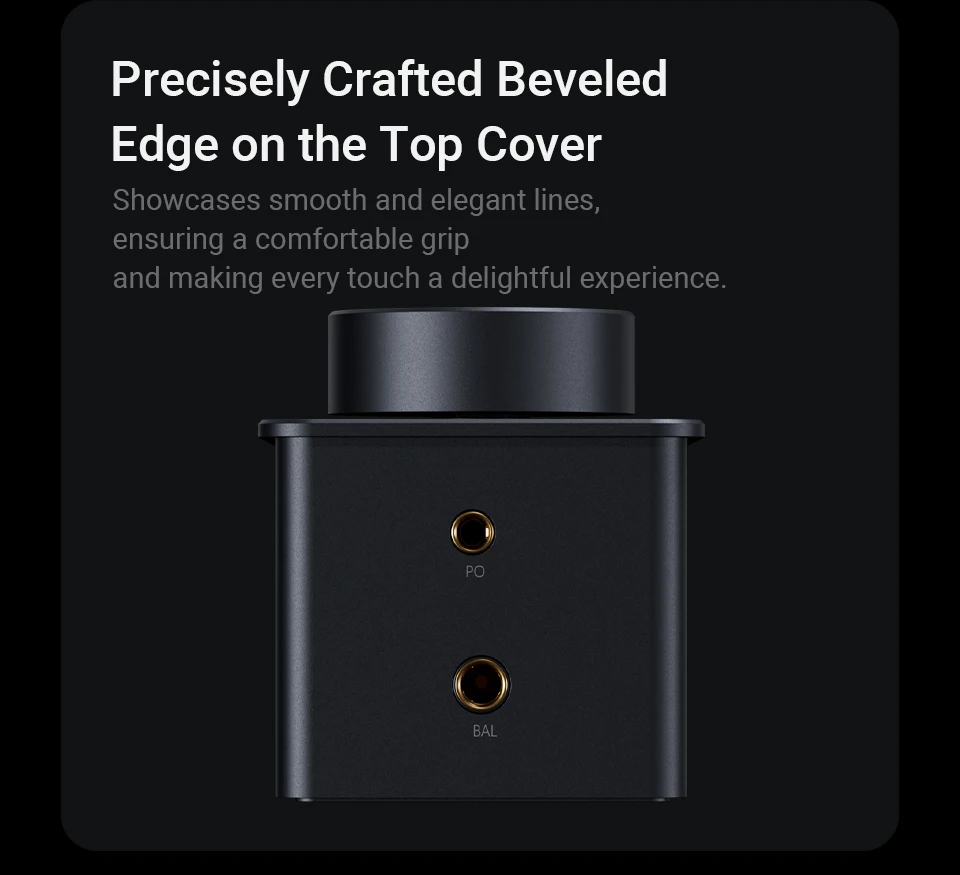

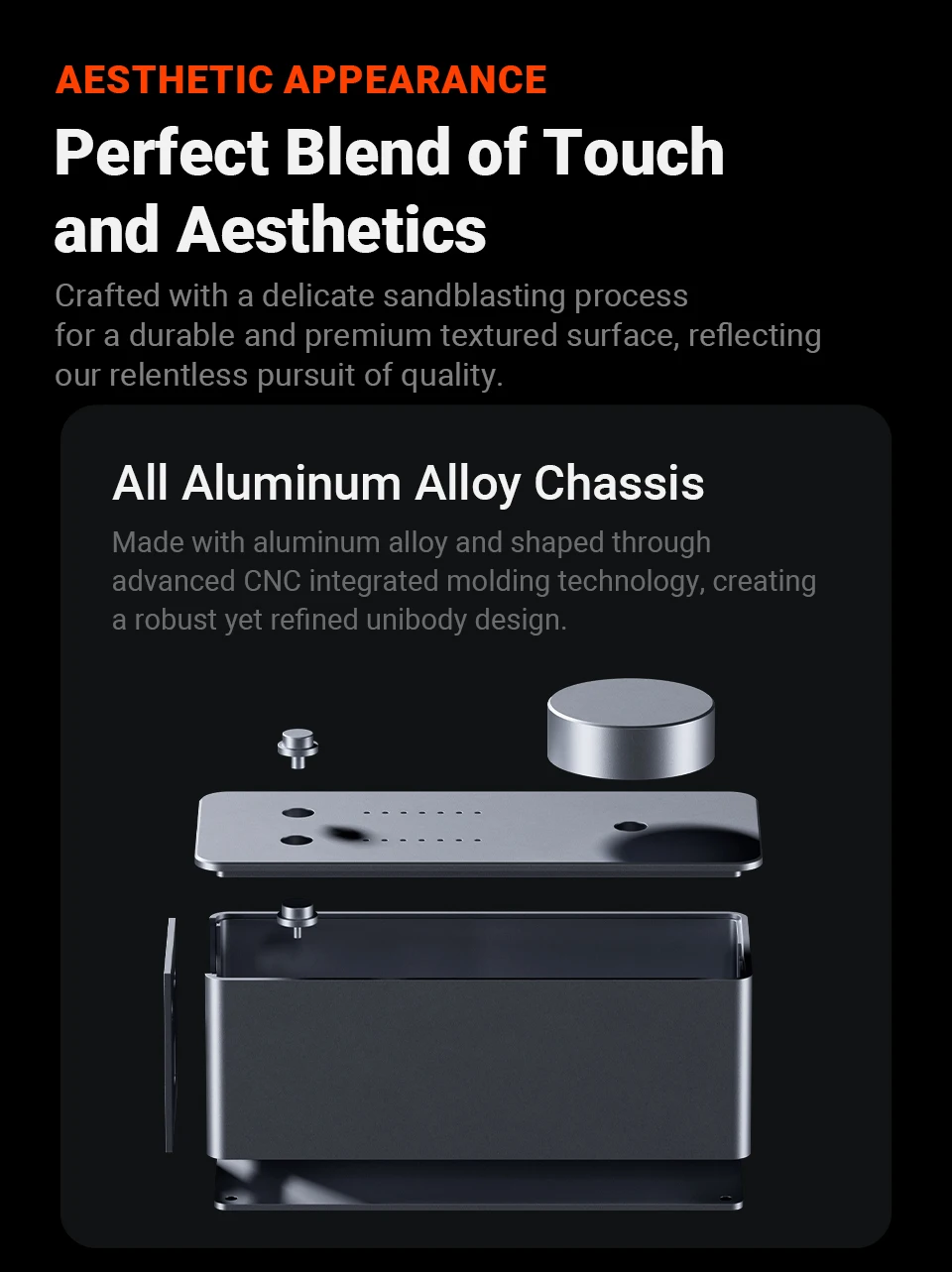

*Exquisite and Durable: The SK02 is crafted from a single piece of aluminum alloy using CNC machining and a delicate sandblasting process. This not only gives it an exquisite appearance but also ensures lasting durability. In addition, Fosi Audio pledges to provide a 24-month worry-free warranty and responsive customer service to all users.

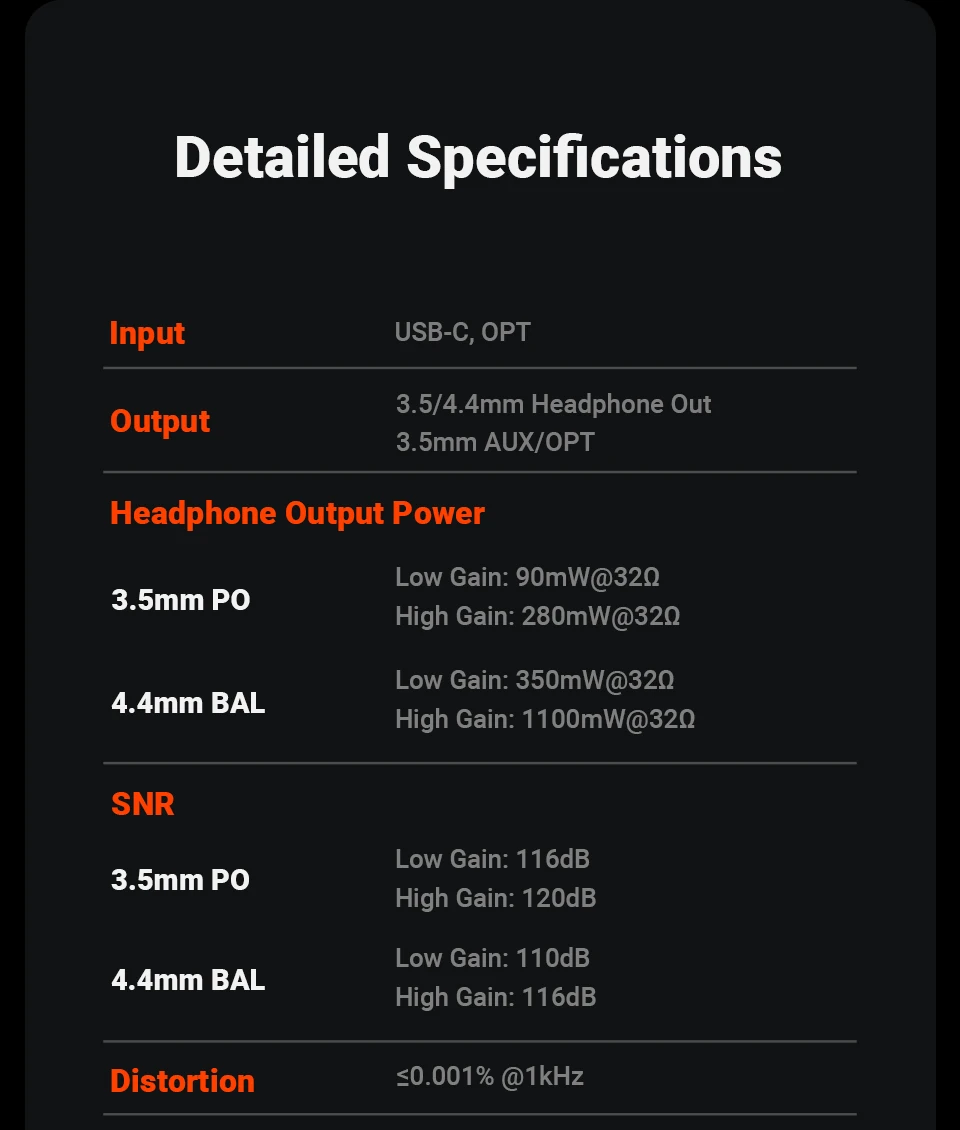

Highlight:

Model: SK02

Input : USB/OPT

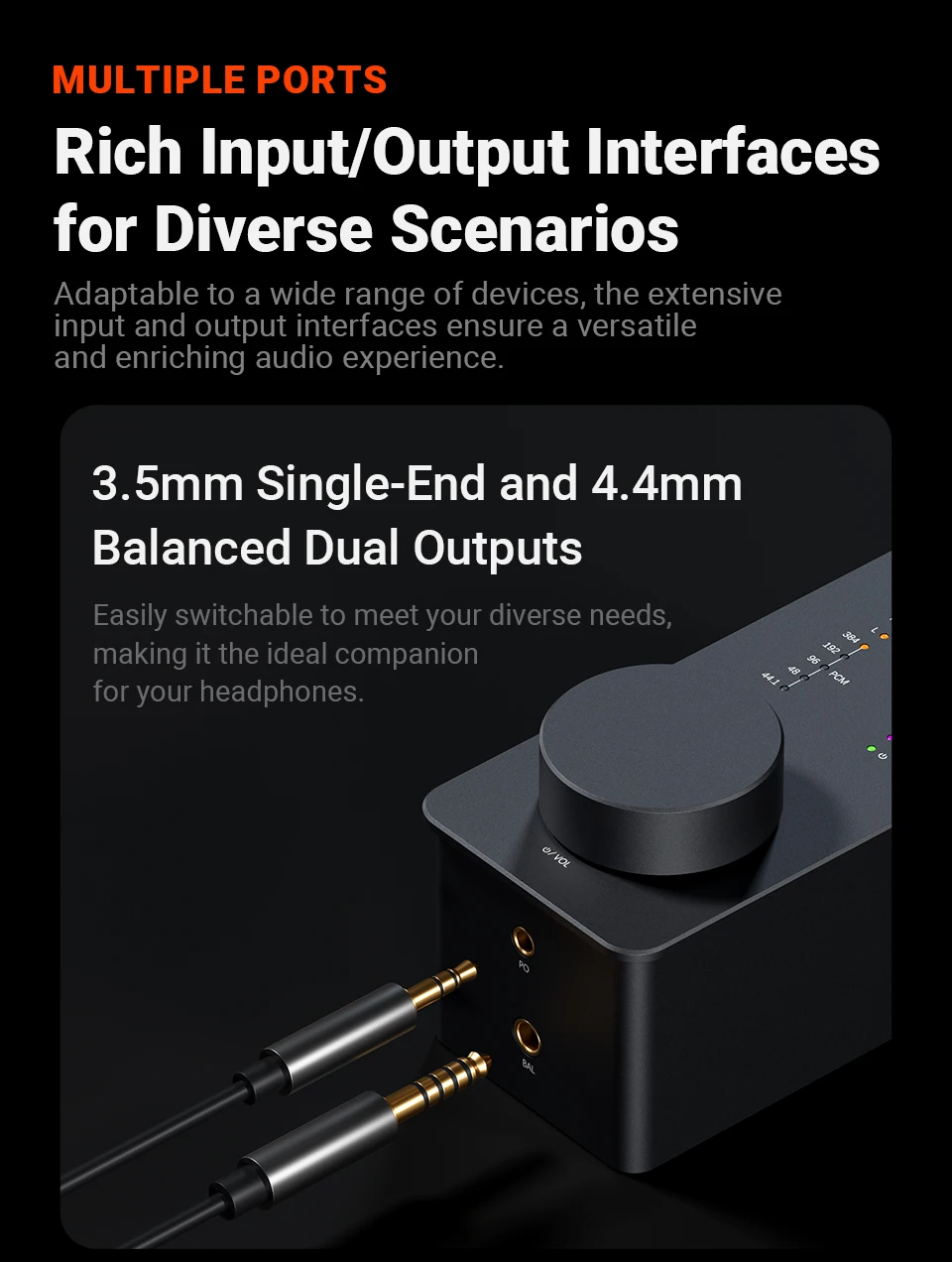

Output : 3.5mm Headphone, 4.4mm Headphone, 3.5MM line out/OPT

Powe Supply:5V

Power Input Interface: USB Type-C

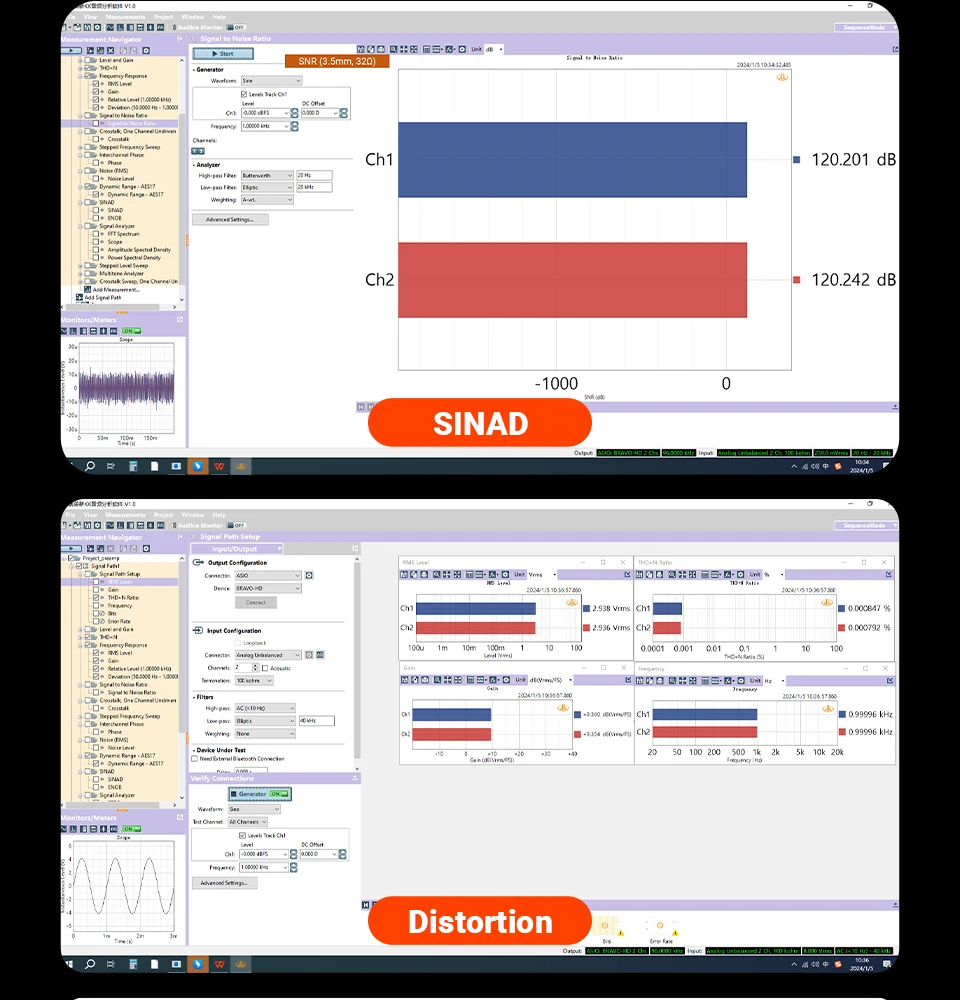

THD≤0.001% @ 1kHz

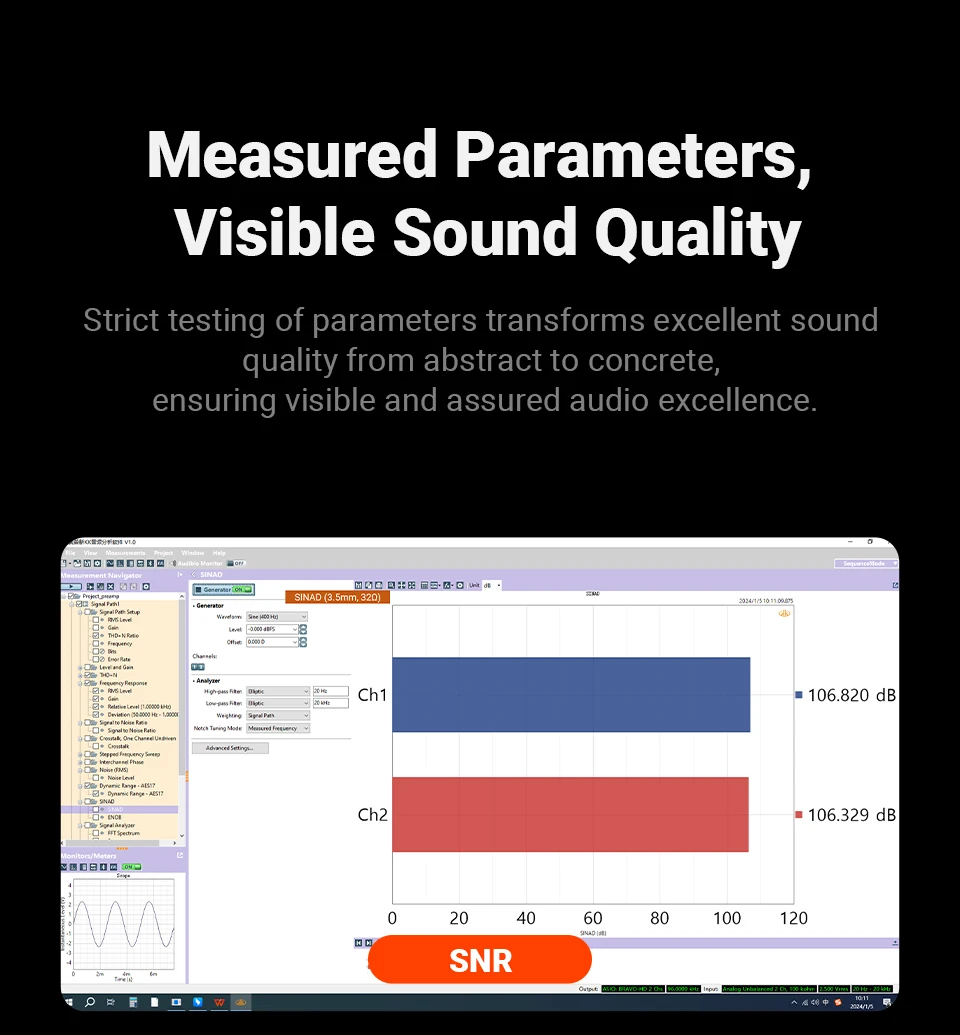

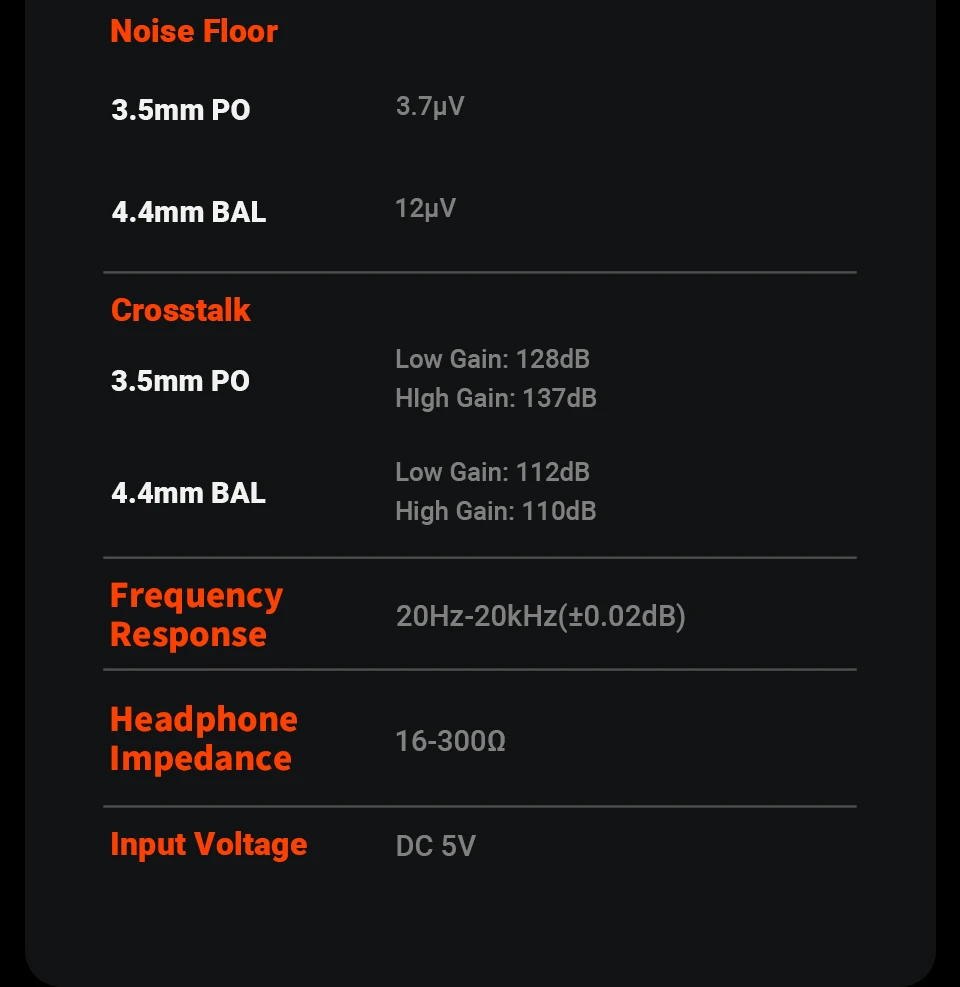

SNR:

      3.5mm Headphone: Low Gain:116dB  High Gain:120dB

      4.4mm Headphone: Low Gain:110dB  High Gain:115dB

Frequency response: 20Hz-20kHz (±0.02dB)

Amp output maximum power:

        3.5MM：High Gain: 280mW@32Ω, 130mW@64Ω, 40mW@250Ω, 30mW@300Ω

                        Low Gain: 90mW@32Ω, 50mW@64Ω, 15mW@250Ω, 10mW@300Ω

        4.4MM：High Gain: 1100mW@32Ω, 550mW@64Ω, 150mW@250Ω, 120mW@300Ω

                        Low Gain: 350mW@32Ω, 180mW@64Ω, 50mW@250Ω, 40mW@300Ω

Headphone matching impedance: 16-300Ω

PC-USB Sampling Rate: 32Bit/384KHz DSD256

OPT Sampling Rate: 24Bit/192KHz

DAC Chip: ES9038Q2M

Size (L*W*H): 4.76*2*1.69inch (121*51*43mm)

Net Weight: 0.84lb/380g
