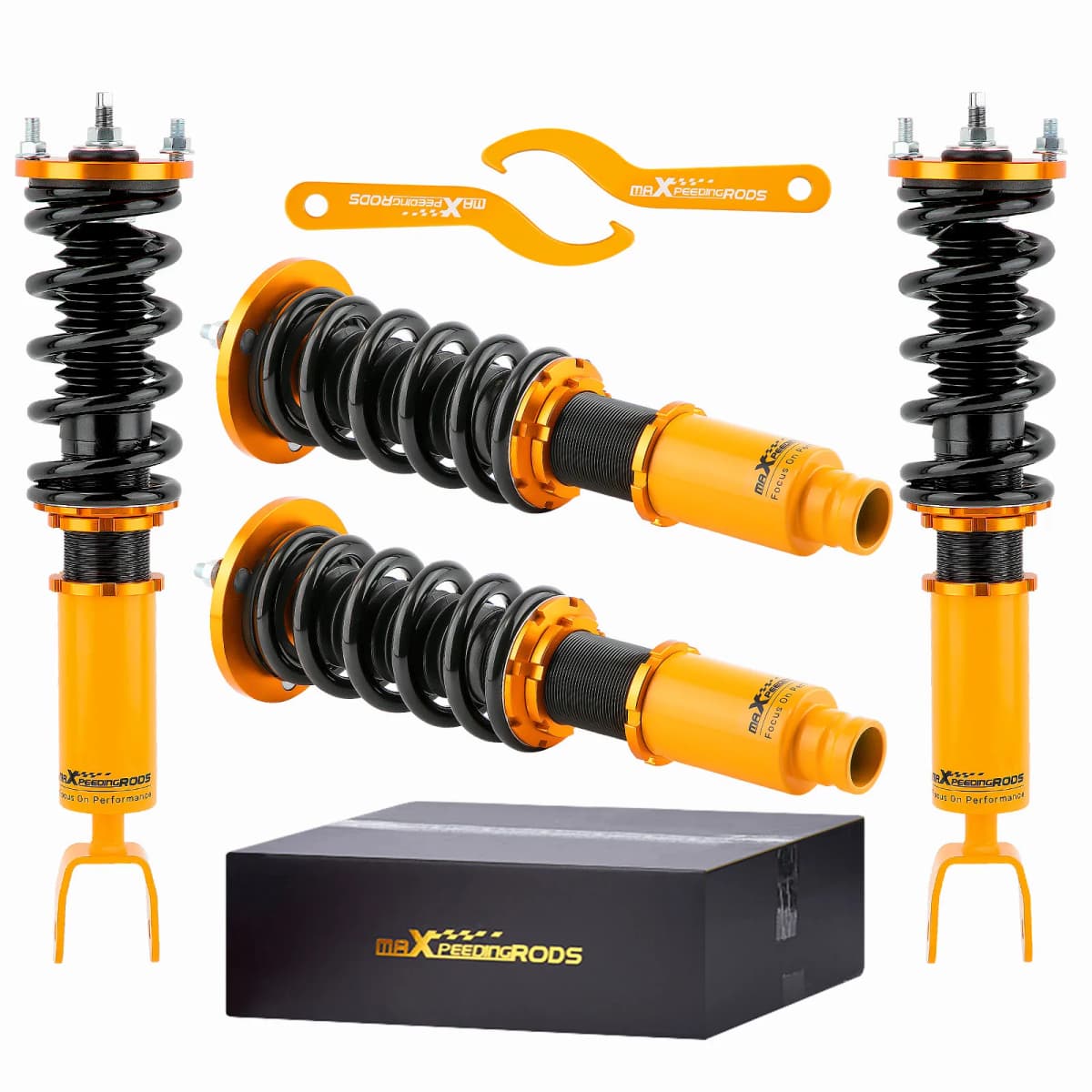

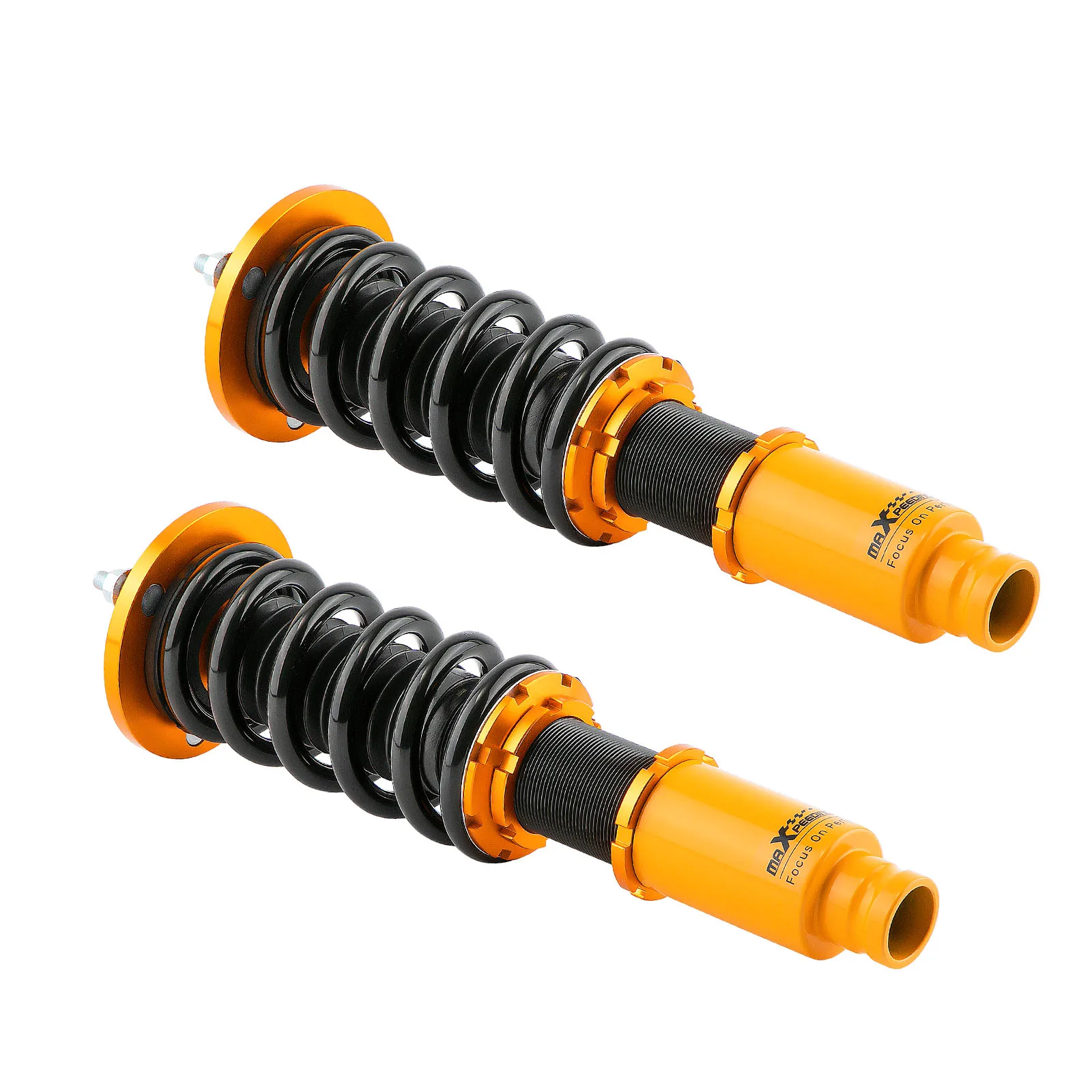

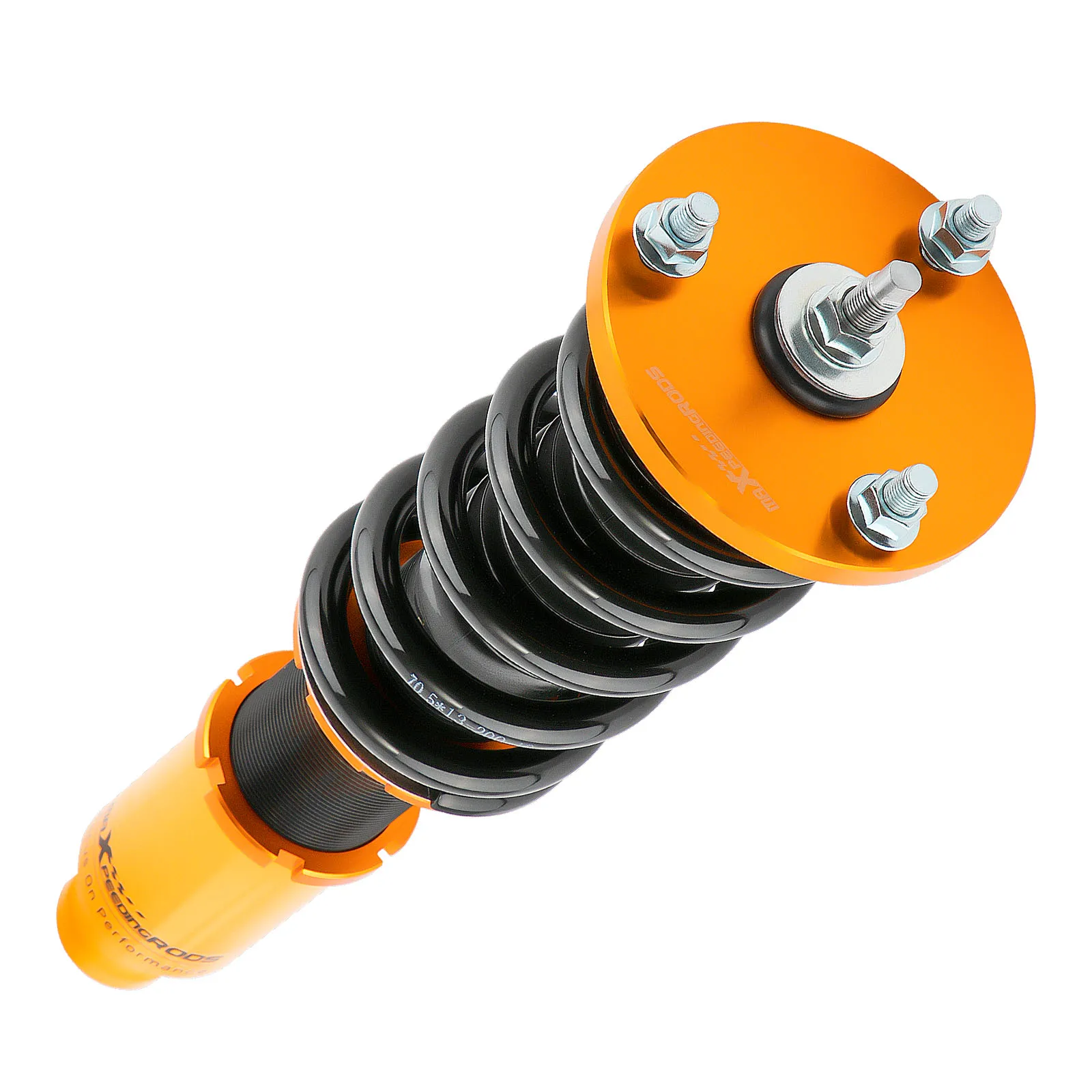

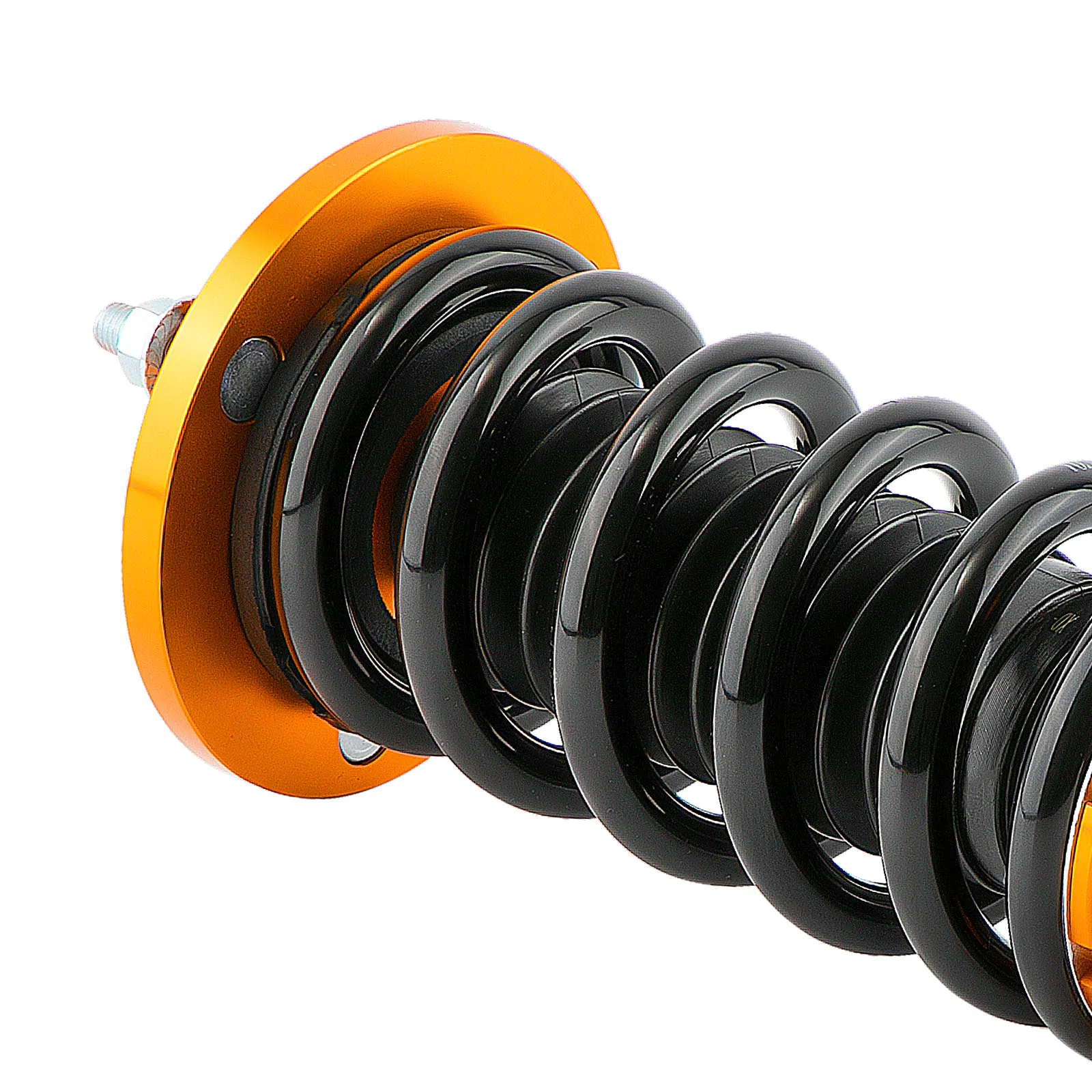

Adjustable Coilovers Coils Springs Kit For Honda ACCORD 08-12 for Acura TSX 09-15 Shocks Struts

Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles),  which offer you a lowered stance, and improved performance for your daily use vehicle.

Application

For Accord Euro (Australia and New Zealand) 2008.6-2015.7

For Honda Accord VIII LX,SE,LX-P sedan CP2 2008-2012

For Honda Accord VIII LX,SE,LX-P sedan CP3 2008-2012

For Honda Accord VIII LX,SE,LX-P coupe CS1(north American only) 2008-2012

For Honda Accord VIII LX,SE,LX-P CS2 (north American only) 2008-2012

For Honda Accord VIII LX,SE,LX-P sedan CU1 CU2 CU3 2008-2015

For Honda Accord VIII  Tourer 5-door wagon CW1 2008-2015

For Acura TSX (North America) 2009-2015

Specification

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping : Not adjustable

Top mounts: Front and rear standard rubber

Camber adjustable: Not available

Spring Rate Front: 10 kg/mm (560 lbs/in)

Spring Rate Rear: 7 kg/mm (392 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 200 mm

Spring length Rear: 200 mm

Spring Preload advised: 7-10 mm

Shock Type: Twin tube

Package included

2x Front coil-overs

2x Rear coil-overs

2x C spanners

Dimension

Package Size: 70*50*20 cm

Weight: 25050 g

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

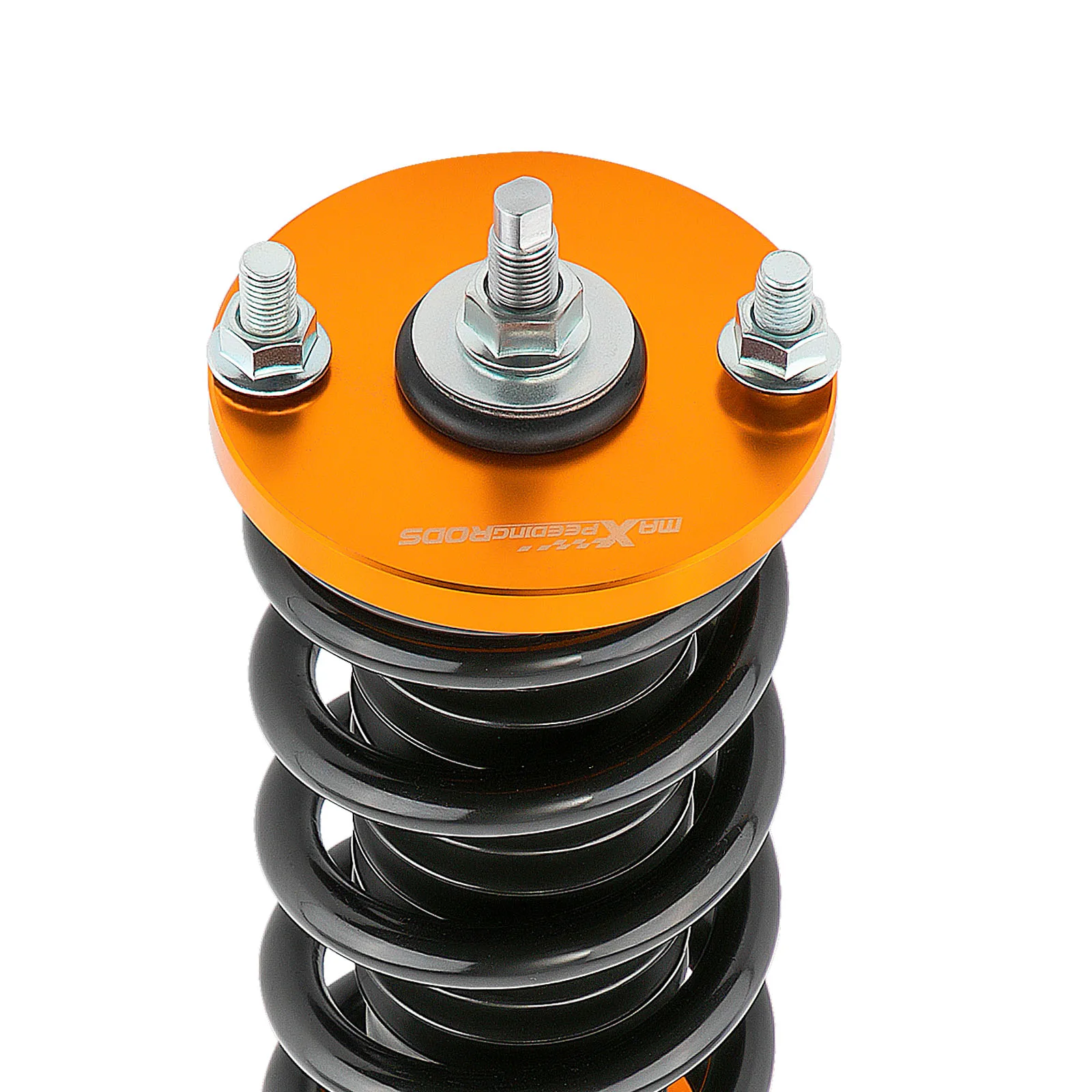

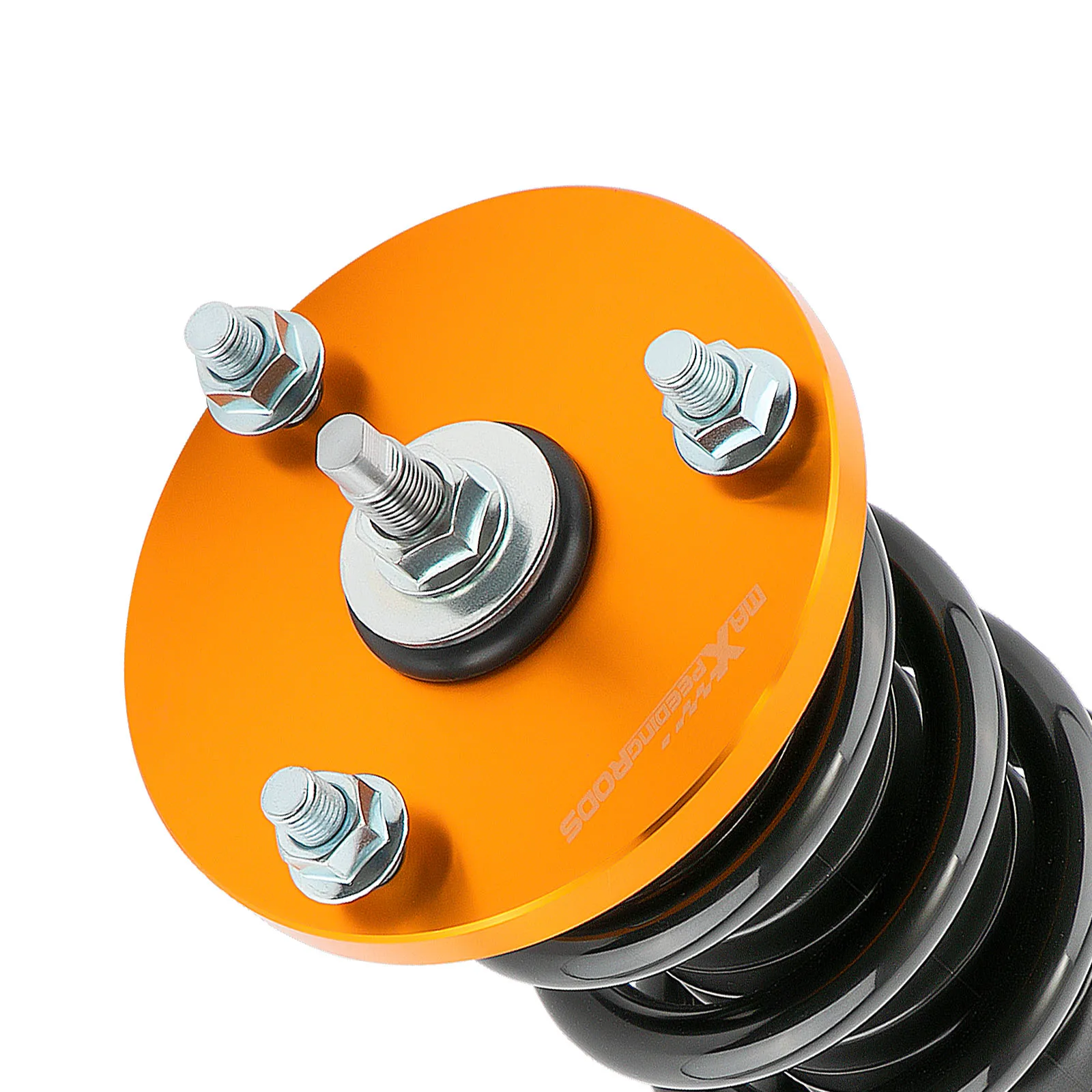

4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
