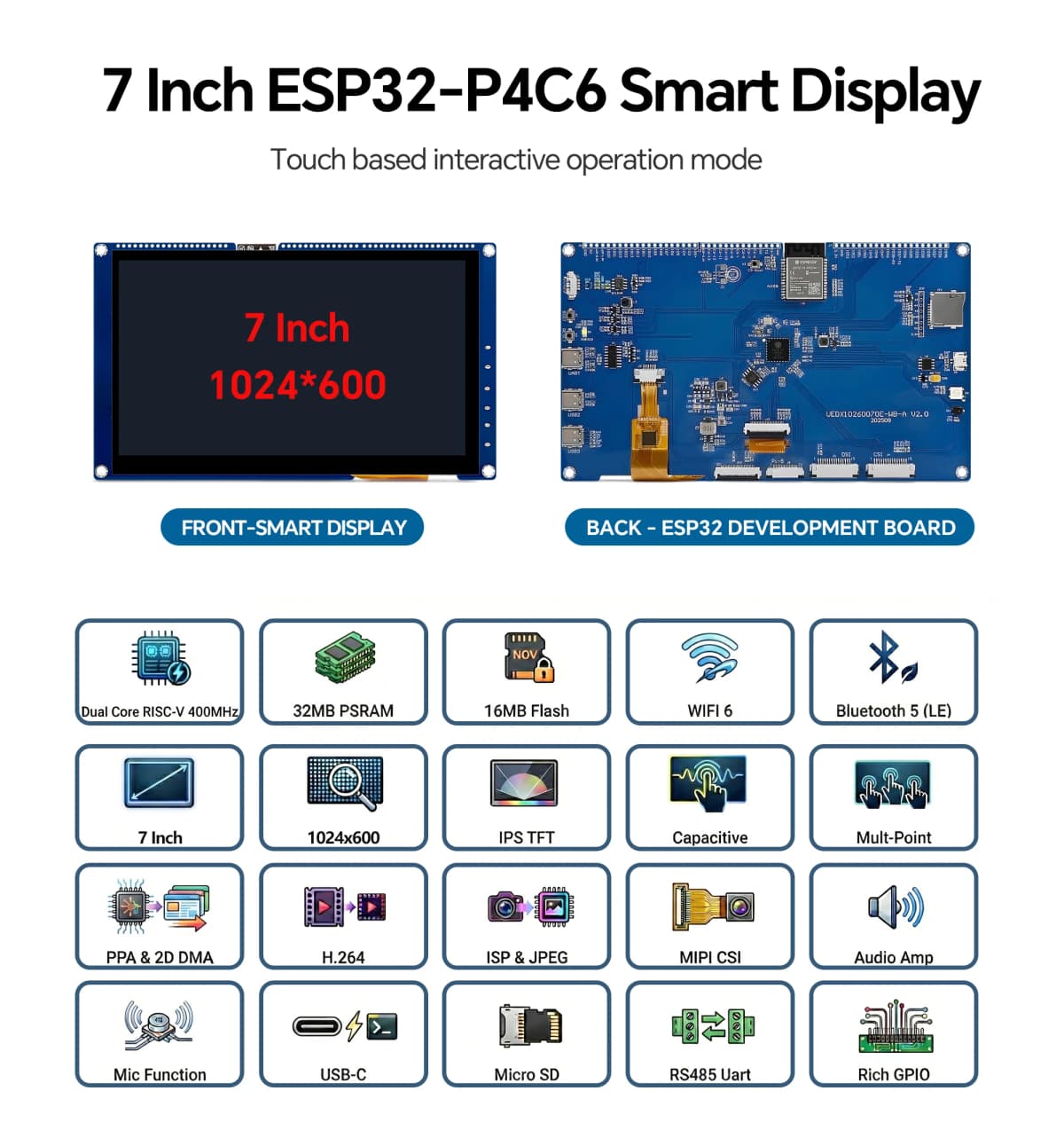

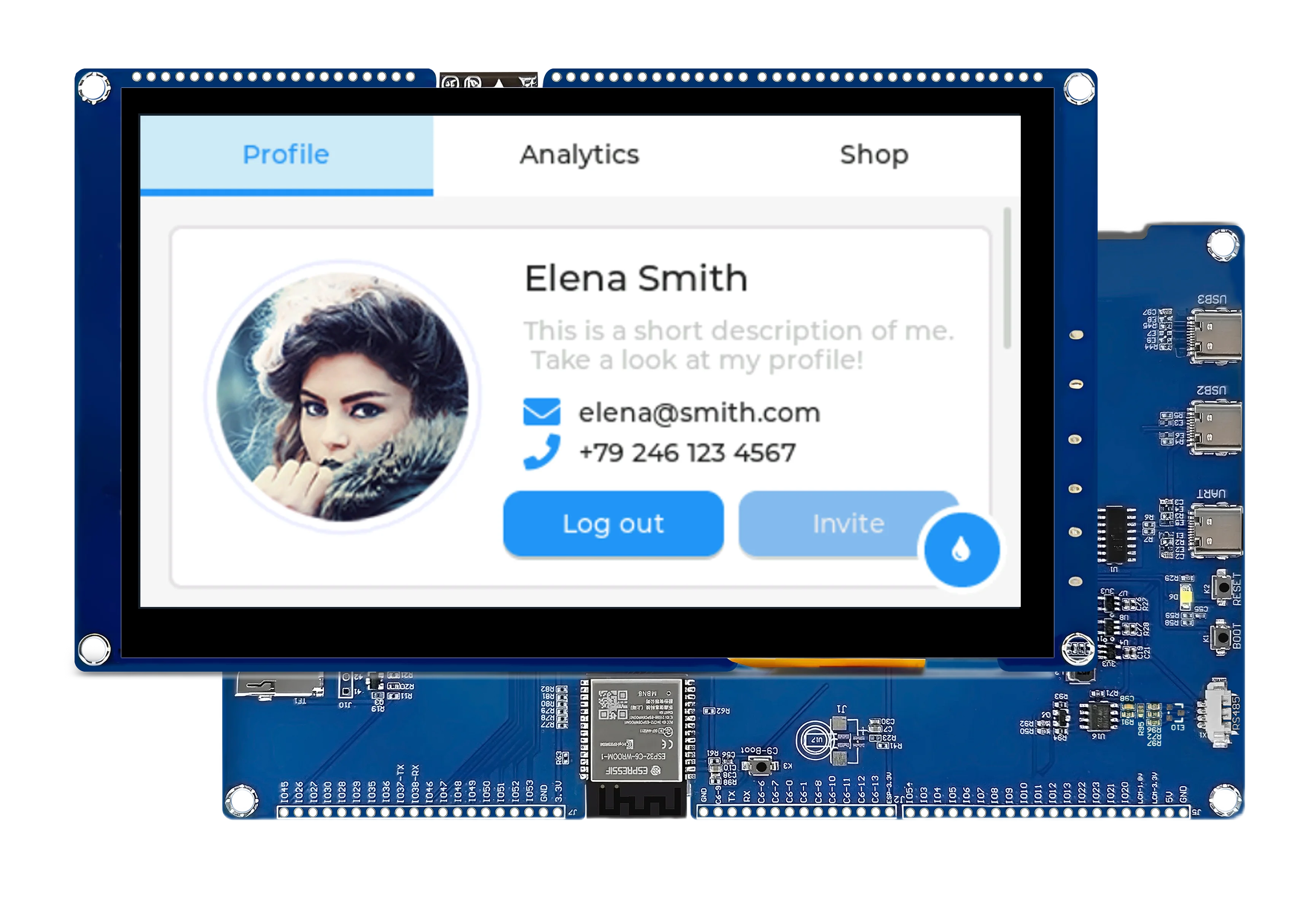

ESP32-P4 Development Board 7.0" 1024x600 IPS Touch Display for Industrial HMI, AI IoT Projects

7 Inch 1024×600

ESP32-P4 WIFI6 Touch Smart Uart Display

Redefining Edge HMI with Dual-Chip Power

UEP4S070H1024V600C-WBA is a high-performance development board and smart display featuring a brilliant 7-inch MIPI-DSI IPS Display (1024×600). Powered by the ESP32-P4 (400MHz) for computing and ESP32-C6 for Wi-Fi 6 & Bluetooth 5 connectivity.

CPU: ESP32-P4 Dual-Core RISC-V @ 400MHz

Memory: 32MB Stacked PSRAM + 16MB Flash

Display: 7″ IPS 1024×600 Capactive Touch with PPA & H.264 Acceleration

Wireless: Wi-Fi 6 & Bluetooth 5 via ESP32-C6 Co-processor

IO Interfaces: RS485, USB OTG, UART, SDIO and 34×GPIOs

A/V Support: MIPI-CSI Camera, Mic, and Speaker support

Development: Supports ESP-IDF, Arduino, and LVGL UI framework.

Features

UEP4S070H1024V600S is a high-performance 7-inch 1024×600 ESP32-P4 Smart HMI Display and Development Board powered by the dual-chip architecture of ESP32-P4 and ESP32-C6 (WIFI6 BLE5). Featuring a brilliant 1024×600 IPS TFT touch screen, massive 32MB PSRAM + 16MB Flash, and integrated Wi-Fi 6 connectivity, it is designed to run complex GUIs like LVGL smoothly. Whether for home automation, industrial control, aiot application or edge AI, this smart display delivers ultimate performance and rapid deployment.

Ultimate Performance: Powered by the ESP32-P4 (RISC-V Dual-Core @ 400MHz) with 32MB PSRAM and 16MB Flash. This powerful cpu and massive memory configuration ensures smooth multitasking and ample storage for rich UI assets and edge computing workloads.

Stunning Visual Experience: Features a 7-inch MIPI-DSI IPS TFT Display (1024×600) with a responsive Multi-point Capacitive Touch Screen. Built-in Pixel Processing Accelerator (PPA), H.264 encoding (1080P@30fps), and 2D graphics acceleration ensure silky-smooth LVGL animations and dynamic multimedia dashboards.

Seamless Connectivity: The onboard ESP32-C6 co-processor enables next-gen Wi-Fi 6 (2.4 GHz) and Bluetooth 5 (LE) connectivity, ensuring robust IoT communication.

Multimodal Interaction: Integrated MIPI-CSI Camera interface (ISP supported), Microphone, and Speaker interfaces allow for advanced AI vision and voice interaction applications.

Industrial Ready: Extensive expansion options including RS485, Uart, USB OTG, SDIO 3.0, and 34 Programmable GPIOs, making it ideal for automation, medical devices, and EV chargers.

Rapid Development: Pre-integrated support for the LVGL UI framework and optimized UART display protocols allows for plug-and-play communication with any MCU or PLC, significantly reducing development time.

Industrial-Grade Stability: Engineered for rigorous environments, robust desgin and high quality manufacture ensure exceptional reliability.

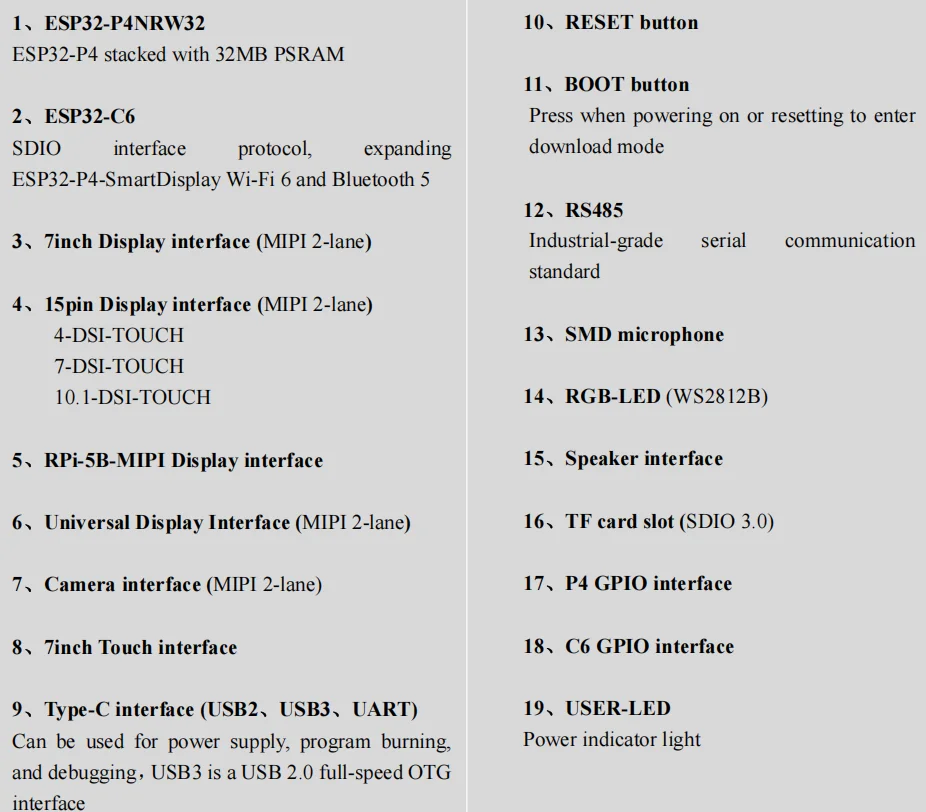

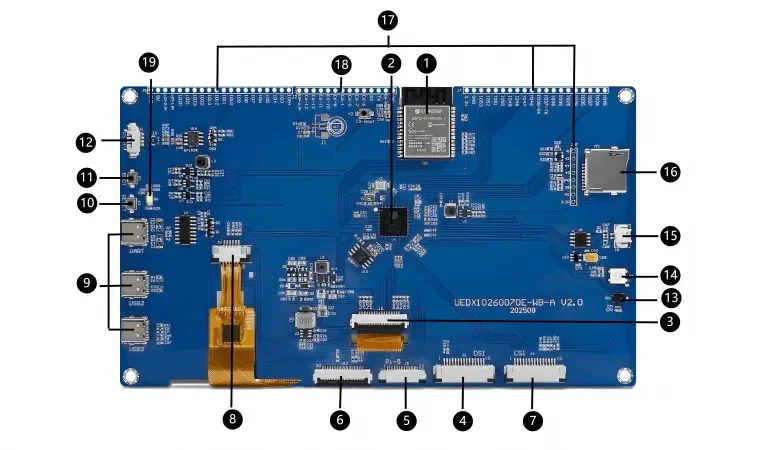

What’s on Board
