Ultrasonic Radar Scanner Sensor Module DC 5V DIY Kit HXFB Graphical Program Support Arduino Distance Detection for Student Learn

DC 5V Ultrasonic Radar Scanner DIY Kit HXFB Graphical Programming Core Board 0-180° Servo Scanning LCD Real-time Display

Product Features:

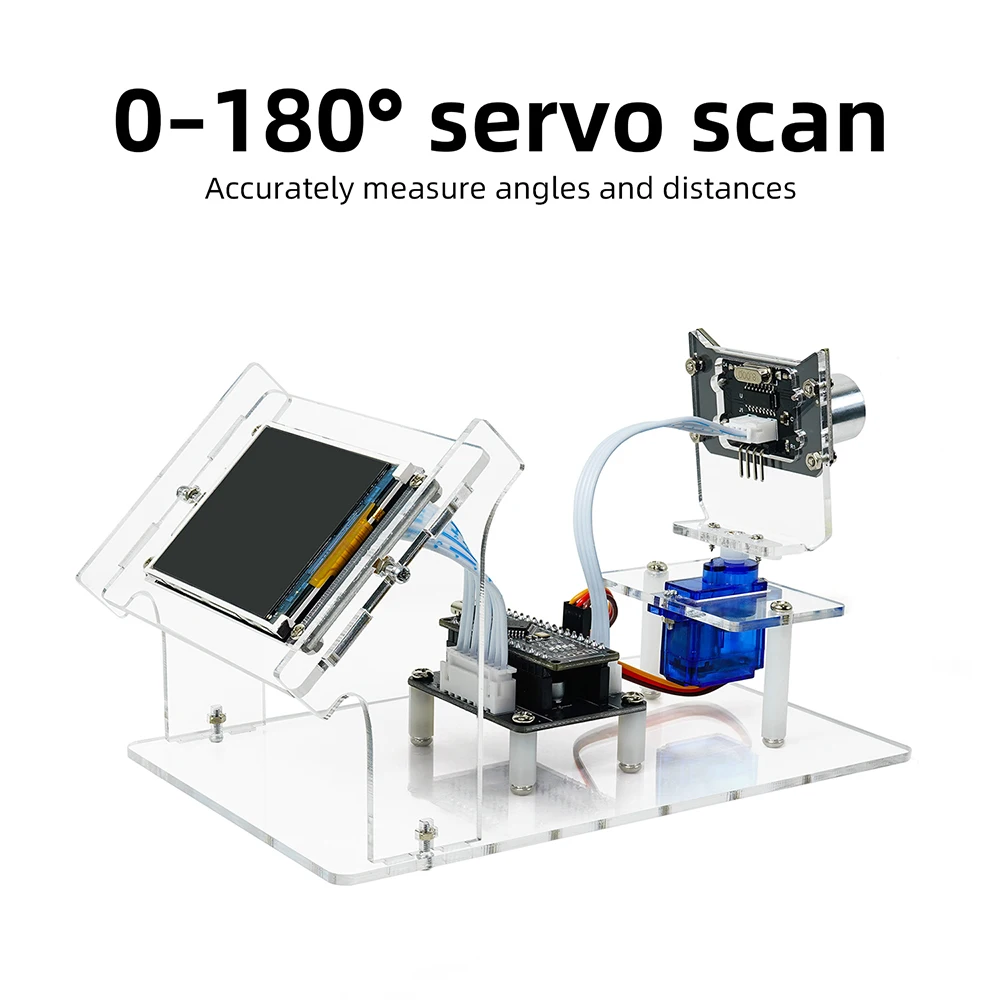

1.0-180 ° servo scanning, accurately obtaining angles and distances

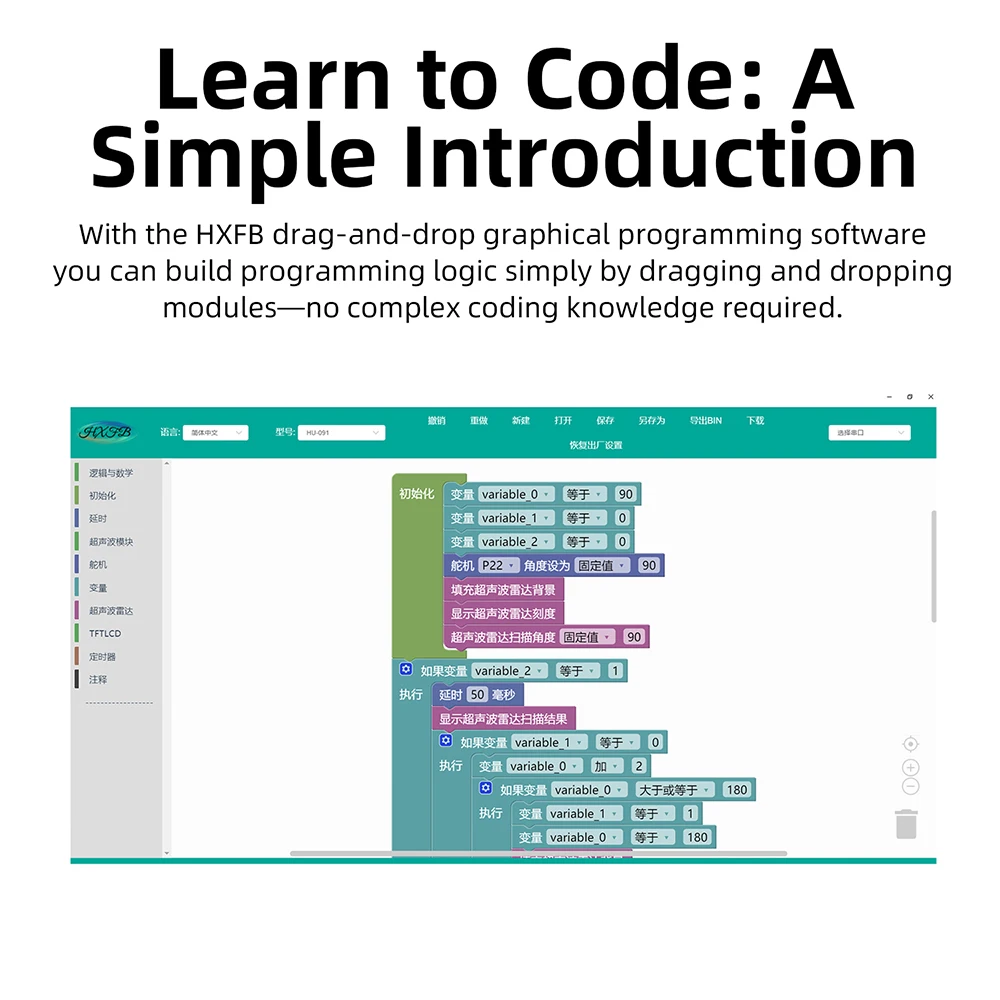

2. Paired with drag and drop graphical programming software, exercise programming thinking

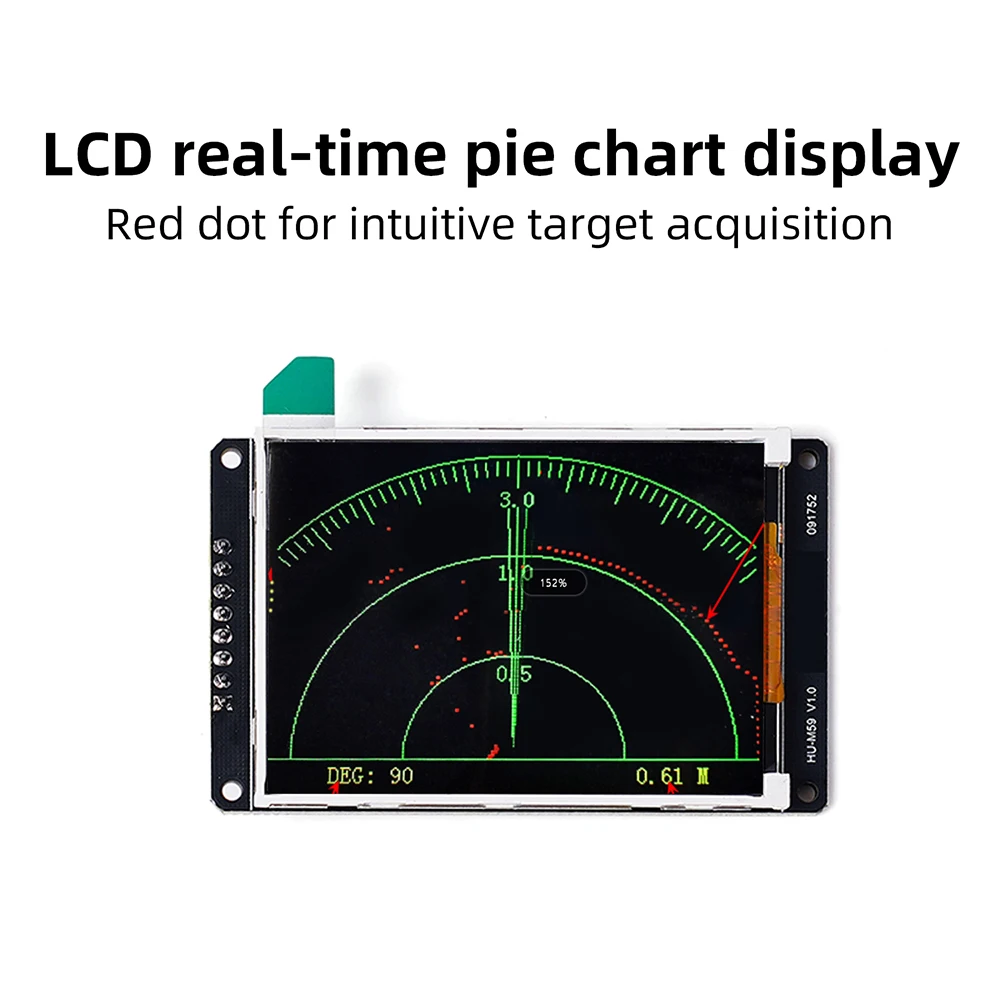

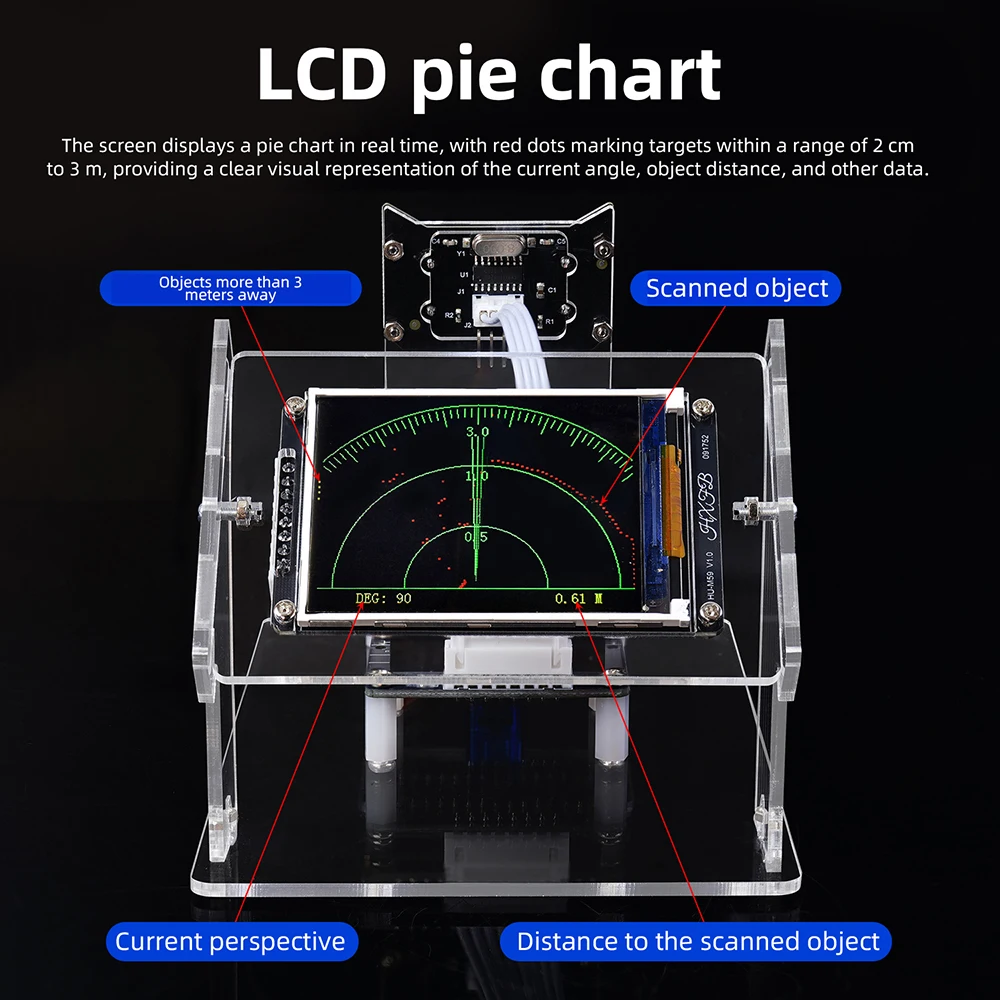

3. Real time display of fan-shaped chart on LCD, with red dots for intuitive target calibration

4. Support HXFB graphical programming, zero foundation programming

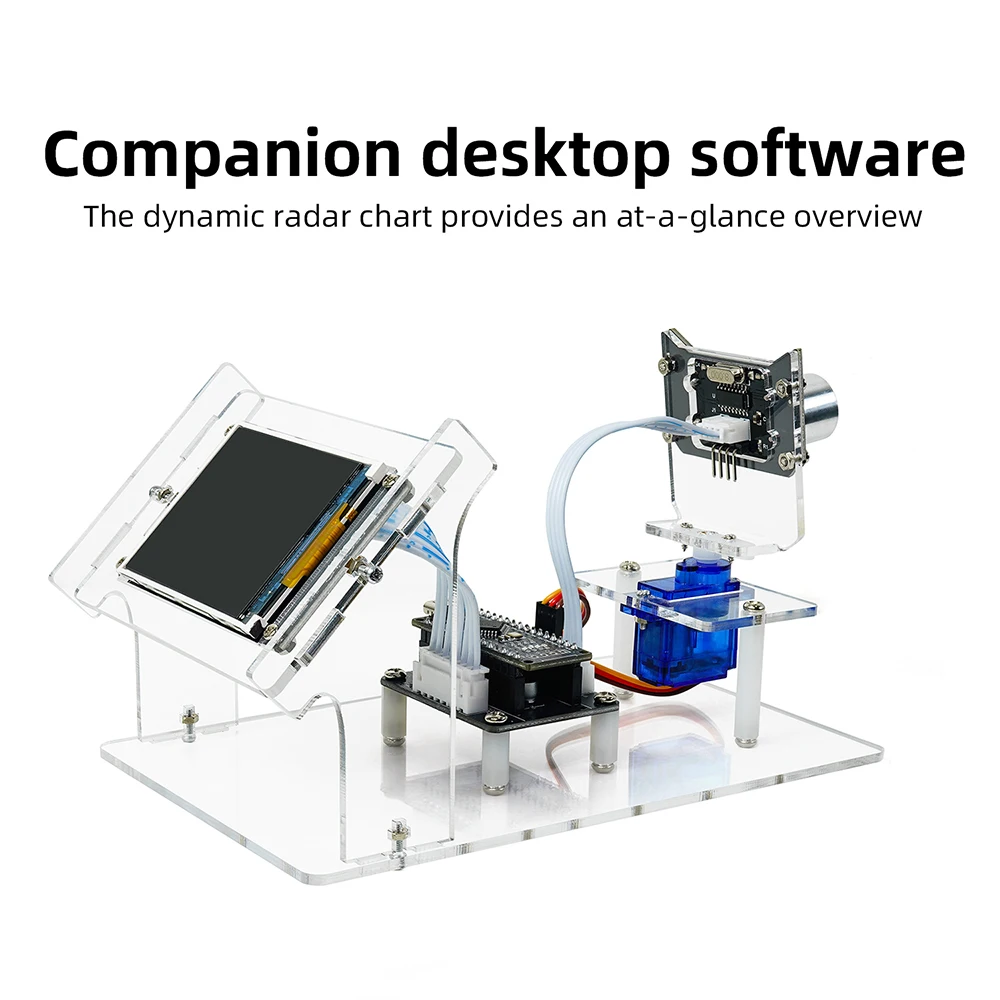

5. Equipped with upper computer software, dynamic radar images are clear at a glance

Kit Introduction:

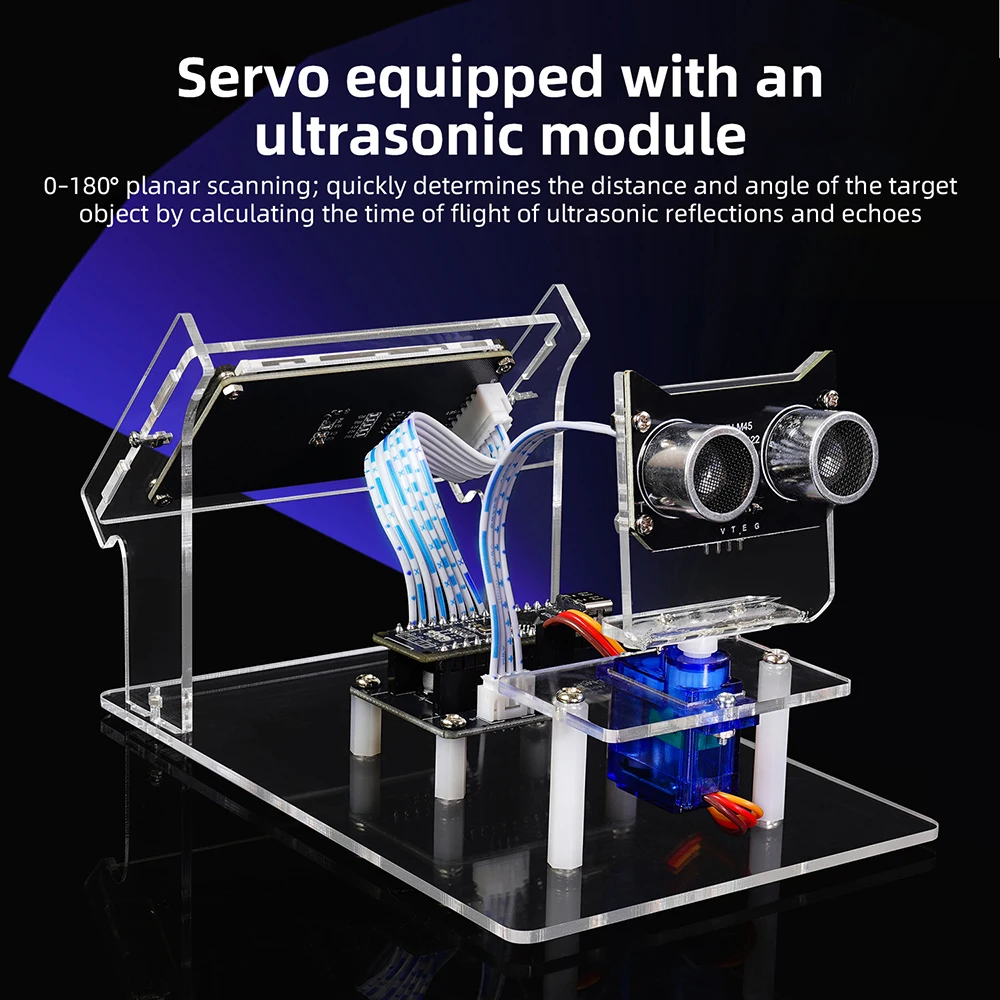

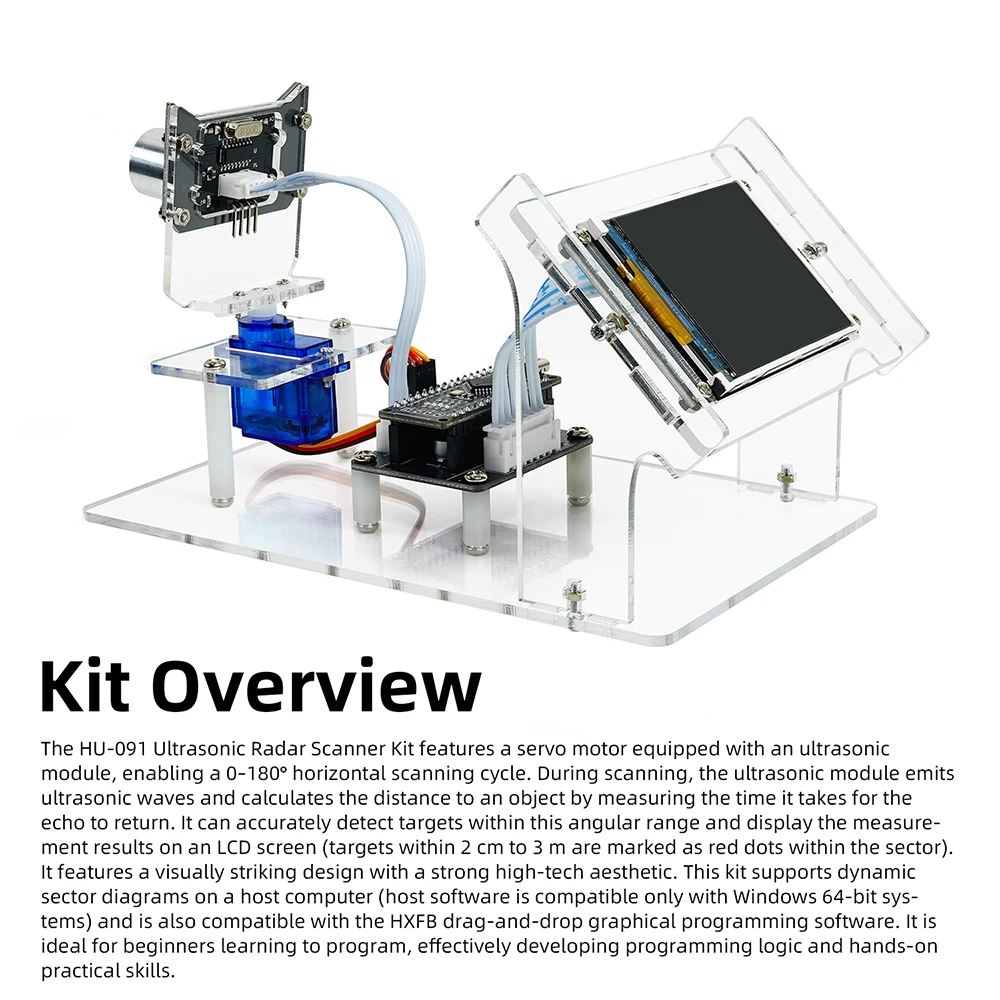

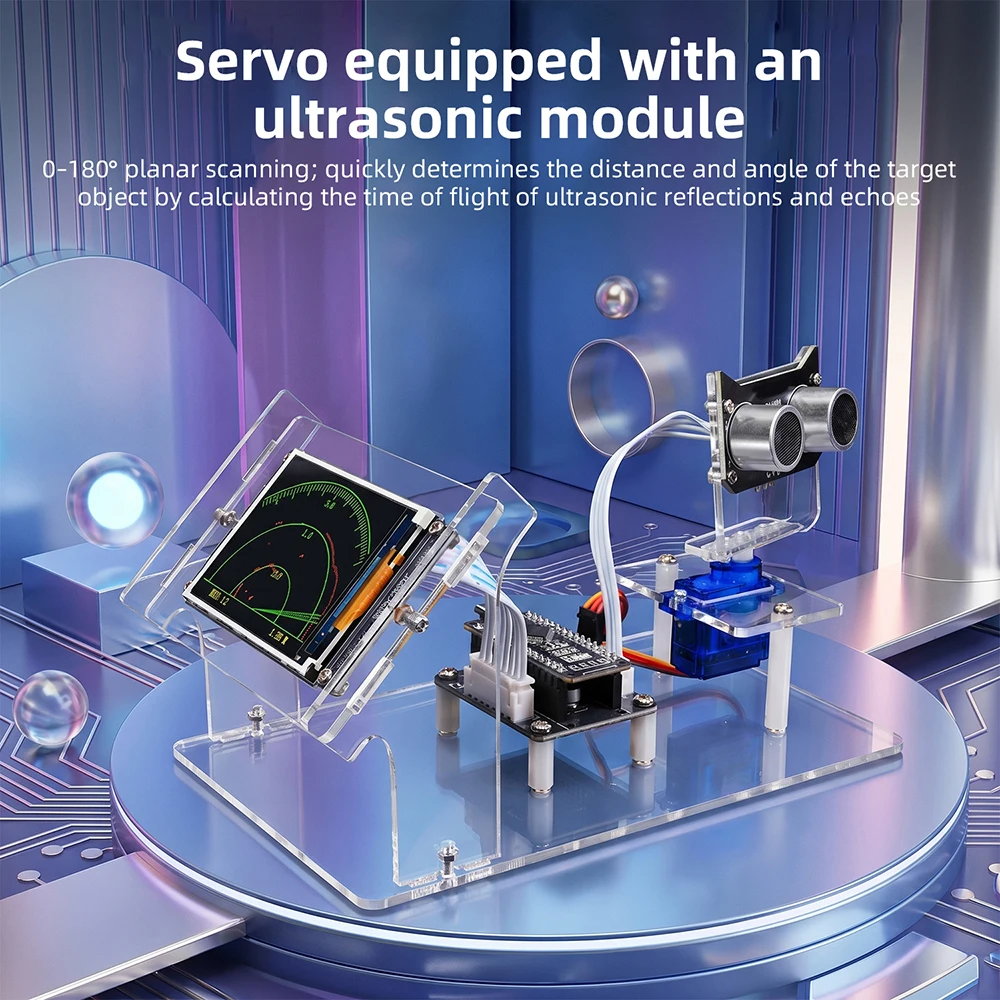

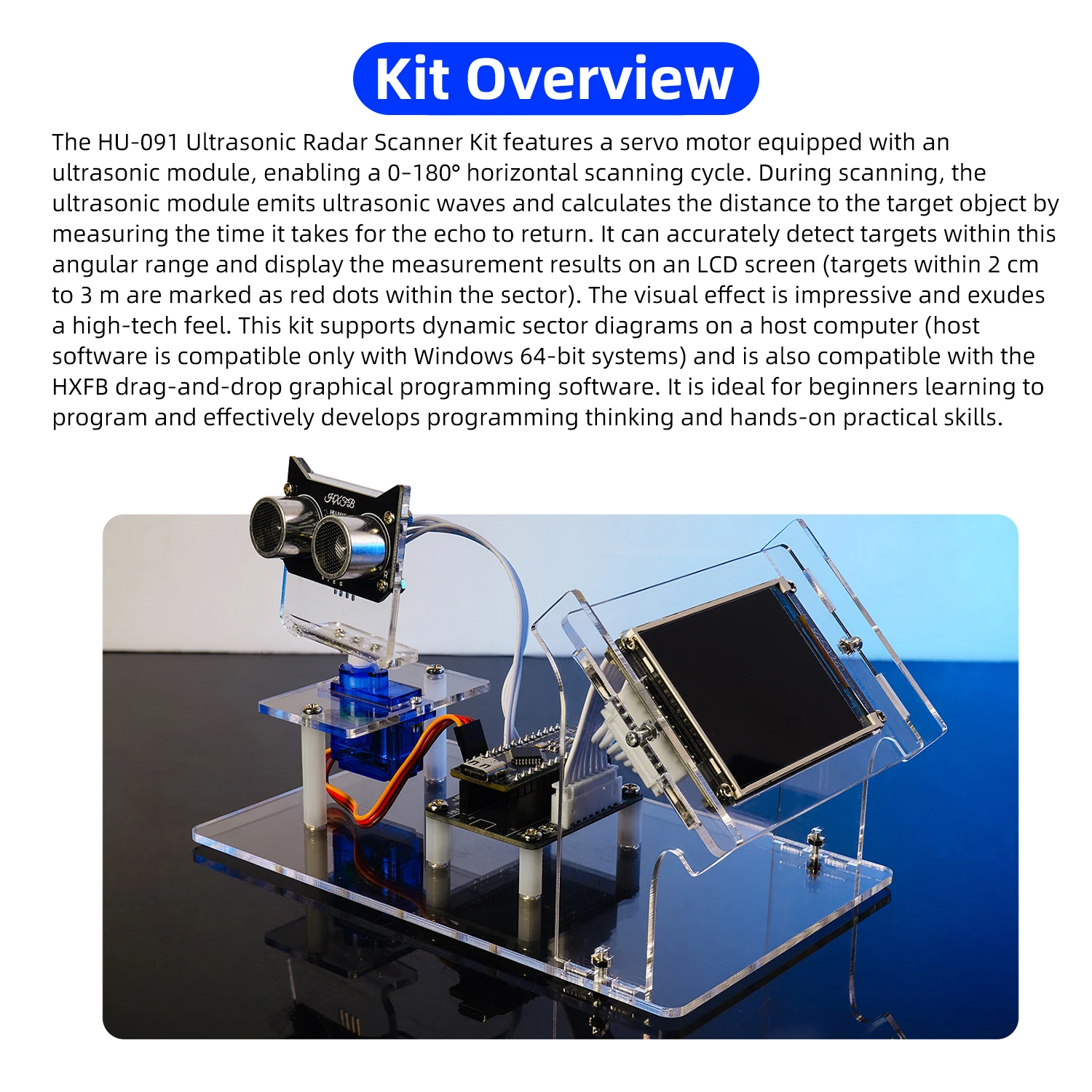

The HU-091 ultrasonic radar scanner kit is equipped with an ultrasonic module mounted on a servo motor, which realizes a 0-180 ° plane cyclic scanning. During the scanning process, the ultrasonic module emits ultrasonic waves, and the distance to the target object is calculated by receiving the echo. It can accurately detect targets within this angle range and display the measurement results on the LCD screen (the sector area is marked with a red dot to indicate targets within 2cm~3m). The visual effect is cool and full of technology. This kit supports the display of dynamic fan-shaped graphics on the upper computer (the upper computer software only supports Windows 64 bit system), and is also compatible with HXFB drag and drop graphical programming software. It is suitable for entry-level programming learning and can effectively exercise programming thinking and practical skills.

Package information

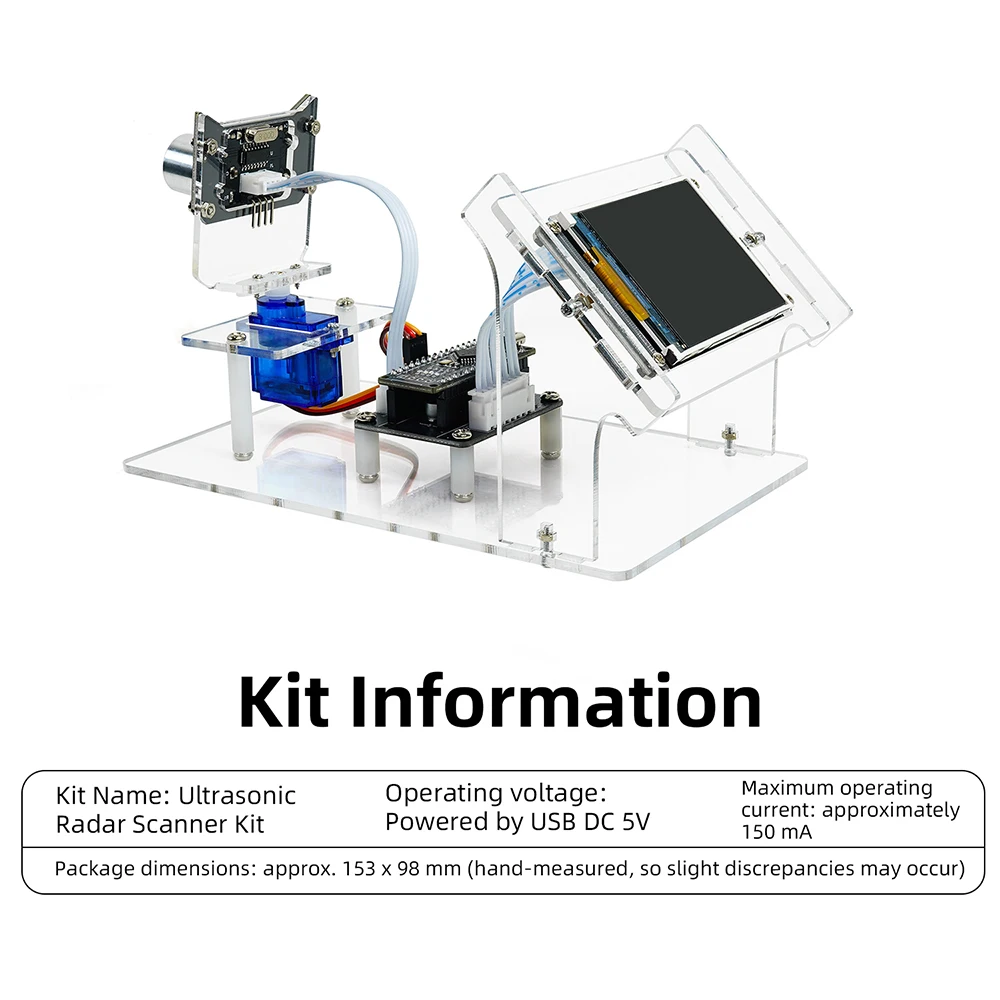

Kit Name: Ultrasonic Radar Scanner Kit

Working voltage: USB DC5V power supply

Maximum operating current: approximately 150mA

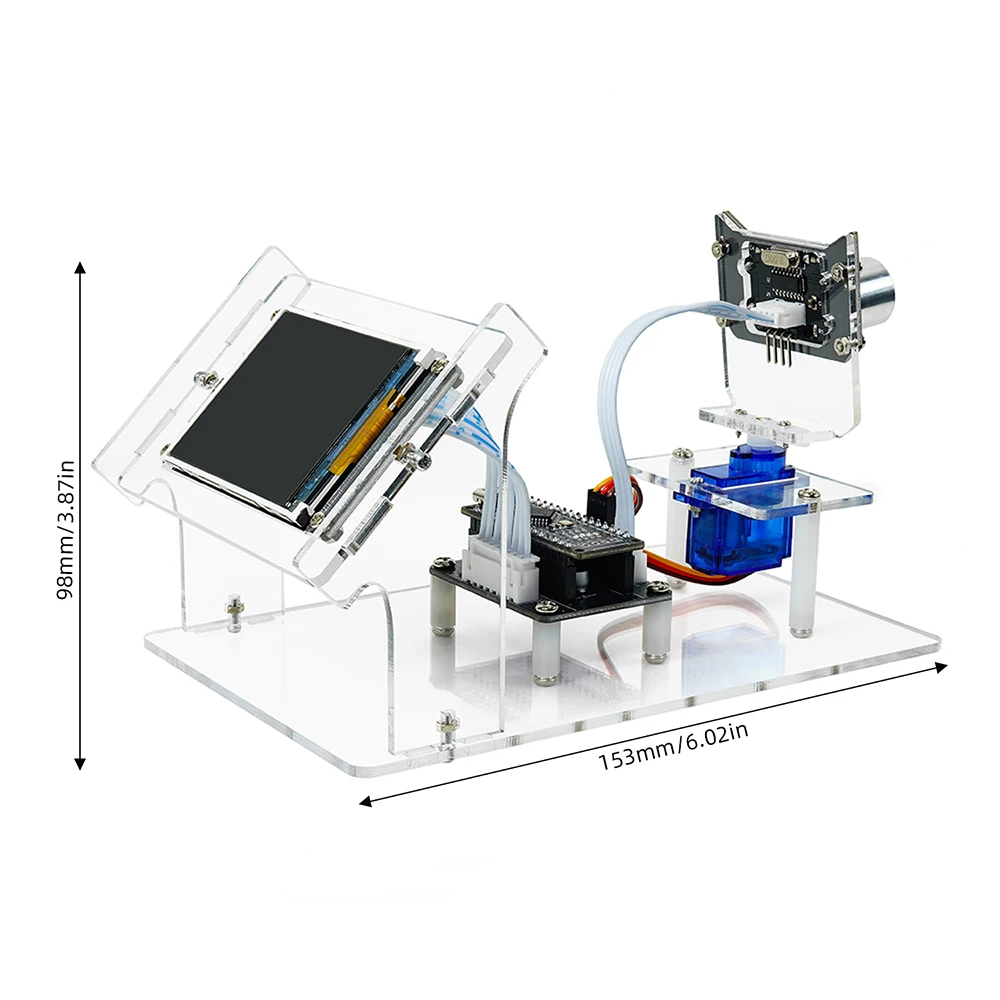

Kit size: approximately 153 * 98mm (manual measurement may have slight errors)

Features:

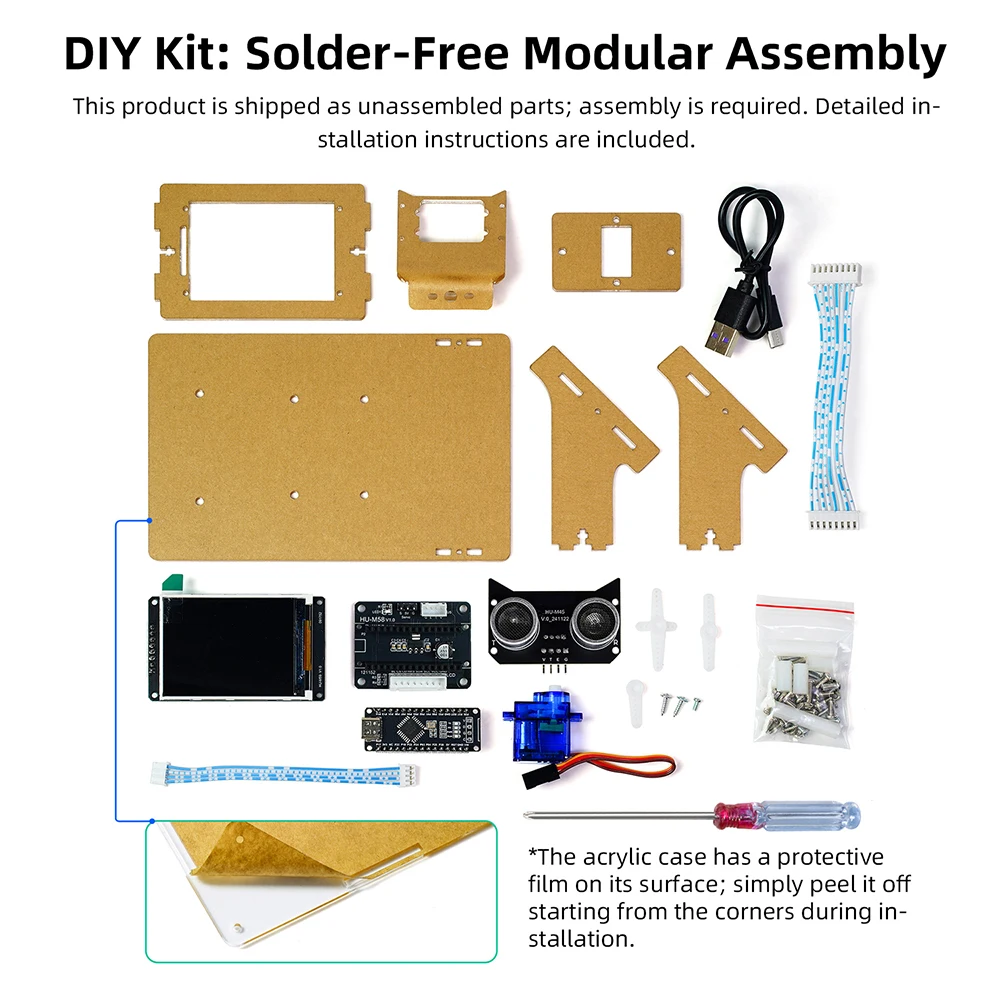

DIY manual assembly, exercise hands-on ability

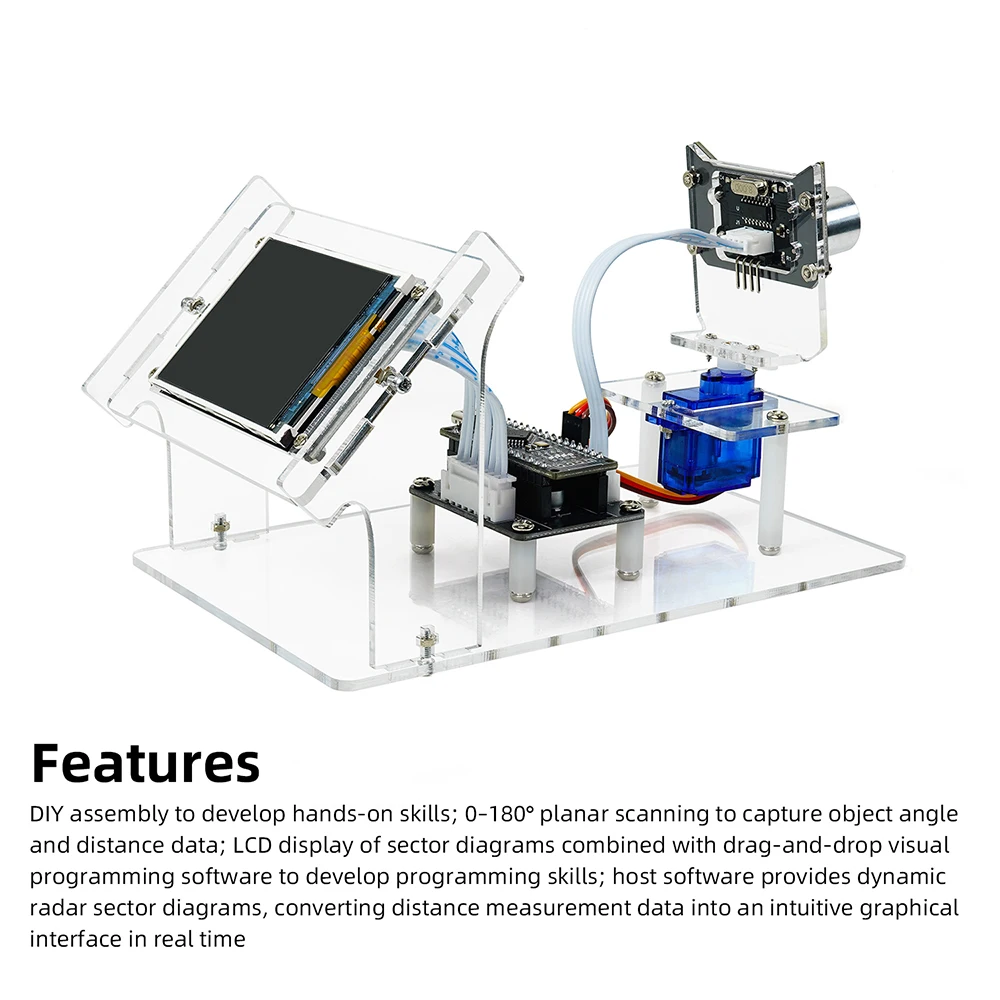

Scan the 0-180 ° plane to obtain object angle and distance information, and display a fan-shaped image on the LCD

Paired with drag and drop graphical programming software, exercise programming thinking

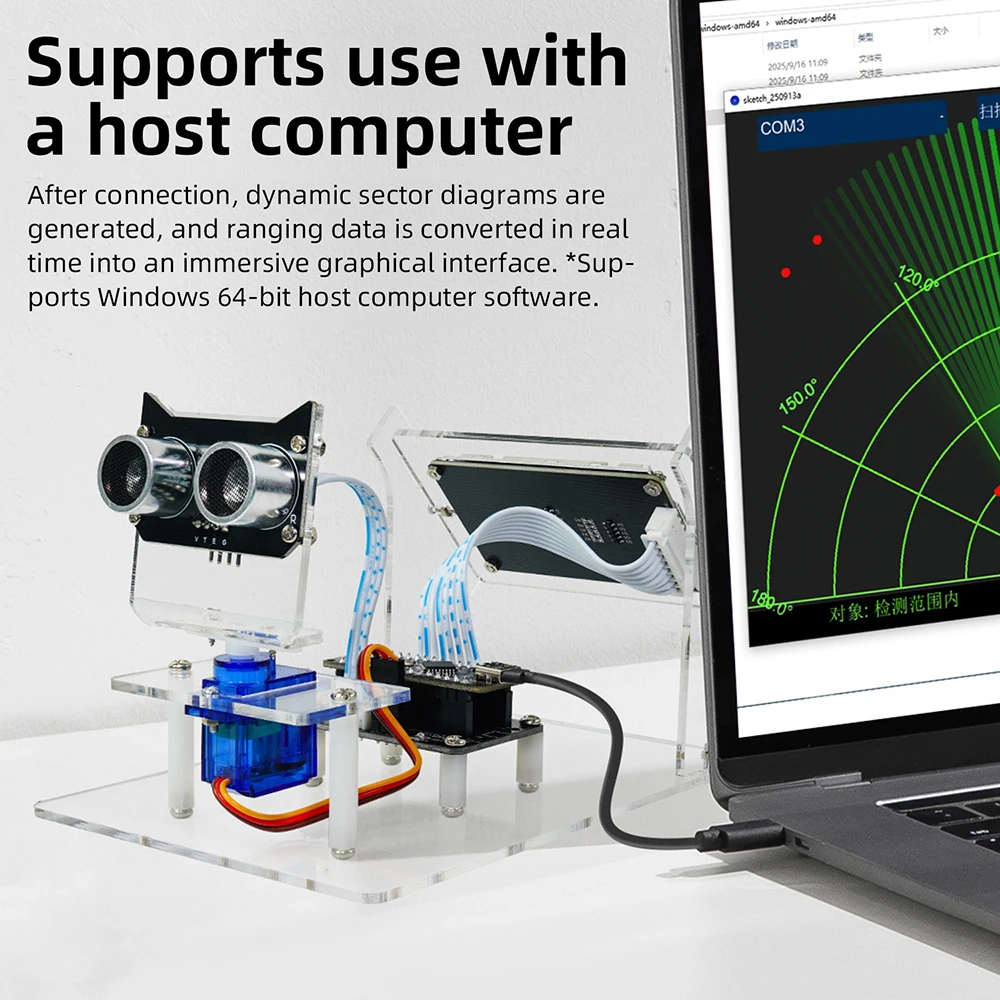

The upper computer software provides dynamic radar sector maps, which convert ranging data into intuitive graphical interfaces in real-time

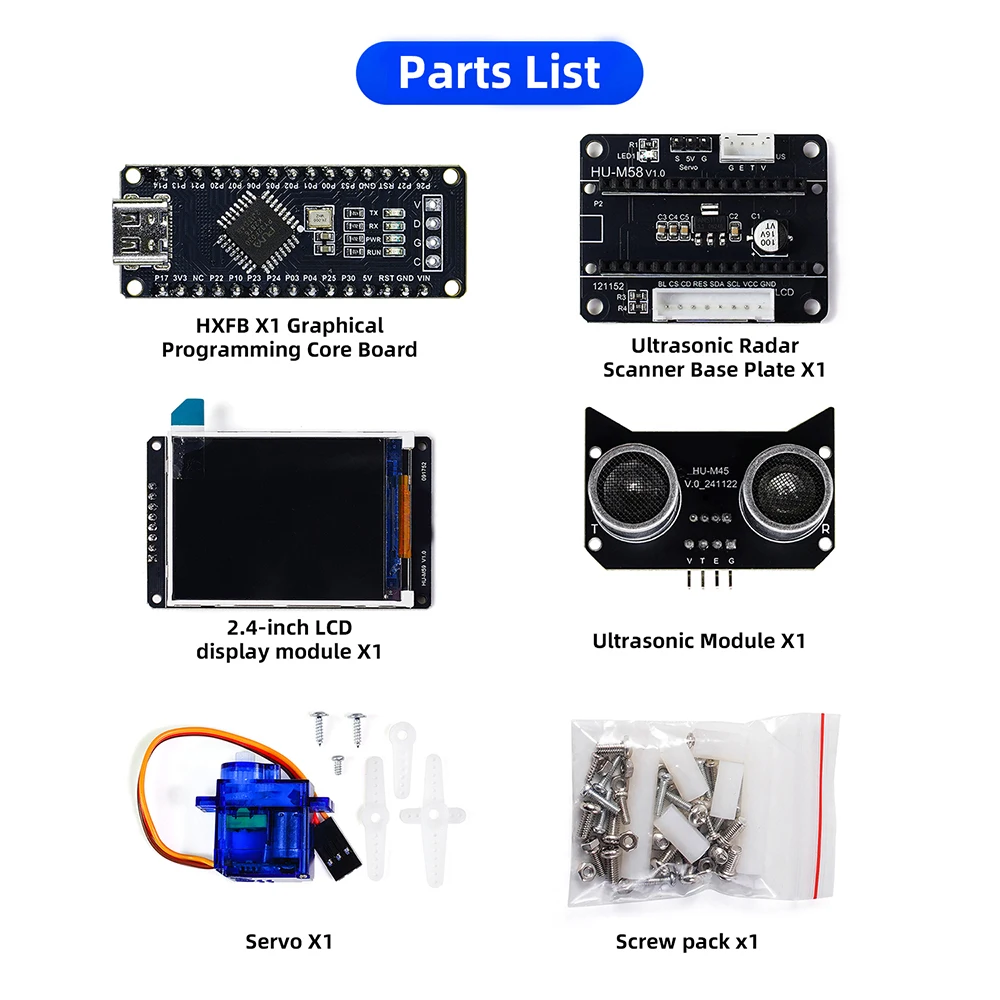

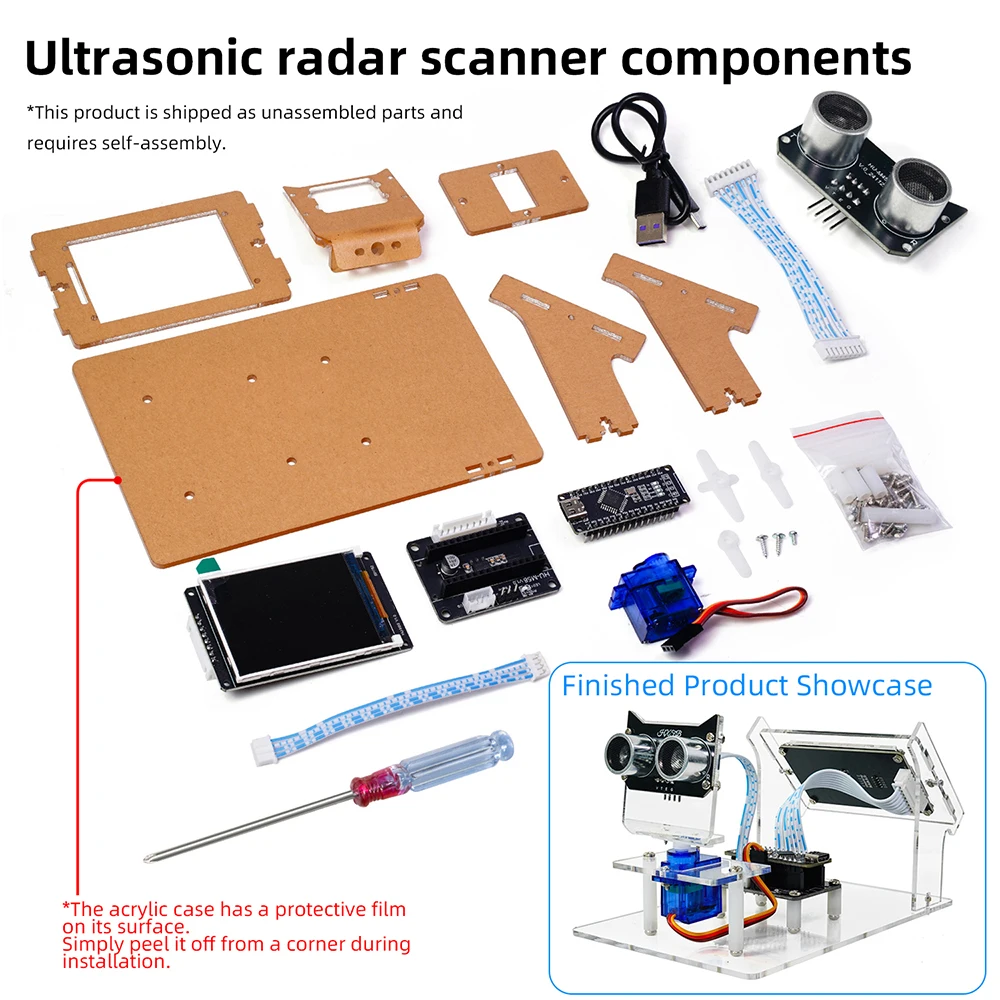

Product List:

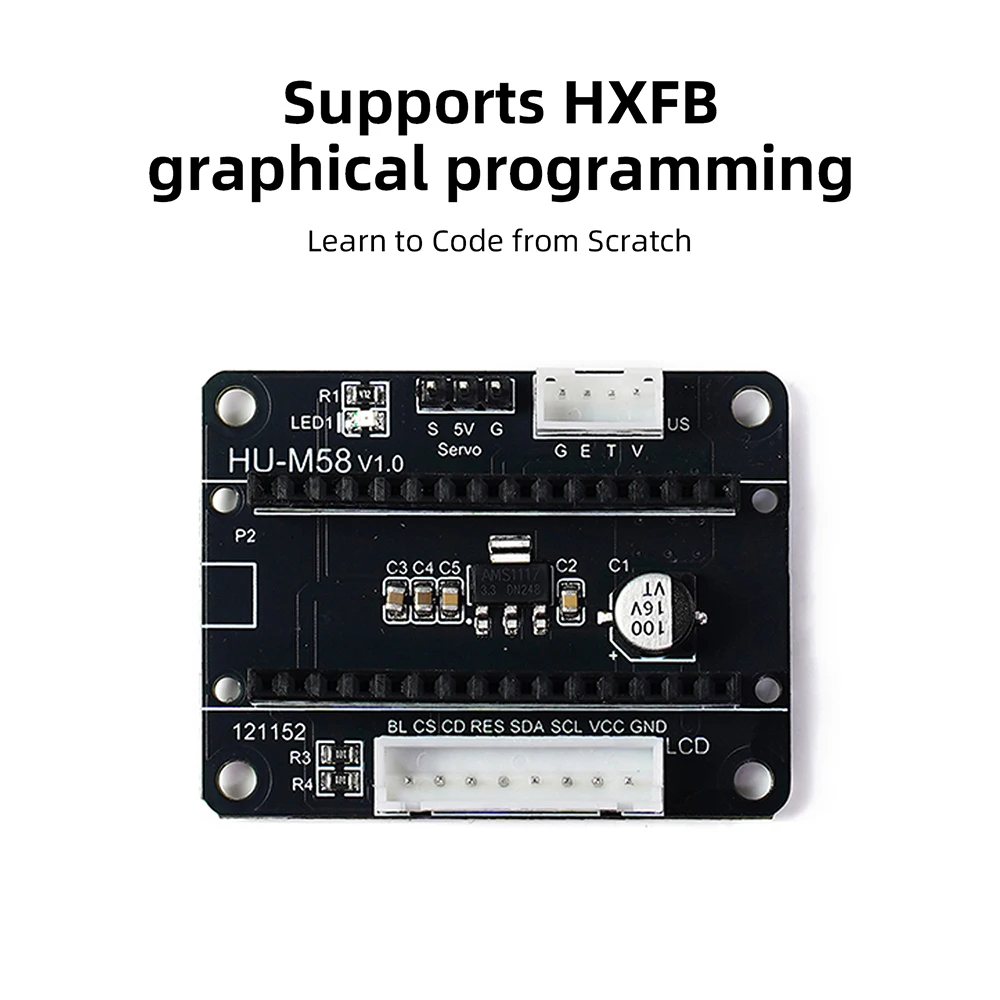

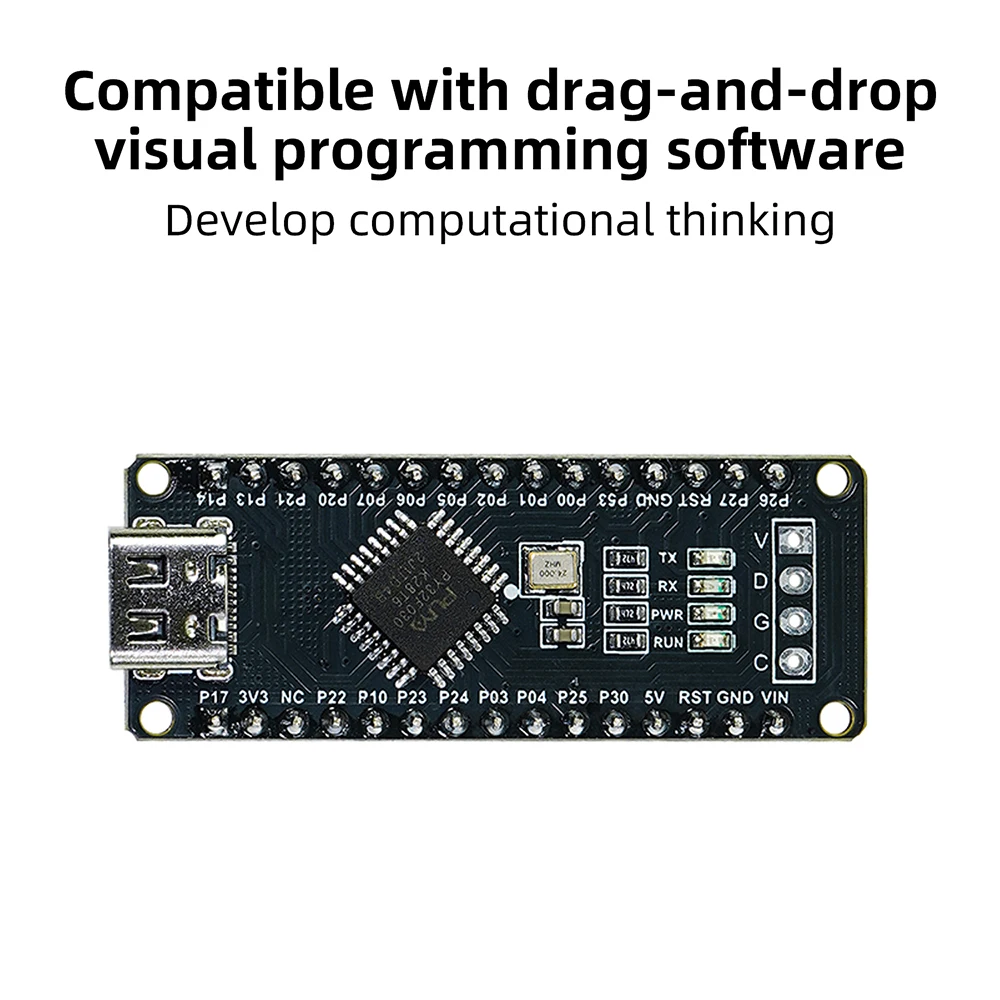

HXFB graphical programming core board x 1

Ultrasonic radar scanner base plate x 1

2.4-inch LCD display module x 1

Ultrasonic module x 1

Servo motor x 1

Screw package x 1

4P cable x 1

8P cable x 1

Shell x 1
