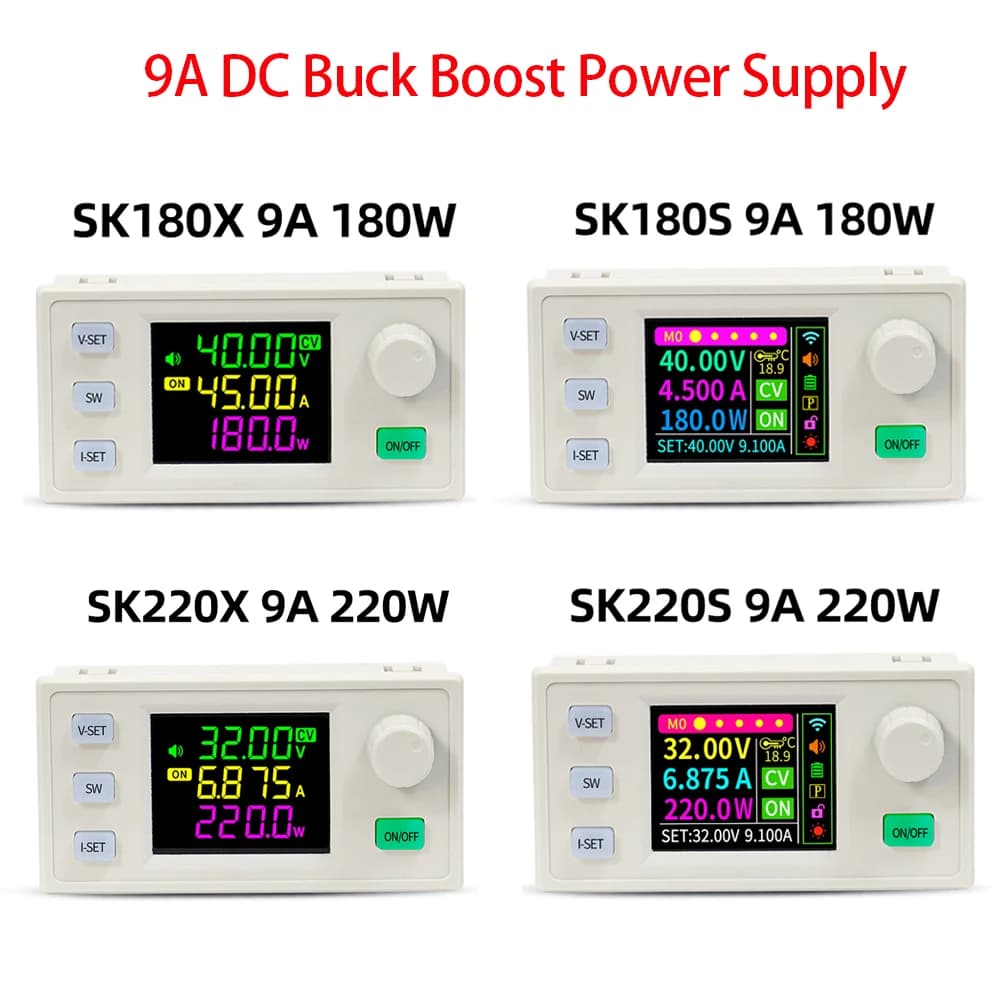

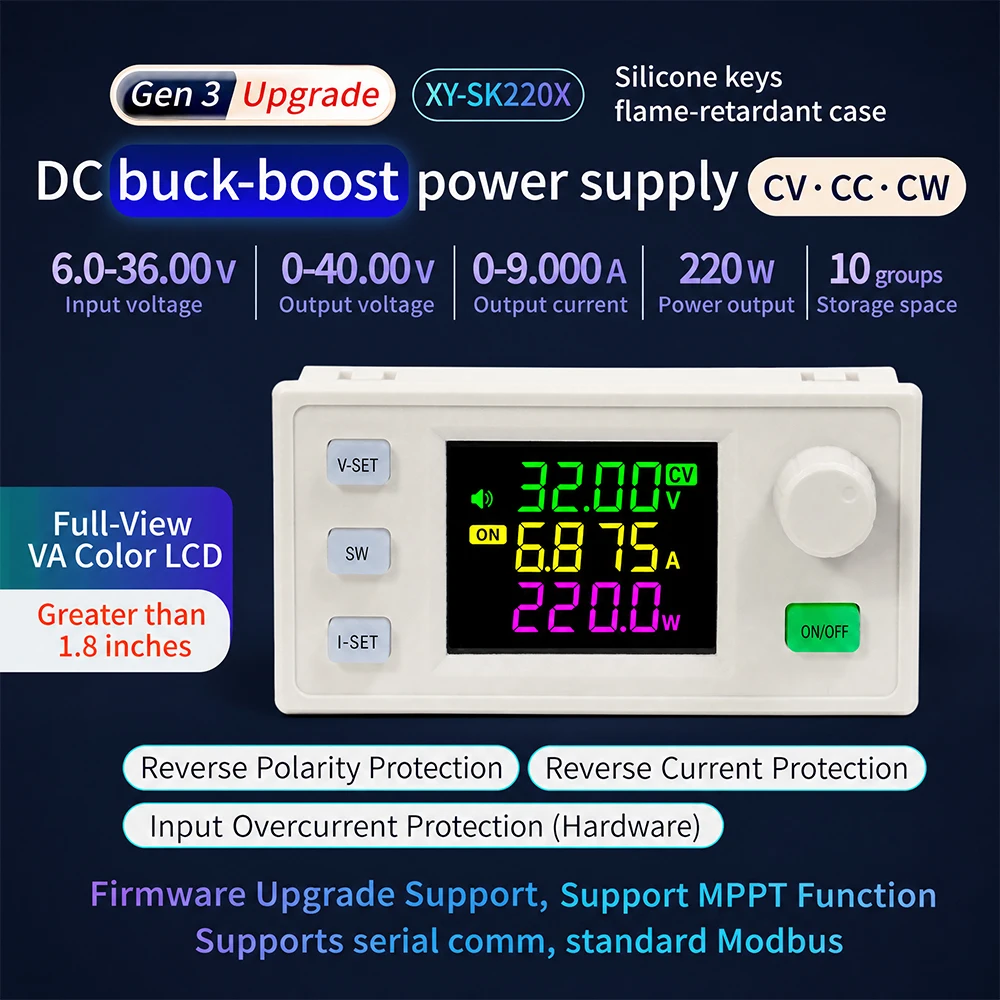

180W 220W DC Buck Converter Adjustable Regulated Laboratory Power Supply Constant Voltage Current 9A MPPT Charge Module SK180S

SK220S SK180 CNC DC-DC Buck Boost Power Supply 0-40V 9A 220W 180W CC CV MPPT Adjustable Solar Charge Module Power Regulator

SK220S SK220X 220W

Features

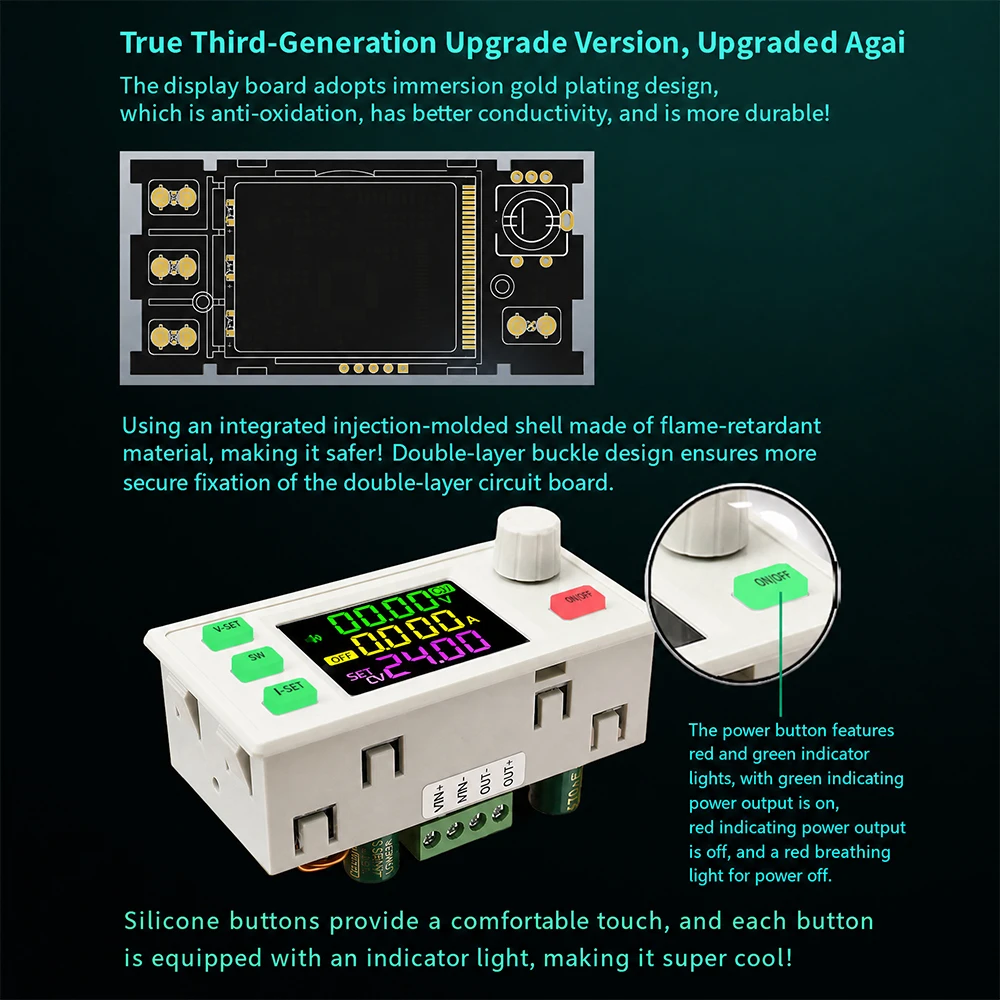

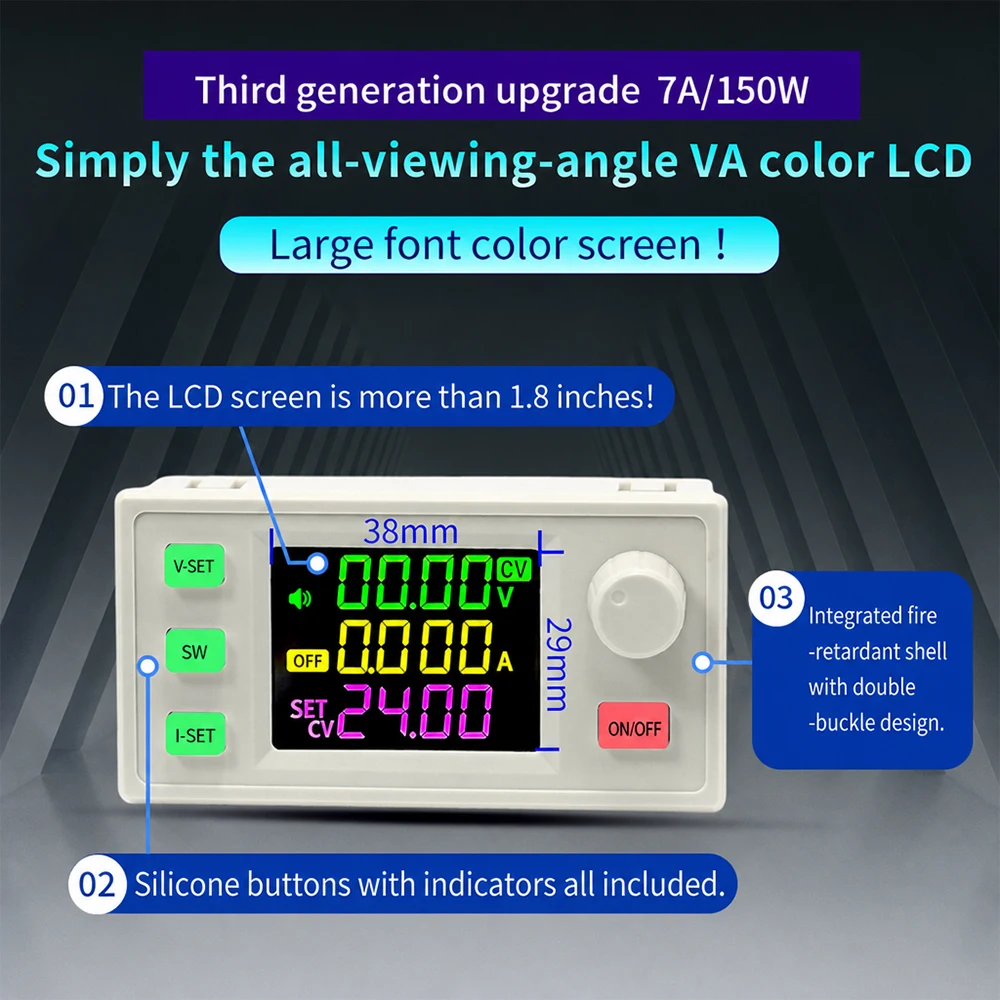

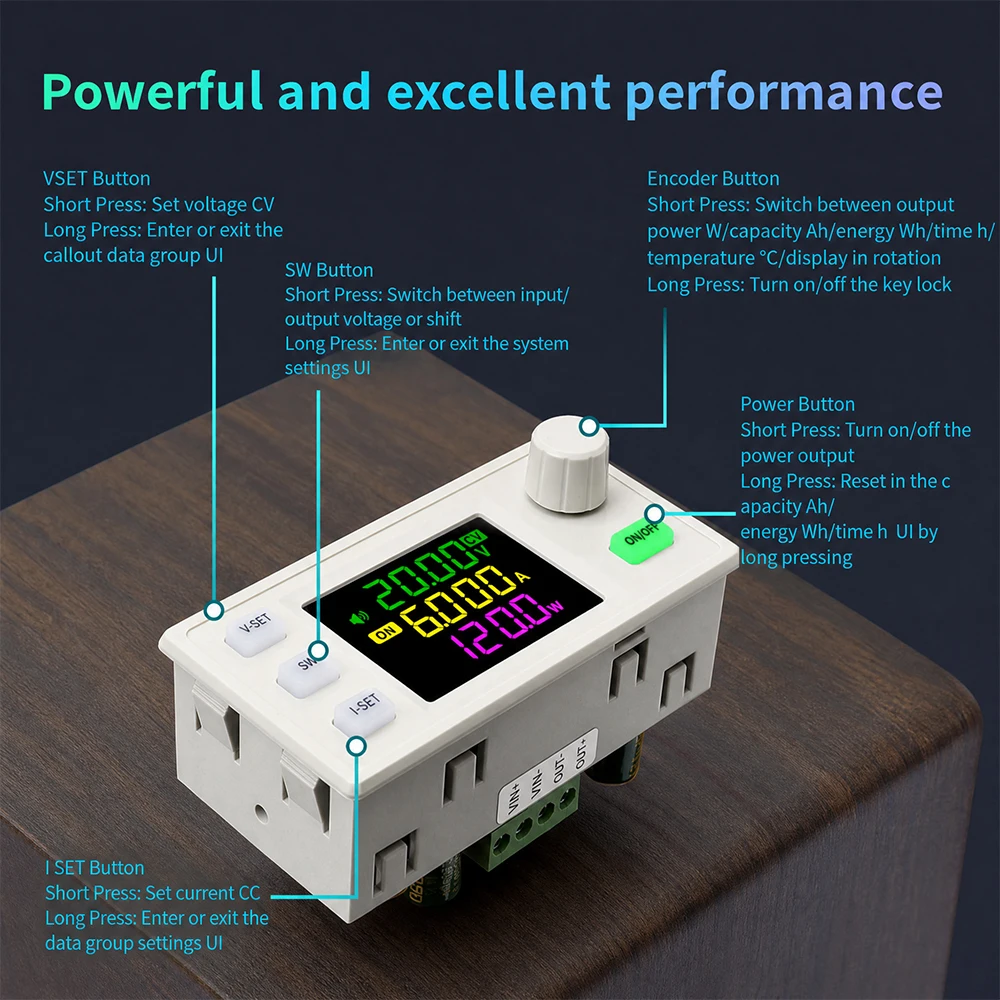

1. Features silicone buttons for a comfortable feel, with each button equipped with a stylish indicator light
2. Undergoes rigorous performance and aging tests to ensure reliability and stability
3. Supports a maximum output power of 220W, meeting the power requirements of high-power devices

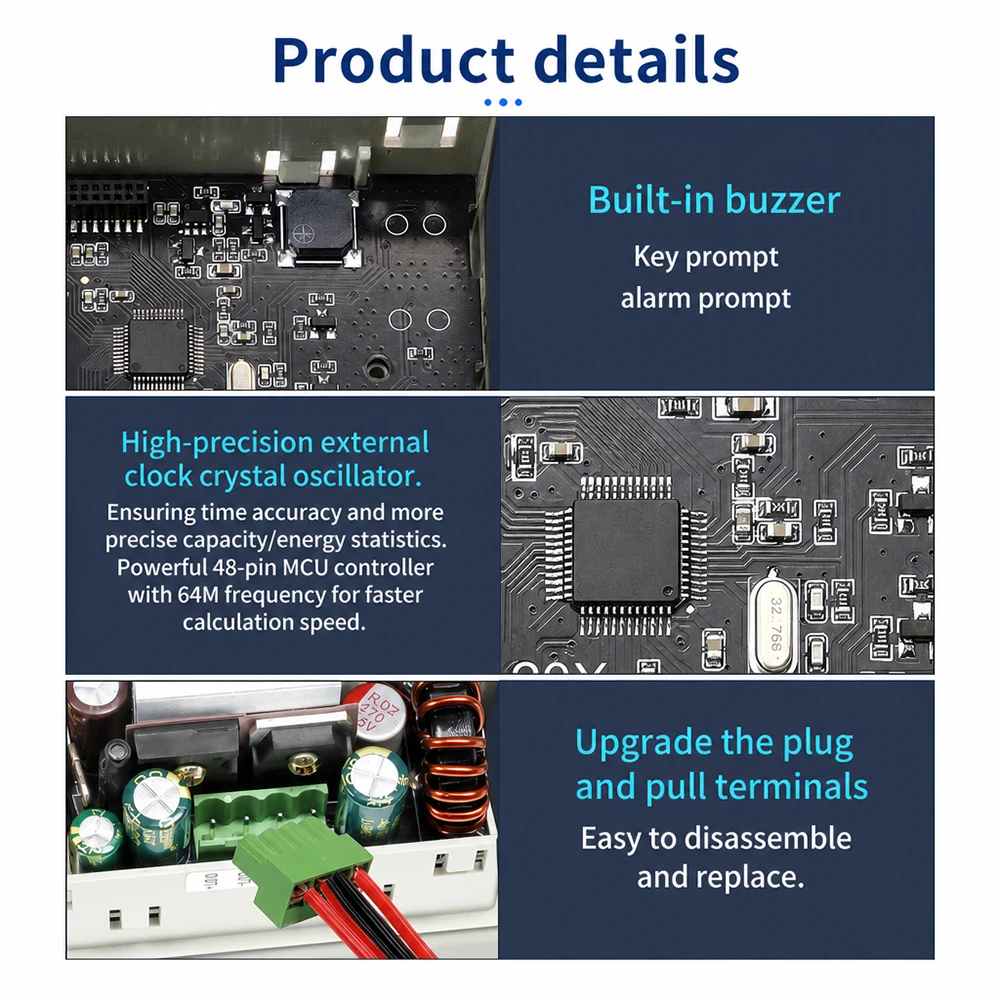

4. Built-in buzzer provides button feedback and alarm alerts for safer and more reliable operation

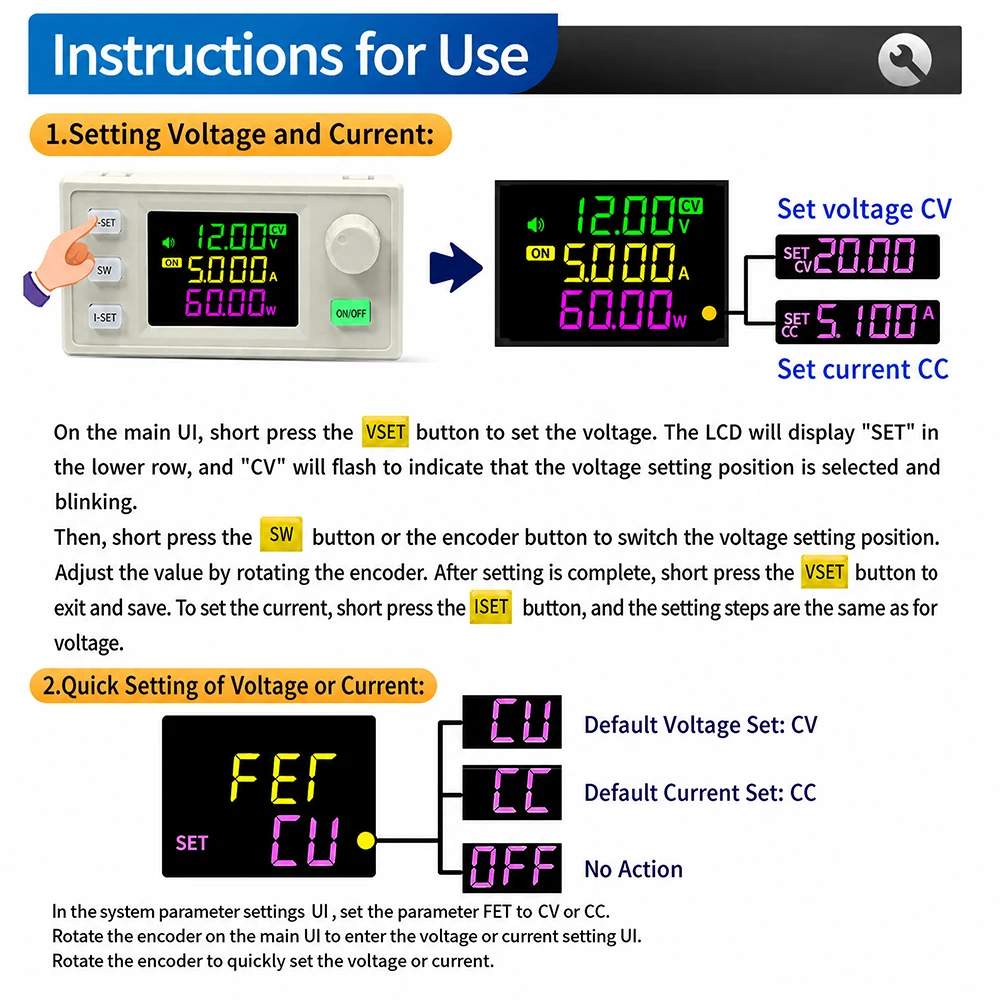

5. Precise voltage and current adjustment via button controls, with a resolution of up to 0.01V/0.001A

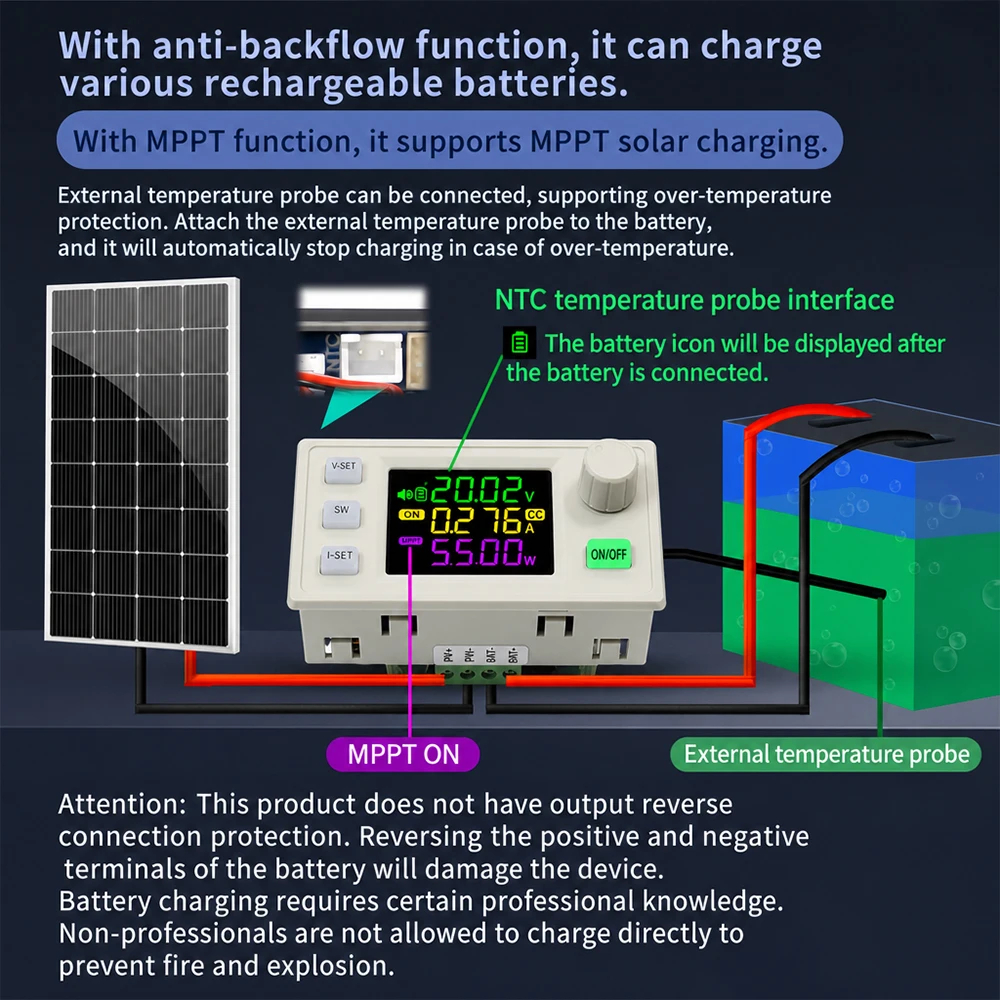

6. Wide range of applications; supports MPPT solar charging and can be connected to an external temperature probe for over-temperature protection

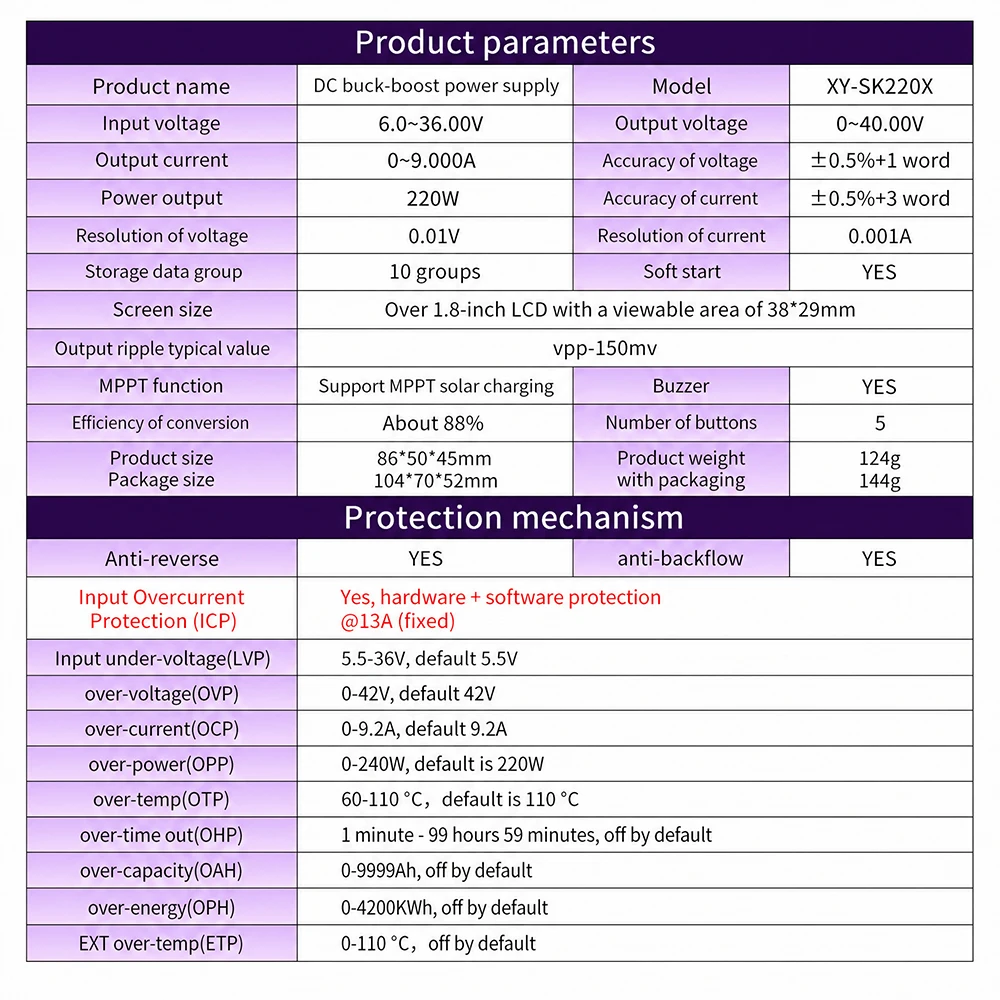

Parameter
Input Voltage: 6.0–36V
Output Current: 0–9.000A
Output Power: 220W
Voltage Resolution: 0.01V
Conversion Efficiency: Approximately 88%
Output Voltage: 0–40V
Voltage Accuracy: ±0.5% + 1 digit
Current Accuracy: ±0.5% + 3 digits
Current Resolution: 0.001A

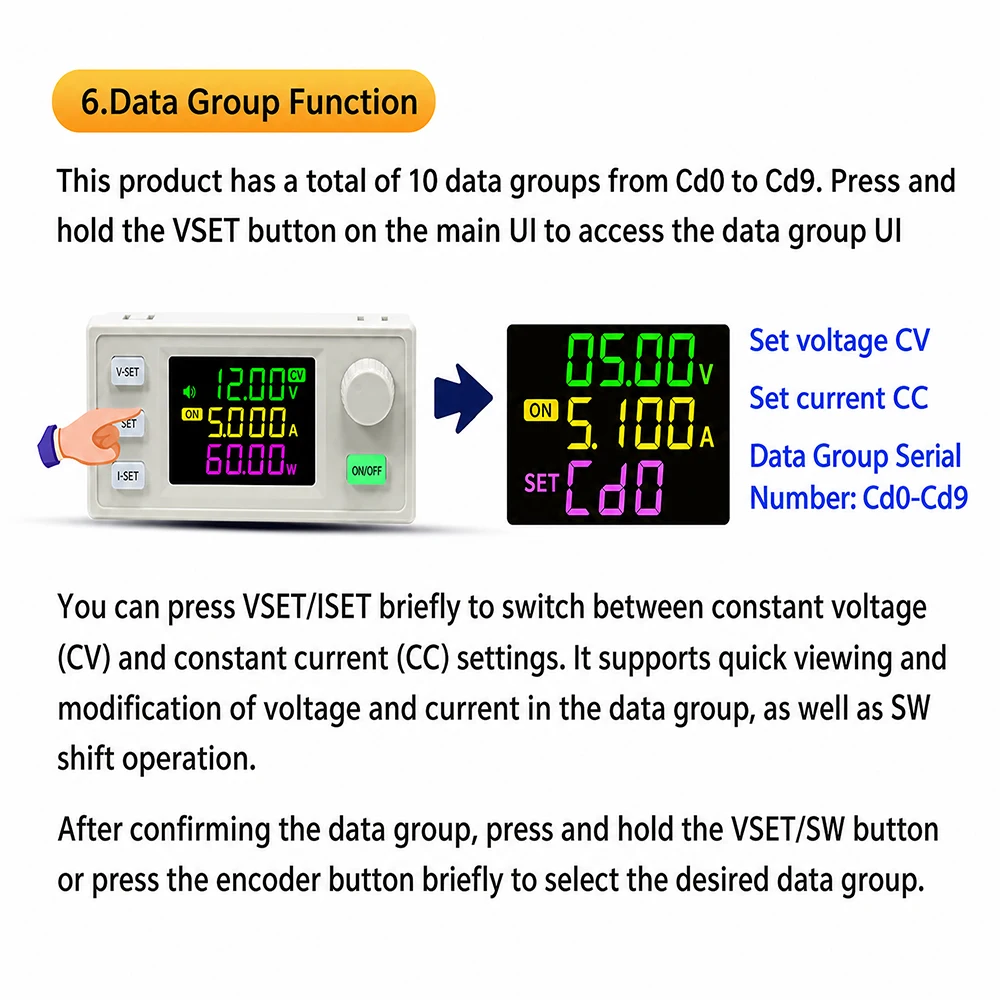

Data Storage Groups: 10 groups
MPPT Function: Supports MPPT solar charging
Buzzer: Yes
Soft Start: Yes

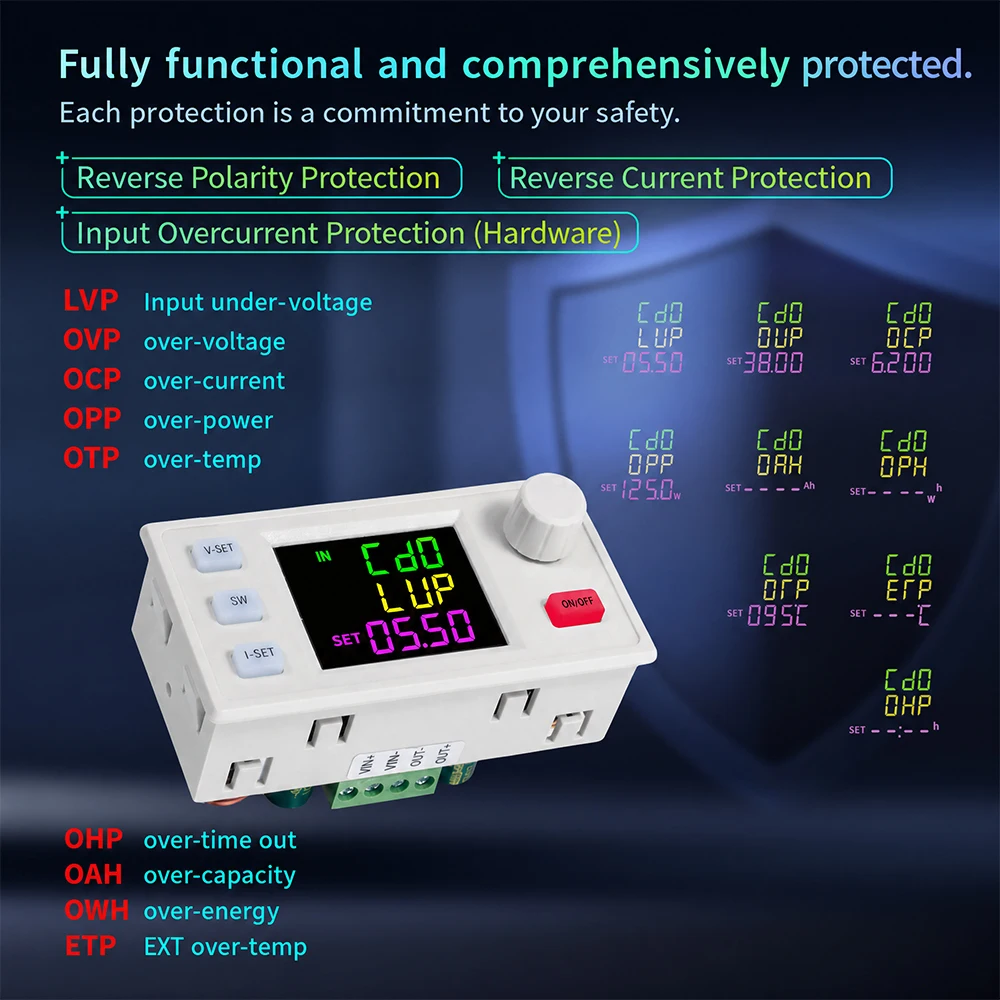

Protection Mechanisms:
Input Reverse Polarity Protection: Yes
Output Backfeed Protection: Yes
Input Undervoltage Protection: Adjustable 5.5–36V, default 5.5V
Output Overvoltage Protection: Adjustable 0–42V, default 42V
Output Overcurrent Protection: Adjustable 0–9.2A, default 9.2A
Output Overpower Protection: Adjustable 0–240W, default 220W
Over-temperature protection: Adjustable from 60–110°C, default 110°C
Timeout protection: 1 minute–99 hours 59 minutes, default: offOver-capacity protection: 0–9999 Ah, adjustable, default: off
Over-energy protection: 0–4200 kWh,adjustable, default: off
Probe high-temperature protection: 0–110°C, adjustable, default: off

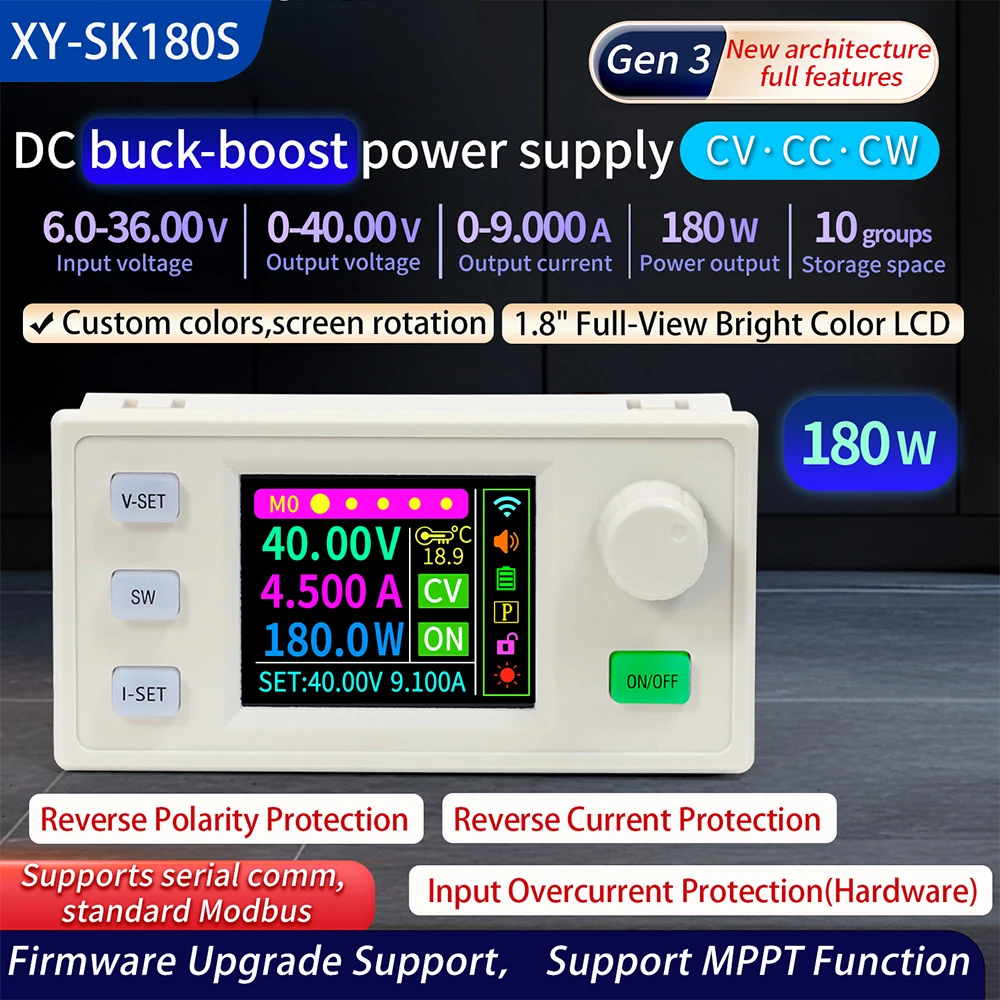

SK180S SK180X 180W

Features
1. Features silicone buttons for a comfortable feel, with each button equipped with a stylish indicator light
2. Undergoes rigorous performance and aging tests to ensure reliability and stability
3. Supports a maximum output power of 180W, meeting the power requirements of high-power devices
4. Built-in buzzer provides button feedback and alarm alerts for safer and more reliable operation
5. Precise voltage and current adjustment via button controls, with a resolution of up to 0.01V/0.001A
6. Wide range of applications; supports MPPT solar charging and can be connected to an external temperature probe for over-temperature protection

Parameter
Input Voltage: 6.0–36V
Output Current: 0–9.000A
Output Power: 180W
Voltage Resolution: 0.01V
Conversion Efficiency: Approximately 88%
Output Voltage: 0–40V
Voltage Accuracy: ±0.5% + 1 digit
Current Accuracy: ±0.5% + 3 digits
Current Resolution: 0.001A
Data Storage Groups: 10 groups
MPPT Function: Supports MPPT solar charging
Buzzer: Yes
Soft Start: Yes

Protection Mechanisms:
Input Reverse Polarity Protection: Yes
Output Backfeed Protection: Yes
Input Undervoltage Protection: Adjustable 5.5–36V, default 5.5V output
Overvoltage Protection: Adjustable 0–42V, default 42V output
Overcurrent Protection: Adjustable 0–9.2A, default 9.2A output
Overpower Protection: Adjustable 0–200W, default 180W
Over-temperature protection: Adjustable from 60–110°C, default 110°C
Timeout protection: 1 minute–99 hours 59 minutes, default: off
Over-capacity protection: 0–9999 Ah adjustable, default: off
Over-energy protection: 0–4500 kWh adjustable, default: off
Probe high-temperature protection: 0–110°C adjustable, default: off

Package include
Adjustable buck-boost module × 1
