M10 Water Pressure and Depth Sensor High Precision Depth Sensor MS5837-30BA with Temperature ROV

Welcome to Winwin ,

We offer PCB,PCB assembly,all kinds of components(LRC and all the parts you need ),

SMT Stencil , Modules,electronic Cables,customzied Sensors .Aluminum heatsink etc

good quality,reasonable prices and stylish designs according to your need ,

We will always make our effort to satisfy with you , looking forward to your contact .

more quanity please contact me to get the special discount !

wish you have a nice shopping .

2MM resolution, 3V-5V wide power supply voltage design, 300 meters water depth range, stainless steel shell package,

waterproof and corrosion-resistant, built-in 24-bit ADC directly output digital signals

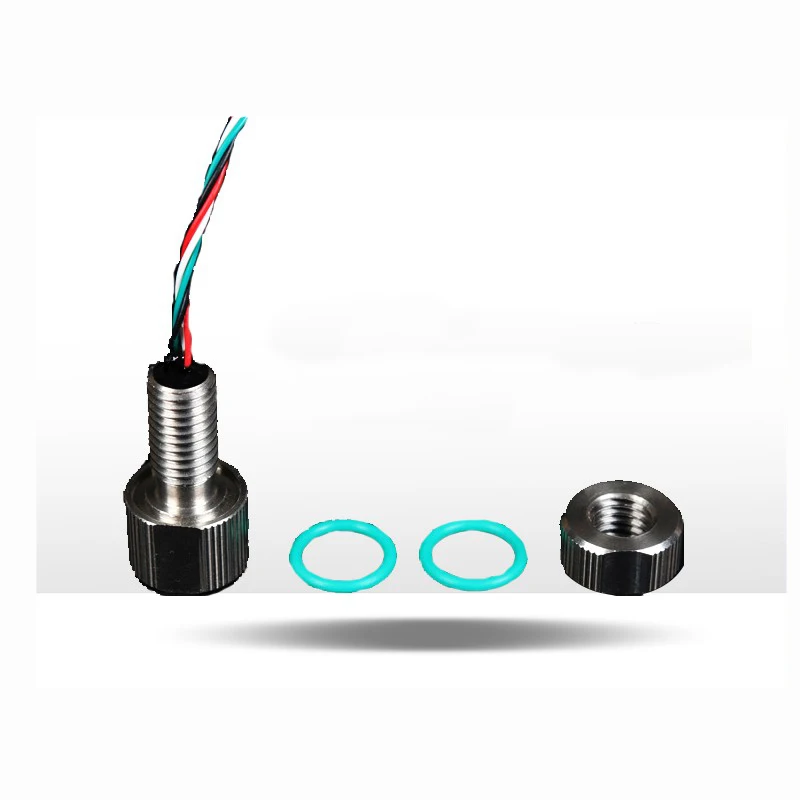

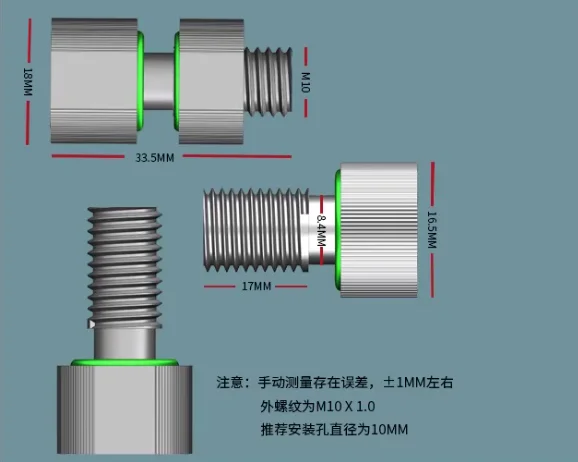

The core component of this sensor module is the imported MS5837 wide-range, high-resolution sensor. This sensor has a range of up to 3 MPa (30 bar), equivalent to a water depth of approximately 300 meters, and a damage range of 5 MPa. This product is compatible with various Ardusub-based underwater robots and supports plug-and-play with Pixhawk-based robots. It is also compatible with control systems such as the Raspberry Pi, STM32, and Arduino. The sensor comes with a nut for easy mounting on the device, and the recommended mounting hole diameter is 10 mm.

This sensor is an absolute pressure sensor, using I2C for data transmission. Its water depth resolution reaches 0.2 mbar (approximately 2 mm in water depth).

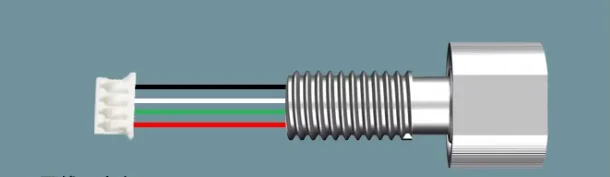

Black: Negative

White: SDA

Green: SCL

Red: Positive 3.3-5V
