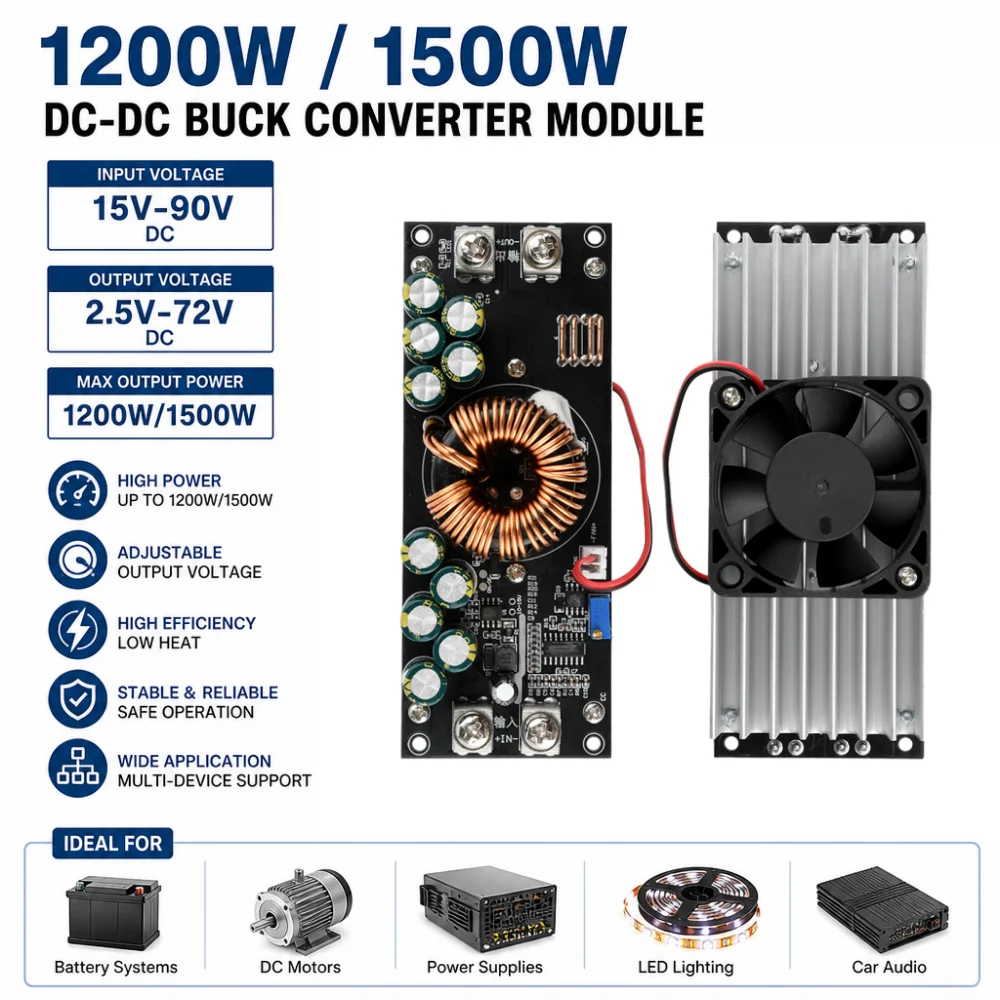

1200W/1500W Adjustable DC-DC Step-Down Power Supply Module, DC 15V–90V to DC 2.5V–72V Step-Down Power Supply Module

Product Features:

1. Input voltage range: 15V–90V; output voltage range: 2.5V–72V, accommodating diverse power supply and equipment requirements

2. Supports maximum power output of 1200W/1500W, suitable for high-power devices to ensure stable power delivery

3. Features constant voltage output to guarantee output stability, ideal for applications demanding precise voltage control

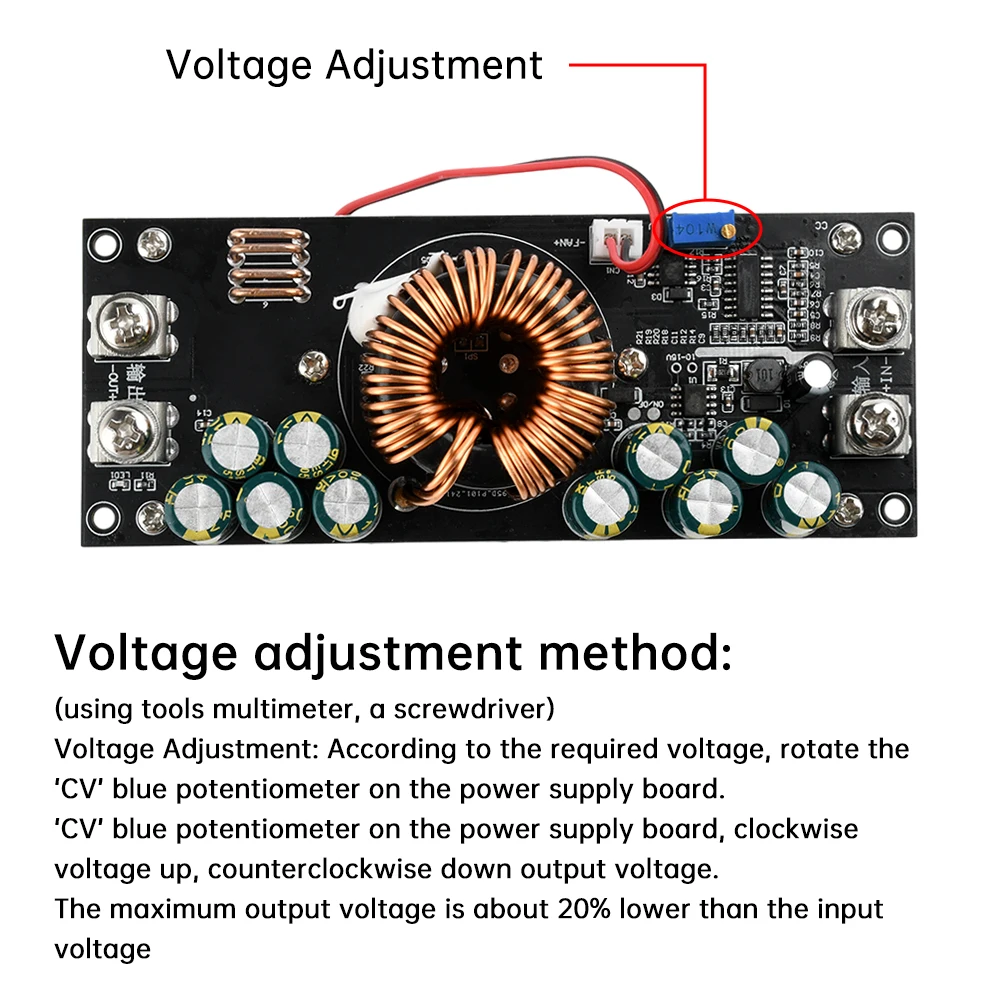

4. Adjustable output voltage provides flexible adaptation to varied application scenarios, enhancing usability

5. Efficient buck conversion reduces energy loss, improves system efficiency, and minimises heat generation

Product Specifications:

Module Type: Non-isolated buck converter (BUCK)

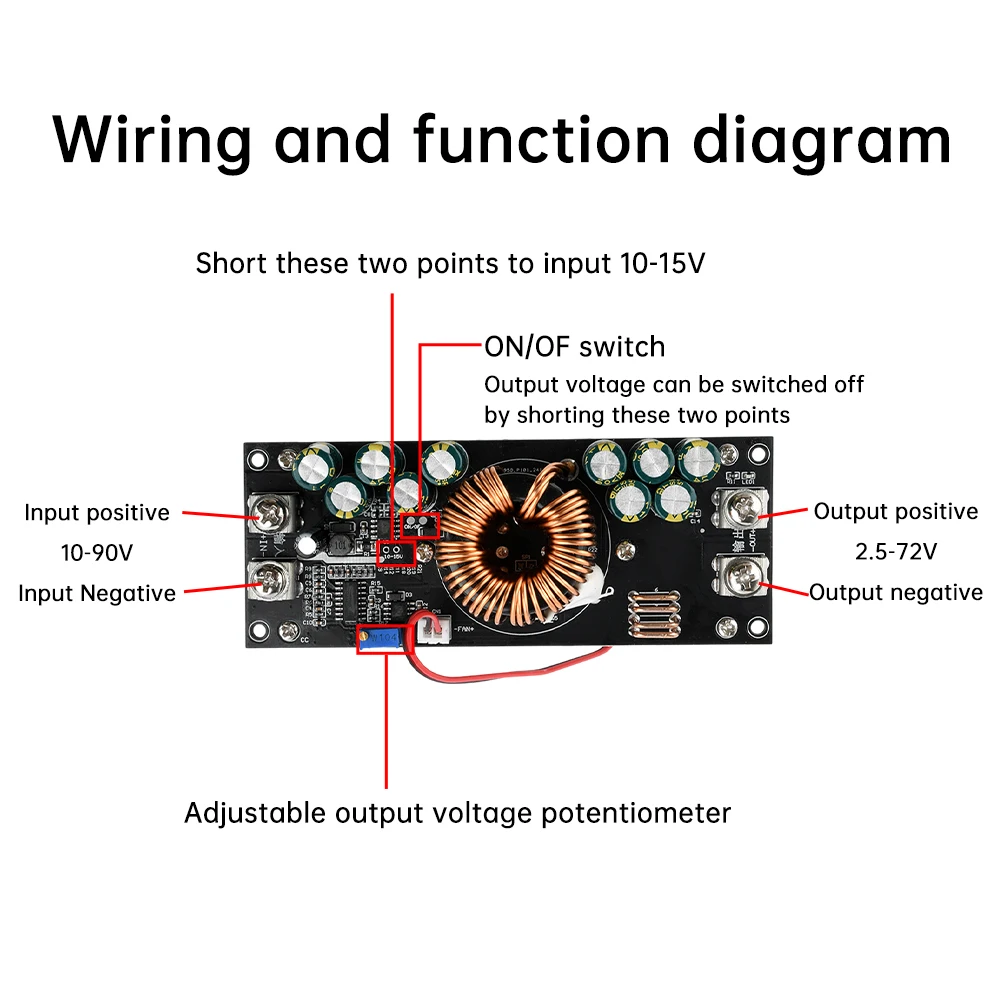

Input Voltage: DC 15-90V (Alternatively, 10-15V input is possible by shorting the ‘12-15V’ terminals. Once shorted, only 10-15V input is permitted. Inputs exceeding 15V will damage the module; shorting ‘10-15V’ renders the ON/OFF function inoperative)

Output Voltage: 2.5–72V (must satisfy step-down condition: IN input multiplied by 0.8 equals maximum output voltage)

Minimum Output Voltage: 2.5V

Maximum Output Voltage: 72V (at 90V input; IN voltage × 0.8 equals output voltage)

Maximum Output Power: 1200W/1500W (selectable) (requires well-ventilated operating environment)

Continuous Rated Power: 1200W model 1000W / 1500W model 1200W (in ventilated environment)

Continuous Rated Current: 1200W model 25A / 1500W model 45A (in ventilated environment)

Maximum Output Current: 1200W model 30A / 1500W model 50A

Cooling method: Air-cooled

Input reverse polarity protection: None (reverse connection strictly prohibited)

Input under-voltage protection: None

Input over-voltage protection: None (overvoltage prohibited)

Output ON/OFF switch interface: Present (requires user wiring)

Operating temperature: -10 to +65°C

Operating frequency: 80kHz

Conversion efficiency: Up to 97% (efficiency depends on input/output voltage, current, and voltage differential)

Short-circuit protection: None (current limiting up to 30A/50A possible)

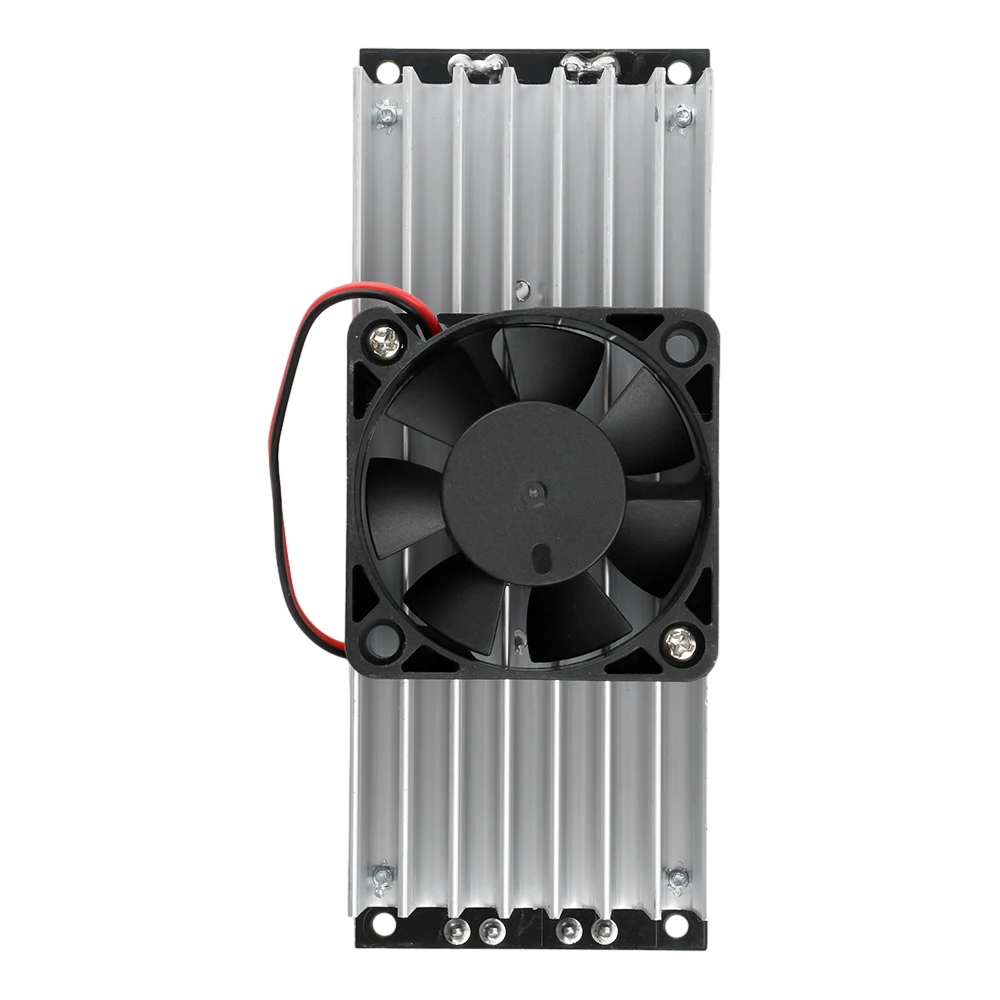

Cooling method: Air-cooled (thermostatically controlled fan activates around 45°C)

Output reverse current protection: None (output connected to inductive loads, e.g., motors, must incorporate reverse protection diodes)

Package contents:

1200W/1500W buck module ×1 (optional)
