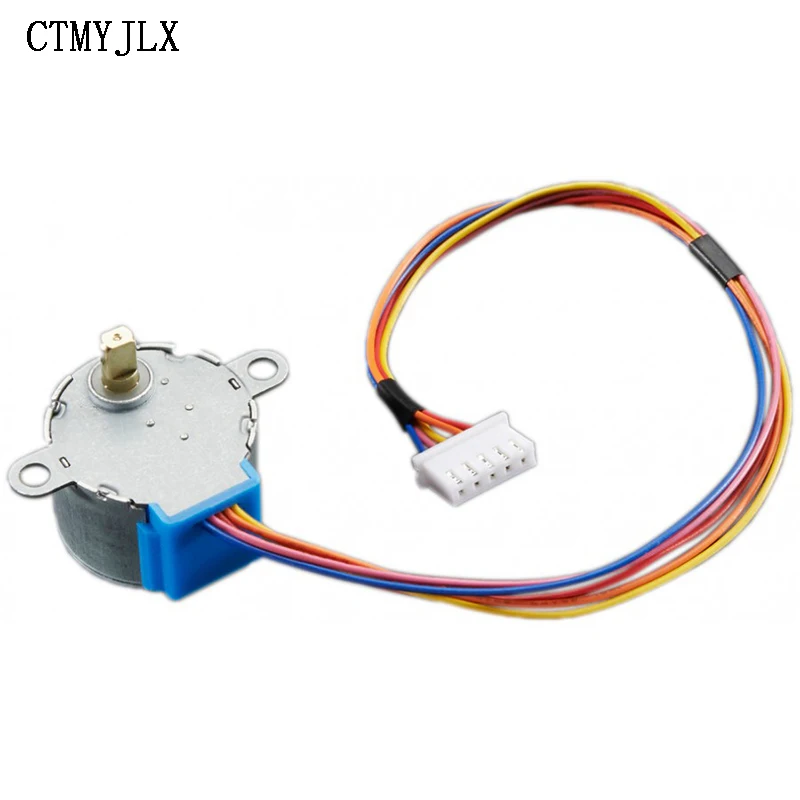

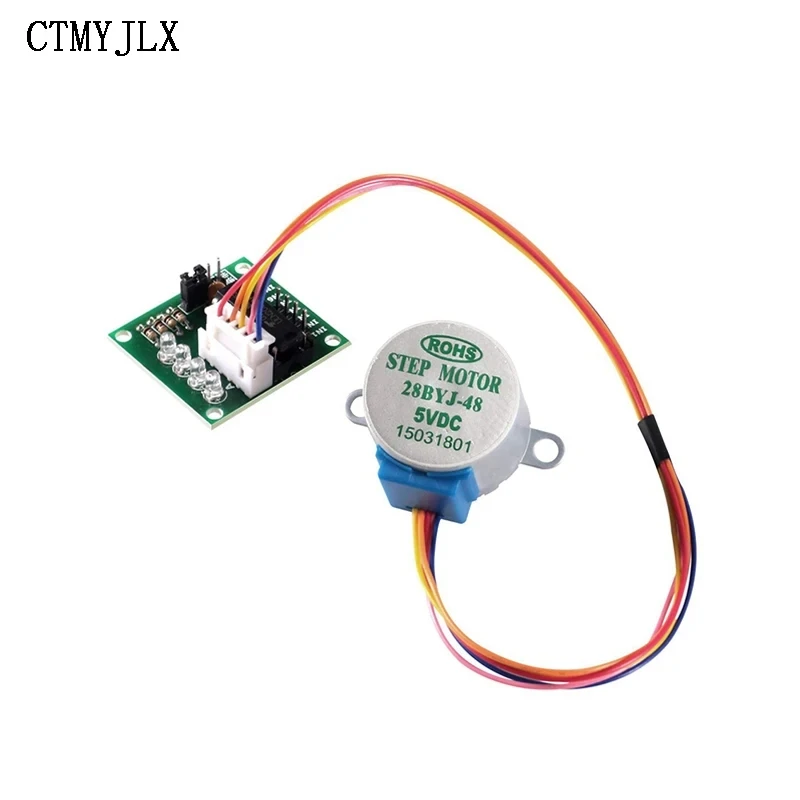

28BYJ-48 Stepper Motor Description:

Gear Stepper Motor DC 5V 4 Phase Step Motor Reduction Step Motor

Brand new and high quality.

Diameter: 27mm.

Voltage: 5V/12V (for options)

Step angle: 5.625 x 1/64.

Reduction ratio: 1/64.

Color: Silver

5 lines cable 4 phase stepper motor can be driven by ULN2003 chip.

It also can be connected as 2 phase to use.

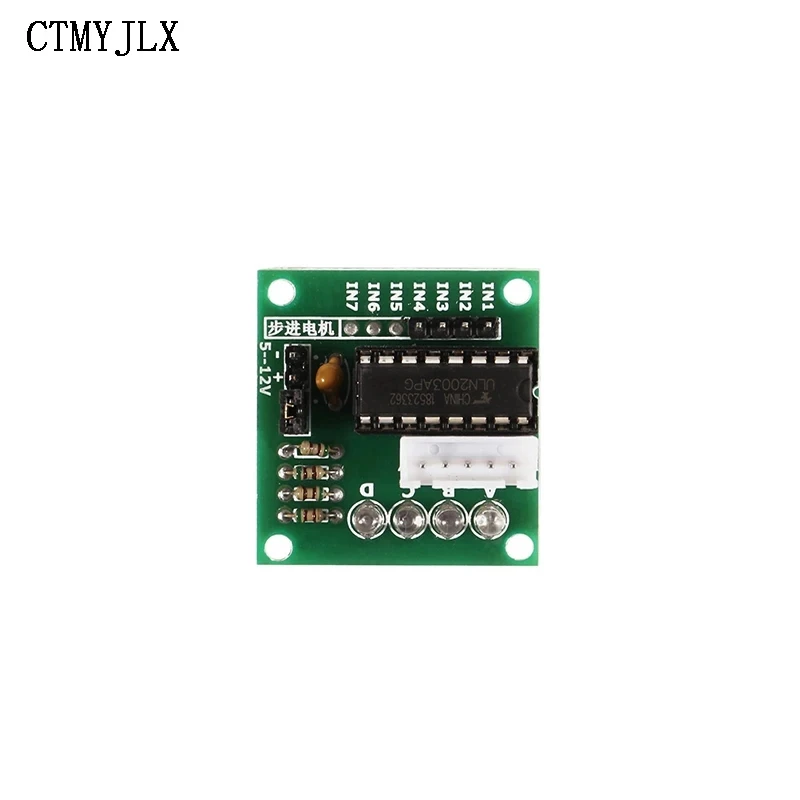

ULN2003 Module:

The ULN2003 high power chip drives the stepper motor

A, B, C, D LEDs indicate the state of the four-phase stepper motor when it is operating

Equipped with stepper motor standard interface, can be directly inserted when used.

Wiring Method:

The left of the IN1 ~ IN7 corresponding to the single-chip 7 IO line;

The right side of the white socket pin definition from top to bottom are VCC, A, B, C, D (then stepper motor common line, A phase, B phase, C phase, D phase);

The bottom of the 2-pin pin GND ground, V + then +5 V

Directly into the microcontroller development board or system board can be used, need to draw from the development board 4 IO port, 5V and ground.

The development board / system board and the motor drive board are connected by 6 DuPont lines

Drive Module Board Size:2.8cm x 2.8cm x 2cm
