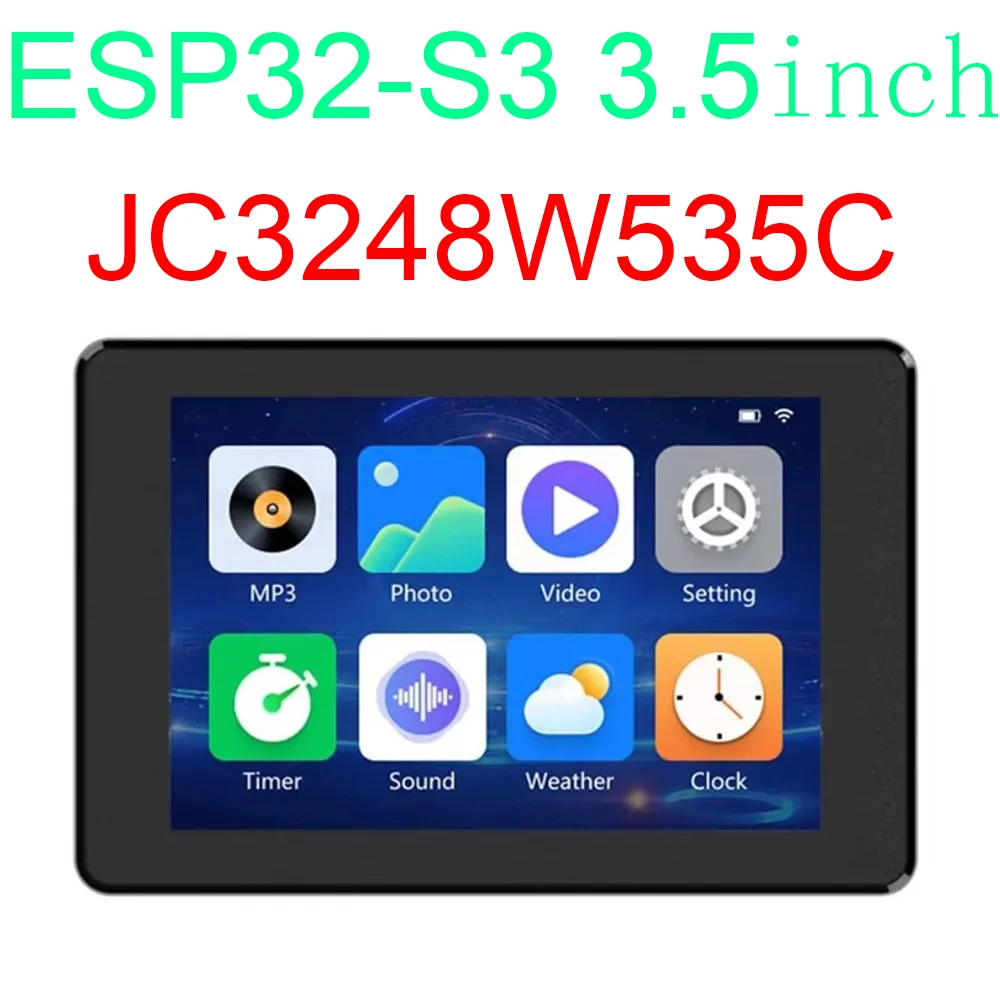

ESP32-S3 3.5 inch Capacitive Touch Display JC3248W535C IPS TFT 8M PSRAM 16M FLASH ESP32 WiFi BT Module for Arduino ESP LVGL

ESP32-S3 3.5" Capacitive Touch Display IPS TFT 8M PSRAM 16M FLASH 320X480 ESP32 WiFi BT Module for Arduino ESP LVGL Development
Product description
This LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, Flash size is 16MB, The display resolution is 320*480, Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,Up to 12 IO available, this module supports development in arduino IDE, ESP IDE, Micropython and Guition.
Features
● 3.5-inch color screen, support 16 BIT RGB 65K color display, display rich colors
● 320X480 resolution
● The sample program has been programmed in the factory and can be plugged in
● With TF card slot for easy expansion storage

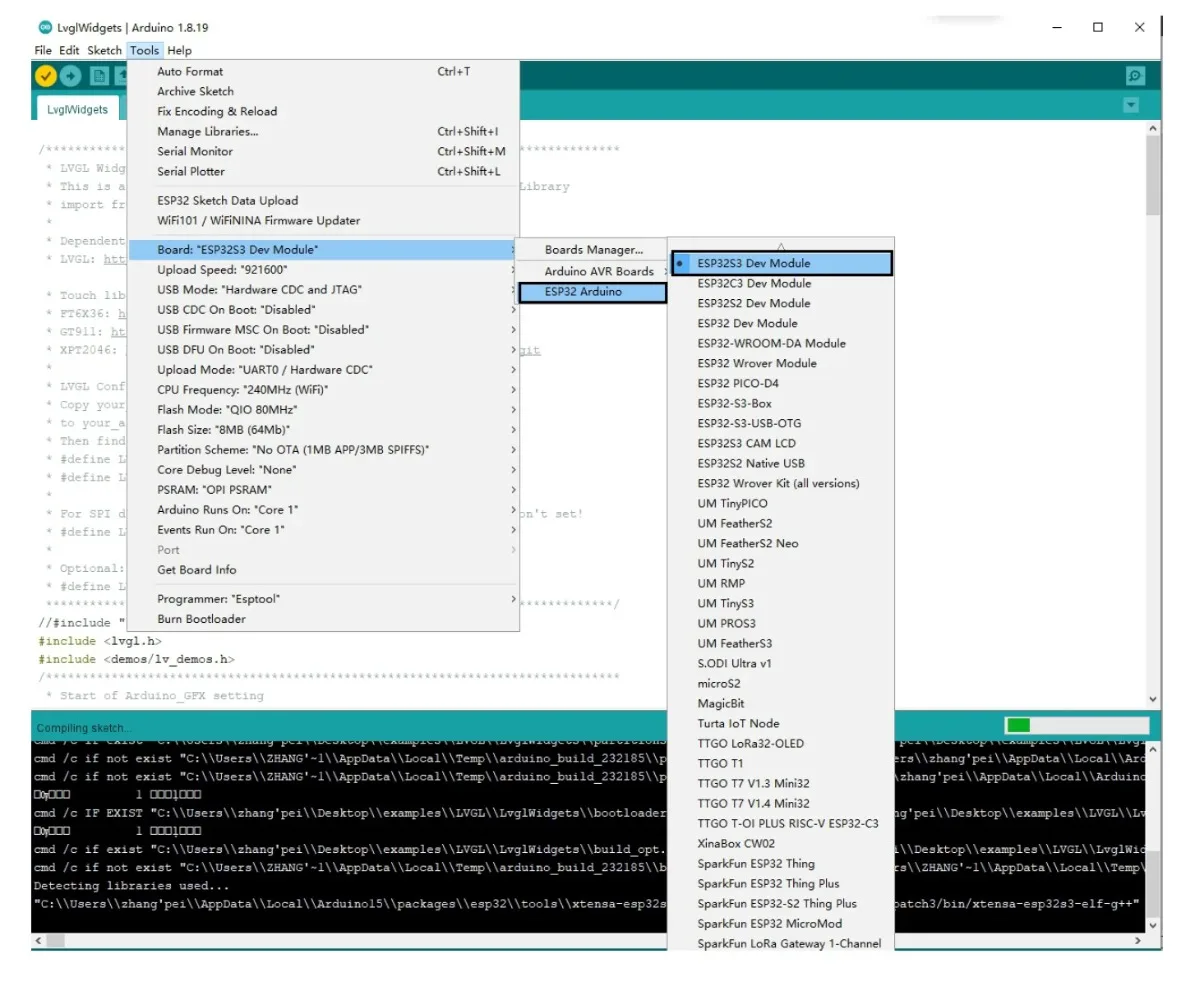

● Provide arduino library functions and sample programs to facilitate rapid secondary development
● Lithium battery charging and discharging circuit with overcharging and discharging protection
● Up to 12 IOs can be used separately by customers
● Support one-click download program
● Military-grade process standards, long-term stable work
Product parameters
Display color: RGB 65K color
SKU: Capacitive touch:JC3248W535C_I_Y
Size: 3.5 inch
Type: TFT
Driver chip: AXS15231B
Resolution: 320*480(Pixel)

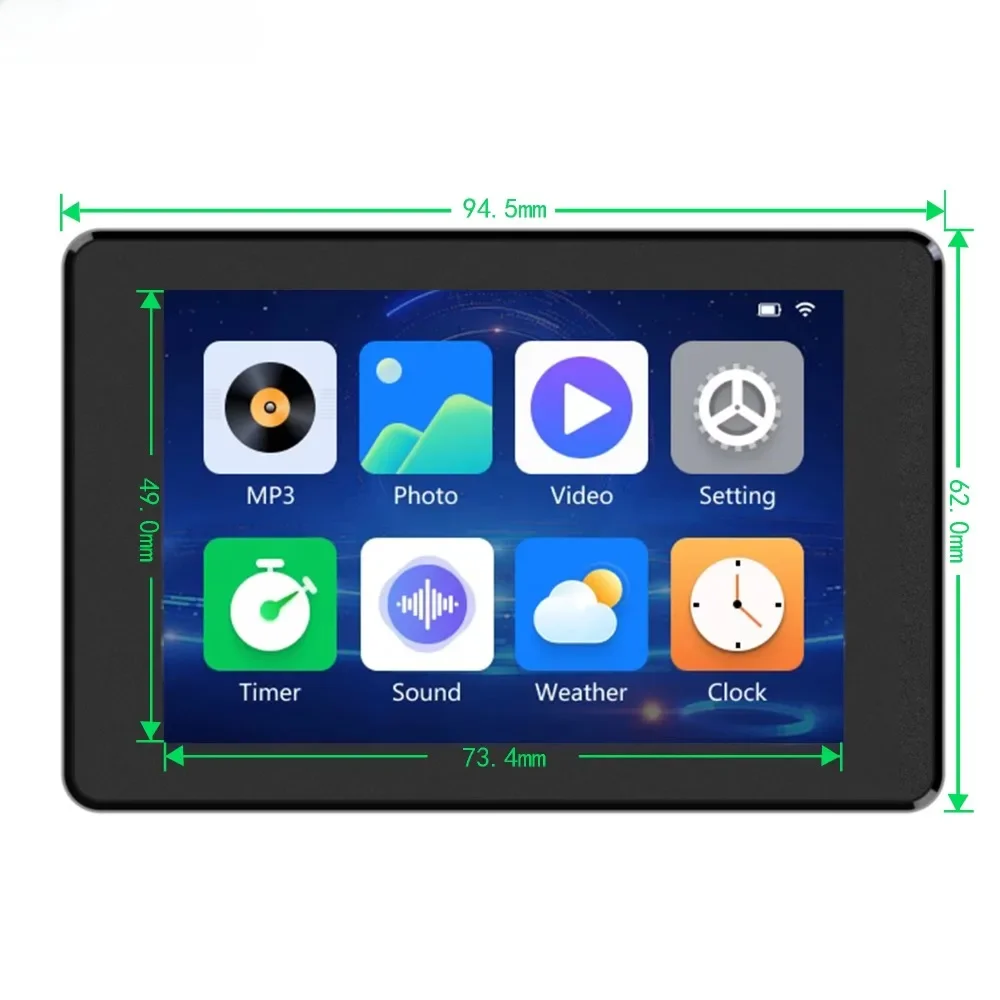

Effective display area: 73.4* 49.0(mm)
Module size: 94.5*62.0(mm)
View: IPS
Operating temperature: -20℃~70℃
storage temperature: -30℃~80℃
Operating Voltage: 5V
Power consumption: About 150mA
Product weight: About 80g
Package includes:
1 X ESP32-S3 3.5-inch capacitive touch IPS module
