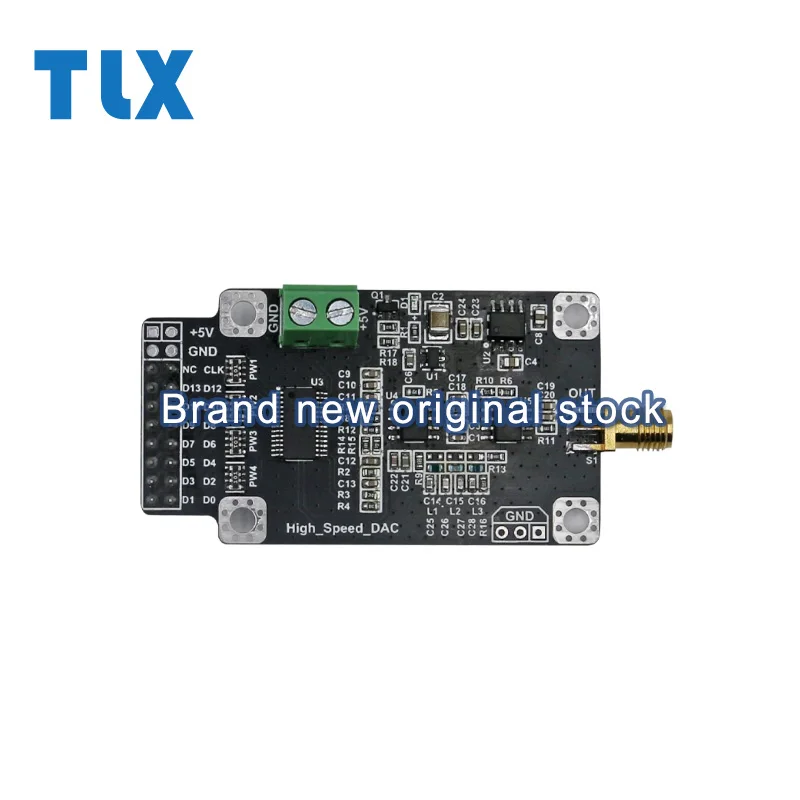

DAC904 high-speed DAC module 14-bit 165M sampled waveform generation digital to analog converter

Chip model: DAC904

Module type: Digital-to-analog converter

Power supply: Single power supply 5V

Data output format: Direct code

DAC resolution: 14 bits

Update rate: 165Msps

Analog bandwidth: 40MHz

Sine wave output range: 60MHz

Output voltage range: ± 3.2V(6.4Vpp)

Output impedance: 50Ω

Output channel: Single channel

Reference voltage: 1.24V internally

Control level signal: 3V

Communication protocol: 14-bit parallel

Routine language: Verilog

Routine platform: QuartusII 13.0

Output interface: SMA
