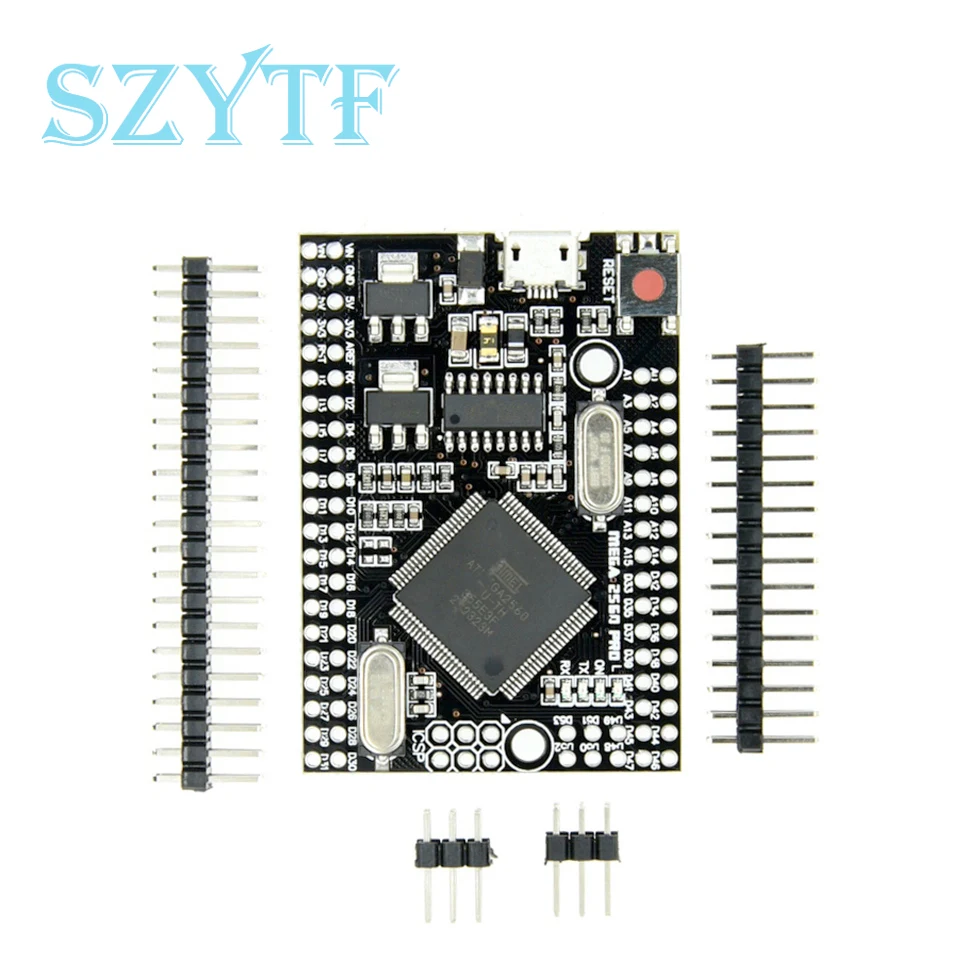

Mega2560 Mega 2560 PRO MINI 5V (Embed) CH340G ATmega2560-16AU MICRO TYPE-C With Male Pinheaders Compatible For Arduino Mega

Embedded version Mega 2560 CH340G/ATmega2560- compatible with Mega 2560 motherboard. Built based on Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.

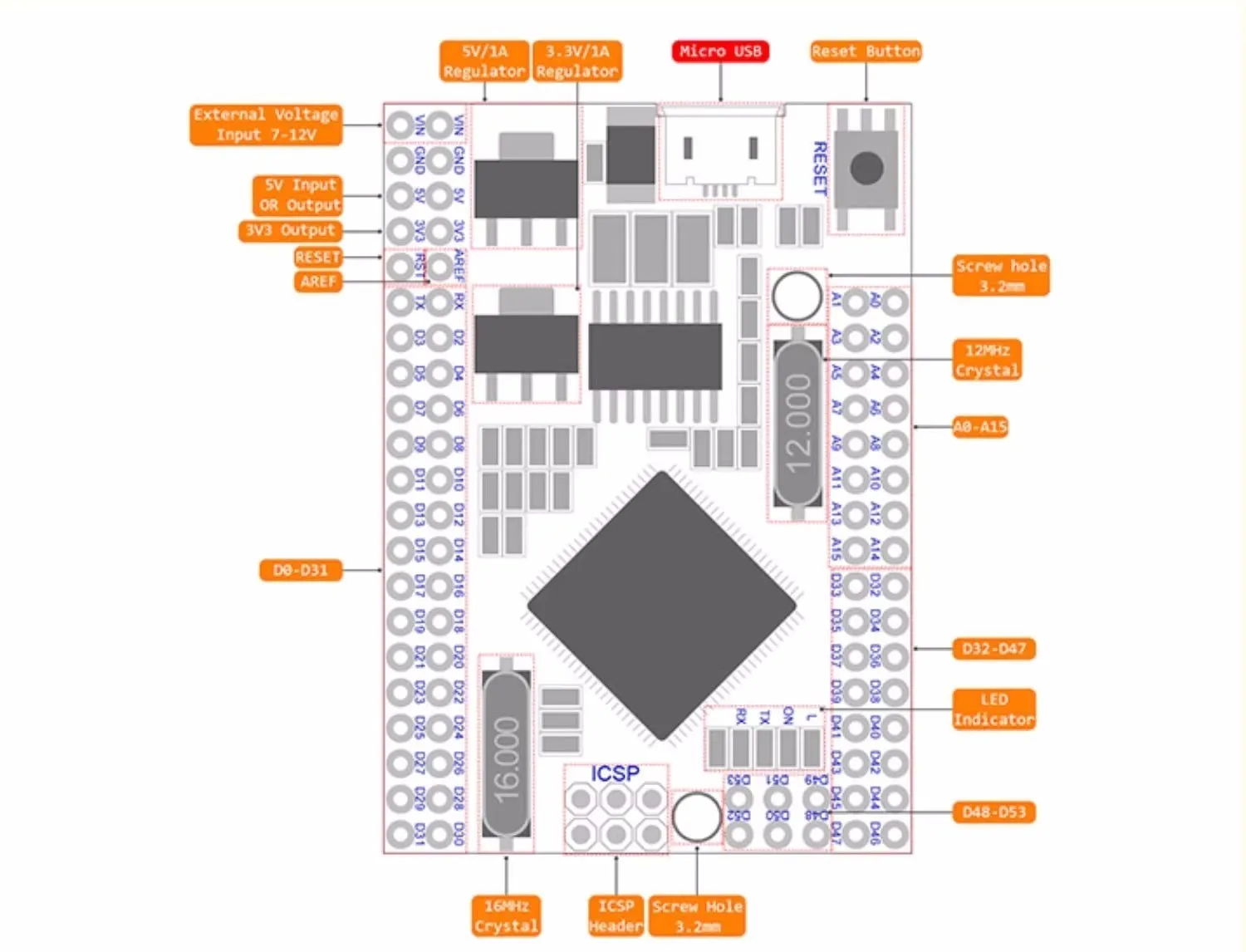

The circuit board has a compact size of 38x55mm. This is a great solution to make your final project on a welded prototype board.

The motherboard function is similar to the Arduino Mega 2560. It is an embedded motherboard, but it is also stable and uses the original chip ATmega2560 (16 MHz).

The board uses the chip CH340G as the converter UART USB. When working at a frequency of 12Mhz, provide stable data exchange results (requiring the installation of drivers to the computer).

Mega PRO (embedded) 2560 CH340G/ATmega2560- connects to a computer through a microUSB cable (suitable for almost all Android smartphones).

You can power the circuit board or pins through the MicroUSB connector. The voltage regulator (LDO) can handle input voltages ranging from 6V to 9V (peak 18V) DC. The output current is 5V - approximately 800mA, 3.3V - approximately 800mA (please note that the higher the input voltage, the lower the output current). This will provide reliable motivation for most of your initial projects.

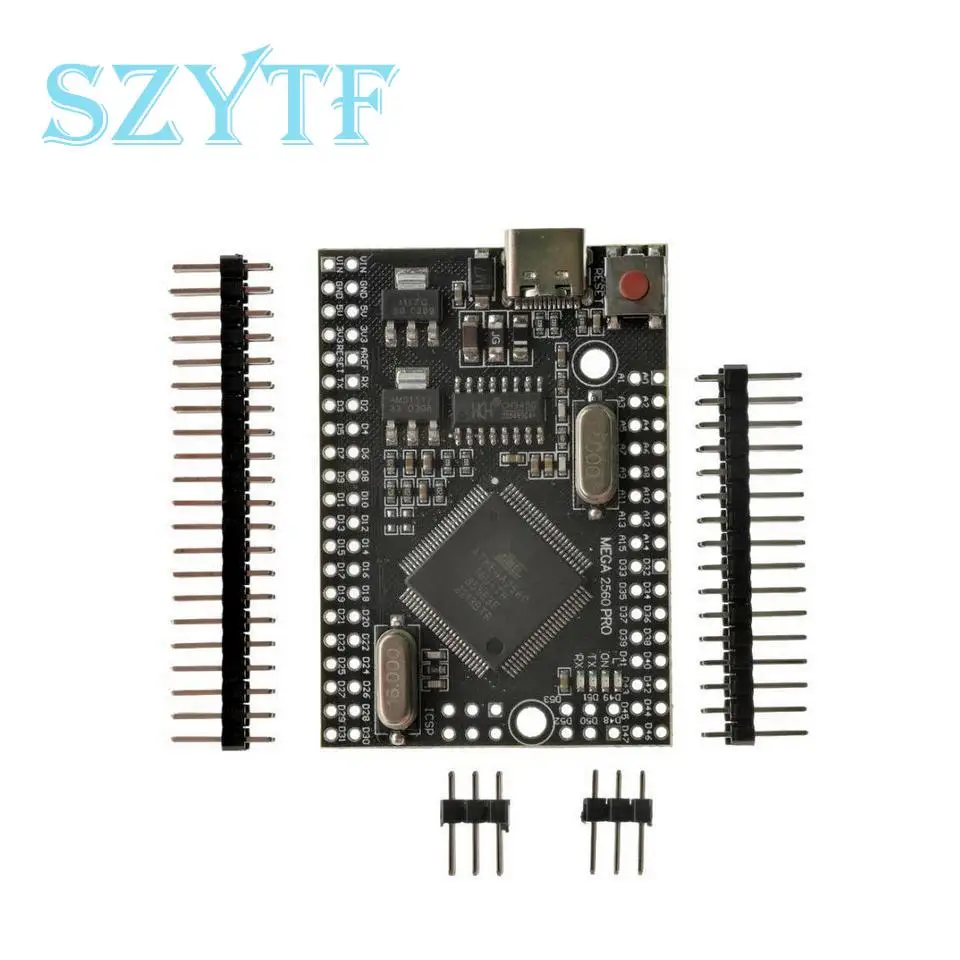

The new version adopts the current mainstream USB interface TYPE-C

Product Introduction:

The circuit board has a compact size of 38x55mm. This is a great solution to make your final project on a welded prototype board.

The motherboard function is similar to the Arduino Mega 2560. It is an embedded motherboard, but it is also stable and uses the original chip ATmega2560 (16 MHz)

The board uses a chip as the converter UART USB. Provide stable data exchange results when working at a frequency of 12Mhz (requires installing drivers to the computer)

Mega PRO (embedded) 2560/ATmega2560- connects to a computer through a microUSB cable (suitable for almost all Android smartphones).

common

You can power the circuit board or pins through the TYPE-C USB connector. The voltage regulator (LDO) can handle input voltages ranging from 6V to 9V (peak 18V) DC. The output current is 5V - approximately 800mA, 3.3V - approximately 800mA (please note that the higher the input voltage, the lower the output current). This will provide reliable motivation for most of your initial projects.

Main control chip: ATmega2560

Driver chip: CH340

Power output: 5V/800mA

Power input: 5V

External power input (VIN): 7-9V

Power consumption: 5V 220mA

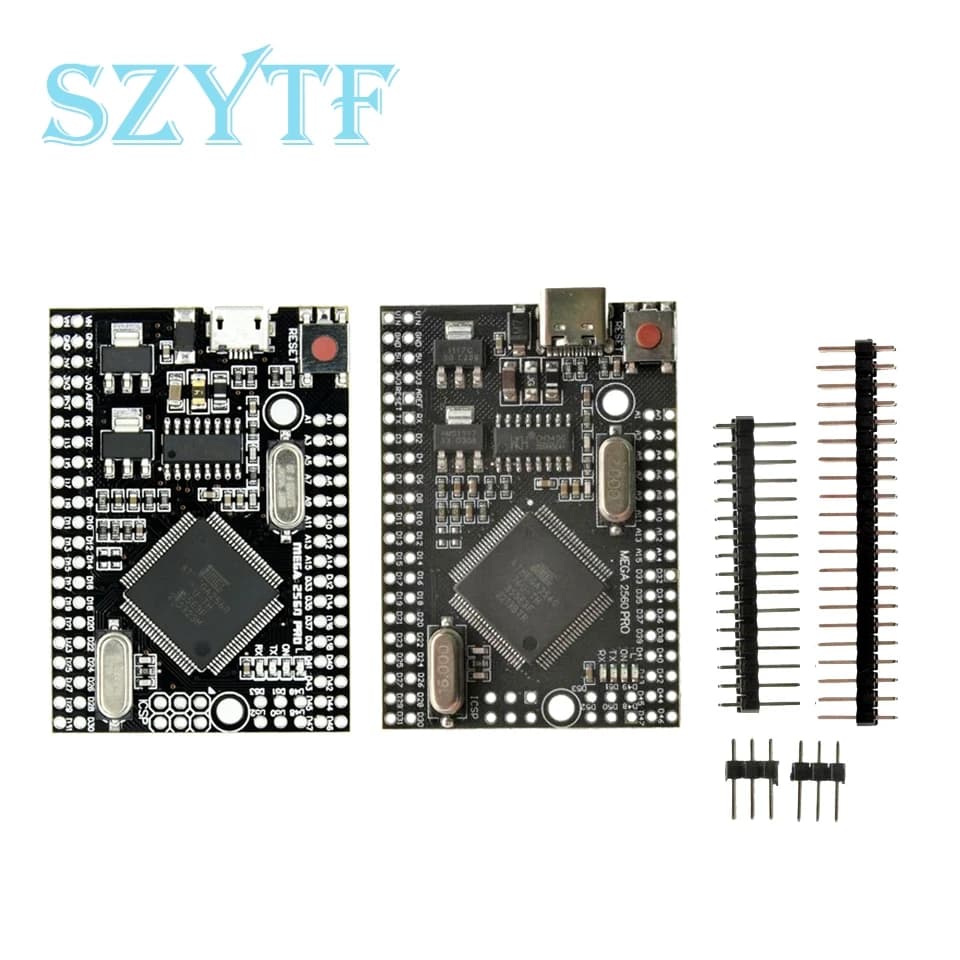

Interface: TYPE-C/MICRO

Main control chip crystal oscillator: 16M

Working voltage: 5V

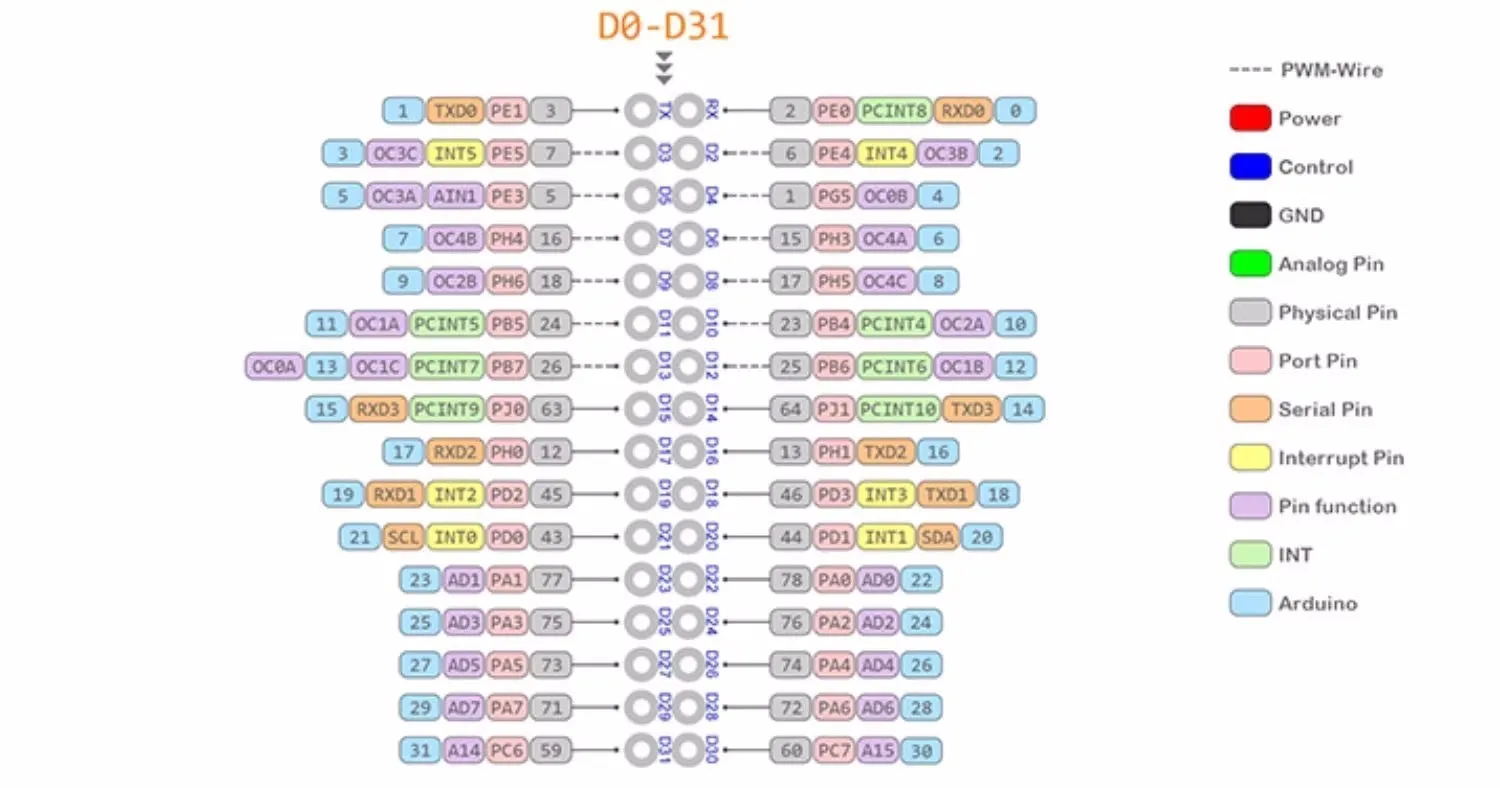

Digital interfaces: 54

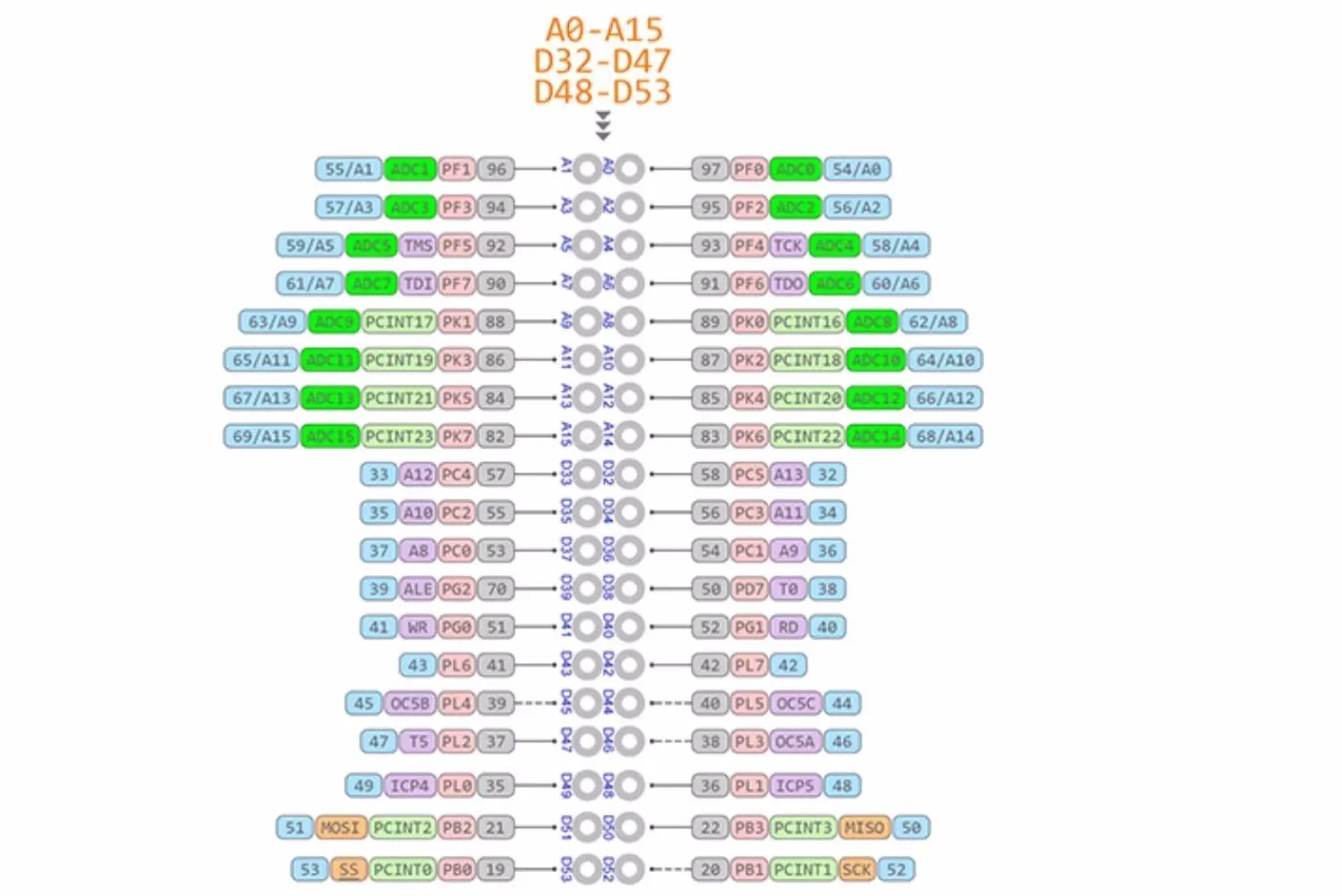

Analog interfaces: 16

Memory size: 256kb

RAM: 8Kb

ROM: 4Kb

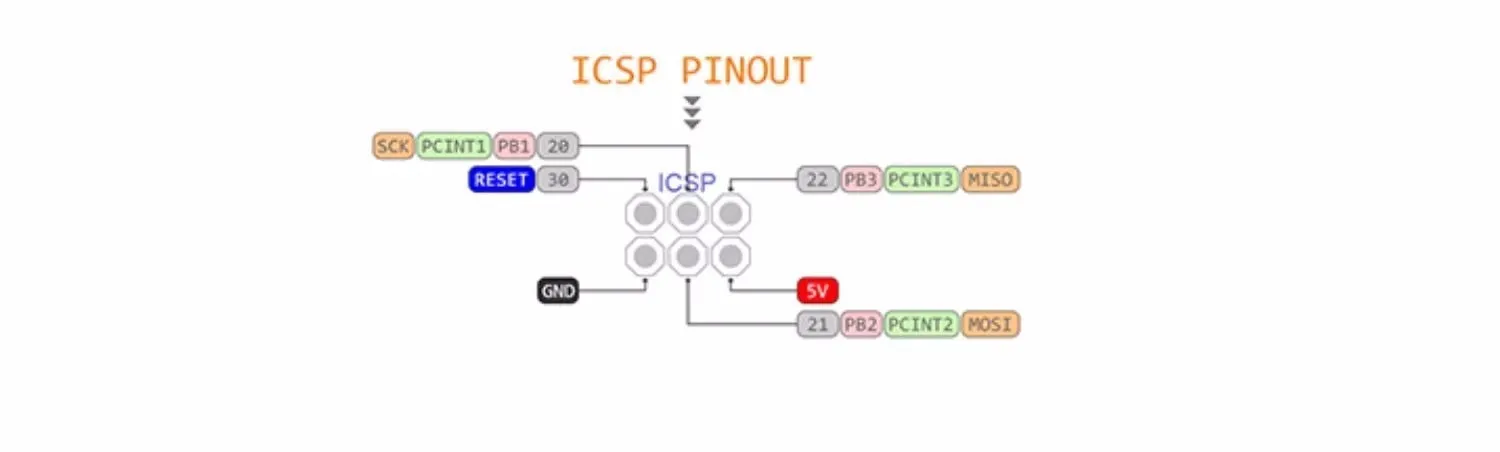

Interface type: ISP

Working temperature: -40 ° to 85 °

Size: 38 * 54mm
