High Precision Static Torque Sensor 0.5-10N.m Flange Reaction Torque Transducer for Bolt Tightening Test Weighing

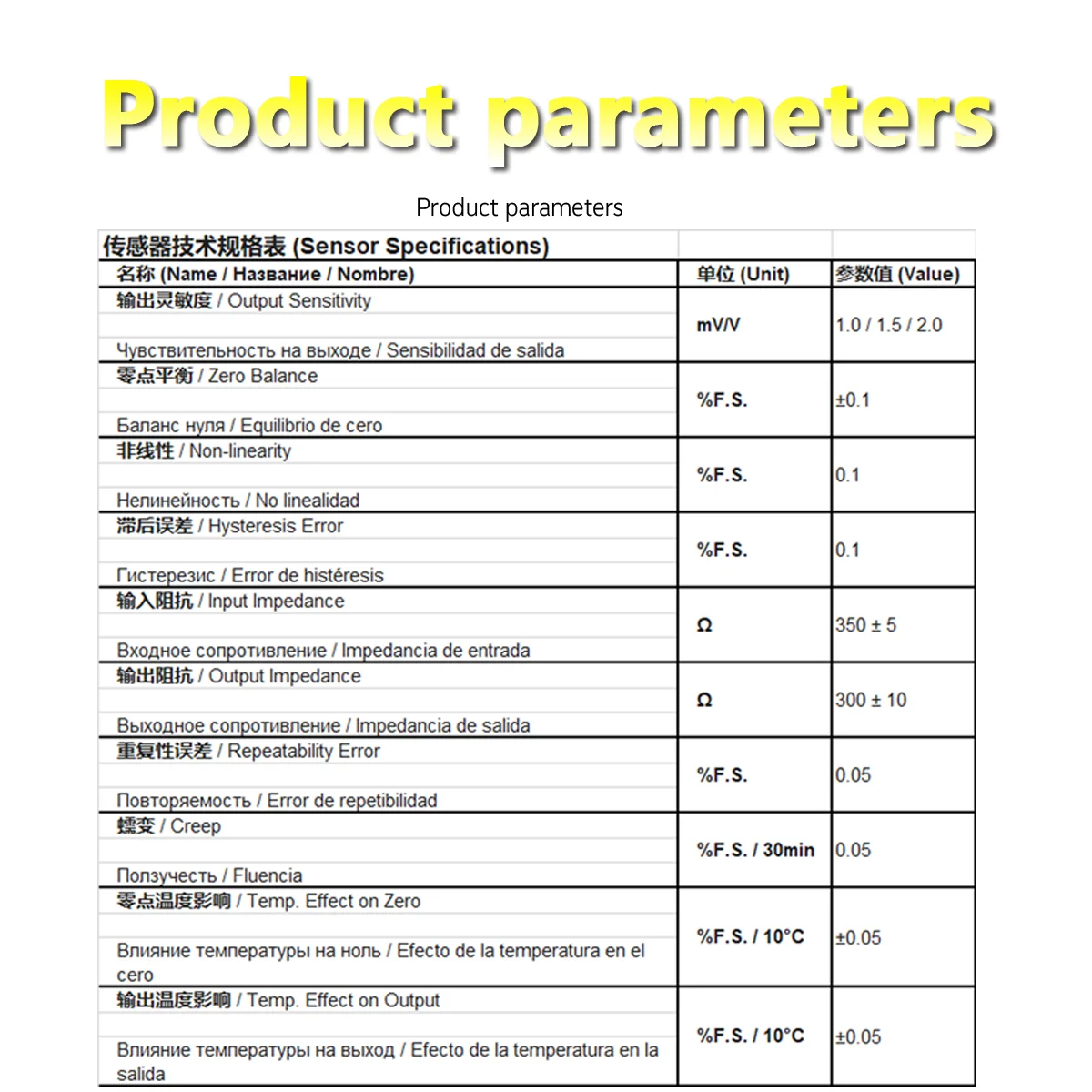

传感器技术规格表 (Sensor Specifications)     名称 (Name / Название / Nombre) 单位 (Unit) 参数值 (Value) 输出灵敏度 / Output Sensitivity mV/V 1.0 / 1.5 / 2.0 　 Чувствительность на выходе / Sensibilidad de salida 零点平衡 / Zero Balance %F.S. ±0.1 　 Баланс нуля / Equilibrio de cero 非线性 / Non-linearity %F.S. 0.1 　 Нелинейность / No linealidad 滞后误差 / Hysteresis Error %F.S. 0.1 　 Гистерезис / Error de histéresis 输入阻抗 / Input Impedance Ω 350 ± 5 　 Входное сопротивление / Impedancia de entrada 输出阻抗 / Output Impedance Ω 300 ± 10 　 Выходное сопротивление / Impedancia de salida 重复性误差 / Repeatability Error %F.S. 0.05 　 Повторяемость / Error de repetibilidad 蠕变 / Creep %F.S. / 30min 0.05 　 Ползучесть / Fluencia 零点温度影响 / Temp. Effect on Zero %F.S. / 10°C ±0.05 　 Влияние температуры на ноль / Efecto de la temperatura en el cero 输出温度影响 / Temp. Effect on Output %F.S. / 10°C ±0.05 　 Влияние температуры на выход / Efecto de la temperatura en la salida
This series of high-precision static torque sensors features a flange-mounted design, specifically engineered for torque measurement in static or non-continuous rotation processes. Utilizing premium sensitive components, it offers outstanding linearity, repeatability, and long-term stability. The micro-range capacities (0.5Nm to 10Nm) are ideal for precision instrument cap-torque testing, bolt tightening analysis, and laboratory material performance evaluation. Its compact structure ensures easy installation and supports high-duty industrial operations.
