NEXTION 4.3 Inch LCD-TFT HMI Display Capacitive/Resistive Touch Panel Module Intelligent Series RGB 65K Color With Enclosure

NEXTION 4.3 Inch LCD-TFT HMI Display Capacitive/Resistive Touch Panel Module Intelligent Series RGB 65K Color With Enclosure

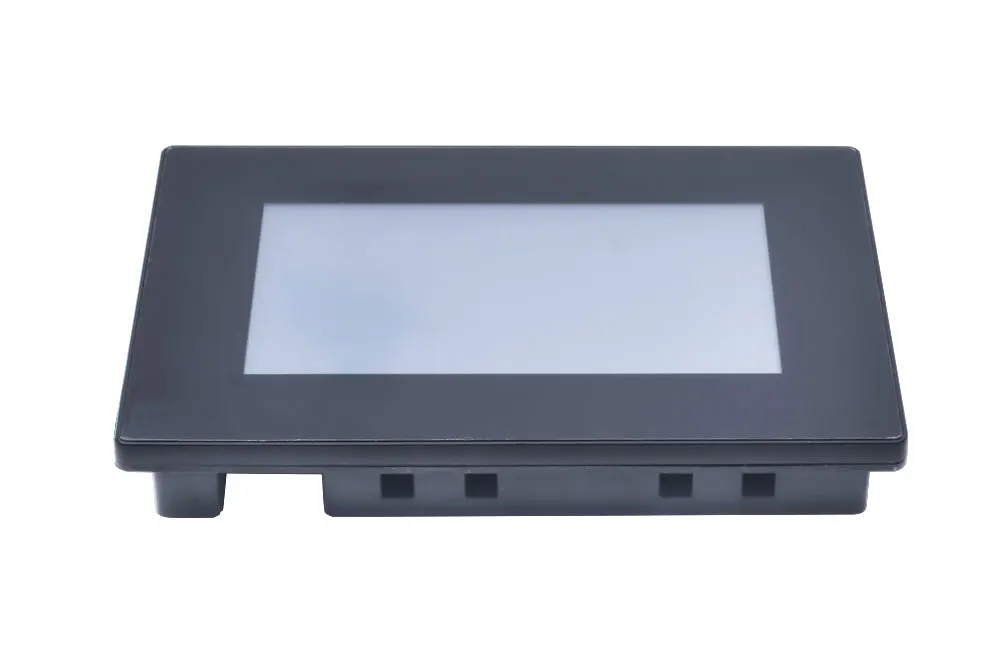

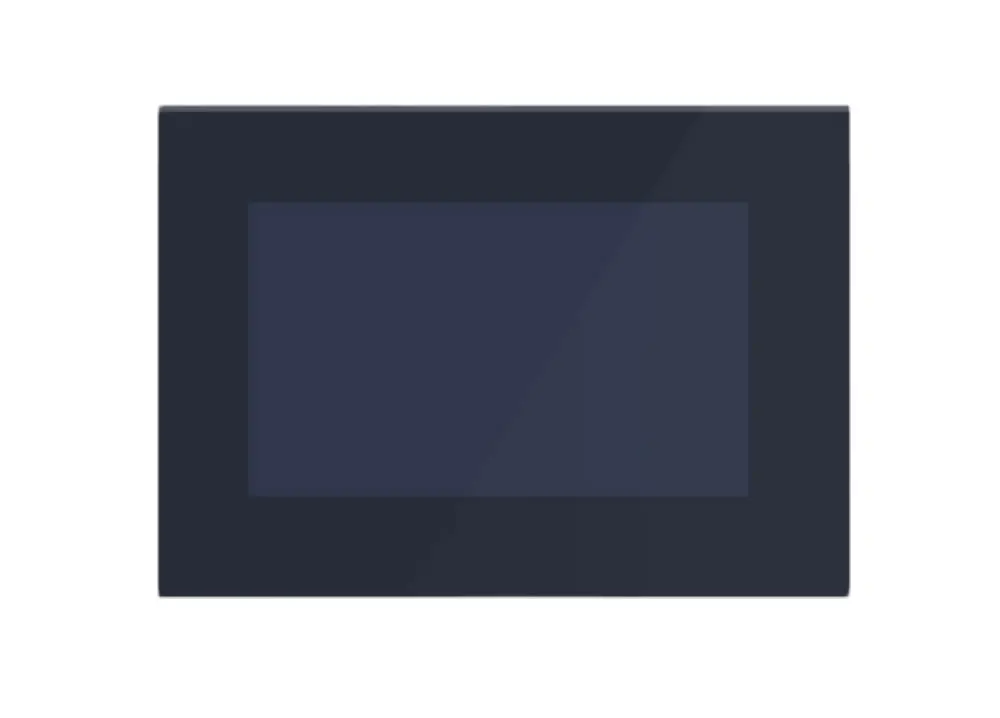

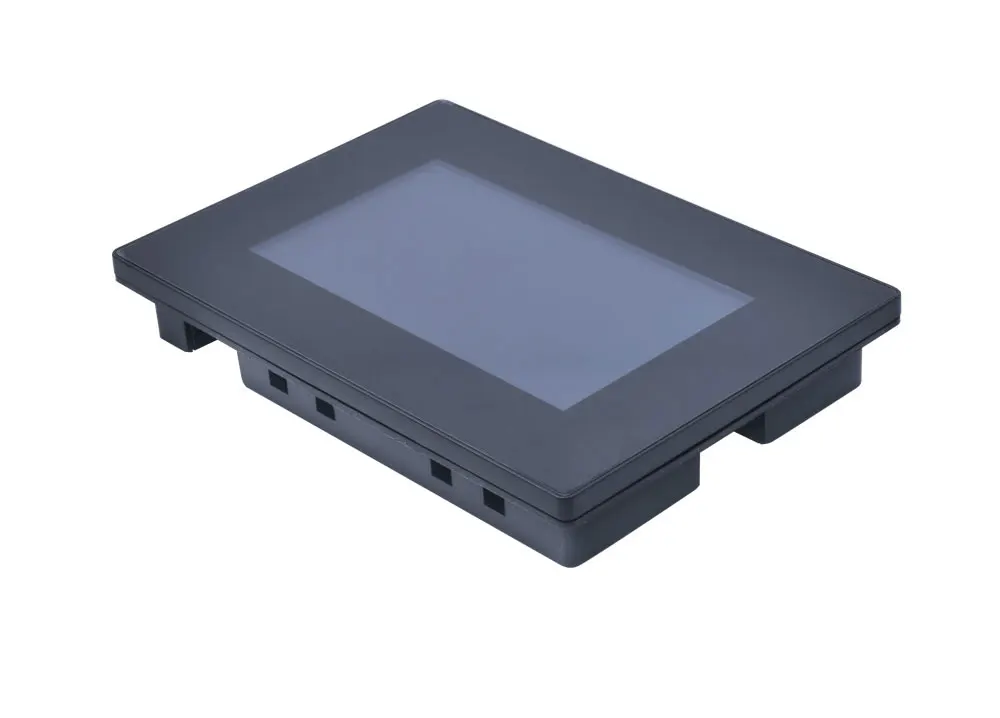

NX4827P043-011C-Y is a Nextion Intelligent series 4.3'' capacitive HMI touchscreen with enclosure.

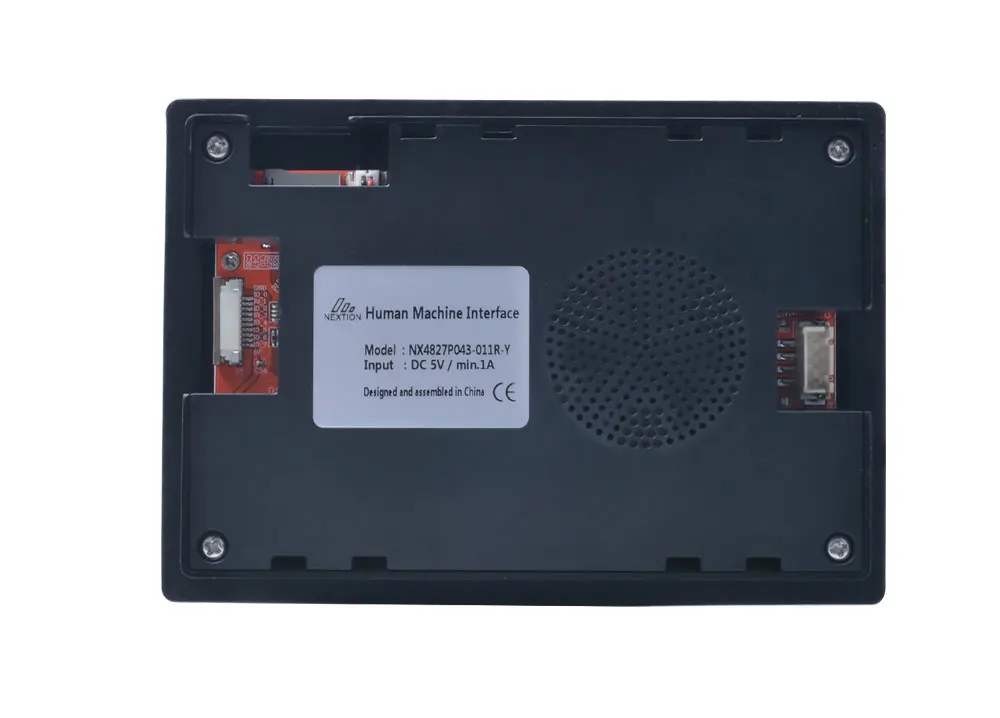

NX4827P043-011R-Y is a Nextion Intelligent series 4.3'' resistive HMI touchscreen with enclosure.

NOTE: 4.3 inch display is now transiting to IPS technology, please choose the correct SKU if you need.

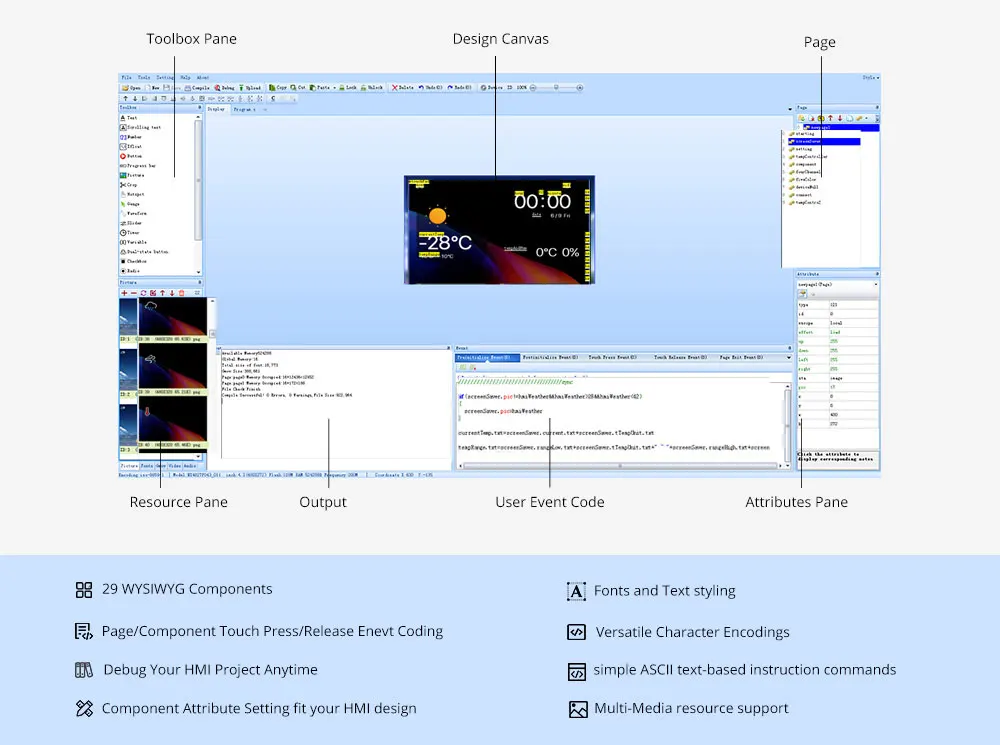

Nextion Editor

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

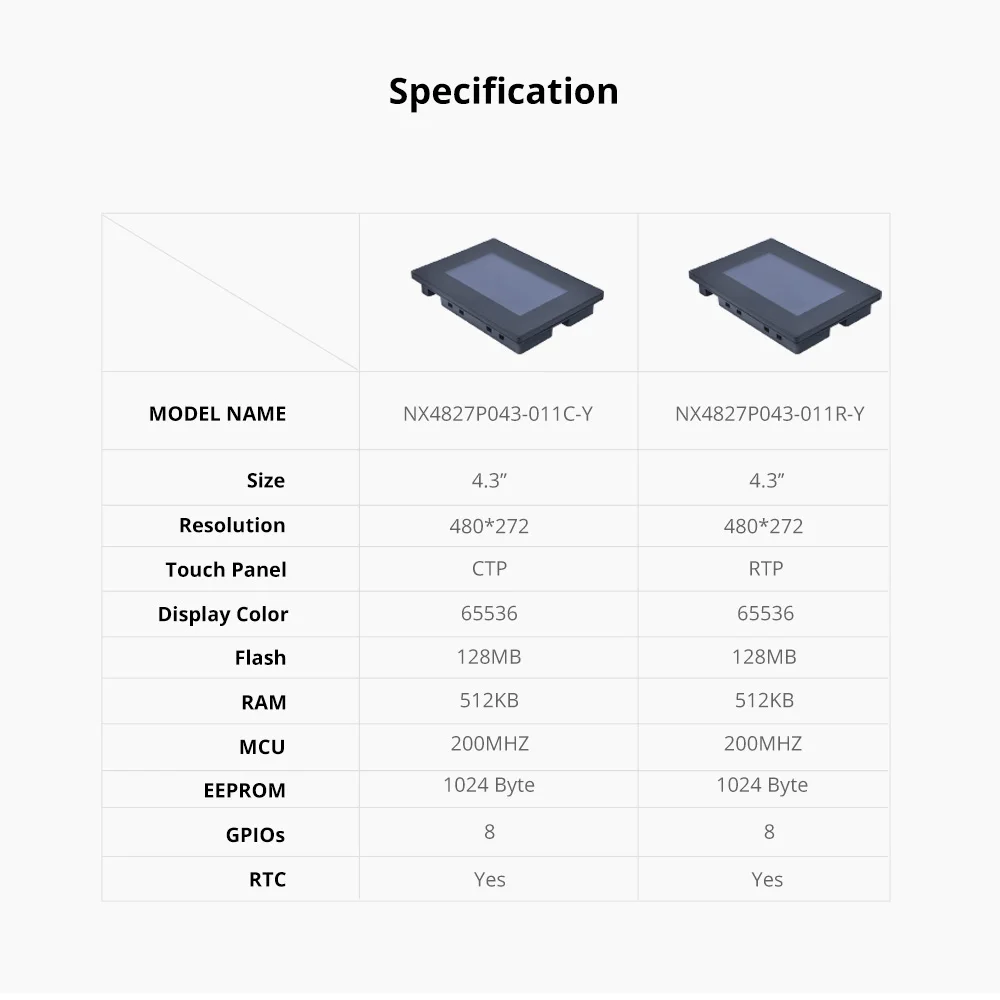

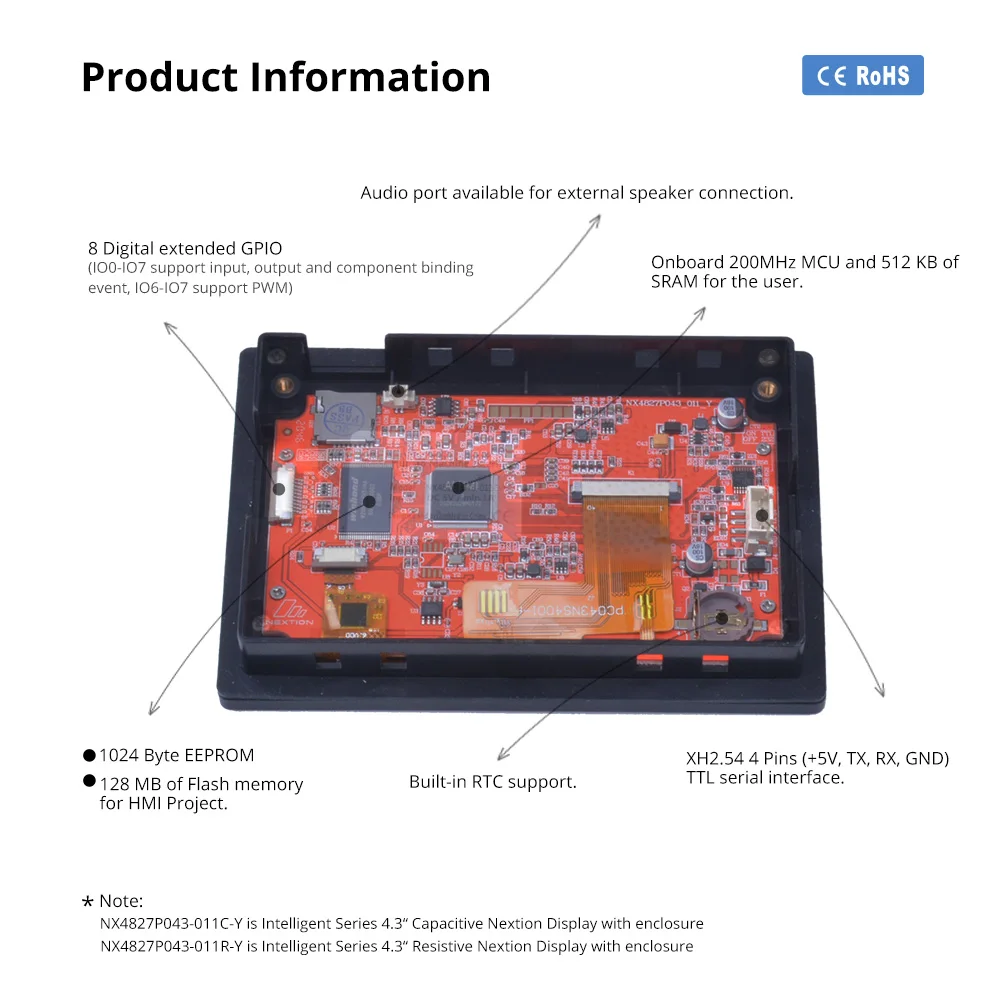

Hardware Features

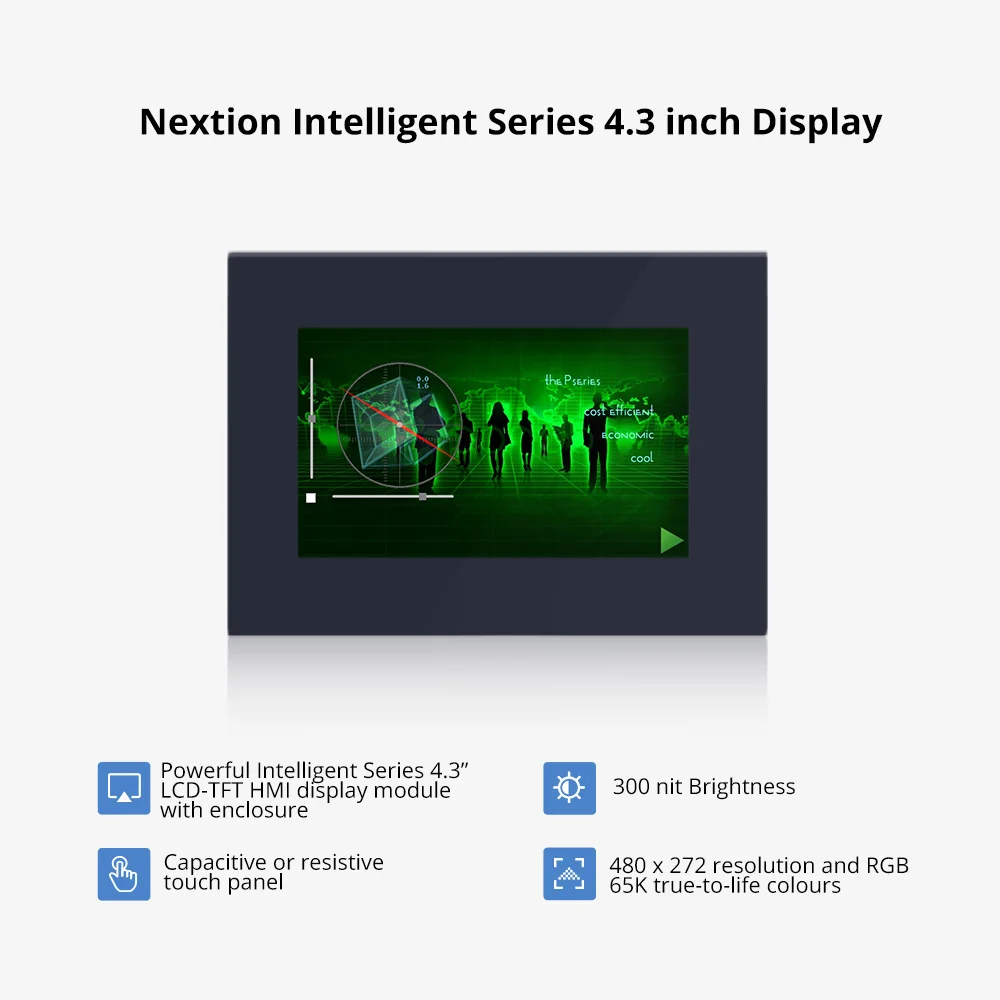

4.3” LCD-TFT HMI display module
480 x 272 screen resolution
RGB 65K true-to-life colours
Capacitive or Resistive touch panel
300 nit Brightness
Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
Built-in RTC support

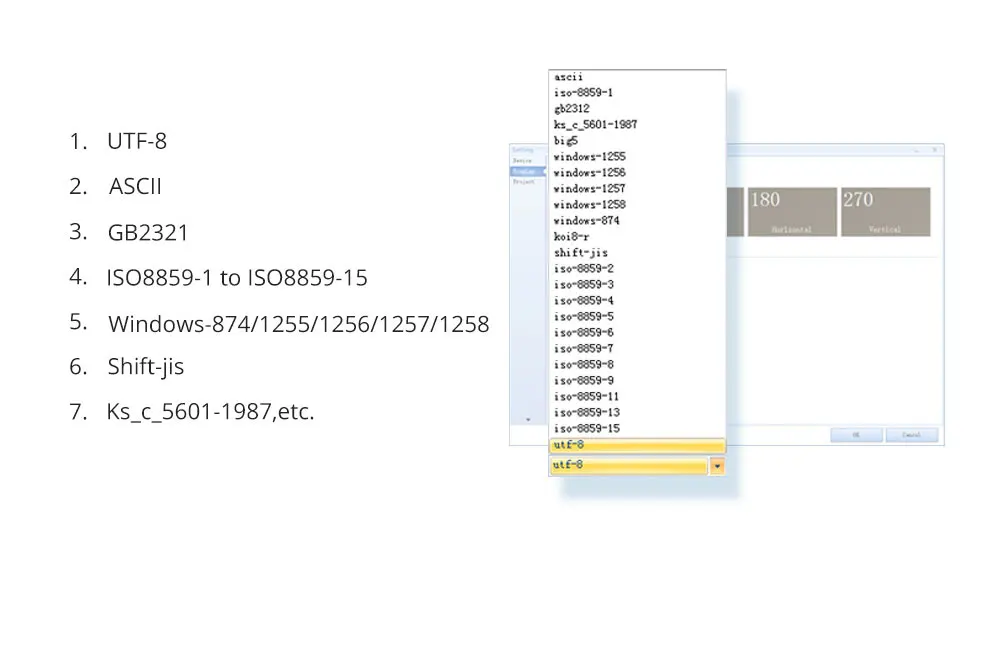

Versatile Character Encoding

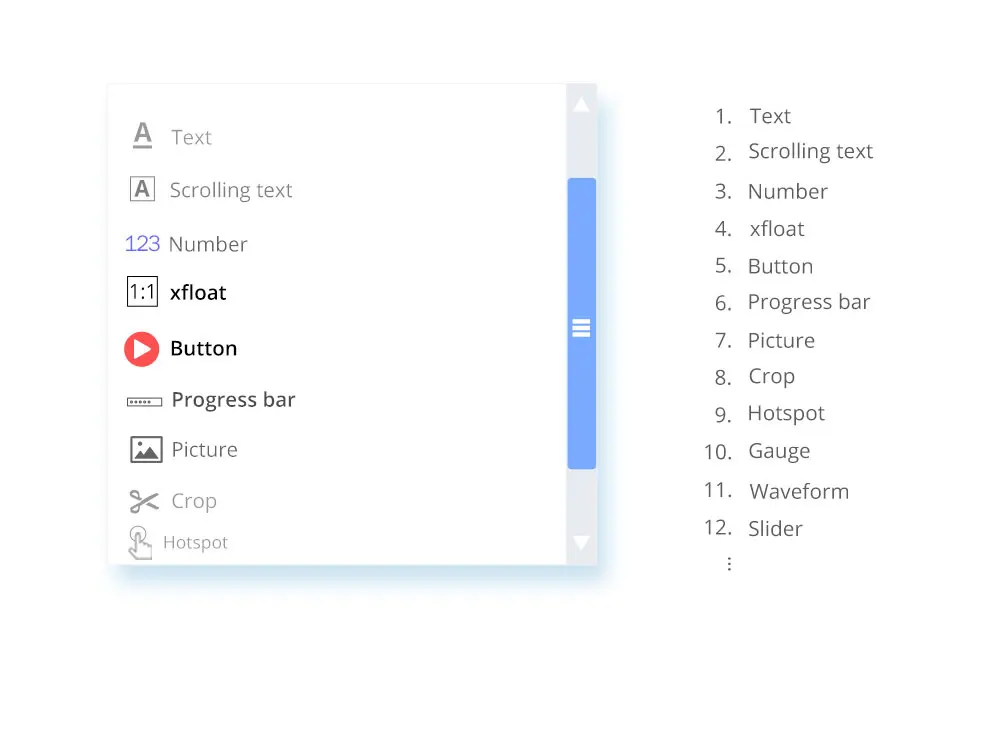

25+ Amazing WYSIWYG Components

Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way.

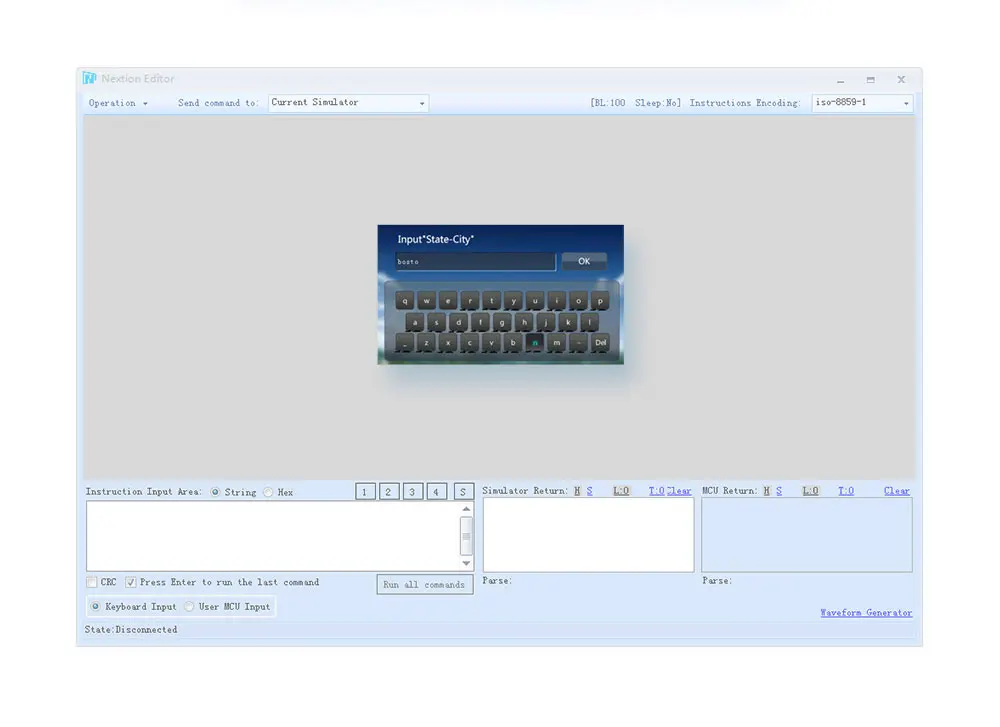

Free Simulator Debug

Debug the HMI project at any time even without the Nextion Display. The instruction input area allows you to send any Nextion commands to check the feedback and interactions.

Fonts and Text Styling

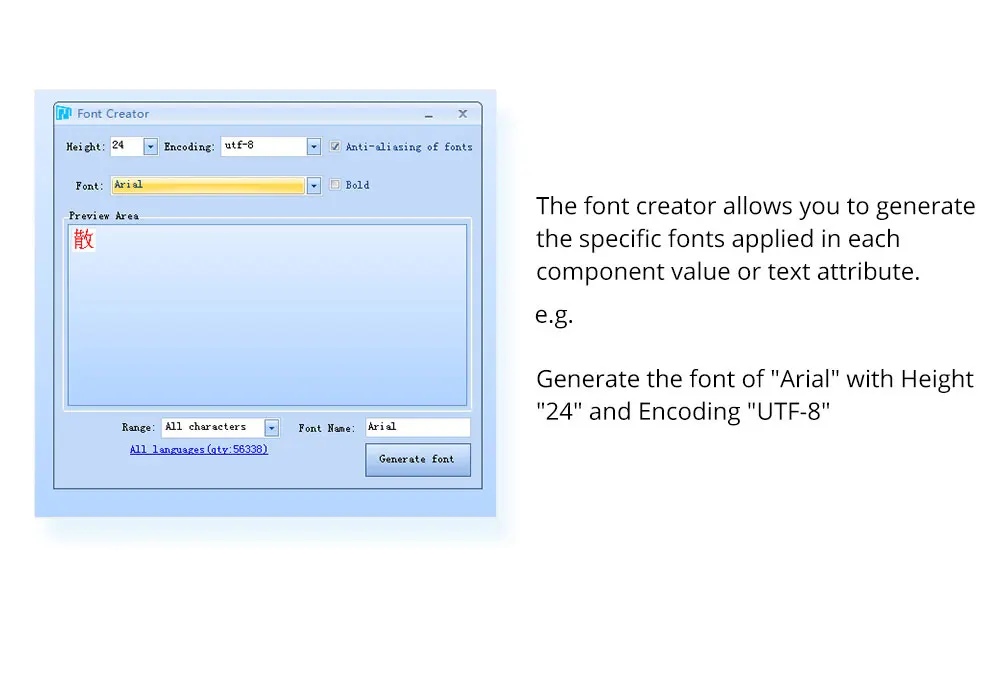

The font creator allows you to generate the specific fonts applied in each component value or tect attribute.

e.g.

Generate the font of "Arial" with Height "24" and Encoding "UTF-8"

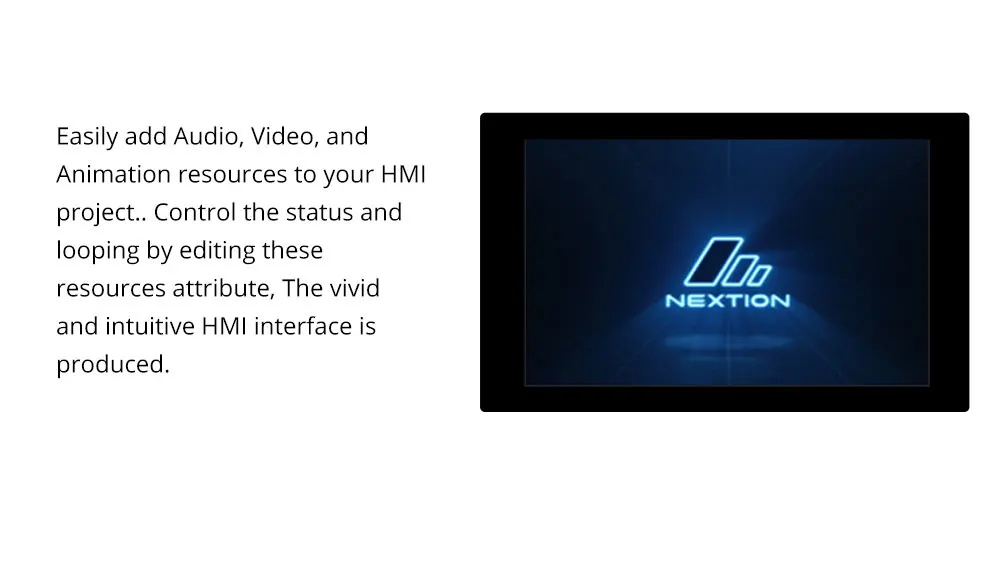

Play Multi-media Resource in Your HMI Project

Easily add Audia, Video and Animation resources to your HMI project. Control the status and looping by editing these resources attribute. Thr vivid and intuitive HMI interface is produced.

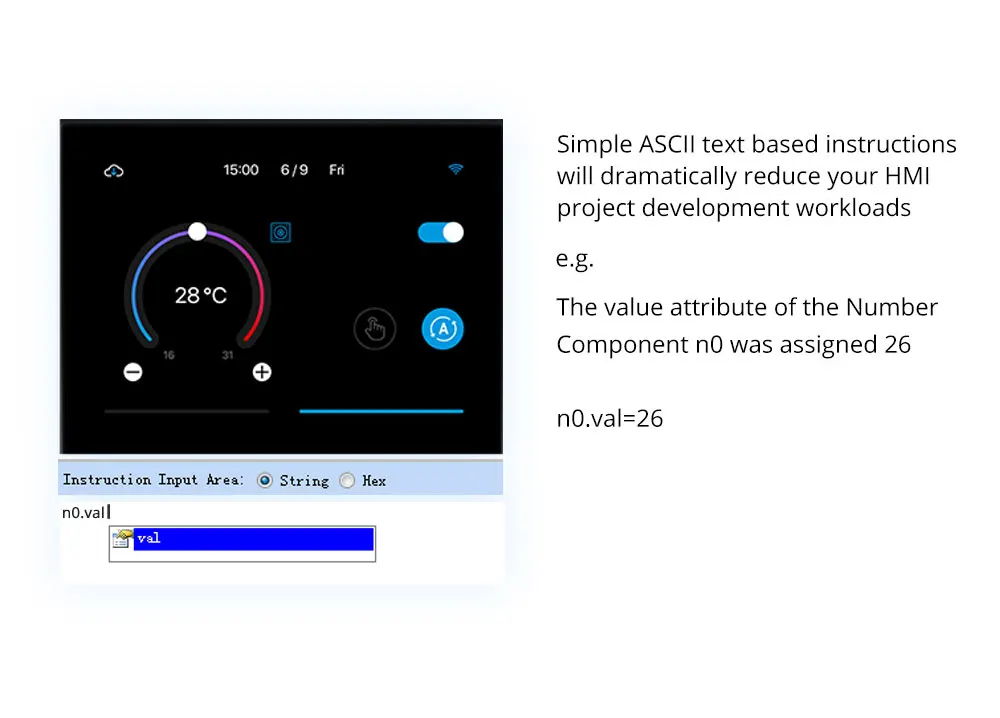

Text-based Instruction Set

Simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

e.g.

The value attribute of the Number Component n0 was assigned 26

n0.val=26

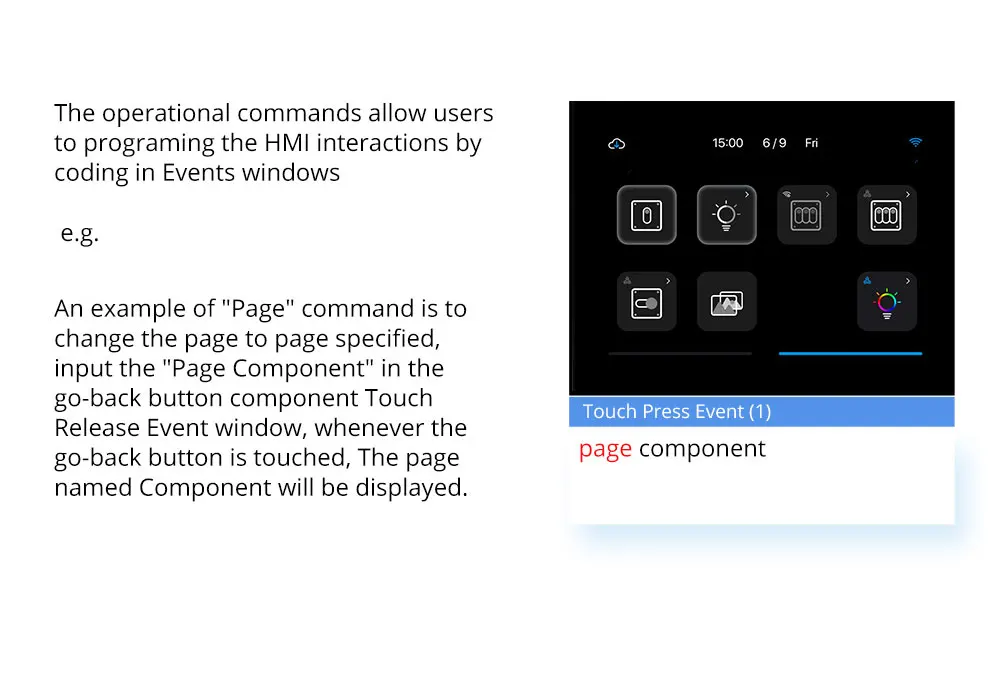

Nextion Operational Commands

The operational commands allow users to programing the HMI interactions by coding un Events windows.
e.g.

An example of "Page" command is to change the page to page specified, input the "Page Component" in the go-back button component Touch Release Event window, whenever the go-back button is touched, The page named Component will be displayed.

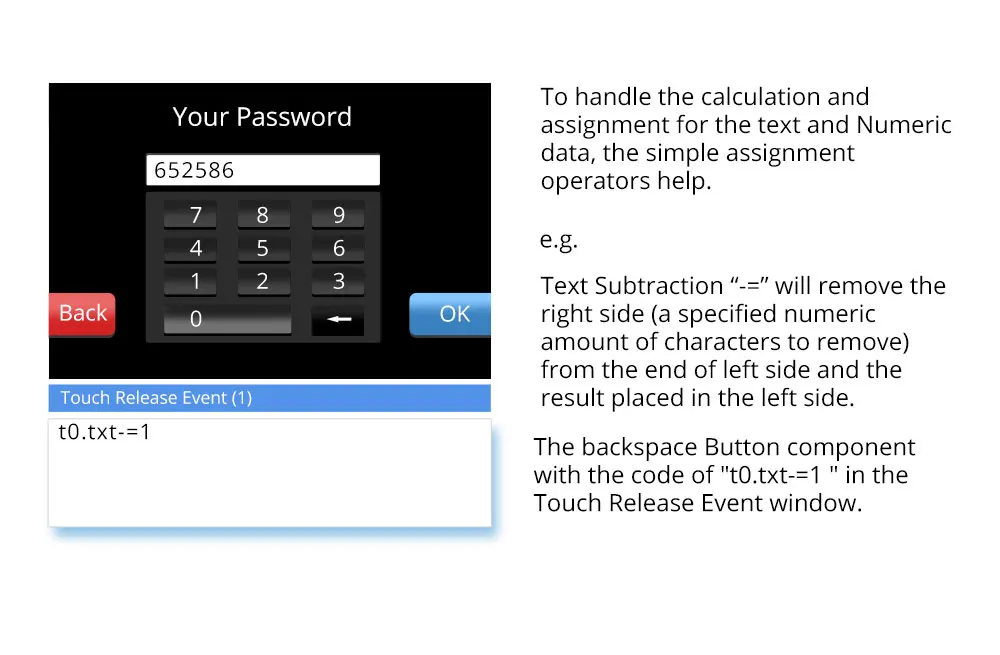

Support Simple Assignment Operators

To handle the calculation and assignment for the text anf Numeric data. the simple assignment operators help.
e.g.

Text Subtraction “-=” will remove the right side (a specified numeric amount of characters to remove) from the end of left side and the result placed in the left side.

The backspace Button component with the code of "t0.txt-=1 " in the Touch Release Event window.

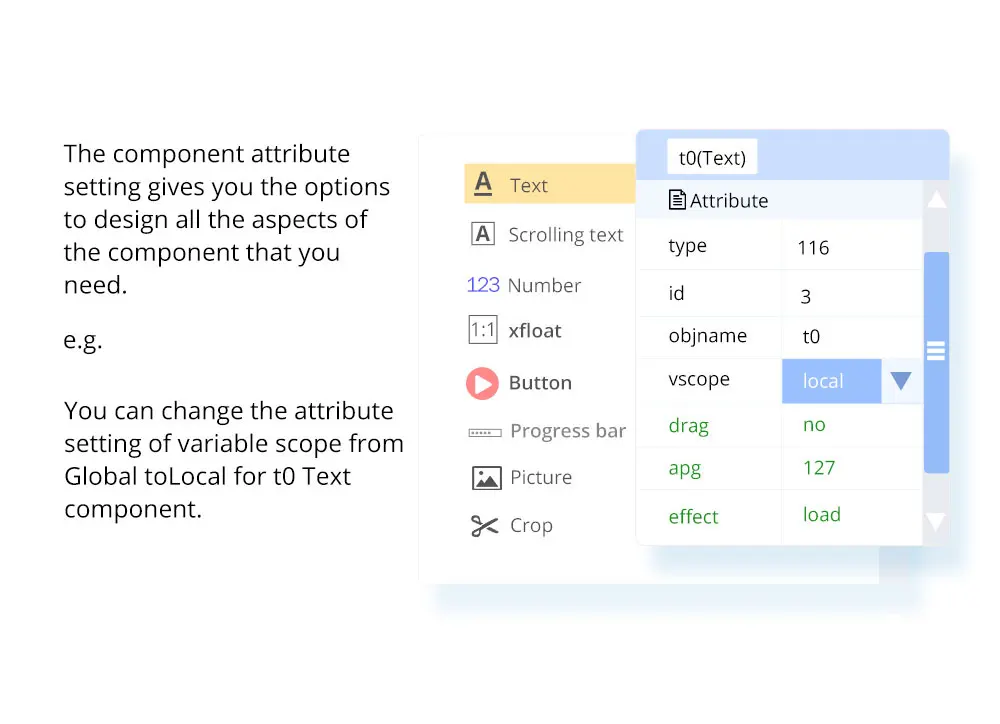

Component Attribute Setting

The component attribute setting gives you the opyions to design all the aspects of the component that you need.
e.g.



You can change the attribute setting of variable scope from Global to Local for t0 Text component.
