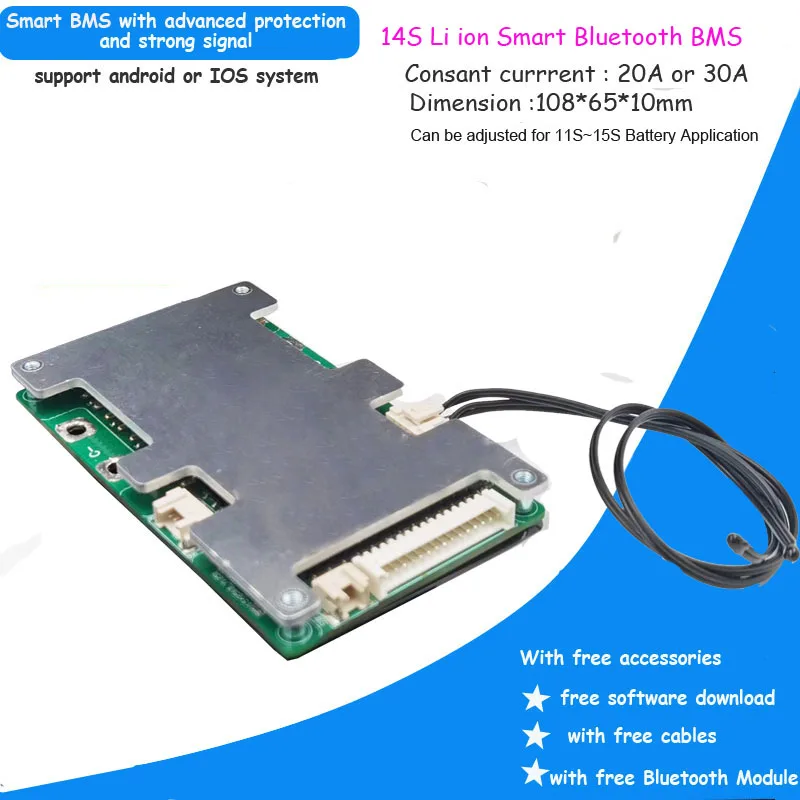

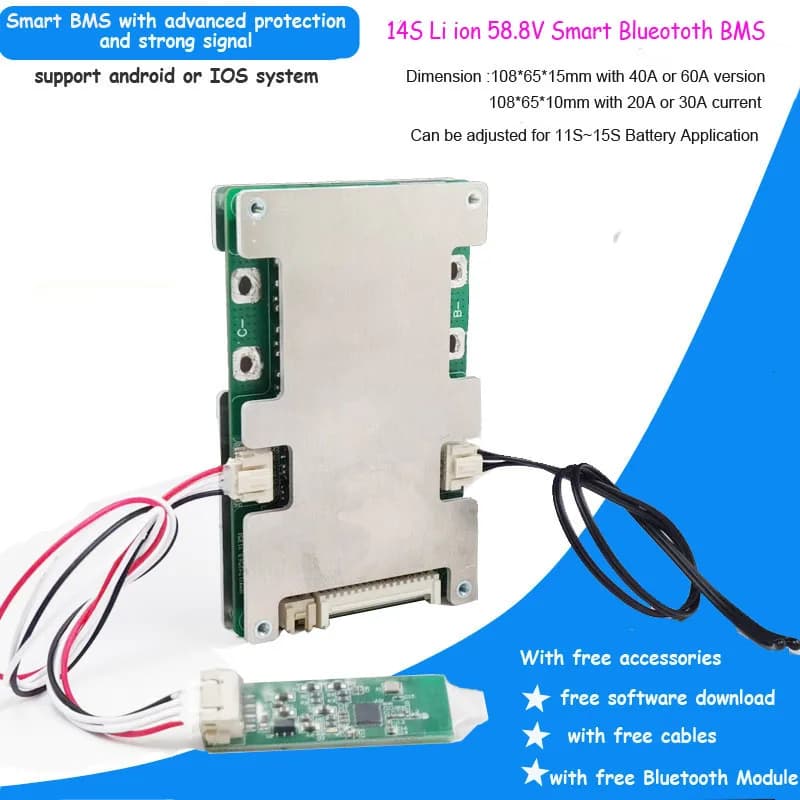

14S 58.8V Li ion battery Smart bluetooth software BMS with 20 to 60A constant current for electric scooter lipo or 18650 Battery

This is a Smart protection board specially designed for battery packs of.It can be applied to lithium batteries with different chemical properties, such as lithium ion, Li-polymer. Lithium iron phosphate, etc. The protection board has strong loading capacity and the maximum continuous discharge current can reach 60A.

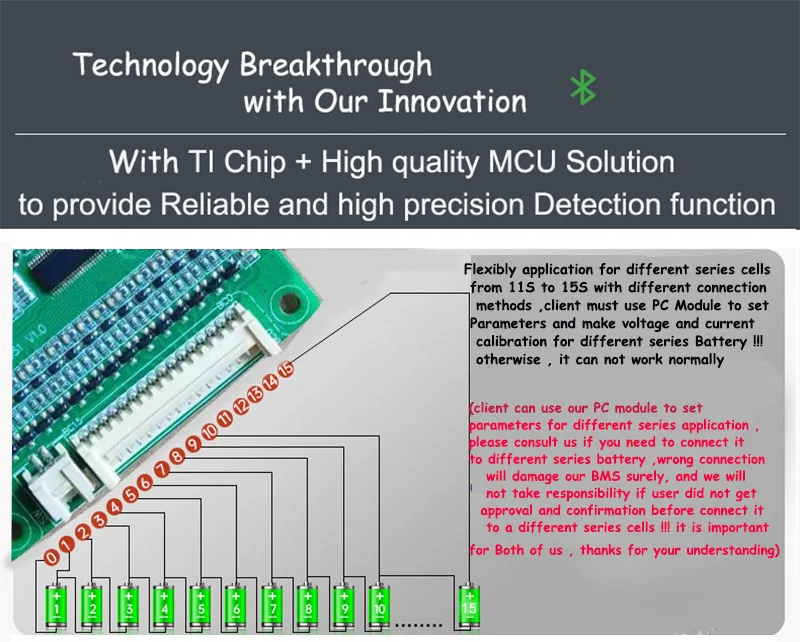

● 14 cell series protection for Lithium Battery pack (14*4.2=58.8V Lithium Ion Battery ),client can select suitable type based on your battery characteristics( this BMS can be adjusted also for 12S 13S 14S 15S li ion or Lifepo4 Battery

● Various protection functions for charging and discharging ( over-charge , over-discharge ,high or Low temperature protection ,over-current protection , short circuit protection etc ) with double layers protection hardware and software protection .

●Precise SOC calculation with SOC function of automatic learning

● Automatically charge battery function or static balance function for the battery system

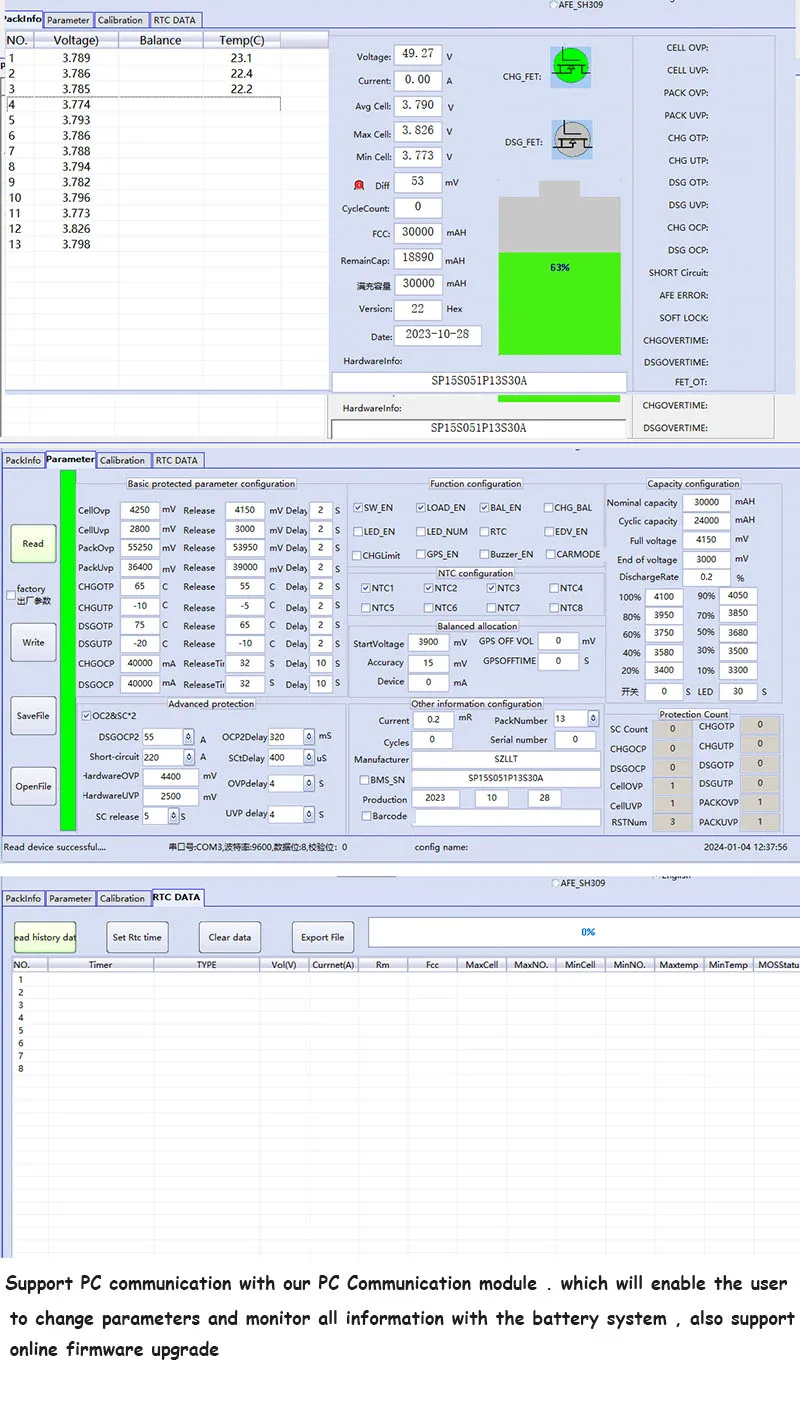

● Equipped with Bluetooth module with isolated UART which can enable the user to view battery information on our APP or Computer software which can be provided by us .client can use the PC software to set the protection parameters flexibly,client can download software with our appointed link

● With SW Port for output controlling

● With three temperature detectors ( one internal + two external ) to provide temperature monitoring on the battery

And we can design and produce Battery protection circuit board in according to client's demand with certain

reasonable order quantity .

If You need larger Constant discharge current of 13S or 14S Li-ion Smart BMS you can click these link to see if it is suitable for you or not

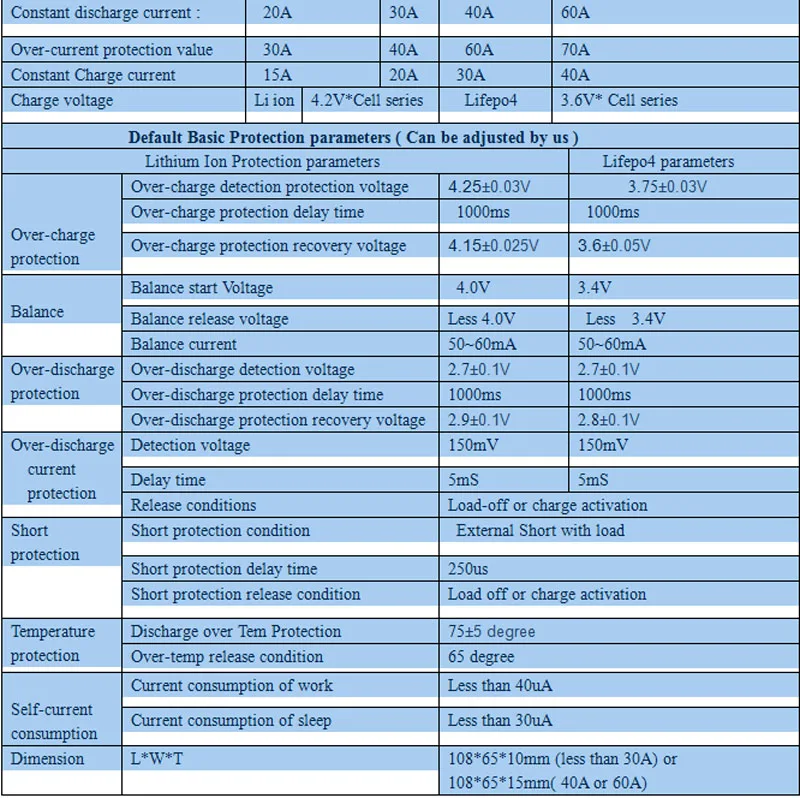

  2) Default Parameters setting :

  specification as below is our defaul setting value , clinet can use the PC module to set them on yourside without problems .if you want us to set it , you can leave a message to us based on your battery specification without problems

3)  Product List

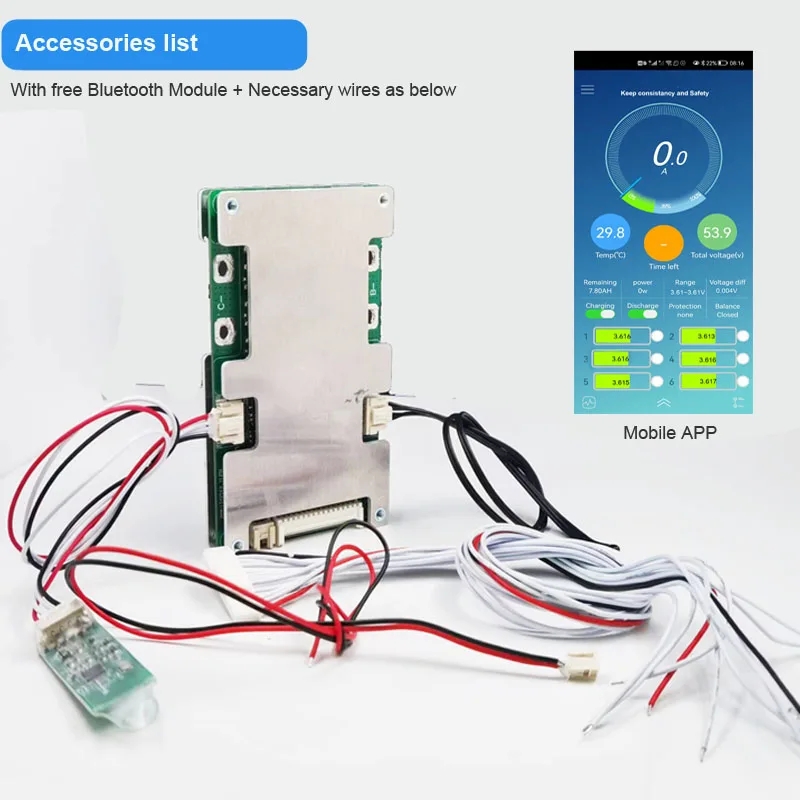

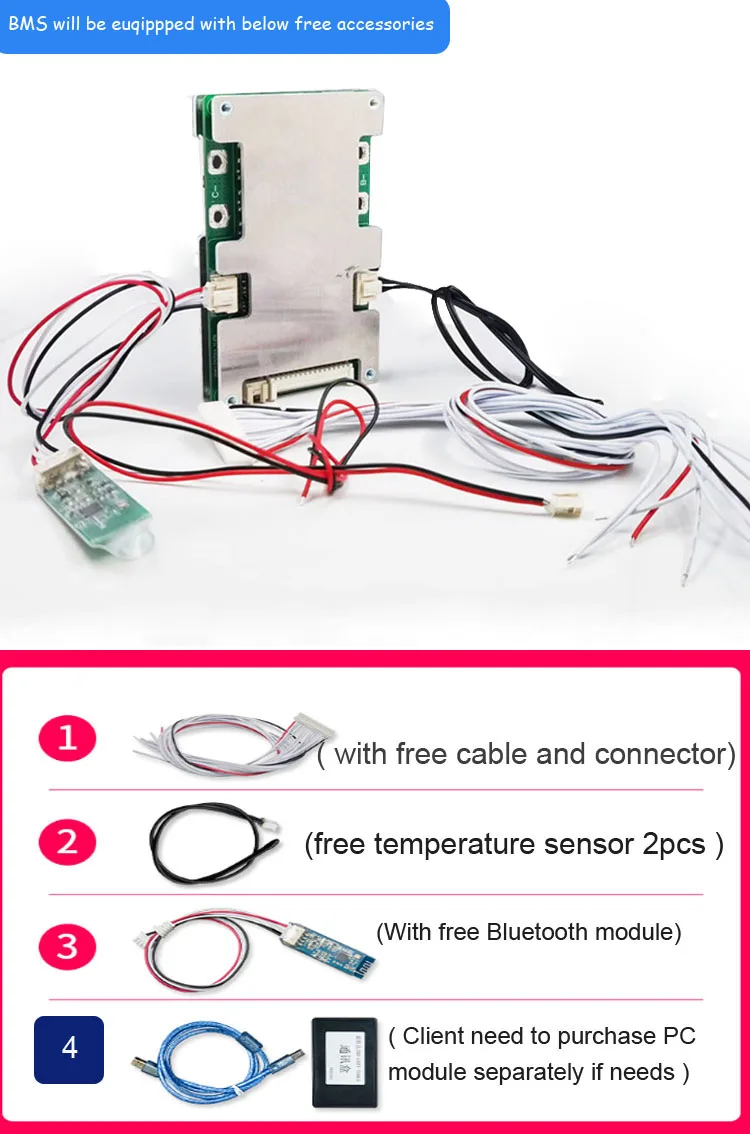

Our Smart BMS with Bluetooth function will include free Bluetooth module and connection cables .if client needs PC communication module , you can buy it separately without problems

How to make PC and Bluetooth Connection ?

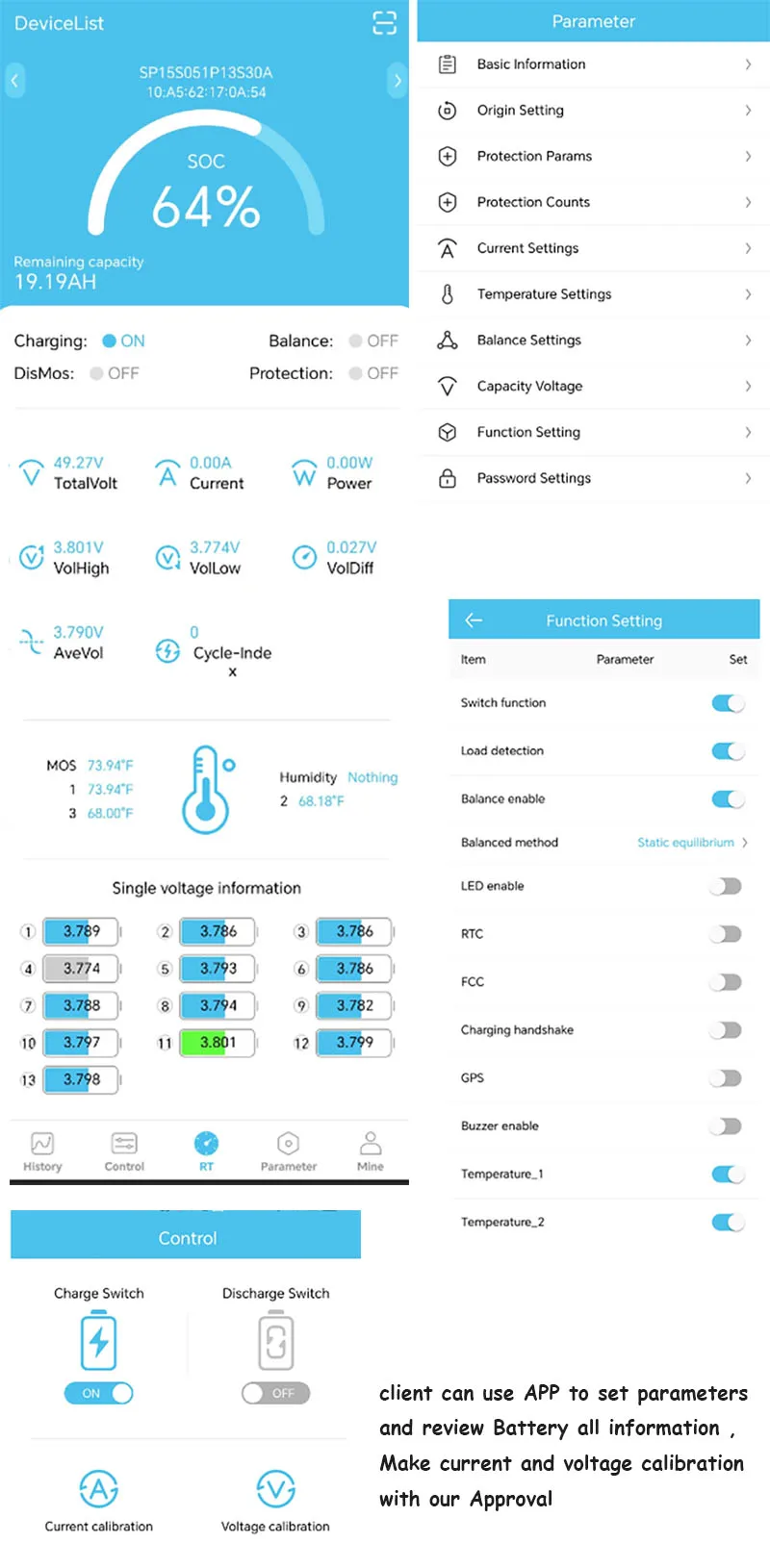

With Anroid and IOS APP to help you improve your battery overall working performance ,and prolong yourbattery lifespans well .

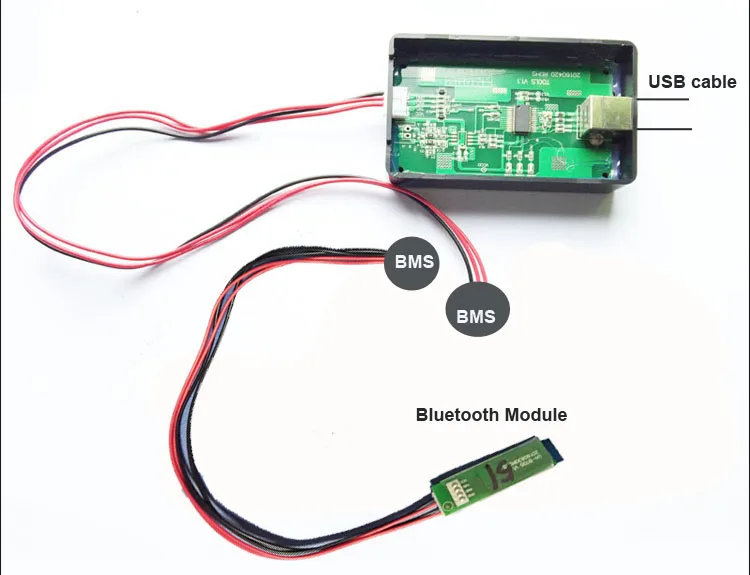

Support PC communication with our PC communication adapter ( client can purcahseit separately if needs with below link )

https://www.aliexpress.com/item/1005001873833534.html

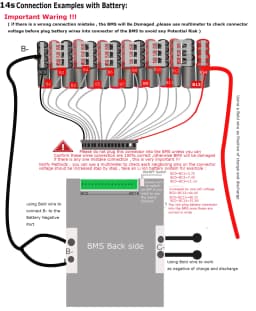

Connection instructions :

  ( please follow up the connection instructions carefully , do not make any connection mistakes , BMS wires connection order

is very important , the BMS would be damaged with wrong connection order )

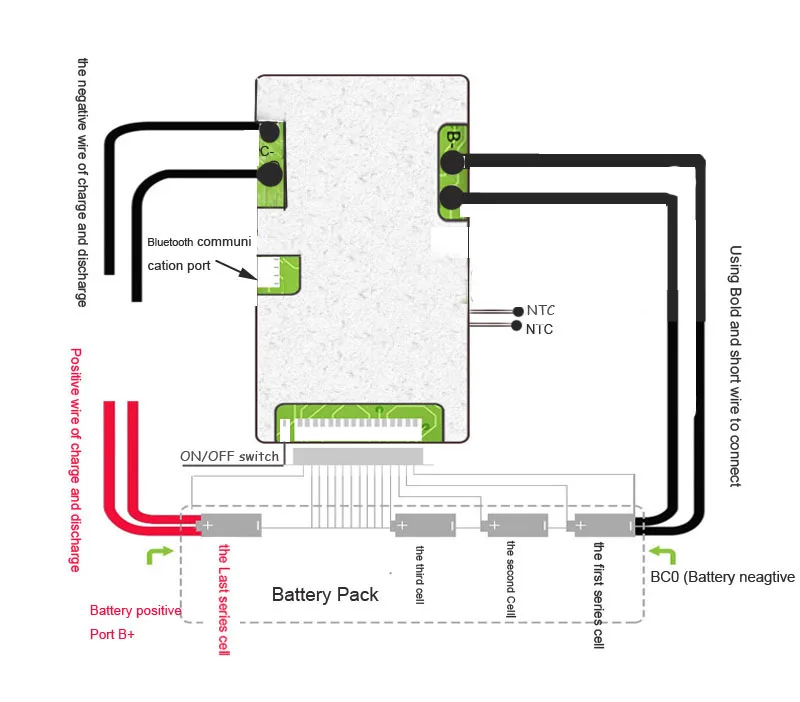

Notice of connection  :

A. Firstly ,Please connect bold wires from B- port of the BMS to the negative port of the battery pack .(B- wire should be as short as possible ) ,then connect these voltage detection wires (Please take off these wires from the BMS before connecting these wires to the battery to avoid any connection mistakes )

B. Second ,Please start connect these balance wires to the Battery system from BC0 ,Black thin wire should be connected to the battery negative , and the second wire -white wire BC1 should be connect to the positive port of the first series cell . BC2  should connect to the positive port of second series cell ,and BC3 wire to the third cell’s positive ….connection in this way in order one by one till to the last cell postive port

C. Third . After connection of these balance wires finished , please measure connector voltage from each Neighbouring wires ,the voltage between each neighbouring wires for Li ion battery should be less than 4V and for Lifepo4 Battery should be less than 3.5V ,after confirmation of these wires connection order , you can plug cable connector into the BMS .–wrong connection order will damage our BMS surely . please be carefully with this step .

D. Finally , connect C- wire as negative of charge and discharge , B+ wire as positive of charge and discharge , those wires should

use bold wire to make connection for large current distribution purpose . then please comparing the voltage from the BMS and voltage directly from the Battery to see if they are the same or not . if they are the same value . your connection is correct , otherwise terrible things will happend !!!
