2.8 Inch TFT Color Screen Lossless Audio Decoding Board Module Amplifier Audio Player DC 4.5-5.0V Car FM Radio Module

Features:

1. It is a multifunctional high-fidelity stereo sound audio decoder board which integrates Bt audio decoding, TF card, U disk music file decoding, computer USB sound card, LINE input.

2. 2.8-inch 320 * 240 pixels IPS color screen to do playback status and decoding related information display. Simultaneously support analog audio and digital audio (I2S) output function.

3.3.5mm stereo line-in connector for inputting audio signals from cell phones, computers, MP3 players and other lines.

4. Support SBC/AAC audio transmission protocol in Bt mode, support Bluetooth lyrics song title and other ID3 information display, and support spectrum display.

5. Built-in equalizer preset 7 EQ scenes + 1 custom EQ scenes, can be very good with the speakers and personal listening preferences to choose and adjust to their own sound.

Parameter:

Support Simplified Chinese, Traditional Chinese and English display

Operating voltage: 4.5-5.0V (need regulated power supply)

Standby current: 20mA

Operating current: 30-180mA

Audio output signal power: ≤50mW

Audio output signal-to-noise ratio: SNR≥104db

Output audio signal level: ≤2.8Vp-p

Number of audio output channels: 2 channels

Audio DAC hardware bit width: 24bit

Bluetooth receiving distance: about 10 meters

Bluetooth version: V5.3+BR+EDR

Screen specification: 2.8 inch 320*240 pixels IPS screen

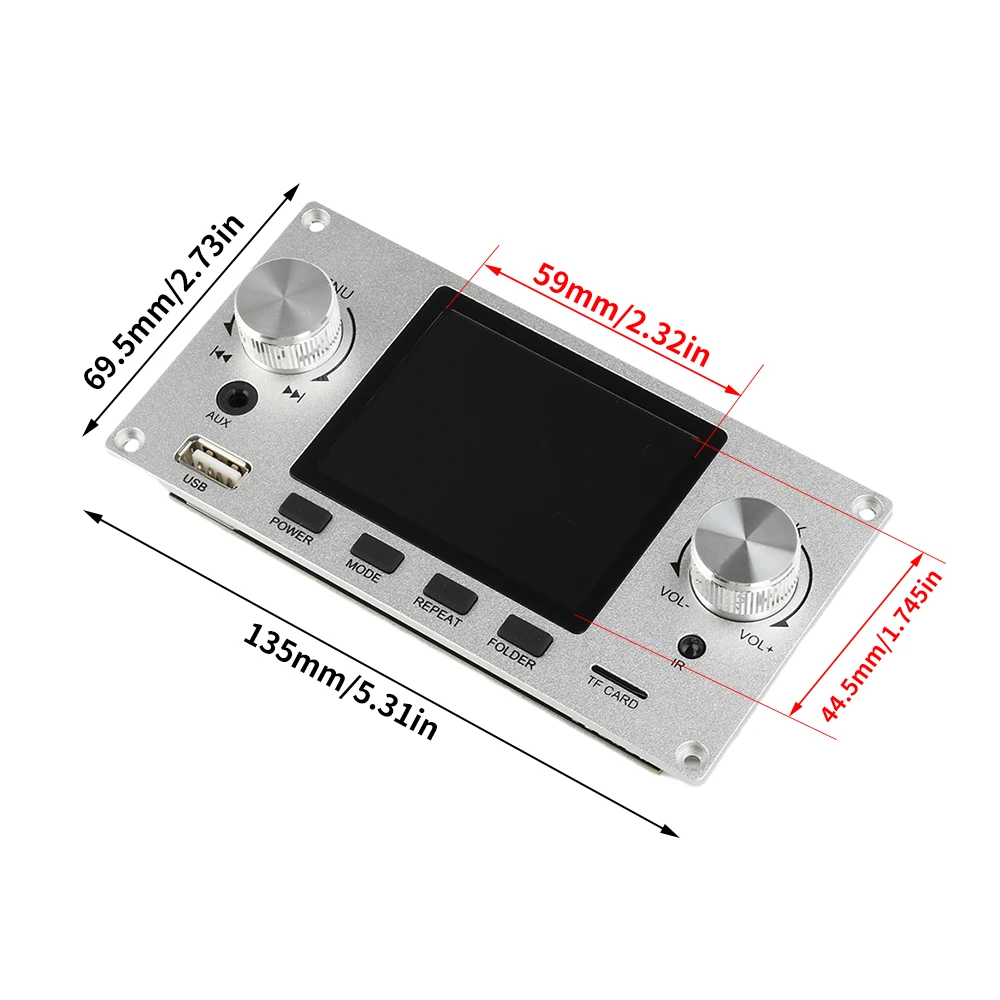

Product size: 13.5*6.95*3.5cm

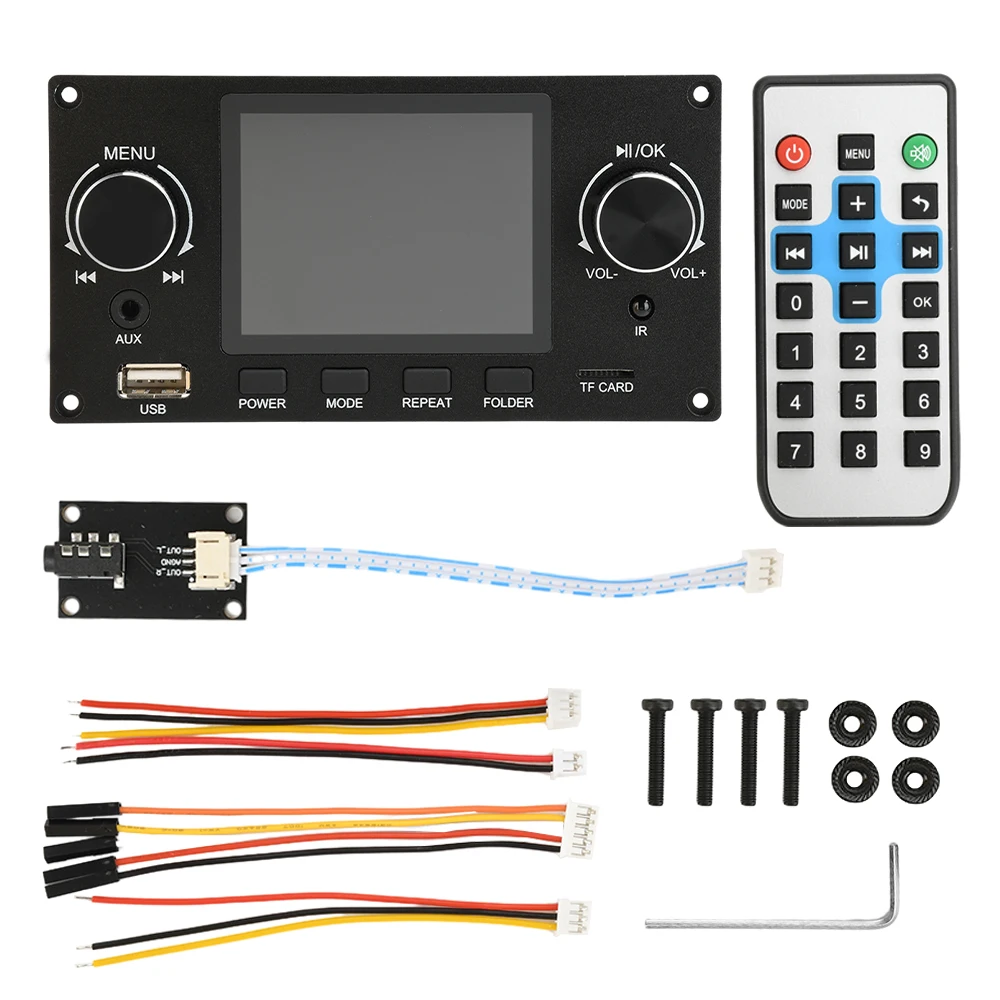

Package include:

Decoder board module *1

M3 hexagonal wrench *1

M3X16 hexagonal screws + nuts *4

Remote control *1

3.5mm audio jack cable *1

PH2.0/5PIN to Dupont cable*1

PH2.0/3PIN cable*2

PH2.0/2PIN power cable*1
