PARMA High-frequency Speed Color Sensor Detection Range of 200mm Anti-jitter Identification of Small Color Spots PM-F200N

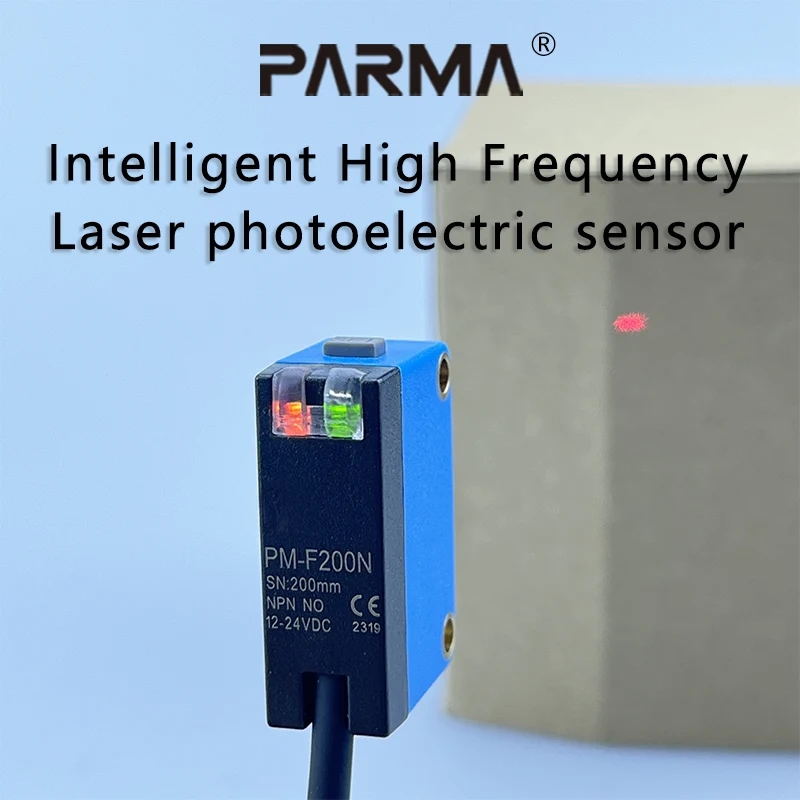

Intelligent High frequency laser sensor

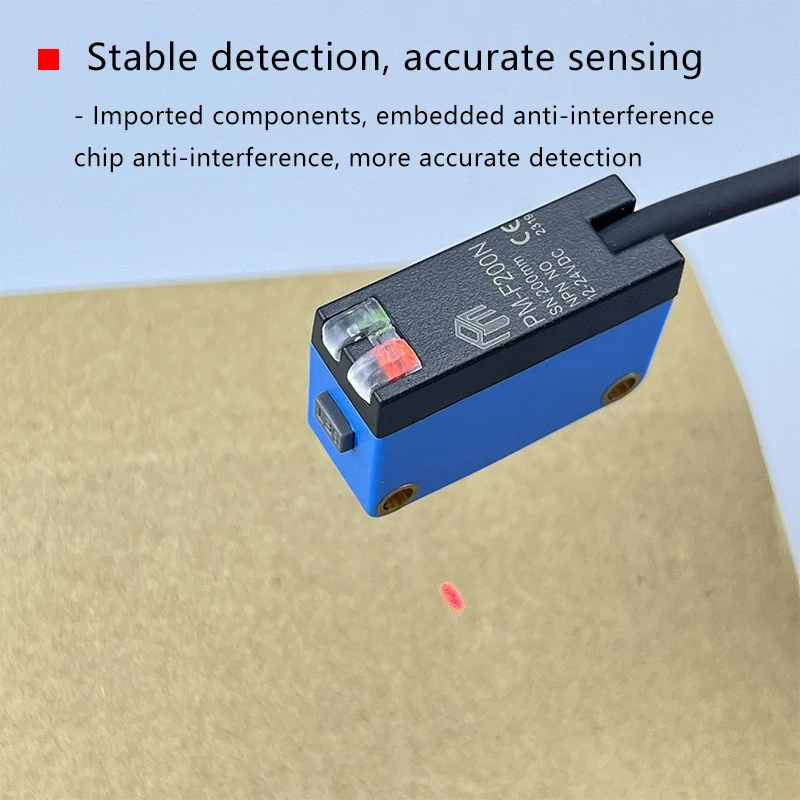

- Imported components, embedded anti-interference chip anti-interference, more accurate detection

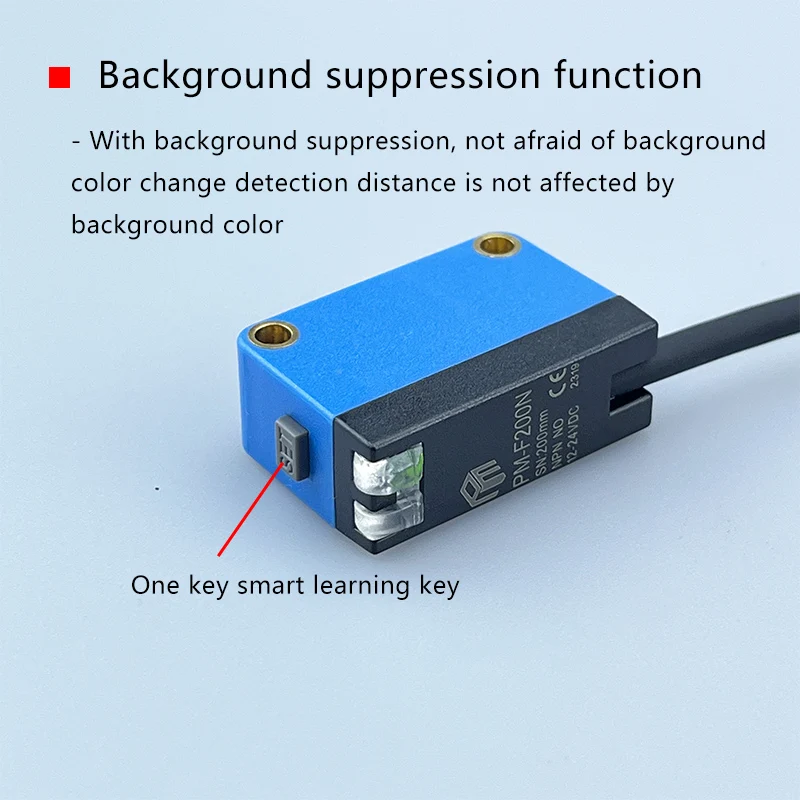

- With background suppression, not afraid of background color change detection distance is not affected by background color

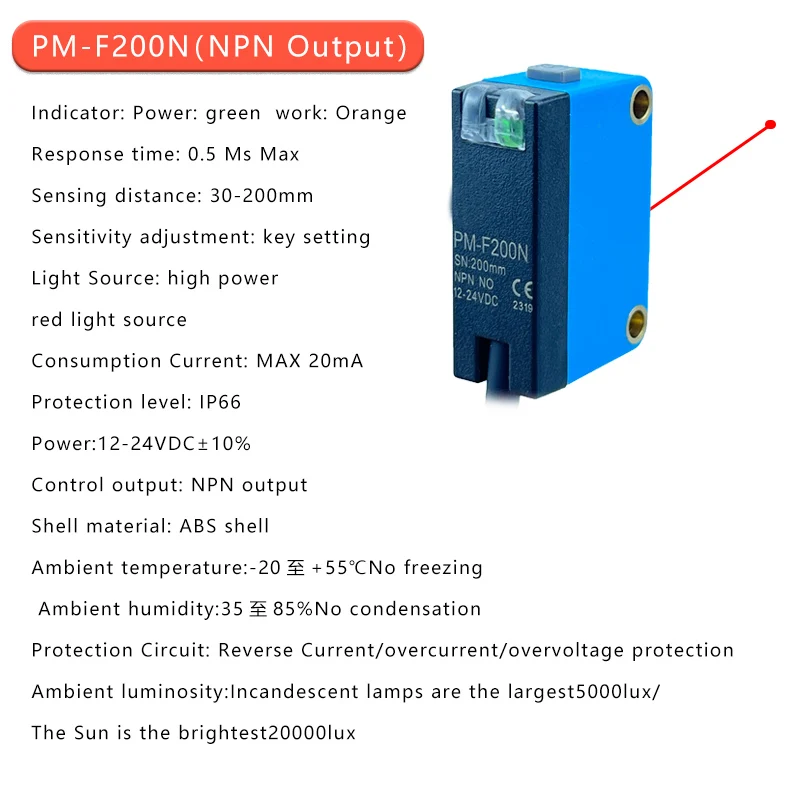

Response time: 0.5 Ms Max

Sensing distance: 30-200mm

Sensitivity adjustment: key setting

Light Source: high power red light source

Consumption Current: MAX 20mA

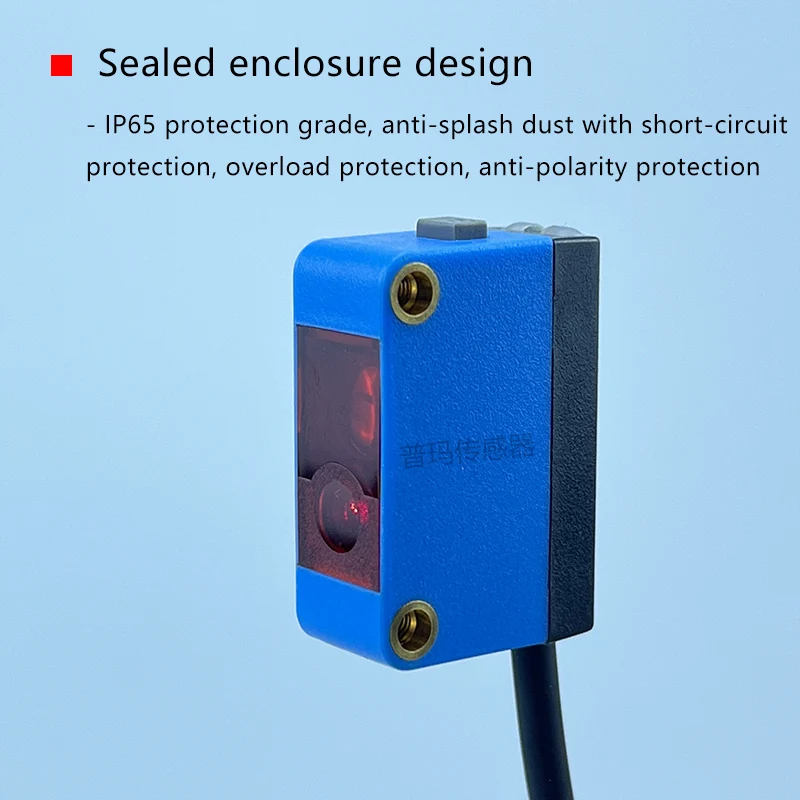

Protection level: IP66

Power:12-24VDC±10%

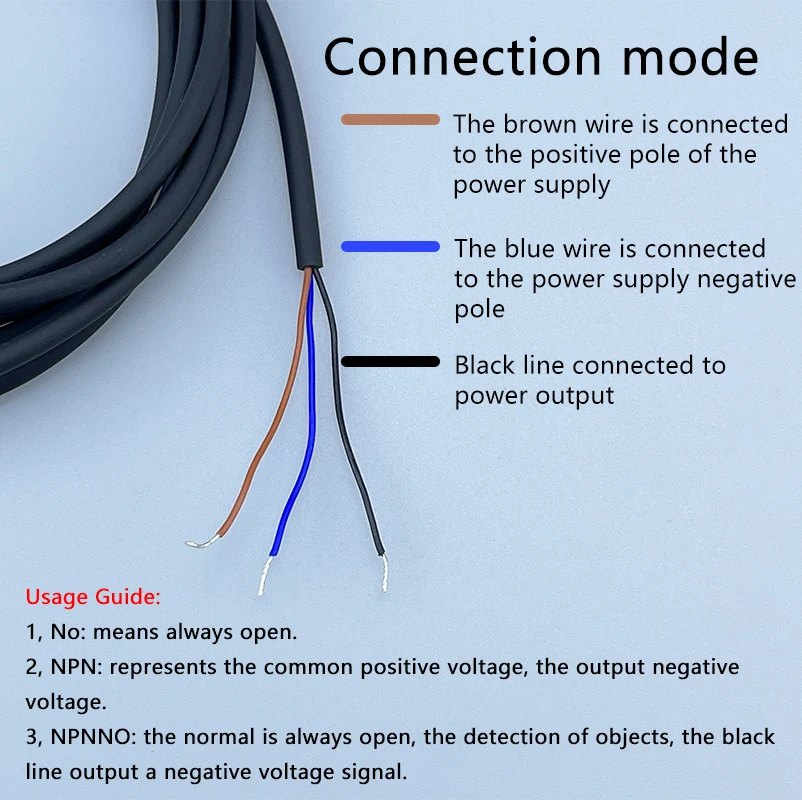

Control output: NPN output

Shell material: ABS shell

Ambient temperature:-20至+55℃No freezing

Ambient humidity:35至85%No condensation

Protection Circuit: Reverse Current/overcurrent/overvoltage protection

Ambient luminosity:Incandescent lamps are the largest5000lux/ The Sun is the brightest20000lux
