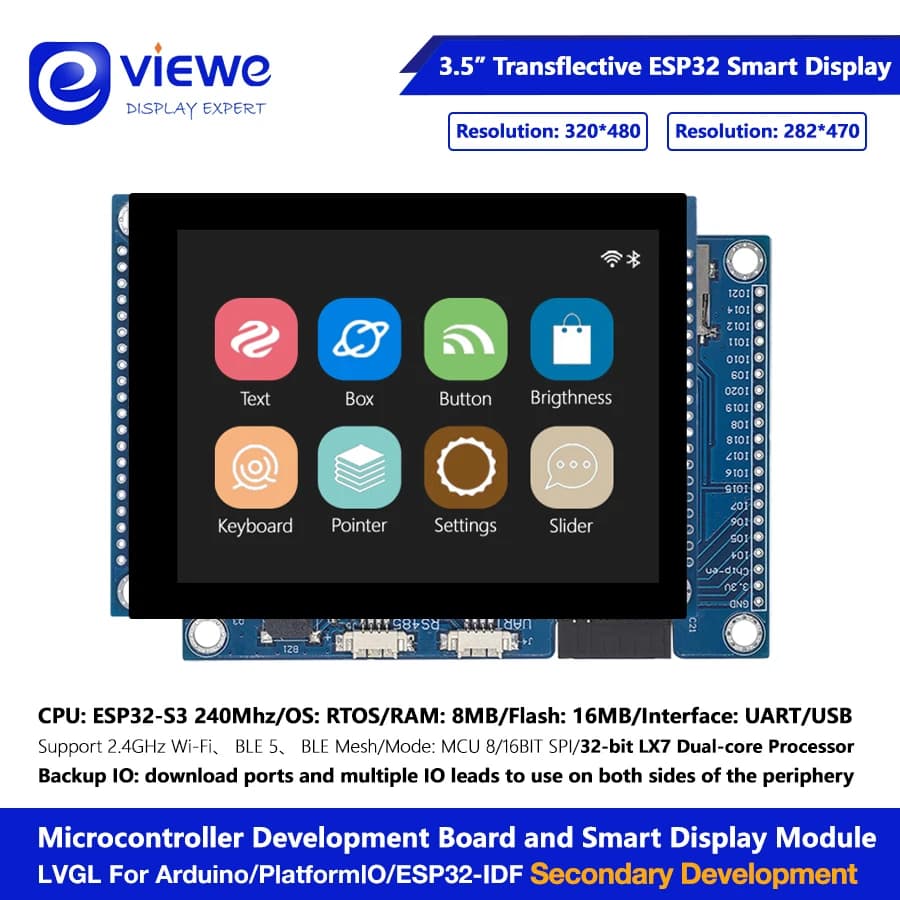

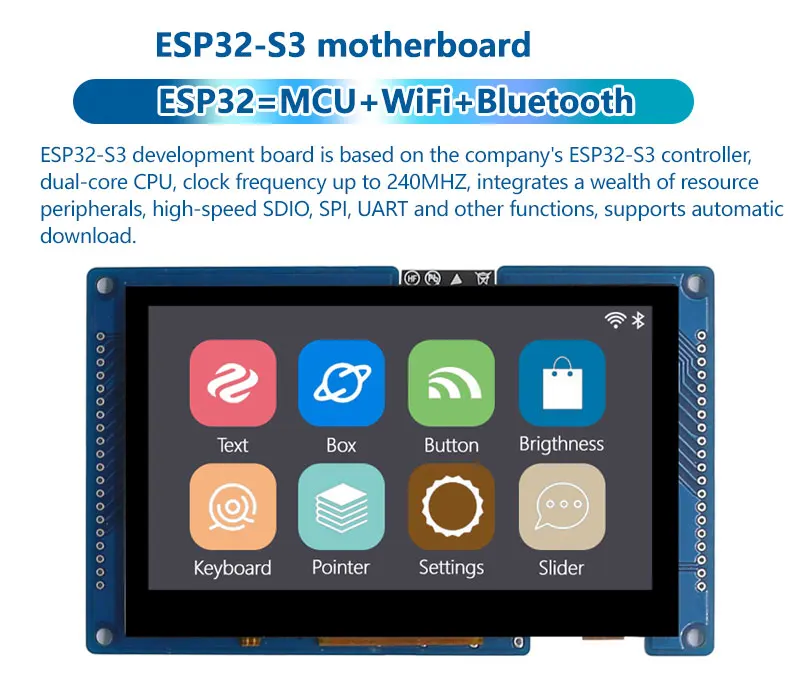

Transflective TFT LCD 3.5 inch 282X470 320X480 ESP32 S3 Board Dual Core LVGL HMI 16M Flash Ardu-ino WIFI&Bles LCD TFT Module

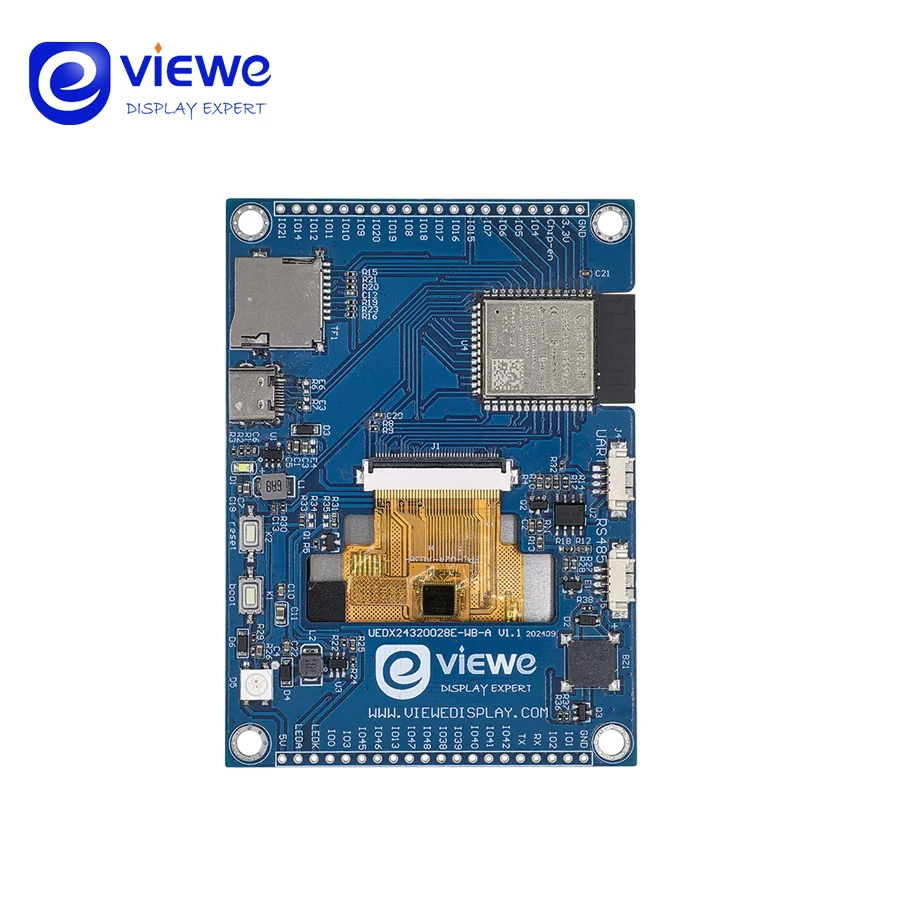

Microcontroller development board and smart display module:

1 Features

Brief Info:

1) Button control: one is the reset button, the other is the boot button.

2) Backup IO: download ports and multiple IO leads to use on both sides of the periphery.

3) Power: DC 5V, 200mA

System

1) OS: RTOS

2) CPU: ESP32-S3 240Mhz

3) RAM: 8MB

4) Flash: 16MB

5) Interface: UART/USB

6) Support 2.4GHz Wi-Fi、 BLE 5、 BLE Mesh

7) Support Peripherals:

GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, remote control, pulse counter,LED PWM, full-speed USB 2.0 OTG, USB Serial/JTAG controller, MCPWM, SDIO host, GDMA, TWAI® controller (compatible with ISO 11898-1), ADC, touch sensor, temperature sensor, timers and watchdogs

Display

1) Pixel Arrangement: RGB Vertical Stripe

2) Interface Mode: MCU 8/16BIT/SPI

3) Driver IC: ST7365 or Compatible

4) Operation Temperature: -20-70℃

5) Storage Temperature: -30-80℃

6) Backlight Type: White LED

7) Display mode: Transflective Normally BLACK

8) LED life time: 30,000 Hours

Other

1) Operation Temperature: -20-70°℃

2) Storage Temperature:-30-80°C

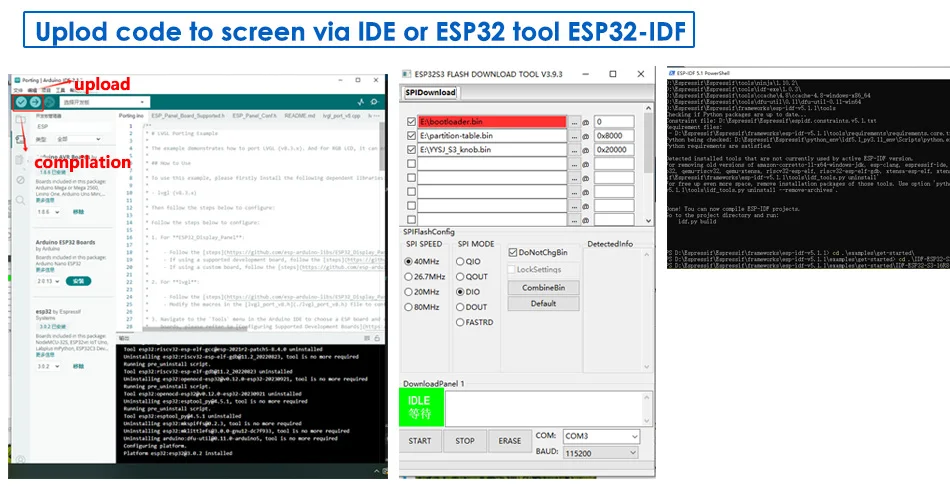

Related downloads-------------------------------------------------------------

ESP32-IDF

https://github.com/VIEWESMART/ESP32-IDF/tree/main/examples/3.5inch

Ardui-n

https://github.com/VIEWESMART/ESP32-Arduino/tree/main/examples/LVGL/v8

Please provide email address, contact customer service~~

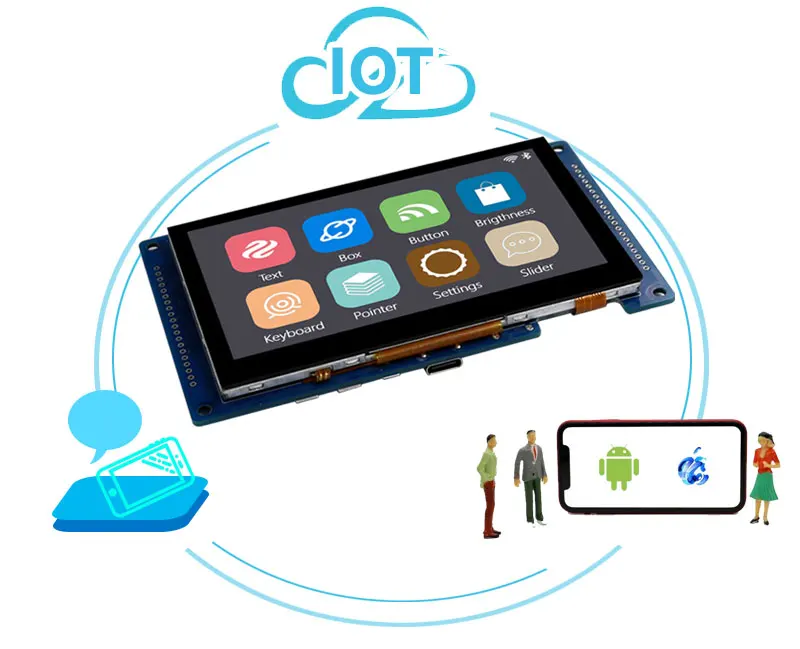

Application

Home smart device image transmission

Wireless monitoring

Smart agriculture

QR wireless recognition

Wireless positioning system signal

And other IoT applications
