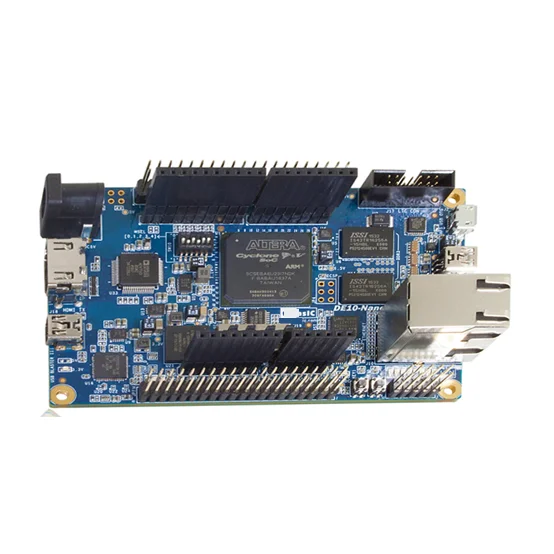

DE10-Nano Mister FPGA Development Board Altera CycloneV SoC ARM Cortex-A9 with ADC G-Sensor Ethernet HDMI-compatible Arduino

The DE10-Nano board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

FPGA

1) Cyclone® V SE 5CSEBA6U23I7 device.

2) Serial configuration device – EPCS128.

3) USB-Blaster II onboard for programming; JTAG Mode.

4) 2 push-buttons.

5) 4 slide switches.

6) 8 green user LEDs.

7) Three 50MHz clock sources from the clock generator.

8) Two 40-pin expansion header.

9) One Arduino expansion header (Uno R3 compatibility), can connect with Arduino shields.

10) One 10-pin Analog input expansion header. (shared with Arduino Analog input)

11) A/D converter, 4-wire SPI interface with FPGA.

12) HDMI TX, compatible with DVI v1.0 and HDCP v1.4.

HPS (Hard Processor System)

1) 800MHz Dual-core ARM Cortex-A9 processor.

2) 1GB DDR3 SDRAM (32-bit data bus).

3) 1 Gigabit Ethernet PHY with RJ45 connector.

4) port USB OTG, USB Micro-AB connector.

5) Micro SD card socket.

6) Accelerometer (I2C interface + interrupt).

7) UART to USB, USB Mini-B connector.

8) Warm reset button and cold reset button.

9) One user button and one user LED.

10) LTC 2x7 expansion header.

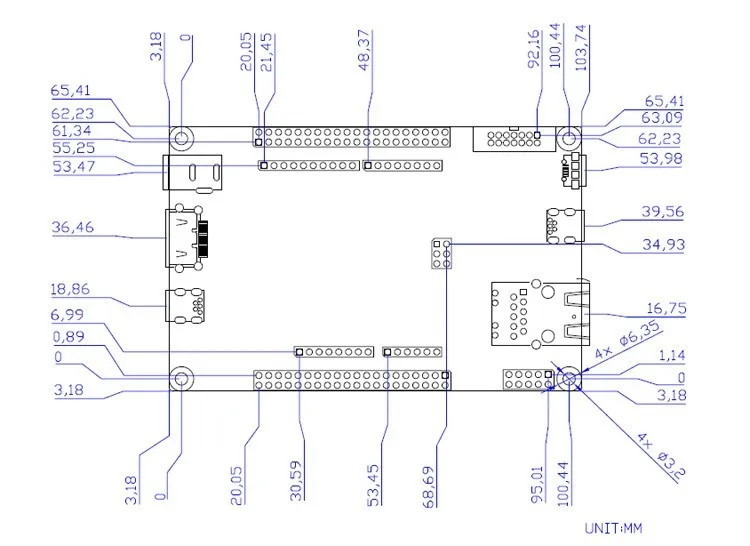

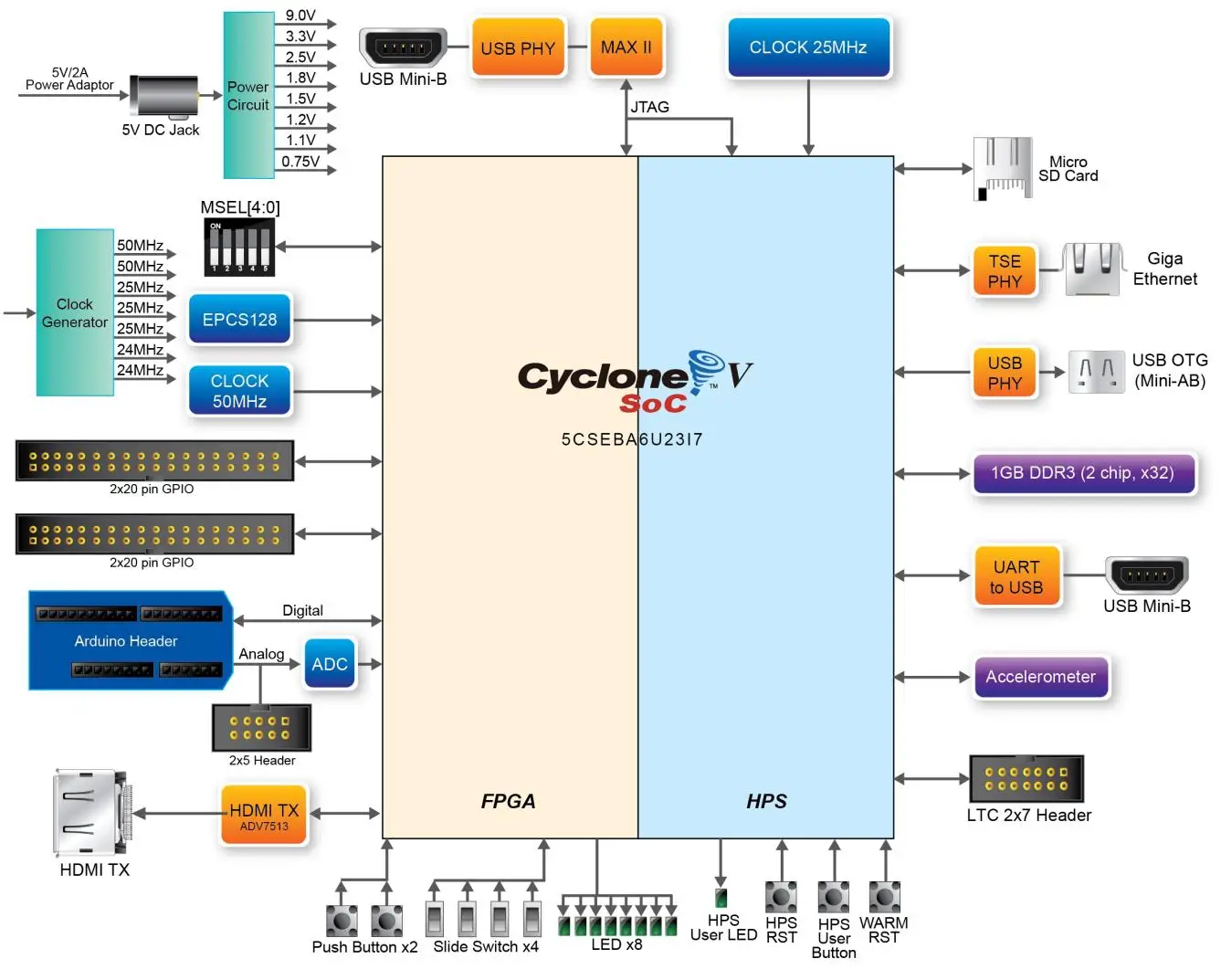

The block diagram of the board:

All the connections are established through the Cyclone V SoC FPGA device to provide maximum flexibility for users. Users can configure the FPGA to implement any system design.

FPGA Device

Cyclone V SoC 5CSEBA6U23I7 Device

Dual-core ARM Cortex-A9 (HPS)

110K programmable logic elements

5,570 Kbits embedded memory

6 fractional PLLs

Configuration and Debug

Serial configuration device – EPCS128 on FPGA

Onboard USB-Blaster II (Mini-B USB connector)

Memory Device

1GB (2x256Mx16) DDR3 SDRAM on HPS

Micro SD card socket on HPS

Communication

One USB 2.0 OTG (ULPI interface with USB Micro-AB connector)

UART to USB (USB Mini-B connector)

10/100/1000 Ethernet

Connectors

Two 40-pin expansion headers

Arduino expansion header

One 10-pin ADC input header

One LTC connector (one Serial Peripheral Interface (SPI) Master ,one I2C and one

GPIO interface )

Display

HDMI- compatible TX, compatible with DVI v1.0 and HDCP v1.4

ADC

12-Bit Resolution, 500Ksps Sampling Rate. SPI Interface.

8-Channel Analog Input. Input Range : 0V ~ 4.096V.

Switches, Buttons, and Indicators

3 user Keys (FPGA x2, HPS x1)

4 user switches (FPGA x4)

9 user LEDs (FPGA x8, HPS x 1)

2 HPS reset buttons (HPS_RESET_n and HPS_WARM_RST_n)

Sensors

G-Sensor on HPS

Power

5V DC input

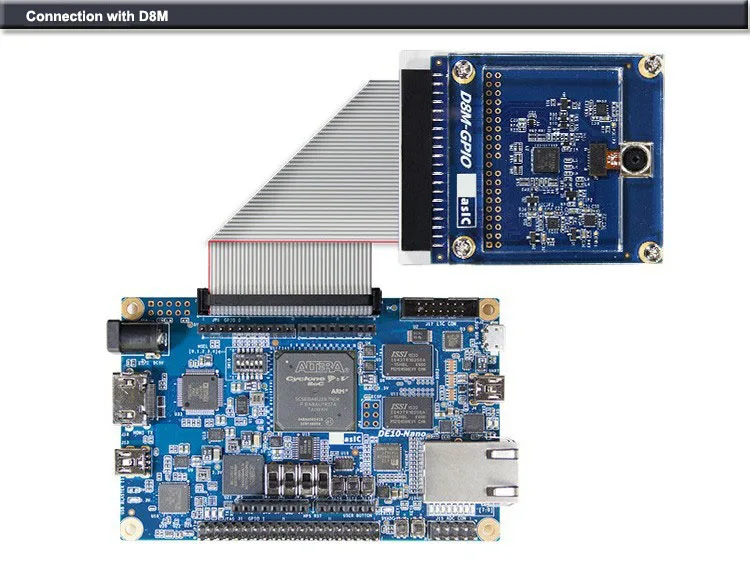

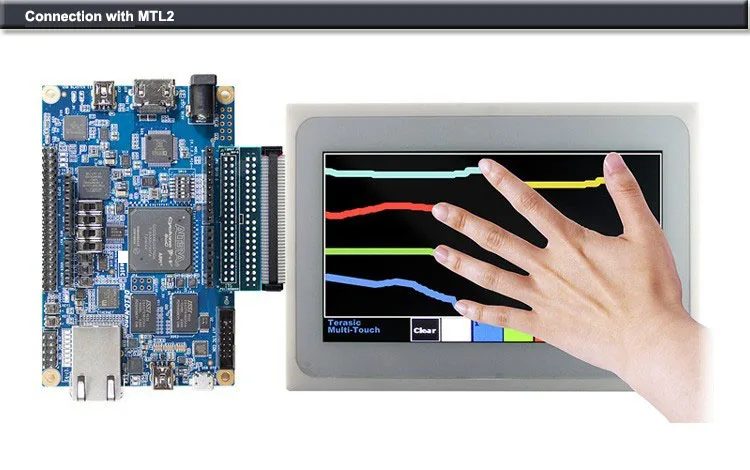

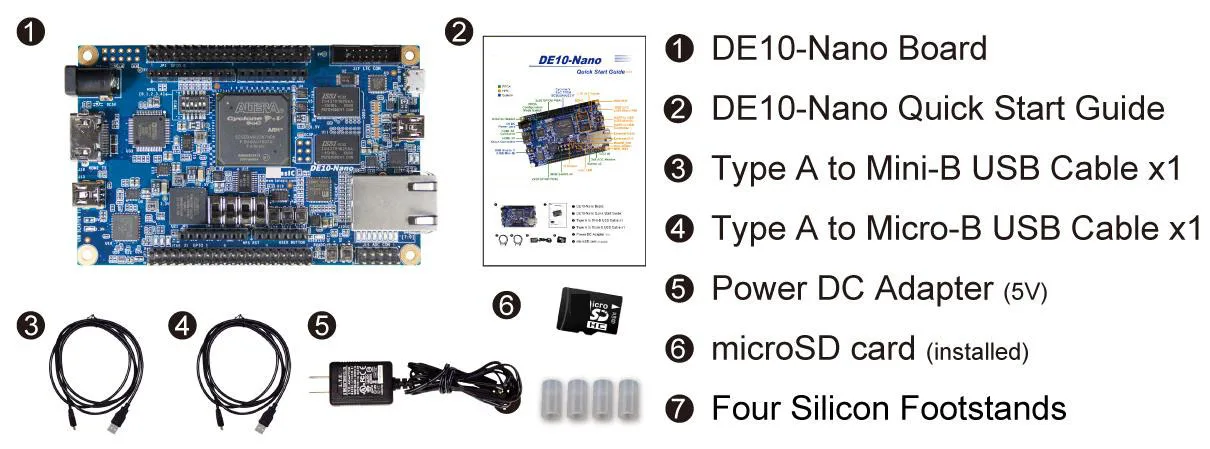

The Shipping List:

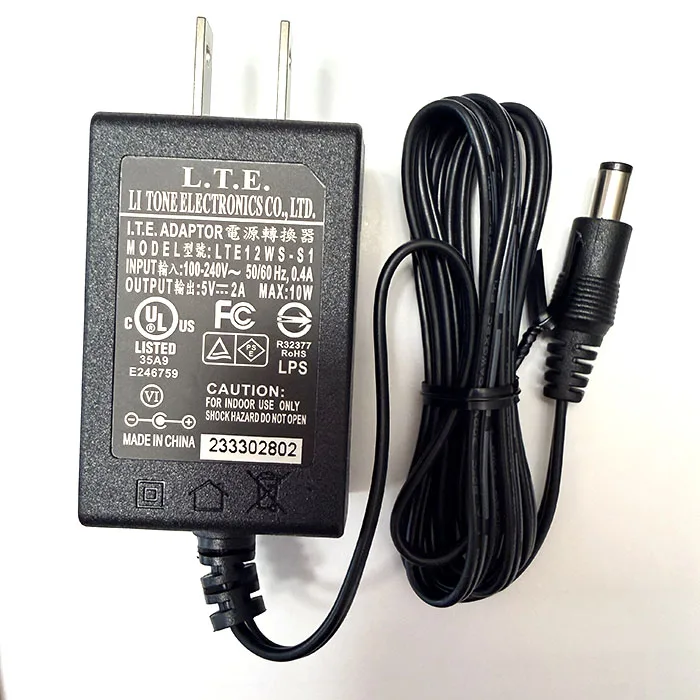

Friendly Reminder: The power adapter included in the development board kit is a standard Chinese manufacturer version and may not be compatible with your country. If you wish to prepare your own power adapter, you may choose the package without the power adapter.
