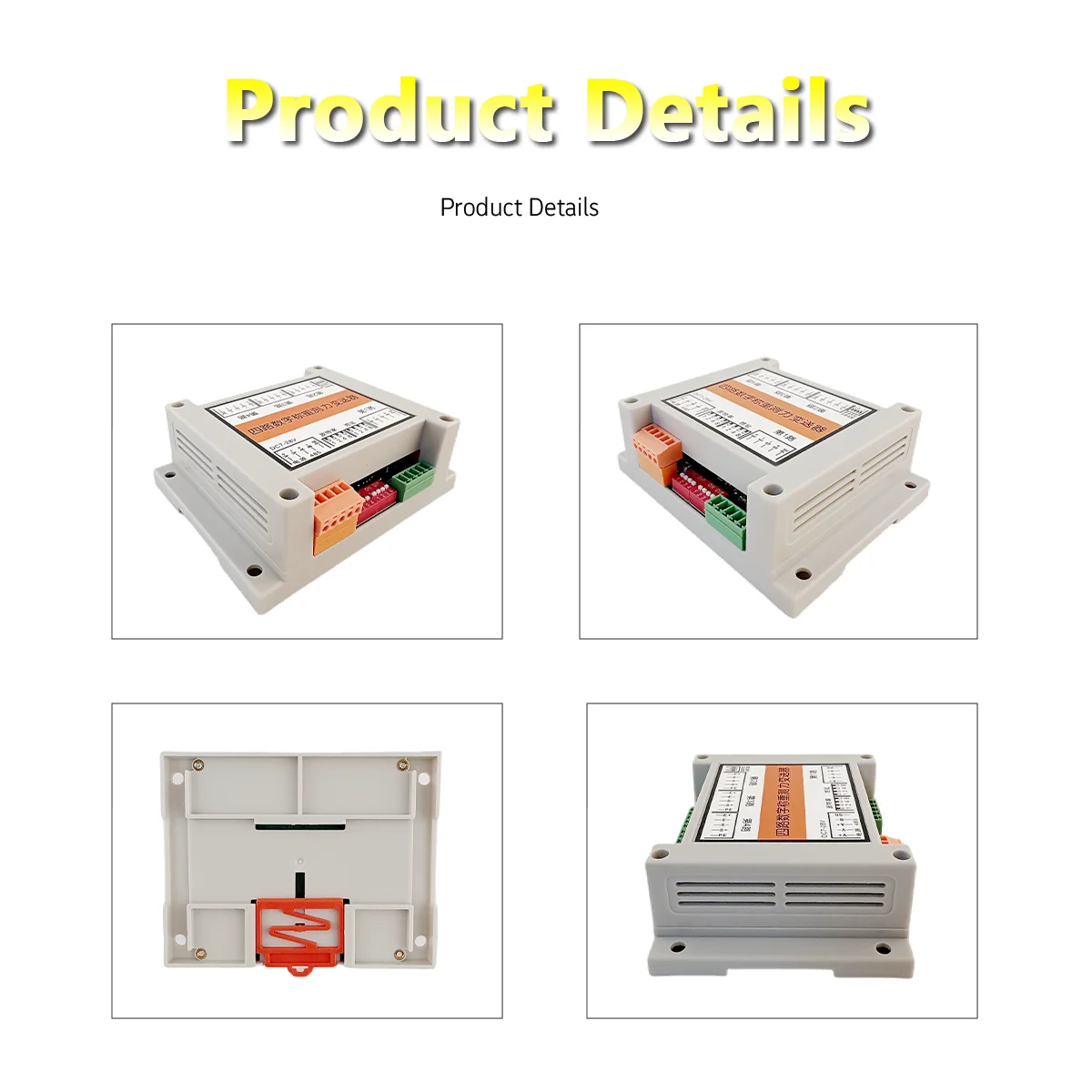

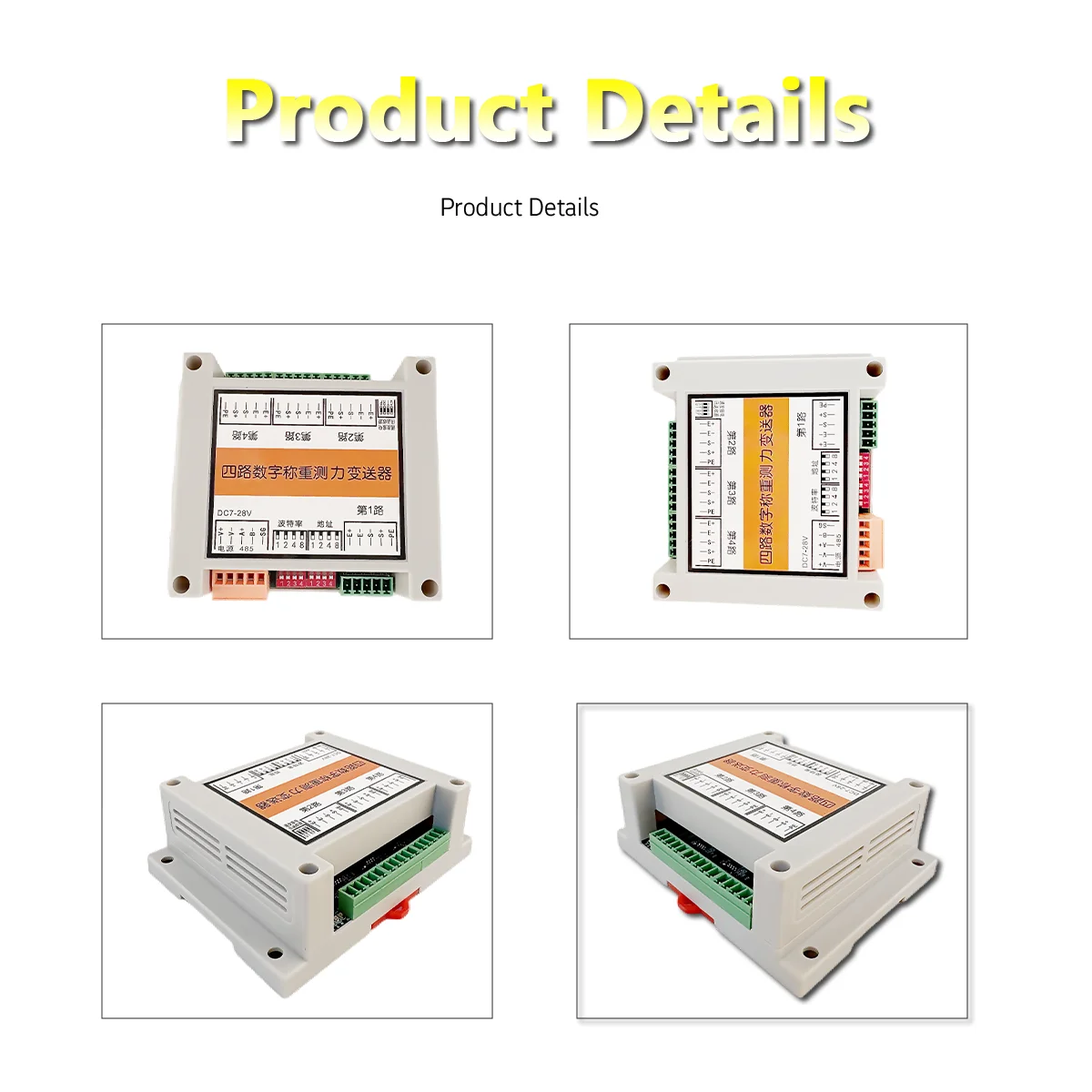

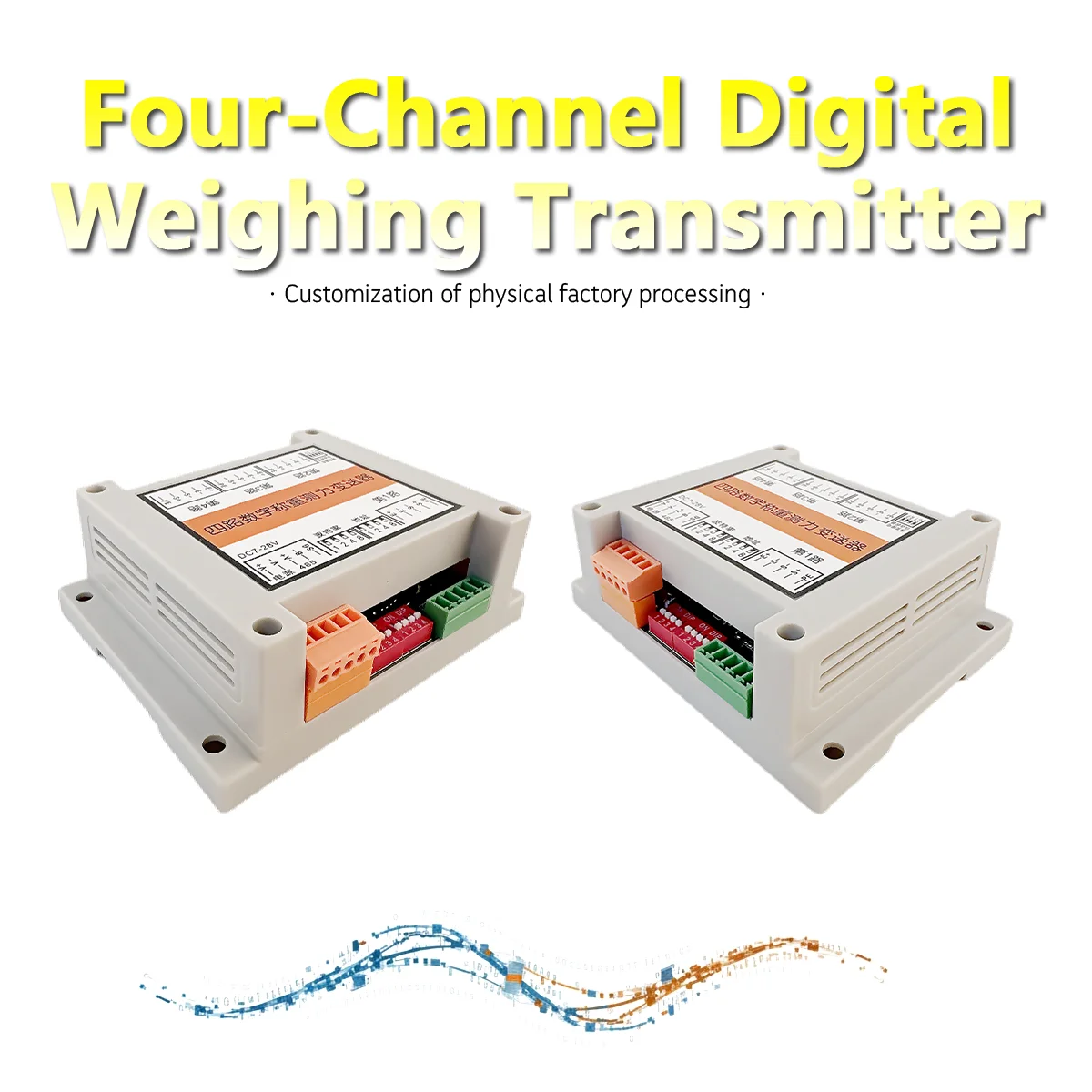

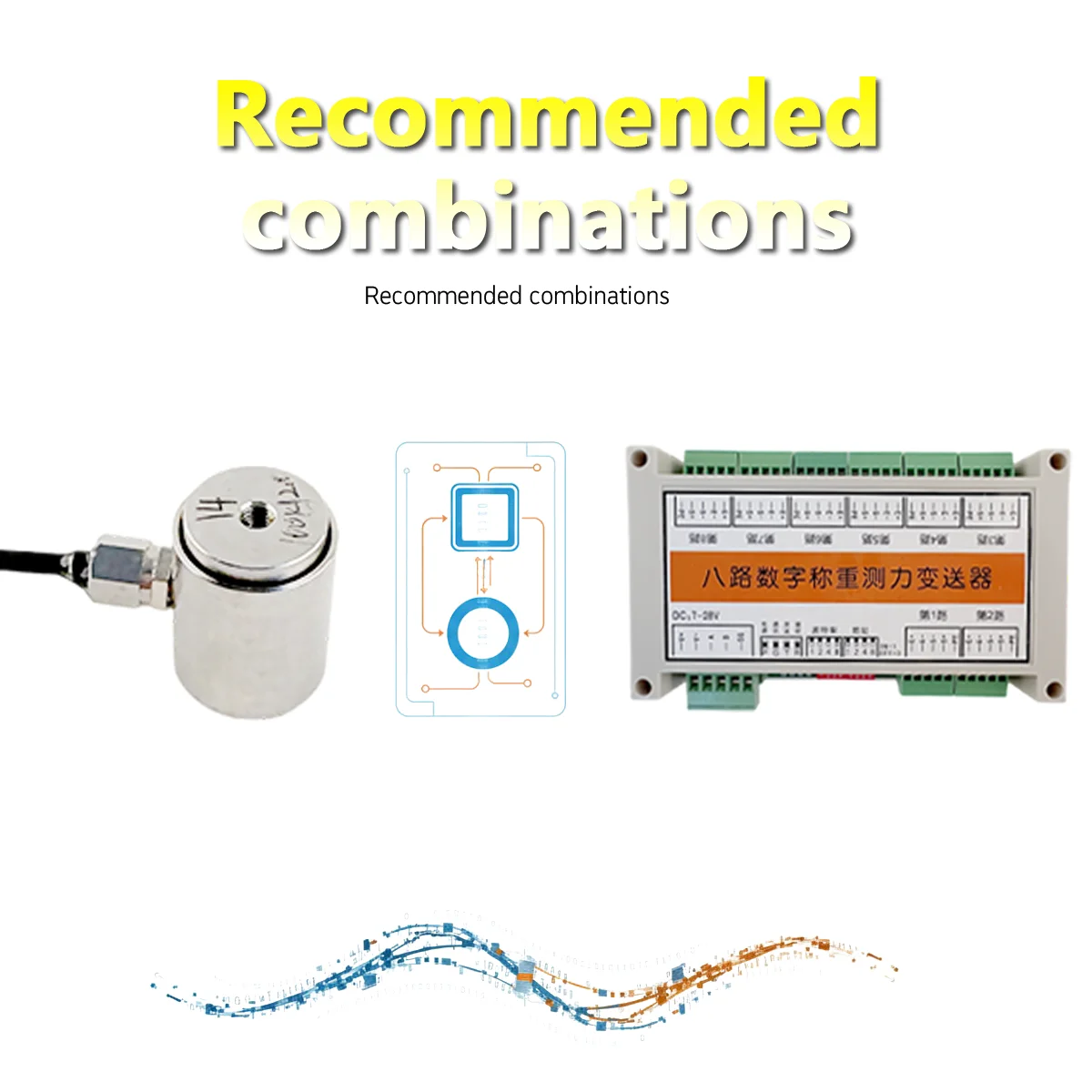

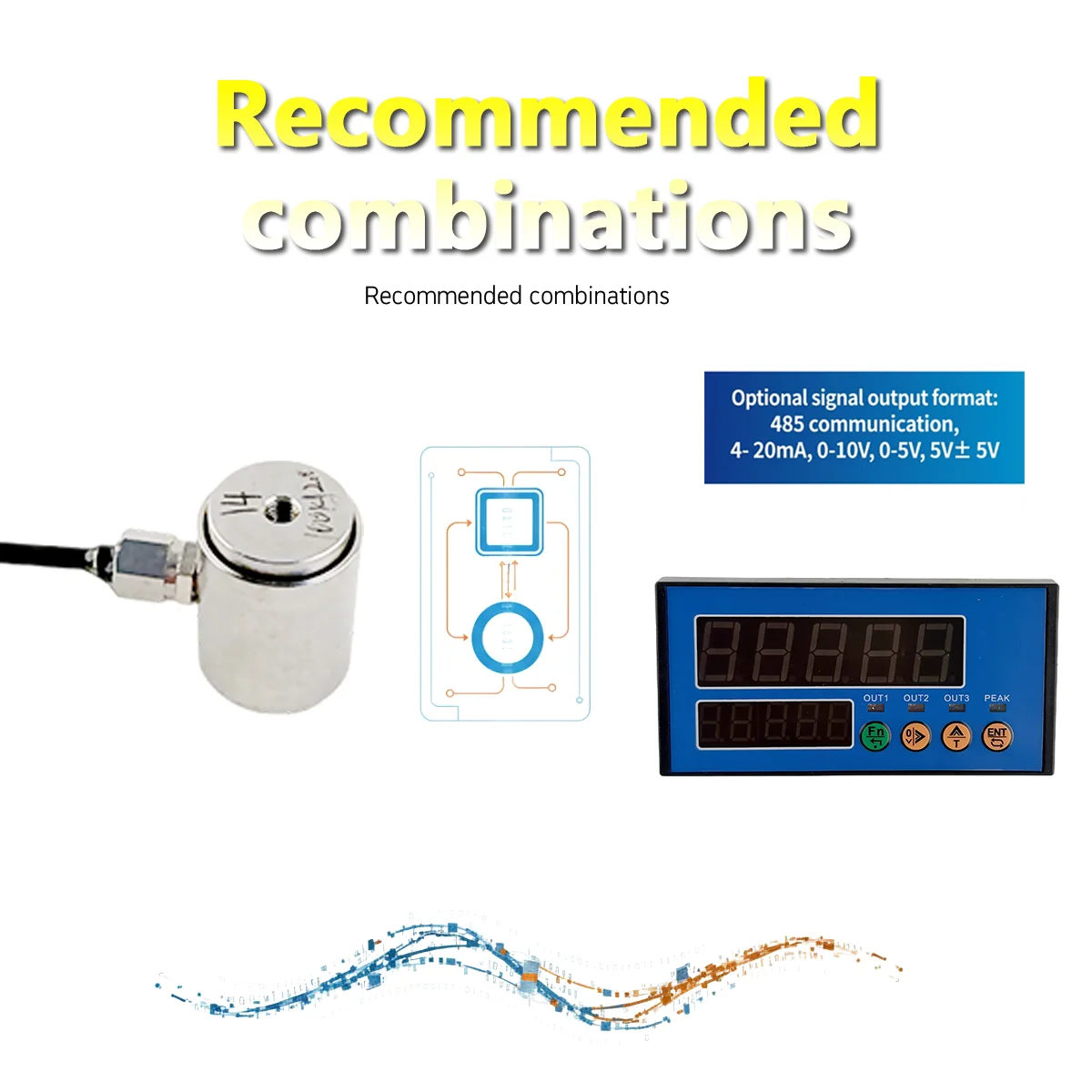

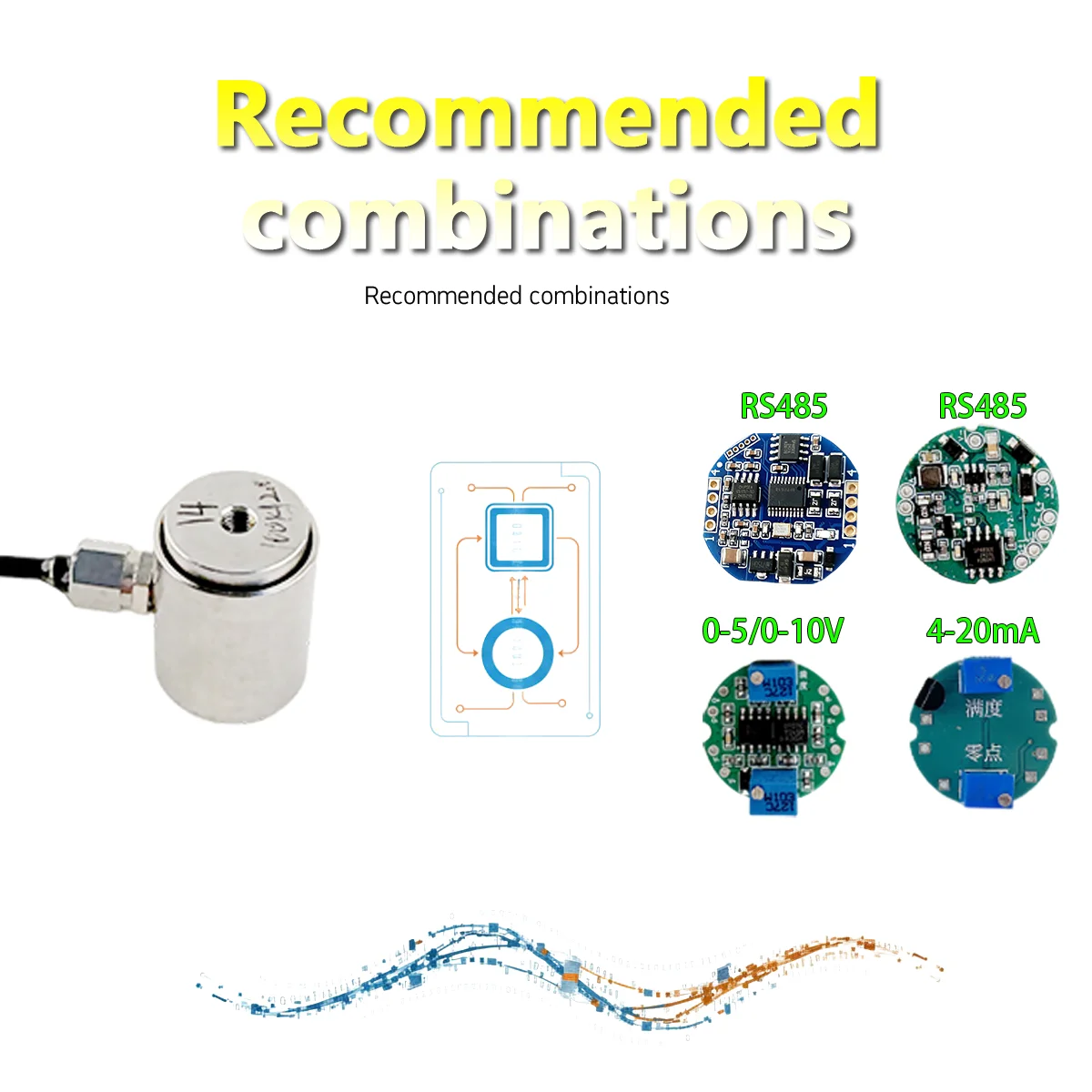

4 Channels Force Measuring Transmitter Digital Weighing Module RS485 Output for Industrial Weighing Systems

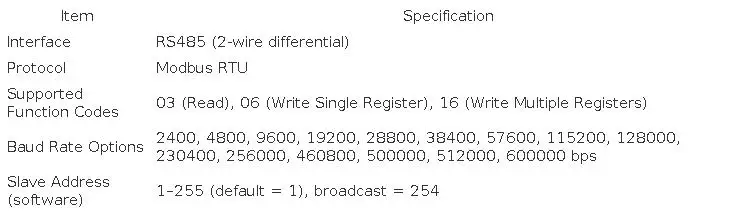

Communication Interface

The transmitter provides RS485 communication with standard Modbus RTU protocol, ensuring compatibility with PLCs, DCS, and industrial PCs.

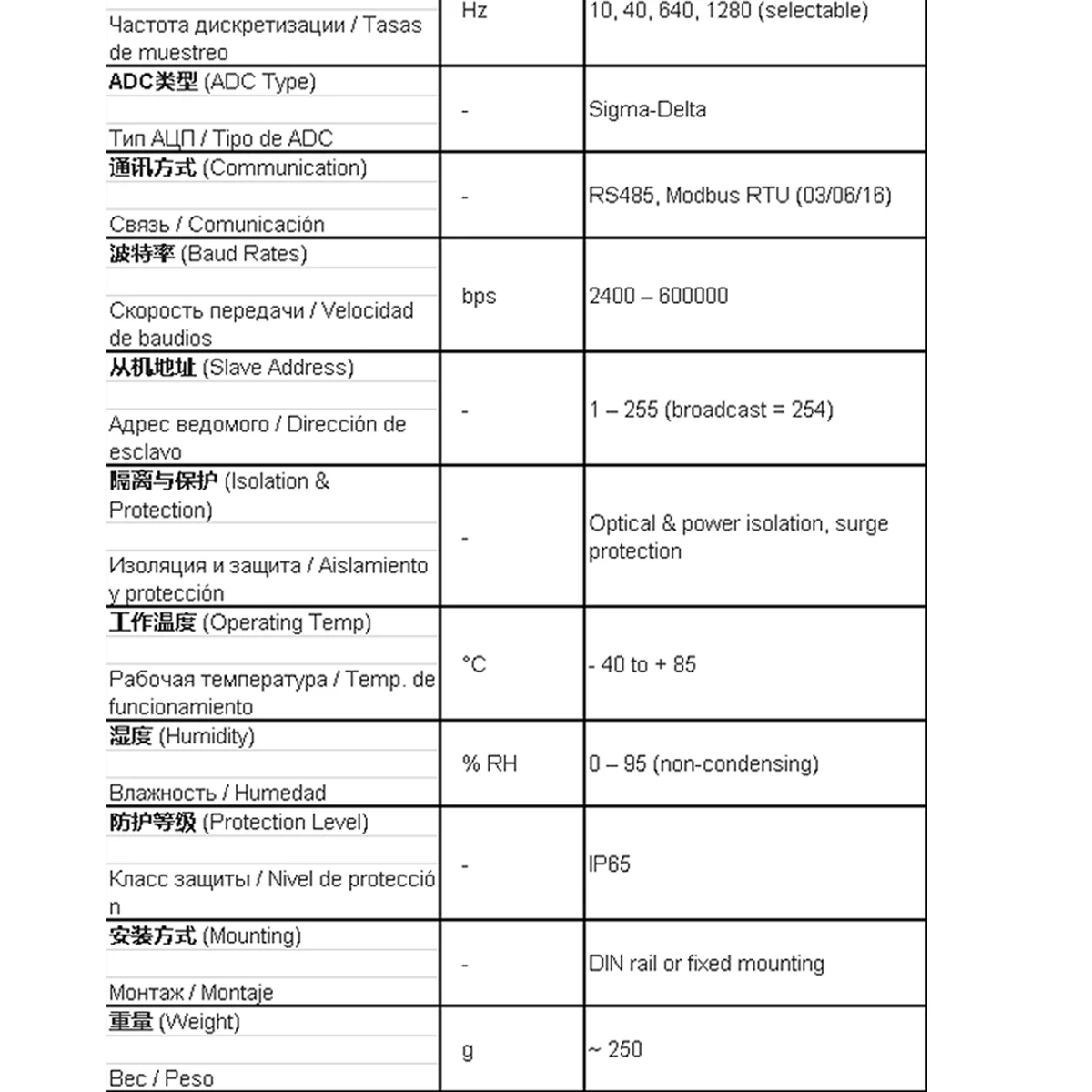

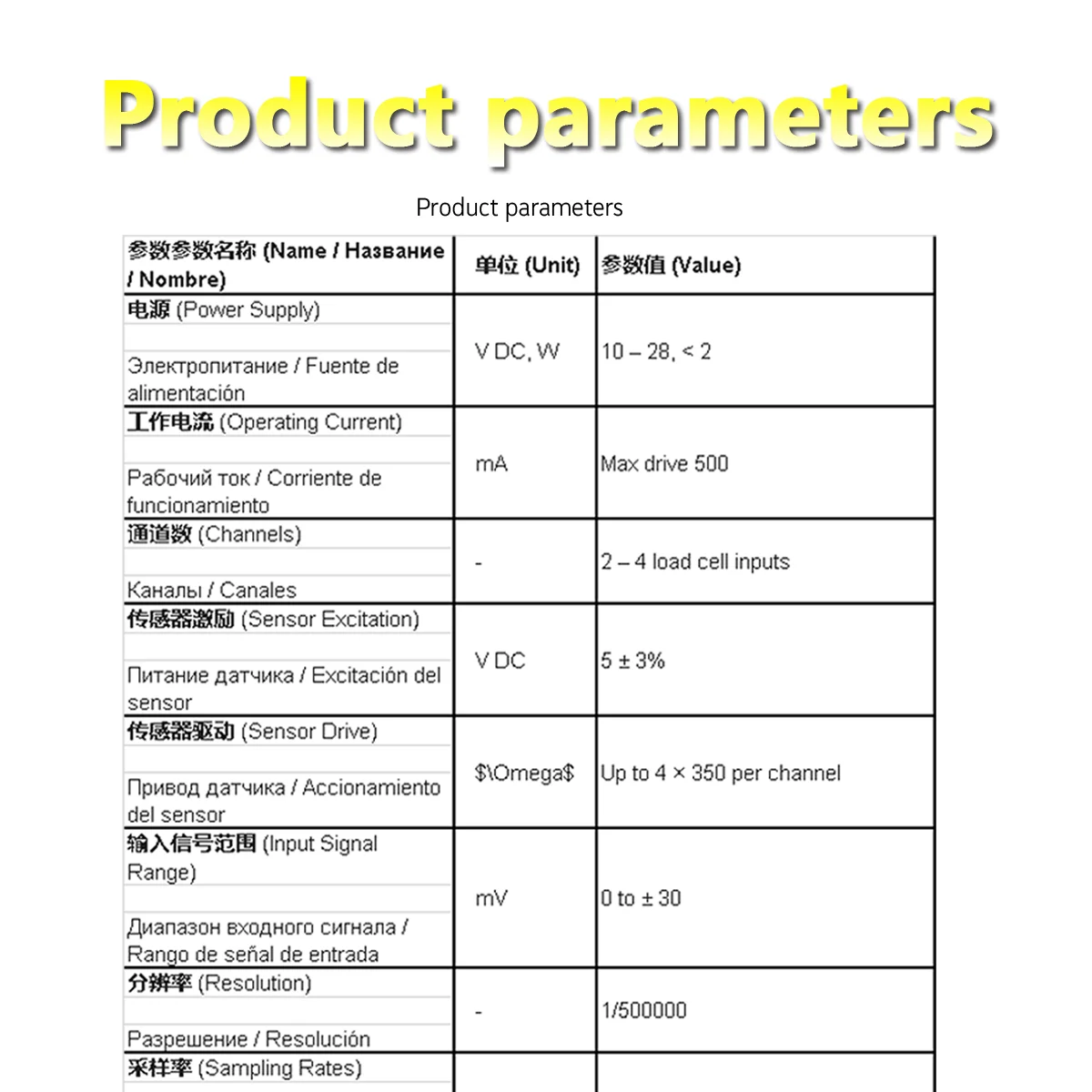

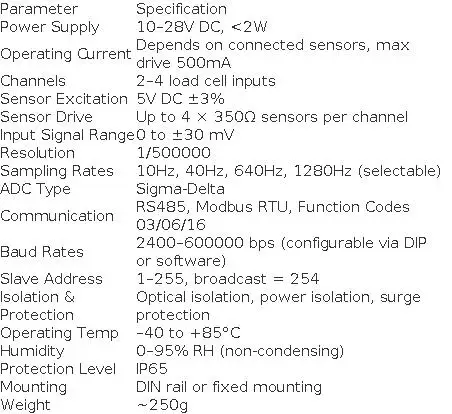

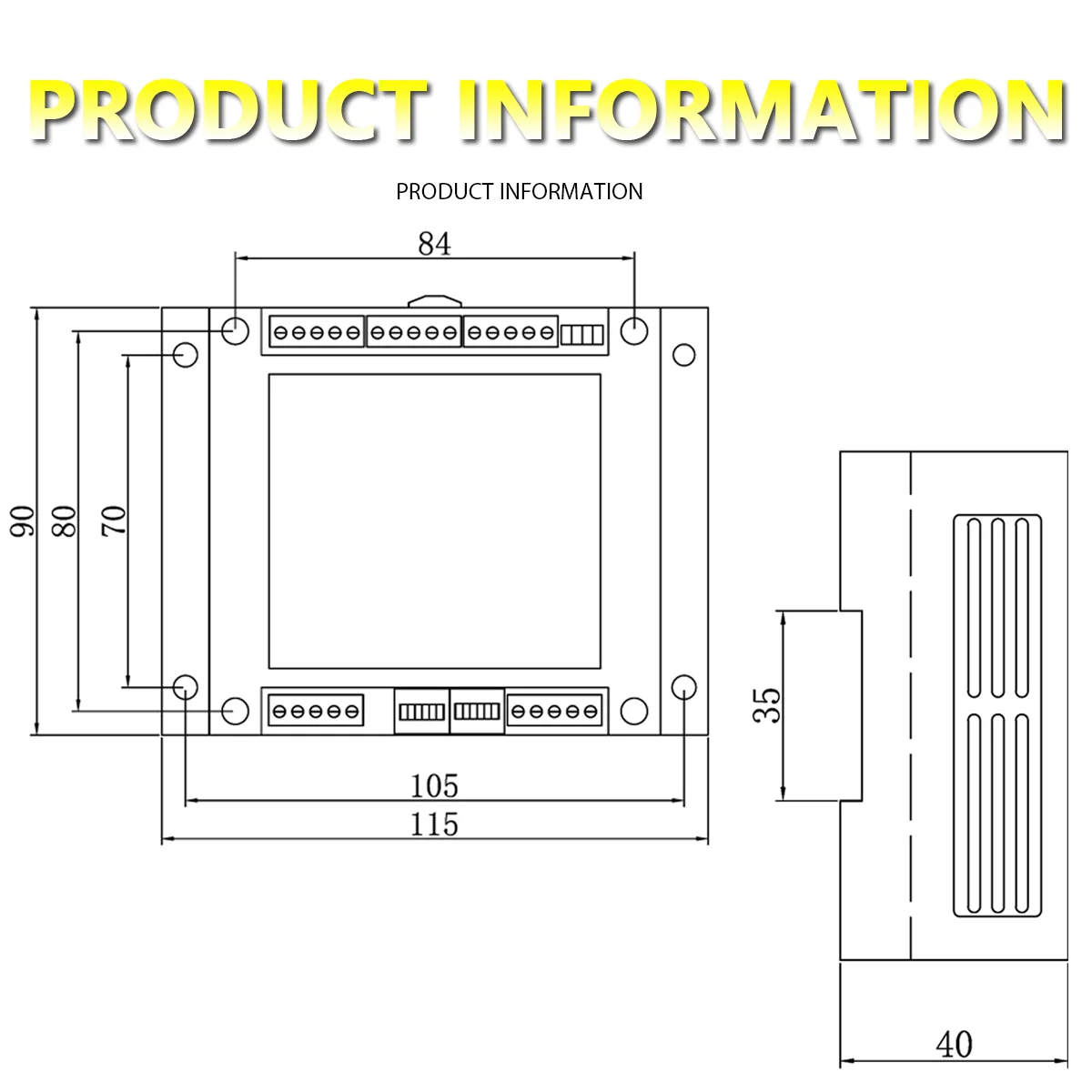

Specifications:

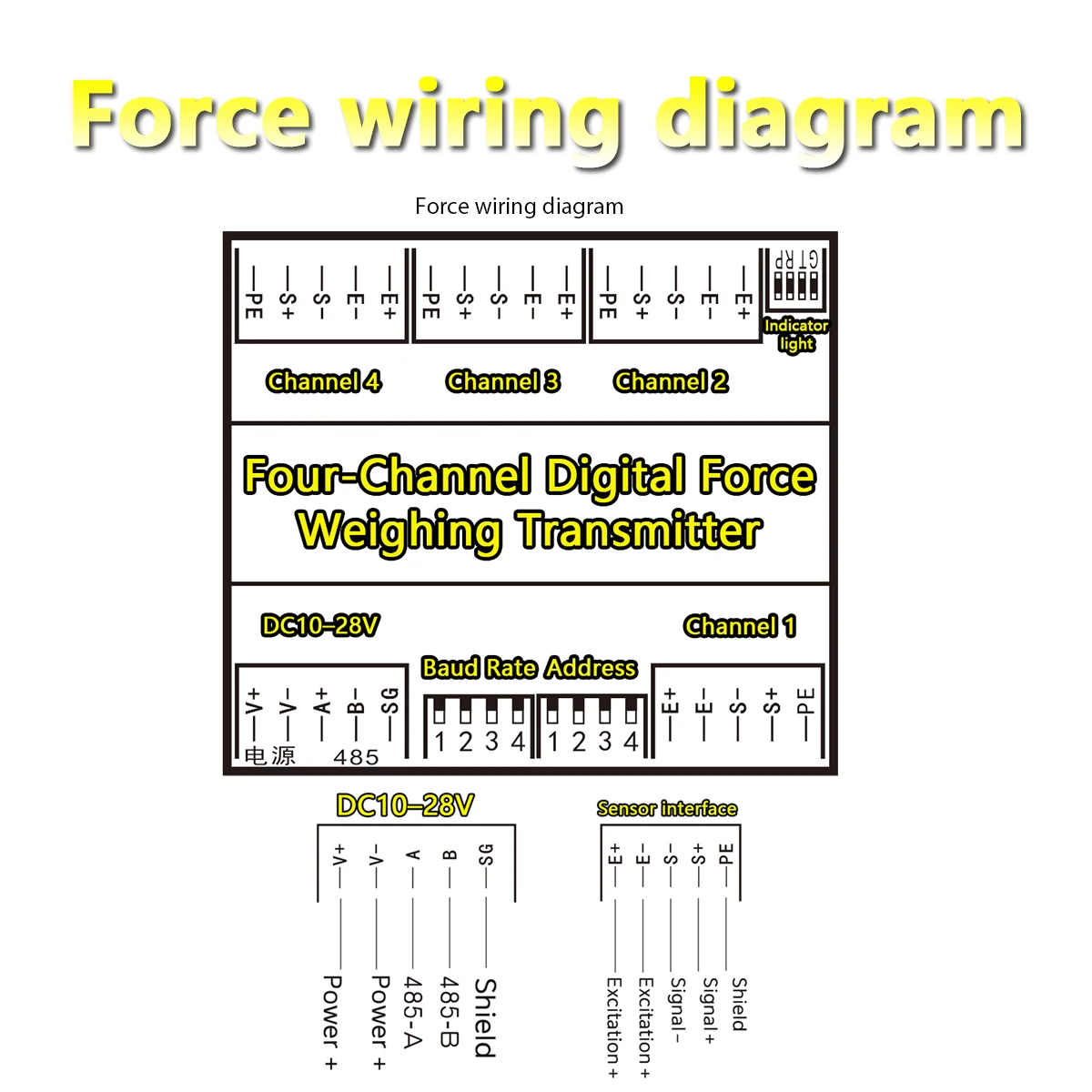

RS485 Cabling:

Maximum distance: up to 1200 m at 9600 bps.

For short-distance debugging, ordinary cables are acceptable. For longer runs, use shielded twisted pair cables.

For multi-drop connections, connect a 120Ω termination resistor across A and B at the end of the line.

Indicators & Reset:

P (Power): Always ON when powered.

G (Comm): Blinks during communication (frequency depends on baud rate).

T (TX): Blinks when transmitting.

R (RX): Blinks when receiving.

Reset button: Hold >3s to restore factory defaults (⚠ clears calibration data).
