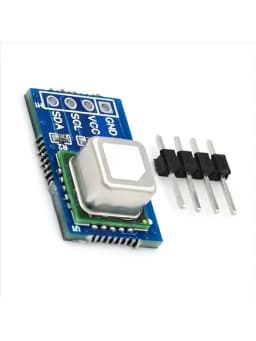

SCD41 Gas Sensor Module 2-in-1 CO2 And Temperature Detection 12C Communication Sensirion Envi

product introduction

Carbon dioxide is a key indicator of indoor air quality, which harms human cognitive ability and happiness. SCD40/SCD41 is Sensirion's next-generation miniature carbon dioxide sensor. SCD41 has high precision and high cost performance. The module is arranged with a 2.54mm spacing pin interface leads out the power supply and communication pins. On-chip temperature and

humidity compensation realizes humidity and temperature measurement through built-in temperature and humidity sensors. SCD40/SCD41 can intelligently adjust indoor ventilation systems based on carbon dioxide concentration. Indoor air quality helps maintain a healthy and efficient environment with low carbon dioxide concentrations for a period of time.

features

Baseline accuracy, specified range, SD41:400-5000 ppm

Supply voltage range: 2.4 - 5.5 V

High accuracy: ± (40 ppm+5%)

Digital I2C interface

Integrated temperature and humidity sensors

Low power operation to <0.4 mA average@5 V, 1 meas./ 5 minutes

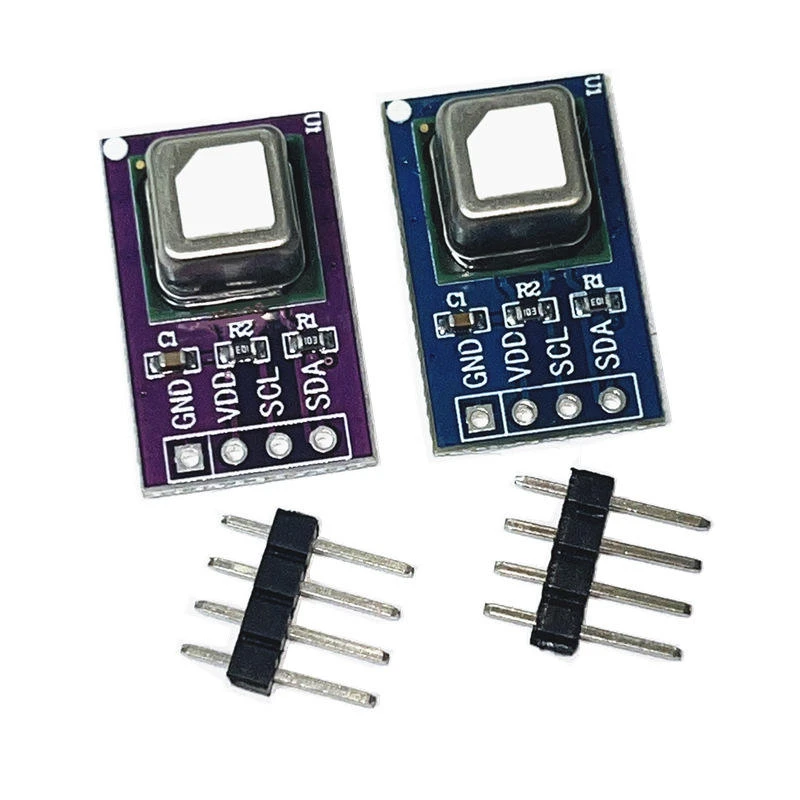

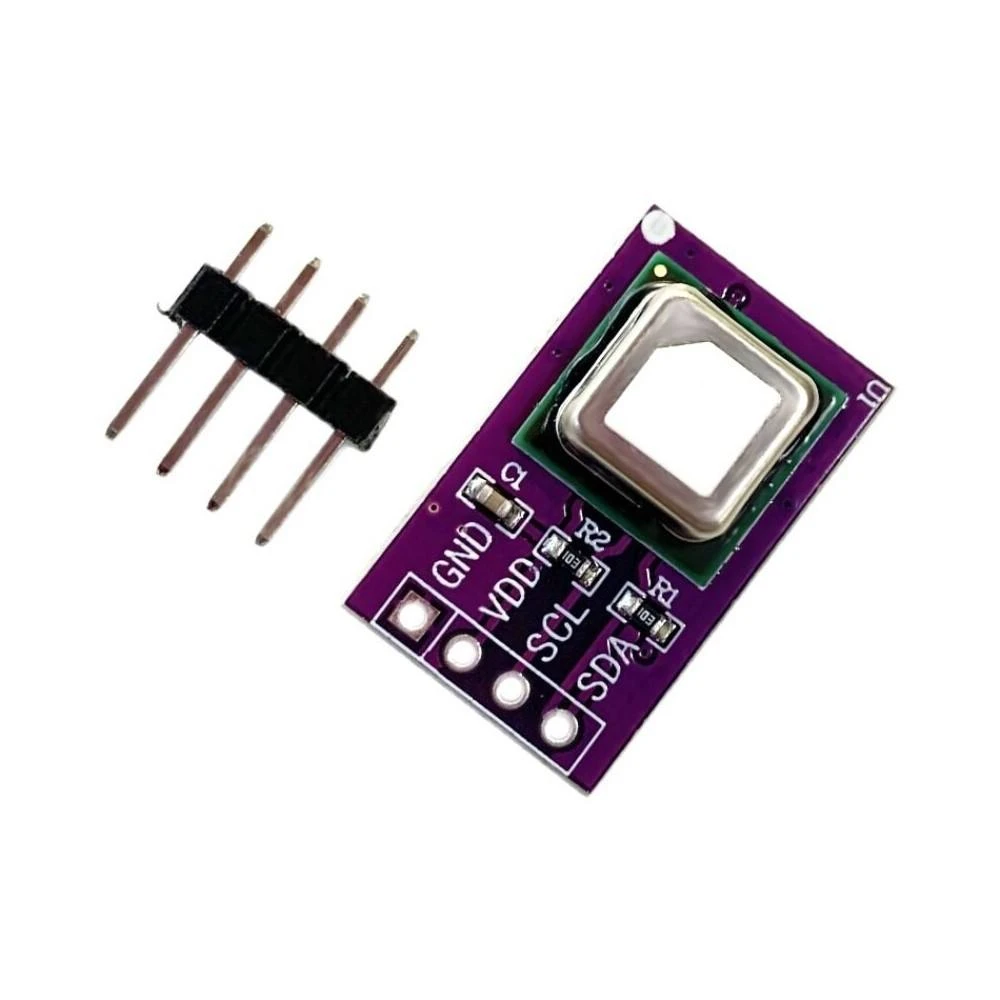

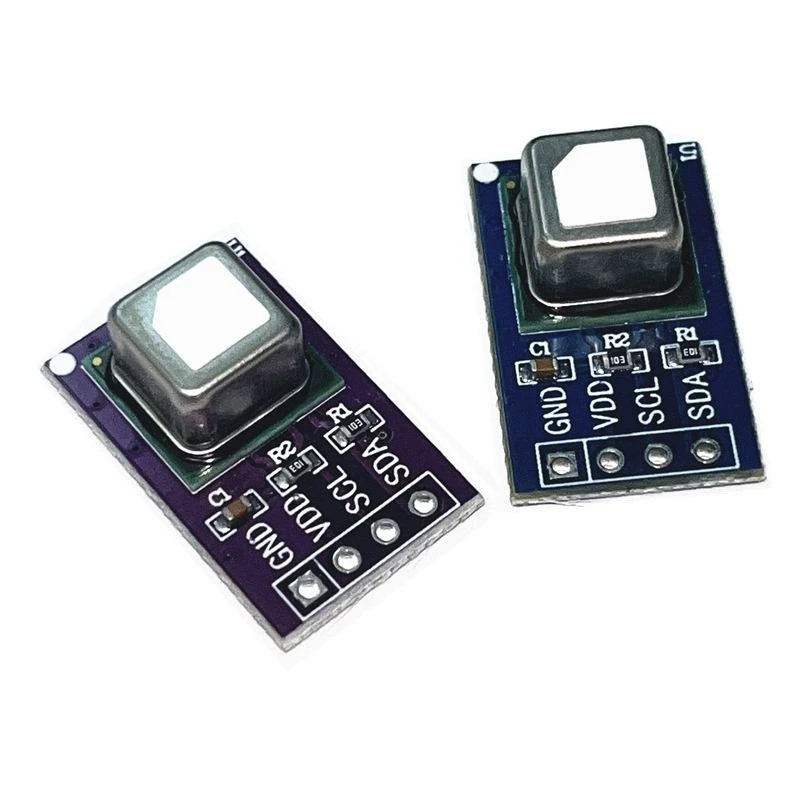

Interface definition:

1.GND： Power supply negative input port

2.VDD： Power supply positive input port

3.SCL： I2C clock port

4.SDA： I2C data port

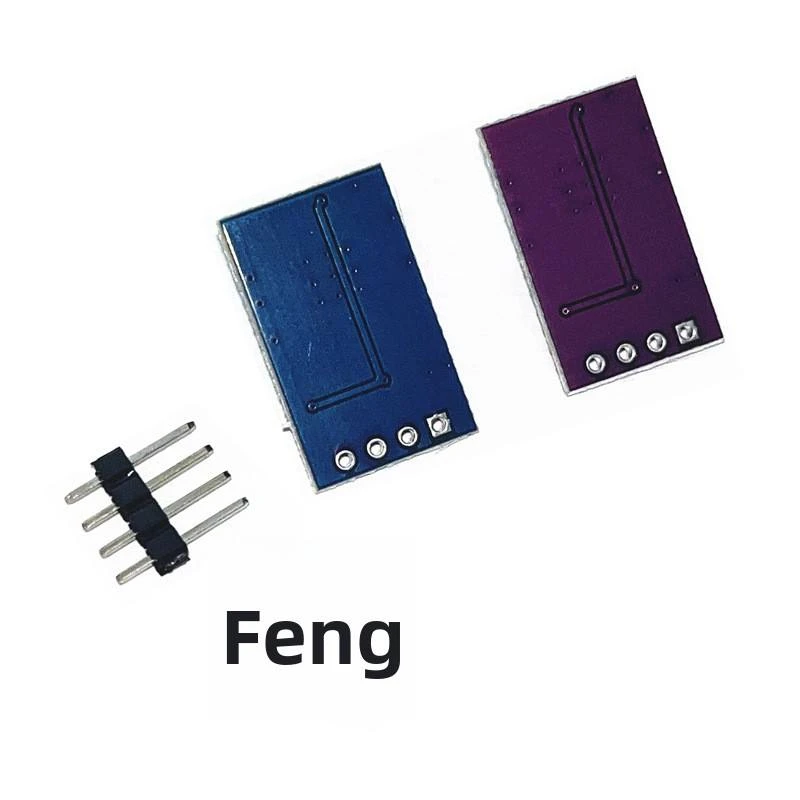

Board size: 13.4×21.6mm

SCD41

CO2 measurementaccuracy：±(40 ppm5% MV)

Measurement range：400-5000 ppm (lowpower)

Measurement range：400-5000 ppm

Accuracy：±40 ppm

Relative humiditymeasurement range：0-95%RH

Typical relativehumidity accuracy：6%RH

Package size(L* W*H)：10.1 x 10.1 x 6.5 mm3
