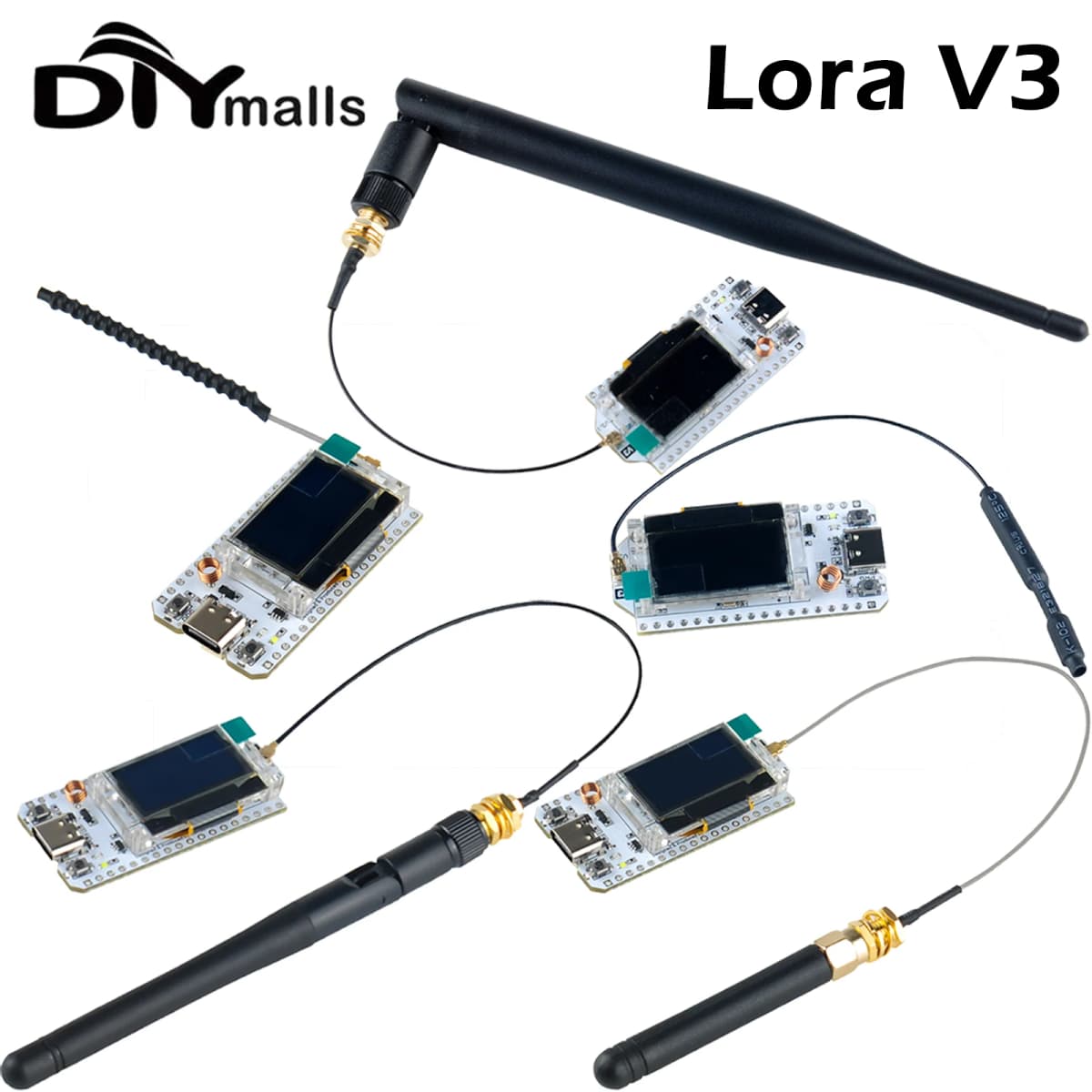

0.96 OLED Display ESP32 LoRa 32 V3 868MHz 915MHz HTIT-WB32LA_V3 LoRa32 SX1262 Development Board 2/5dBi for Meshtastic Devices

ESP32 lora 32 v3 868MHz 915MHz for meshtastic devices HTIT-WB32LA_V3 LoRa32 SX1262 0.96 OLED Display Development Board 2/5dbi

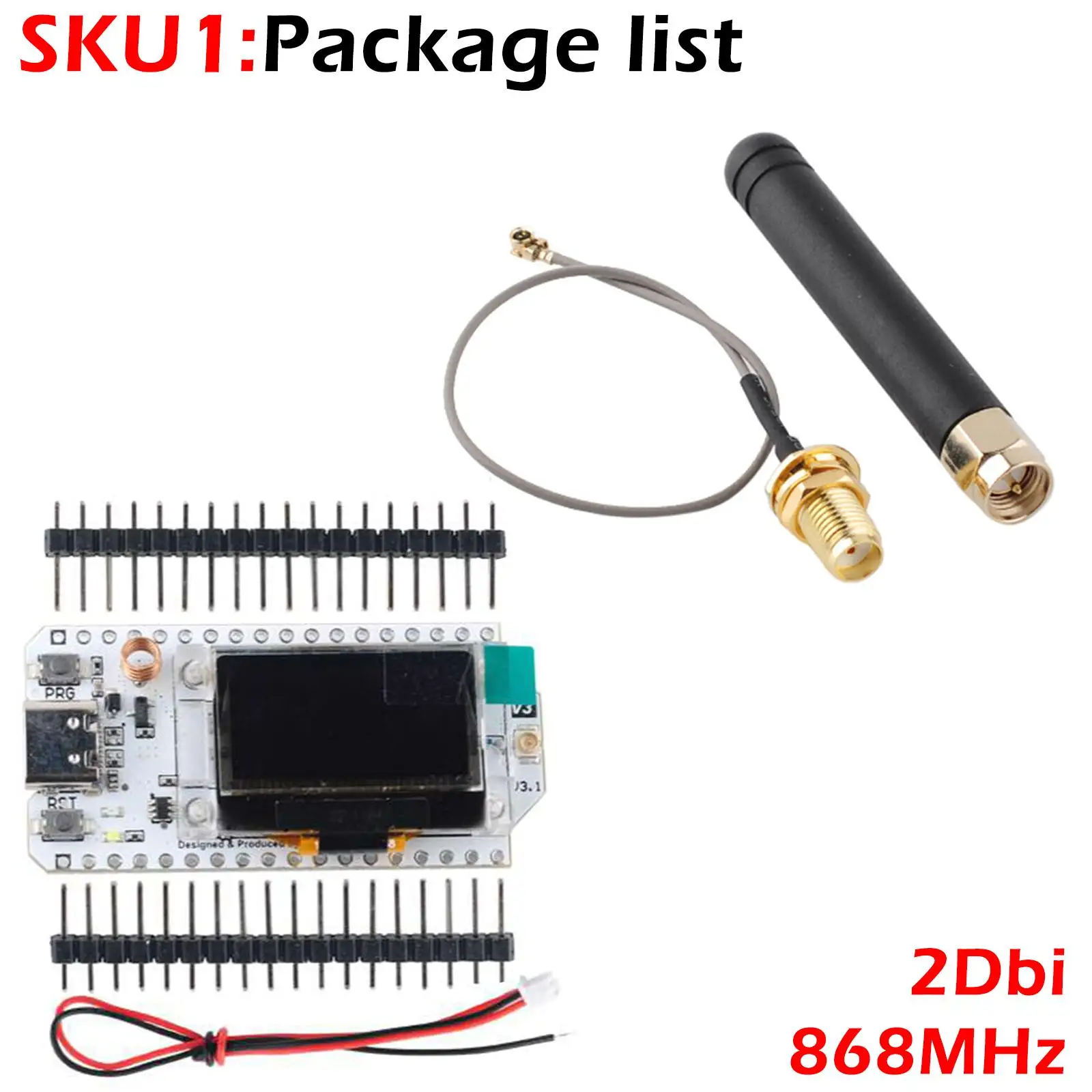

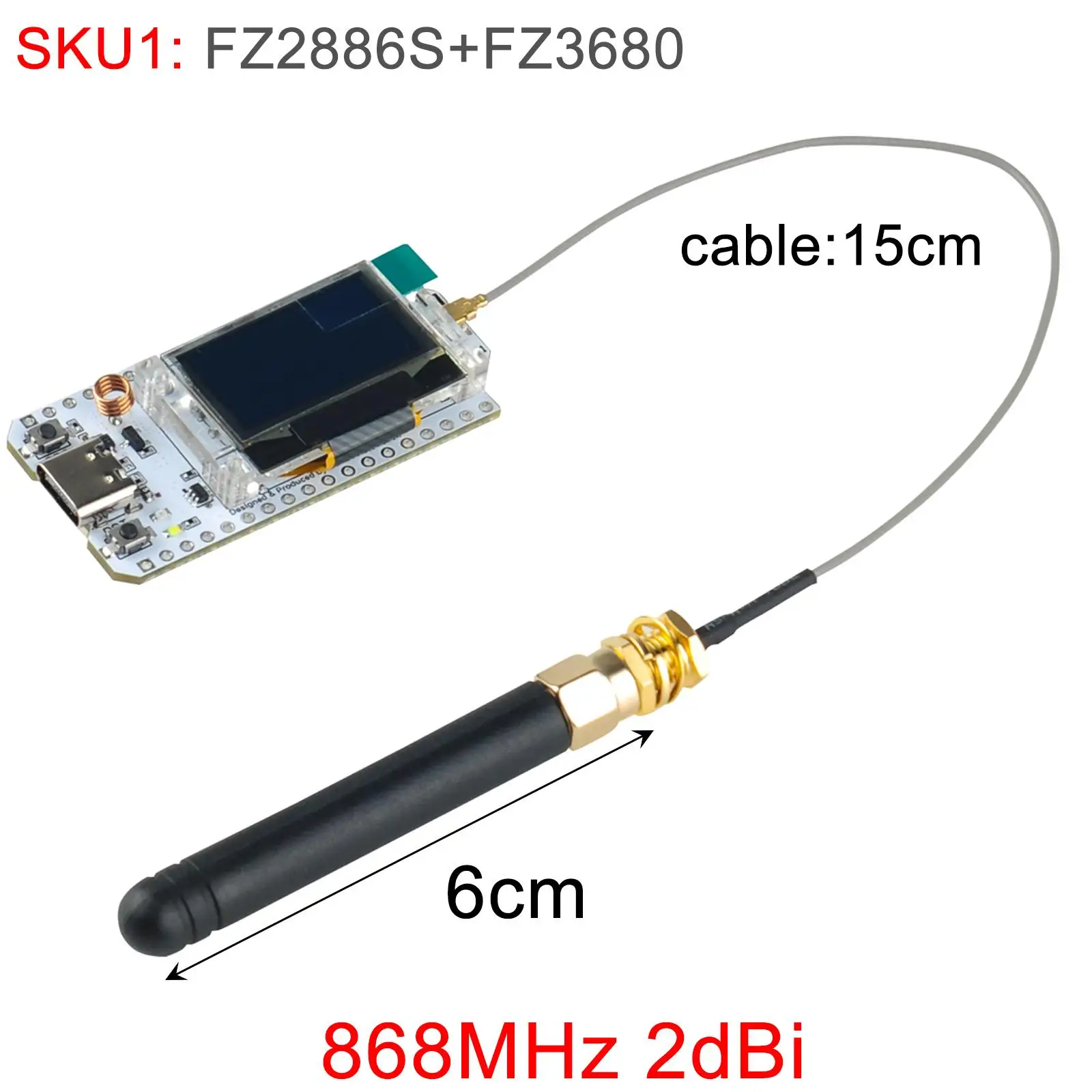

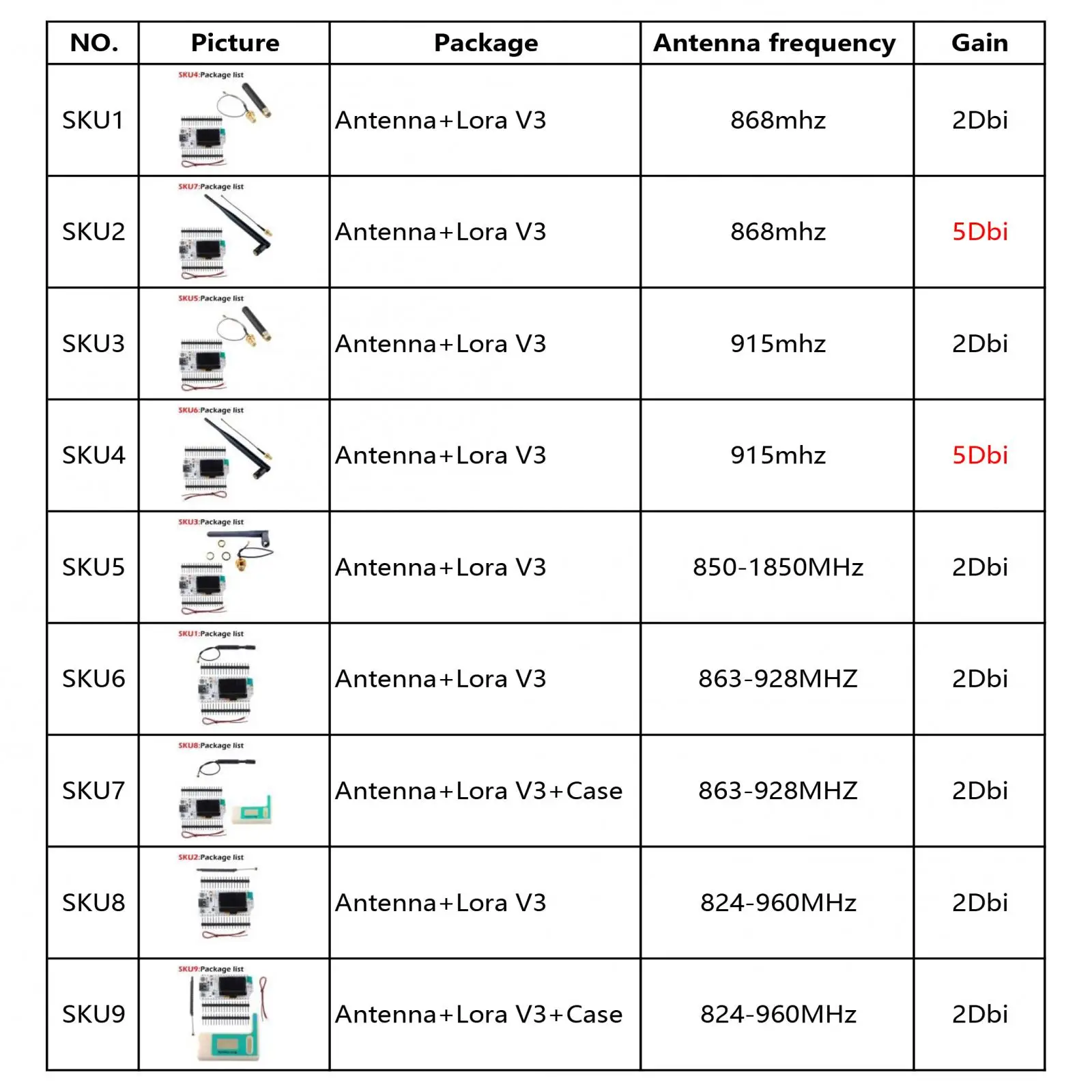

SKU1: lora v3 + 868mhz 2dbi antenna

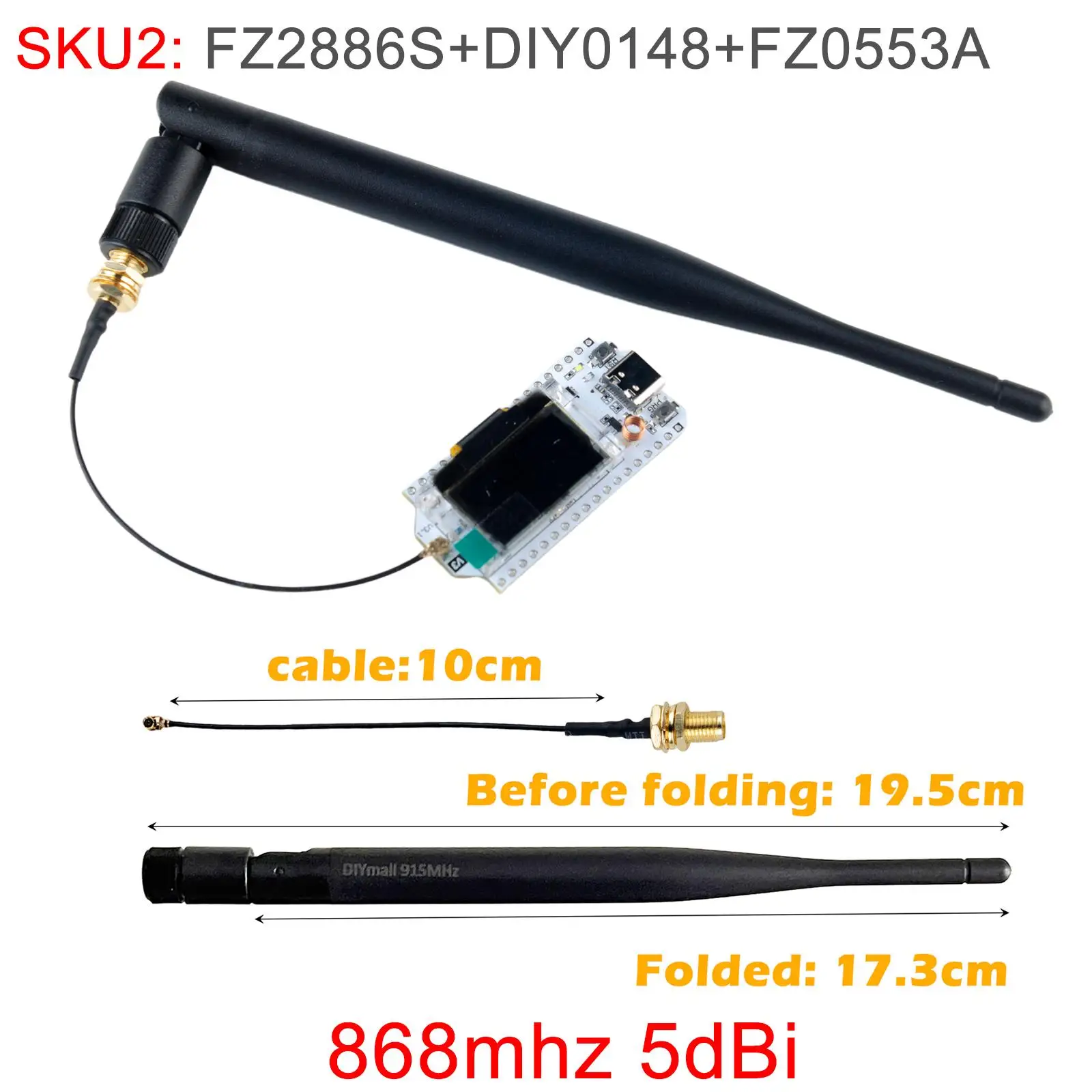

SKU2: lora v3 + 868mhz 5dbi antenna

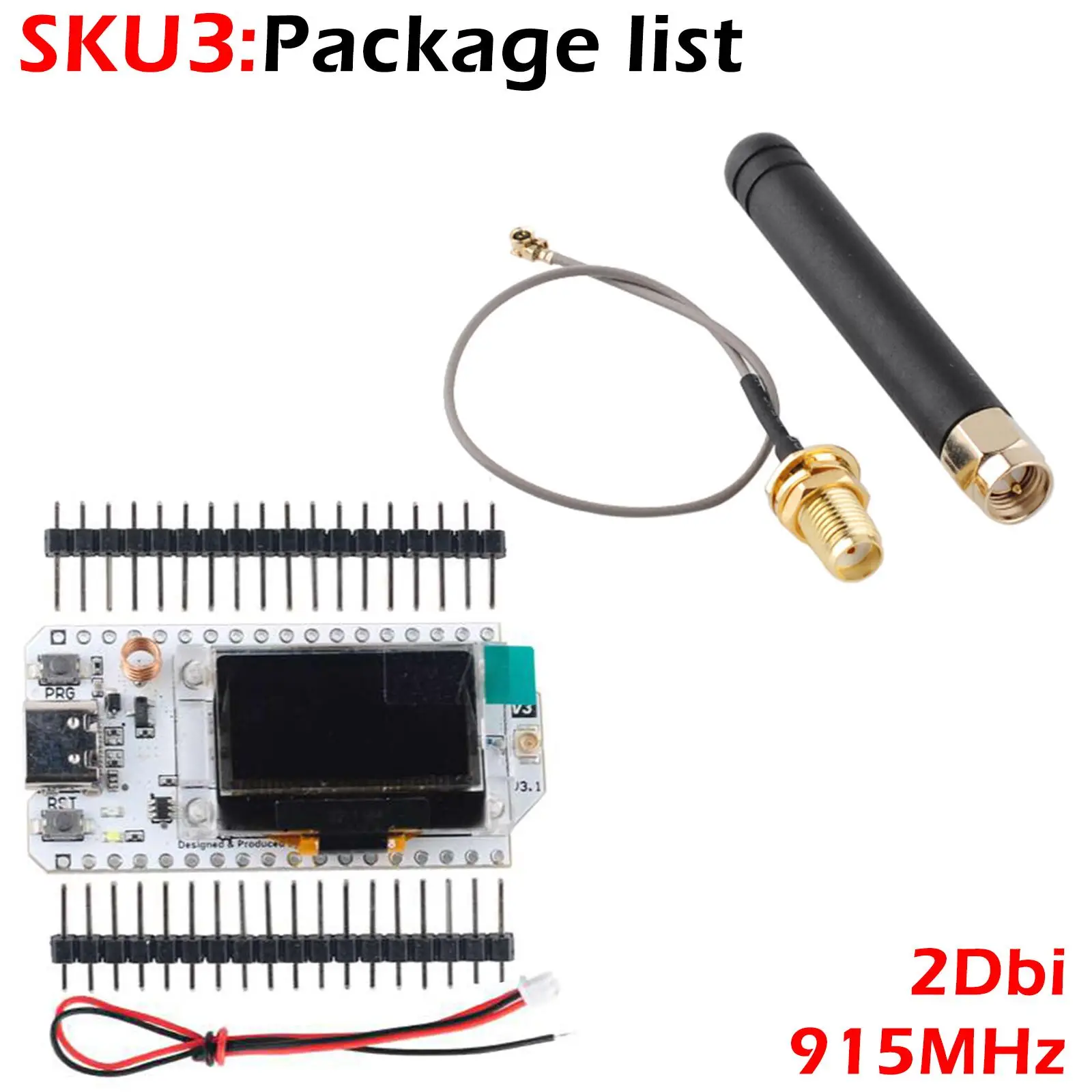

SKU3: lora v3 + 915mhz 2dbi antenna

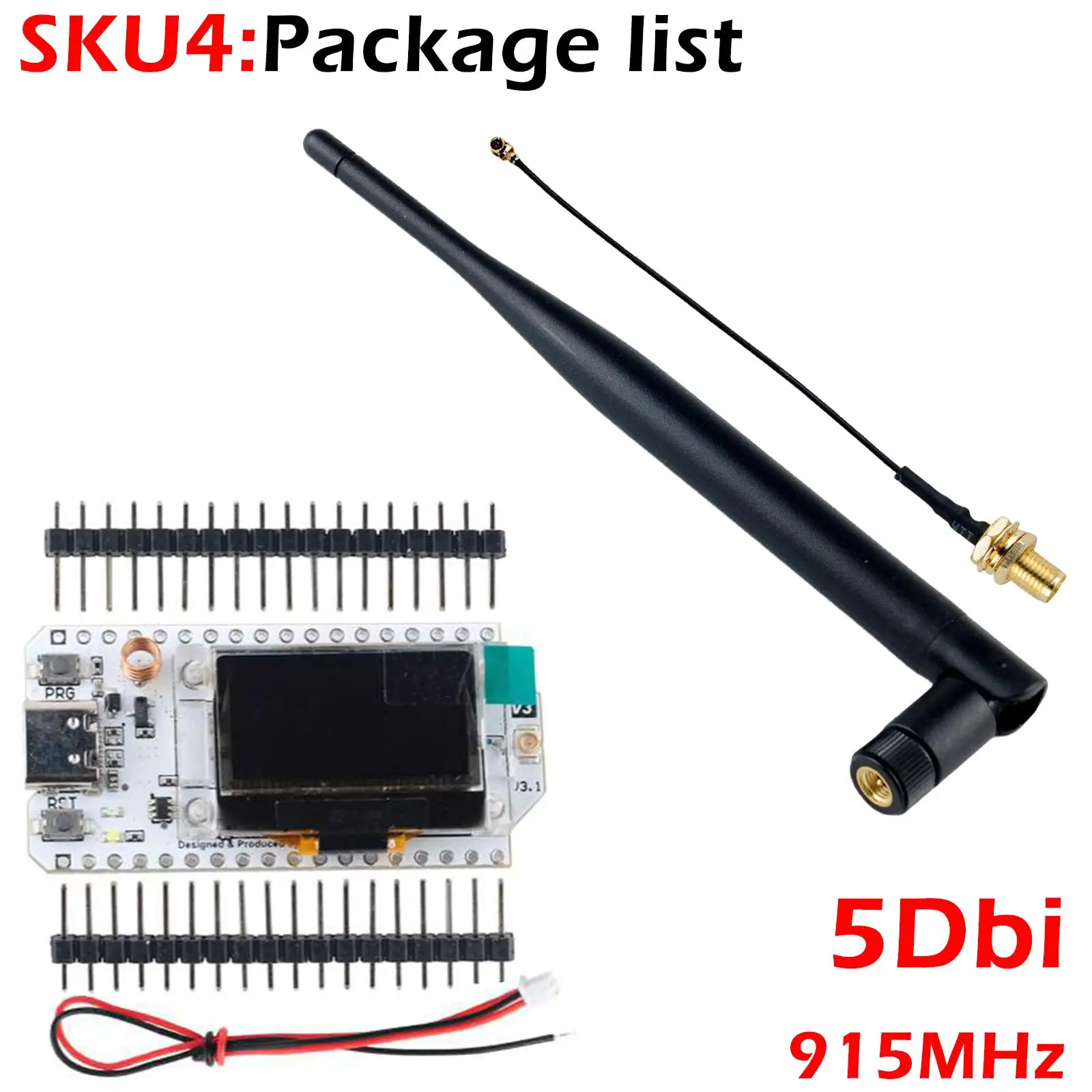

SKU4: lora v3 + 915mhz 5dbi antenna

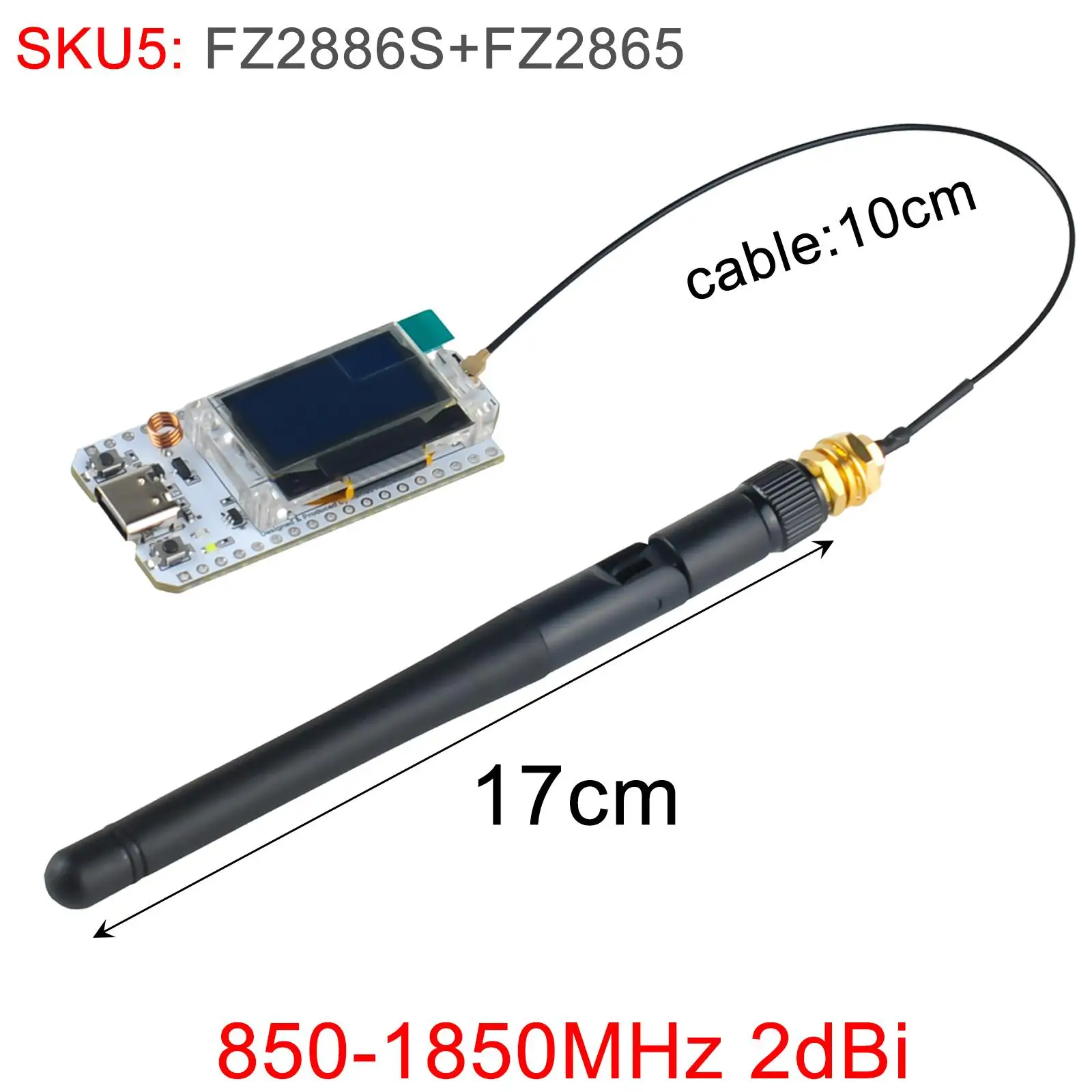

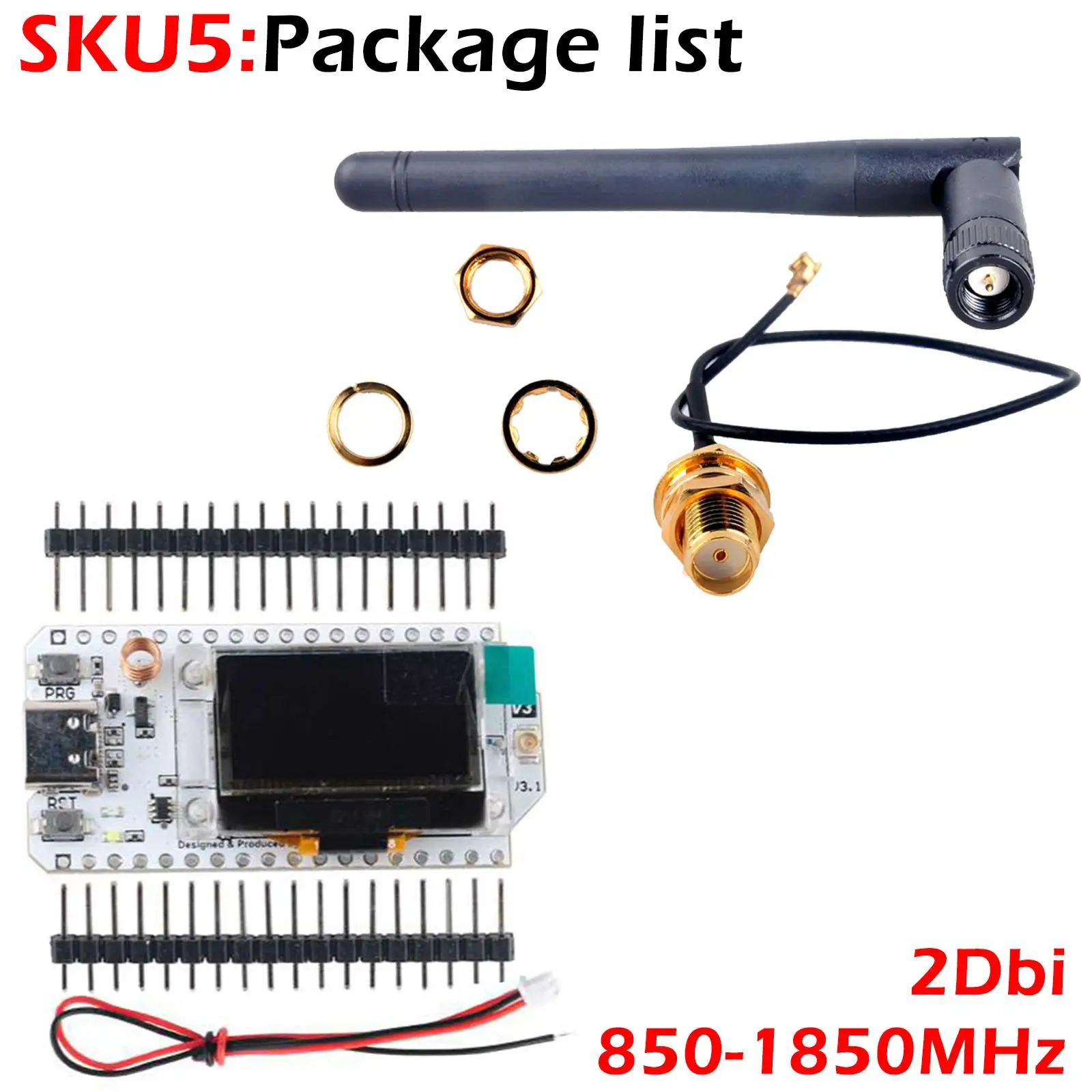

SKU5: lora v3 + 850-1850MHz 2dBi antenna

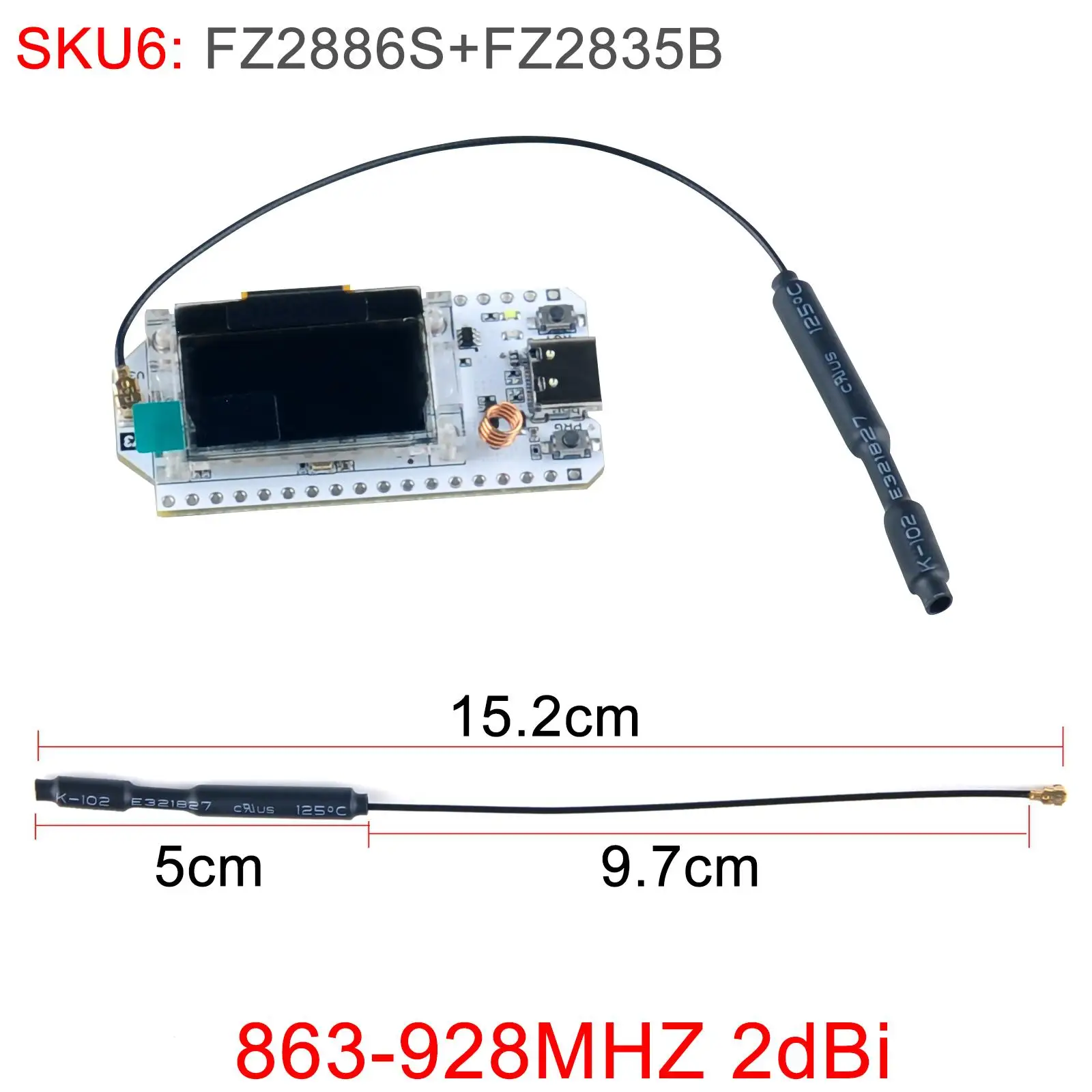

SKU6: lora v3 + 863-928MHZ 2dBi antenna

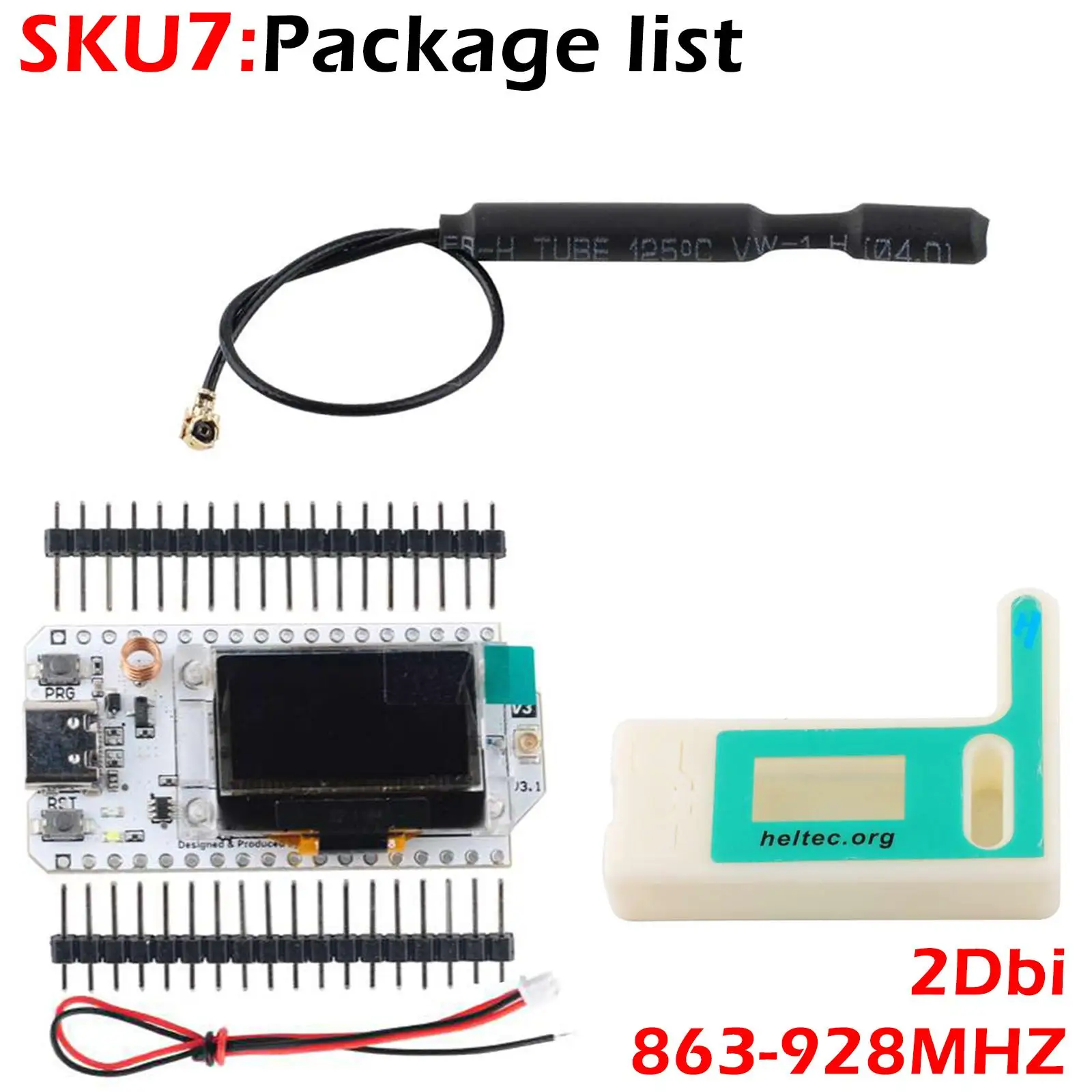

SKU7: lora v3 + 863-928MHZ 2dBi antenna + case

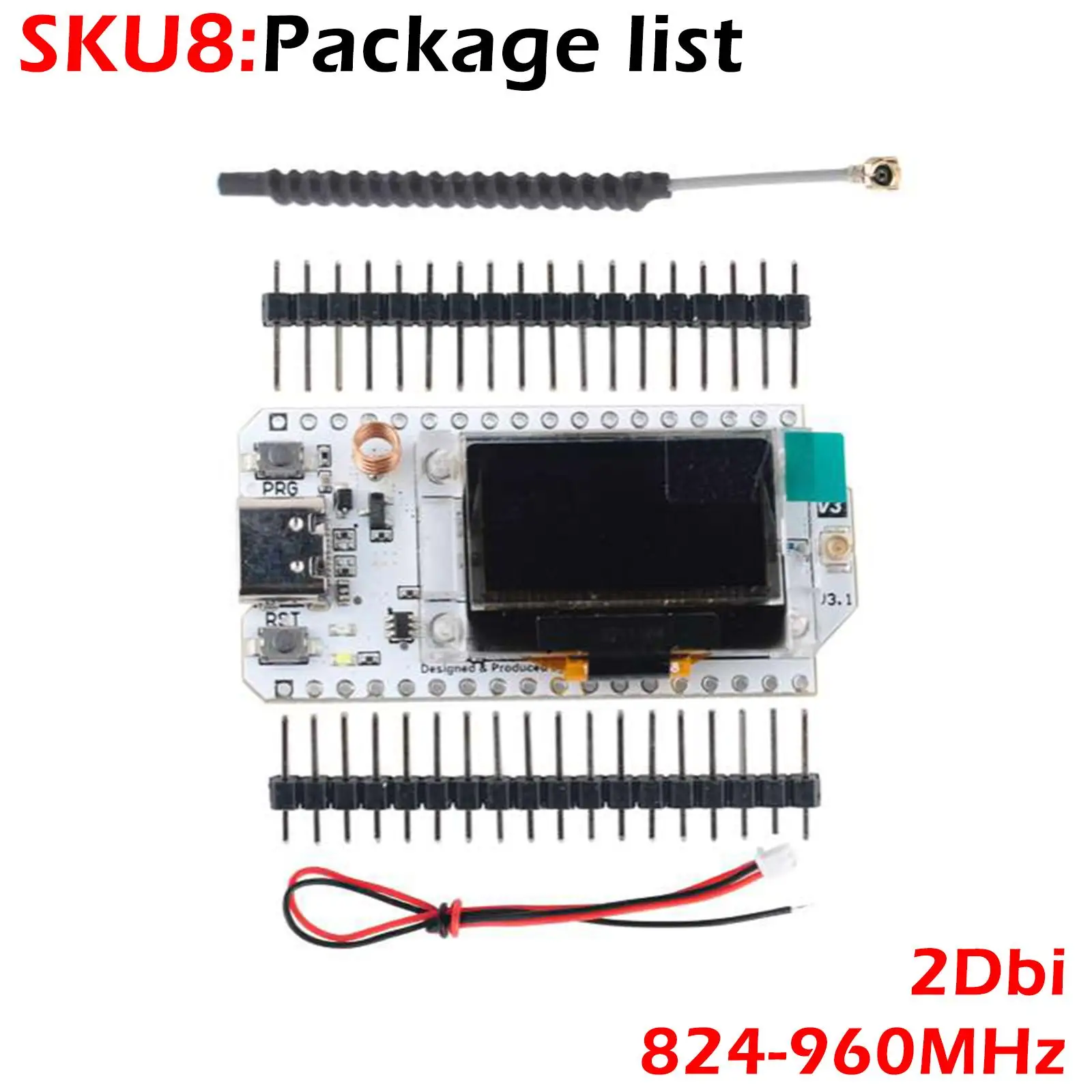

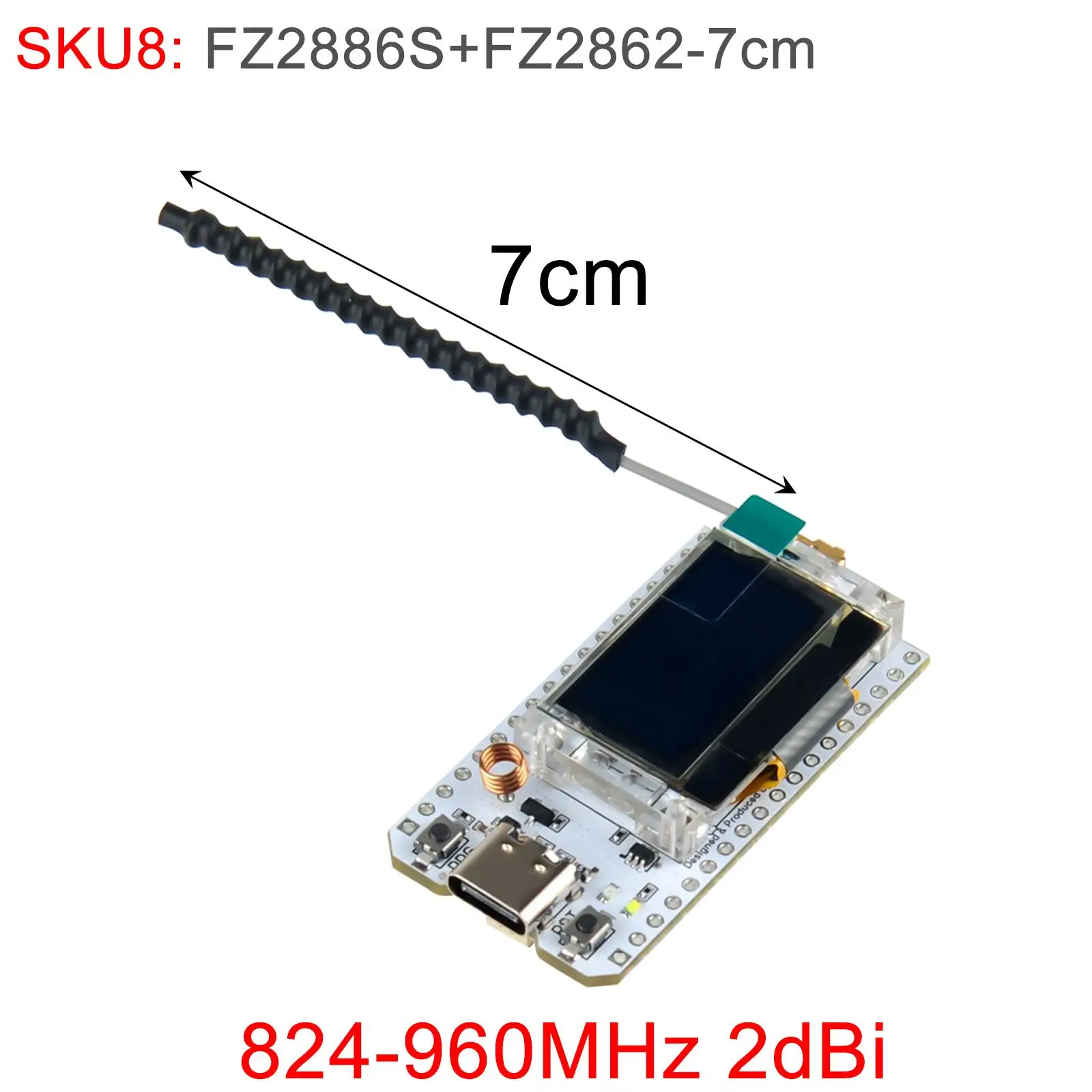

SKU8: lora v3 + 824-960MHz 2dBi 7cm antenna

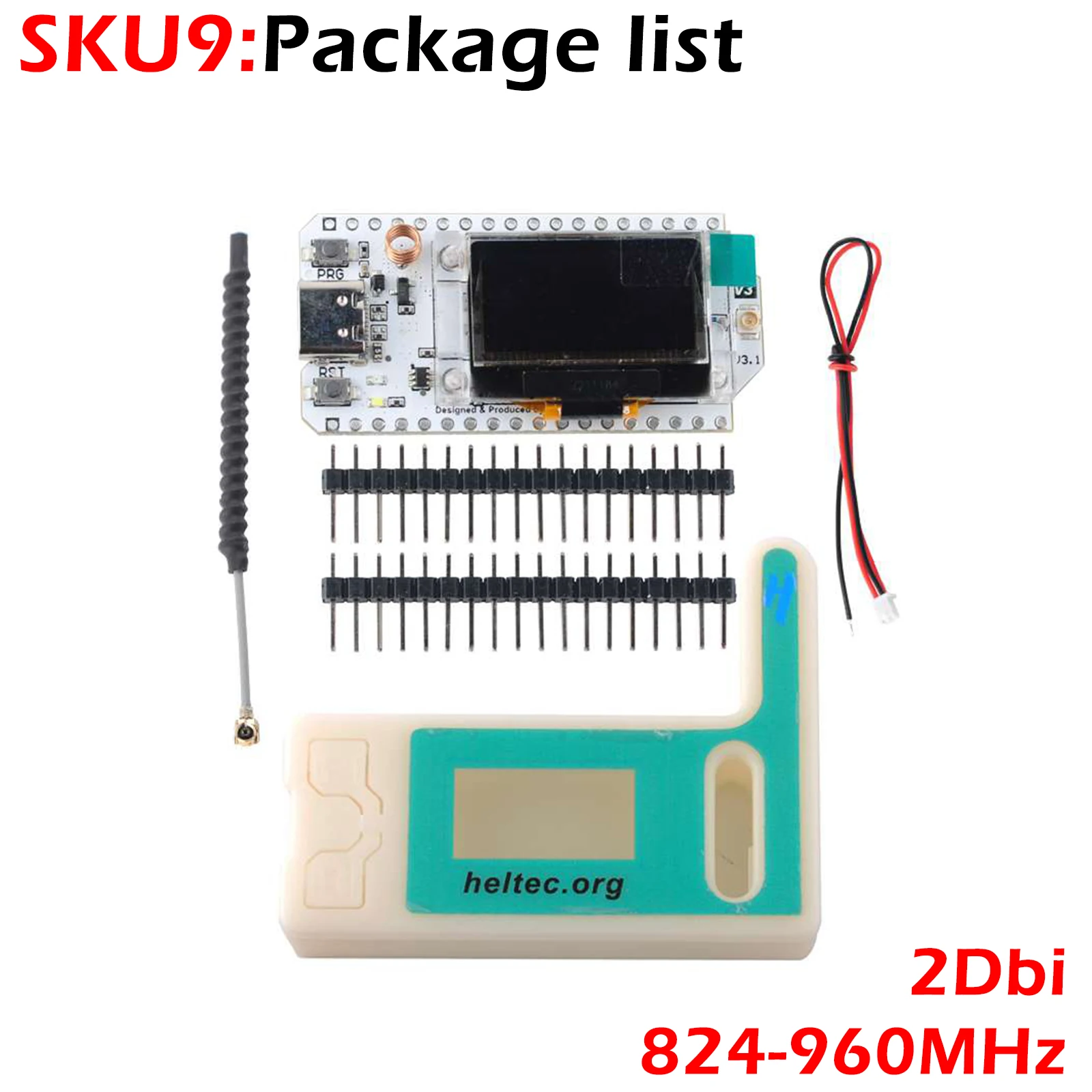

SKU9: lora v3 + 824-960MHz 2dBi 7cm antenna + case

ESP32 LoRa 32 V3 Development Board 868MHz 915MHz SX1262 0.96 Inch OLED Display BT WIFI Lora Kit for Arduino IOT Smart Home

The LoRa 32 V3 has the same pinout sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display and other features. This is a great choice for smart city, farm, home, industrial control, home security, wireless meter reading and IoT developers.

V3 upgraded version has higher output power, theoretically longer transmission distance and faster transmission rate.

LoRa crystal is replaced with temperature complementary crystal, stronger anti-interference, lower power consumption (about 10uA)

Features:

●SP32-S3FN8 microprocessor (Xtensa? 32-bit LX7 dual-core processor with five-stage pipelined rack architecture up to 240 MHz).

●SX1262 LoRa node chip.

●Type-C USB interface with full voltage regulator, ESD protection, short-circuit protection, RF shielding and other protections.

●Onboard SH1.25-2 battery interface with integrated Li-Ion battery management system (charge/discharge management, overcharge protection, USB/battery power auto-switching, battery level detection).

●Onboard 0.96-inch 128*64 dots OLED display.

●Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IP-EX (U.FL) interface for LoRa use.

●Integrated CP2102 USB-to-serial interface chip, convenient for program download and debugging information printing.

●Support Arduino development environment.

●Good RF circuit design and low power consumption design.

Specifications

●Master Chip: ESP32-S3FN8 (Xtensa?32-bit lx7 dual core processor)

●LoRa Node Chip: SX1262

●USB to Serial Chip: CP2102

●Frequency: 470~510MHz,863~928MHz

●Max. TX Power: 21±1dBm

●Max. Receiving sensitivity: -136dBm@SF12 BW=125KHz

●Wi-Fi: 802.11 b/g/n, up to 150Mbps

●Bluetooth: Bluetooth 5 (LE)

●Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.

●Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash

●Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IP-EX1.0); 2*18*2.54 Header Pin

●Battery: 3.7V lithium battery power supply and charging

●Operating Temperature: -20 ~ 70 ℃

●Dimensions: 50.2 * 25.5* 10.2 mm

U.FL IP-EX to SMA Connector Antenna 868MHz for Lora Board Lora32u4 II Wifi Lora32 15cm

Description:

Connector type: ip-ex

Band definition:　868MHz

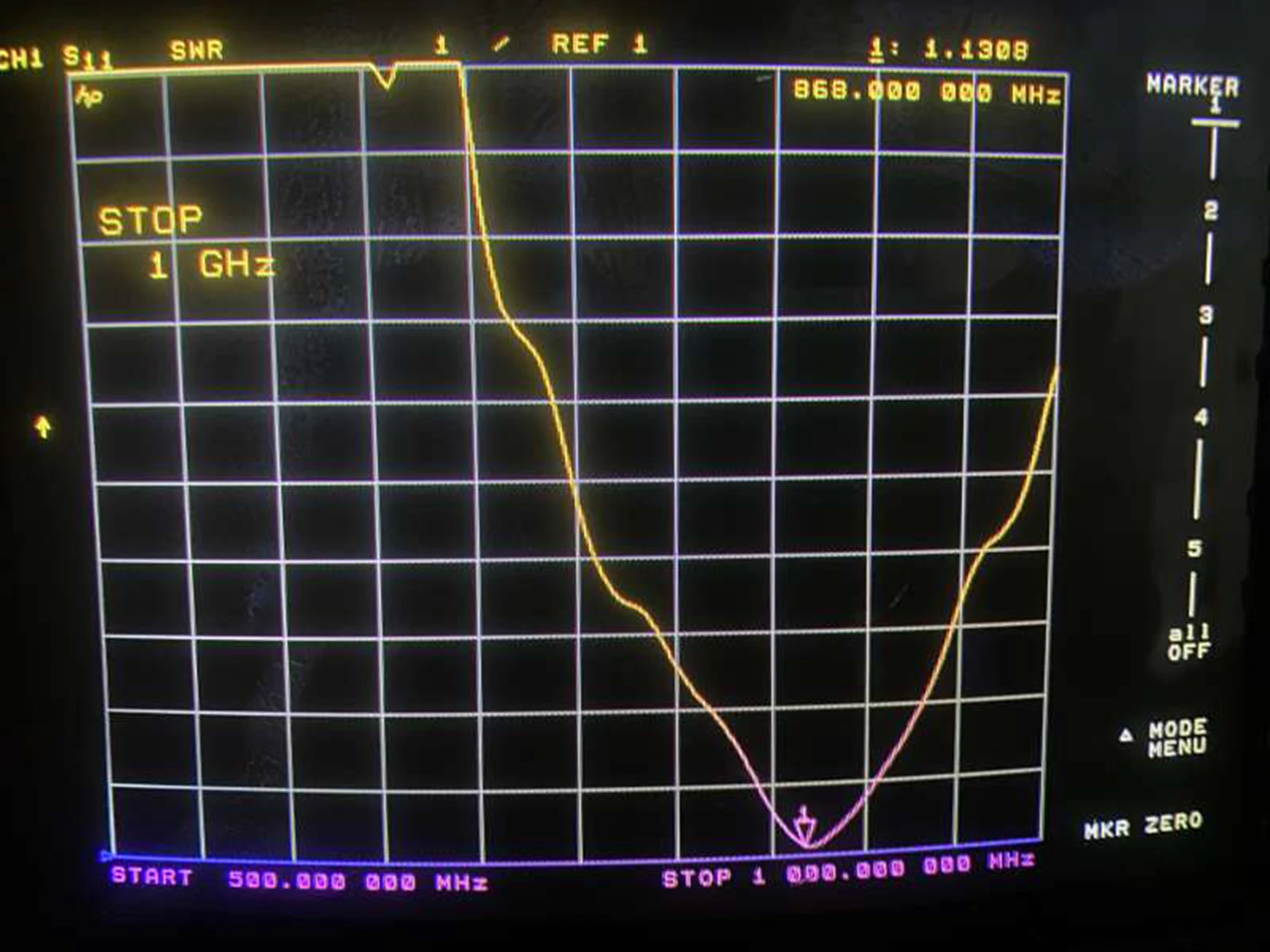

Standing wave ratio: <= 1.5

Gain: 2dBi

Maximum power: 10W

Input impedance: 50Ω

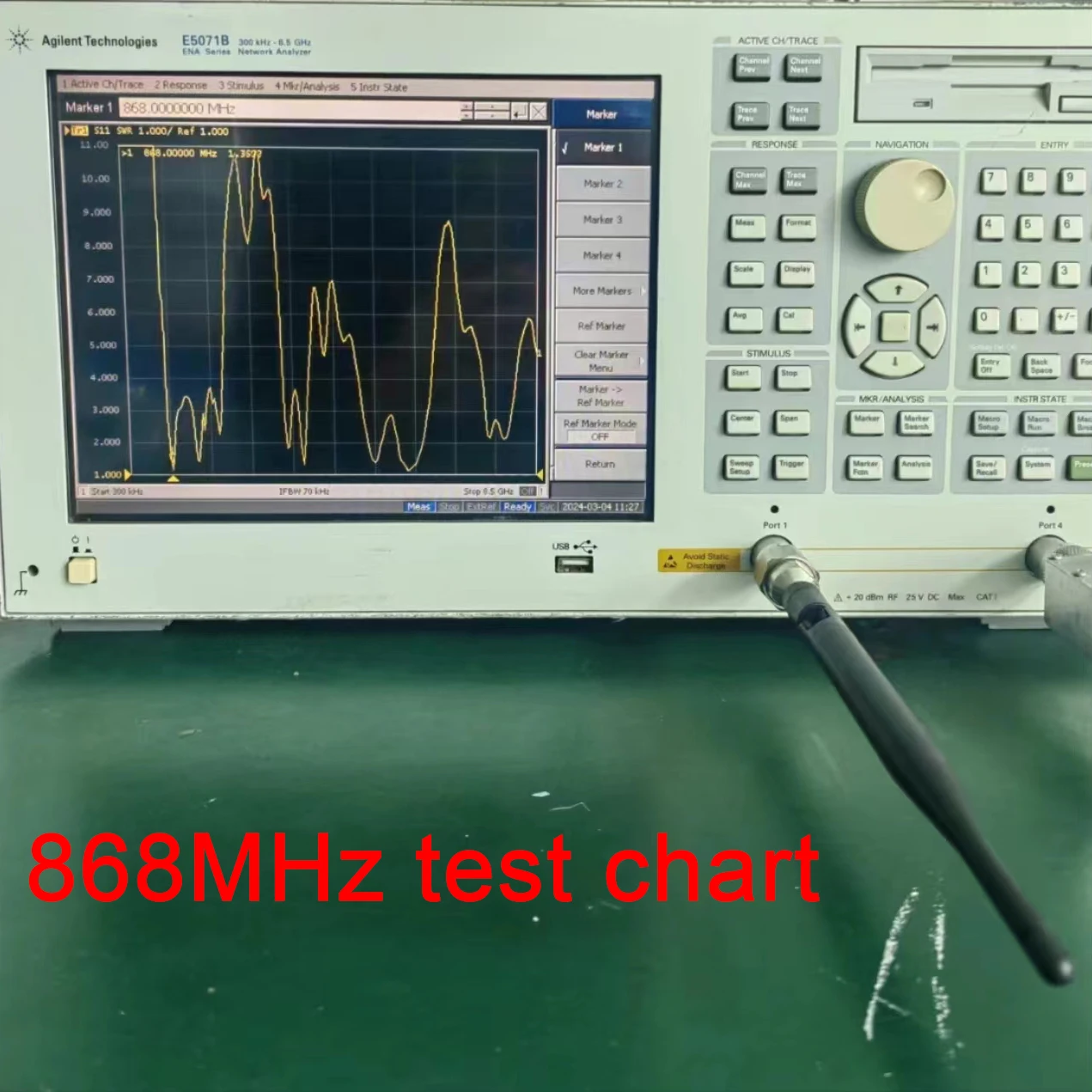

868MHz Antenna 5DBi SMA Male Omni-directional antenna

Frequency: 868MHz

Gain: 5dBi

VSWR: <1.5

Impedance: 50 Ω

Length:19.5cm

Connector: SMA Male

U.FL IP-EX to SMA Connector Antenna 915MHz for Lora Board Lora32u4 II Wifi Lora32 10cm

Description:

Connector type: ip-ex

Band definition: 915MHz

Standing wave ratio: <= 1.5

Gain: 2dBi

Maximum power: 10W

Input impedance: 50Ω

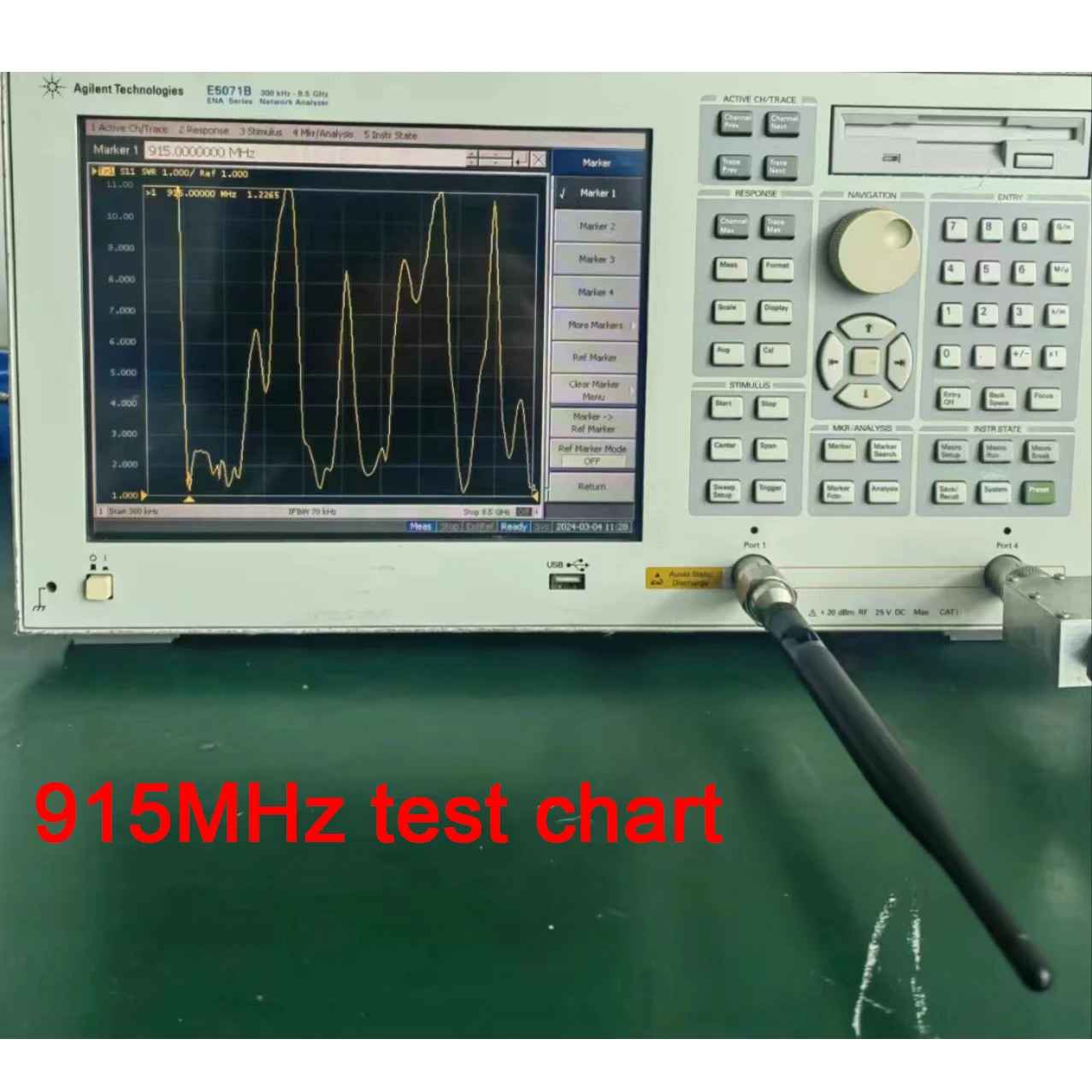

915MHz Antenna 5DBi SMA Male Omni-directional antenna

Frequency: 915MHz

Gain: 5dBi

VSWR: <1.5

Impedance: 50 Ω

Length:19.5cm

Connector: SMA Male

2DBi IP-EX to SMA Antenna 868MHz 915MHz U.FL to Female SMA I-PX Extension Pigtail Cable for Lora32u4 II Lora Module DIYmall

Description:

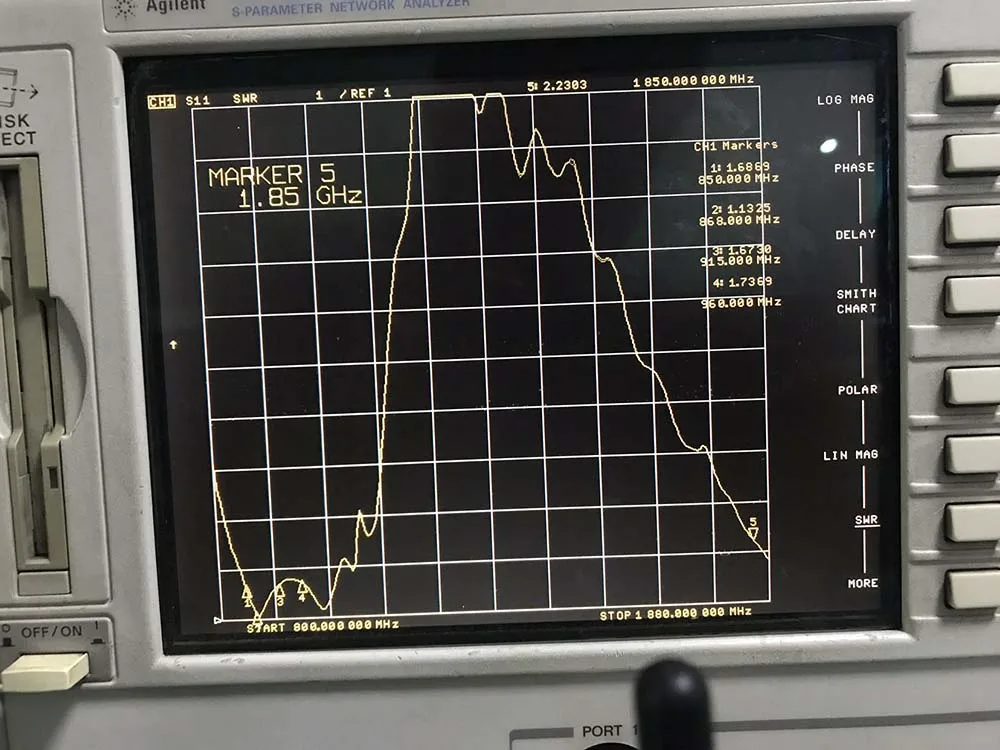

Frequency:850-960/1710-1880MHz

Type: U.FL to Female SMA

Impedance: 50 ohms

Gain: 2DBi

LoRa Antenna 868-915mhz 2dBi built-in copper tube spring antenna

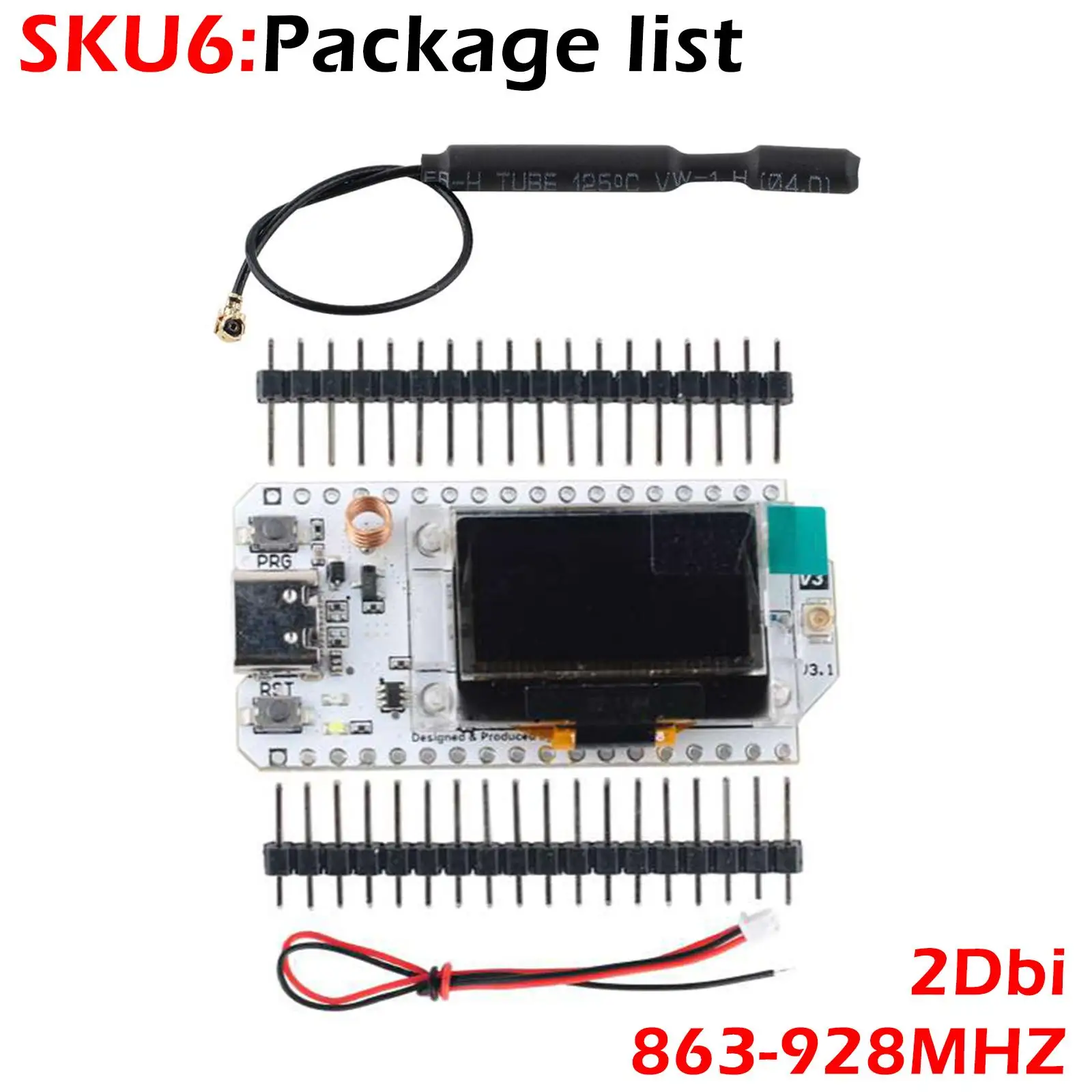

SKU7=SKU6+case

868MHz 915MHz GSM IPX IP-EX 1.13 UF.L Antenna Built-in 2DBi 8CM for LORA32U4II

Description:

Frequency: 824-960MHz

Gain: 2DBi

Length: Total is 8CM

Standing wave ratio / S.W.R.≤2.0

Impedance: 50Ω

Max Input power: 50W

RF Cable: RG1.13 cable

SKU9=SKU8+case
