Button Load Cell 0-2000kg Compression Force Sensor 1.0–2.0mV/V 10kHz Stainless Steel High Precision Weighing Transducer

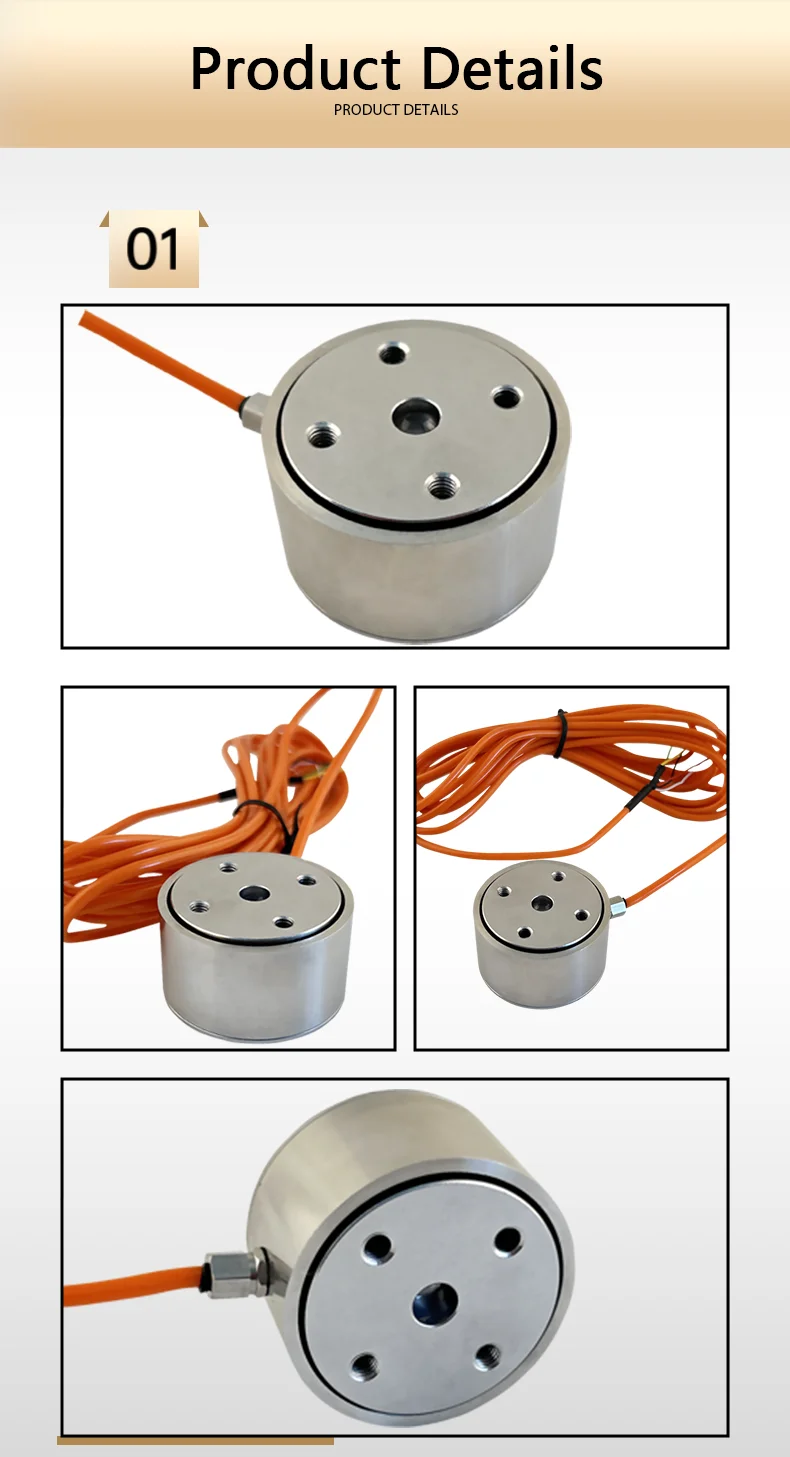

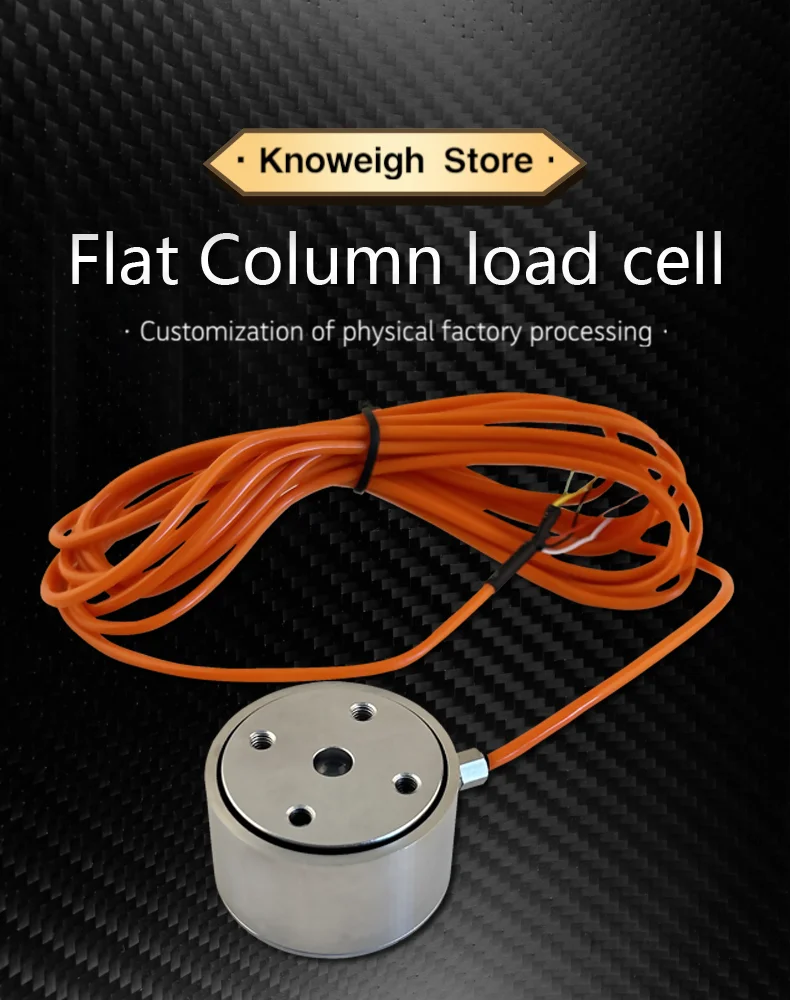

The BENGBUZZYQ Button Load Cell is a compact and robust compression force sensor designed for precision weighing and industrial applications. With a rated load range of 0–2000kg, it provides a stable 1.0–2.0mV/V output sensitivity, making it highly suitable for presses, material testing, robotics, and automated equipment.

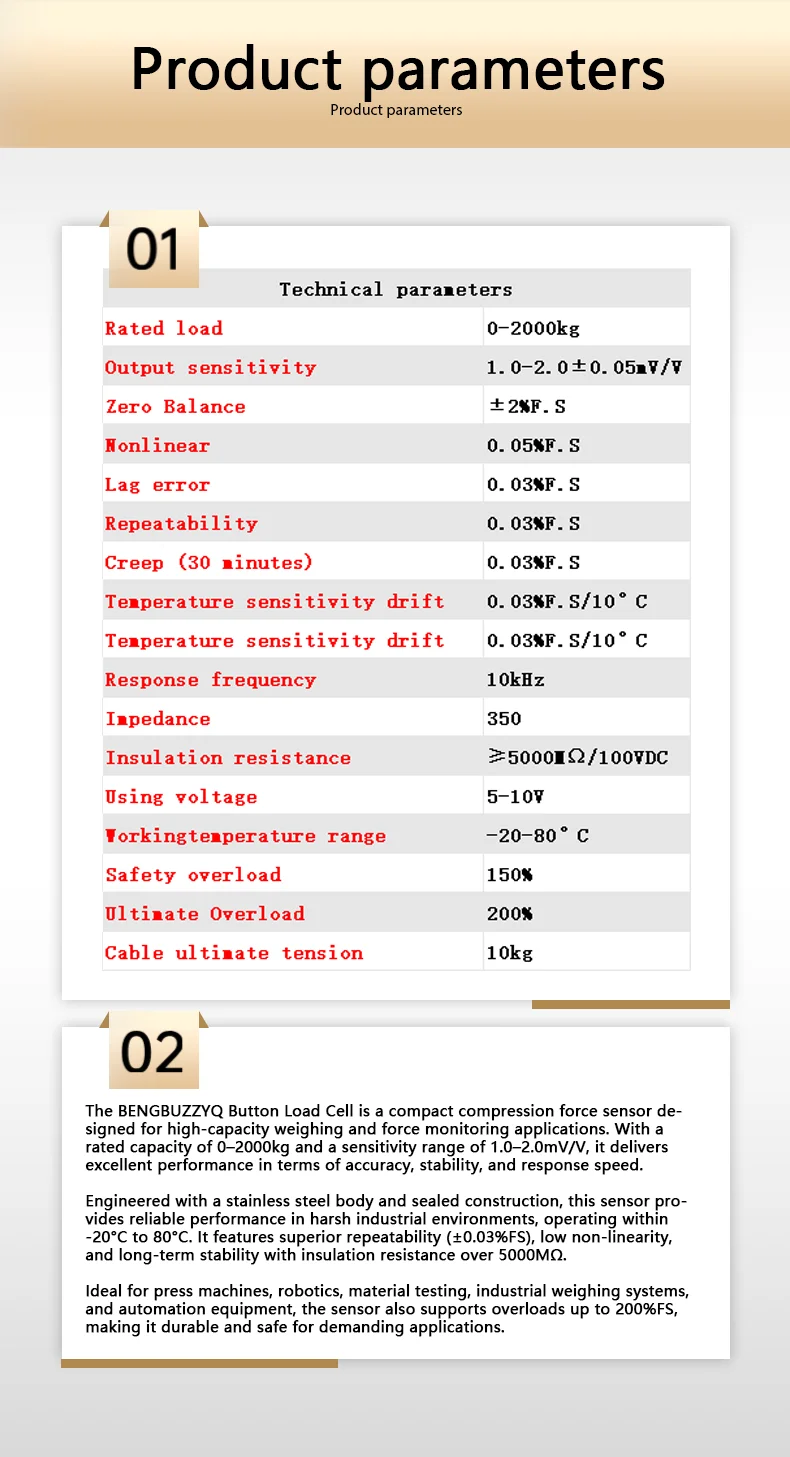

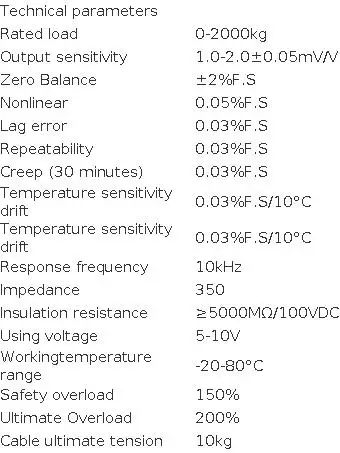

Engineered with a stainless steel body and sealed construction, the sensor delivers reliable performance even in demanding conditions. It features excellent linearity (±0.05%FS), low lag and creep (±0.03%FS), and wide operating temperature (-20°C to 80°C).

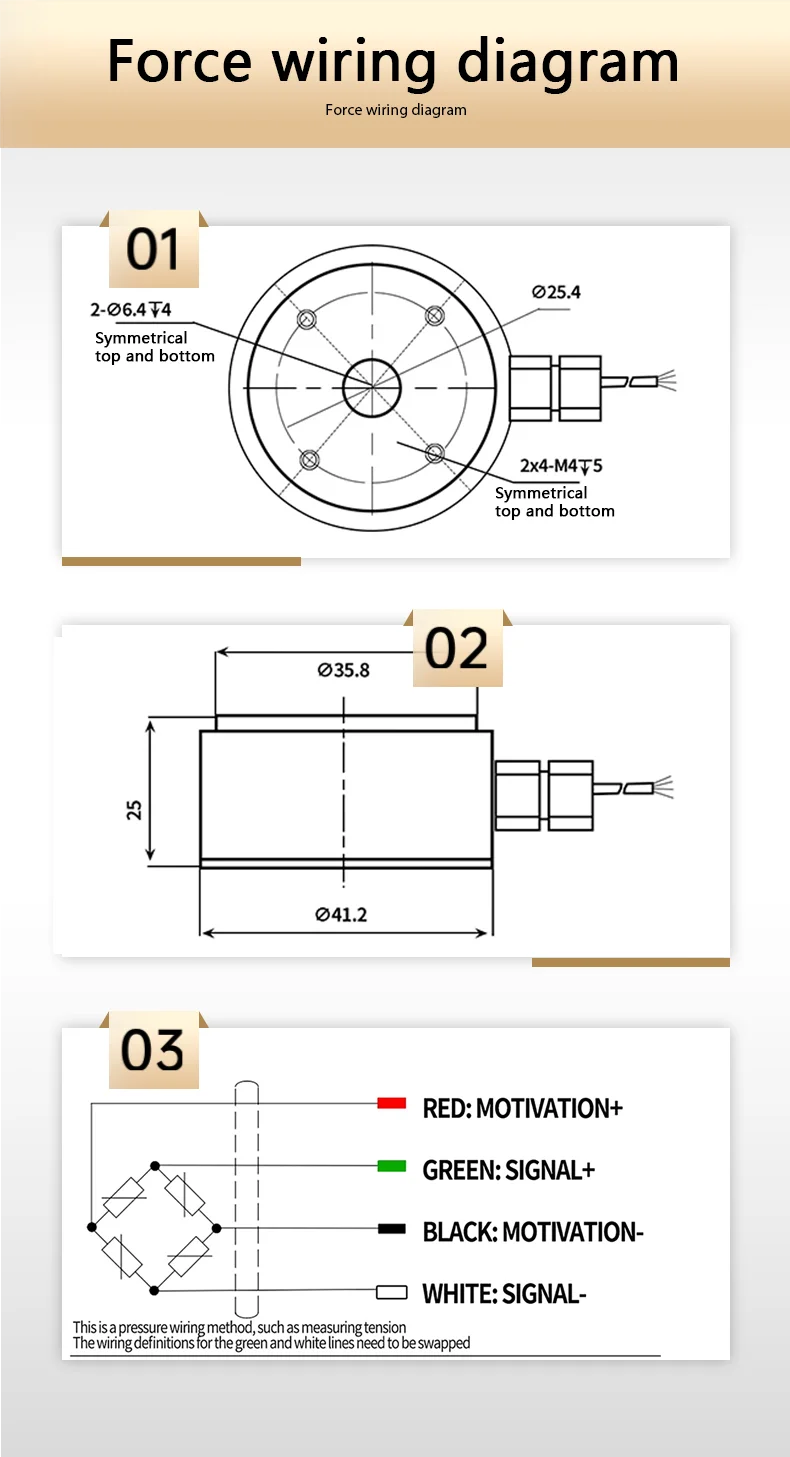

The sensor offers fast 10kHz response frequency for dynamic measurements and is equipped with overload protection (safe 150%, ultimate 200%), ensuring long service life and safety. With strong insulation resistance (≥5000MΩ/100VDC) and compact design (Ø41.2 × 25 mm), it can be easily integrated into various industrial weighing systems.
