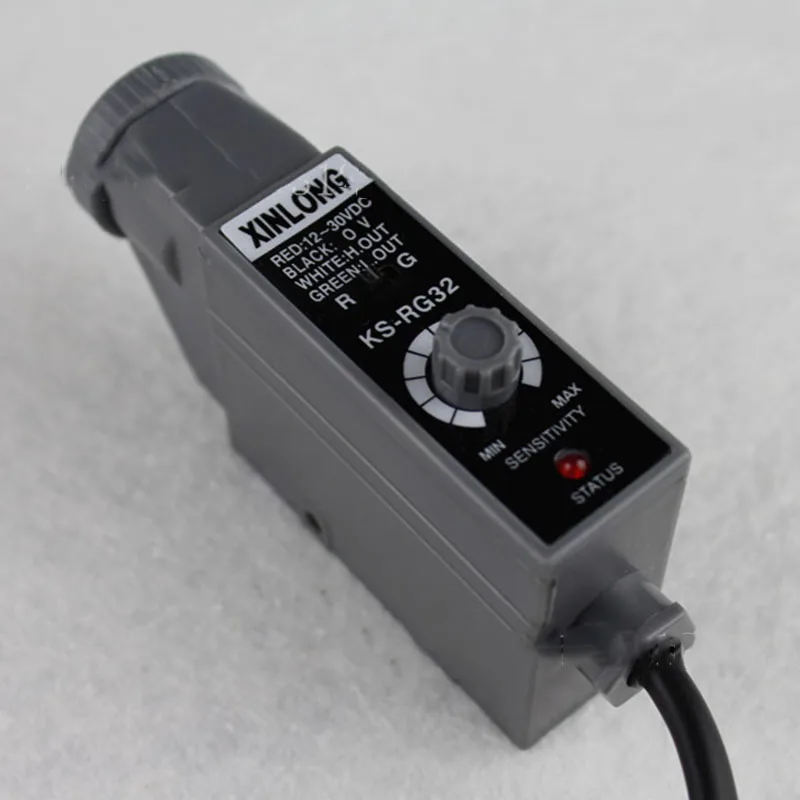

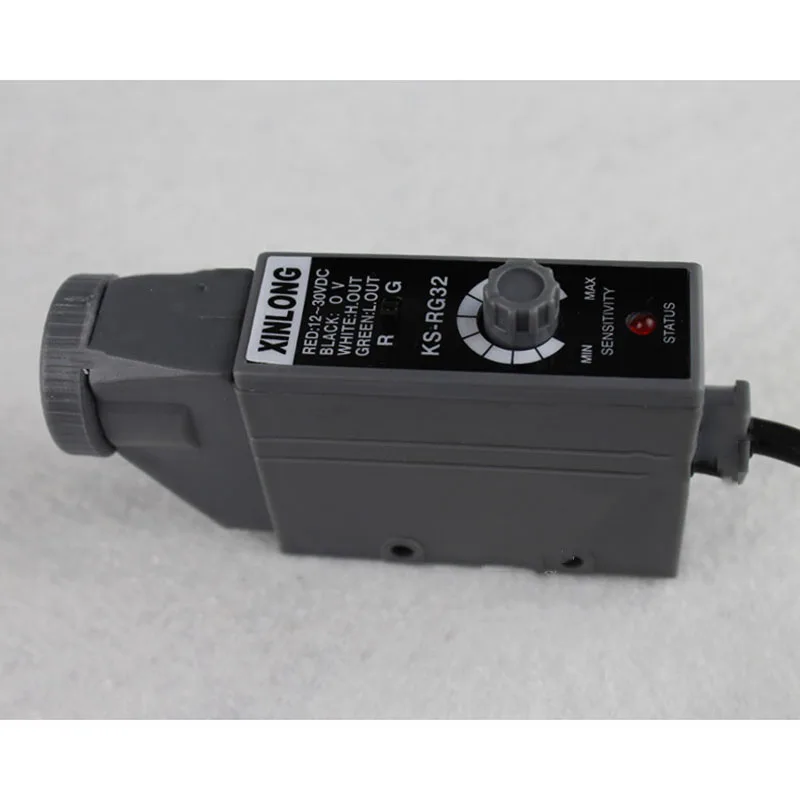

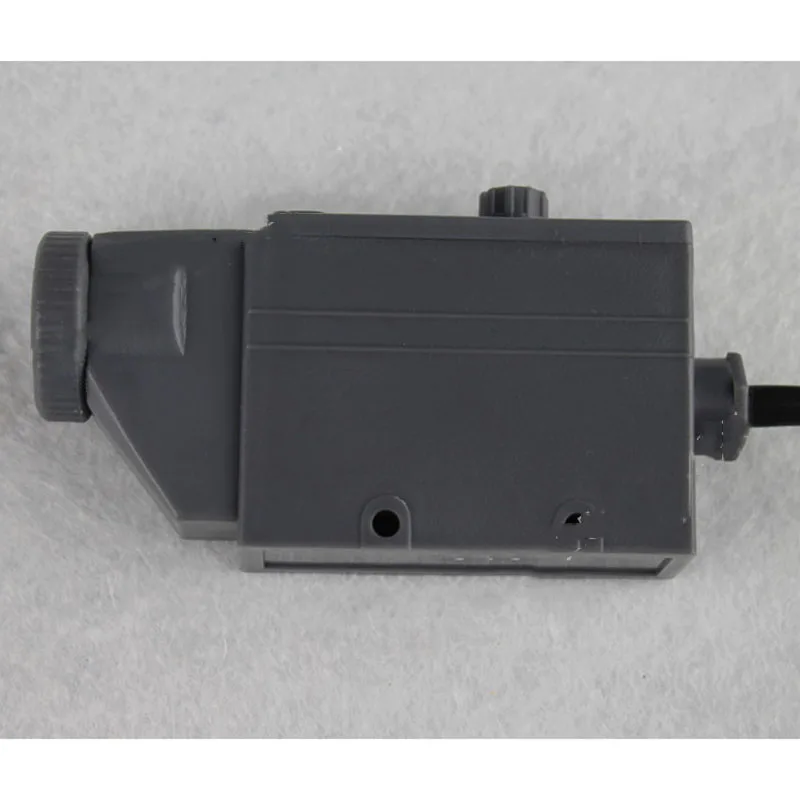

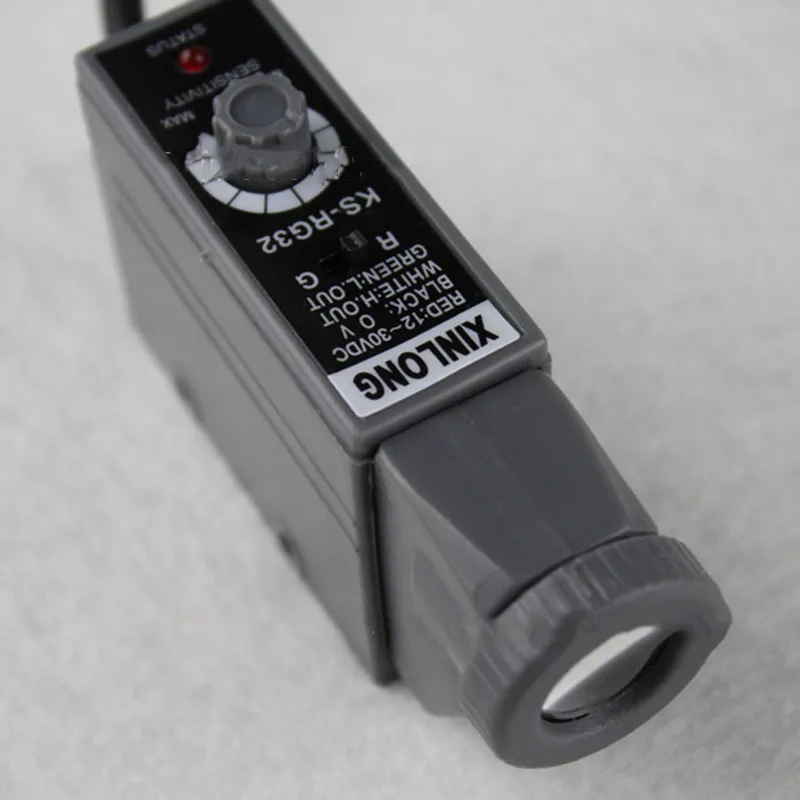

1PC Color sensor Color standard photoelectric Sensor KS-RG32/KS-WG32/KS-W32/KS-G32 optical color sensor replace KS-C2W

Welcome to Winwin ,

We offer PCB,PCB assembly,all kinds of components(LRC and all the parts you need ),

SMT Stencil , Modules,electronic Cables,customzied Sensors .Aluminum heatsink etc

good quality,reasonable prices and stylish designs according to your need ,

We will always make our effort to satisfy with you , looking forward to your contact .

more quanity please contact me to get the special discount !

wish you have a nice shopping .

Detection method: coaxial reflection type

Detection distance: 12mm±3mm

Supply voltage: DC10-30V±10%

Ripple : ≤10%

Current consumption: below 45mA

Source Chromatography: Red, Green, Blue, White

Light point: round, long strip optional

Detection angle: The light is directly perpendicular to the surface of the measured object. ±15

Response time: 0.1-1ms

Output mode: Both light and dark

Output indication: red LED

Output voltage: High level Vs-(≤1.5) Low level ≤1.2V

On-load current: 100mA

Analog output: 0-10mA

Circuit protection device: Vs voltage has reverse polarity protection and output has short circuit protection. At the same time, it has any wrong connection protection.

Sensitivity: Single turn adjustable

Anti-ambient light: incandescent lamp 3000Lx sunlight 10000Lx

Protection level: IP67 (moisture proof and dustproof)

Ambient temperature: Operation -15 ° C -65 ° C Storage -25 ° C -80 ° C

Housing material: metal

Lead wire: diameter 0.6 four core shielded cable standard

Steps：

Fix the photoelectric switch to make the detection distance meet the requirements.According to the packaging paper you use, refer to the following light source selection guide table, determine the switch light source (take green as an example) and then according to your mechanical needs to determine the output mode of light or dark movement.Finally, the sensitivity is adjusted according to the following three steps (the following is the output bright motion mode, the packaging mark is light color, and the back shadow is dark color as an example).

(1) move the wrapping paper so that the spot of light falls in the shadow area after the mark, rotate the sensitivity backward to the bottom, and then slowly rotate clockwise until the indicator light turns on.Remember where the potentiometer is (point A).

(2) move the wrapping paper so that the spot of light falls in the center of the mark. The indicator light will be on at this time. Then, slowly rotate counterclockwise to adjust the twist until the indicator light is off.

(3) after the above two steps of operation are completed correctly, the potentiometer can be set at the middle C position between A and B, and the adjustment is completed.The greater the distance between A and B, the greater the color difference and the more stable the detection.But A, B two points should be at least one grid distance, otherwise the detection will be unstable.

Matters needing attention ：

1. Be sure to check whether the power supply used conforms to dc12-24v plus or minus 10% before power on, and the maximum is no more than 40V, otherwise it may damage the photoelectric switch.

2, in order to ensure high stability detection, to ensure that two points: one is the detection distance in accordance with the specified rated spacing, such as the spacing of 12 + 2mm, in the installation must make the spacing of 12mm, so that the switch can have up and down 4mm vibration stability zone, and when the spacing of 10mm, its up and down vibration zone is greatly reduced.;The other is to adjust the sensitivity strictly according to the operation steps.And every time the packaging material is changed, it should be readjusted.

3, installation should prevent direct light into the optical lens or take appropriate shading measures.

4. The temperature, humidity, vibration, impact and other corrosive gases in the working environment may affect the work of the photoelectric switch. Please try your best to eliminate these influences.

5. Pay attention to the cleaning of the optical lens at ordinary times, and try to avoid the lens standing up when installing to reduce dust.
