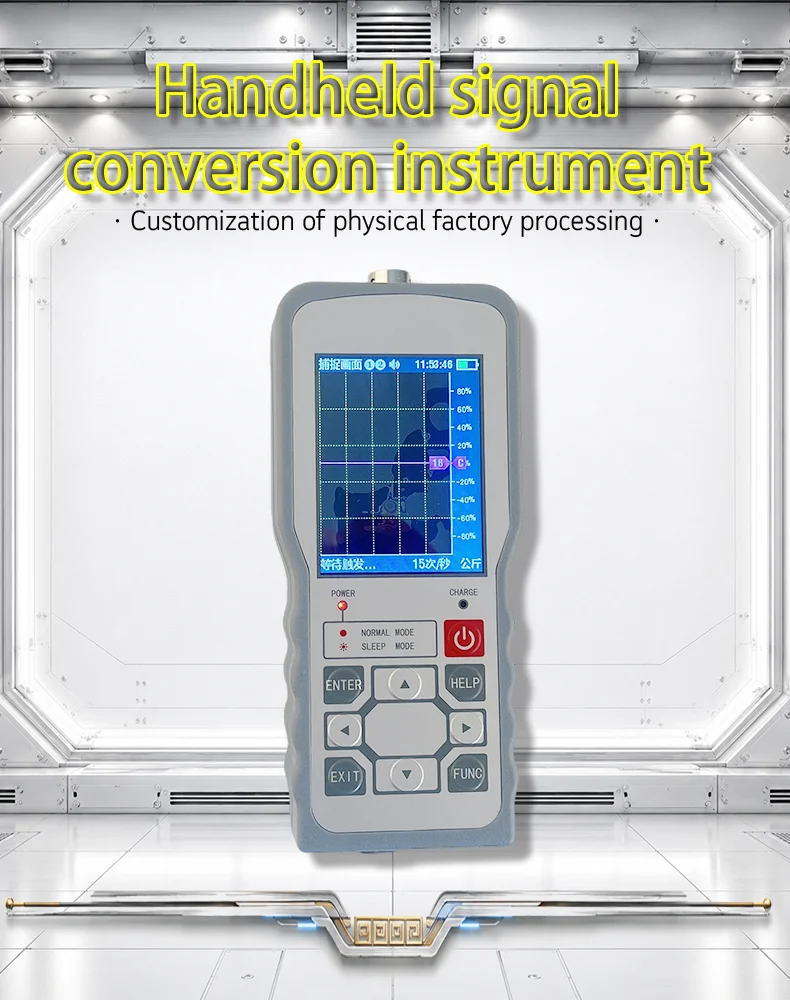

High Precision Handheld Dynamometer 1/100000 Accuracy Strain Gauge Load Cell Meter Force Measurement Signal Converter

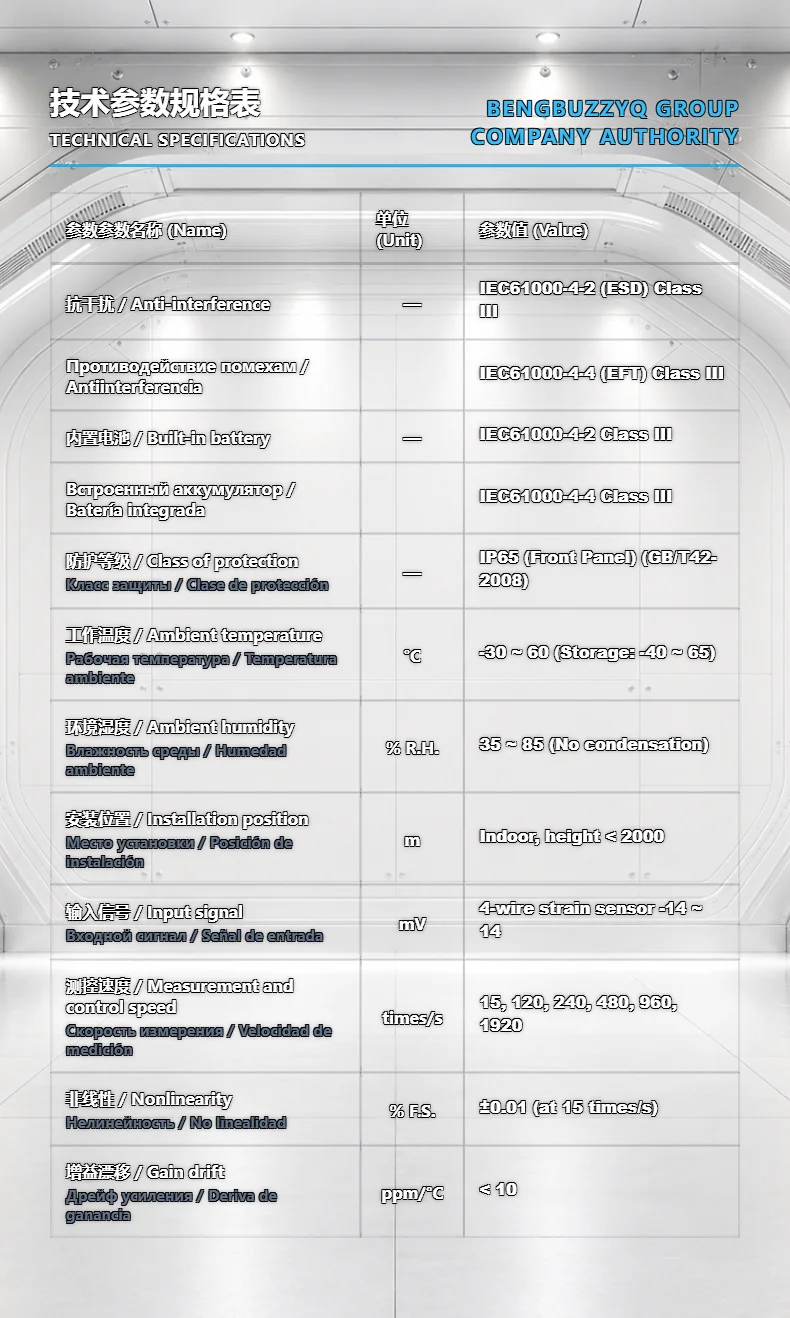

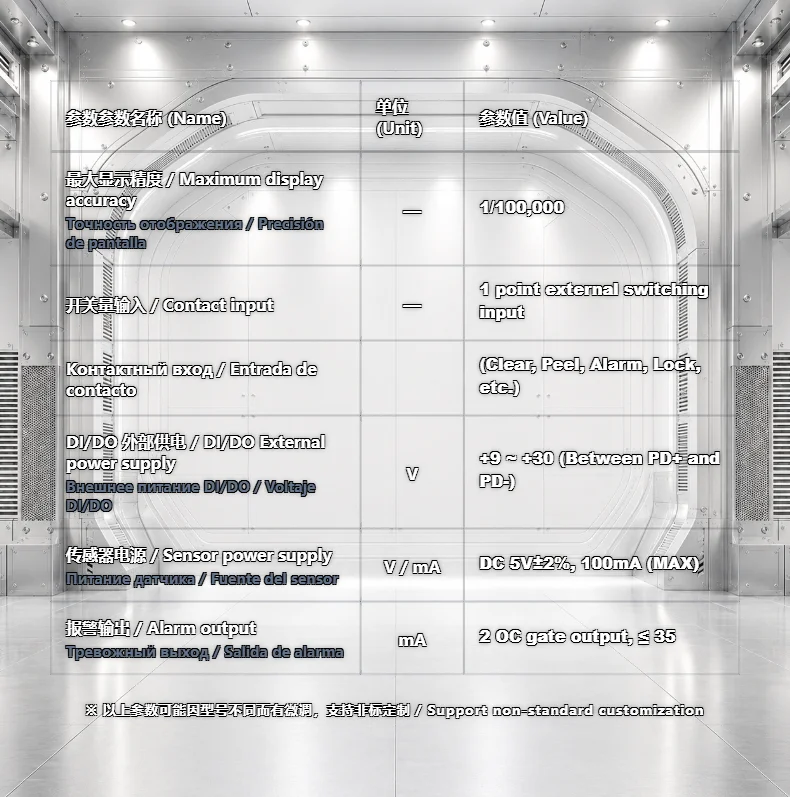

High Resolution – Up to 1/100,000 display accuracy for precise force/weight measurement

Fast Sampling – Selectable 15 / 120 / 240 / 480 / 960 / 1920 samples per second

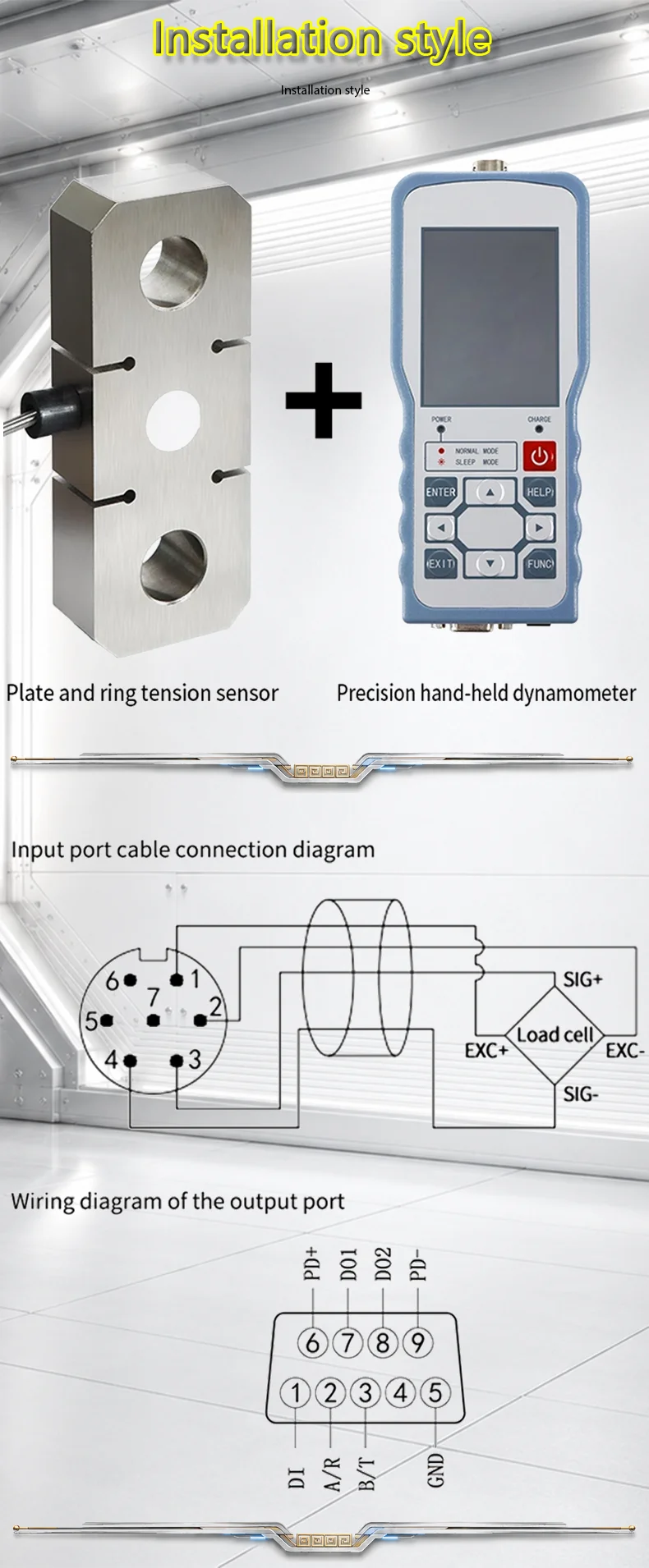

4‑Wire Strain Input – Compatible with ±14 mV strain‑gauge load cells, typical 350 Ω bridge

Stable & Accurate – ±0.01%FS nonlinearity (at 15 SPS), <10 ppm/°C gain drift

Industrial Protection – IP65 front panel, IEC61000‑4‑2/‑4/‑5 EMC immunity, Class III

I/O & Alarms – 1x DI, 2x OC outputs ≤35 mA for alarms or external control

Sensor Excitation – 5 V ±2%, 100 mA output for powering load cells

Wide Power Options – External +9~+30 V supply, works in ‑30~60°C environments

PC Data (Optional) – Supports computer readout via separately sold USB/RS232 adapter

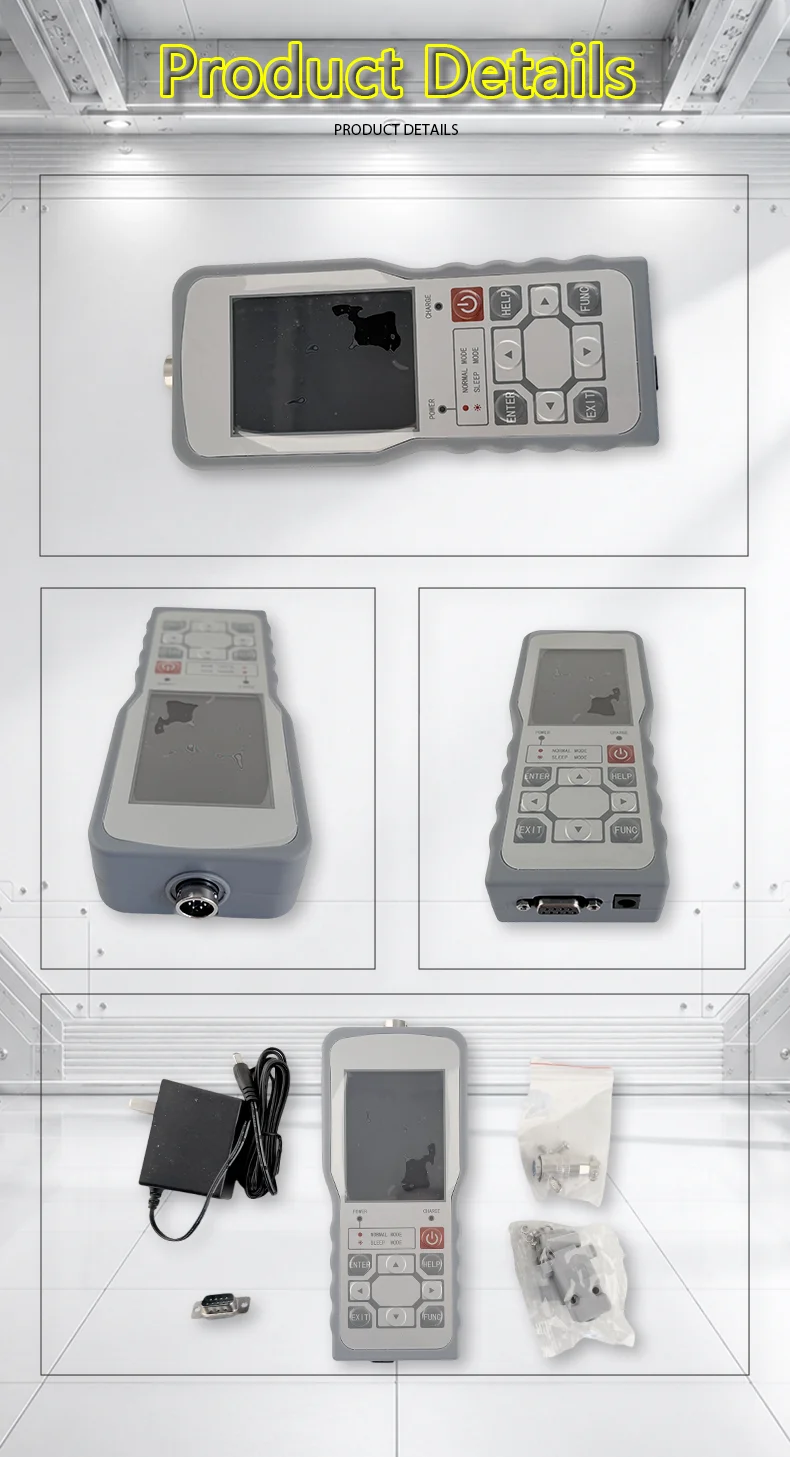

Portable Use – Handheld with sleep/normal modes; ideal for lab, QA, packaging, on‑site testing
