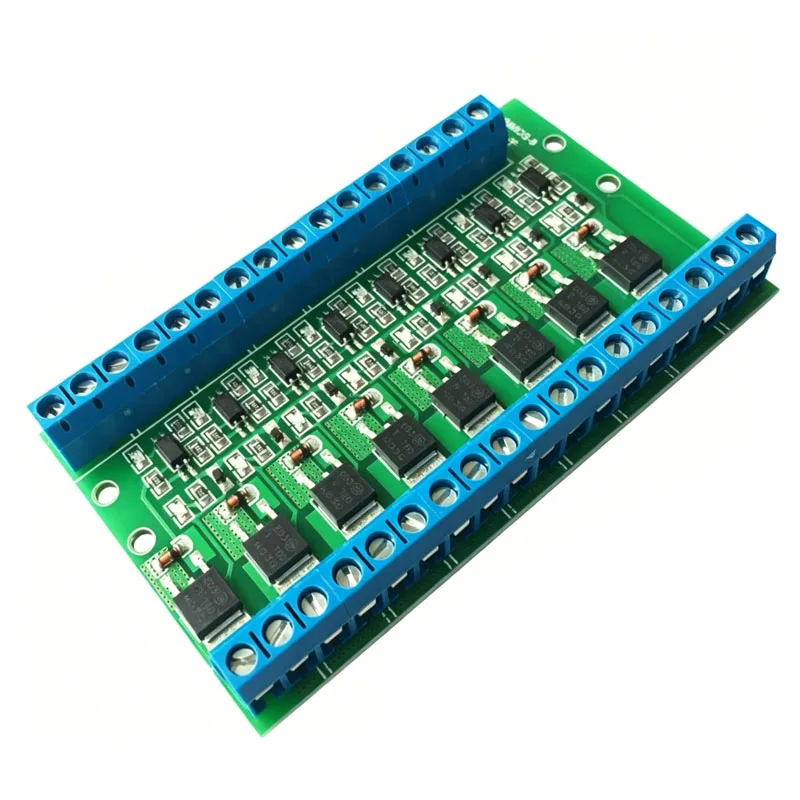

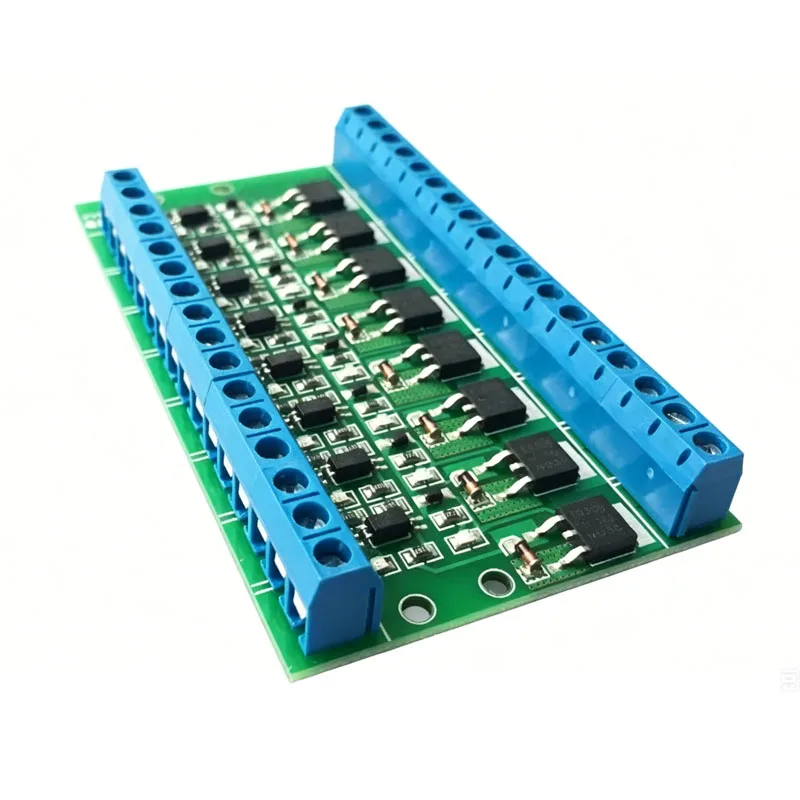

8-Channel Opto-Isolated MOSFET Driver Module DC 3.7-27V 10A Per Channel, PWM 3-20V Input, 0-20kHz, for PLC Signal Amplification

Product Description:

8-Channel Opto-Isolated MOSFET Driver Module DC 3.7-27V 10A Per Channel, PWM 3-20V Input, 0-20kHz, for PLC Signal Amplification

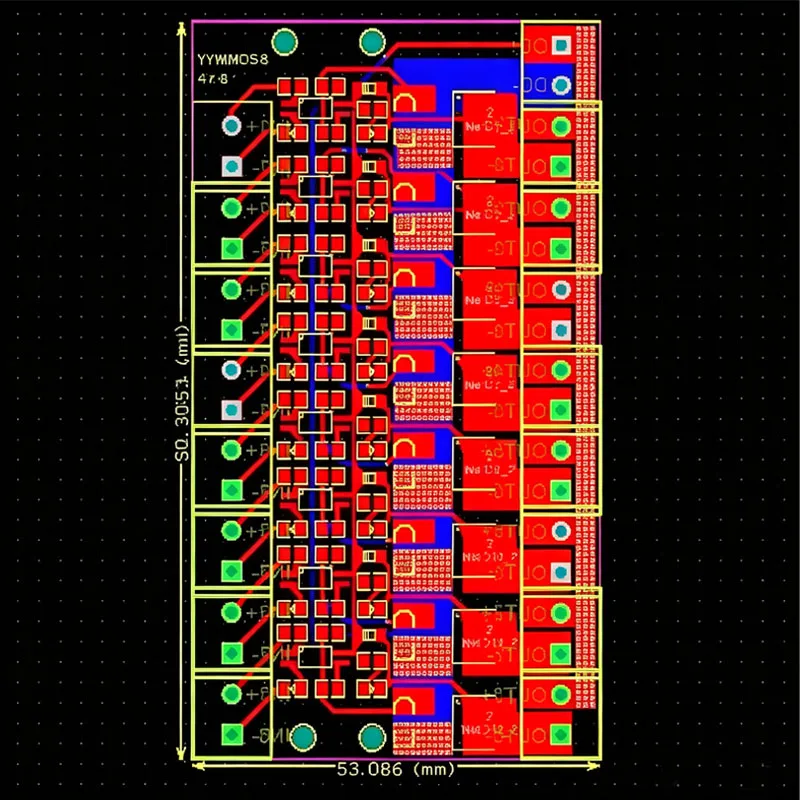

Product Model: YYNMOS-8

High-Performance Opto-Isolated PWM Control Module

Features:

High-quality ultra‑compact optocoupler – Strong anti‑interference, stable performance, and complete isolation between input signal and output.

Input signal: 3–20V PWM signal

Output capability: DC 3.7–27V, up to 10A per channel

PWM frequency range: 0–20 kHz

Visual indicators: Dedicated LEDs for input signal and output status

Typical applications: Control high‑power devices such as motors, lights, LED strips, DC motors, micro water pumps, solenoid valves, etc. PWM input allows smooth motor speed regulation and LED brightness control.

Terminal Description:

DC+ – Positive terminal of the device power supply (input)

DC- – Negative terminal of the device power supply (input)

PWM – Signal input (connect to MCU I/O, PLC interface, DC power supply, etc.)

GND – Signal ground (negative side of control signal)

OUT+ – Output positive terminal (connect to device positive)

OUT- – Output negative terminal (connect to device negative)

Note: The module isolates the input control signal from the output power stage, protecting your microcontroller or PLC from voltage spikes or load interference.
