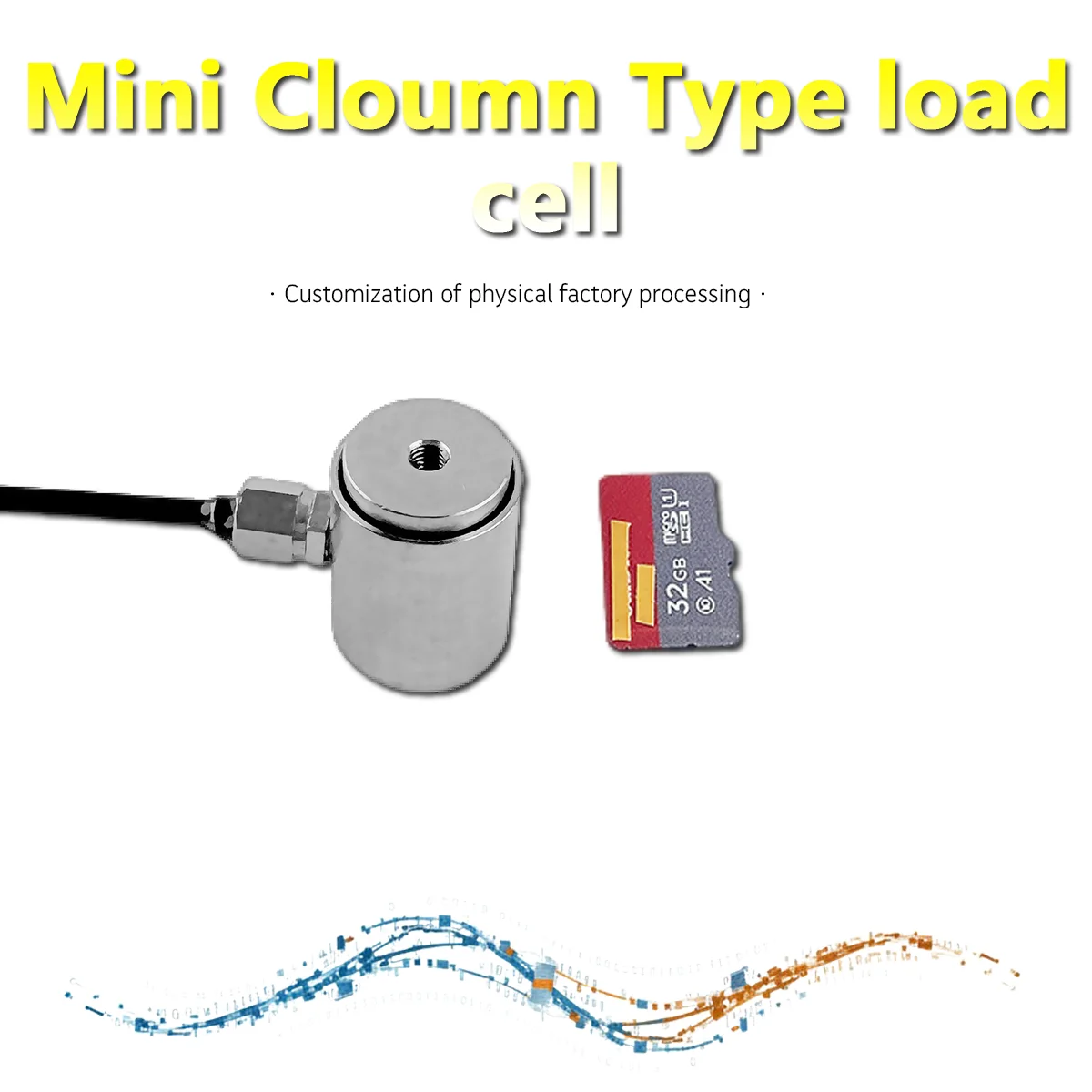

Micro Column Load Cell 0-50kg 2.0mV/V Output Stainless Steel Pressure Sensor Anti-corrosion 10kHz FastResponse OEM Customizable

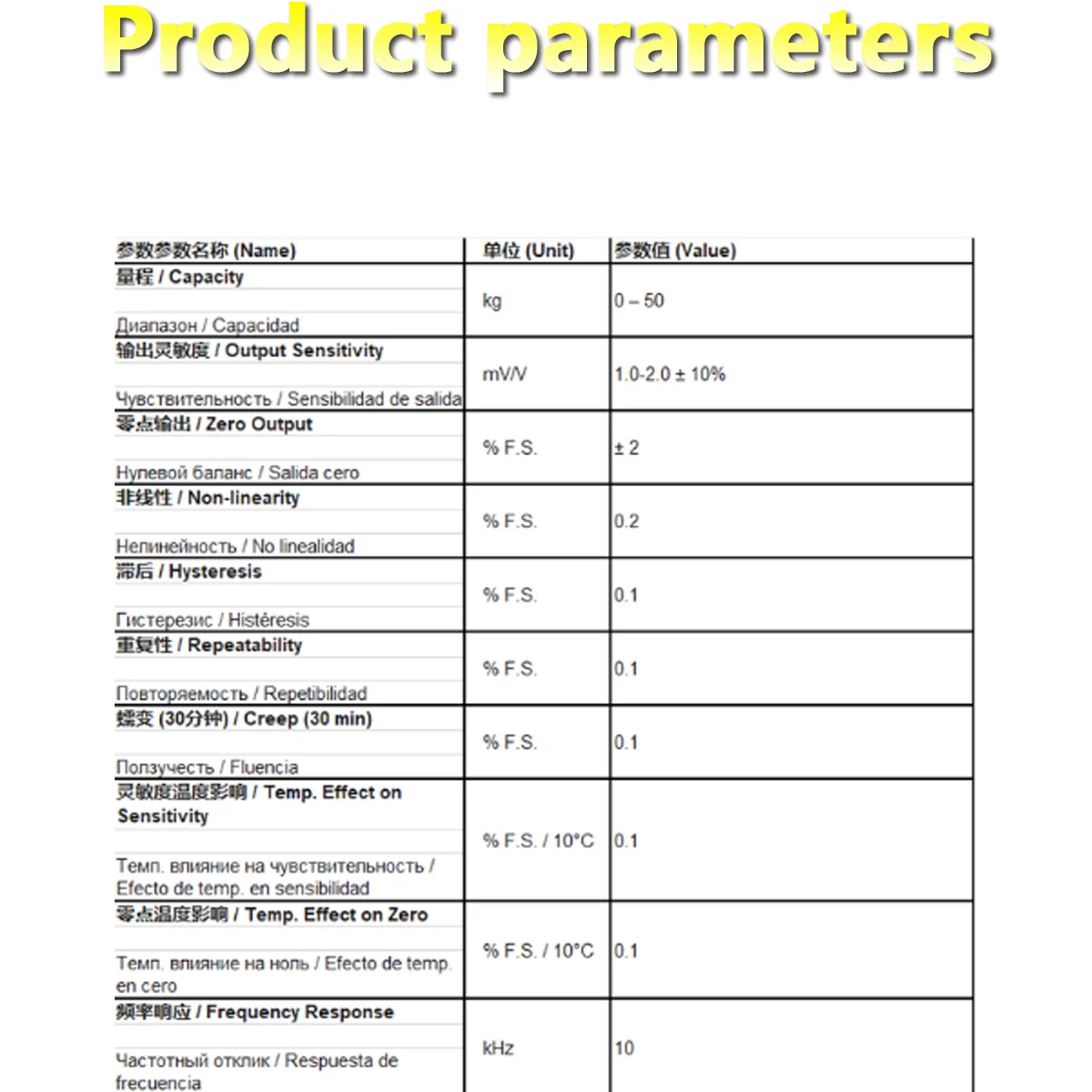

Item
Specification
Capacity
0–50 kg
Output Sensitivity
2.0 ± 10% mV/V
Zero Output
±2% F.S.
Non-linearity
0.2% F.S.
Hysteresis
0.1% F.S.
Repeatability
0.1% F.S.
Creep (30 min)
0.1% F.S.
Temperature Effect on Sensitivity
0.1% F.S. / 10°C
Temperature Effect on Zero
0.1% F.S. / 10°C
Frequency Response
10 kHz

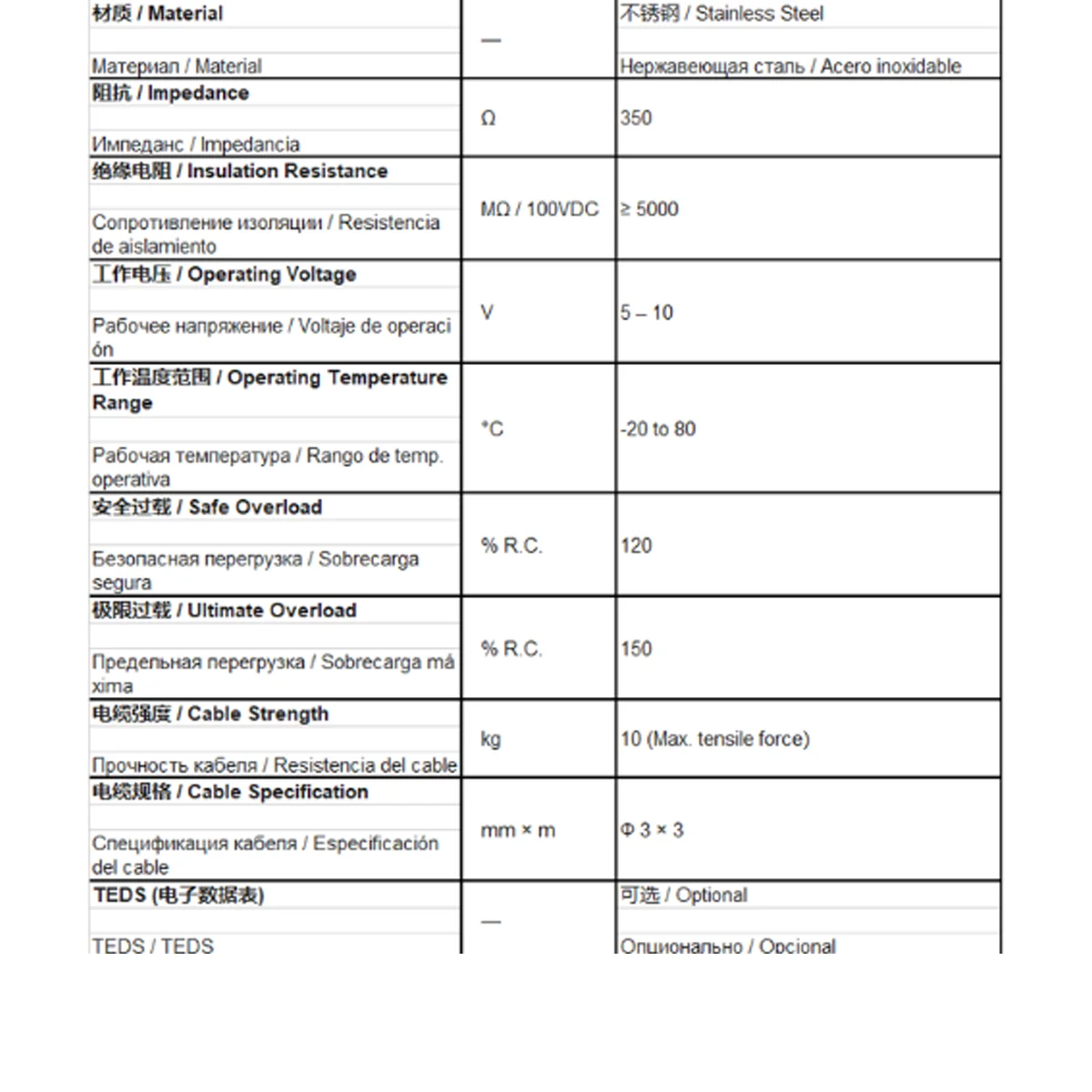

Material
Stainless Steel
Impedance
350 Ω
Insulation Resistance
≥5000 MΩ / 100VDC
Operating Voltage
5–10 V
Operating Temperature Range
-20°C to 80°C
Safe Overload
120% R.C.
Ultimate Overload
150% R.C.
Cable Strength
10 kg (maximum tensile force)
Cable Specification
φ3 mm × 3 m
TEDS
Optional
This miniature column-type load cell is made of high-strength stainless steel with a compact and durable structure. Designed for 0–50kg compression measurement, it features a high-accuracy strain gauge with a sensitivity of 2.0mV/V and a fast 10kHz response frequency, ideal for dynamic and high-speed industrial applications. The sensor provides excellent temperature stability, low hysteresis, low nonlinearity, and strong insulation performance, operating reliably from -20°C to 80°C. Equipped with a Φ3*3m reinforced cable (10kg pull resistance), optional TEDS, and suitable for automation, industrial force control, jigs, robotics, and measurement systems.
