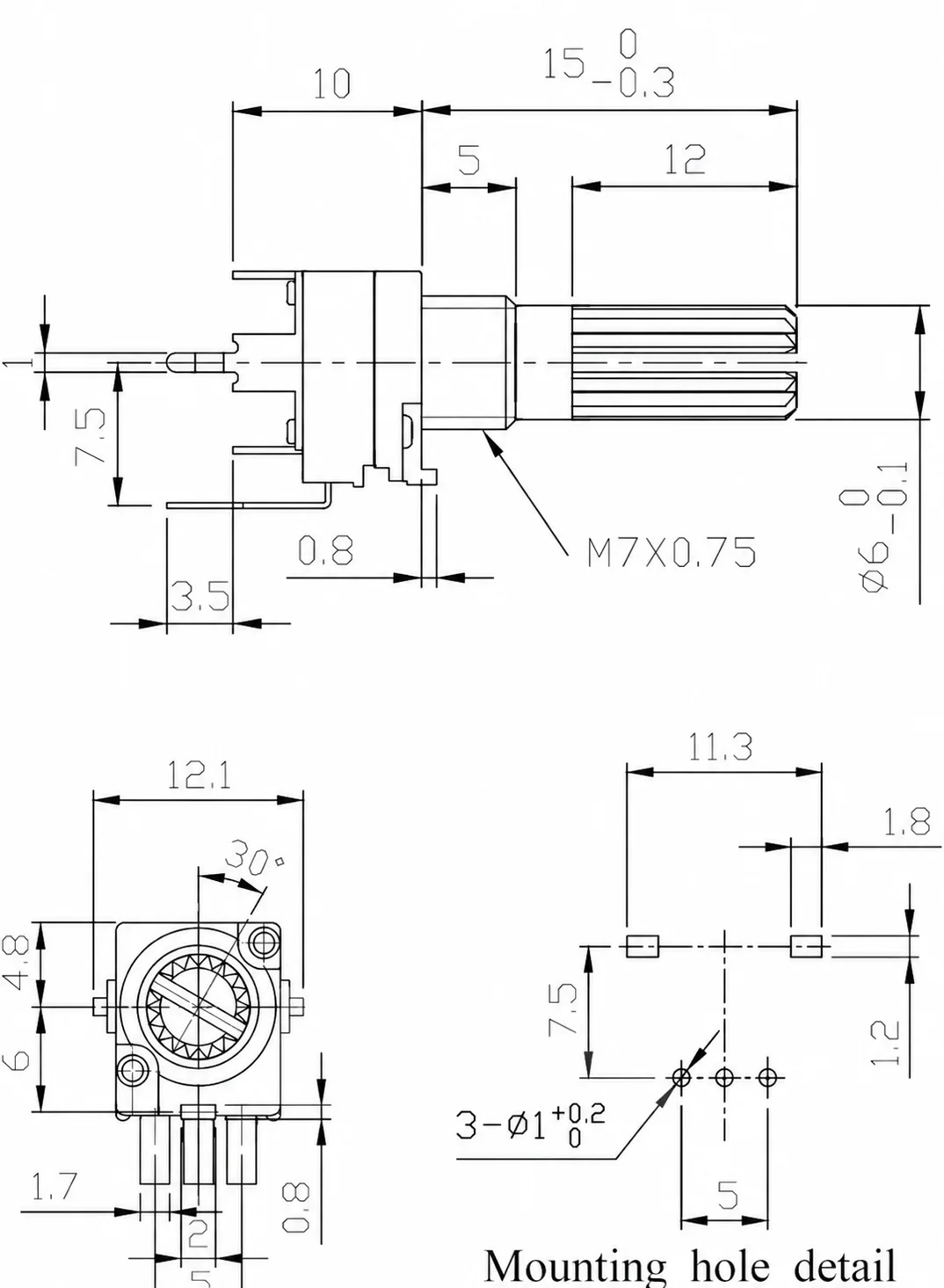

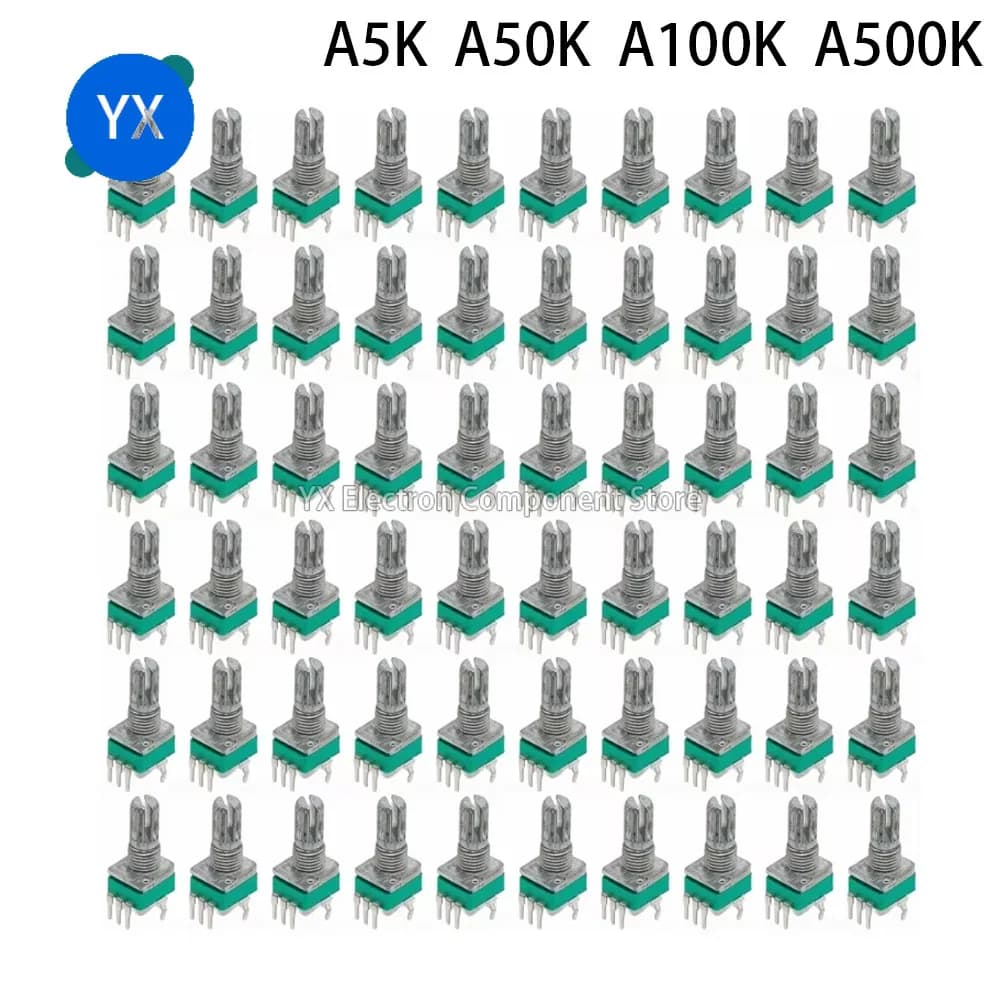

100PCS RK097 15mm Shaft Precision Logarithmic (Audio Taper) Potentiometer Vertical Single Turn D-Axis A5K A50K A100K A500K

Technical Specifications

Model: RK097
Resistance Values: A10K / A50K / A100K / A500K
Shaft Length: 15 mm
Pin Count: 5 pins
Mounting Style: Vertical bent pins with bracket
Rotation Angle: 300° ± 10°
Rotational Torque: 10–200 gf·cm
Rotational Stop Strength: 3 Kgf·cm
Axial Push-Pull Strength: ≤ 8 Kgf
Shaft Wobble: ≤ 0.6 × (L/20) mm p-p
Tolerance: ± 20%
Residual Resistance:
R ≤ 10 KΩ: 10 Ω
10 KΩ < R < 250 KΩ: 20 Ω
R ≥ 250 KΩ: ≤ 0.1% of total resistance
Rated Power: A-taper (logarithmic): 0.025 W
Maximum Operating Voltage: A-taper: 25 V AC
Wiper Noise: < 100 mV
Insulation Resistance: ≥ 100 MΩ at 250 V DC
Dielectric Withstanding Voltage: 300 V AC for 1 min

Packaging Contents

Potentiometers: 100 pcs
Washers: 100 pcs
Nuts: 100 pcs

Applications

Professional audio amplifiers
Home audio systems
Electronic test instrument panels
Lighting dimmers
Precision control circuits
