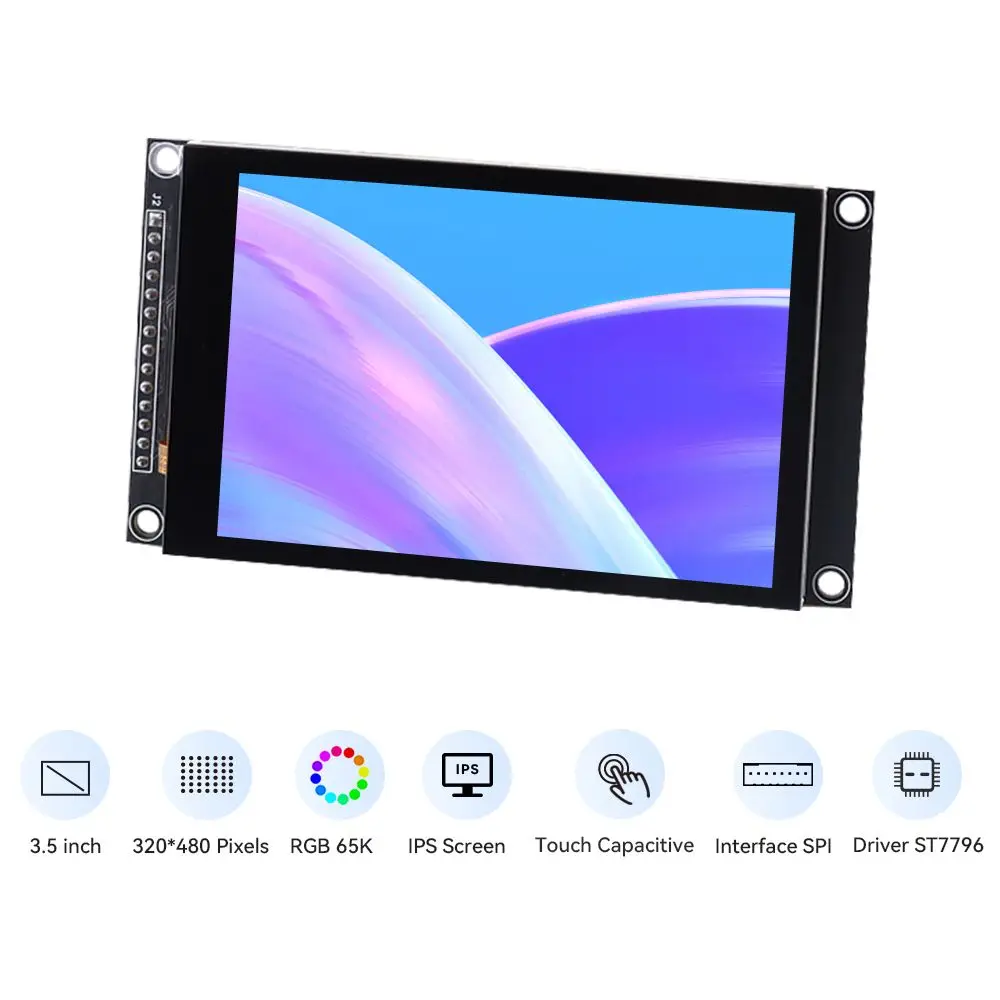

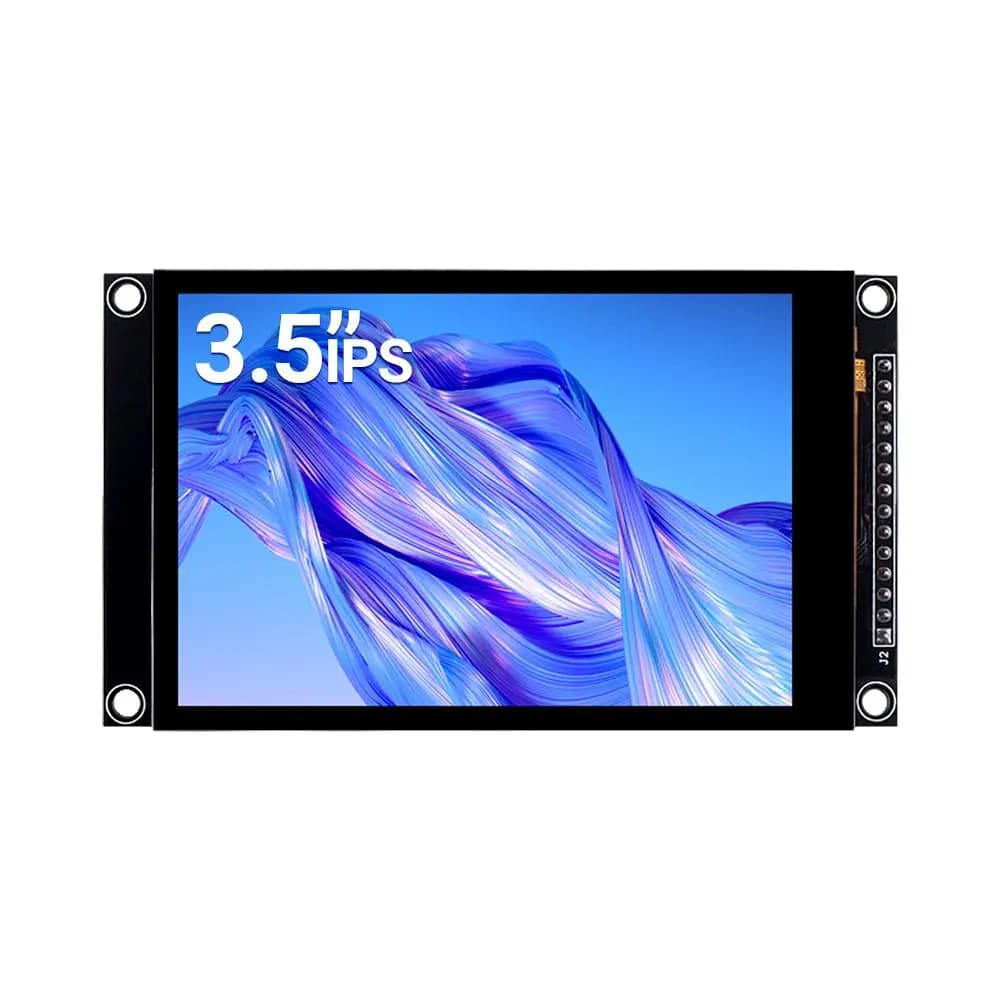

Elecrow 3.5 inch SPI Module IPS TFT Capacitive Touch Screen 320x480 Driver ST7796 for Consumer Electronics Industrial Fields

This 3.5-inch IPS SPI module, equipped with ST7796 driver chip, presents you with 320x480 resolution and 16.7M colordelicate display, whether it is images or text, it can be presented in rich and delicate colors. The IPS panel ensures that you can enjoy a clear and color-free visual experience from any angle. Capacitive touch technology makes interactive operation easy. Onboard level conversion circuit, compatible with 5V and 3.3V MCU. 4-wire SPI serial bus design effectively saves I/O pin resources and simplifies hardware design. The input interface provides two options of 2.54 pin header and FPC extension interface to meet the connection requirements in different scenarios. It comes with a micro TF card slot, and it can provide great convenience for your data storage needs.

We not only provide underlying driver technology support, but also a wealth of example learning programs, covering various mainstream development platforms such as ESP32, STM32, etc. Whether you are a beginner or an experienced developer, you can quickly get started and make your development process smooth. Whether you are engaged in intelligent hardware development or industrial automation applications, this module can provide you with a stable, efficient and convenient display solution, and is an ideal choice for your project development.

Feature

3.5-inch color screen, 320x480 resolution, 65K colors, rich display colors

Capacitive touch, sensitive response

IPS full-view panel, good viewing angle

Onboard level conversion circuit, compatible with 5V and 3.3V MCU

4-wire SPI serial bus, saving I/O pins

Module input supports 2.54 pin header interface and FPC extension interface

On board micro TF card slot, can expand more storage space

Provide underlying driver technology support, easy to get started

Provide rich example learning programs (ESP32/STM32)

Application Scenario

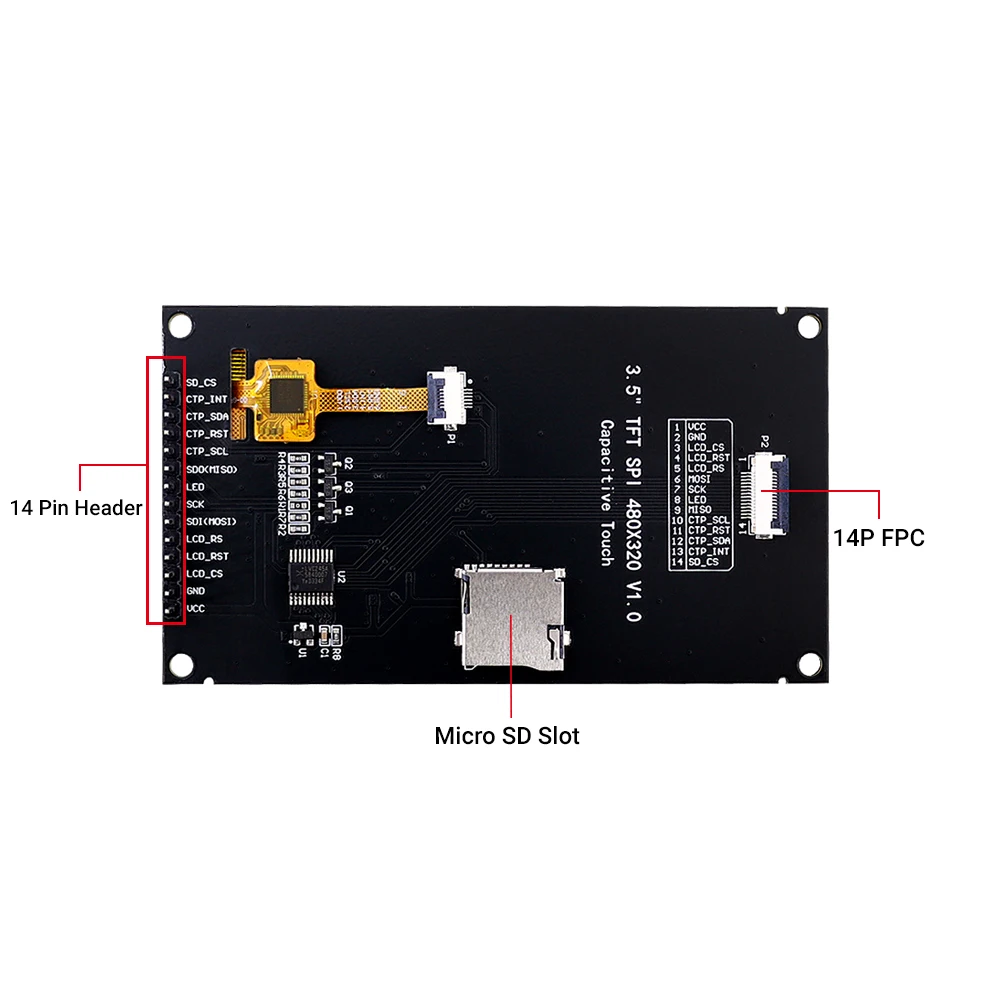

Hardware Overview

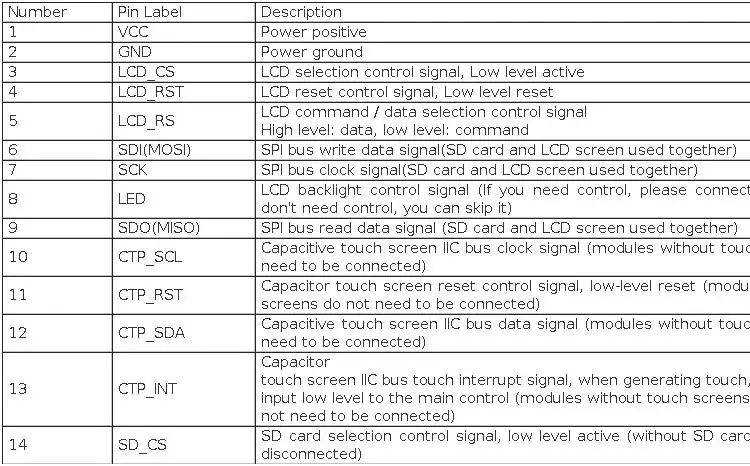

Pin Function Description

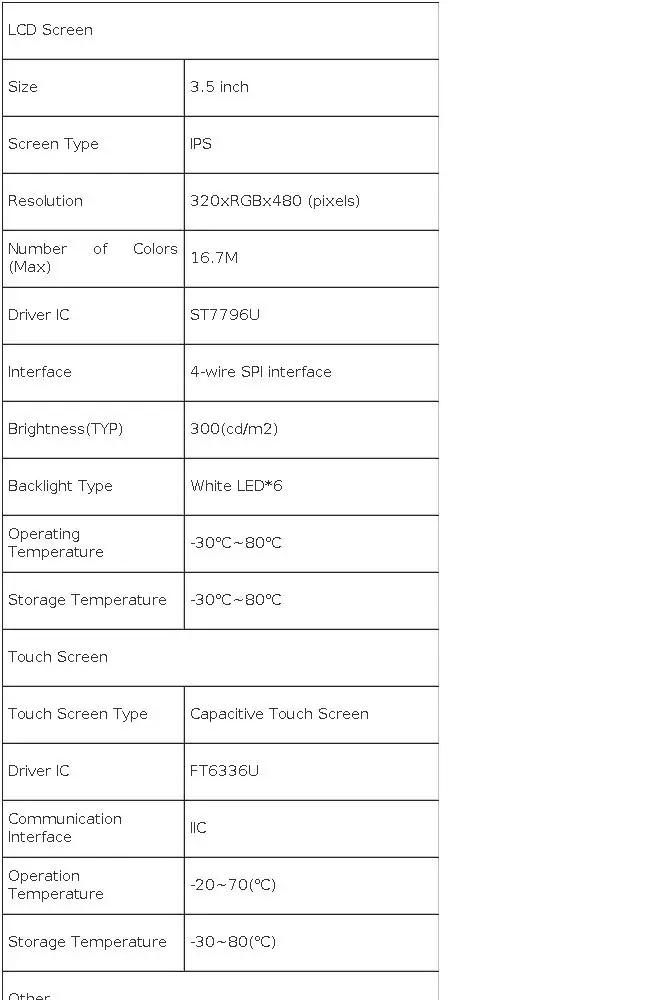

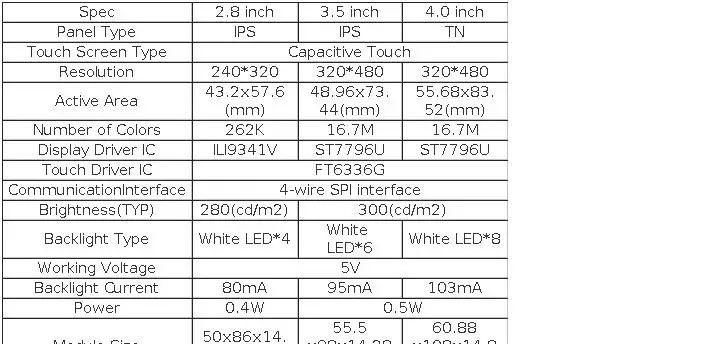

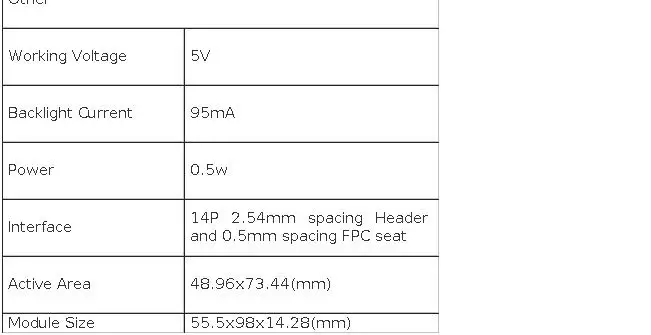

Specification

Package List

1x 3.5 inch SPI IPS Display

1x 30cm 14Pin FPC Cable
