FS3000-1015\1005Air Velocity Sensor Module Wind Speed Flow

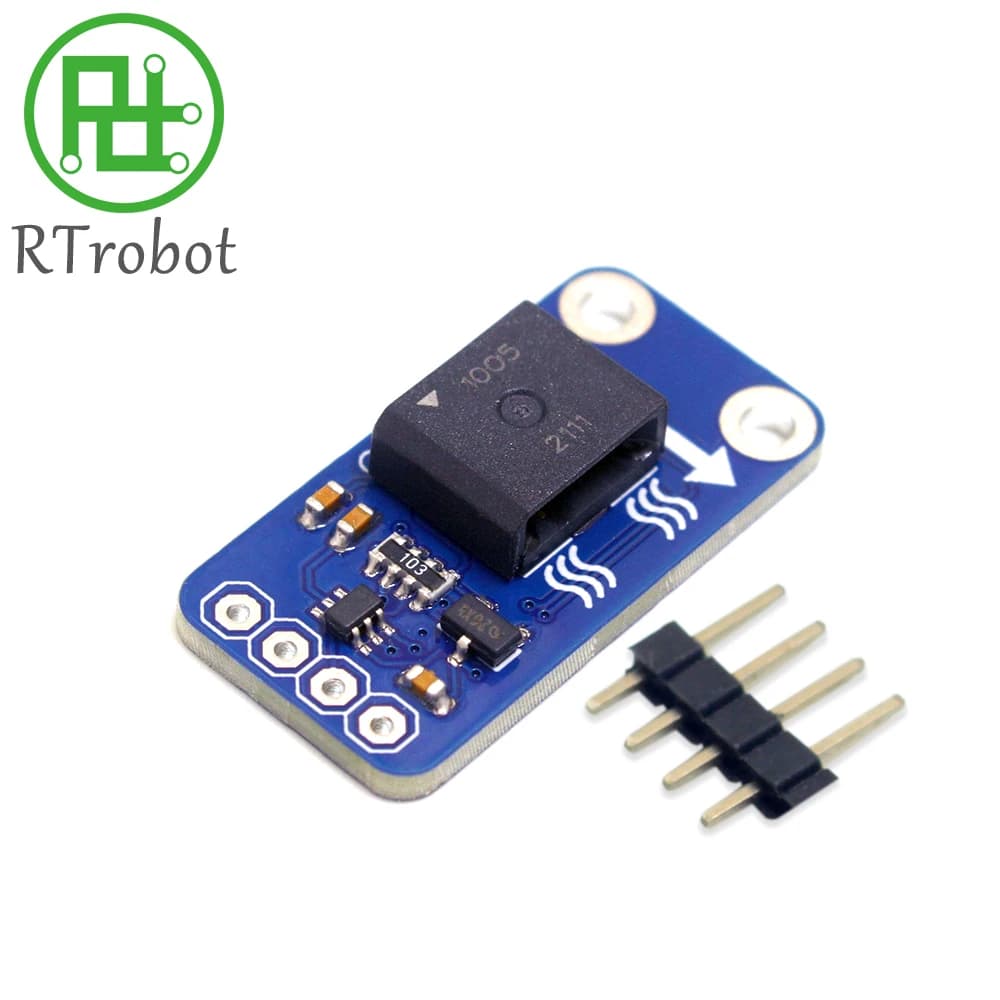

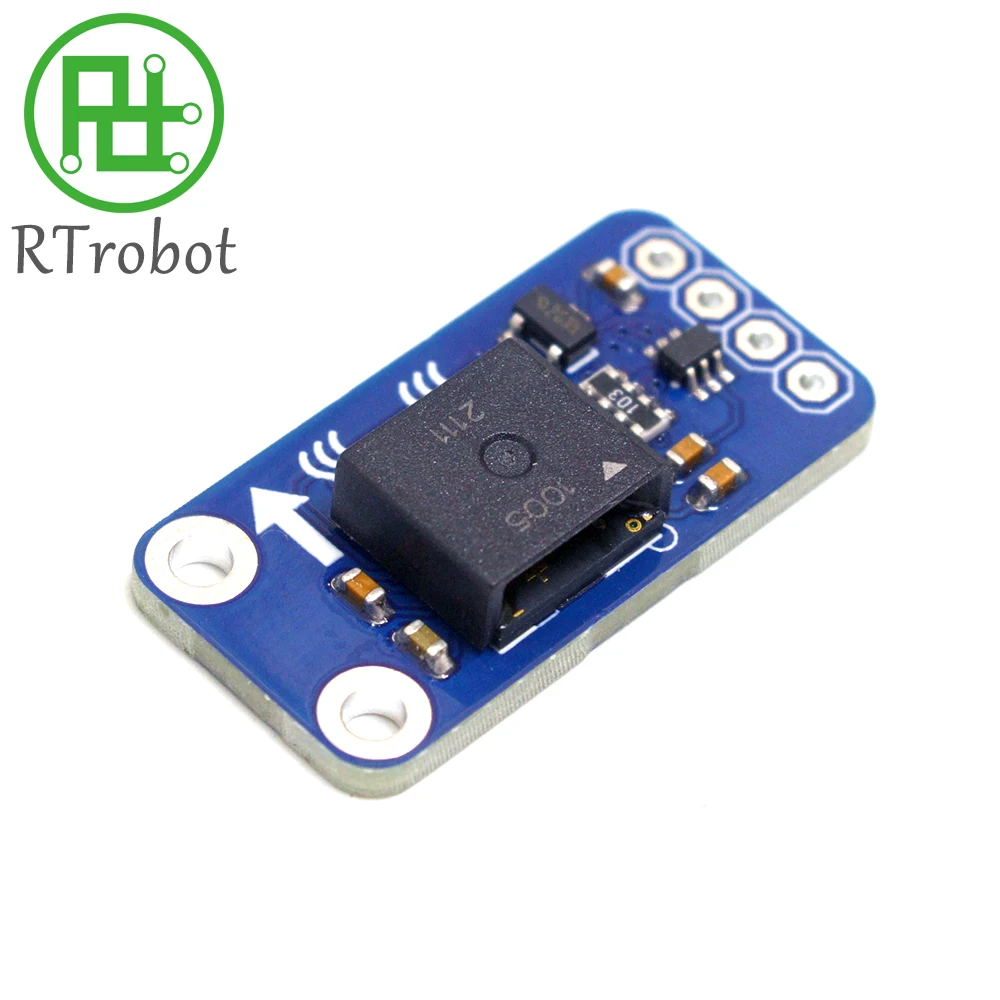

FS3000 Air Velocity Sensor Module

• FS3000 Air Velocity Sensor Module is a low-profile, surface-mount flow sensor designed to measure direct air speeds up to 15 meters per second. The FS3000 is targeted at air handling systems, HVAC, analytic gas monitoring systems, data centers, and air quality systems to detect failures in the fan or blower, fan speed control, or filter clogging.

• Conventional methods of monitoring critical component temperature are by arrays of temperature sensors or the internal temperature sensor in the MCU. These methods are inaccurate and complex as each system board needs to be individually modeled. The FS3000 measures the direct local air, which allows the system control to make adjustments quickly. By providing a closed-loop control, systems can potentially reduce the energy cost of the system.

• The FS3000 Air Velocity Module utilizes a series of MEMS thermocouples, or thermopiles, which provide high sensitivity. The solid thermal isolation of the MEMS sensing element along with the silicon-carbide film offers excellent abrasive wear resistance and long-term reliability.

Features

• Airflow

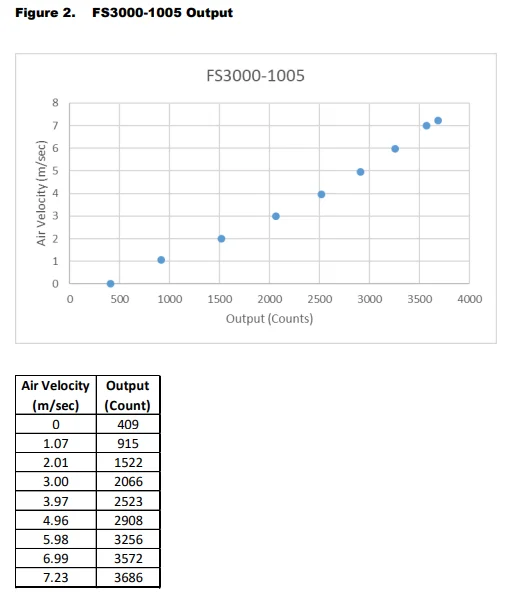

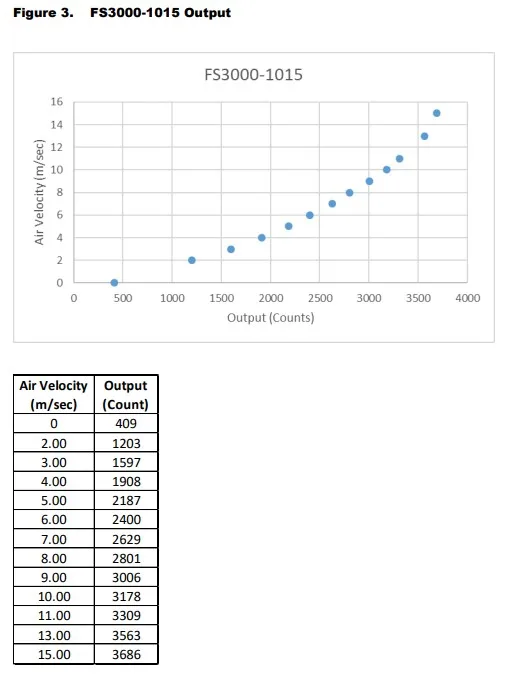

 FS3000-1005: 0m/sec to 7.23m/sec

 FS3000-1015: 0m/sec to 15m/sec

• MEMS Thermopile sensing

• Silicon-carbide coating over MEMS flow sensor

• Low 3.3V supply voltage

• Digital I2C output

• Fast response time

Applications

• Data centers and servers

• Air filtration and collection systems

• HVAC and air control systems

• Commercial air sampling

• Laminar flow control systems

• Weather stations

Interface

• SDA: I2C serial data

• SCL: I2C serial clock

• VCC: Positive power supply (3.3v)

• GND: Negative pole of power supply
