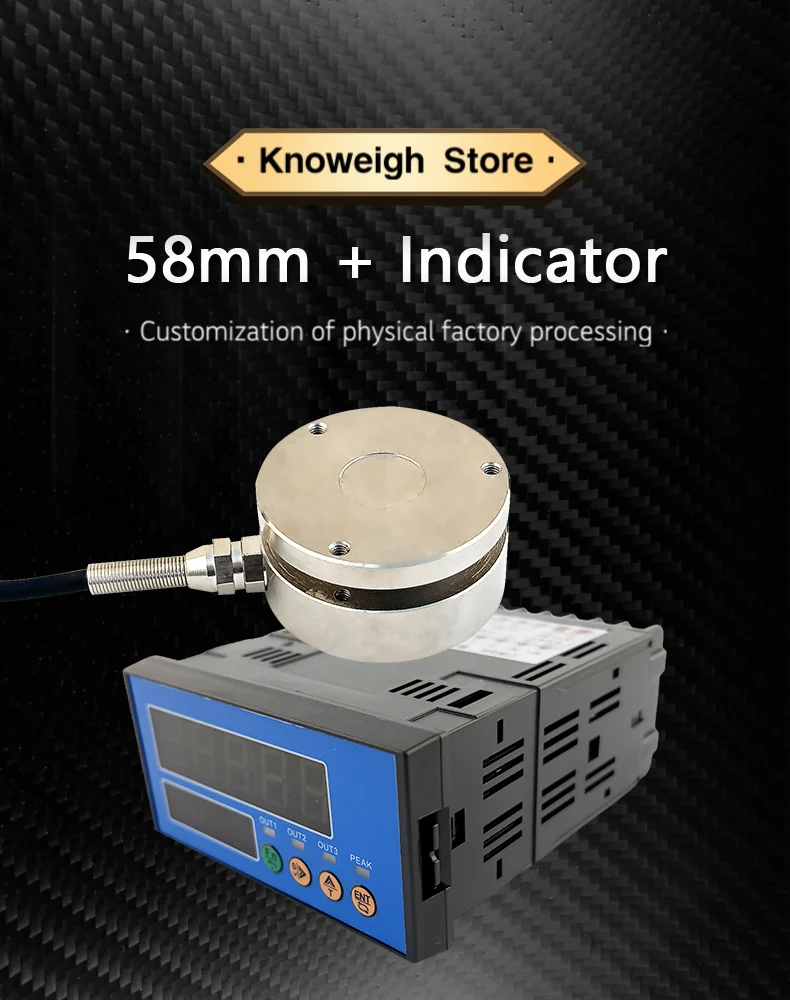

Load Cell DC 8-28V 80-265V AC Sensor 50kg–5t with Digital 5-Digit Indicator, 1.0–2.0mV/V IP66 Alloy Steel Weighing System Kit

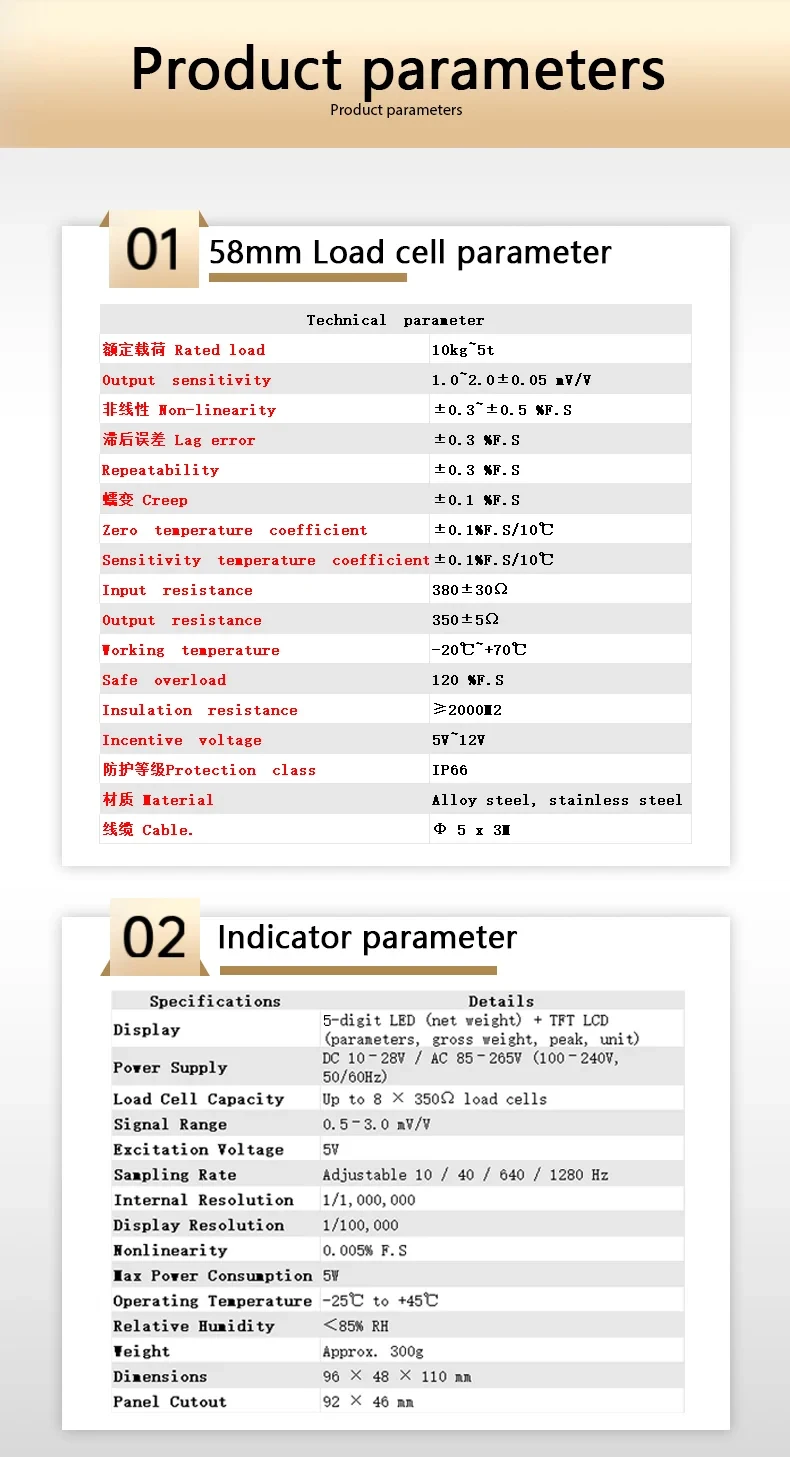

Technicalparameter

额定载荷 Rated load

10kg~5t

0utputsensitivity

1.0~2.0±0.05 mV/V

非线性 Non-linearity

±0.3~±0.5 %F.S

滞后误差 Lag error

±0.3 %F.S

Repeatability

±0.3 %F.S

蠕变 Creep

±0.1 %F.S

Zerotemperaturecoefficient

±0.1%F.S/10℃

Sensitivitytemperaturecoefficient

±0.1%F.S/10℃

Inputresistance

380±30Ω

0utputresistance

350±5Ω

Workingtemperature

-20℃~+70℃

Safeoverload

120 %F.S

Insulationresistance

≥2000M2

Incentivevoltage

5V~12V

防护等级Protectionclass

IP66

材质 Material

Alloy steel, stainless steel

线缆 Cable.

Ф 5 x 3M

The BENGBUZZYQ Load Cell + Indicator Kit is a reliable and complete weighing solution for industrial applications.

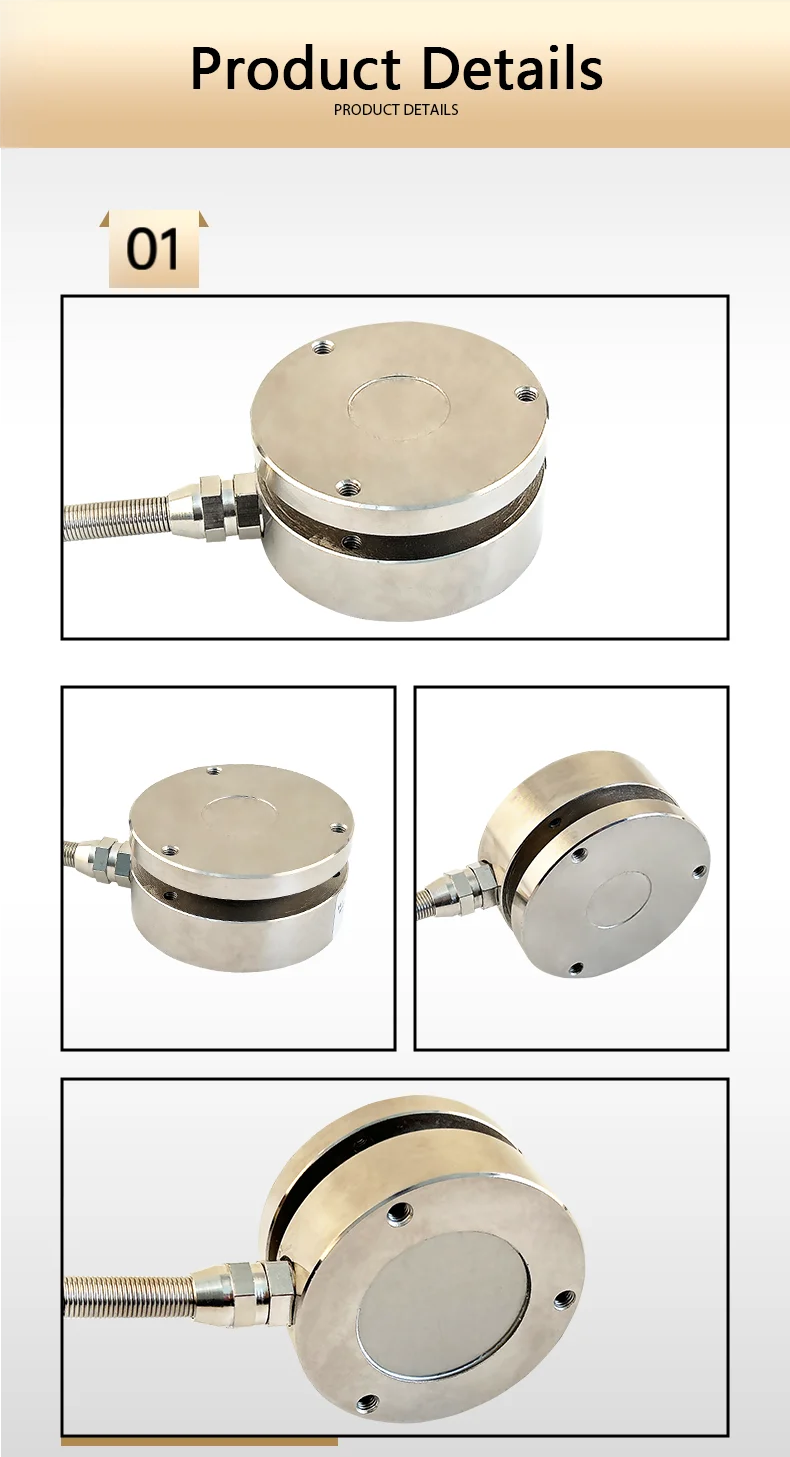

Load Cell Features:

Rated load: 10kg–5t, wide measurement range.

Sensitivity: 1.0–2.0 ±0.05mV/V, providing stable and accurate signals.

Material: Alloy steel / stainless steel, rugged construction.

Protection: IP66, resistant to dust and water.

Accuracy: Non-linearity ≤±0.5%FS, lag error ≤±0.3%FS, creep ≤±0.1%FS.

Overload: Safe 120%FS, insulation resistance ≥2000MΩ.

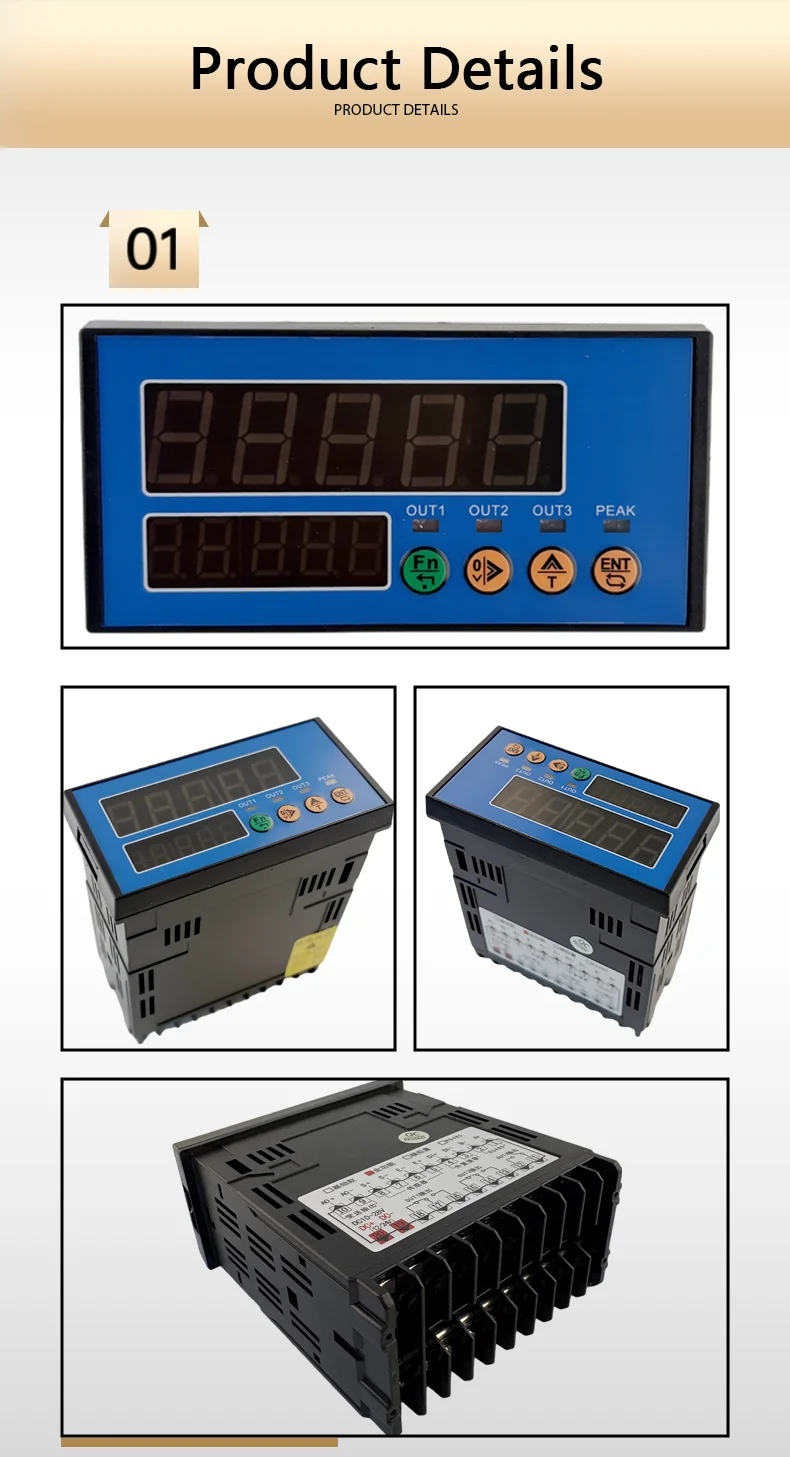

Indicator Features:

5-digit bright LED display for easy reading.

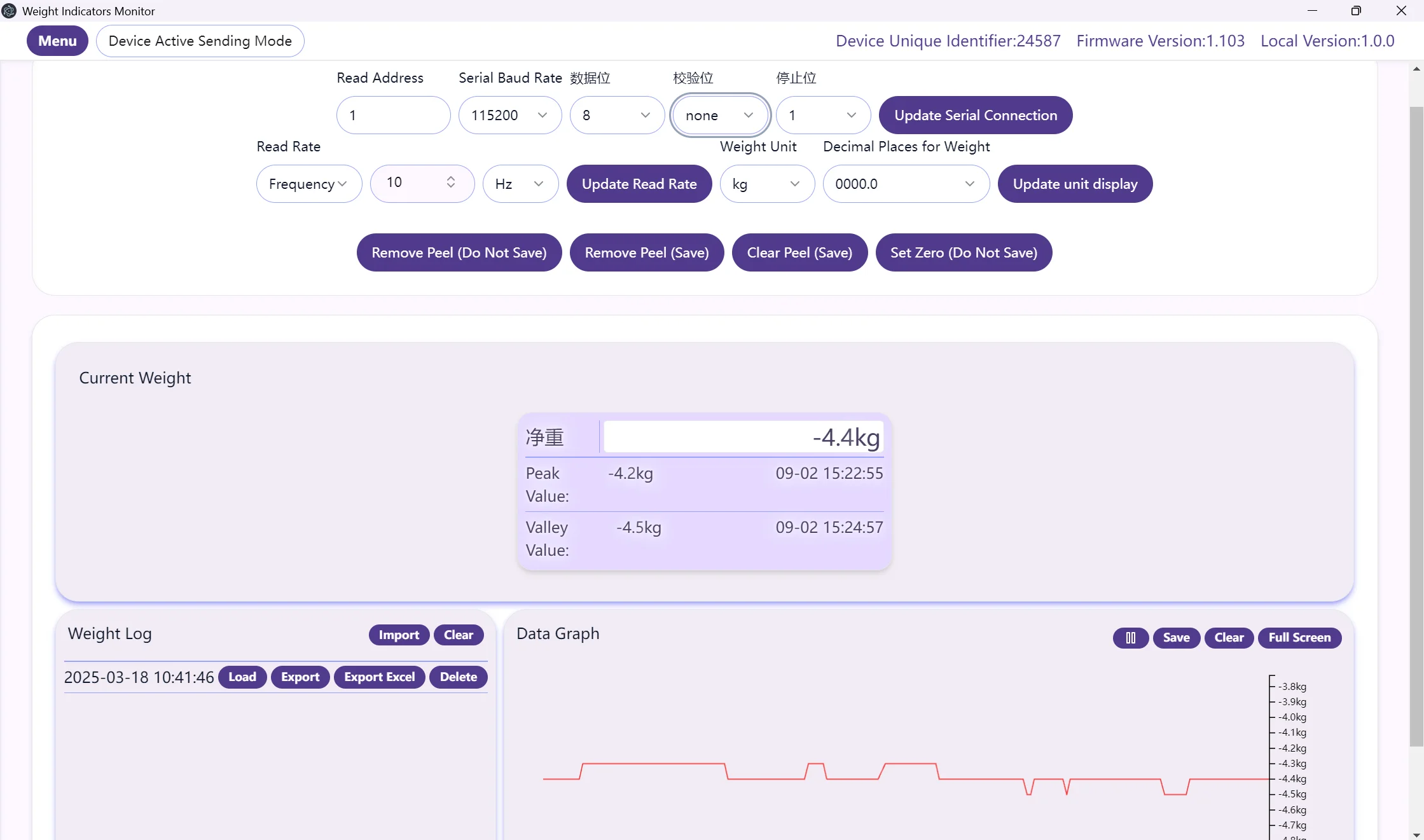

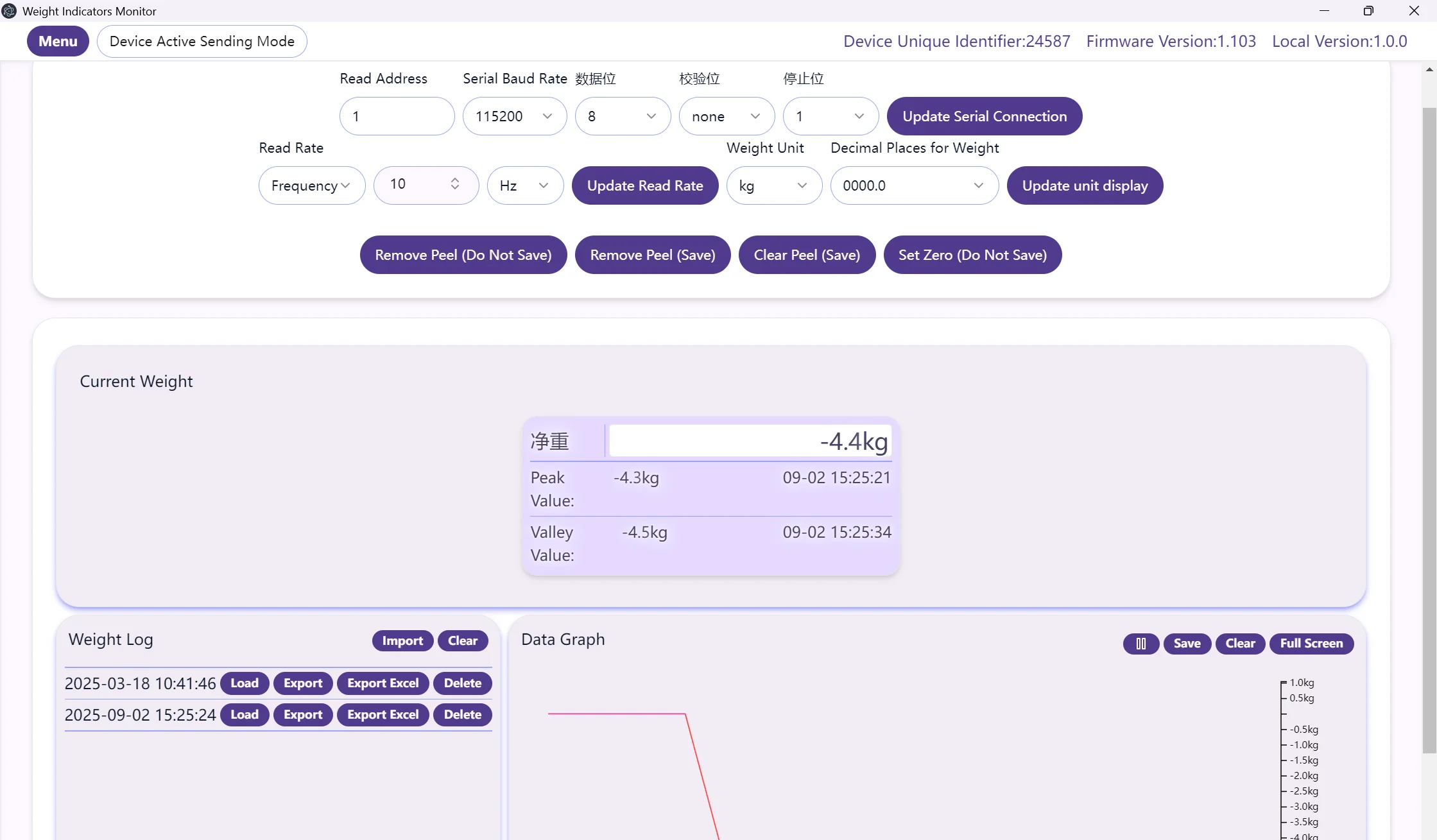

Supports load cell input and real-time weight display.

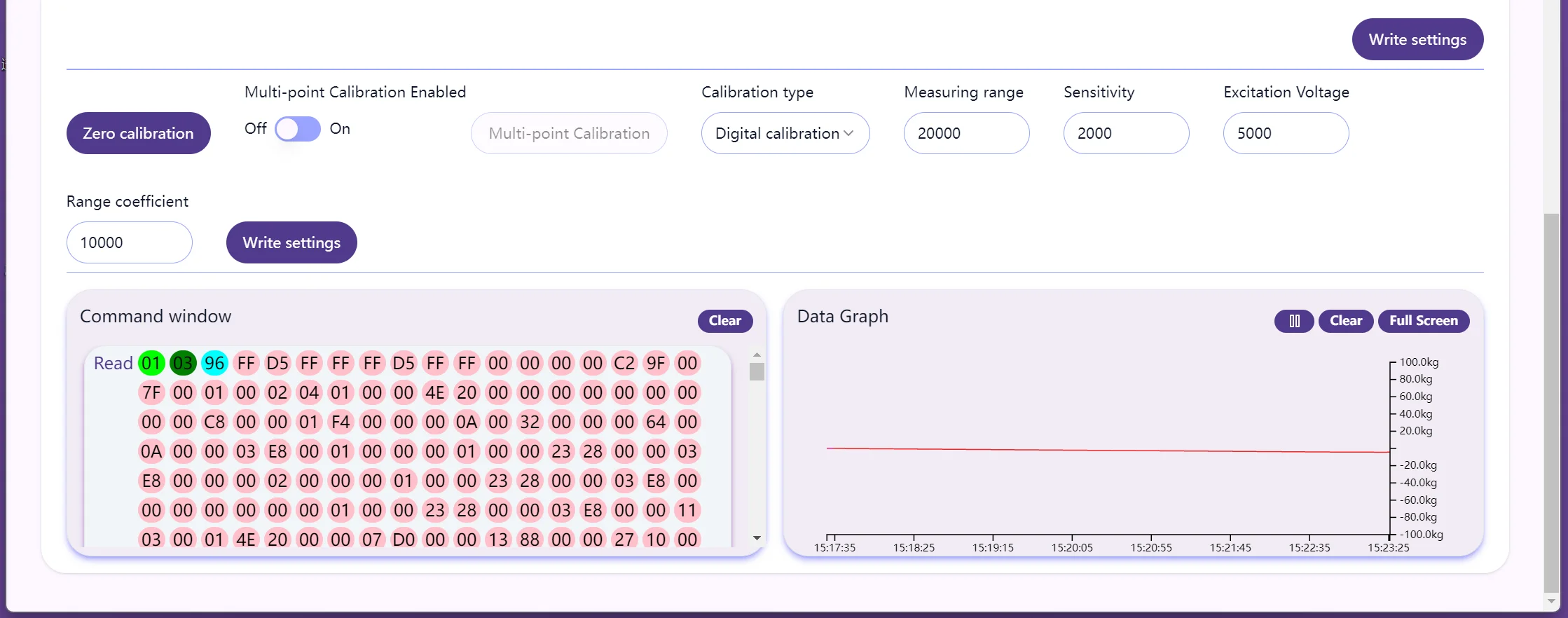

Functions: zero/tare, alarm output, calibration support.

Power supply: 5–12V excitation for the load cell, ensuring stable operation.

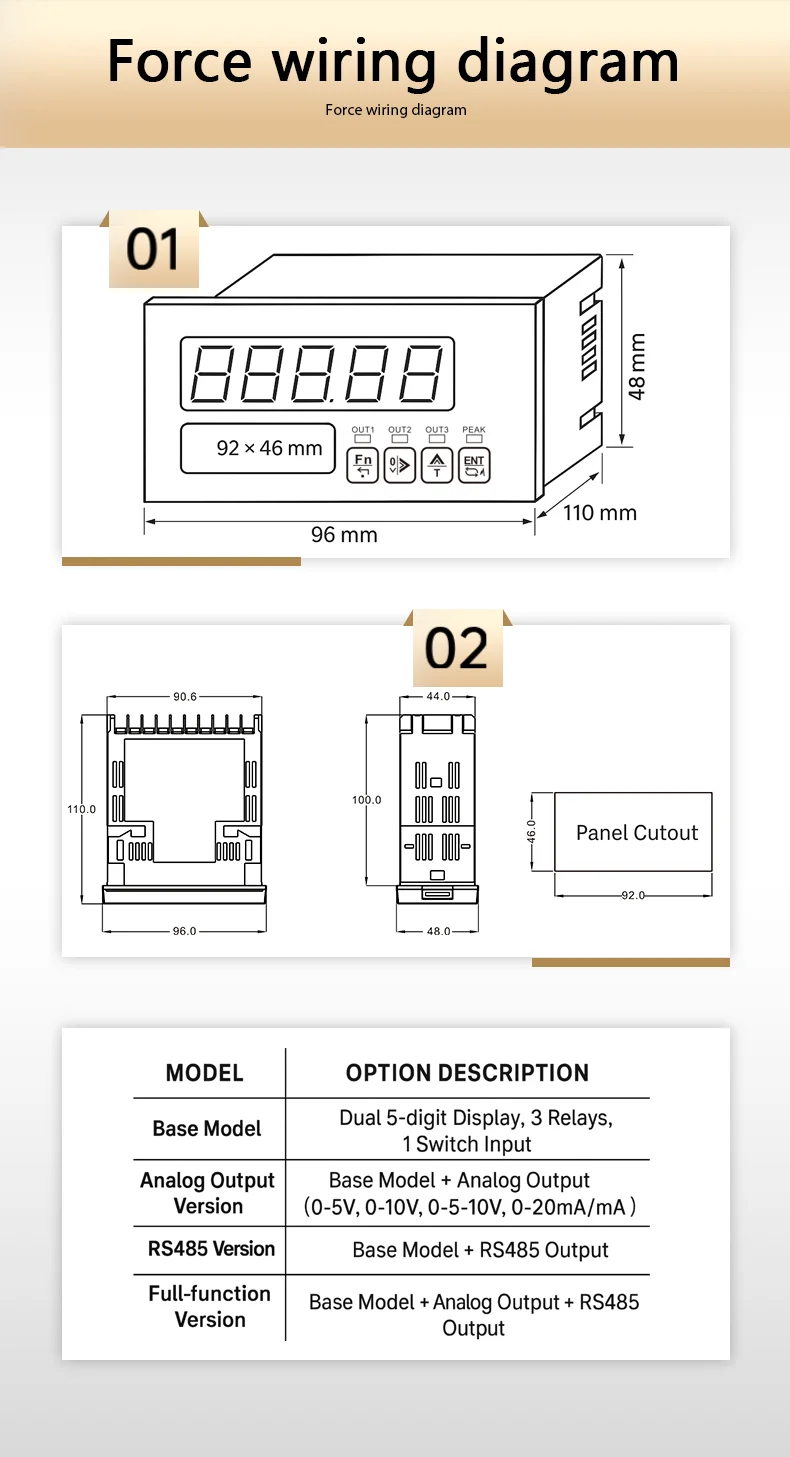

Compact design for panel or bench mounting.

Applications:

Industrial scales (platform, hopper, packaging systems)

Force measurement & material testing machines

Automation equipment requiring load monitoring

OEM weighing system integration
