4-in-1-out Voltage/Current Dual Output Digital Weighing Transmitter, DC12-24V, 0-10V/4-20mA Output, For Load Cell Sensors

Item
Specification
Operating Voltage
DC 12-24V
Excitation Voltage
DC 5V
Input Load
1-8 bridge sensors, 350Ω
Supported Sensitivity
0.8-3.0 mV/V
Output Signal
0-±10V, 0-±5V, 0-±3.3V, 0-20mA, 4-20mA, 4-12-20mA
Accuracy
Better than 0.03% F.S.
Operating Temperature
−20~80℃
Operating Humidity
10%RH-90%RH (non-condensing)
Housing Material
Aluminum alloy
Dimensions
100.9 × 80 × 40 mm
Mounting Size
66 × 57.8 mm
Main Features
Aluminum alloy housing, strong and durable, with excellent anti-interference performance
High-precision operational amplifier circuit with multiple filtering, high accuracy, and good stability
Voltage and current can be output simultaneously, with a wide zero adjustment range
Built-in high-end buck-boost chip, stable output, negligible effect from power supply fluctuations
Suitable for various strain-type sensors such as weighing, tension/compression, torque, etc.

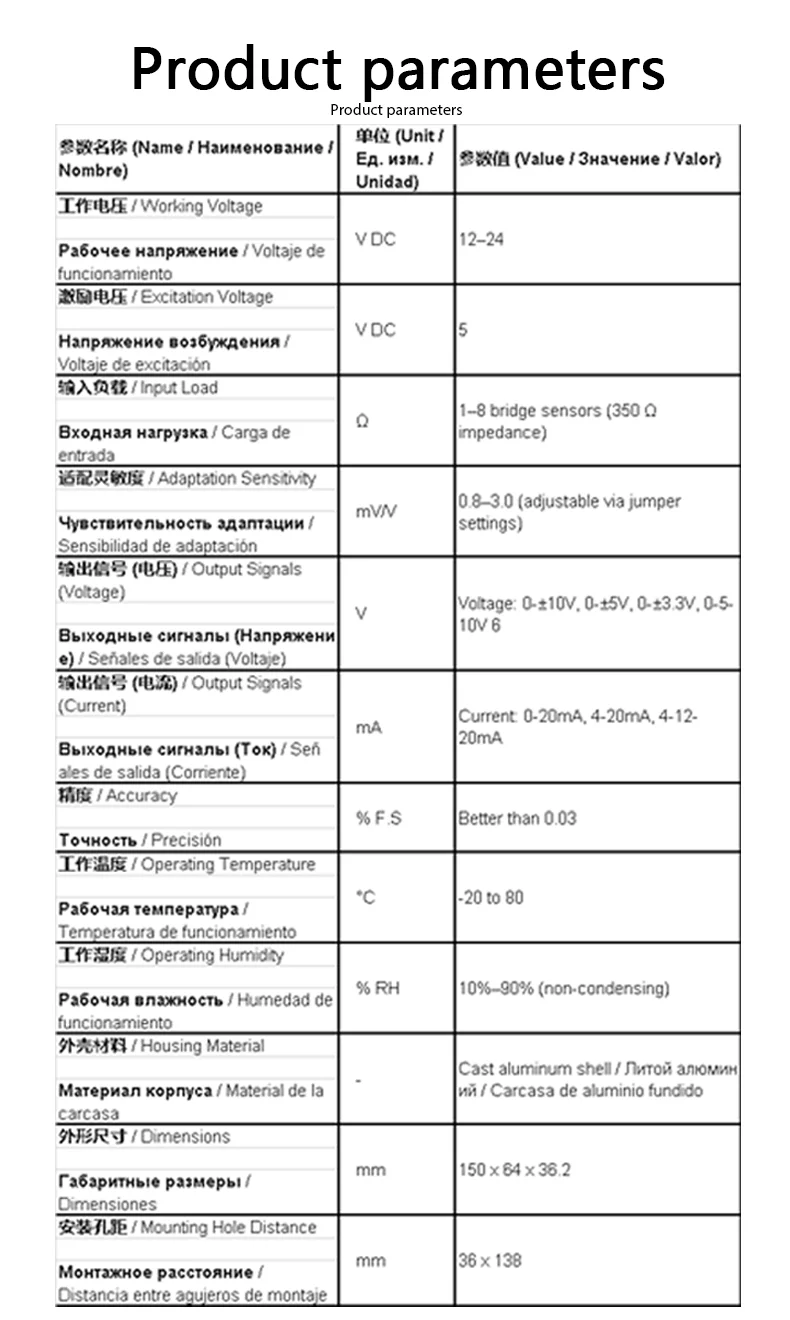

Technical Parameters
Operating Voltage: DC 12–24V
Excitation Voltage: DC 5V
Input Load: 1–8 bridge sensors with 350Ω impedance
Supported Sensitivity Range: 0.8–3.0 mV/V
Output Signal: 0–±10V, 0–±5V, 0–±3.3V, 0–20mA, 4–20mA, 4–12–20mA
Operating Temperature Range:−20~80℃
Operating Humidity Range: 10%RH–90%RH (non-condensing)
Accuracy: Better than 0.03% F.S.
