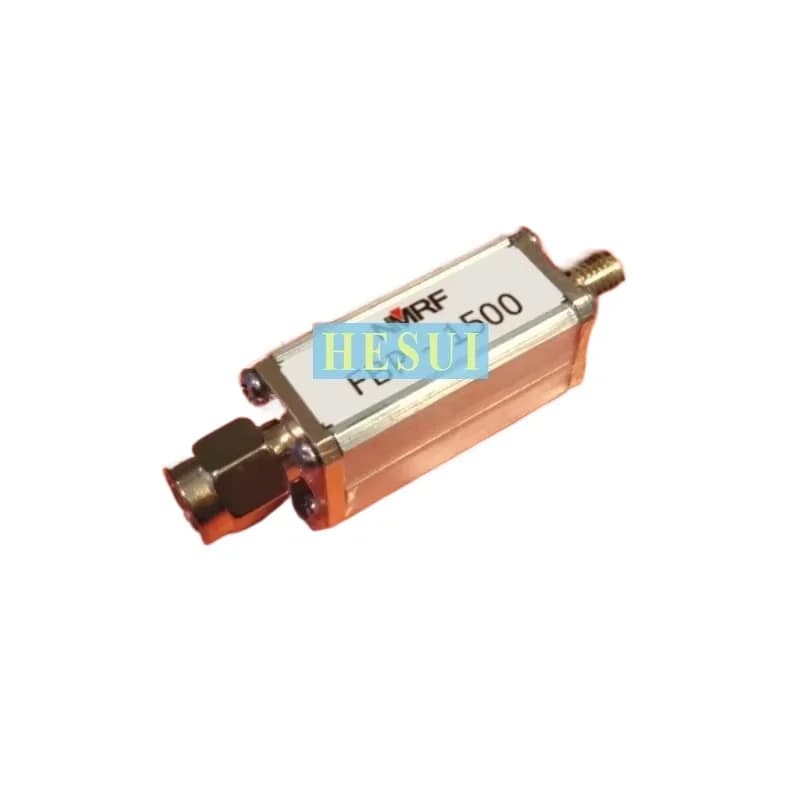

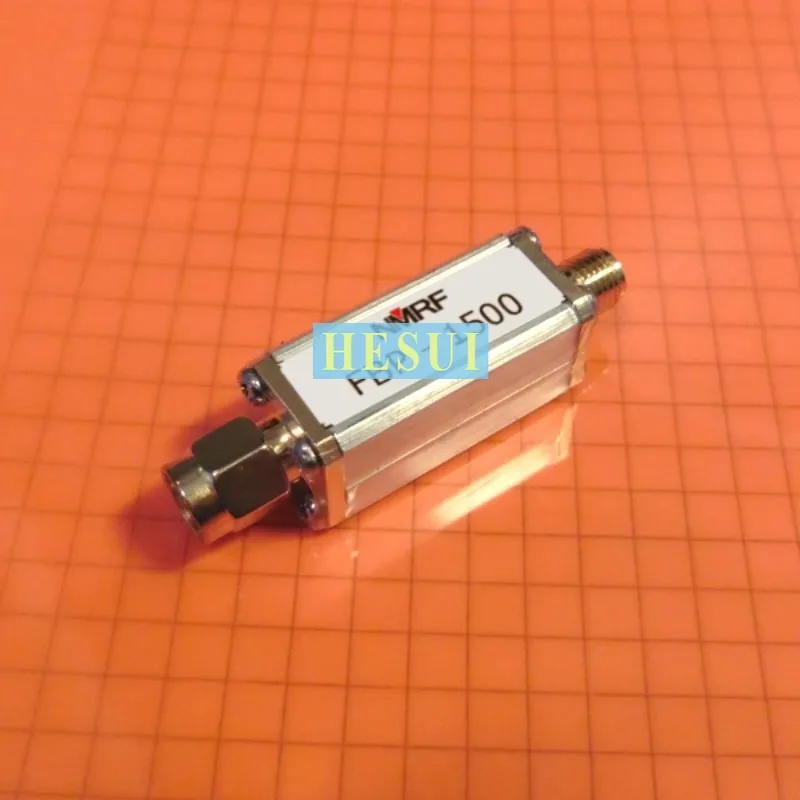

1350MHz-1650MHz 1500MHz module RF BPF Filter module Small size LC discrete component bandpass filter SMAport CNC Al shield shell
46.59$
46.59$
Quantity:
1
Availability:
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Features:
Small size, flat passband, high out-of-band suppression
Applications:
Harmonic suppression
transceiver
Laboratory use
Testing instrument
Model: FBP-1500
Impedance: 50 Ohms
Center frequency: 1500 MHz
Center frequency insertion loss: <= 2.5dB@1500 MHz
1 dB bandwidth: 1350 to 1650 MHz
30 dB stopband: DC ~ 950 MHz & 1900 ~ 4000 MHz
Maximum load power: 1 W (30 dBm)
Interface: SMA-M, SMA-F

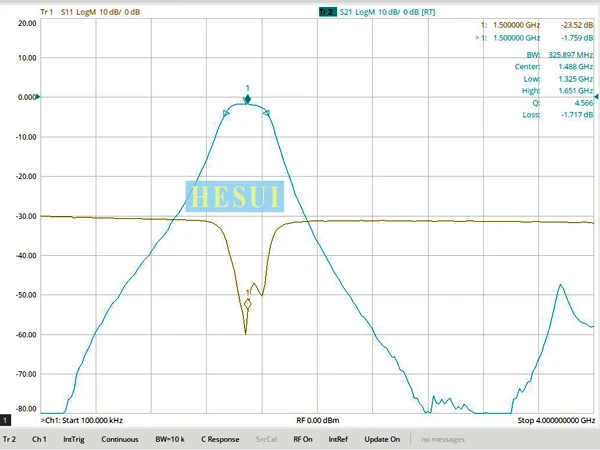

Frequency response diagram (sweep frequency range: 0.1-4000MHz, blue-green line is S21, yellow-brown line is S11, vertical scale is 10dB per cell, the figure is 3dB bandwidth) :

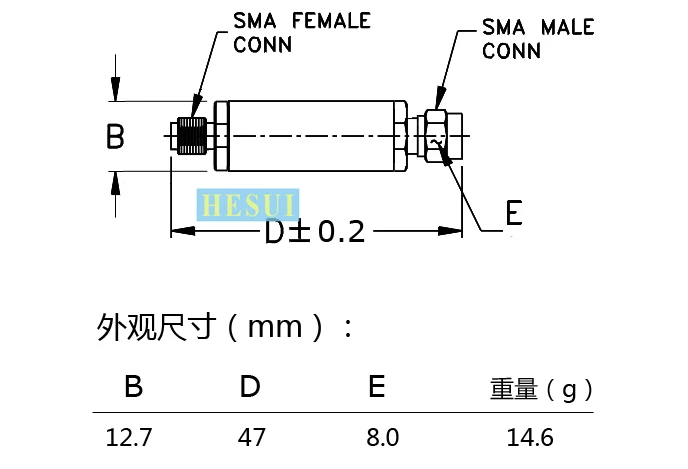

Appearance size:
