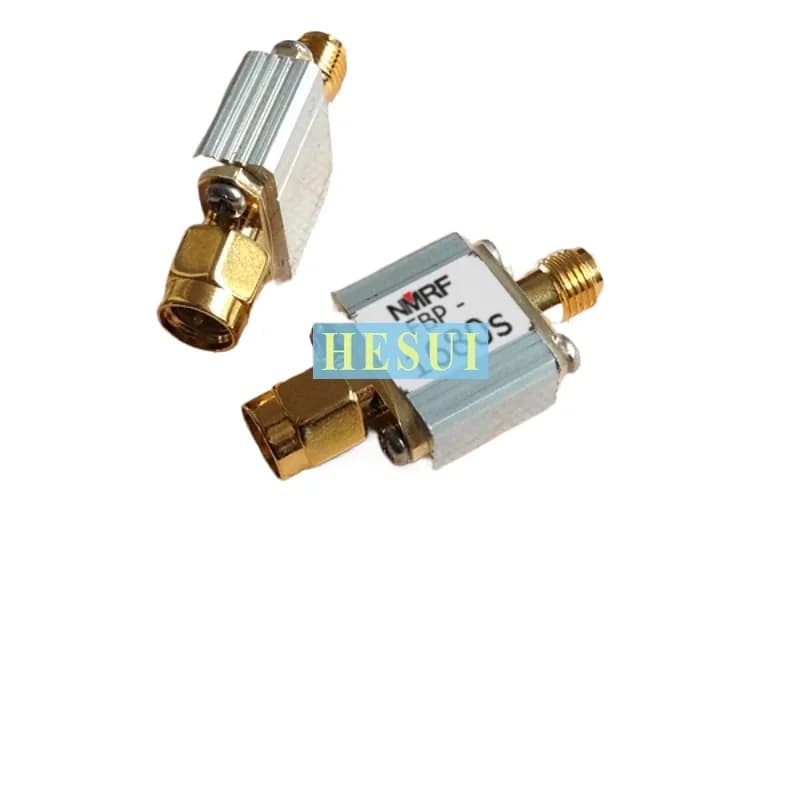

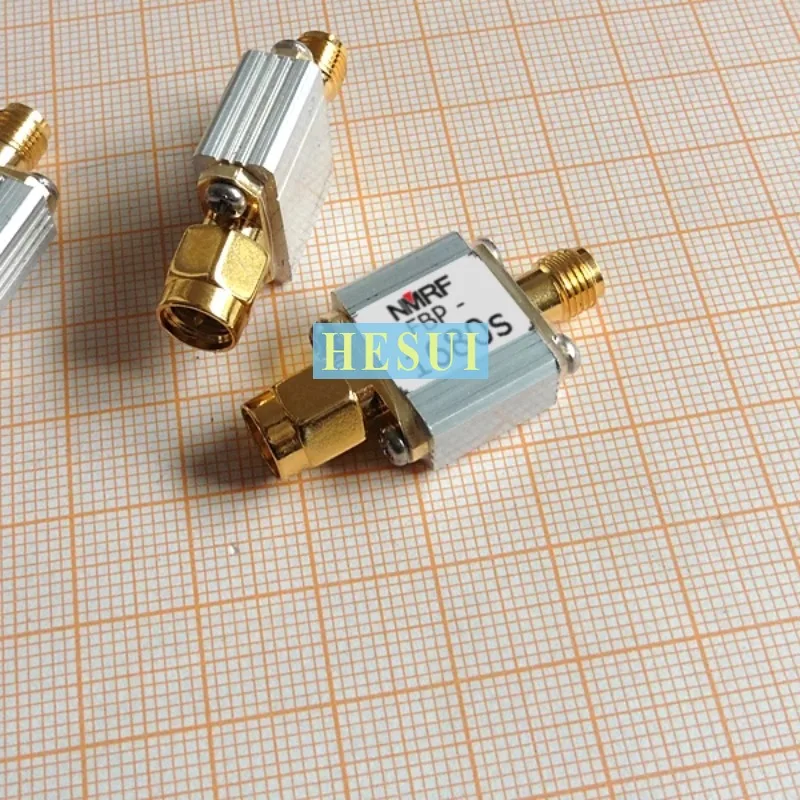

1640MHz-1715MHz 1680MHz filter RF BPF Filter module SAW band pass bandpass filter module board SMA port CNC Al shield shel

Features:

Low insertion loss, small size, using imported SAW chip
Applications:
Graph receiver
Laboratory application
Other specifications can be customized
---------------------------------------------
Model: FBP-1680s
Impedance: 50 Ohms
Center frequency / 1 dB bandwidth: 1680 MHz / 40 MHz
Tape interpolation loss: <= 5.5 dB
3dB passband: 1640 ~ 1715 MHz
Maximum load capacity: 50 mW (17 dBm)
Interface: SMA-M, SMA-F

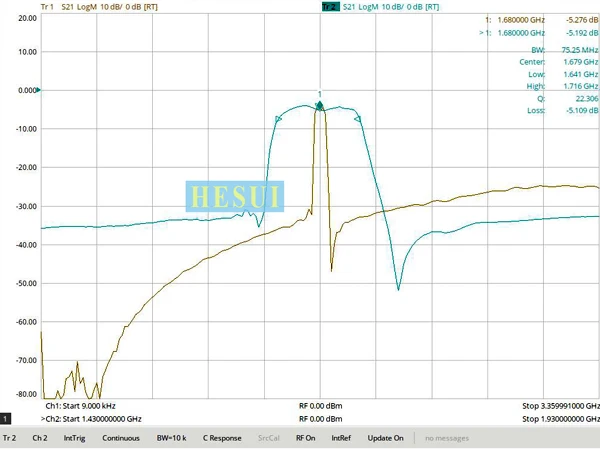

Frequency response diagram (sweep center frequency: 1680MHz, tan line sweep width: 3360MHz, blue line sweep width: 500MHz, vertical scale: 10dB per grid) :

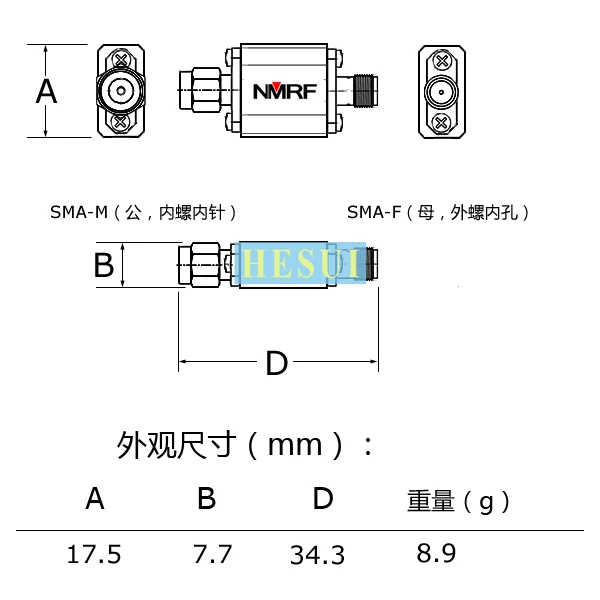

外型尺寸：
