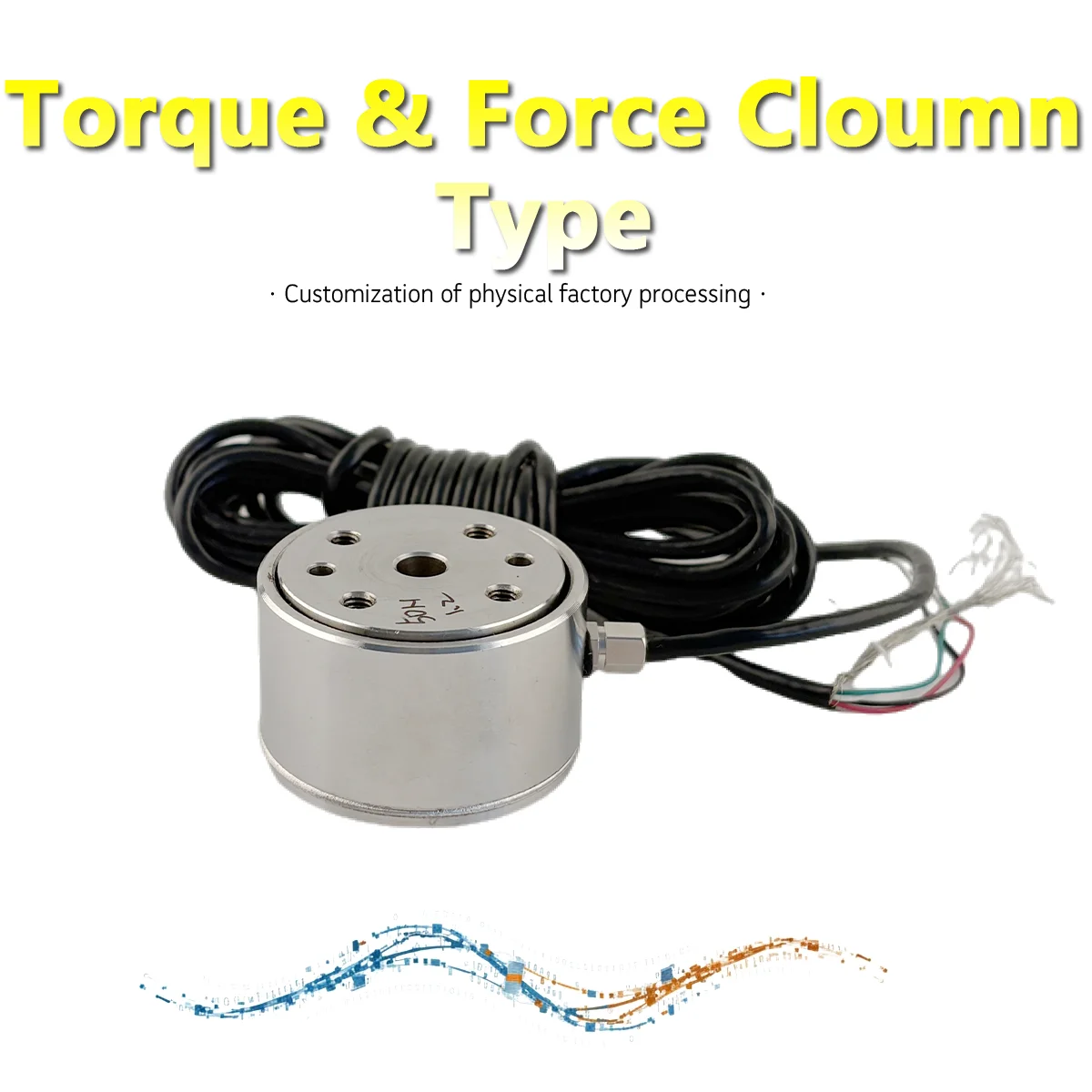

Compact Torque Load Cell Micro Reaction Torque Sensor 0-100Nm High Sensitivity Stainless Steel Force Sensor for Torque

Item

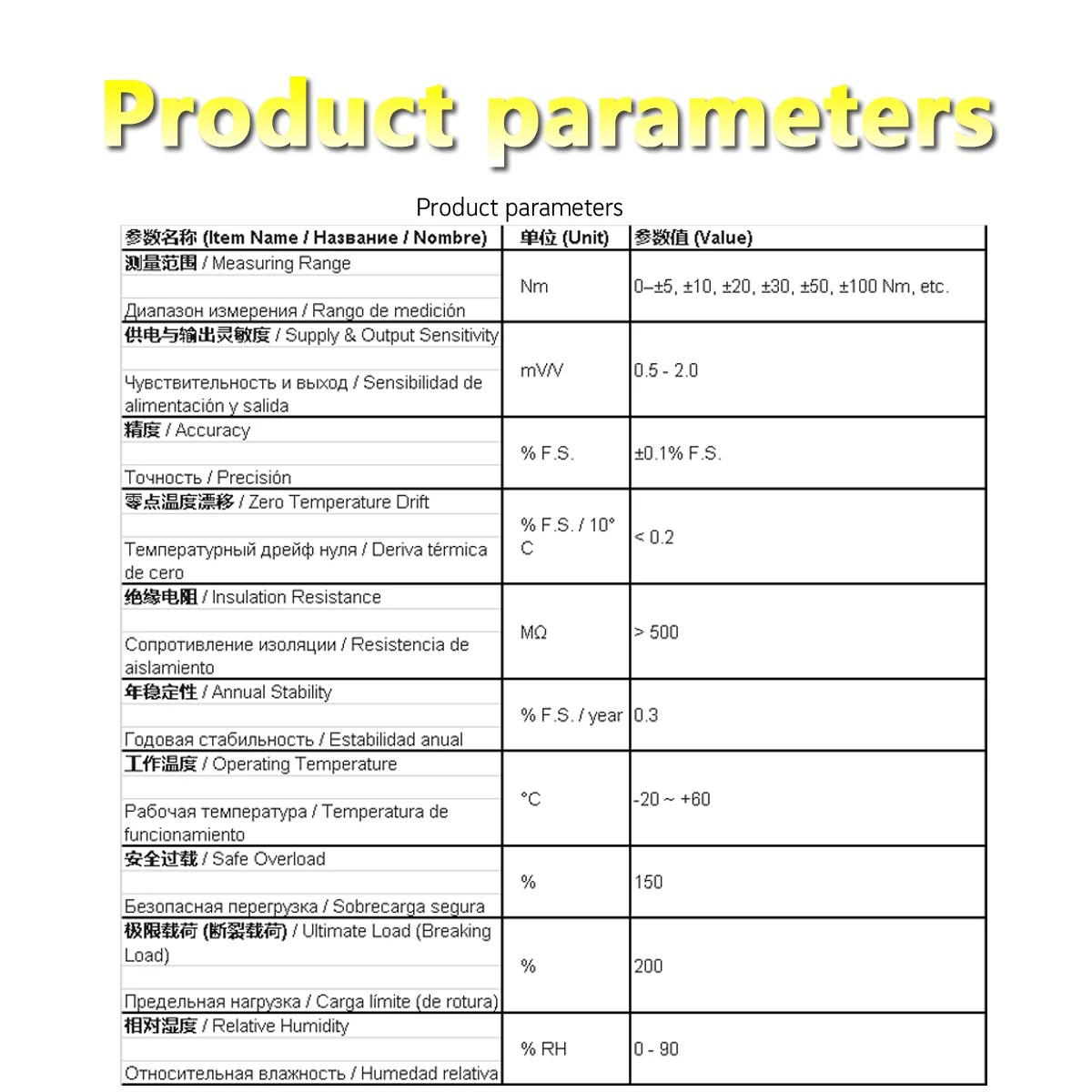

Performance Specification
Measuring Range
0–±5, ±10, ±20, ±30, ±50, ±100 Nm, etc.
Supply & Output Sensitivity
0.5–2.0 mV/V
Accuracy
±0.1% F.S.
Zero Temperature Drift
<0.2% F.S. / 10°C
Insulation Resistance
>500 MΩ
Annual Stability
0.3% F.S. / year
Operating Temperature
–20°C to +60°C
Safe Overload
150%
Ultimate Load (Breaking Load)
200%
Relative Humidity
0–90% RH

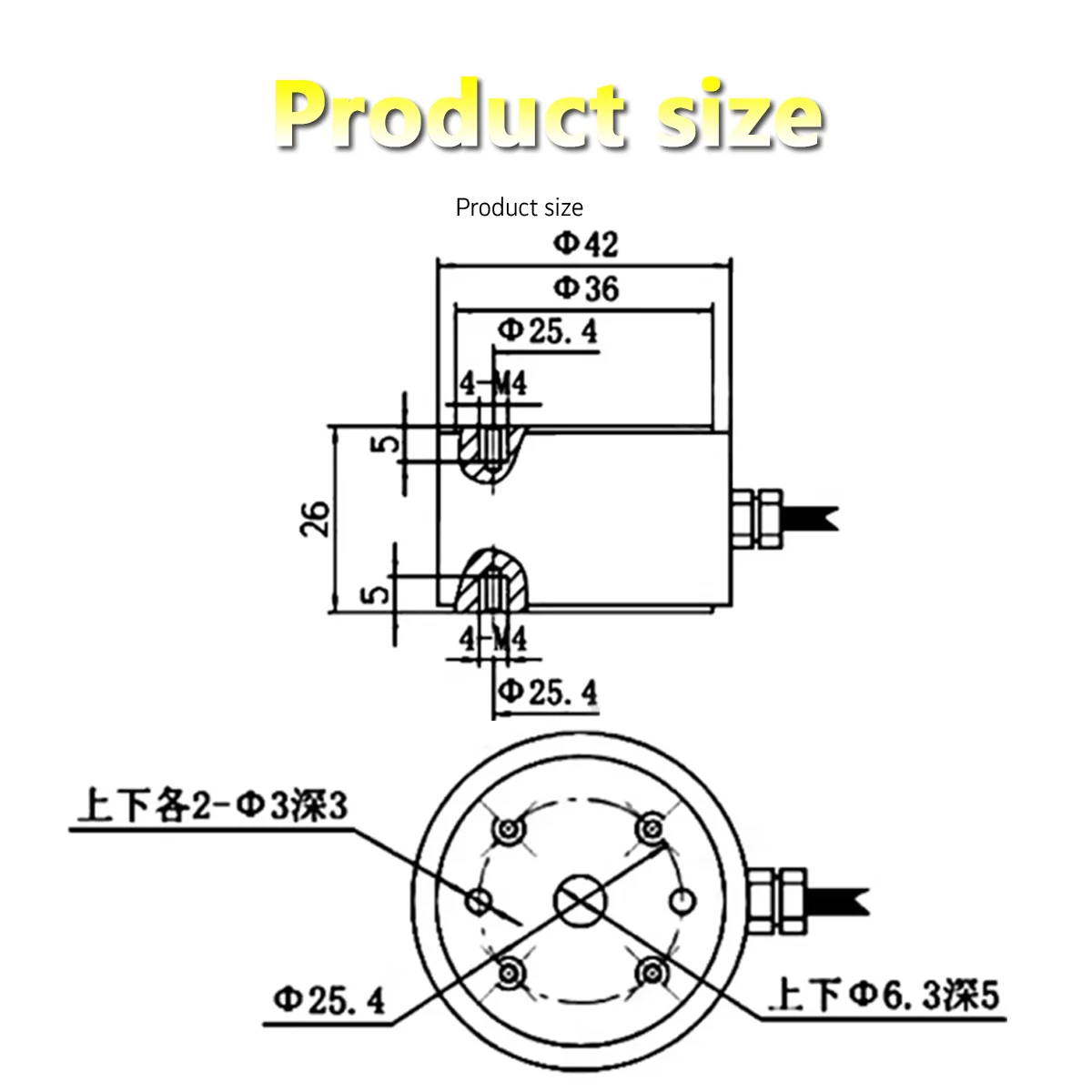

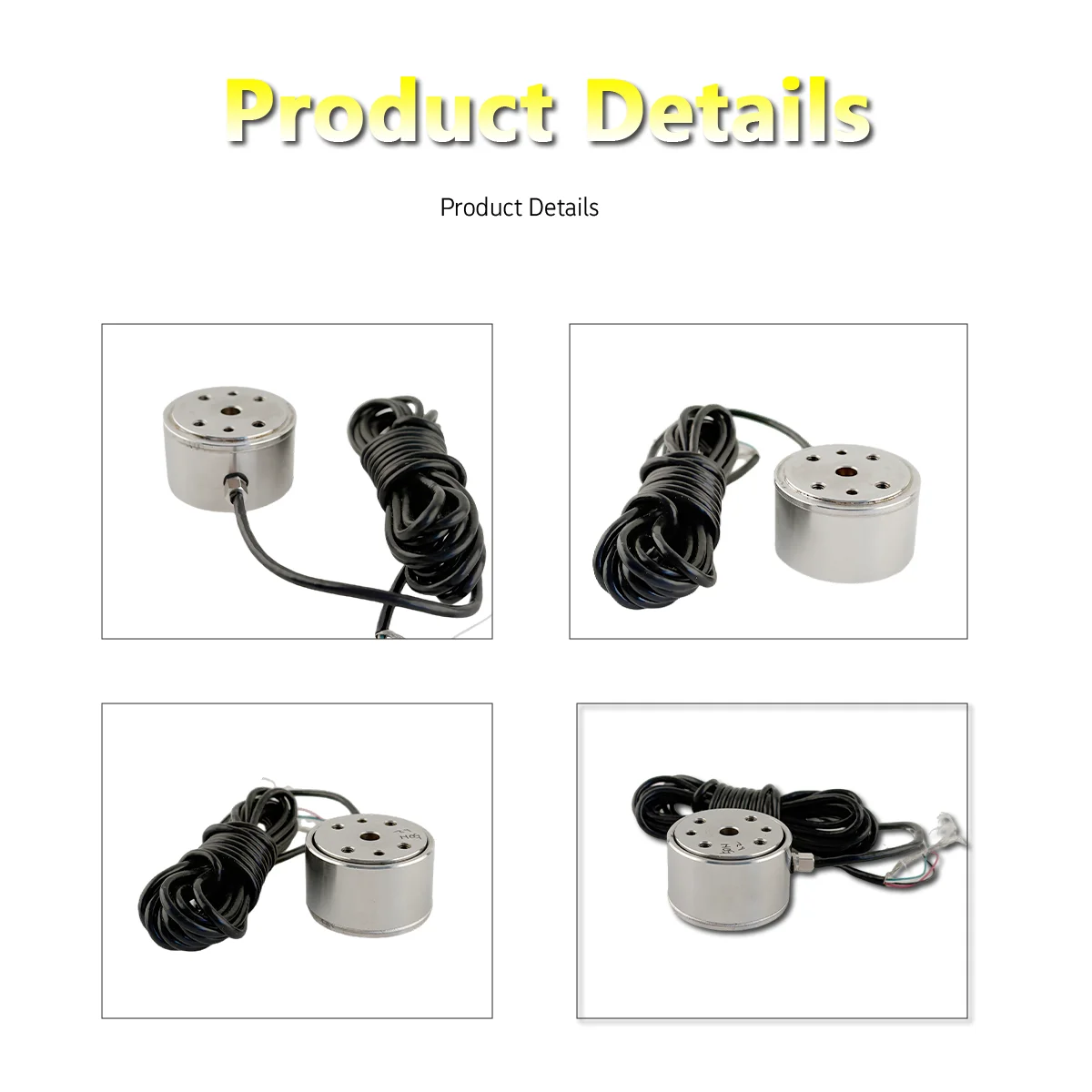

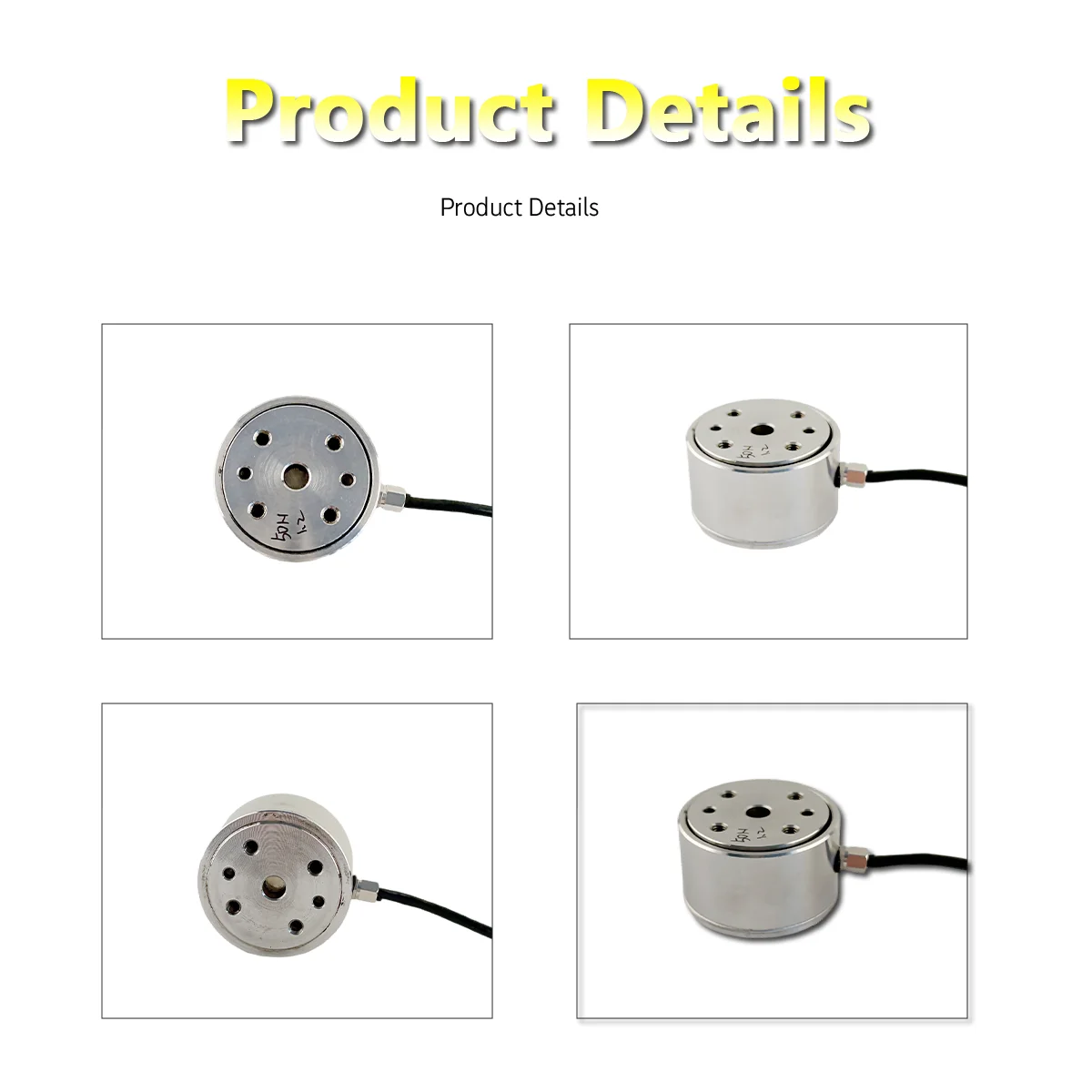

This miniature torque sensor features a compact stainless steel design, providing high accuracy and excellent stability for measuring reaction torque from 0–100 Nm. Equipped with high-sensitivity strain gauges and full-sealed construction, it offers strong anti-interference and shock resistance, making it ideal for industrial automation, robotic force control, laboratory equipment, and torque monitoring applications. The multi-hole mounting design ensures easy installation and wide compatibility with various mechanical systems.
