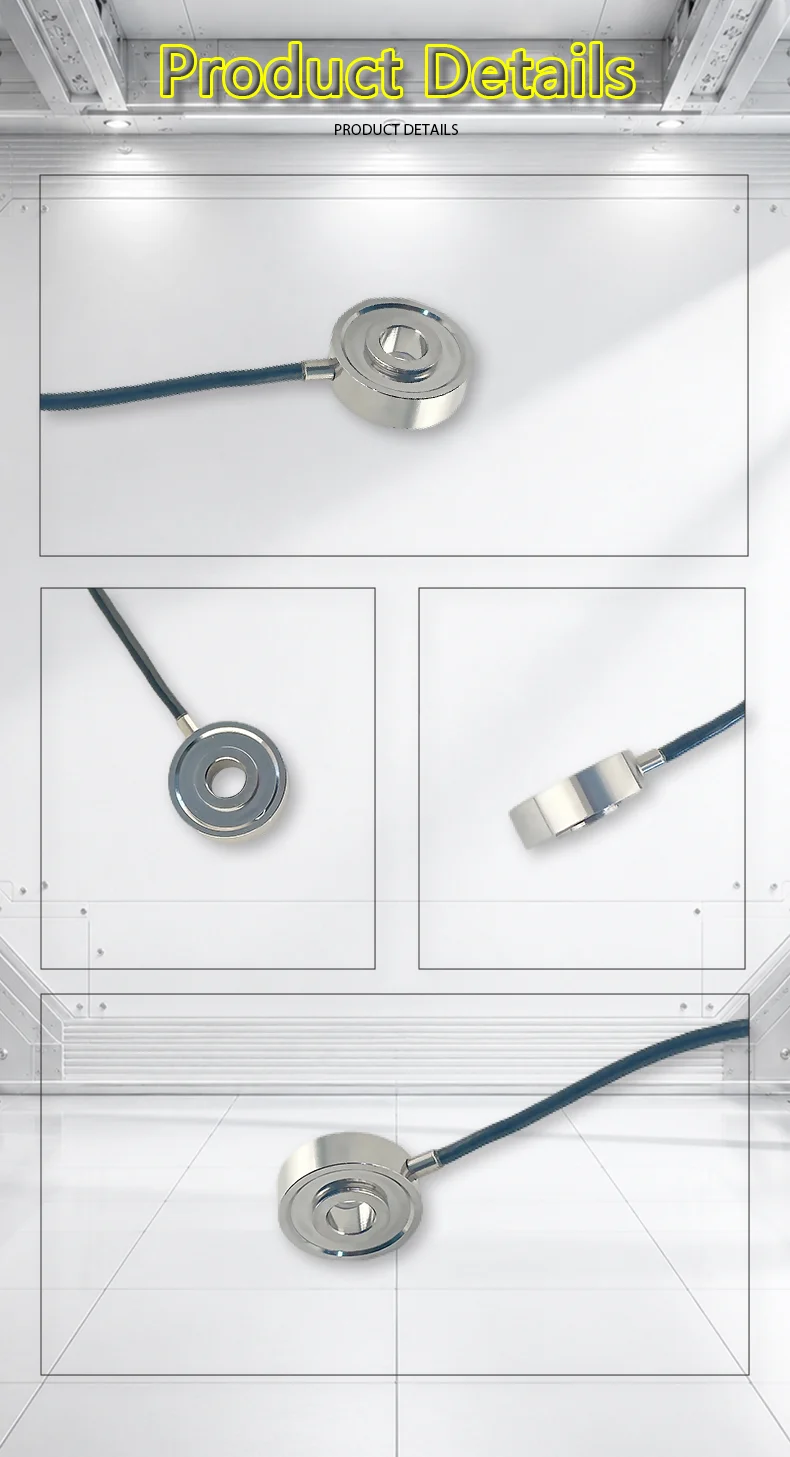

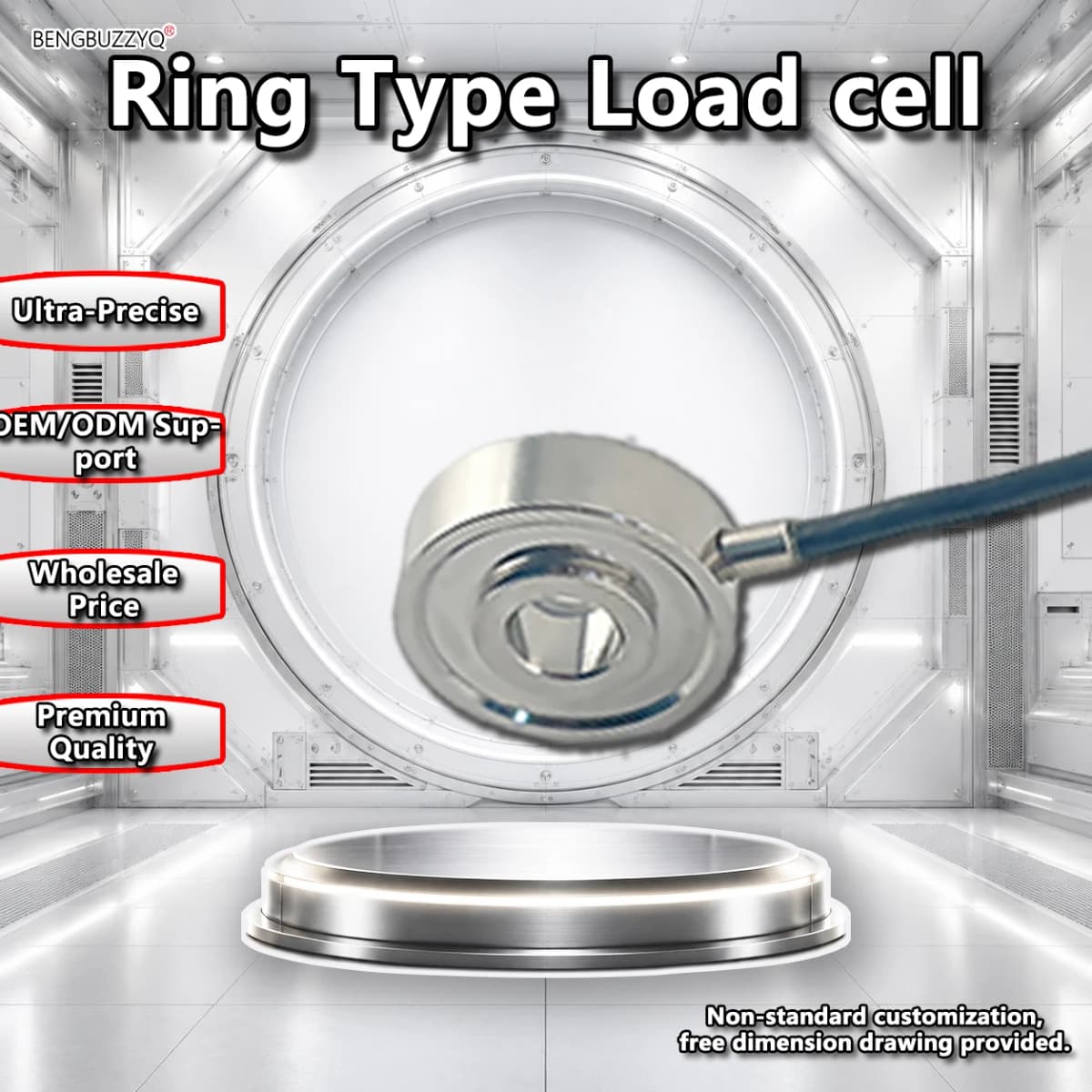

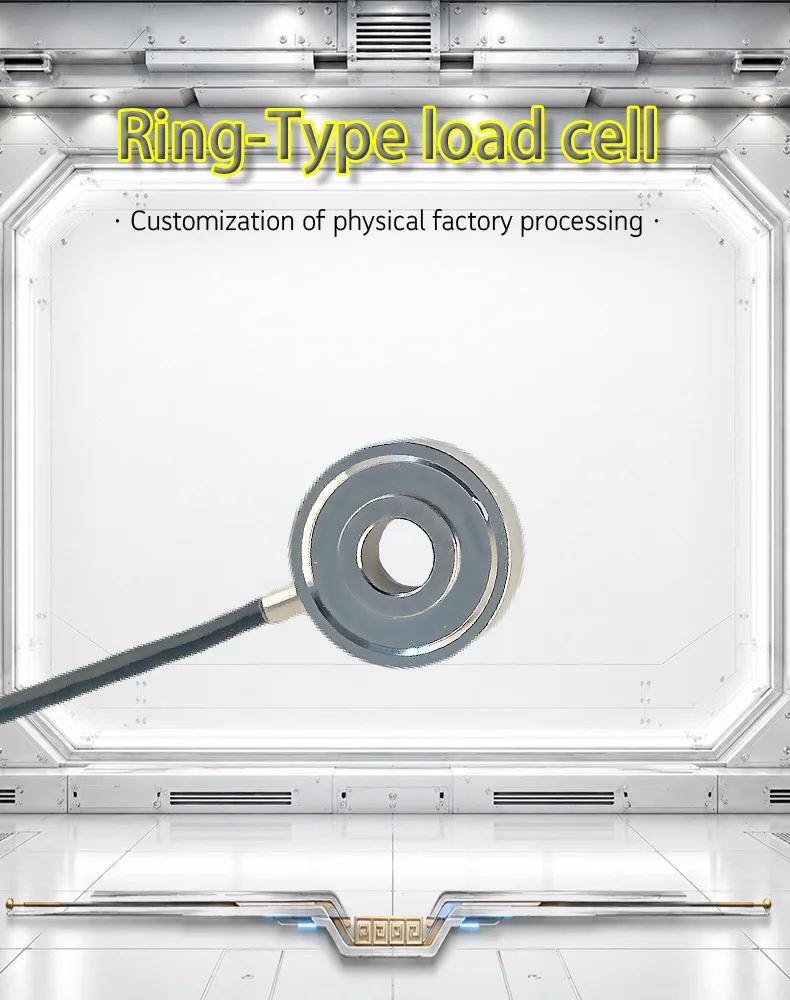

Ring Load Cell, Stainless Steel, High Accuracy, Non-Standard Customization Available for Various Ranges
98.12$
59.51$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Technical parameters
Range
50kg,100kg,200kg,300kg,500kg,1t,2t,3t,5t
Sensitivity
1.0~2.0±0.1 mv/V
Comprehensive accuracy
0.2%F.S
Creep
±0.1%F.S/30min
Nonlinearity
±0.1%F.S
Lag error
±0.1%F.S
Repeatability error
±0.1%F.S
Zero temperature coefficient
±0.05%F.S/10°C
Input impedance
380±30Ω/735±35Ω
Output impedance
350±5Ω/700±3Ω
Insulation impedance
≥5000MΩ
Excitation voltage
5-12VDC

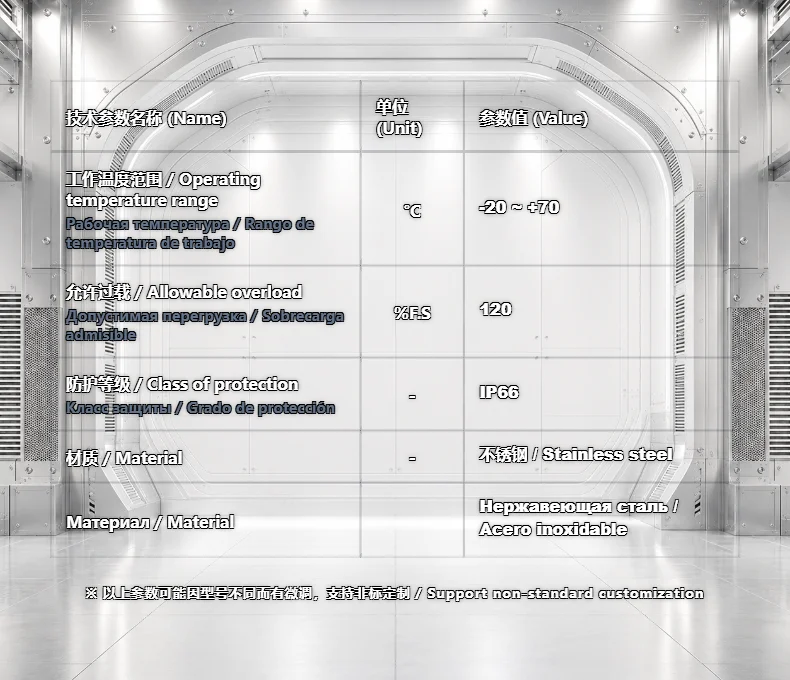

Operating temperature range
-20~+70°C
Allowable overload
120%F.S
Class of protection
IP66
Material
Stainless steel
