Industrial Spoke Load Cell 100KG-50T Force Sensor with Digital Display Weighing Controller Indicator Mounting Kits 4. Control

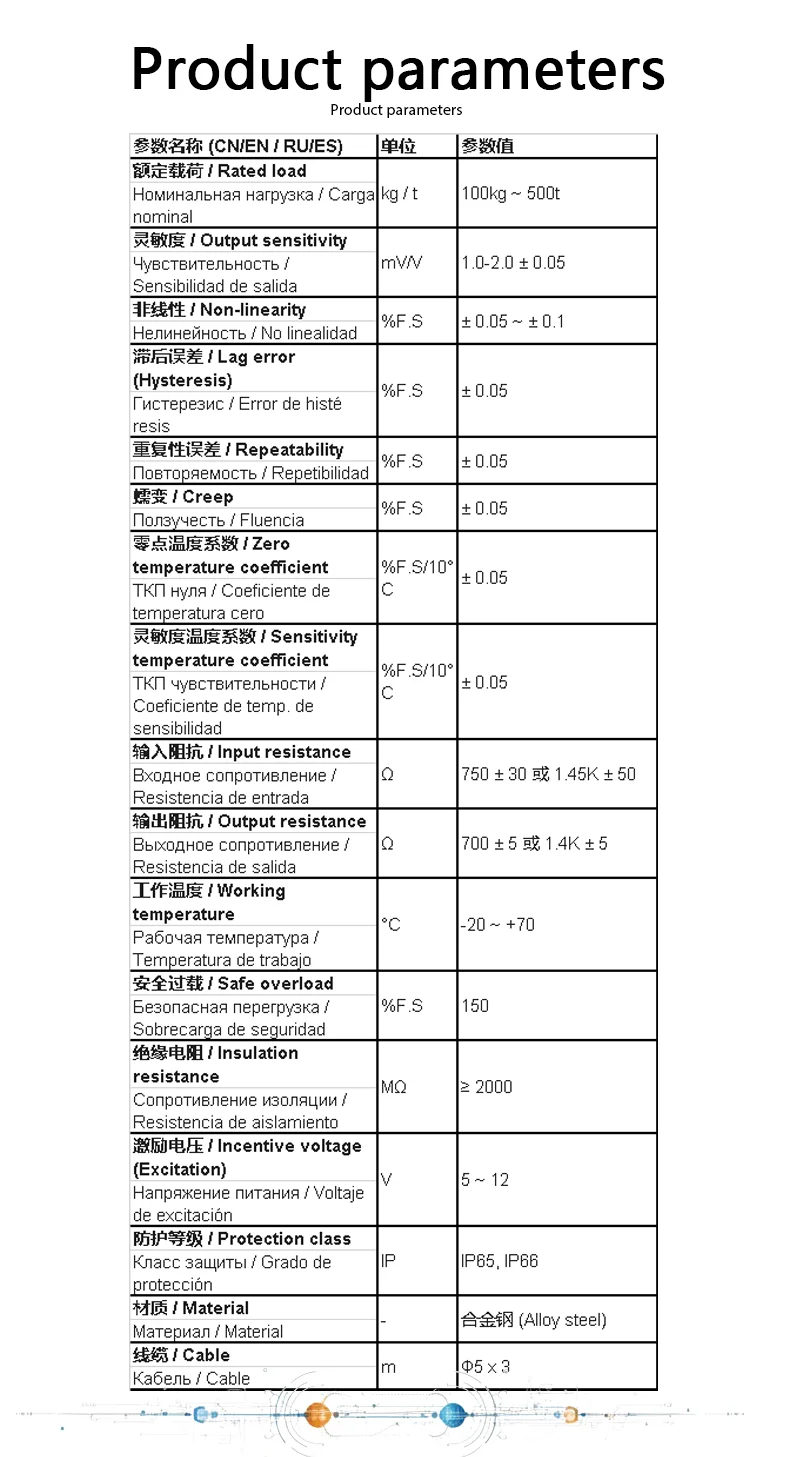

Technicalparameters
Capacity
100-5000KG
Output sensitivity
1.0-2.0±0.05mV/V
Zero Balance
±2%F.S.
Non-Linearity
±0.05-±0.1%F.S.
Hysteresis
±0.05%F.S.
Repeatability
±0.05%F.S.
Creep(30min)
±0.05%F.S.
Temp Effecton Output
±0.05%F.S./10°C
Temp Effect on Zero
±0.05%F.S./10°C
Input resistance
750±30Ω
0utput resistance
700±5Ω
Insulation
≥2000MQ/100VDC
Incentive voltage
5-12v
Operating Temp Range
-20-70°C
Safe Overload
150%F.S

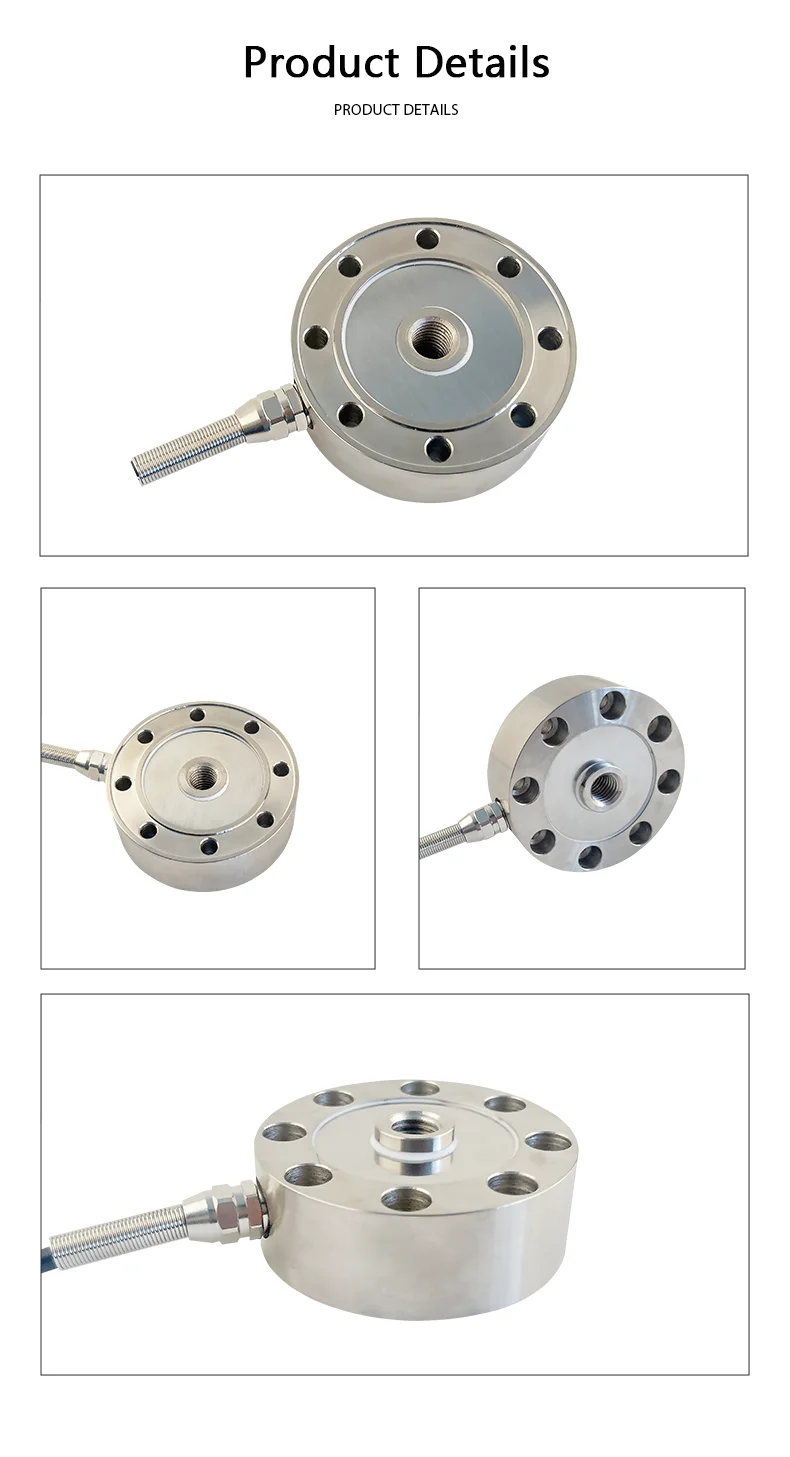

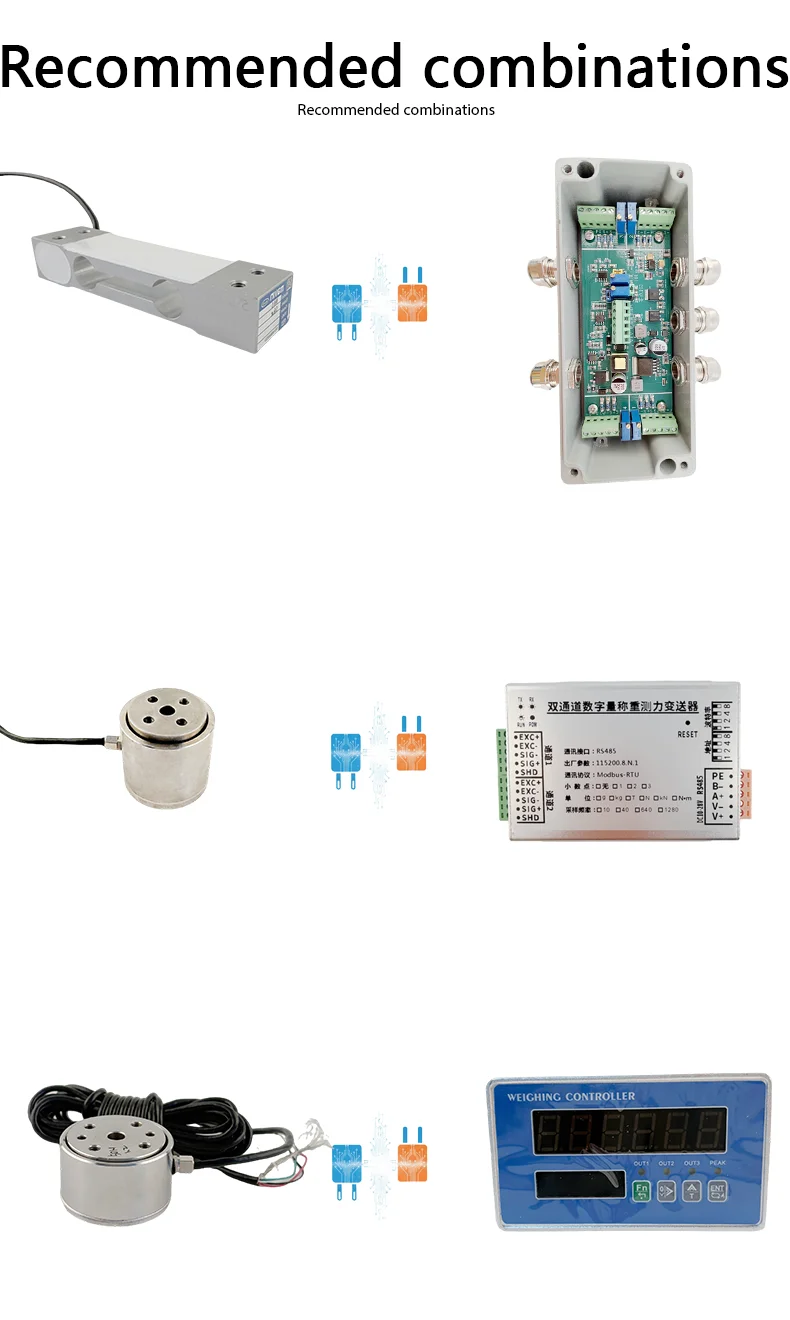

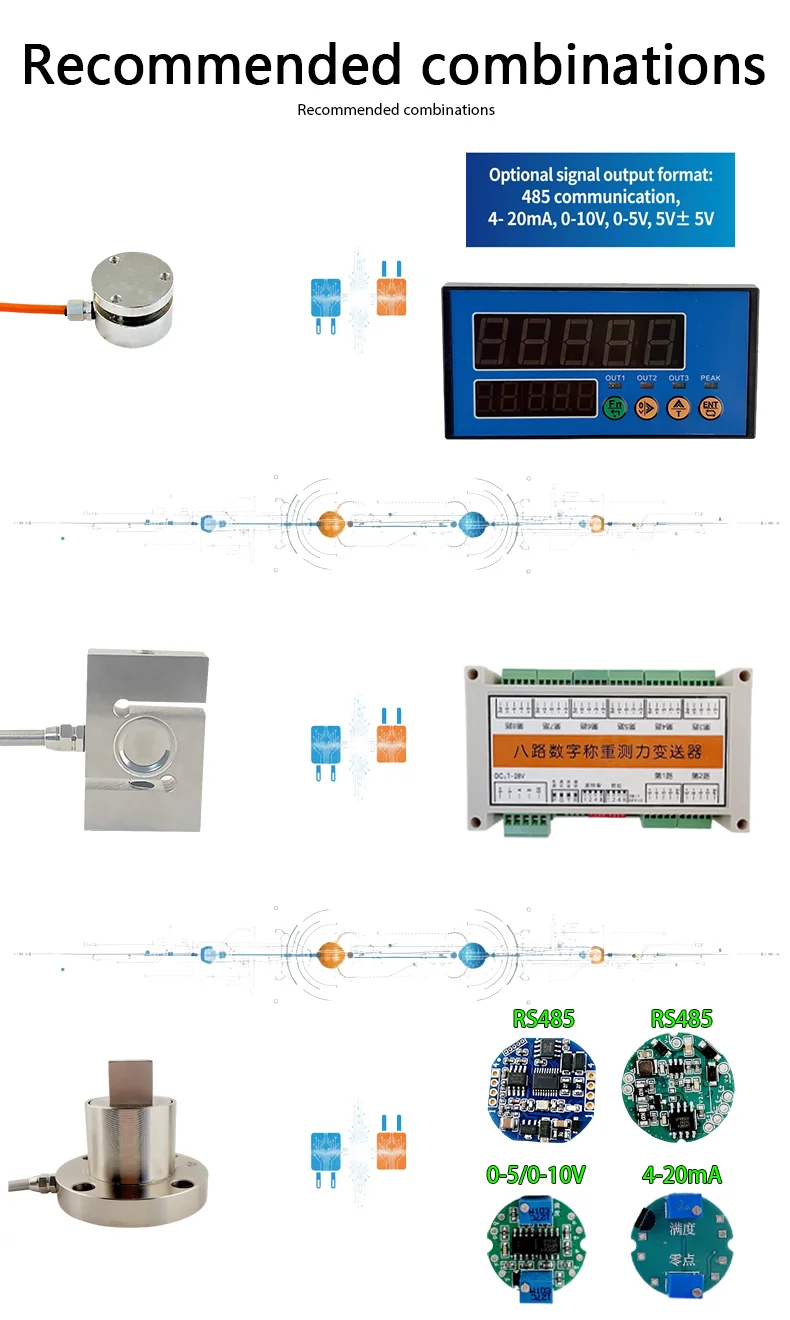

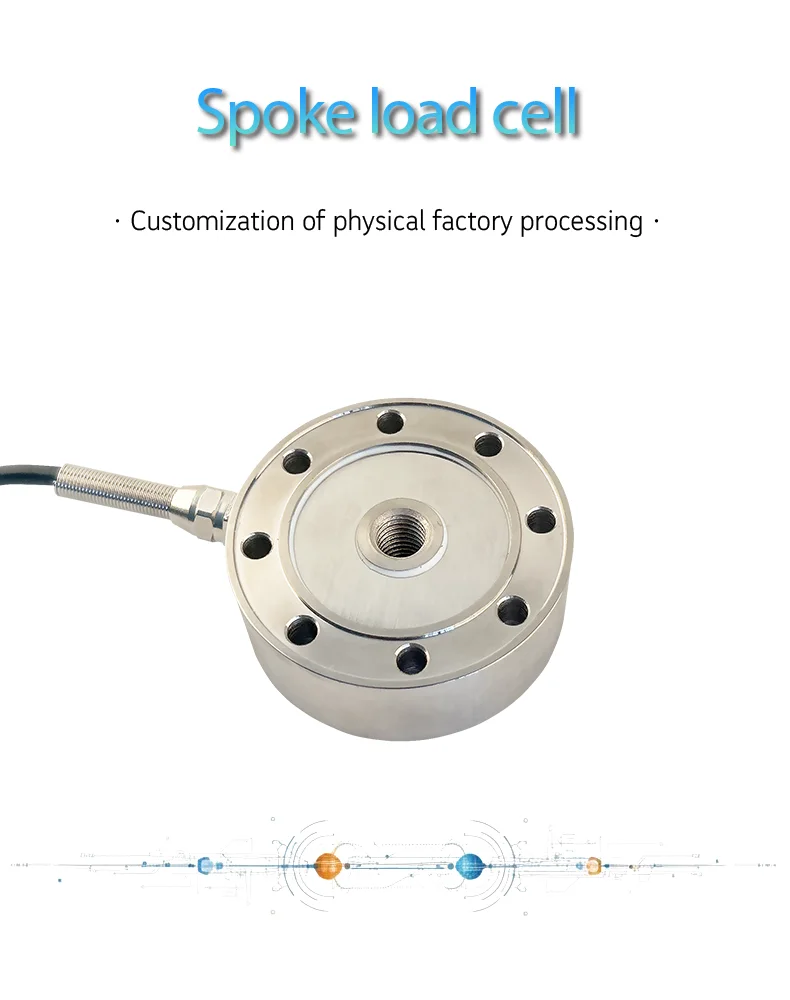

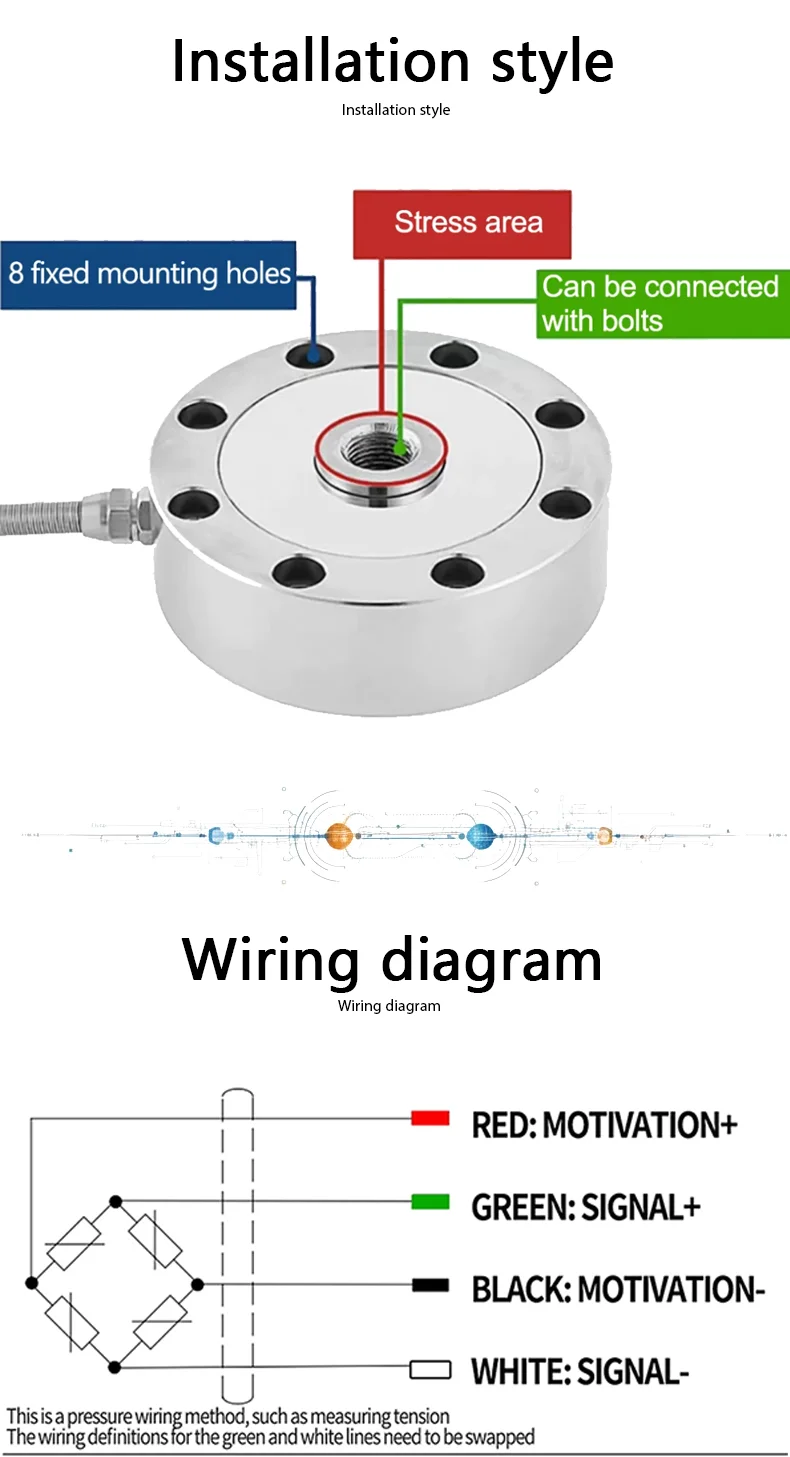

The LF1 spoke load cell (wheel/pancake style) is designed for stable compression force measurement in compact installations. It features a central threaded loading point for bolted fixtures and peripheral mounting holes for easy integration. The sensor outputs a standard 4‑wire Wheatstone bridge signal (2 mV/V), compatible with weighing indicators, amplifiers, transmitters, and PLC/DAQ modules.

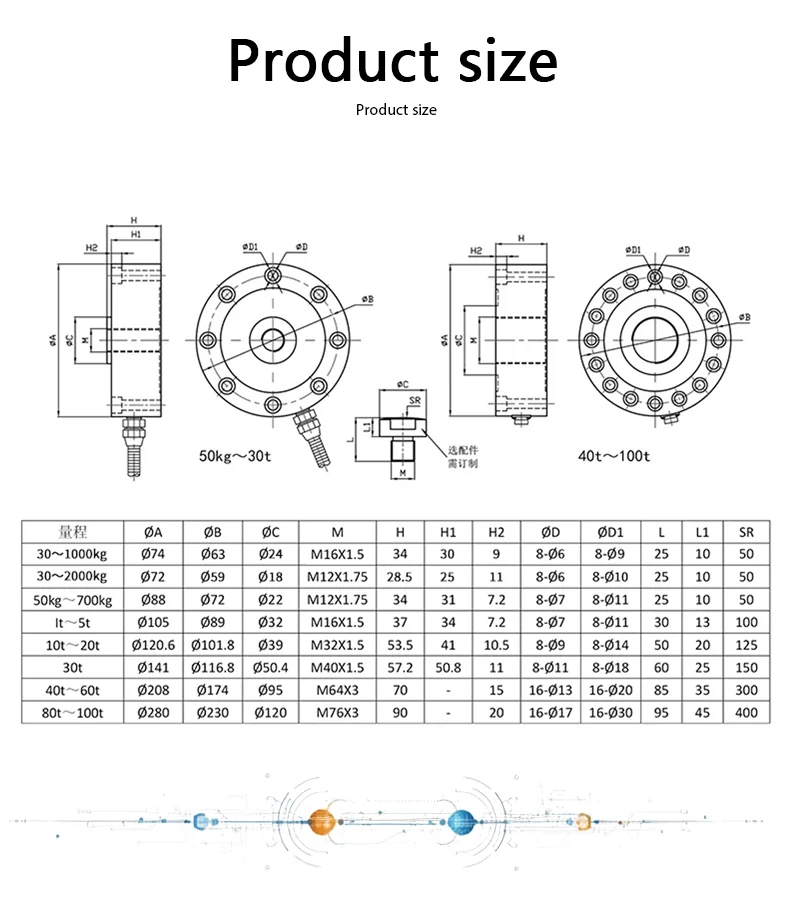

This series supports multiple capacity options (per drawing: 30 kg–100 t). Different ranges come with different outer diameters, center threads, and mounting hole patterns, making it suitable for press force monitoring, fixture force measurement, bolt preload testing, load testing rigs, and automation force control applications.
