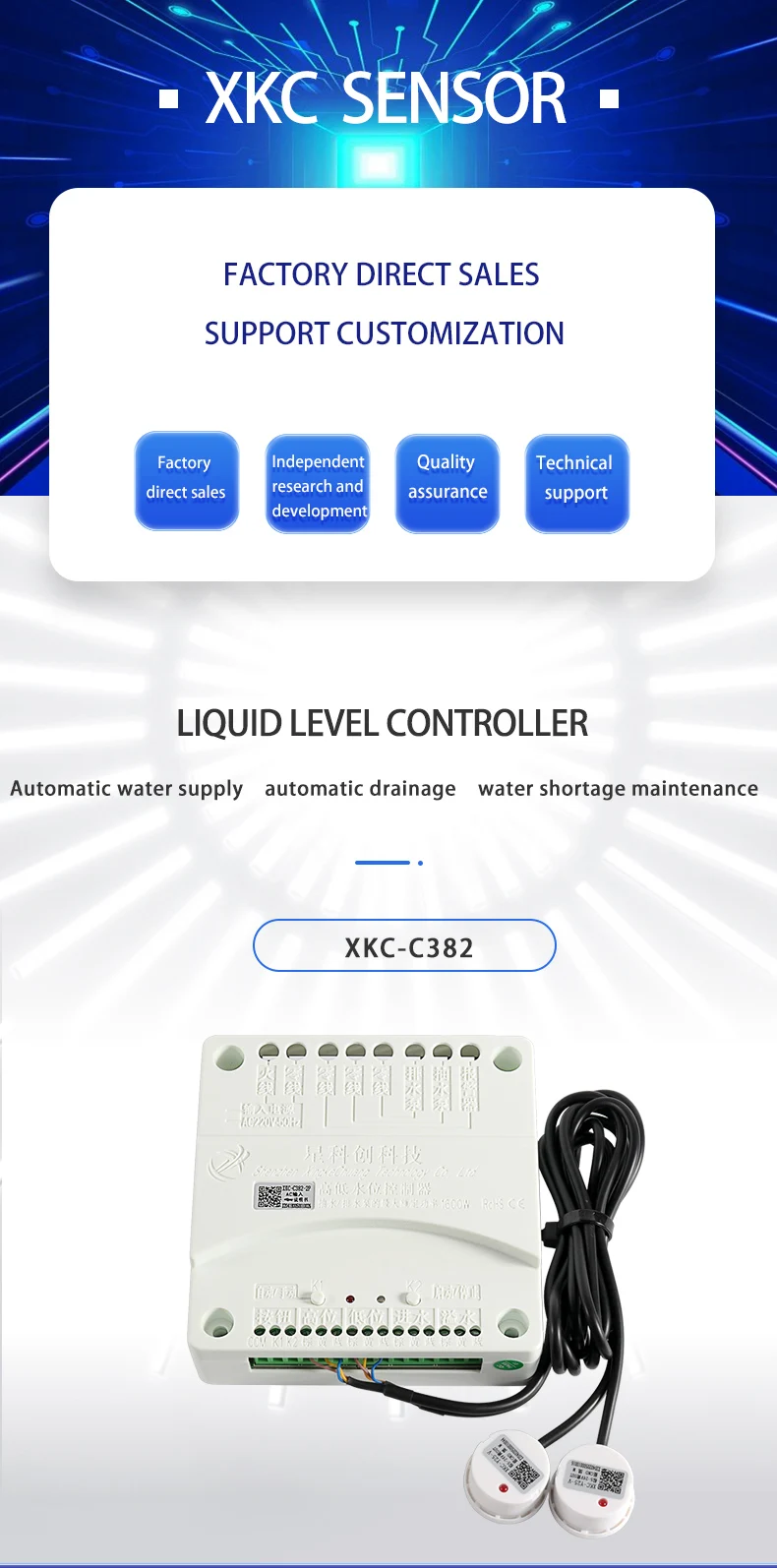

XKC-C382 Automatic Water Supply And Drainage Level Controller Water Level Sensor Non-contact Level Sensor Water Level Sensor

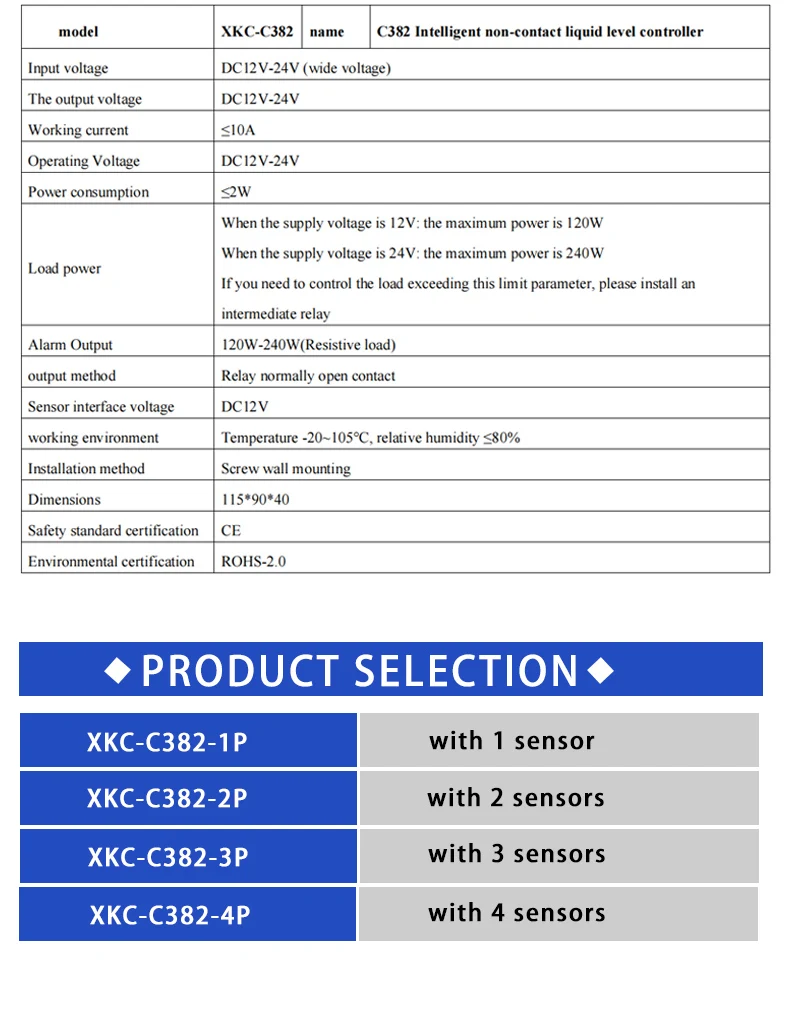

1、Product selection model

XKC-C382-1P, (with 1 sensor)

XKC-C382-2P, (with 2 sensors)

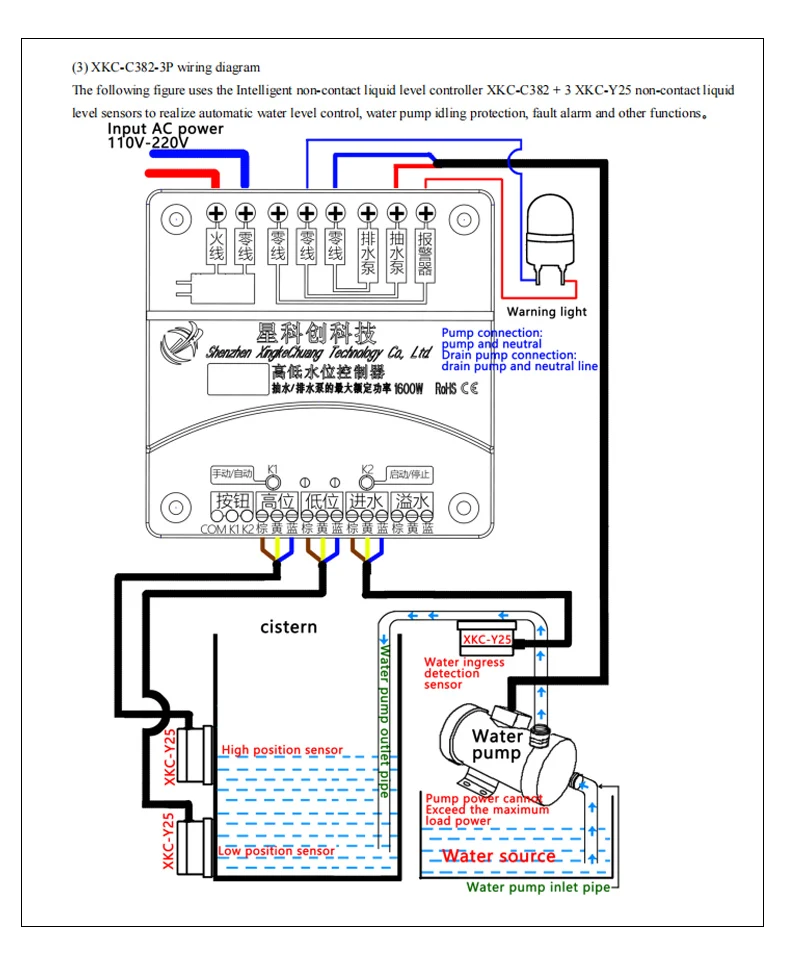

XKC-C382-3P, (with 3 sensors)

XKC-C382-4P, (with 4 sensors)

2、Overview

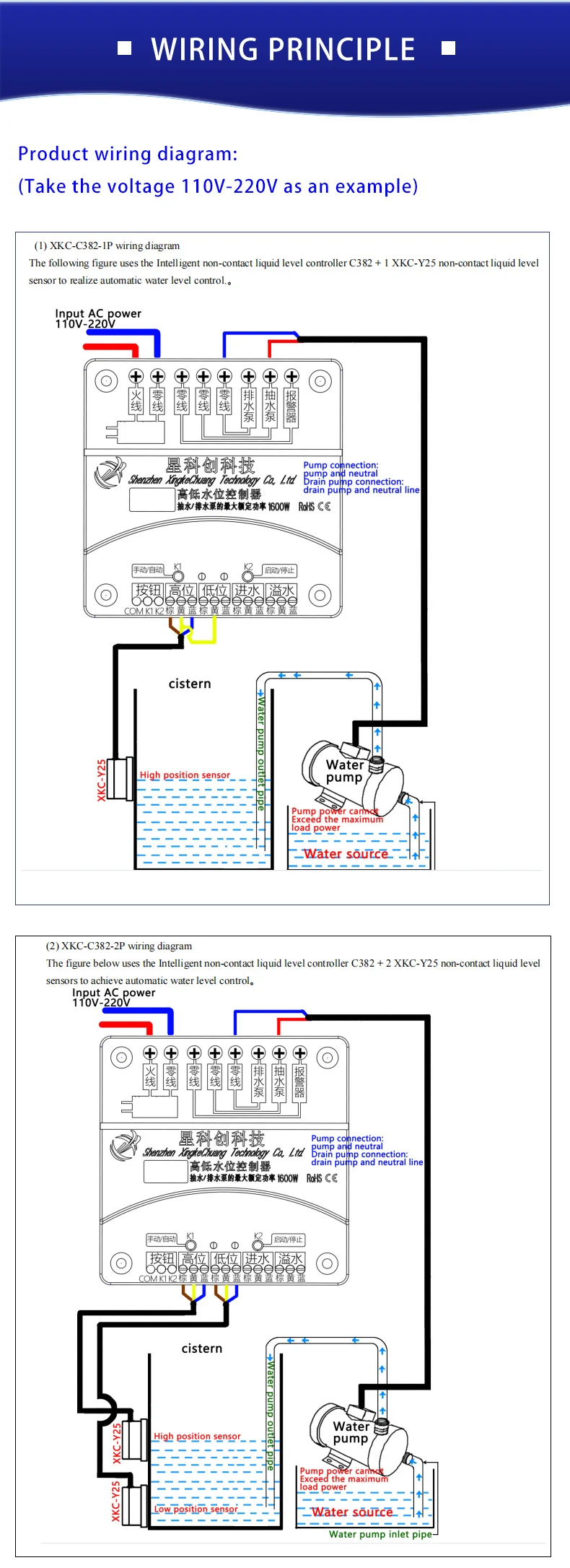

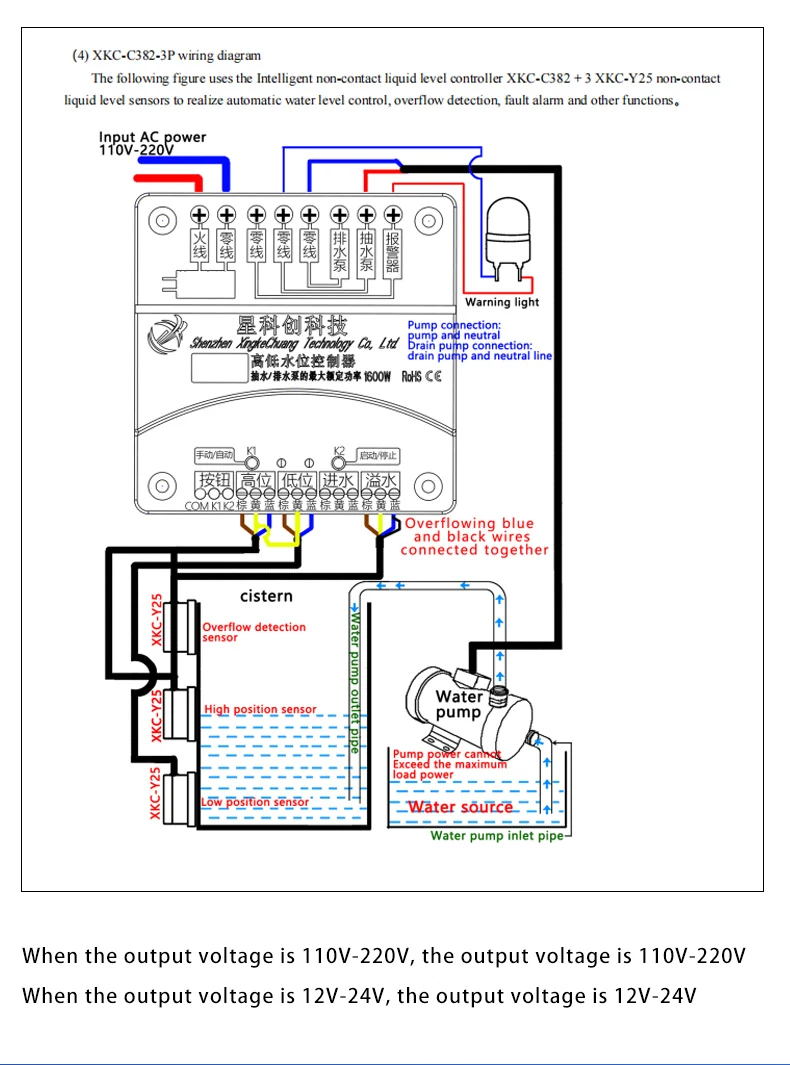

XKC-C382-110V-220V-XP or DC12-24V high and low level controller and two non-contact liquid level detection heads realize the function of liquid level high and low control: when the container liquid level is too low, the low liquid level alarm signal sent by the low liquid level sensor is triggered to trigger C382 The controller closes the relay and starts the water pump to add the liquid level. When the liquid level reaches a certain height, the high liquid level sensor sends out a signal to trigger the C382 controller to open the relay and automatically stop the water pump to work in this way. Thereby, the function of automatic control of the container liquid level is realized, and the container liquid level is kept stable.

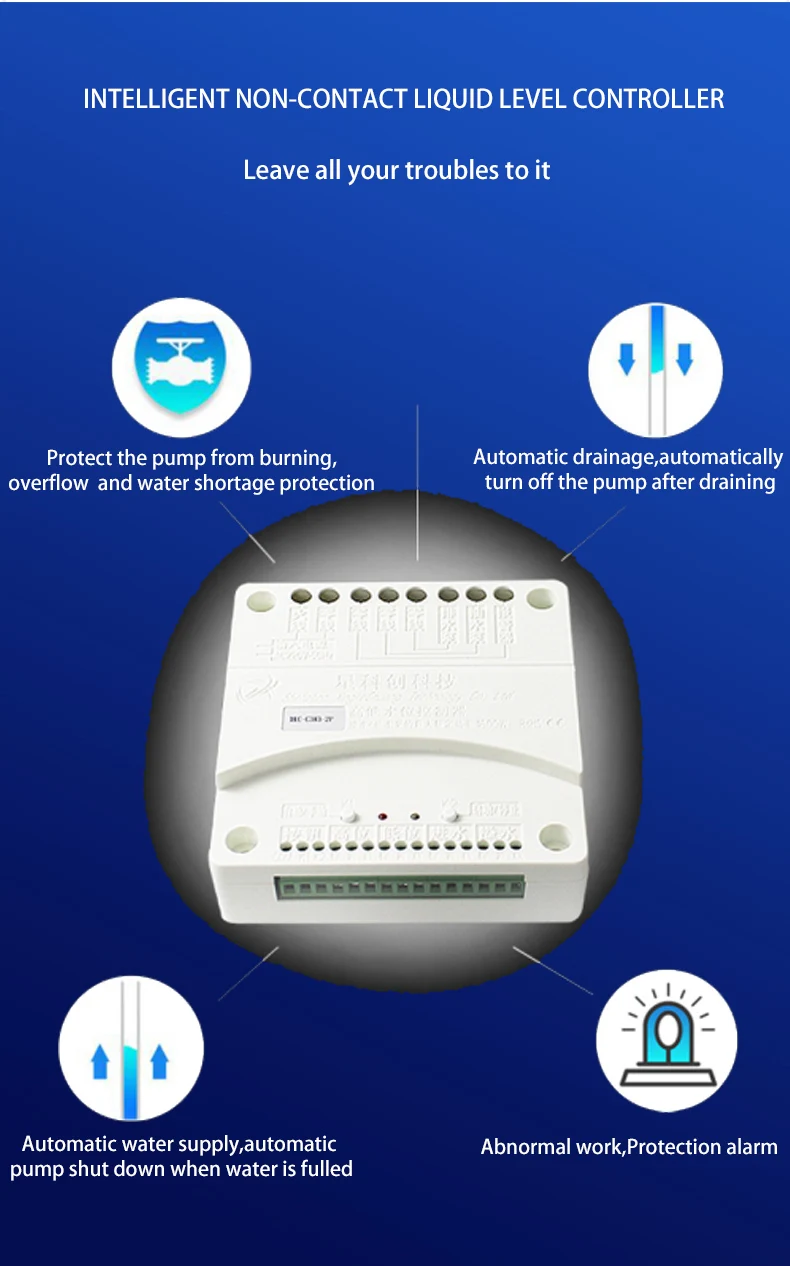

3、Product Features

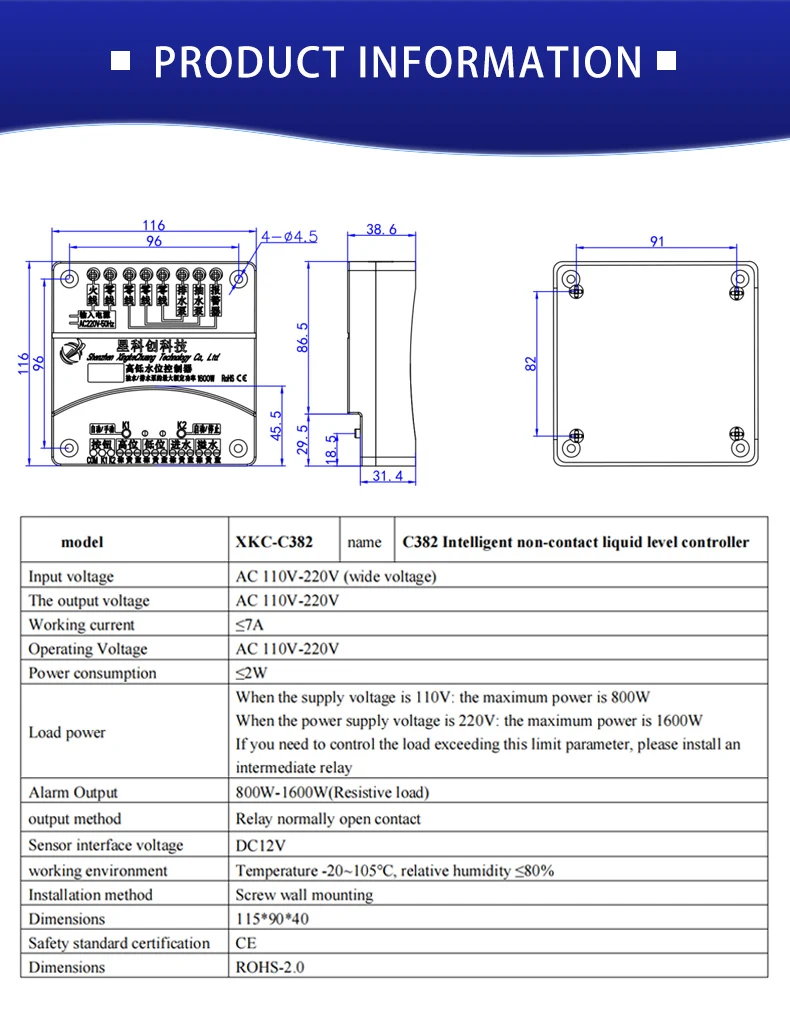

AC110V-220V or DC12-24V wide voltage power supply

Relay active contact output, suitable for various load control.

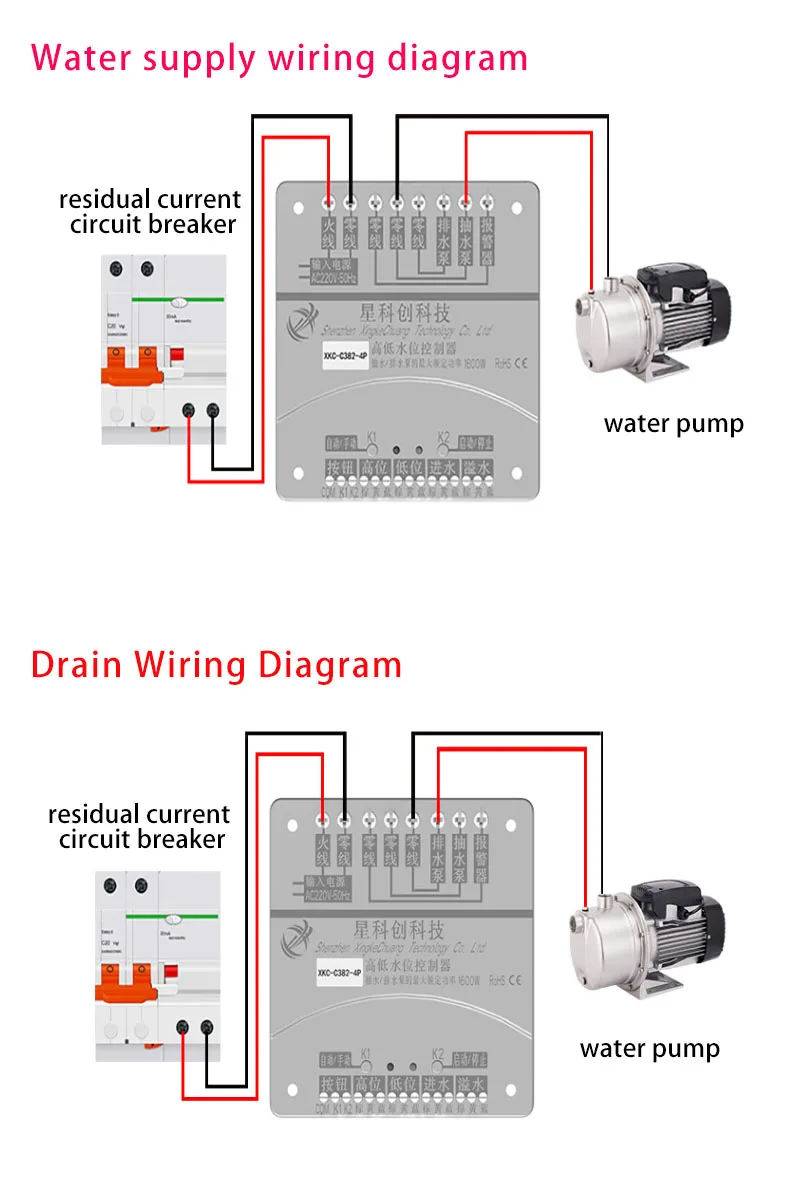

The control is diversified, and the pump can be controlled in manual or automatic mode.

Screw wall mounting is simple and convenient.
