100KHz - 1GHz Microwave RF voltage probe Oscilloscope Multimeter RF voltage measure probe

RF voltage probe, applicable frequency range: 100kHz~ 1GHz, the probe tip can be retractable. With a voltmeter (multimeter) or oscilloscope, it can track and qualitatively detect RF signals online. It is suitable for primary short-wave, RF and microwave measurement experiments or equipment maintenance. At 50 MHz, the probe input impedance is greater than 1kOhms, and the input capacitance is less than 5pF, which has little load effect on the circuit under test.
The DC voltage of the 0dBm power detection output is about tens to 100 millivolts, and the maximum detection voltage is 5Vp-p. The total length of the probe is about 10cm, the length of the main body (excluding the probe and the tail socket) is about 6.3cm. It is covered with a plastic protective layer, which feels comfortable and durable.

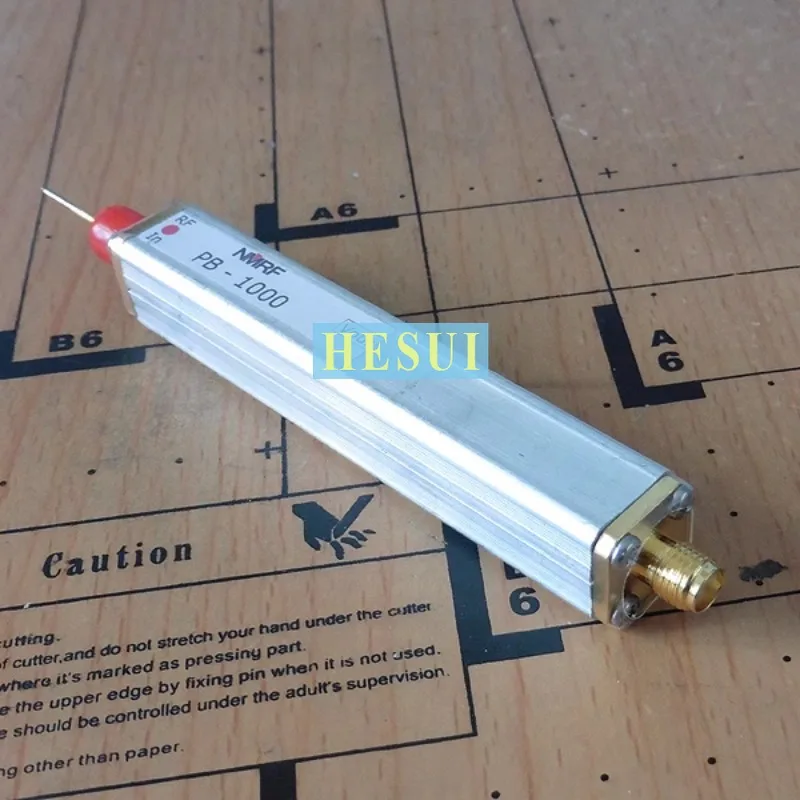

The probe output tail interface is standard for SMA female socket.
Model: PB-1000

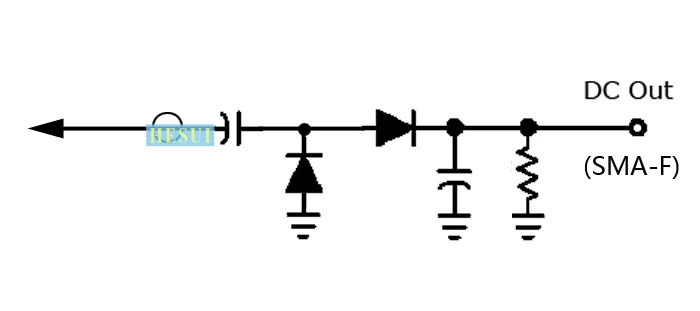

Circuit diagram:

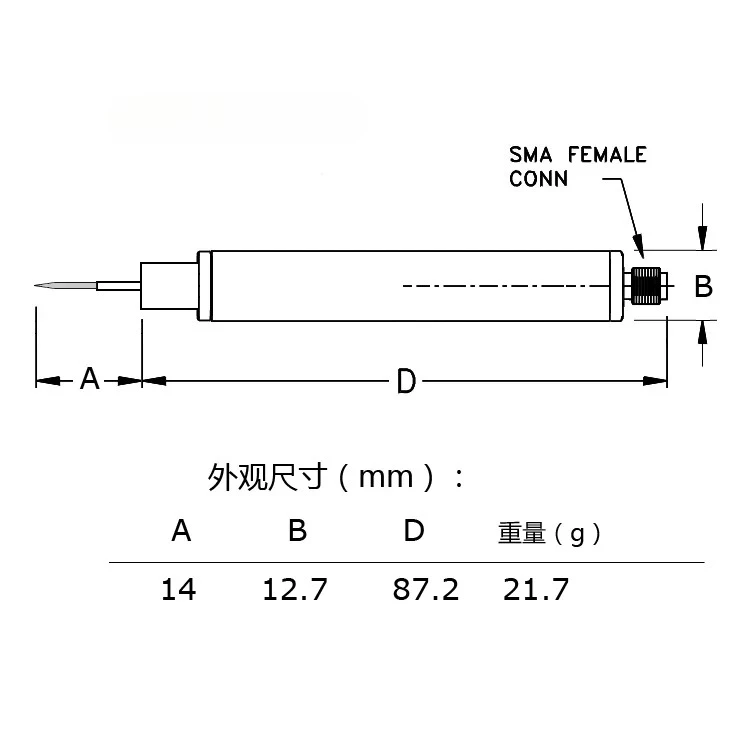

Appearance size:
