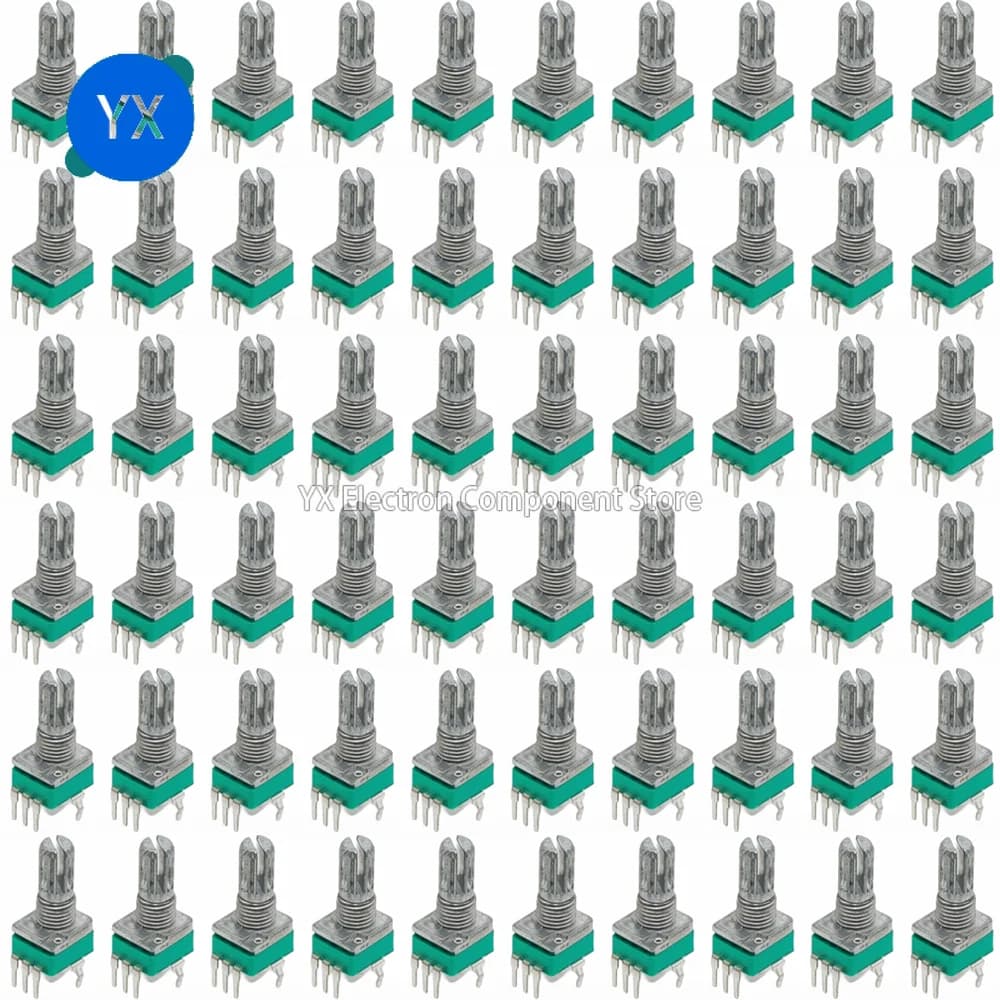

100PCS RK097 Precision Linear Potentiometer Vertical Single Link Shank 15mm D axis B2K B10K B20K B50K B100K B500K B1M

100PCS RK097 Precision Potentiometer Vertical Single Link Shank Length 15mm D-axis B2K B10K B20K B50K B100K B500K B1M

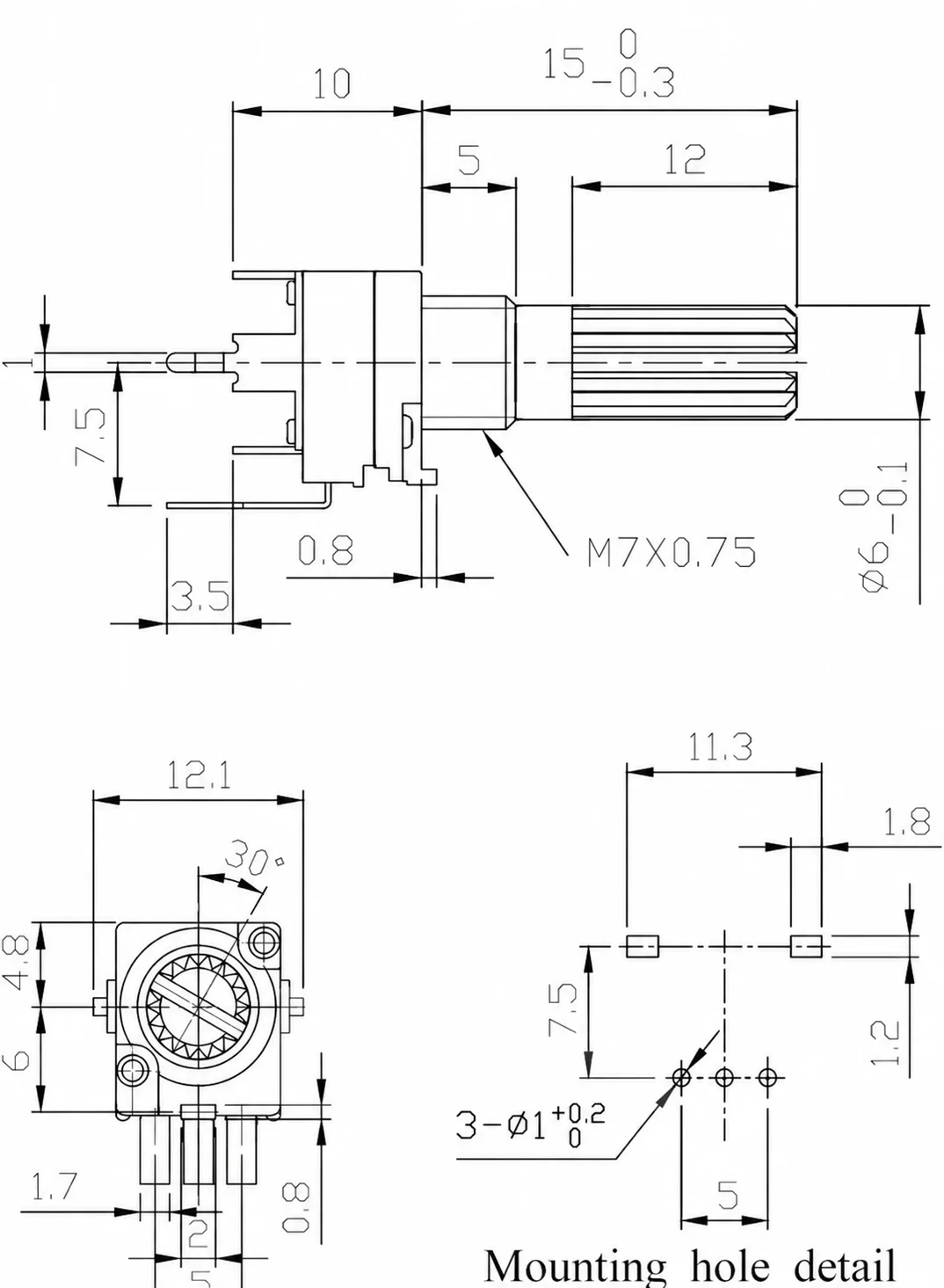

Specifications:

Model: RK097 Resistance
Values: 250K Shaft Length: 15mm Pin Count: 5 pins Design: Vertical bent pins with bracket Key Features: Multiple Resistance Options: Offers a variety of resistance values to meet different circuit requirements. Smooth Adjustment: Stepless design allows for smoother and more precise adjustments. Easy Installation: Vertical bent pin design with bracket makes installation and mounting convenient. Applications: Audio equipment Electronic instruments Home appliances Dimming devices Various control circuits
SPECIFICATIONS
Full Rotation Angle: 300° ±10°
Rotational Torque: 10~200 gf·cm
Rotational Stop Strength: 3 Kgf·cm
Shaft Push-Pull Strength: 8 Kgf max.
Shaft Wobble: 0.6 × L/20 mm p-p max.
Full Impedance Allowable Deviation: ±20%
Residual Resistance:
R ≤ 10KΩ: 10Ω
10K < R < 250KΩ: 20Ω
R ≥ 250KΩ: 0.1% max. of total resistance
Rated Power:
B taper: 0.05W
Other taper: 0.025W
Maximum Operating Voltage:
B taper: 50V AC
Other taper: 25V AC
Sliding Noise: Less than 100mV
Insulation Resistance: 100 MΩ min. at 250V DC
Dielectric Withstanding Voltage: 1 minute at 300V AC
