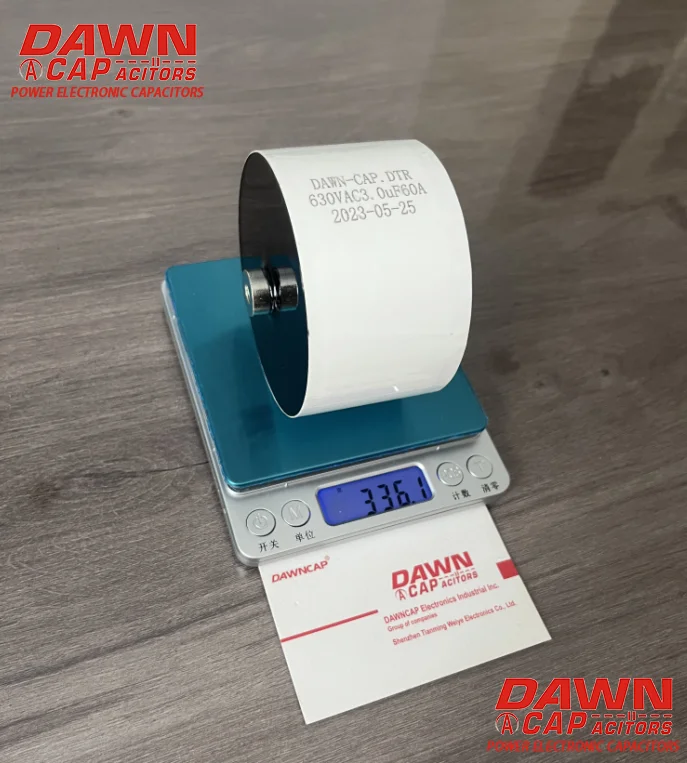

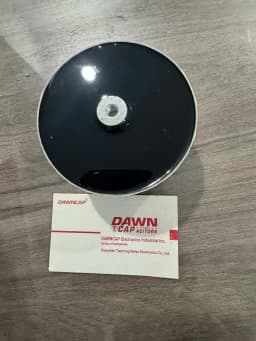

DAWNCAP DTR 4UF 1200VAC& 3UF 630VAC 60A Resonant Capacitor 85MM*50MM M6

Our Experience

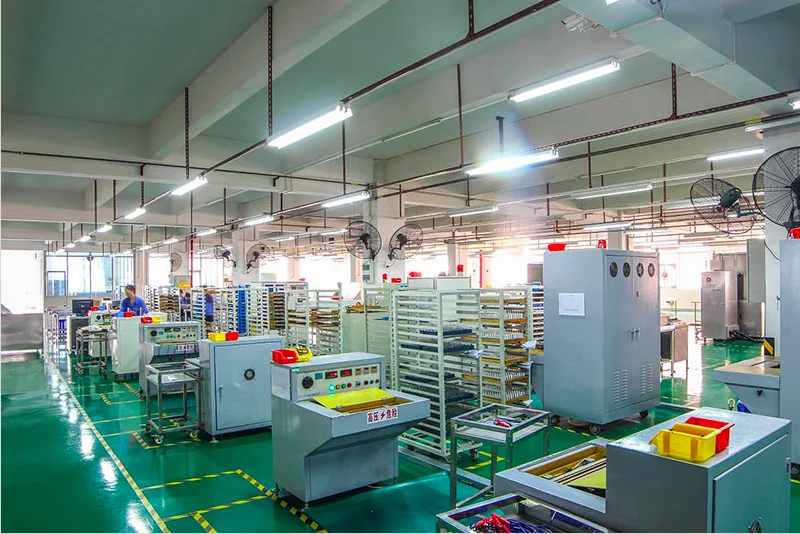

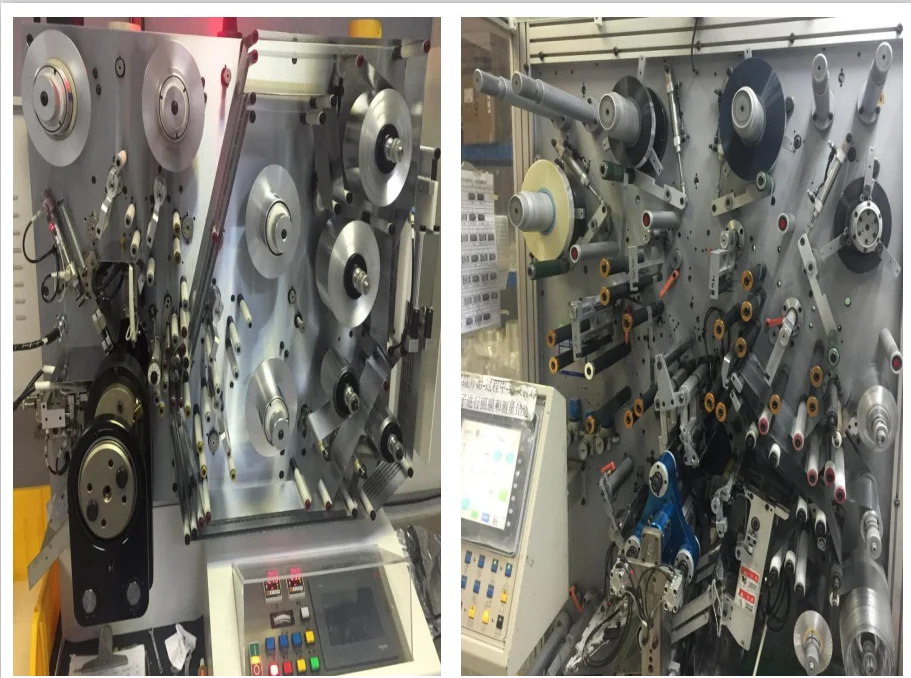

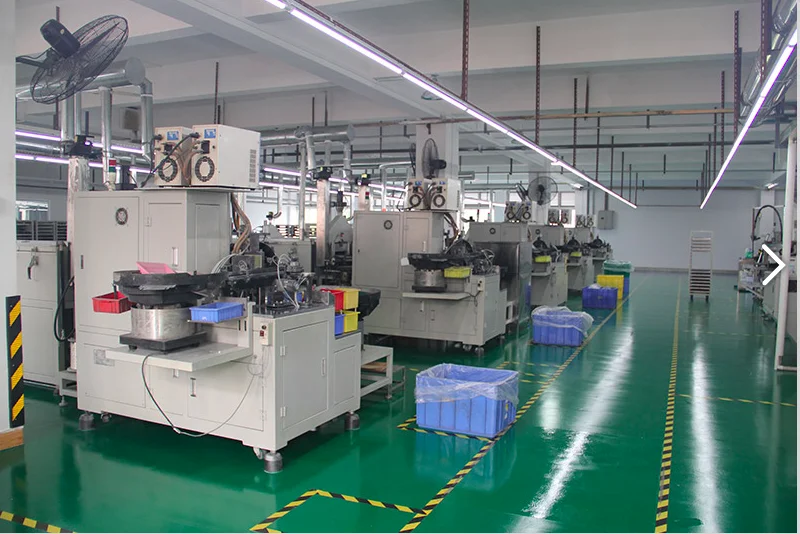

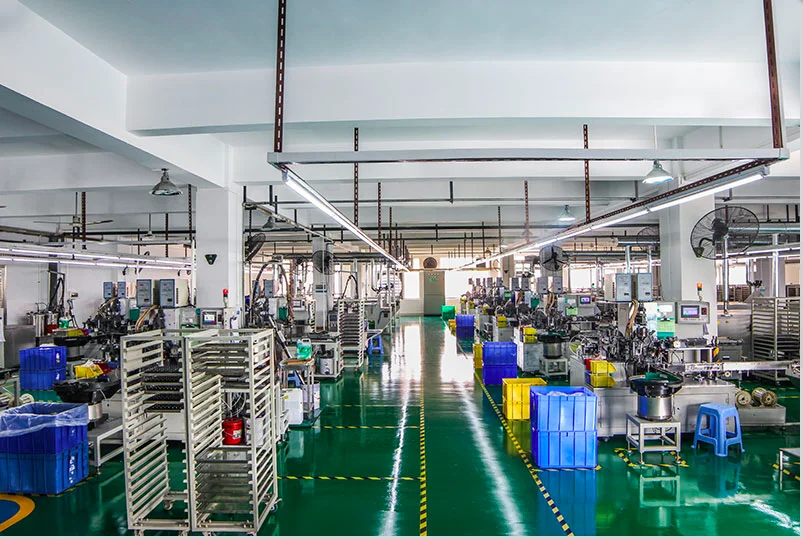

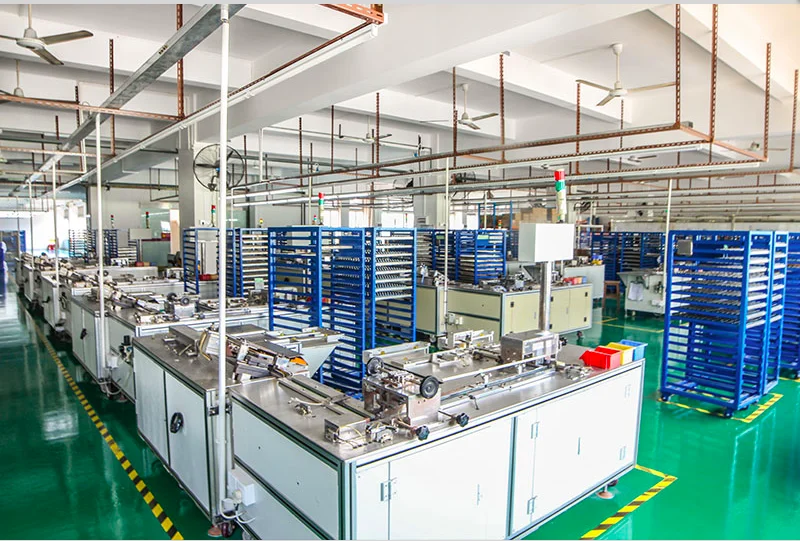

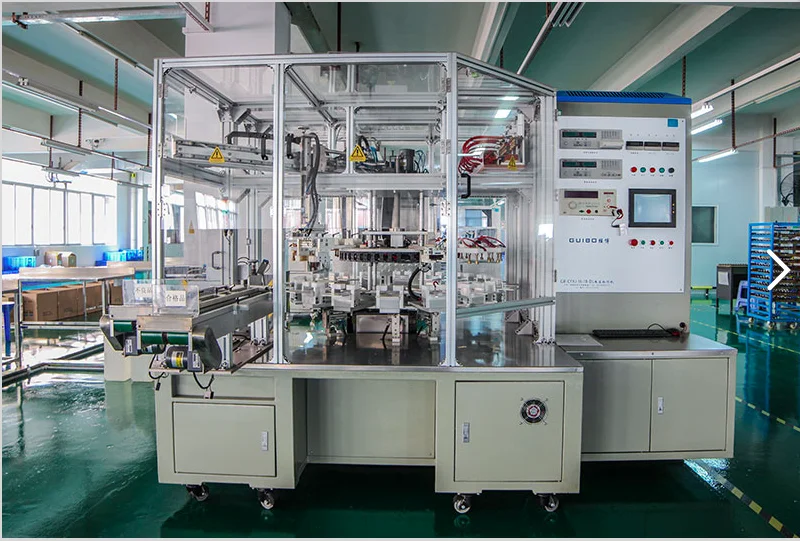

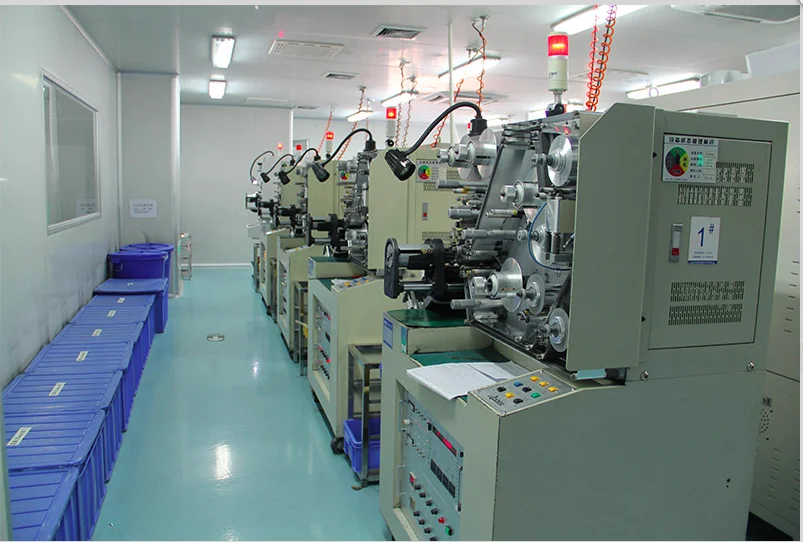

DAWNCAP in 2003 started out like a small factory, within years of full commitment and significant investments we have grown to a large-scale manufactory plants, selling our products all over the world in more than 30 different countries. Today DAWNCAP’s plants rely on mostly automated production process, designed by expert engineers in order to ensure the highest level of standardize quality for each single component. Each years more than 5 million capacitors leave our factories and start running on many different systems, from Industrial to Medical applications. Furthermore our Technical team provides an assistance dedicated to all our customers offering them the right product for all their need, we are proud to say that during this 20 years constant grown, the fidelization and satisfaction of our clients represent our biggest achievement

Product features

Reference standard: IEC 61071

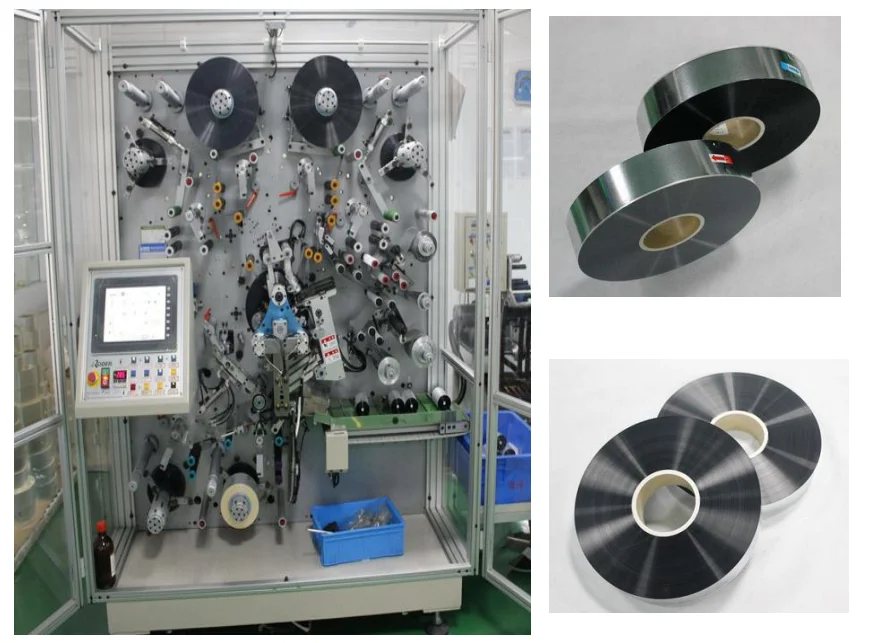

Media: Metallized polypropylene film

Structure: Dry non inductive structure, polyester tape packaging, resin filling (UL94 V-0)

Electrical characteristics

Operating temperature: - 40 to + 85 ˚ C

Capacity range: 0.5 to 12 μ F

Rated voltage: 400 to 8000 VAC

Capacity deviation: ± 5%,± 10%

Loss factor: ≤5 × 10-4 @ 1KHz, 20±5 ˚ C

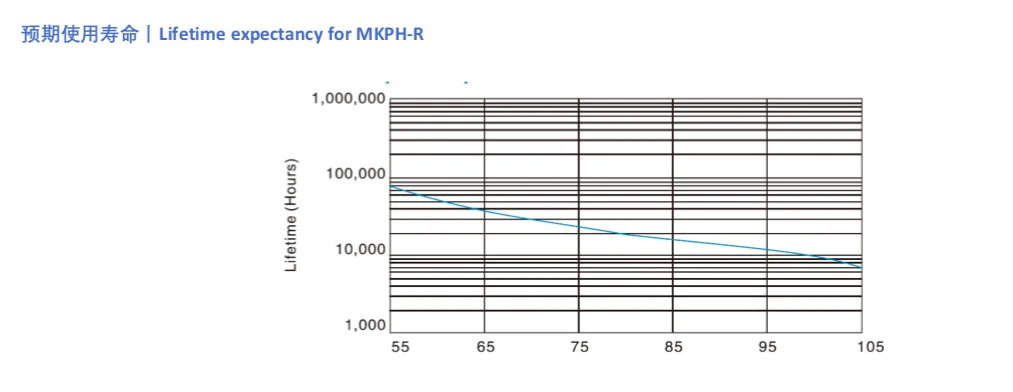

Life expectancy: 100000 hours @ UN, 70 ˚ C (hot spot temperature)

Withstand voltage between poles: 1.5UrDMS (AC) @ 10s, 20±5 ˚ C

Withstand voltage of polar shell: (1.5upeak + 1000) VAC, minimum 3000VAC (10s, 50Hz)

Insulation resistance: (IR × Cn) 30000s (no more than 30g Ω), 100VDC (20 ± 5 ˚ C) , 1 minute

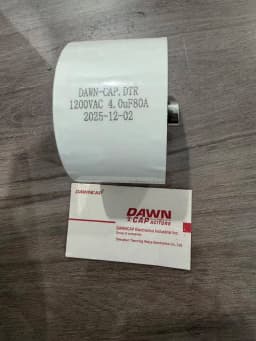

DTR-1200VAC 4UF -M6

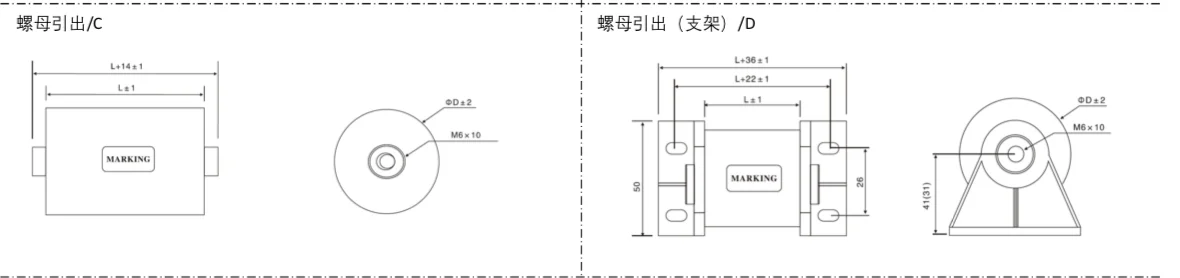

size:  85*50MM   M6

Irms: 80A

Vrms:1200VAC

More product specifications:：www.dawncap.cn
