M5Stack AtomS3 ESP32-S3 Programmable Controller 0.85 Inch IPS Screen WiFi BLE MPU6886 Gyro USB-C Mini IoT Development Board

M5Stack AtomS3

Description

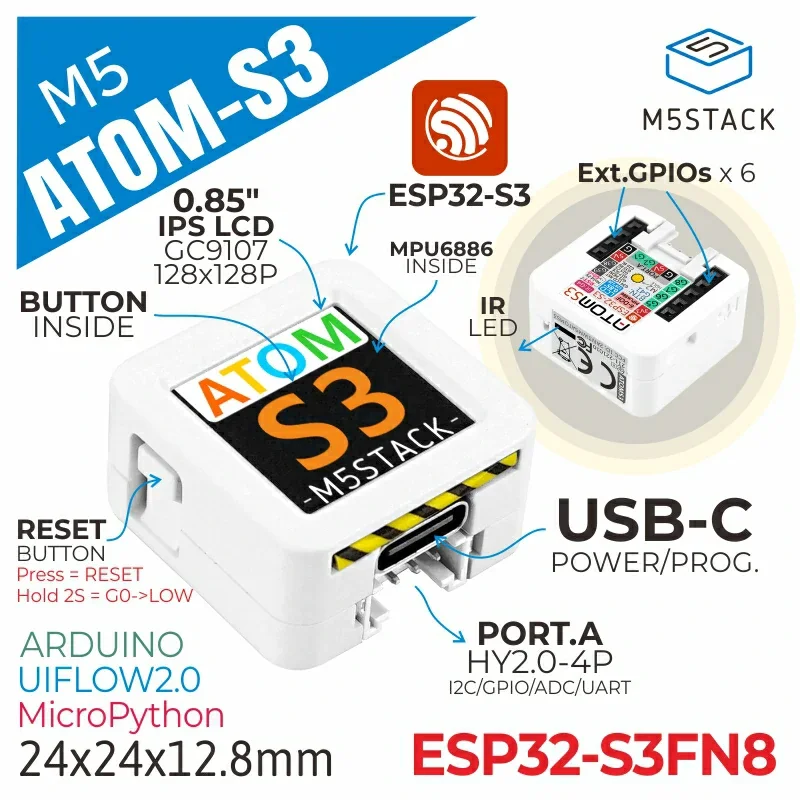

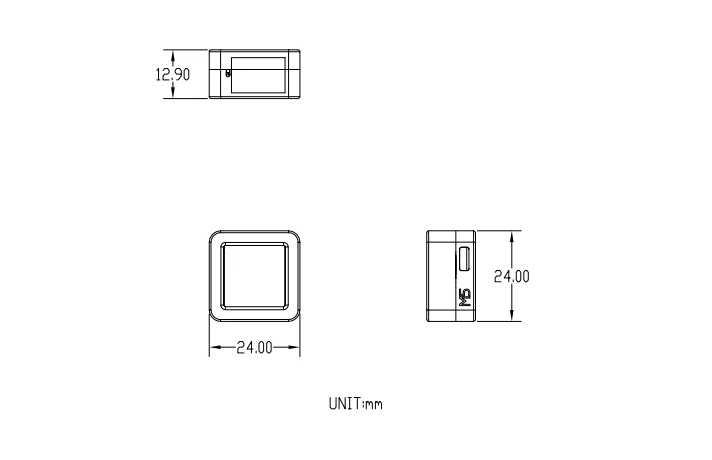

AtomS3 is a highly integrated programmable controller based on the ESP32-S3 main controller. It integrates the ESP32-S3 main controller, Wi-Fi functionality, 8 MB on-chip Flash, and a 0.85-inch IPS screen. Below the screen, there is a programmable button function, a built-in 5V to 3.3V circuit, and a 6-axis gyroscope sensor MPU6886. It has an onboard USB Type-C interface for power supply and firmware download, as well as a HY2.0-4P expansion port. The bottom reserves 6 GPIO and power pins for easy expansion applications. The product size is 24.0 x 24.0 x 13.0mm, suitable for various embedded smart device applications.

Features

Developed based on ESP32-S3FN8
Built-in USB download function
Built-in 3-axis gyroscope and 3-axis accelerometer (MPU6886)(I2CAddress: 0x68)
Programmable button
0.85-inch LCD screen
Infrared transmission function

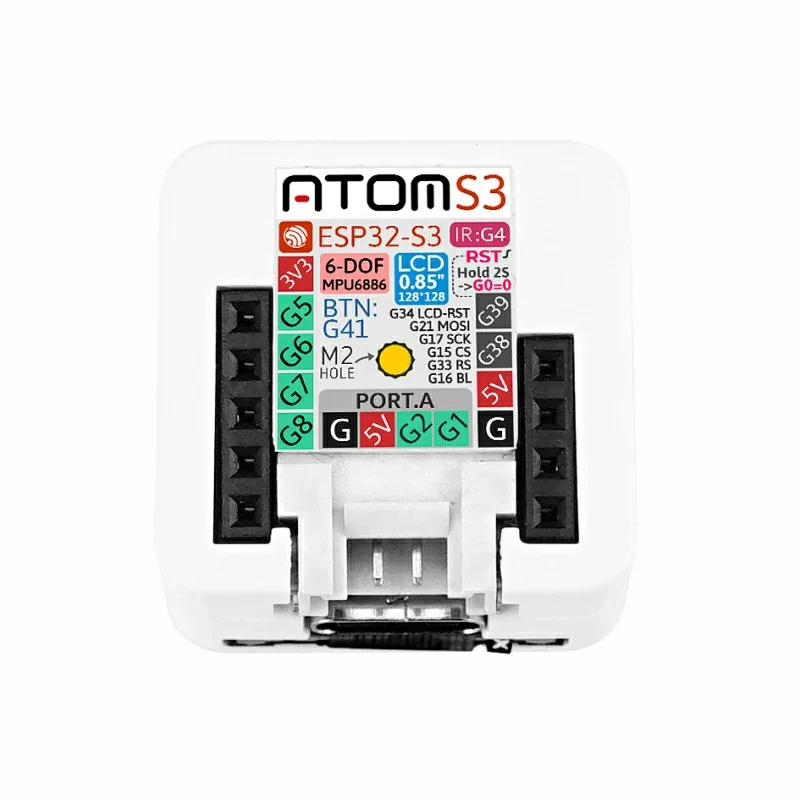

Expandable pins and interfaces
Development Platform
UiFlow2
Arduino IDE
ESP-IDF
PlatformIO

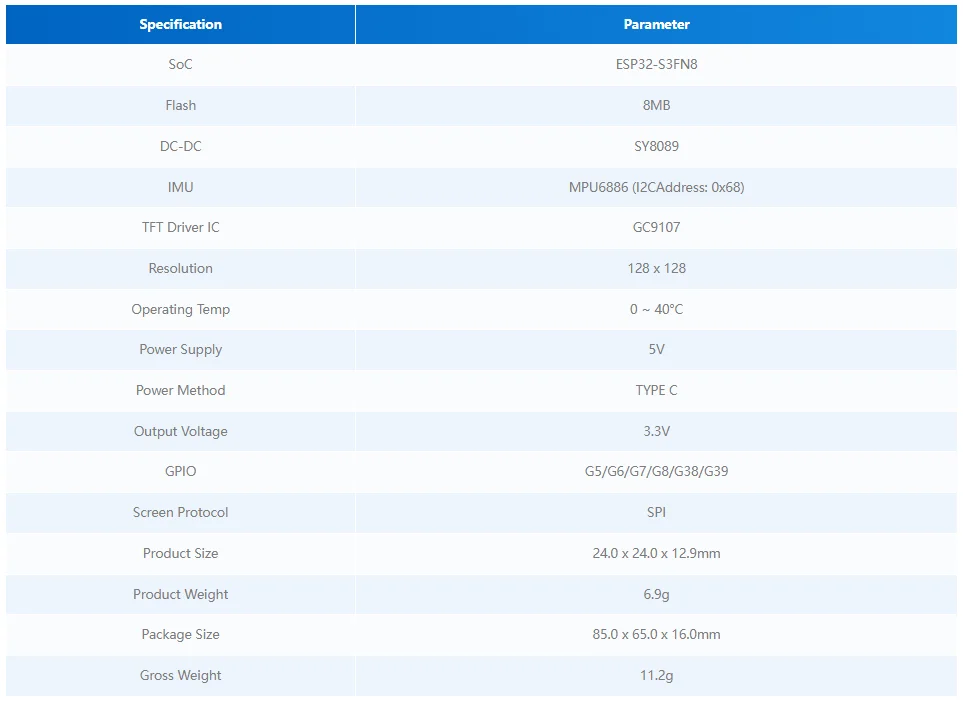

Specifications

Specifications

Product Details

Model Size
