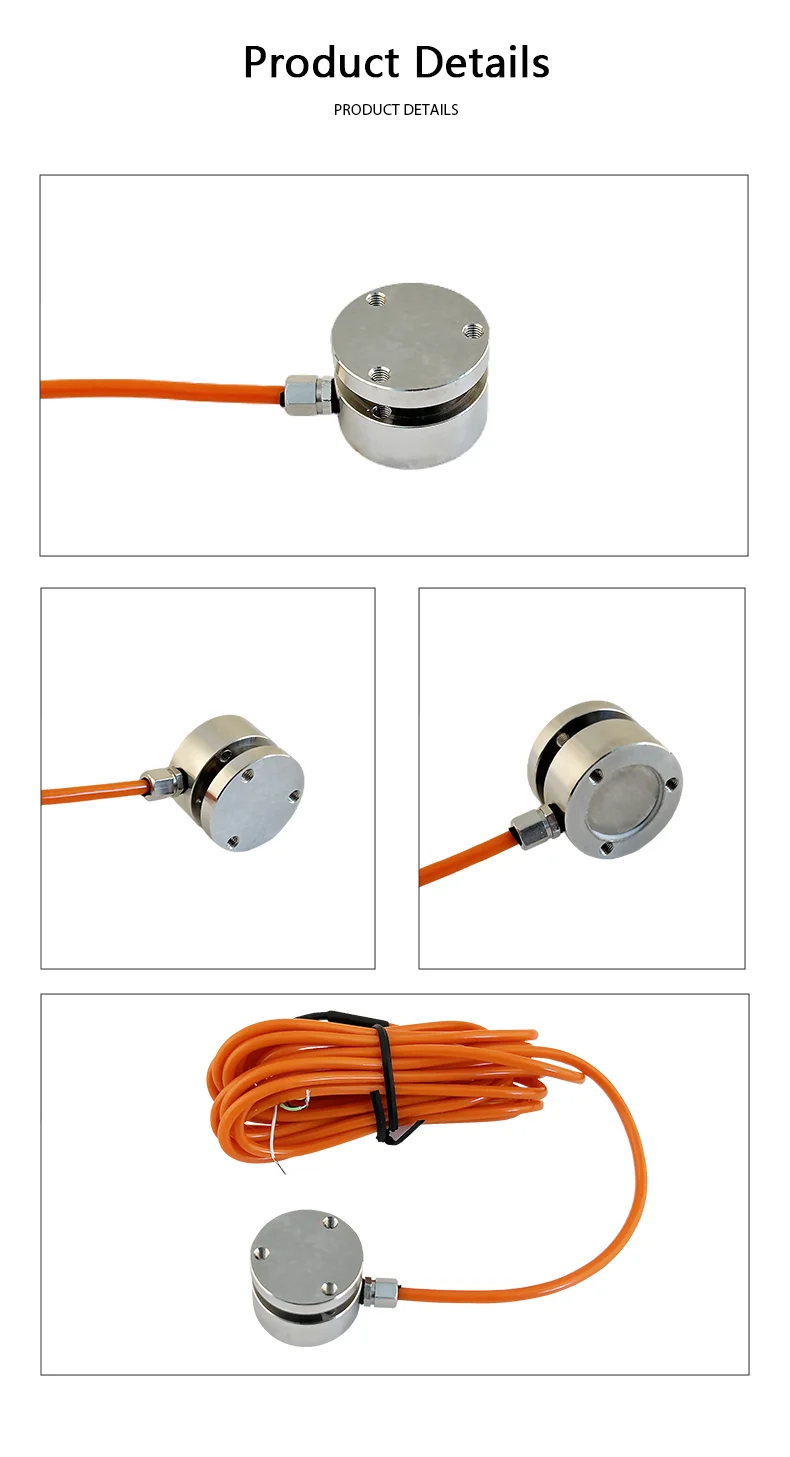

High Precision Load Cell with RS485 Modbus RTU Transmitter Module Weight Sensor 4-20mA 0-10V Analog Signal Amplifier
74$
40.43$
Quantity:
1
Availability:
Color
Model Number
Card Payments
Crypto Payments
Easy return
Reliable Shipping

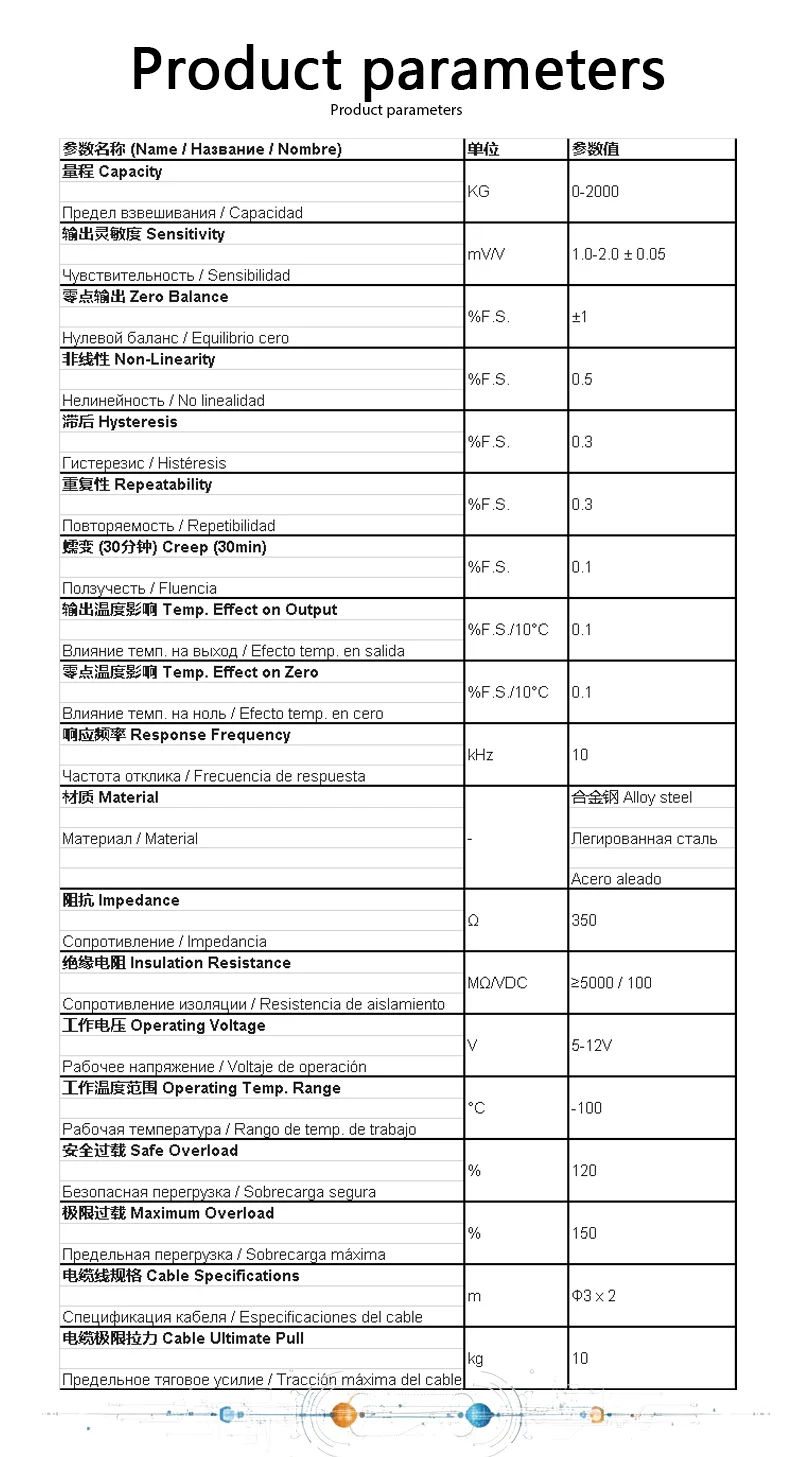

技术参数Technicalparameters
量程Capacity
0-5T
输出灵敏度Sensitivity
1.0-2.0±0.05mV/V
需点输出Zero Balance
±1%F.S.
非线性Non-Linearity
0.5%F.S.
滞后Hysteresis
0.3%F.S.
重复性Repeatability
0.3%F.S.
蠕变(30分钟)Creep(30min)
0.1%F.S.
TempEffectonOutput
0.1%F.S./10℃
TempEffectonZero
0.1%F.S./10℃
Responsefrequency
10kHz
材质Material
Alloy steel
阻抗lmpedance
350Ω
绝缘电阻Insulation
≥5000MΩ/100VDC
OperatingTempRange
5-10V
0peratingTempRange
-20-80℃
安至过载Safe Overload
120%
MaximumOverload
150%
电缆线规格CableSpecifications
Ф3x2m
线缆极限拉力Cable ultimate pull
10kg
