Nextion Enhanced Series HMI RTP LCD Resistive Display 2.4'' 2.8'' 3.2'' 3.5'' Size 1024 Bytes EEPROM/Larger RAM Touch Module

Nextion Enhanced Series HMI RTP LCD Resistive Display 2.4'' 2.8'' 3.2'' 3.5'' Size 1024 Bytes EEPROM/Larger RAM Touch Module

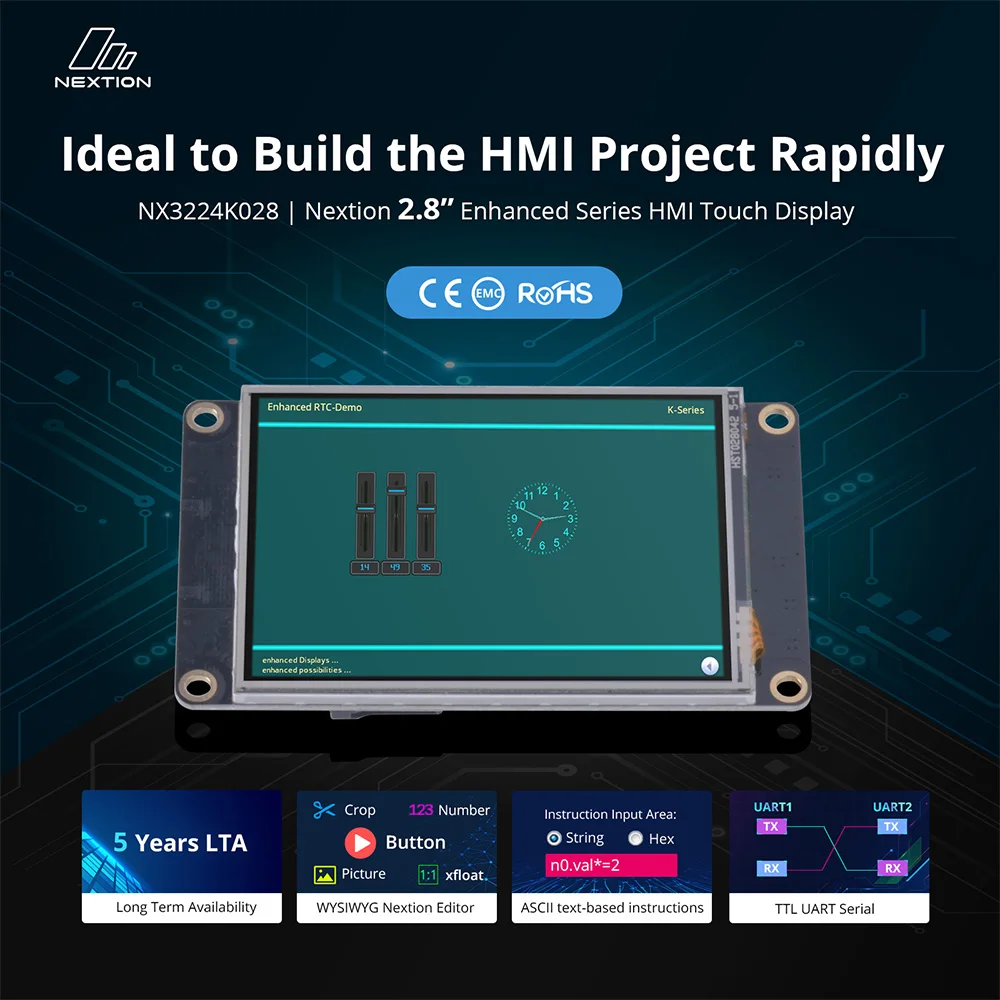

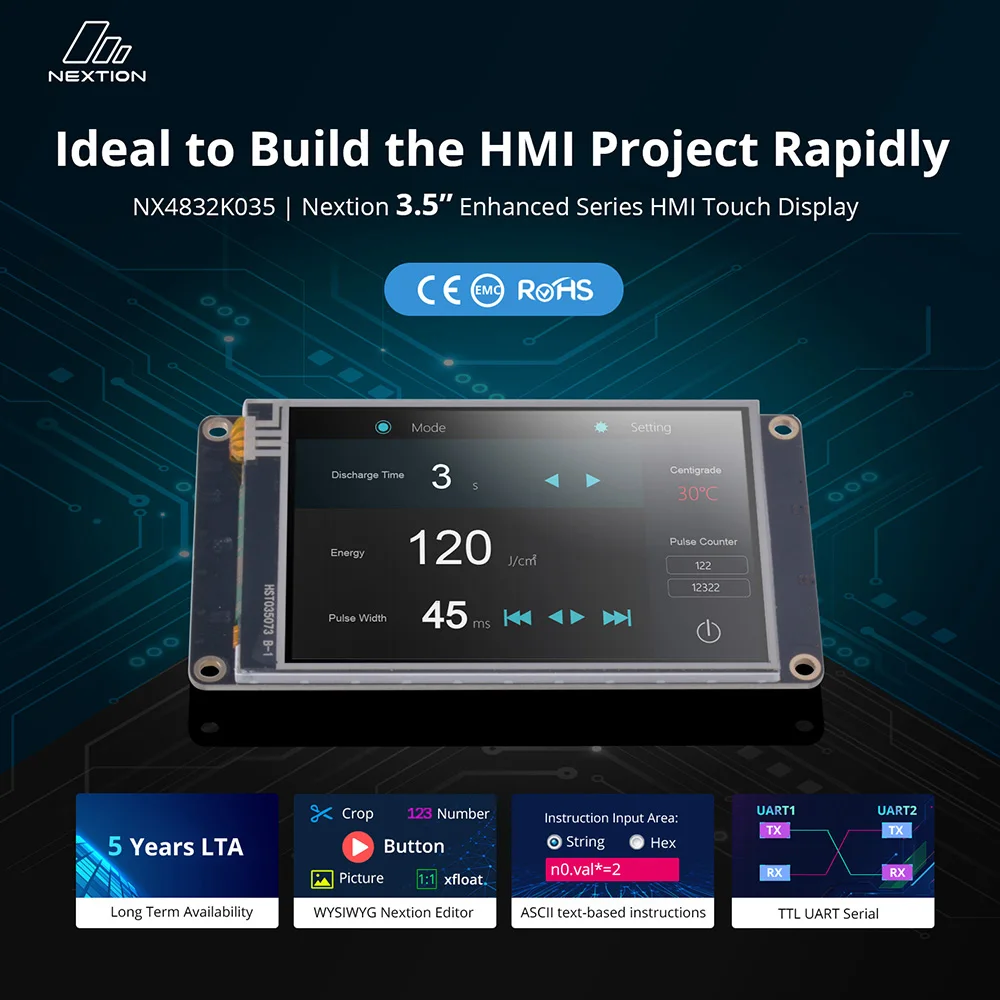

The Nextion Enhanced Series has 7 HMI display sizes including 2.4”, 2.8″, 3.2”, 3.5”, 4.3”, 5.0” and 7.0”.

What’s the difference between Enhanced Series and Basic Series?
— The Enhanced Series hardware feature of 3.5″ and above is more powerful than Basic Series in terms of MCU, Flash Storage and SRAM.
— The Enhanced Series integrates RTC for keeping accurate time, EEPROM for users’ data storage and 8 digital GPIOs (4 PWM capable).

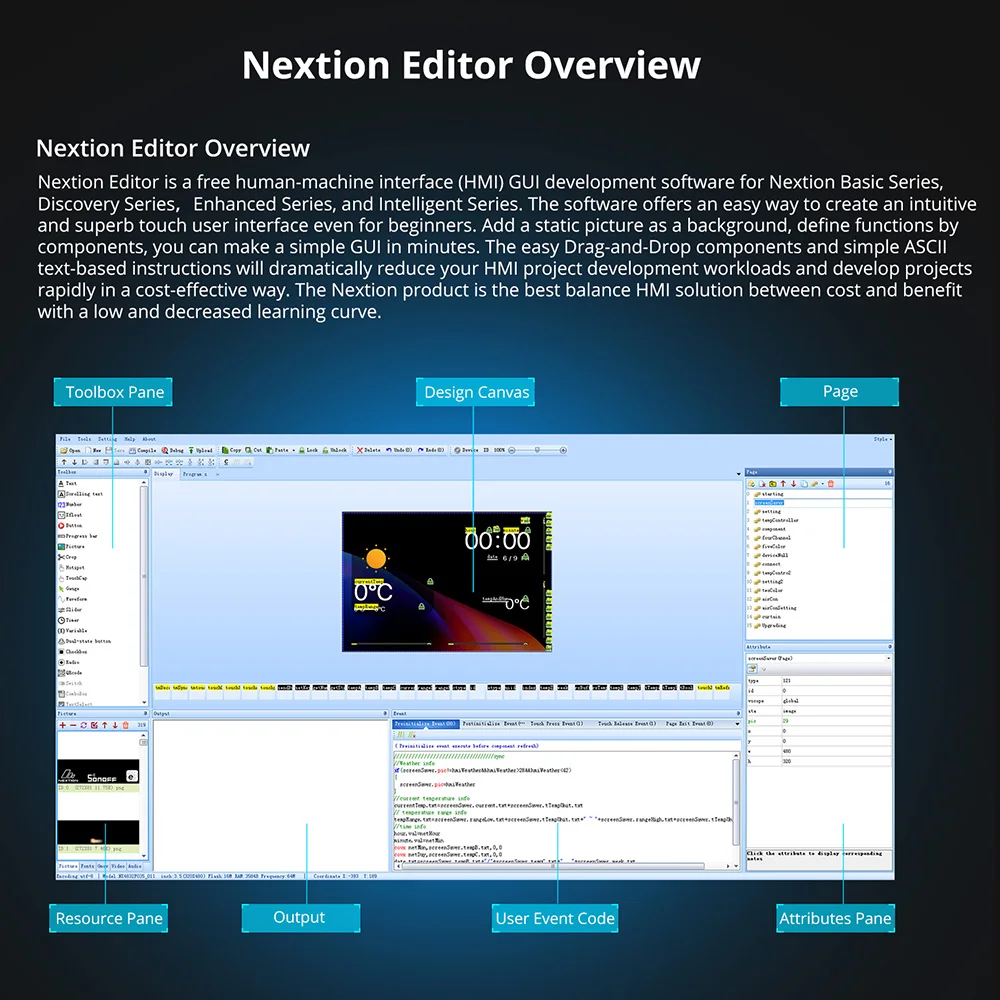

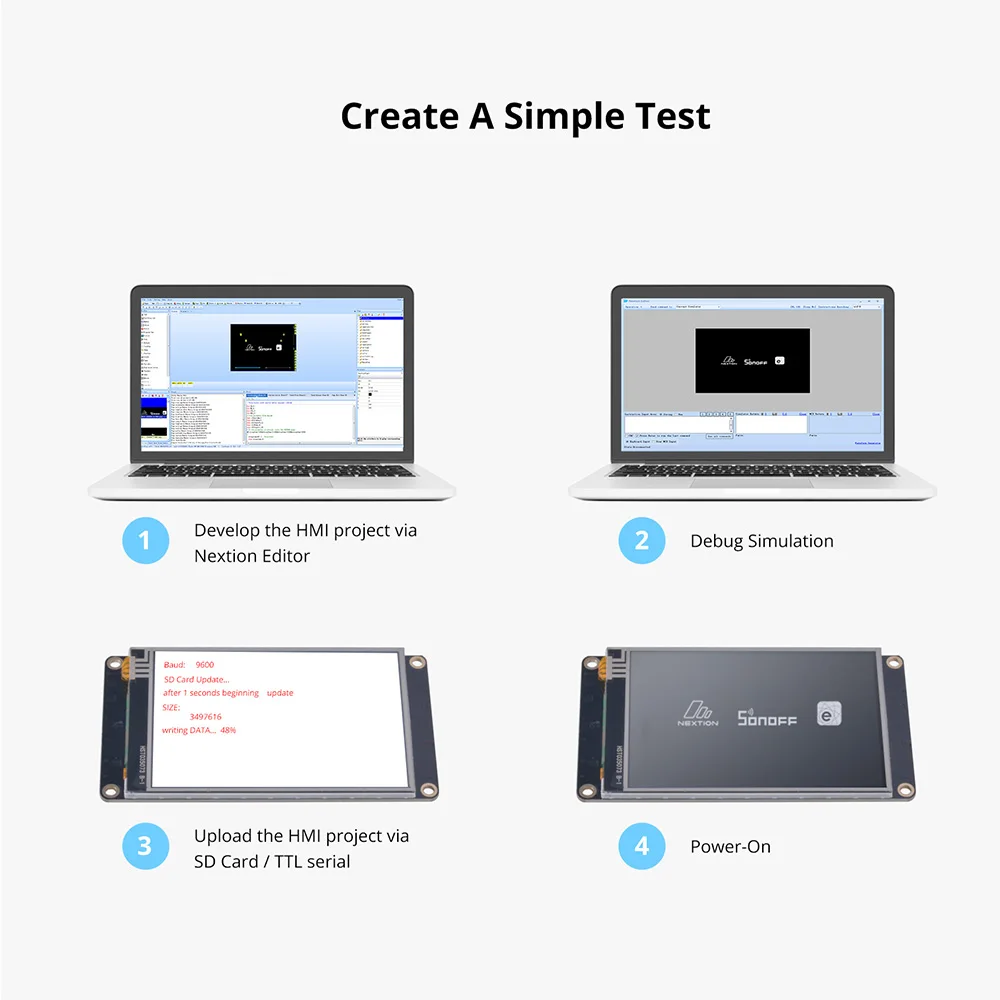

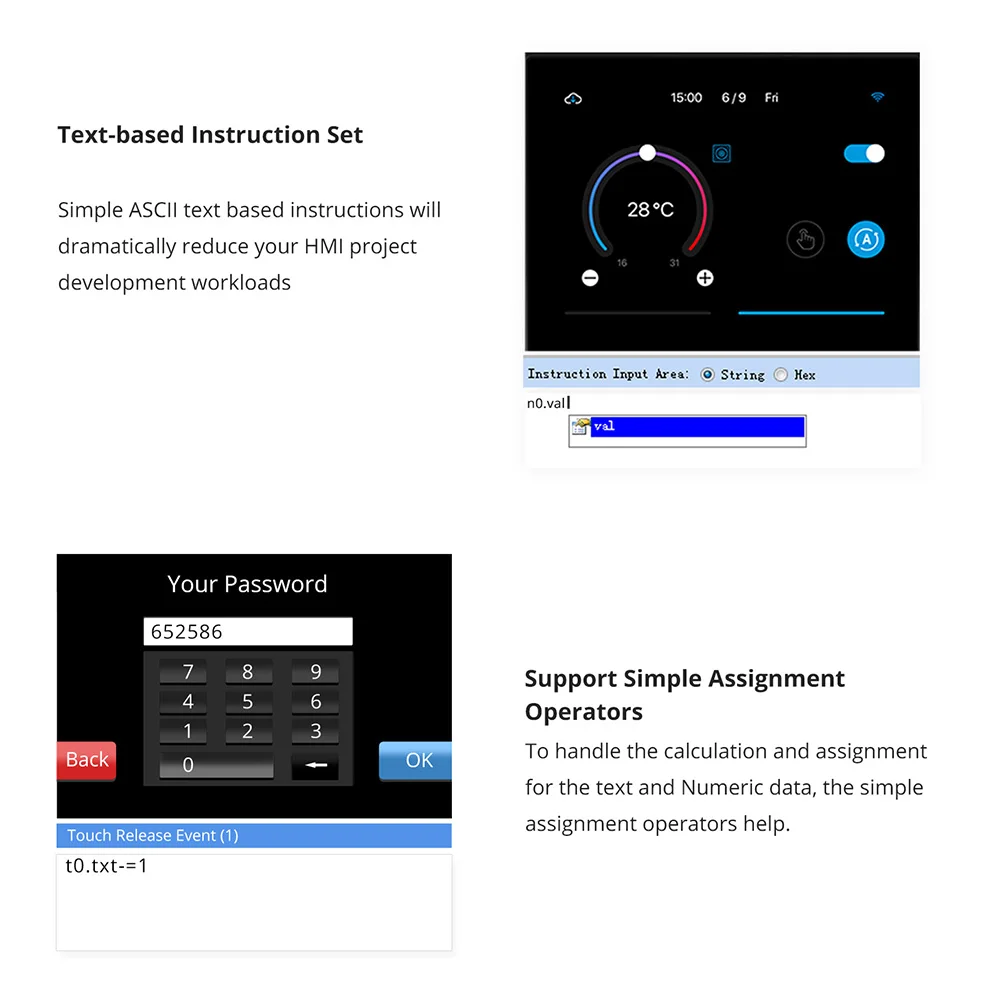

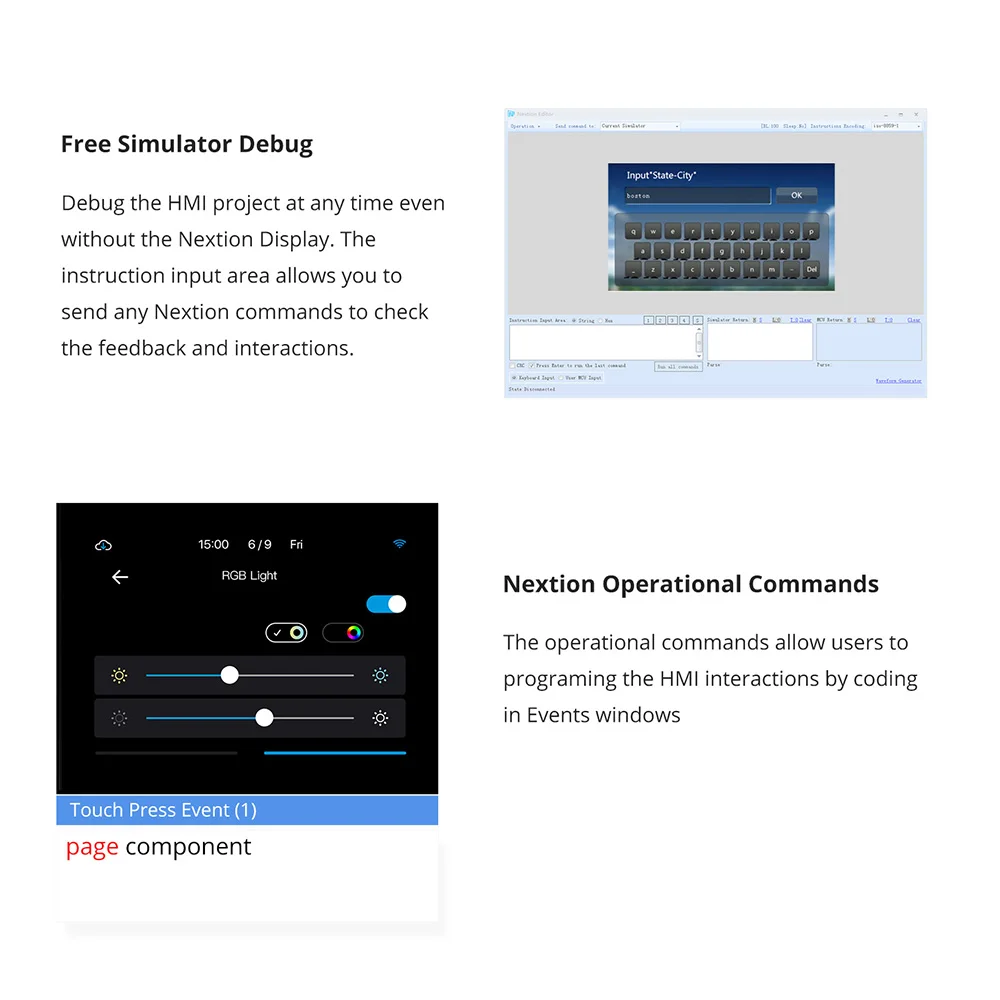

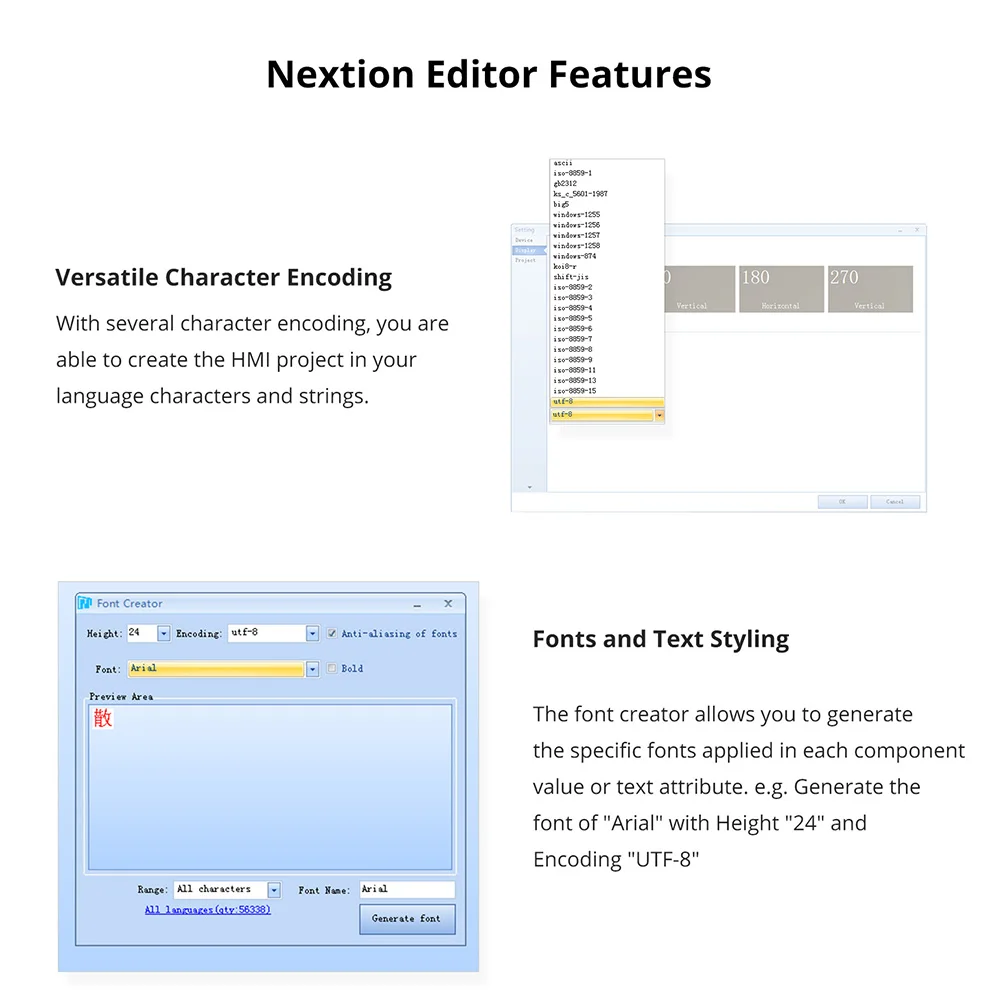

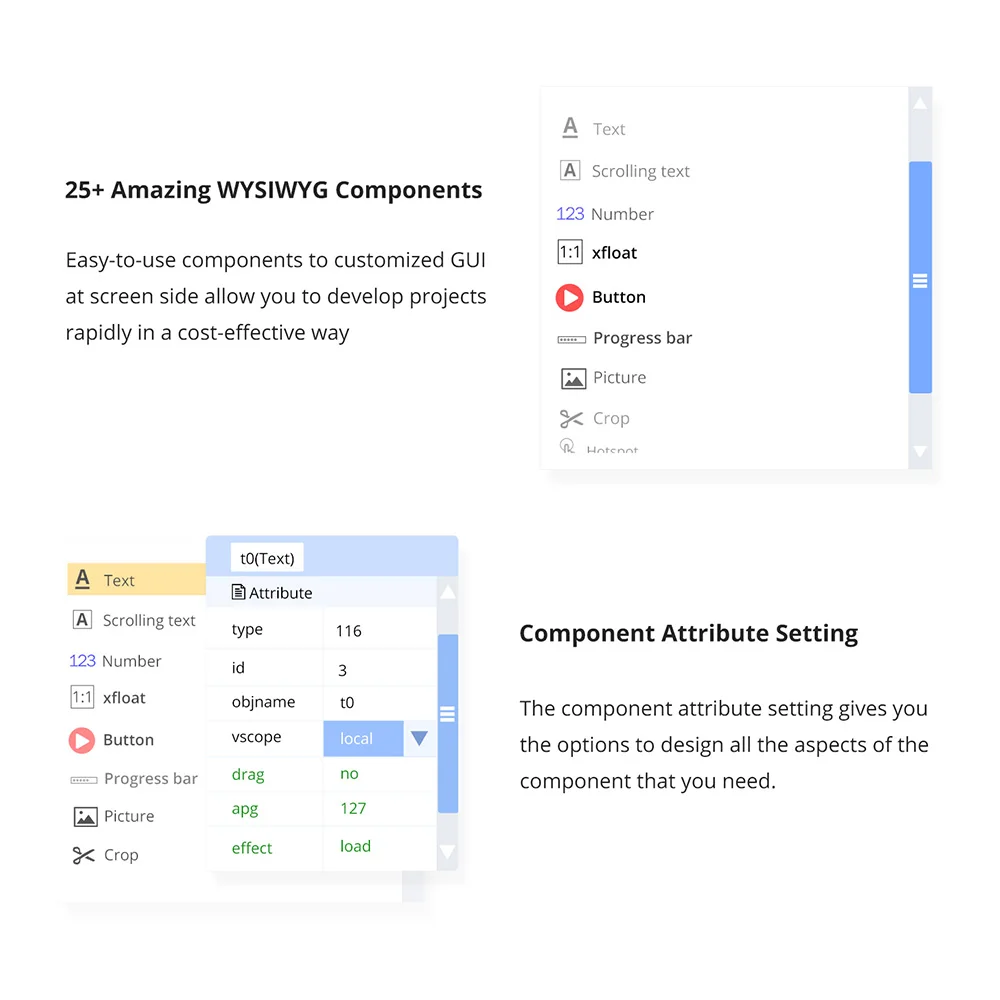

For Enhanced Series, users also can develop the HMI GUI project via the free Nextion Editor software, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce the HMI project development workloads. The integration of RTC, EEPROM and digital GPIOs enhances your HMI project features and functions.

NOTE: There is a protective film over the screen. If you receive the product and find there are scratches on the screen, don't worry. It's the protective film, not the screen itself.

NOTE:

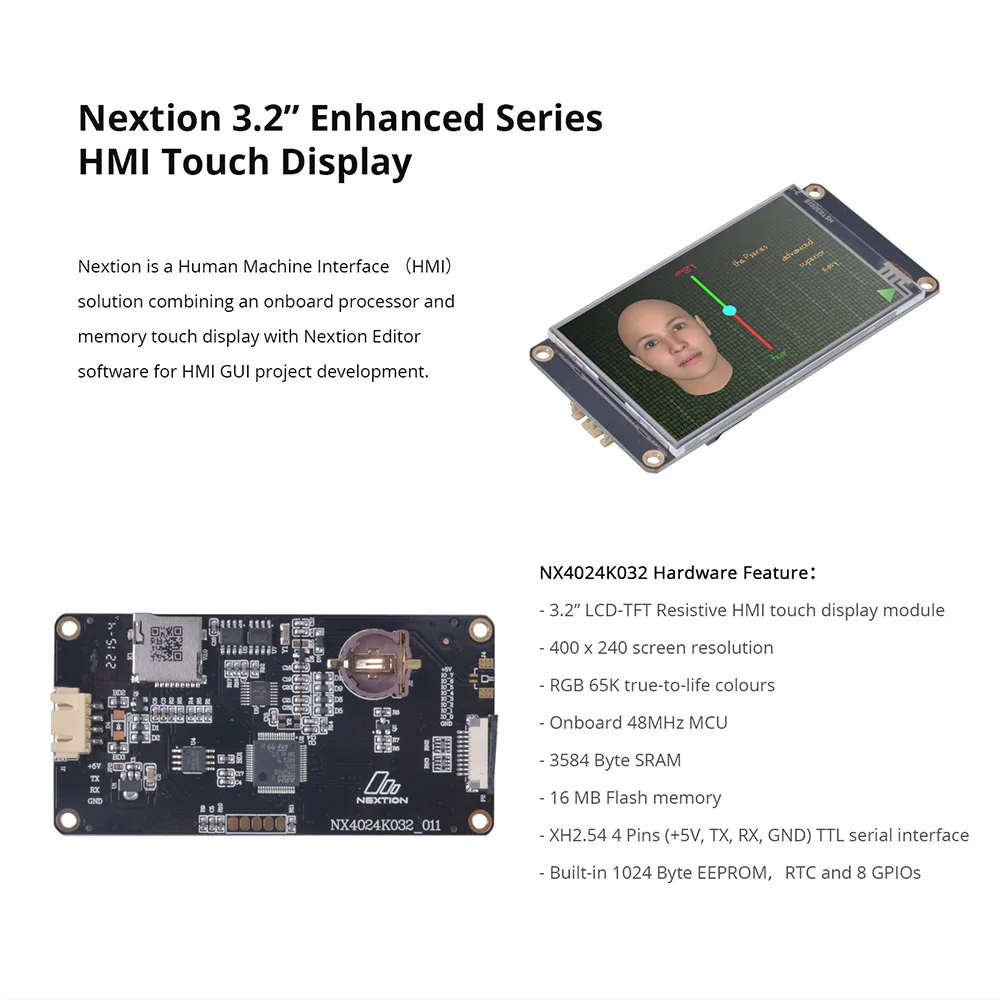

Since we Optimized equipment EMC, the board may not be the same as before.

More details, please check this link: https://cdn.nextion.tech/wp-content/uploads/2020/08/NX4832K035-EMC-Certificate-Report.pdf

Note: there's a small power supply test board and a wire for you to test if the electricity supply is enough or not. Please see below image on how to use it.

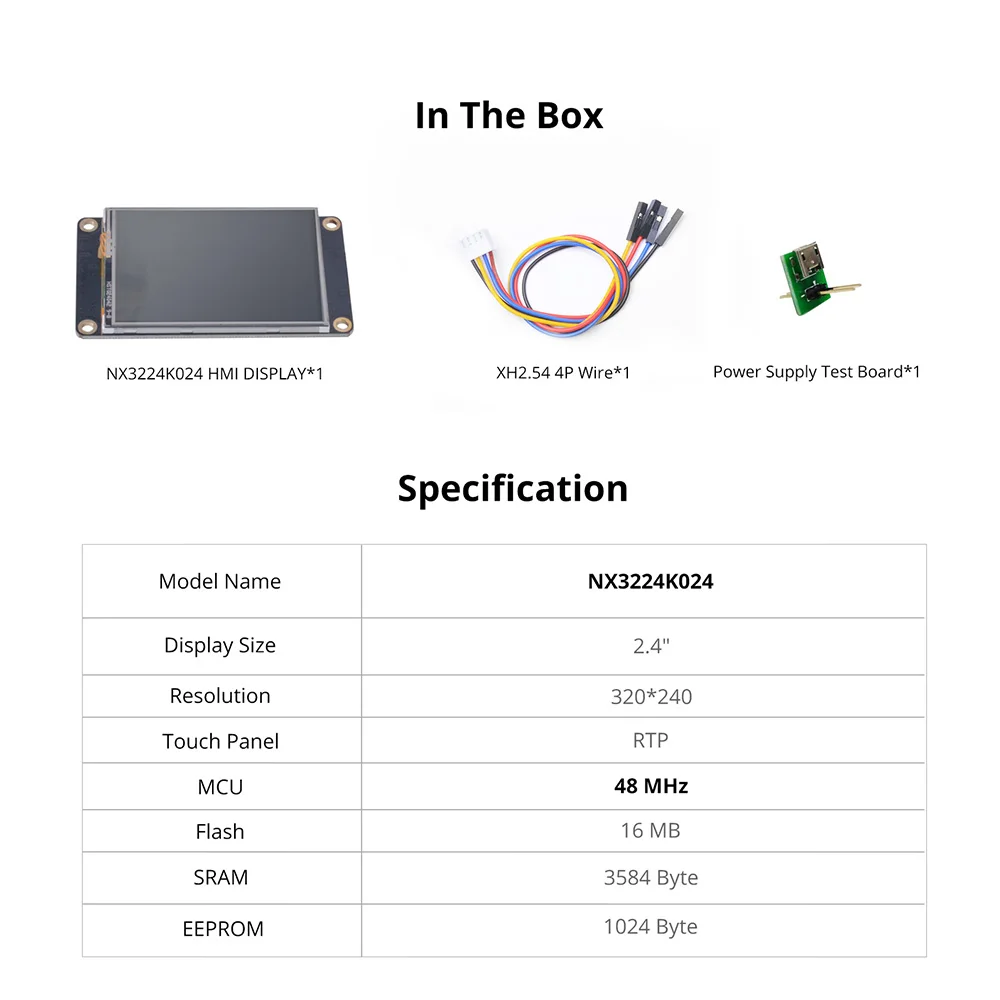

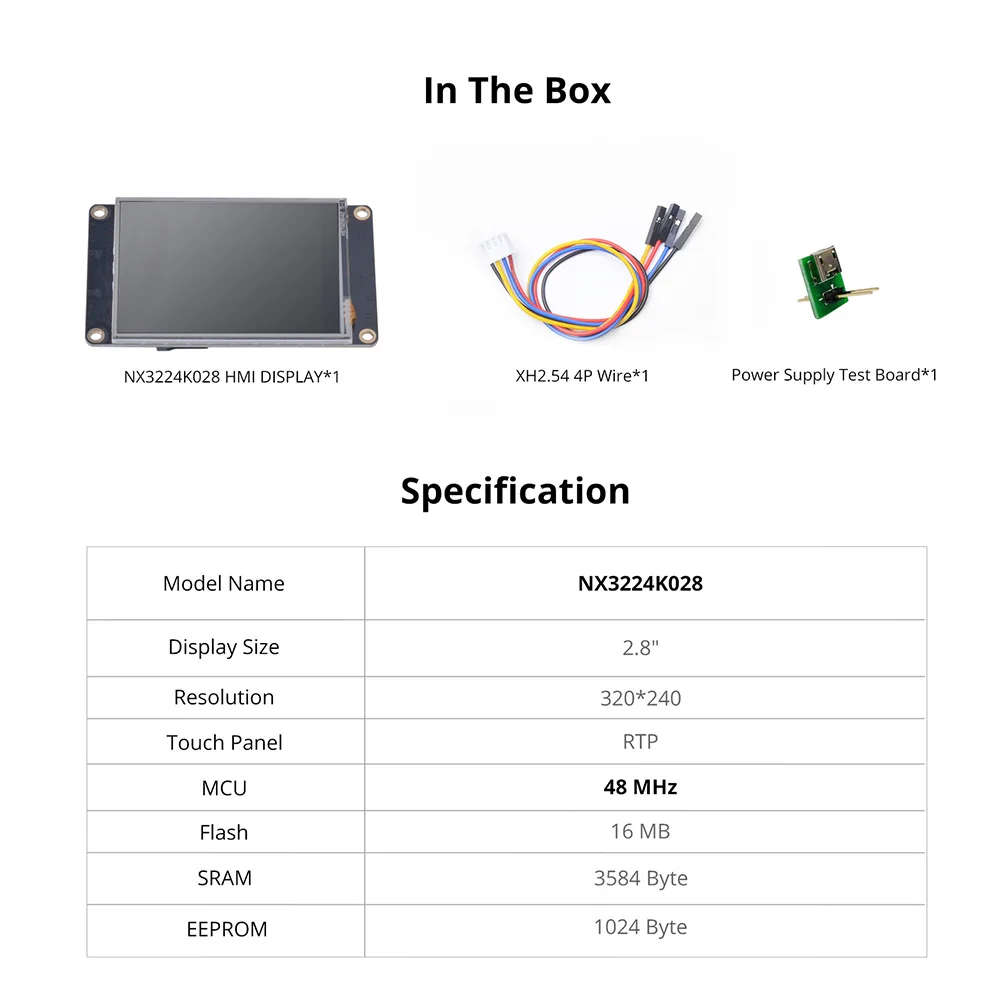

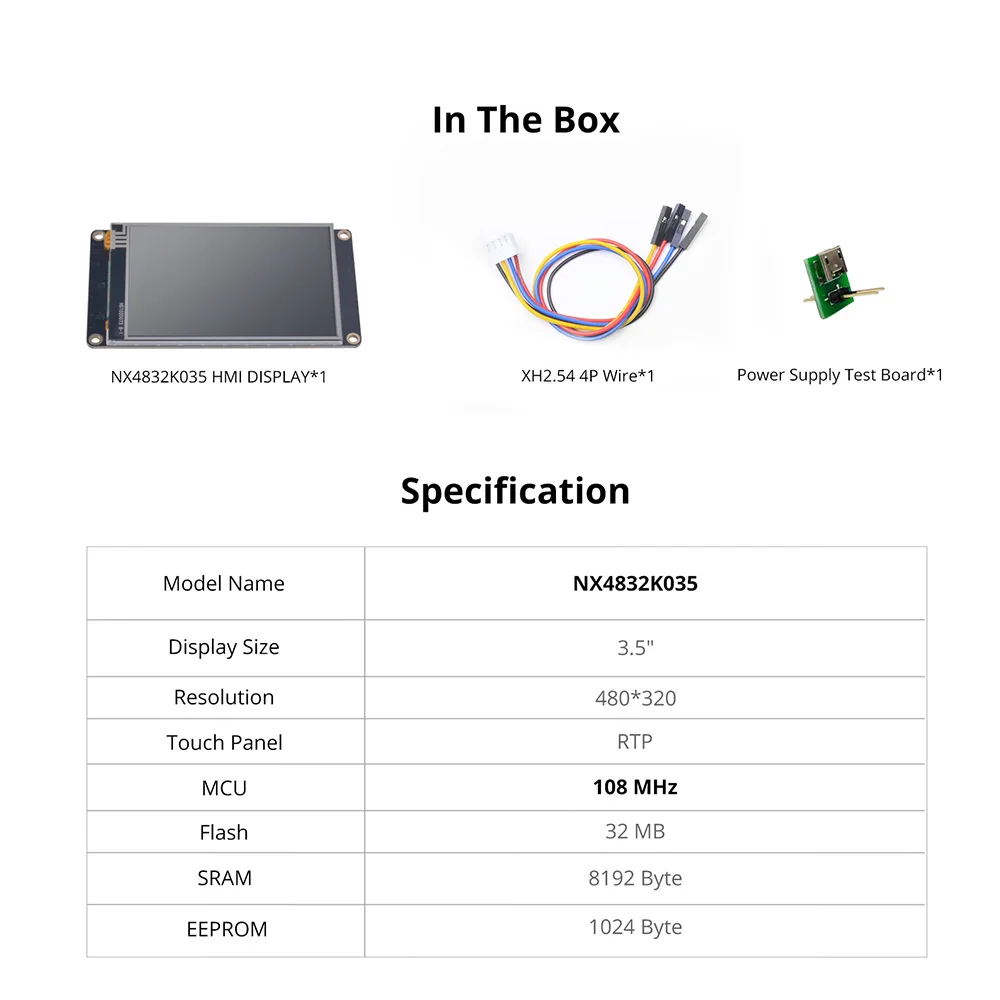

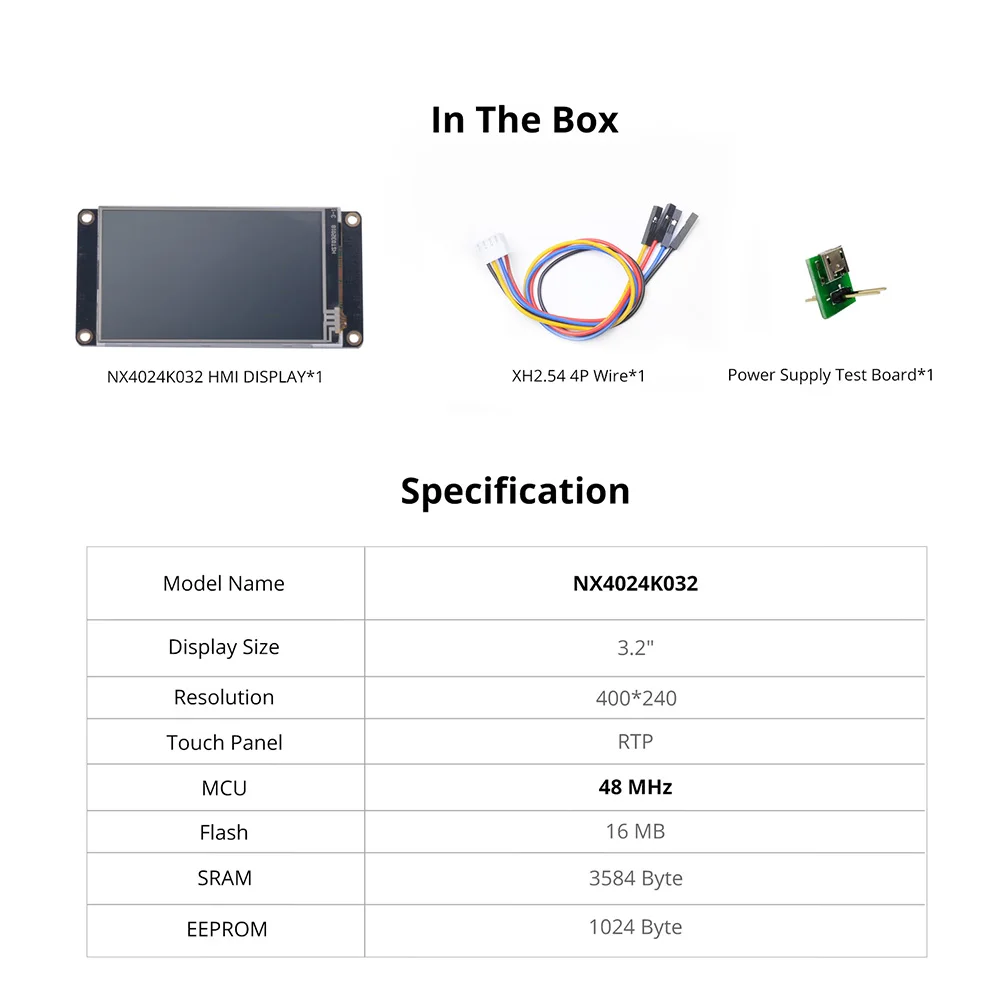

Package includes

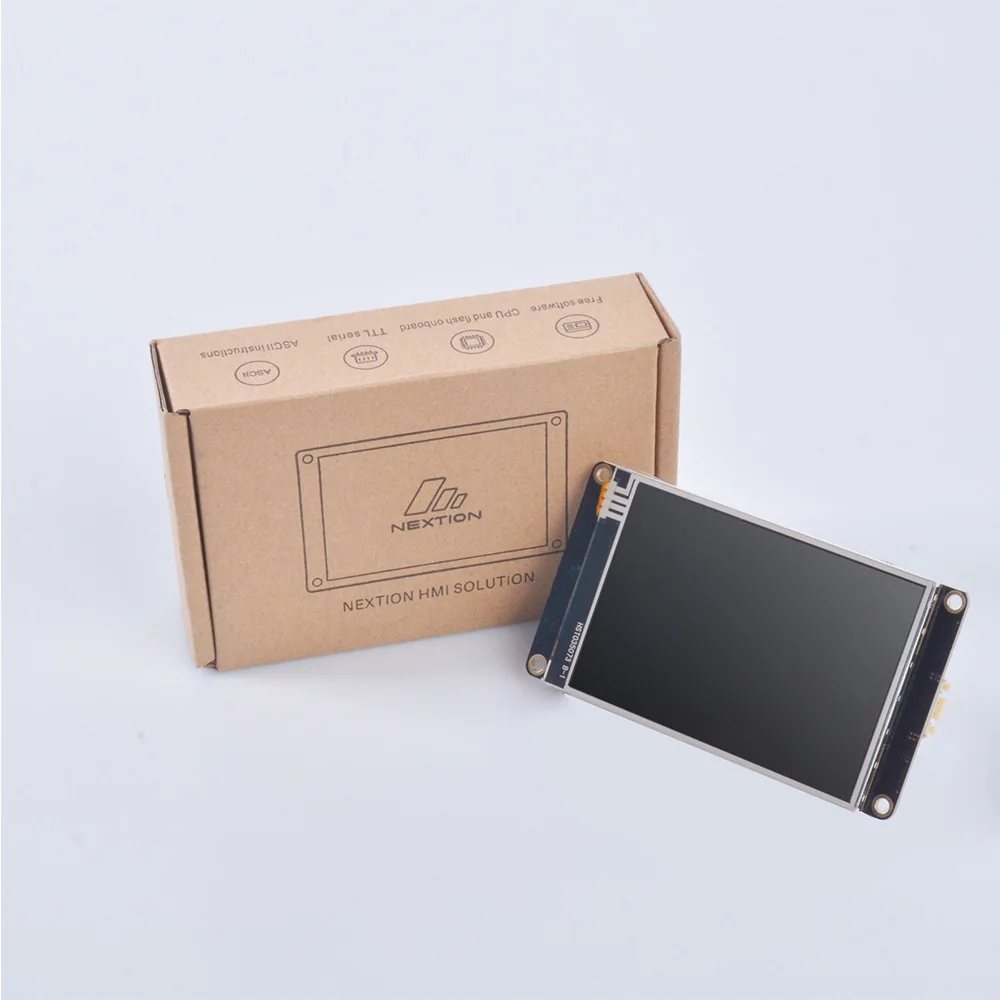

1× 2.4''/2.8"/3.2''/3.5'' Nextion Enhanced HMI Display
1× power supply test board
1× 4-pin grove cable

Products Details

Data Sheet

https://nextion.tech/datasheets/
