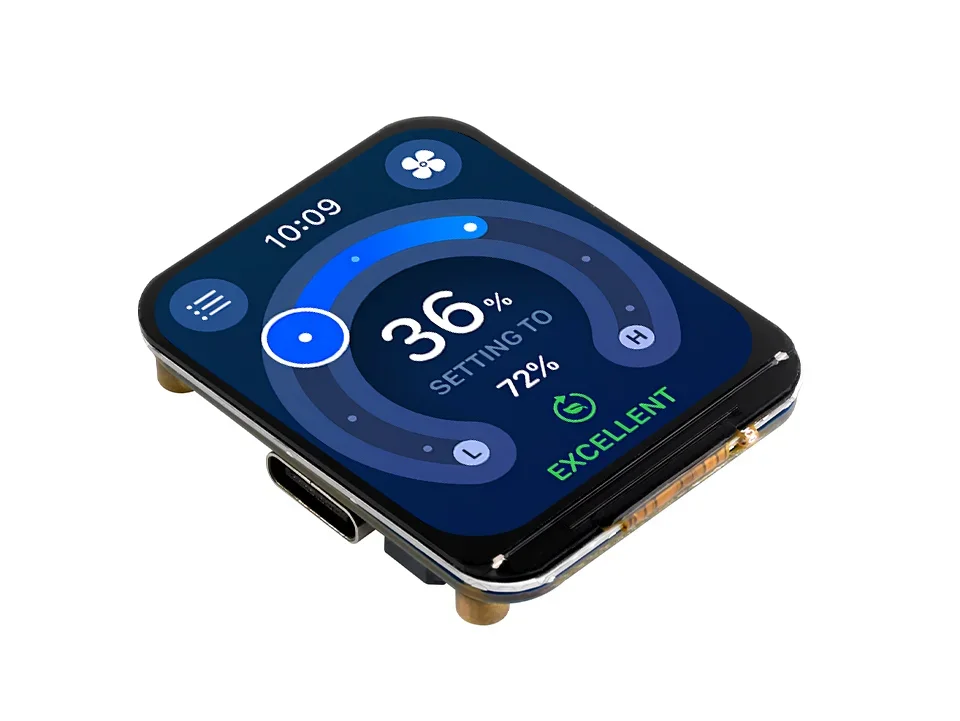

Waveshare ESP32-S3 1.69 inch IPS Touch LCD Display Development Board 240×280 ST7789V2 SPI Display Module for Arduino IDE/ESP-IDF

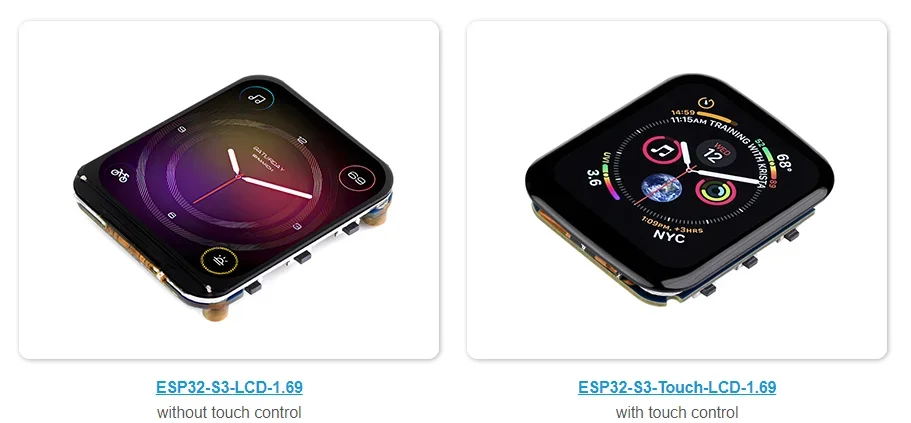

Please be noted that there are two options:

ESP32-S3-LCD-1.69, No Touch.

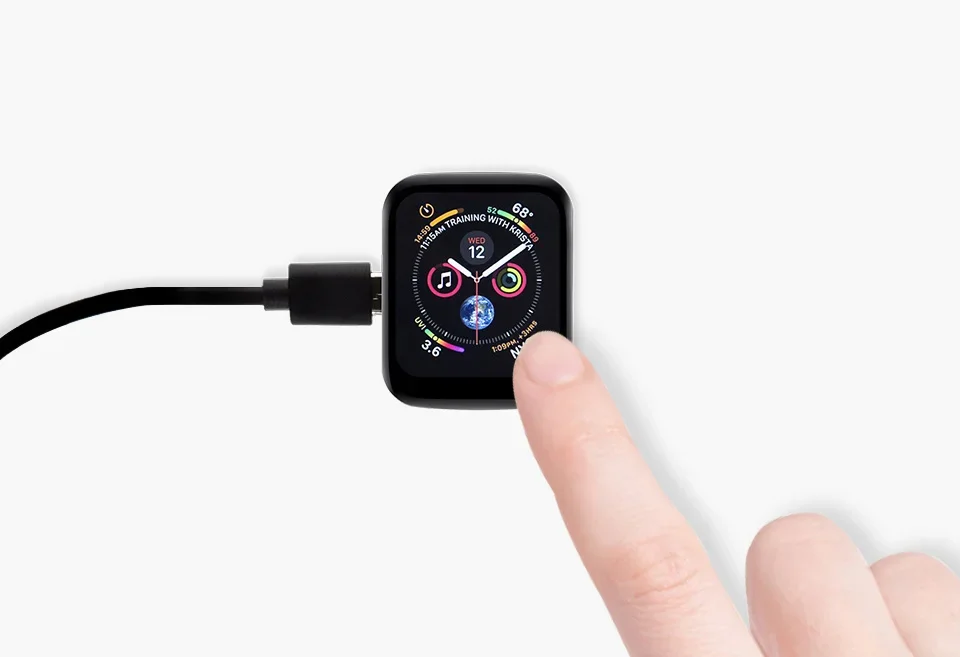

ESP32-S3-LCD-Touch-1.69, With Touch.

Wiki:

www.waveshare.com/wiki/ESP32-S3-LCD-1.69

ESP32-S3-LCD-1.69

Embedded with ST7789V2 Display Driver Chip, SPI Communication

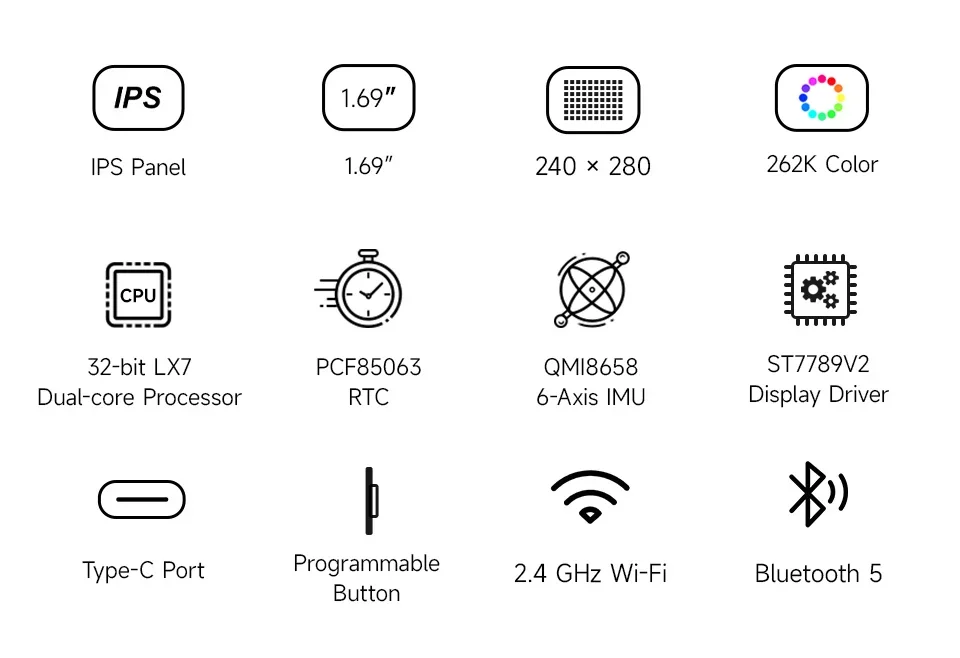

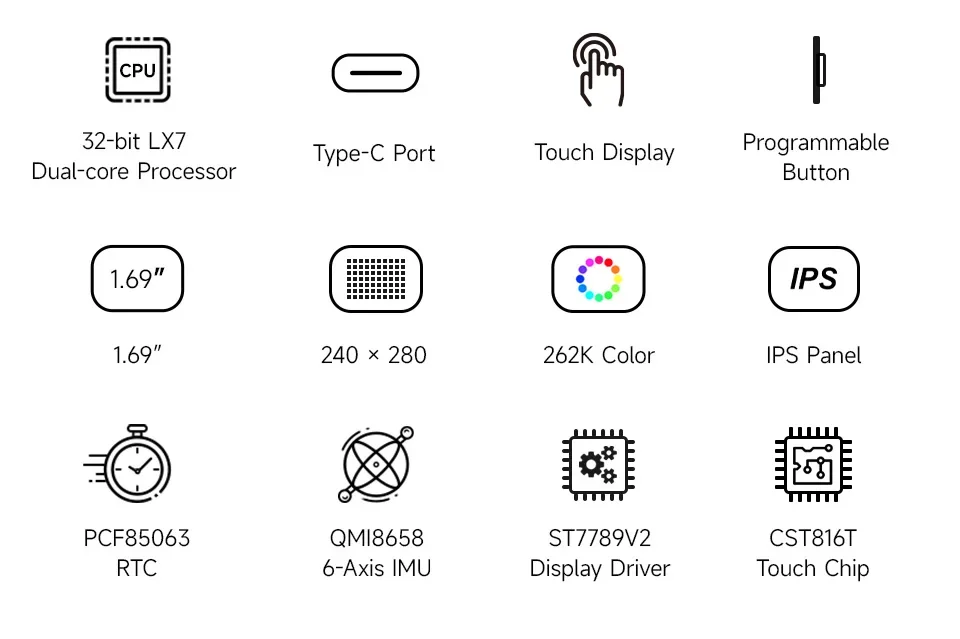

Features

ESP32-S3-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, embedded with 240MHz dual-core processor, tiny size, with onboard 1.69inch 262K LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), WiFi/Bluetooth antenna, RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

Type-C connector, keeps it up to date, easier to use

Onboard 1.69inch 240×280 pixels 262K display for clear color pictures

Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources

Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.

Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement

Onboard RST, BOOT and a programmable PWM button for easy custom function development

Onboard 3.7V MX1.25 lithium battery recharge/discharge header

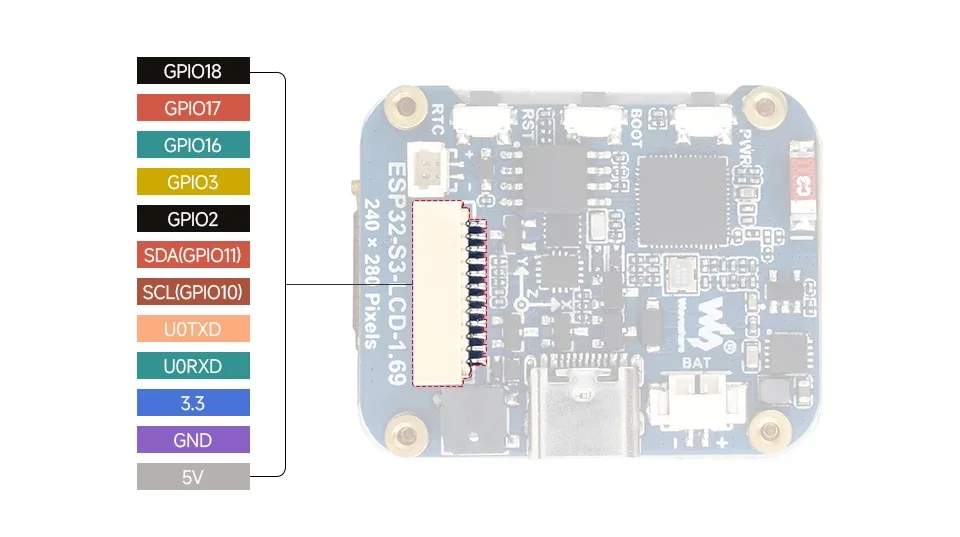

Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging

Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

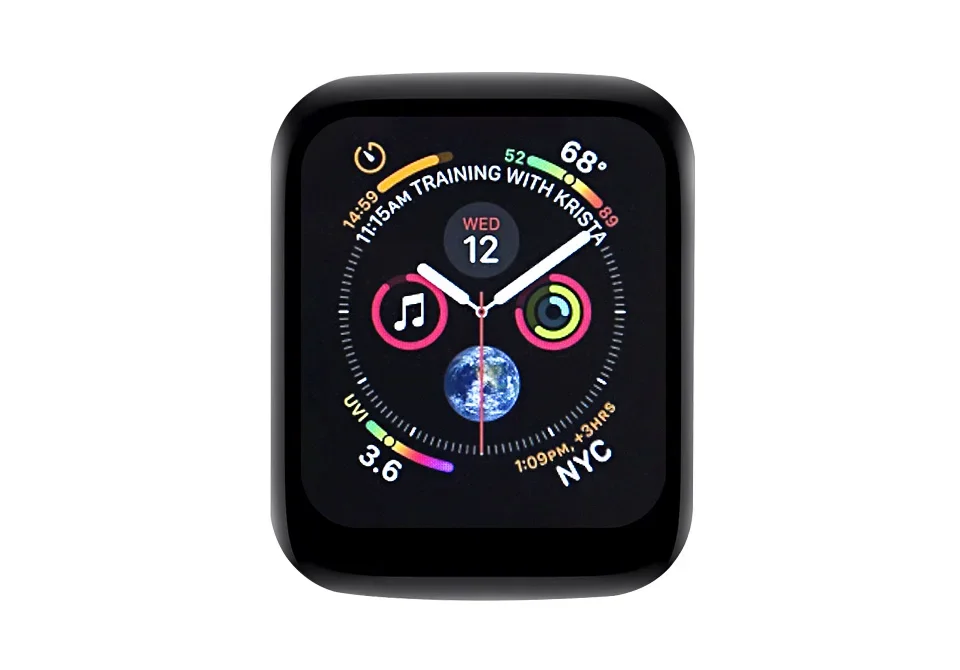

Onboard 1.69inch LCD Screen

IPS Panel, 240×280 Resolution, 65K Color, Suitable for various application scenarios

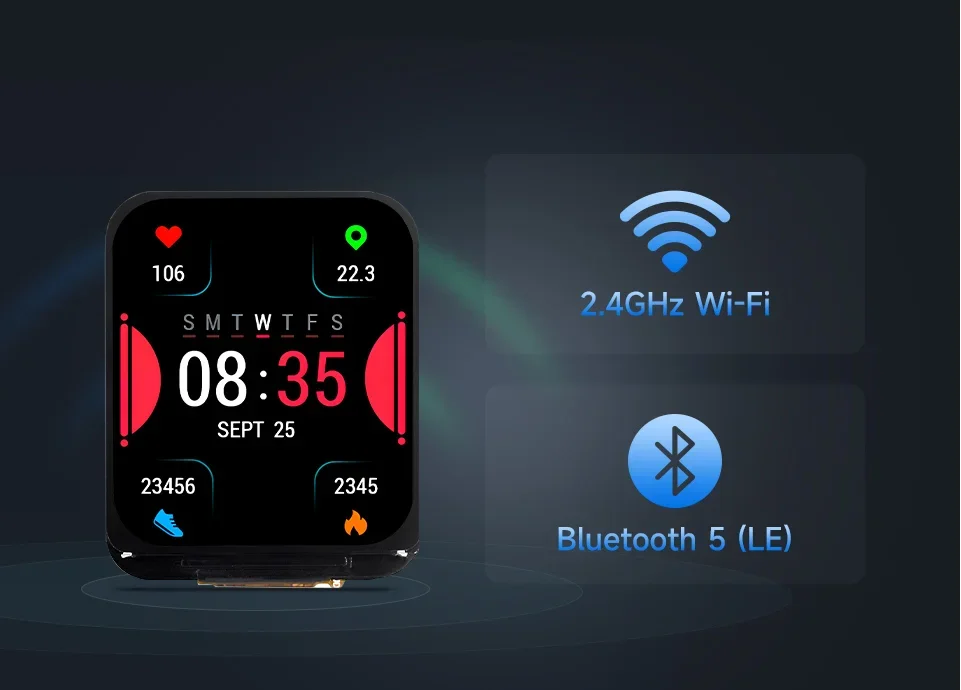

WIFI And Bluetooth Support

supports 2.4 GHz Wi-Fi (802.11 B/G/N) and Bluetooth 5 (LE), Onboard Antenna

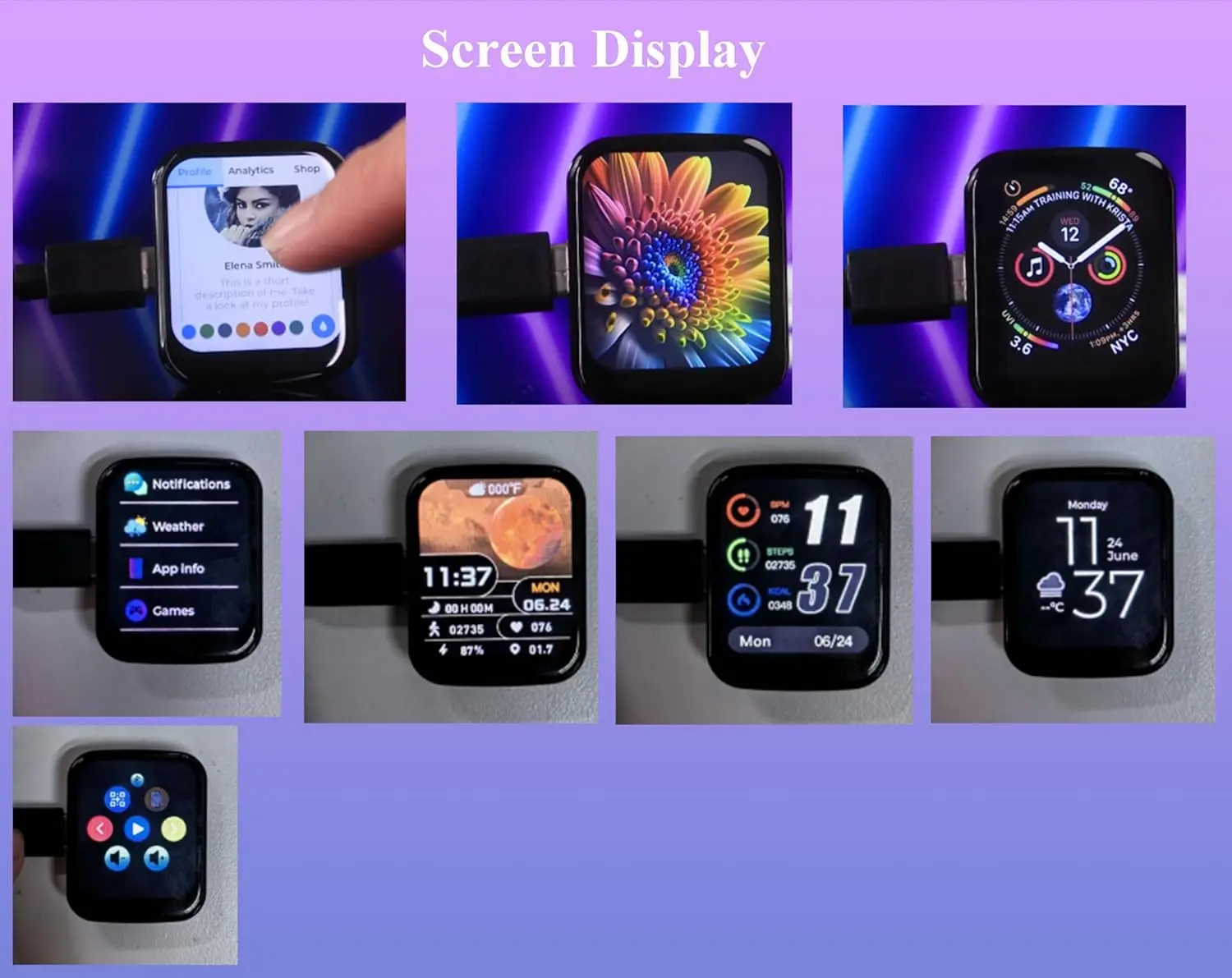

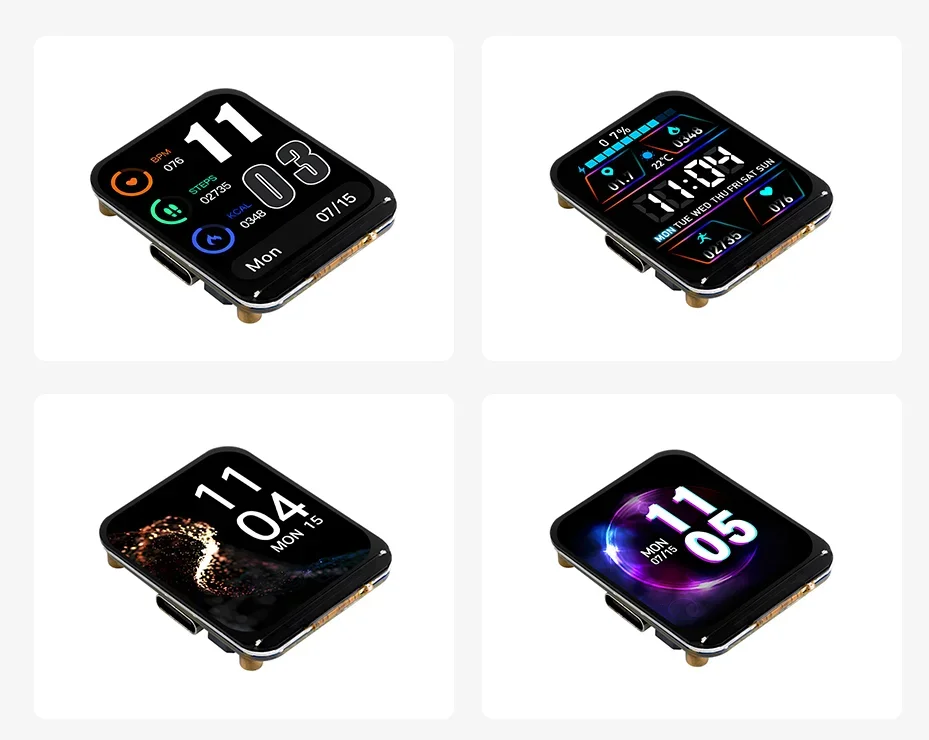

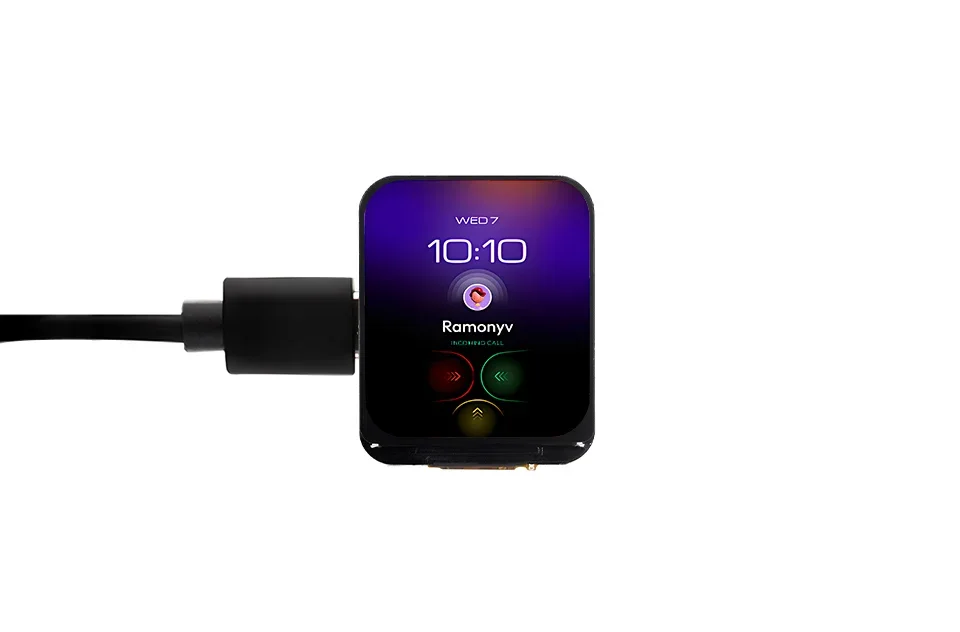

Application examples

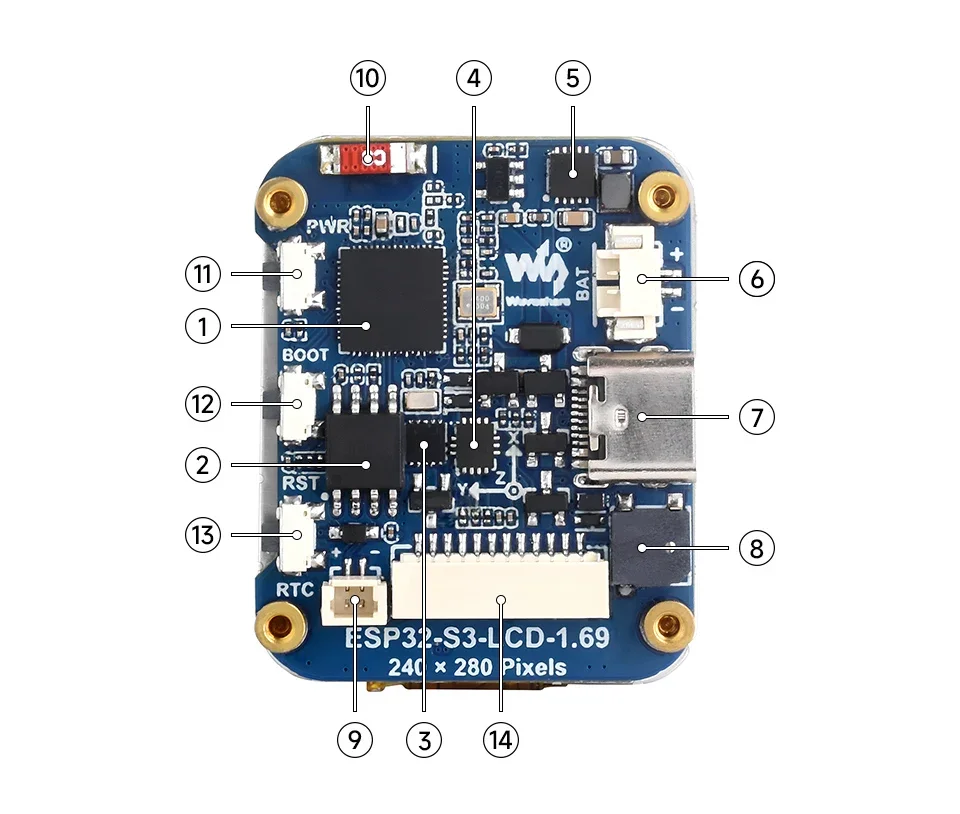

What's On Board

ESP32-S3R8
