Ultrasonic Radar Scanner Kit DIY Open Source with LCD Display Windows PC Real-Time Screen for Maker STEM Programming Learning

✨Product Features:
1. Support 0-180 ° planar cyclic scanning, accurately detecting object distance and angle data within 1 meter
2. Dual end dynamic fan-shaped display, LCD local visualization+real-time screen projection on Windows upper computer
3. Equipped with NANO V3.0 core board, the program is completely open source and supports C/C++programming modification
4. Modular welding free loose part design, equipped with tutorials, can be assembled independently, and has strong practicality
5. Suitable for maker DIY, student programming learning, scientific and technological innovation training, and fun technology production scenarios

✨Kit Introduction

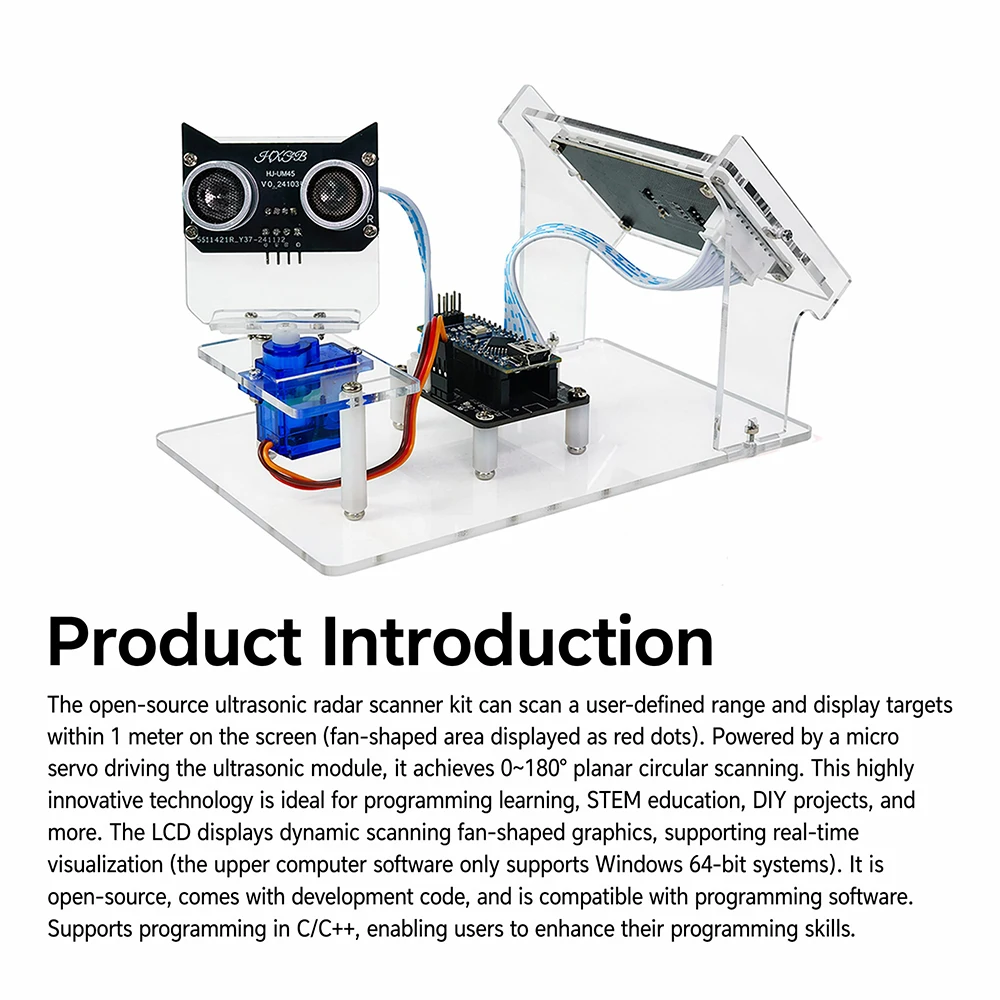

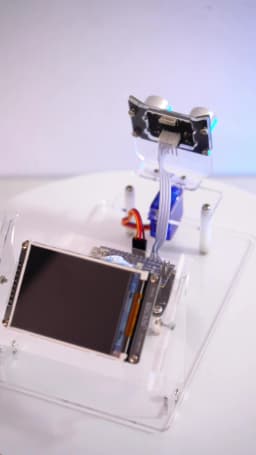

The open-source ultrasonic radar scanner kit can scan a small range of targets and display them on the screen (with a fan-shaped area displaying targets within 1 meter in red dots). The servo is equipped with an ultrasonic module to achieve 0-180 ° planar cyclic scanning. Very cool technology maker works, suitable for programming learning, technology DIY, etc. LCD displays dynamic scanning fan-shaped images, supporting the display of dynamic fan-shaped images on the upper computer (the upper computer software only supports Windows 64 bit system), open source code, combined with programming software to write code in C/C++, to exercise programming skills.

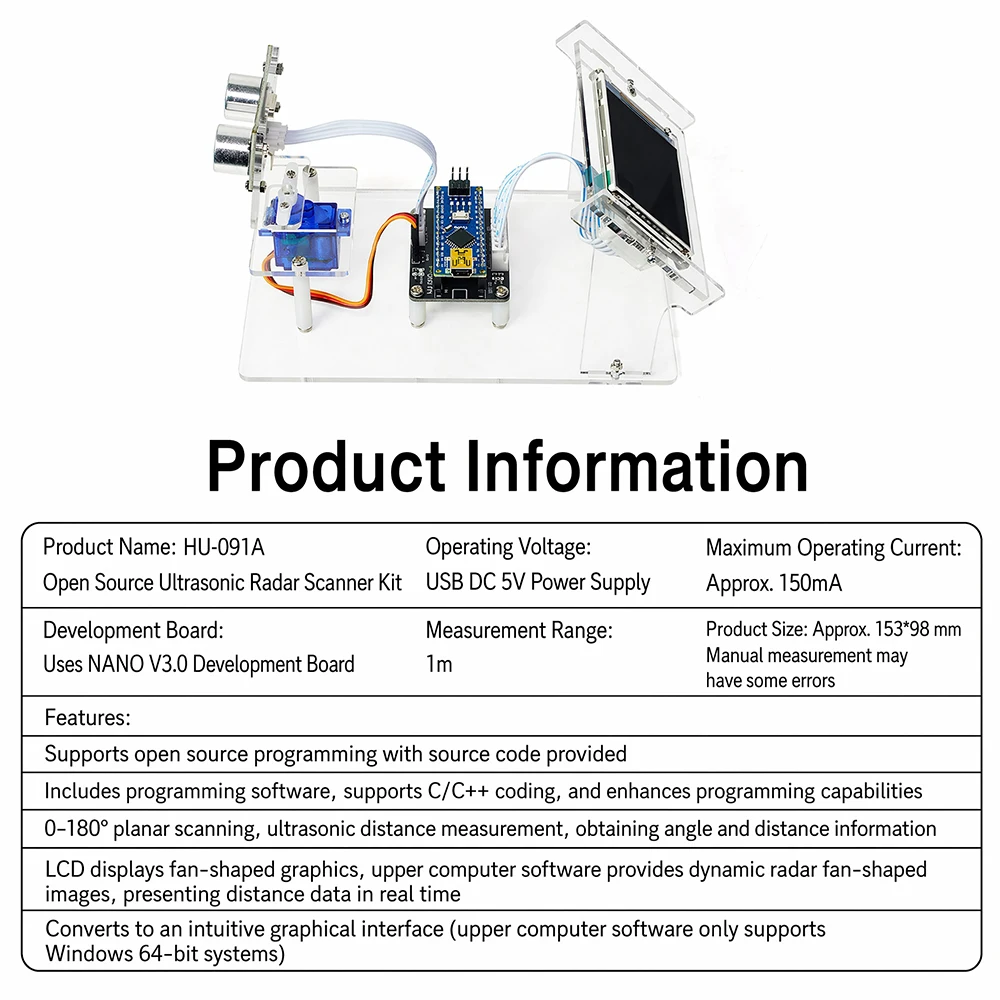

✨Suite Information
Kit Name: HU-091A Open Source Ultrasonic Radar Scanner Kit
Working voltage: USB DC 5V power supply
Maximum operating current: approximately 150mA
Open source program: using NANO V3.0 development board
Distance measurement range: 1m

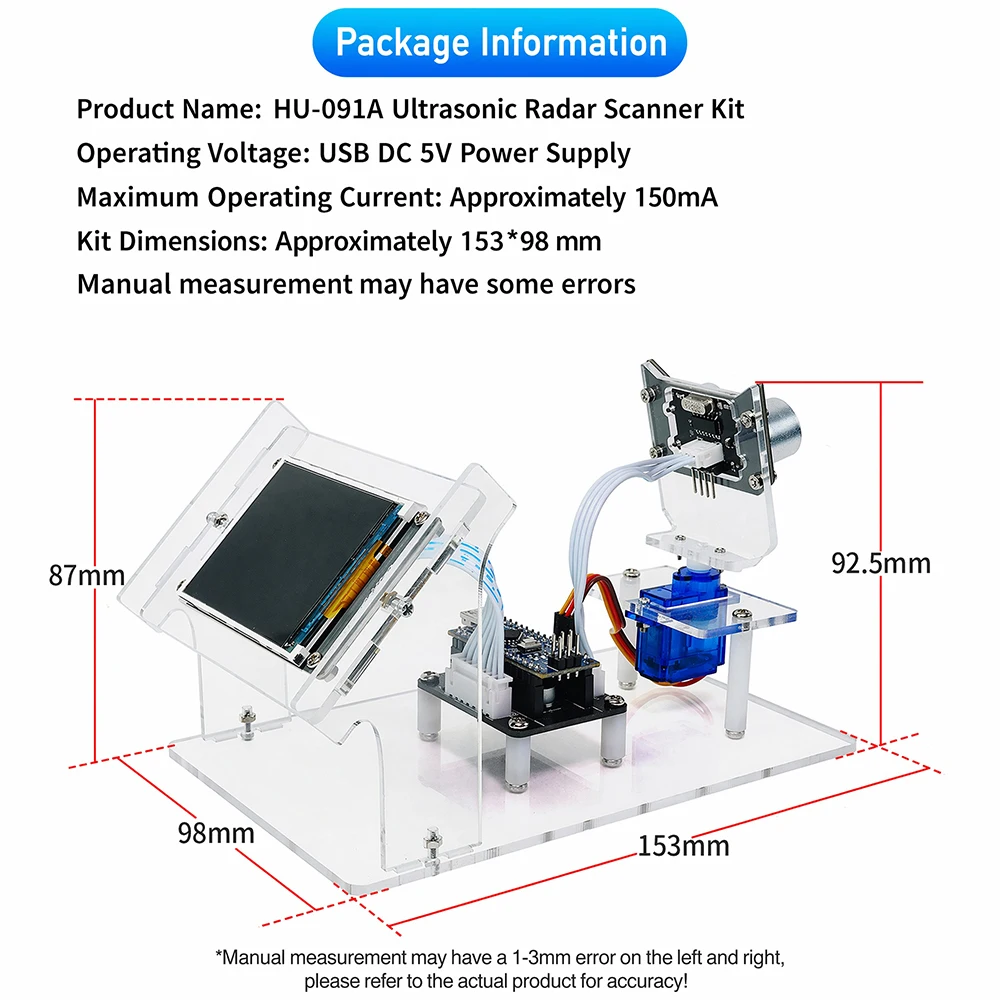

Kit size: approximately 153 * 98 mm. Manual measurement may have slight errors

✨Features:

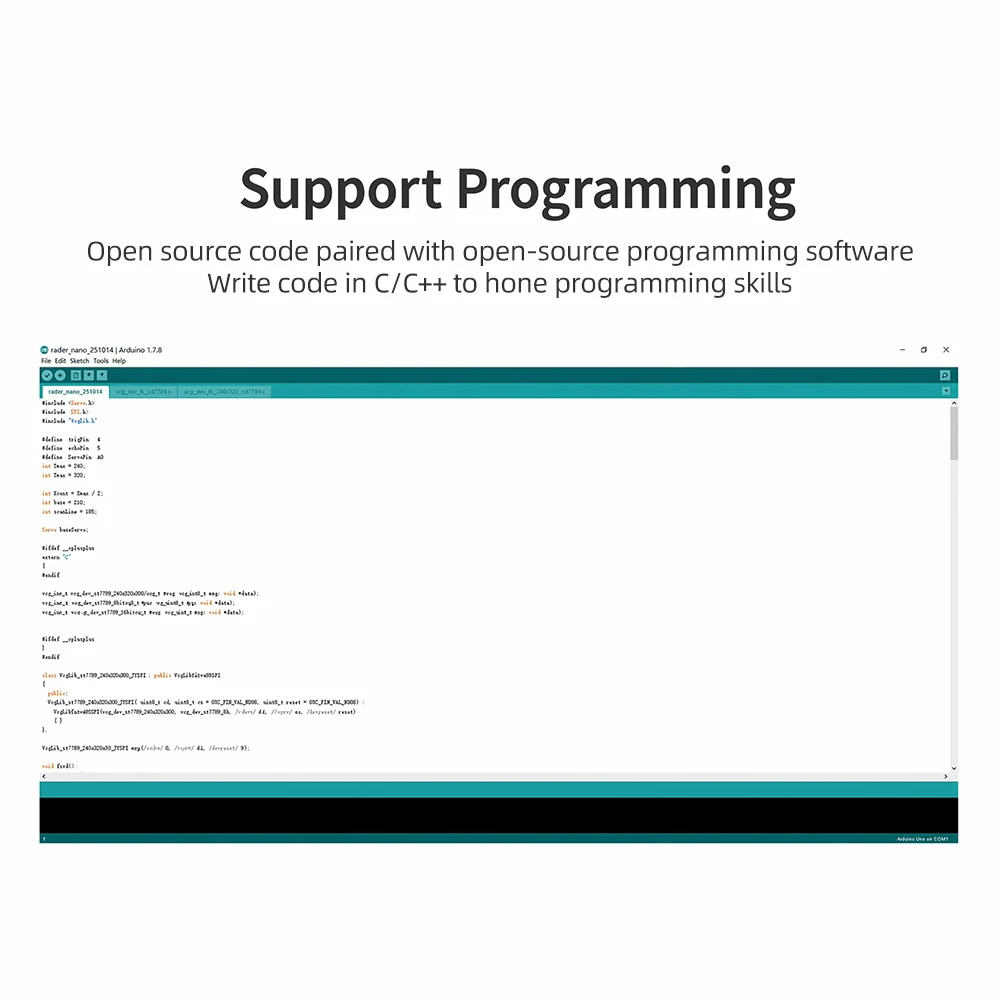

Support open source programming and open source code
Paired with programming software, write code in C/C++to enhance programming skills.

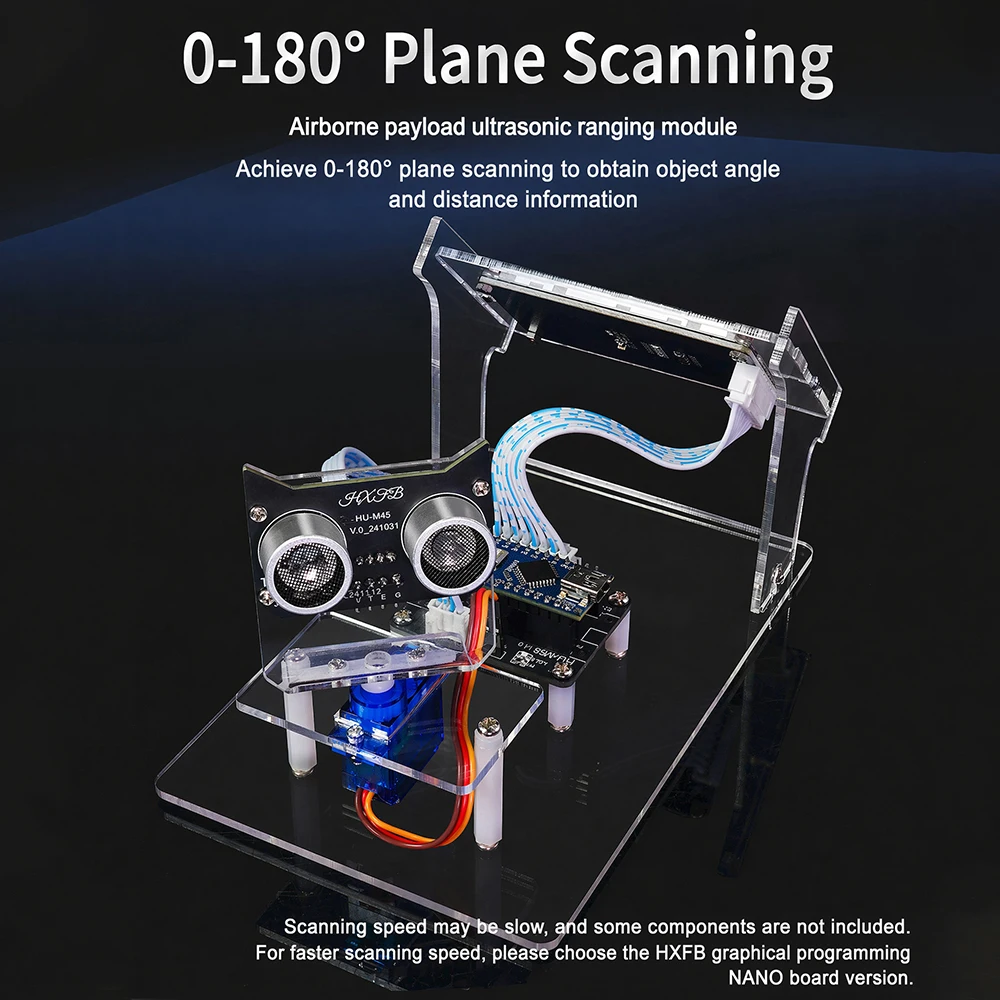

0-180 ° plane scanning, ultrasonic ranging, obtaining object angle and distance information

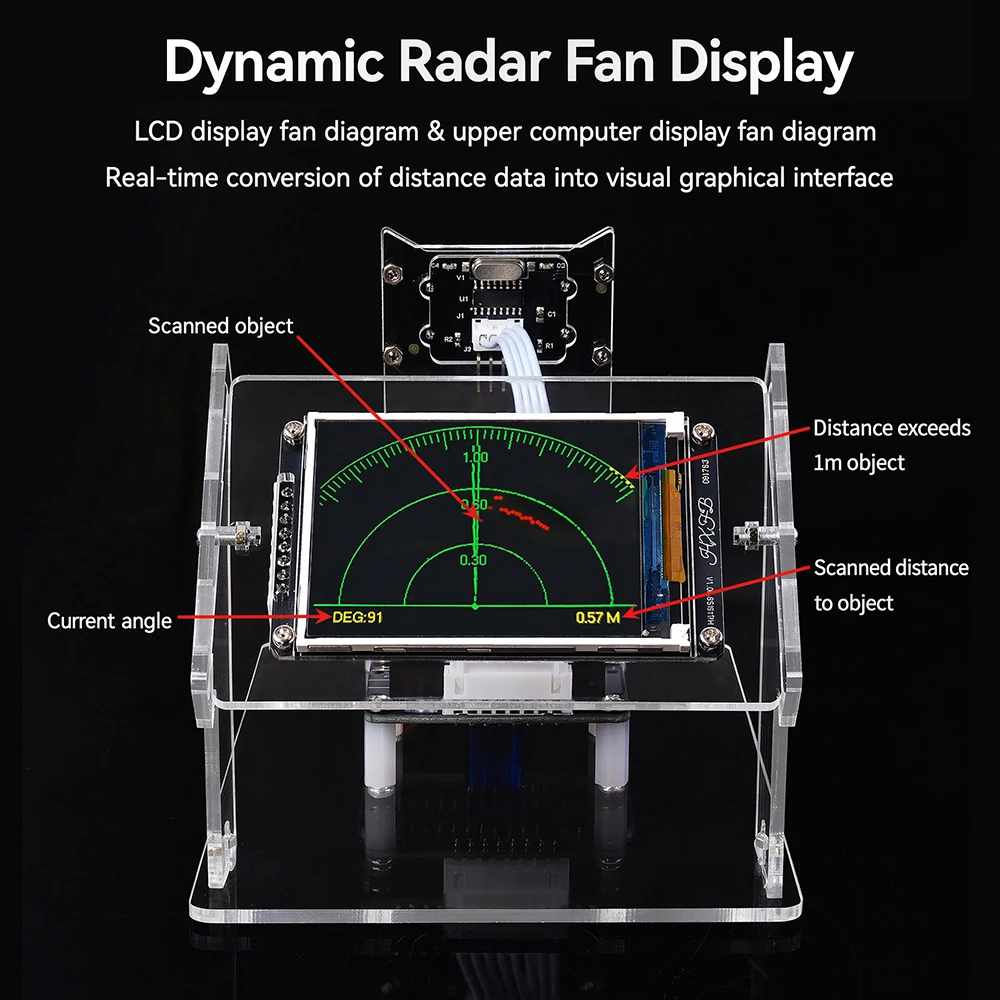

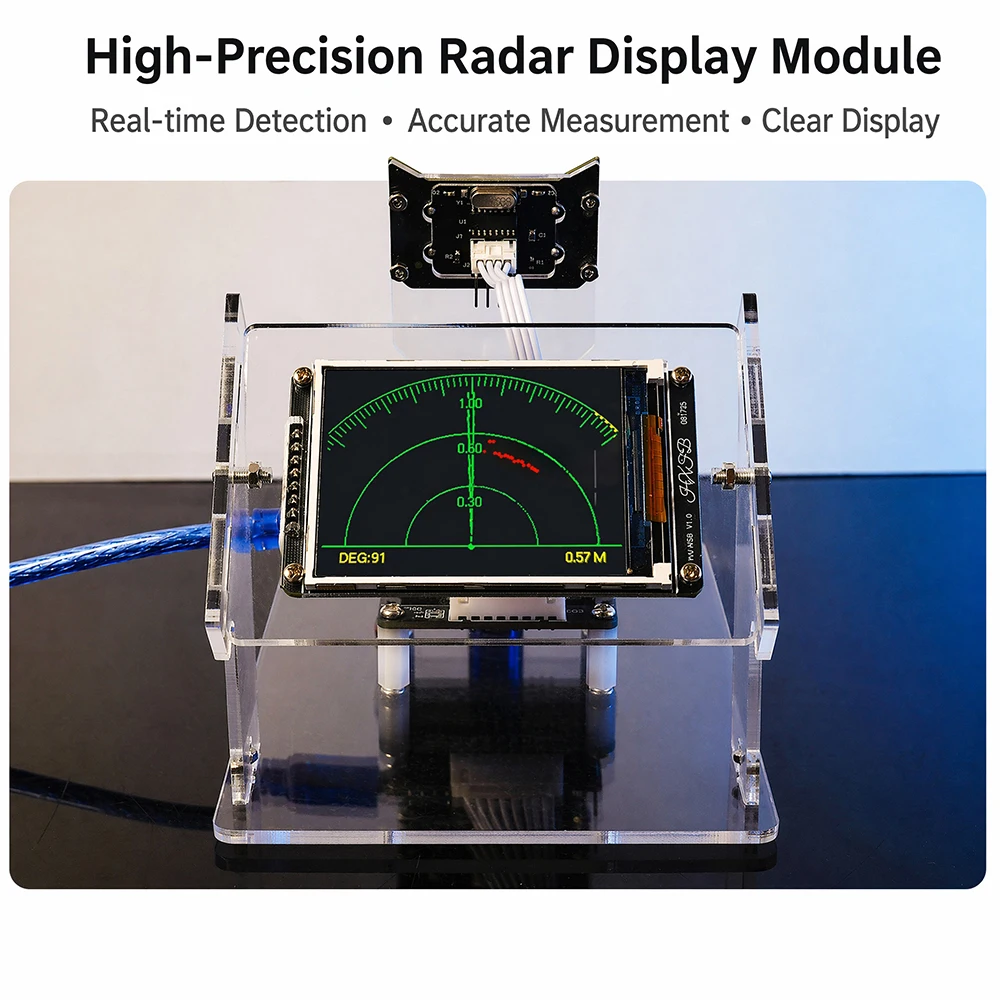

The LCD displays a sector chart, and the upper computer software provides a dynamic radar sector chart to provide real-time ranging data
Convert to an intuitive graphical interface (the upper computer software only supports Windows 64 bit systems)

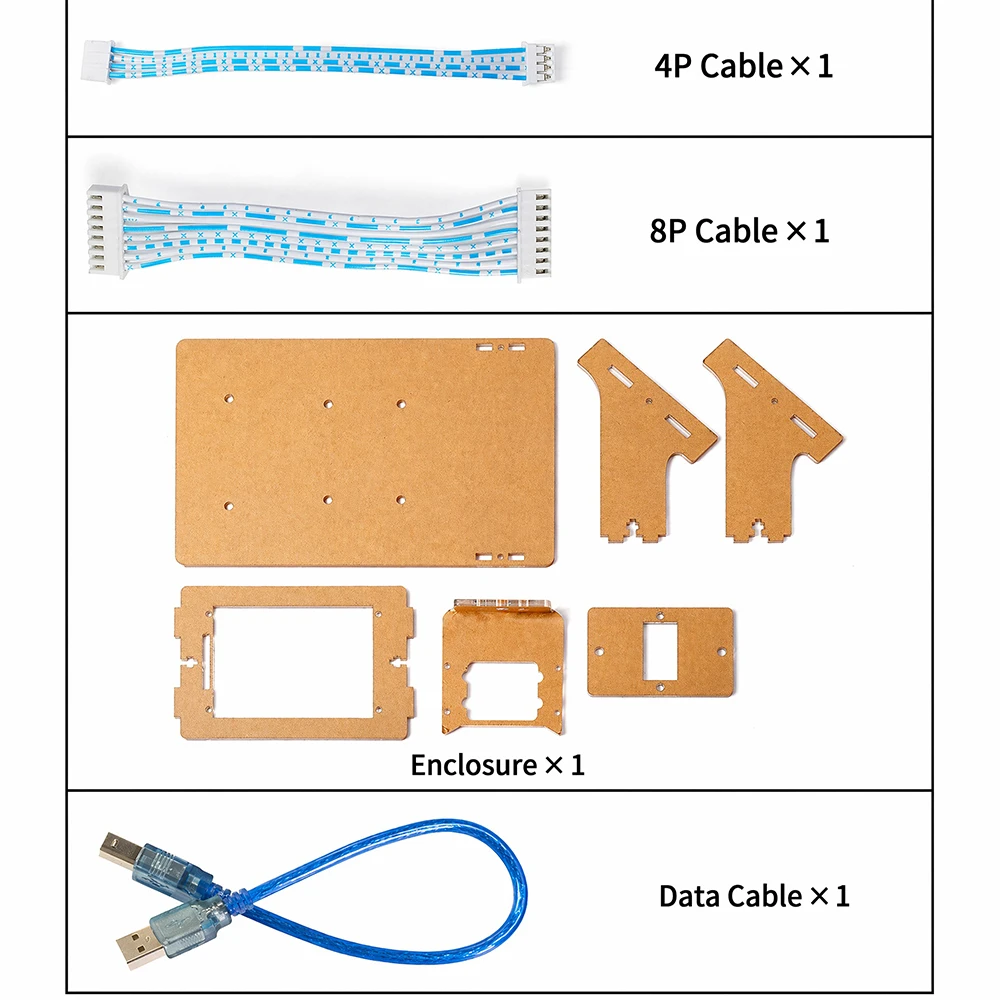

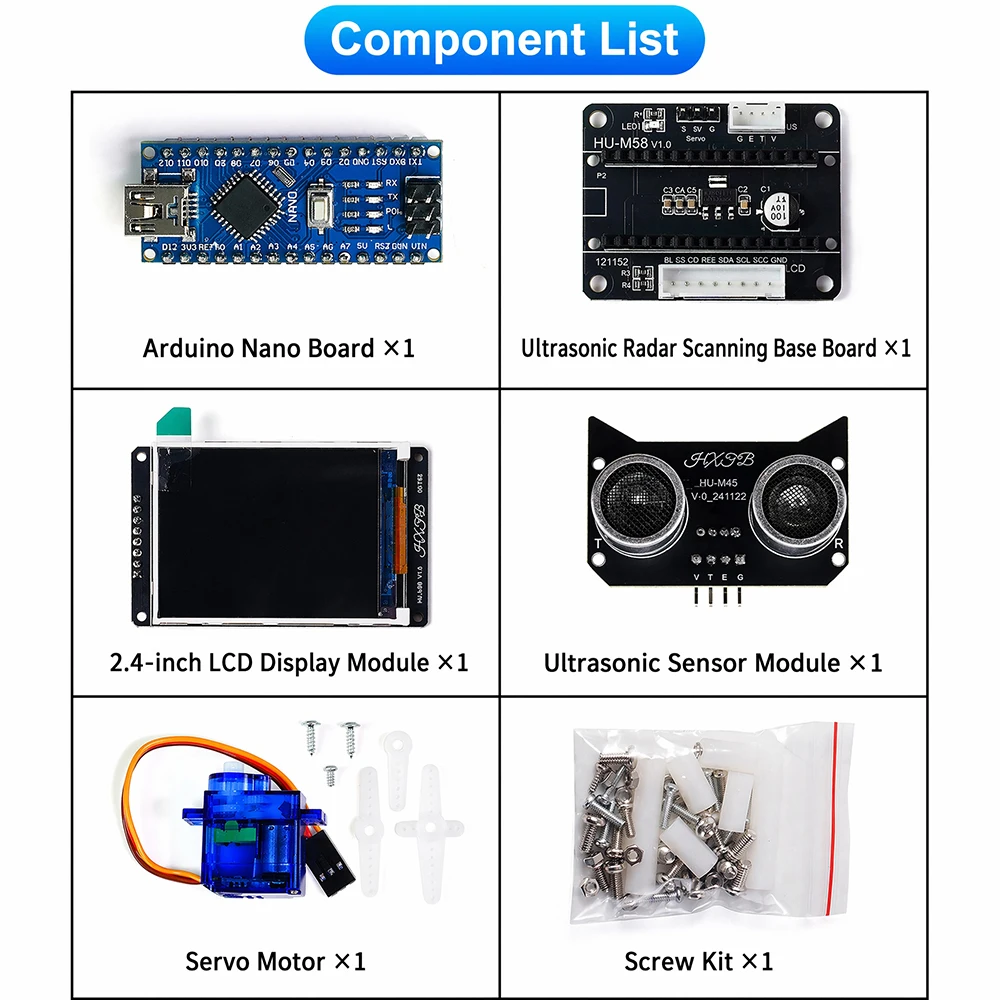

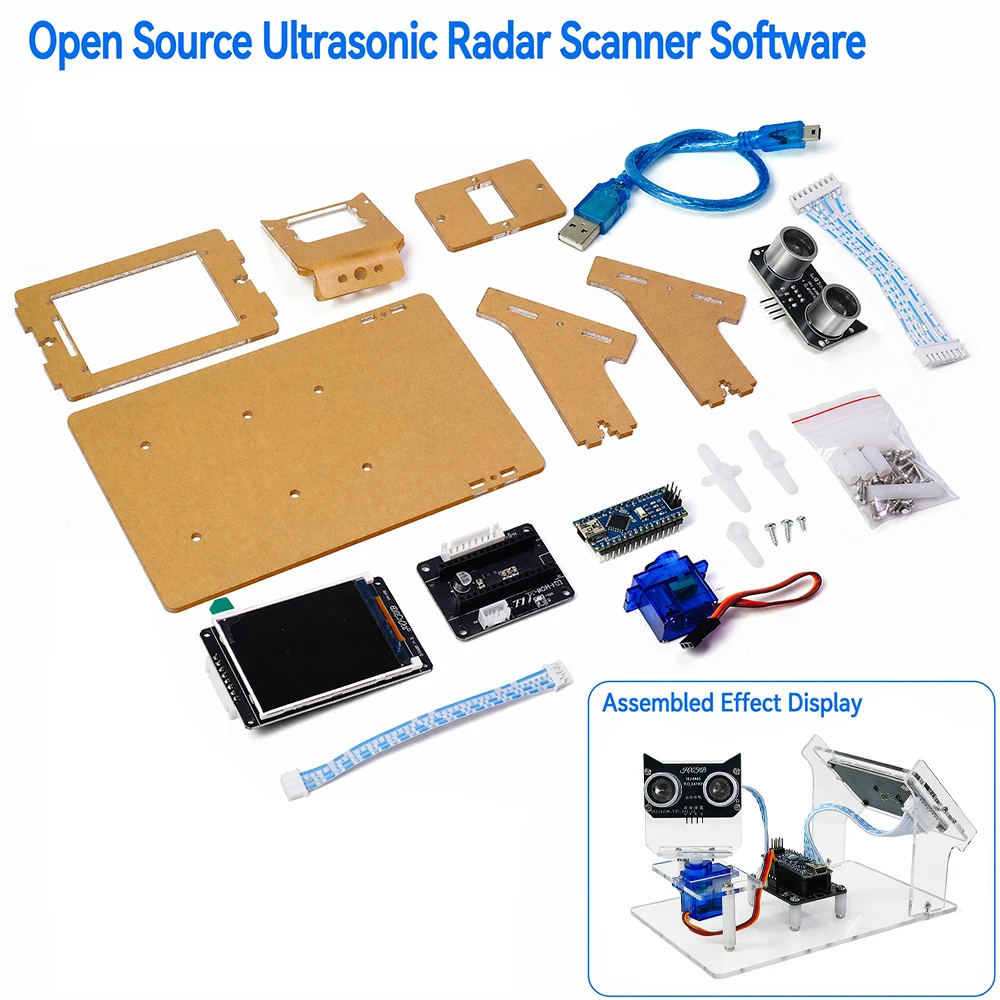

✅Product List:
1X Open Source Ultrasonic Radar Scanner DIY Kit

📢Attention: DIY welding free modular assembly for individual parts, and shipping of individual parts requires self-assembly with detailed installation tutorials
