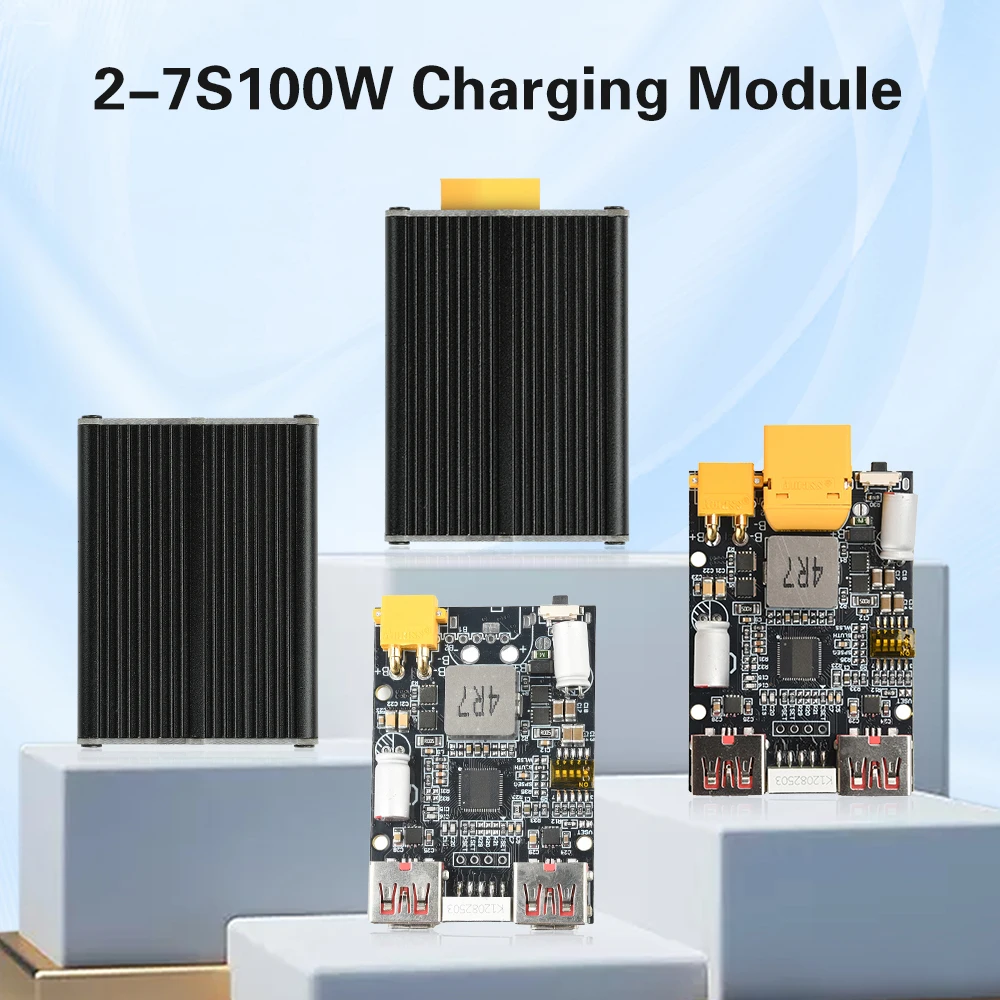

2-7S 100W Fast Charging Module Backup Power DIY Mainboard TYPE-C USB XT60 XT30 Compatible with Lithium Iron Phosphate Batteries

Product Features:

1. Supports 2-7S lithium batteries, offering versatile compatibility to meet diverse battery configuration requirements

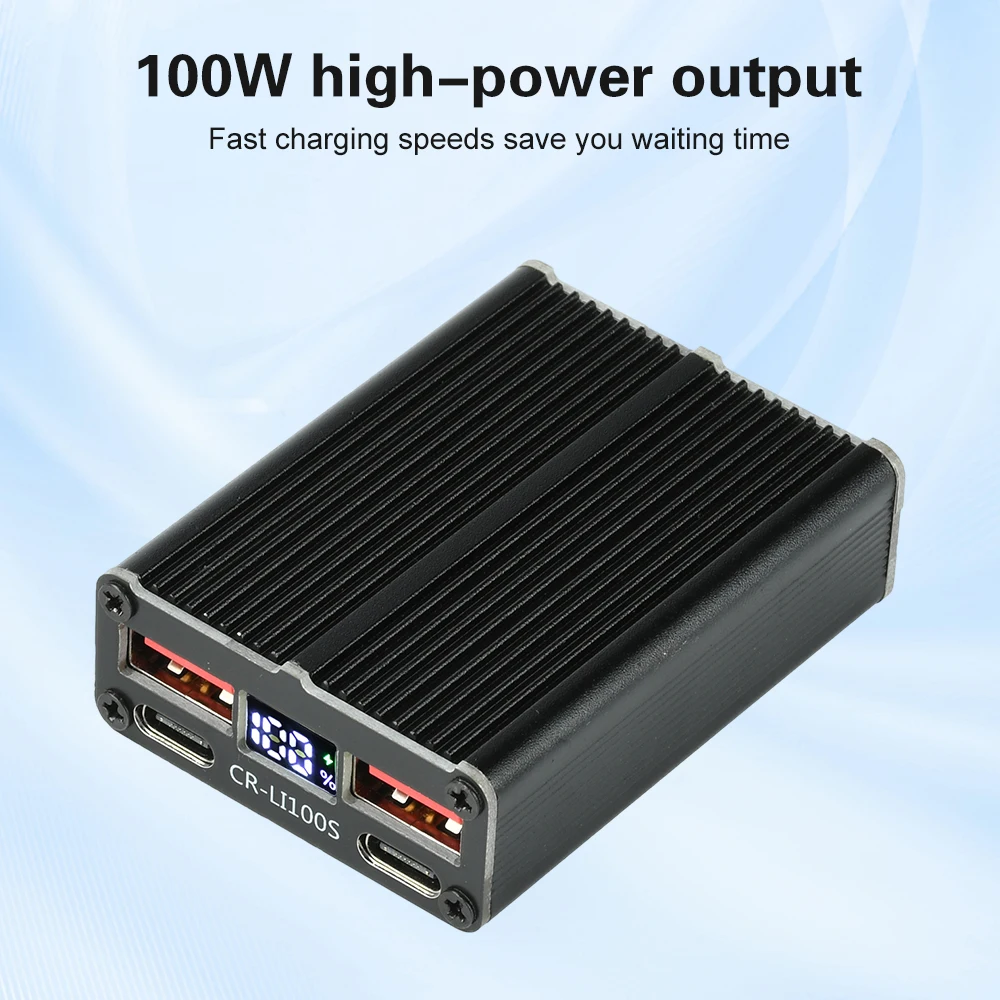

2. 100W high-power output delivers rapid charging, minimising waiting time

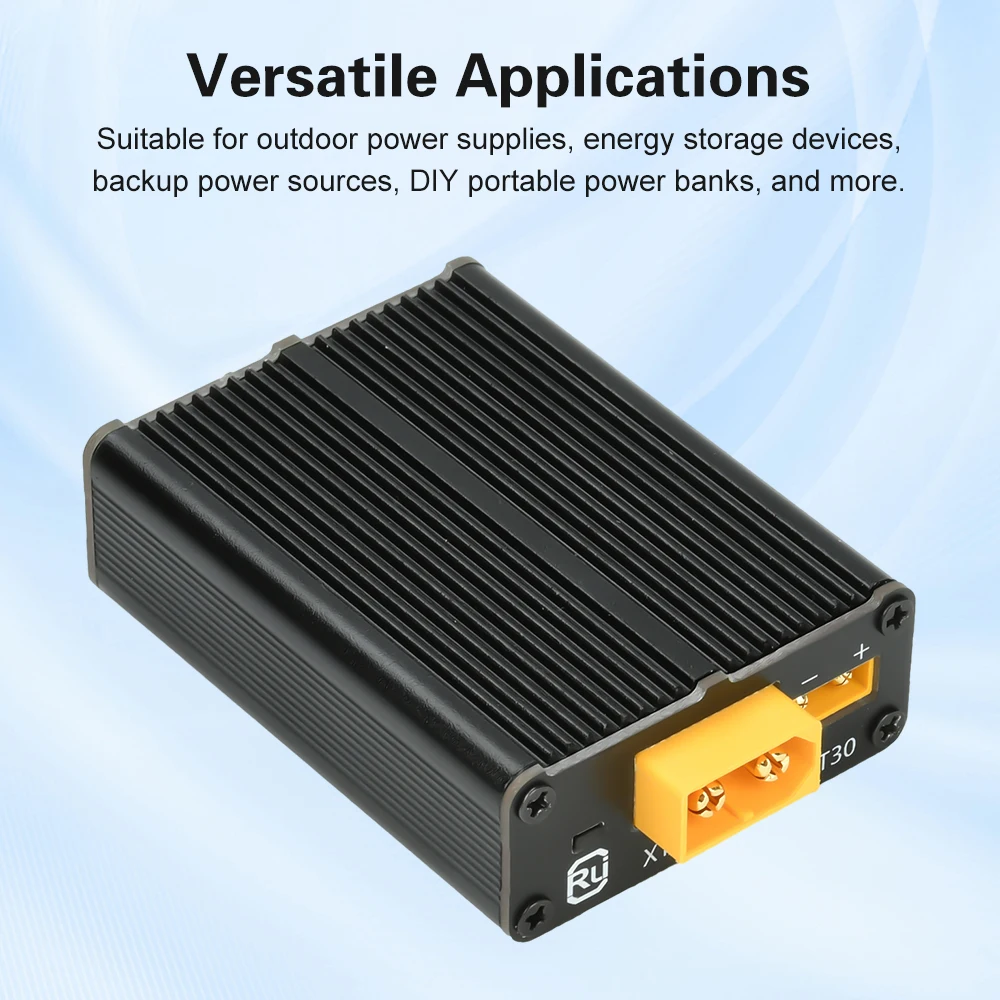

3. Primary applications: outdoor power supplies, energy storage systems, backup power sources, DIY portable power banks

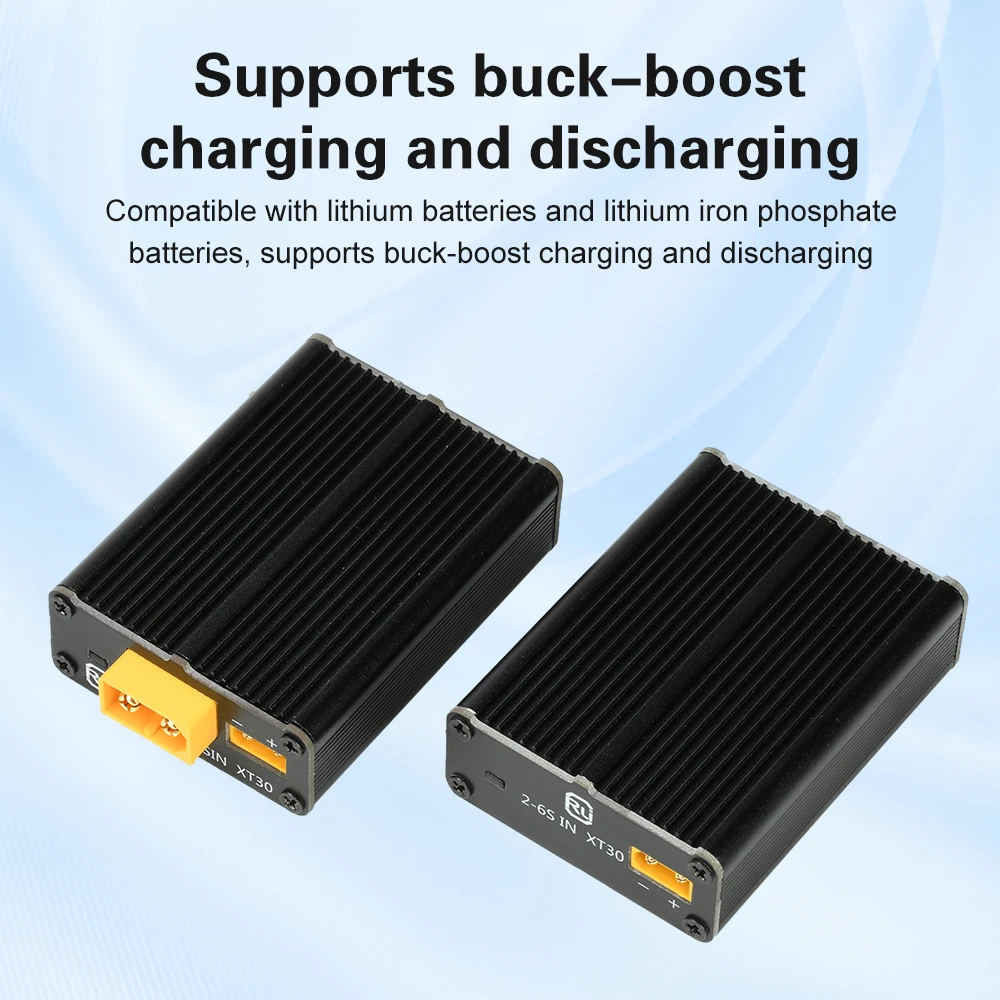

4. Compatible with lithium and lithium iron phosphate batteries, supporting buck-boost charging and discharging

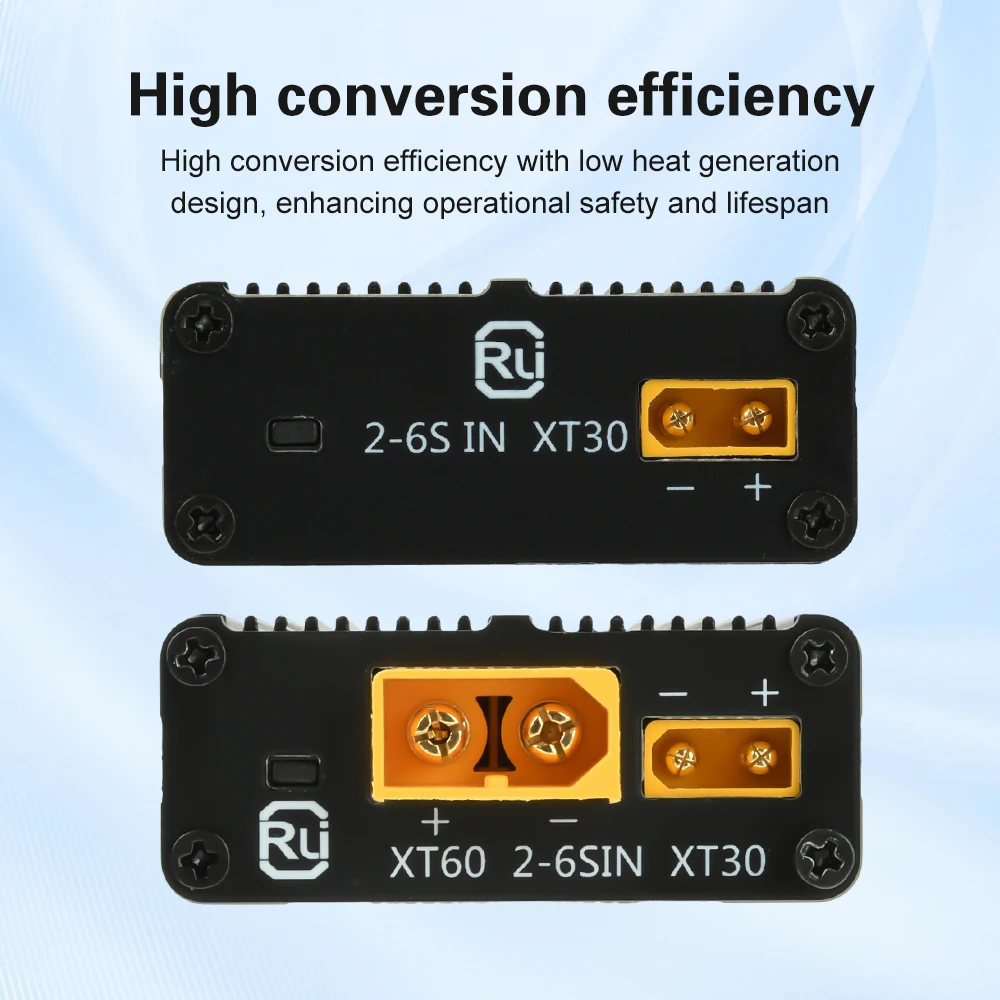

5. High conversion efficiency and low-heat design enhance operational safety and longevity

Product Specifications:

Input Voltage: DC 5-20V (Boost/Buck type)

Maximum 100W charge/discharge

Supports 2-6S lithium batteries

Supports 2-7S lithium iron phosphate batteries

Standby Power Consumption: 80μA

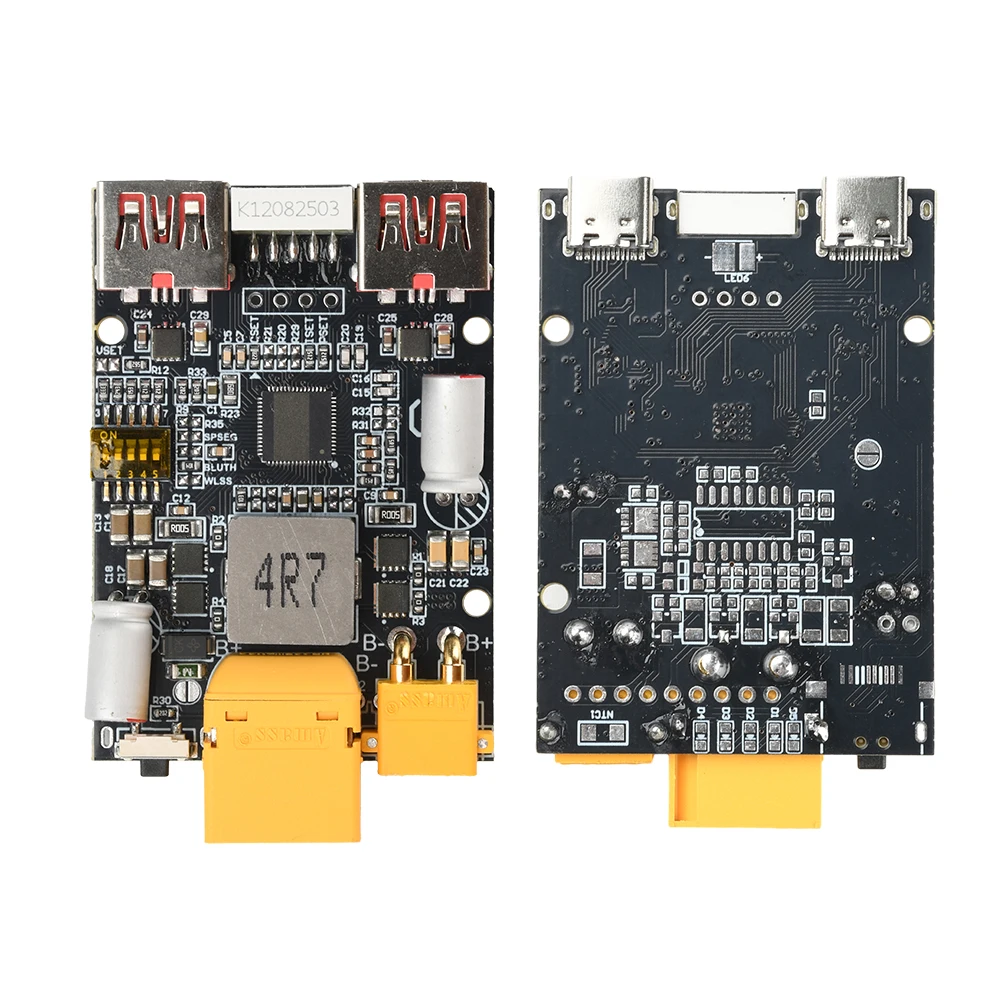

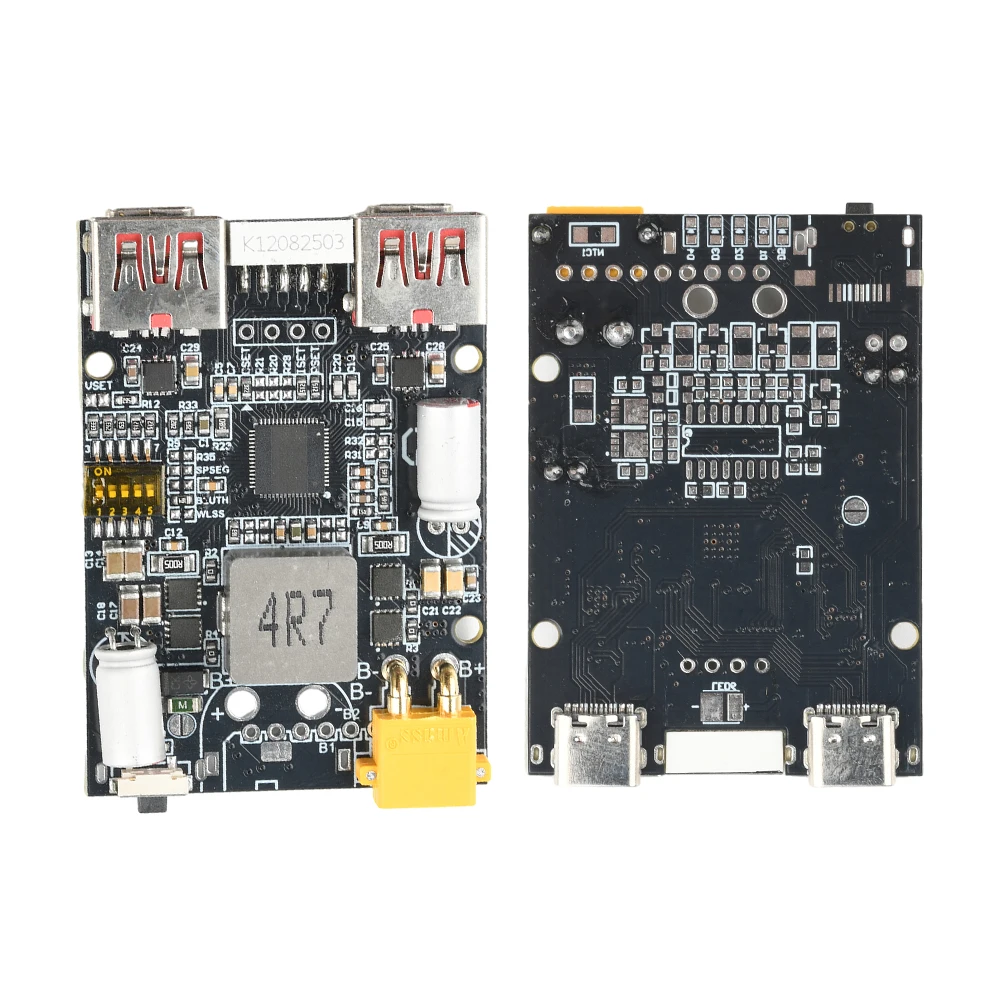

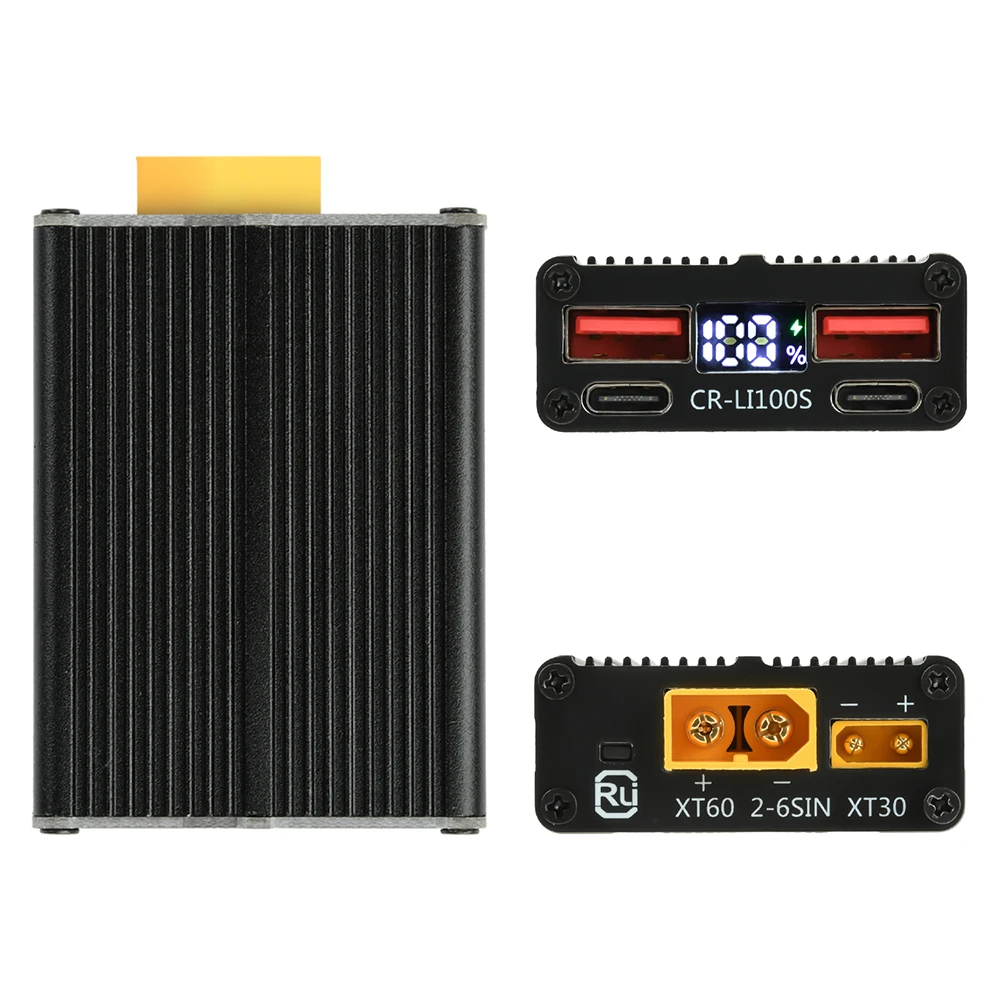

Module Interfaces:

B+: Connects to battery protection board positive terminal

B-: Connects to battery protection board negative terminal

TYPE-C Port: Bidirectional input/output port

USB: Protocol-enabled output port

Digital display operates as a coulometer. Initial readings may be inaccurate; calibration requires discharging the battery to its limit, then fully recharging it to capacity. This completes one calibration cycle.

Supported Protocols:

UFCS, VOOC, WARP, Apple 2.4A, AFC 9V/12V, PD 2.0/3.0/3.1

PPS, FCP, QC 2.0/3.0/3.0+, SCP and other protocols

Compatible with fast charging for most major device brands.

Also supports PD and QC protocols for other niche brands where available.

Packing list:

100W fast charging module × 1
