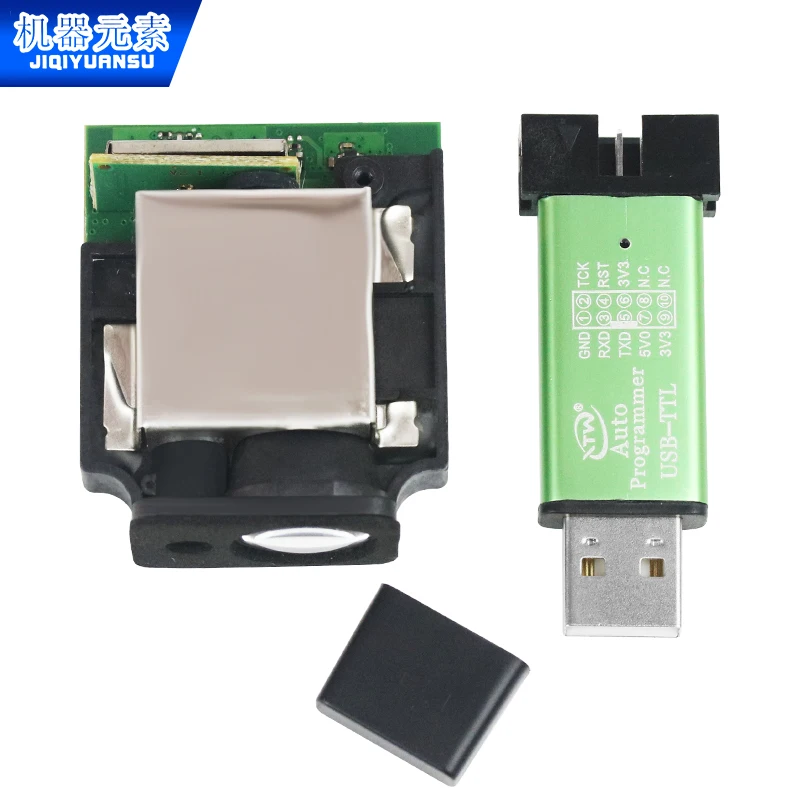

20hz High Accuracy 80m Laser Sensor Range Finder Distance Measuring Module TTL Interface Ardunio

Parameters: Power Supply

Voltage: DC3V ~ 3.3V

Current: 100mA

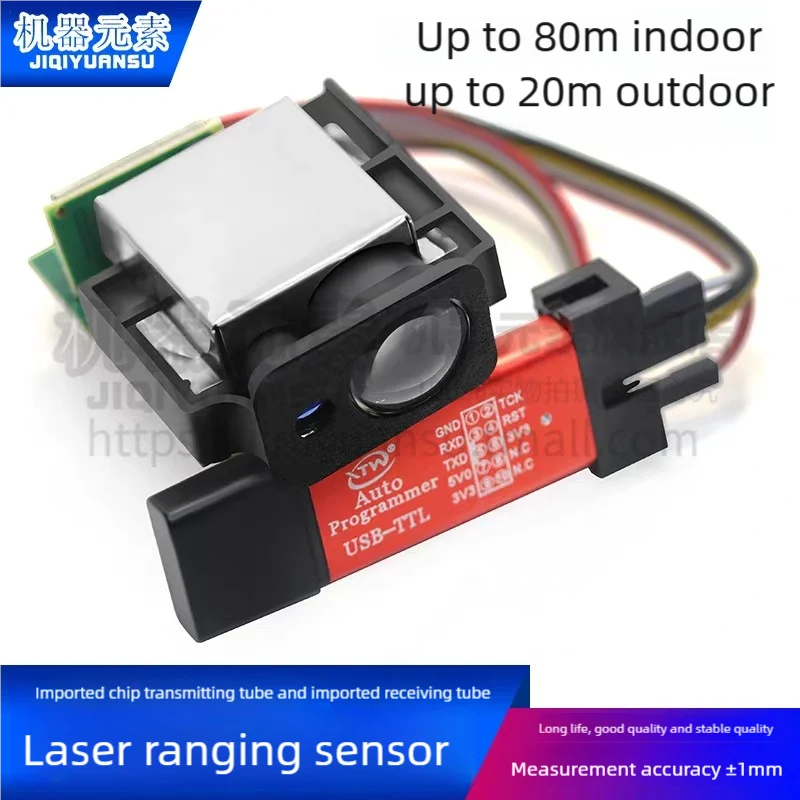

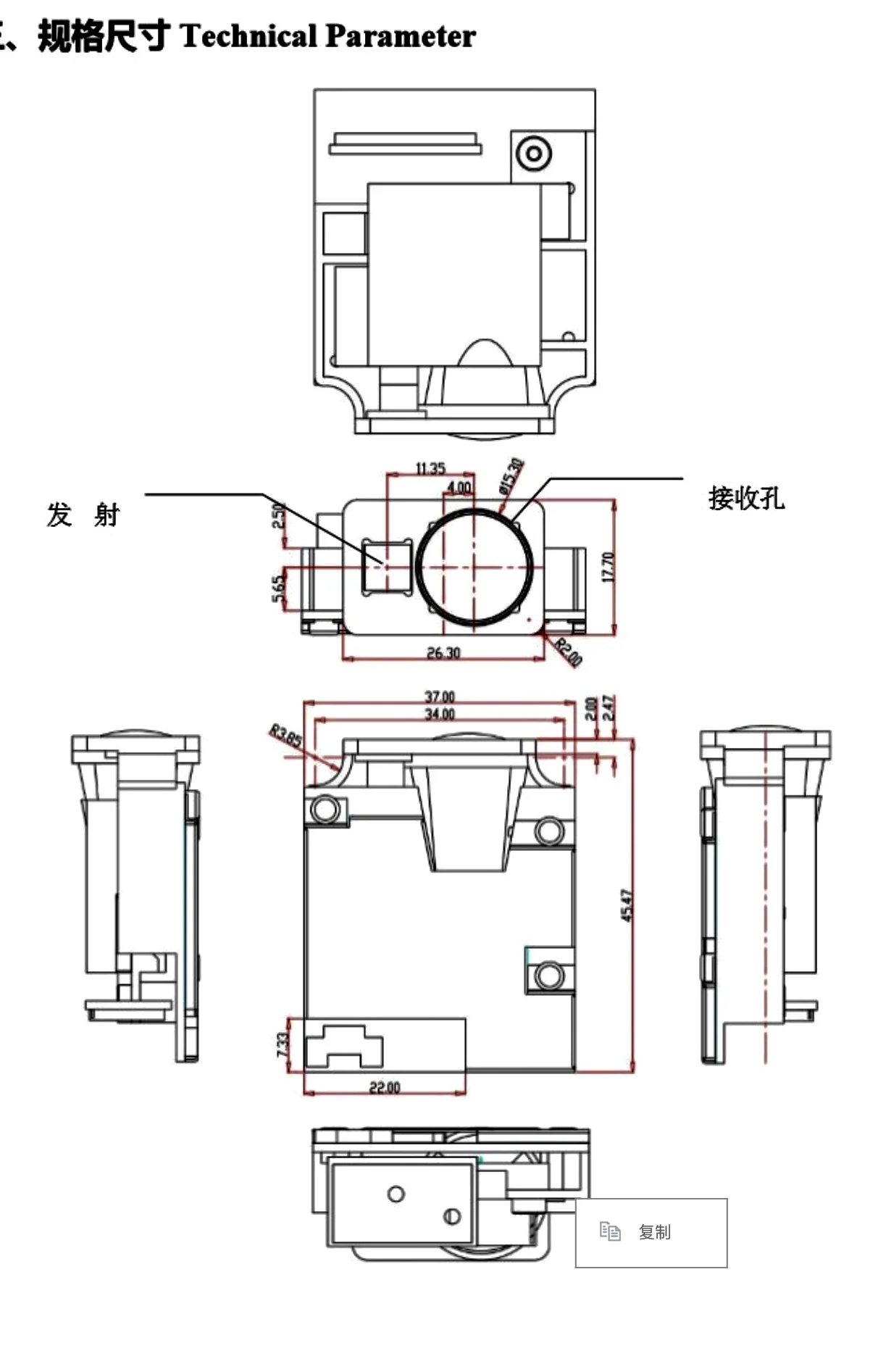

Measuring Range: 0.01-80 m

Measuring Frequency:5HZ,10HZ,20HZ(Adjustable)

Measurable velocity of moving objects: less 2m/s

Measurement Accuracy (standard deviation): ± 1.mm

Distance Unit: m

Laser Type: 620-690nm

Laser Class: class II,

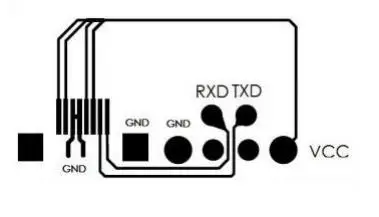

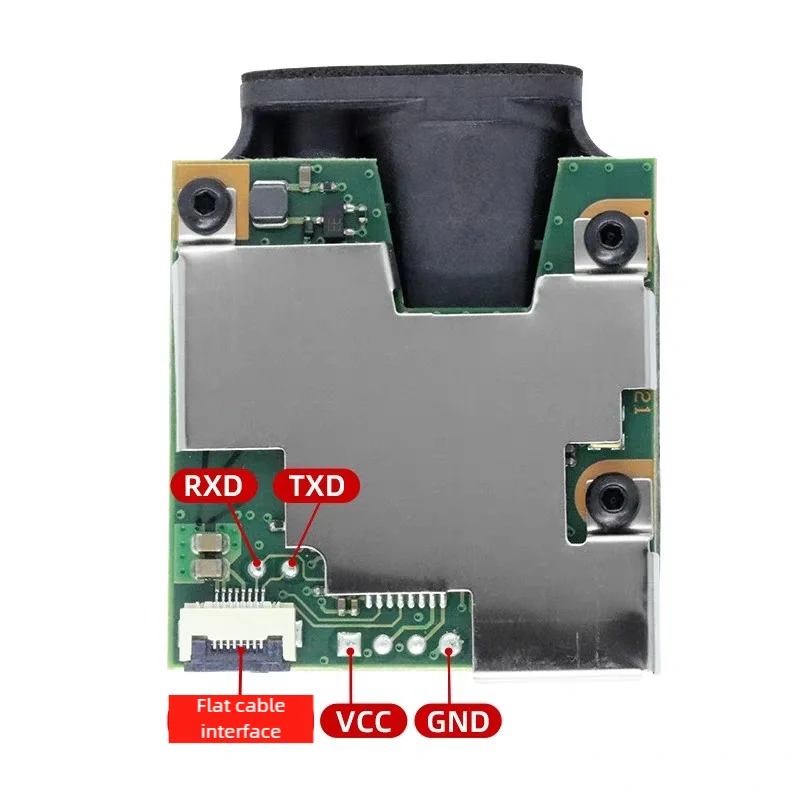

Baud rate:9600bps;

data bit:8 bit;

Start bit:1bit;

Stop Bit:1bit;

Parity:none.

Remarks: Because the environment light intensity is too large, the ambient temperature is too high or too low, the reflector is too weak or too strong, or the target of a rough surface, different measurement objectives and measurement environment may cause some error of the measurement range or measurement results.

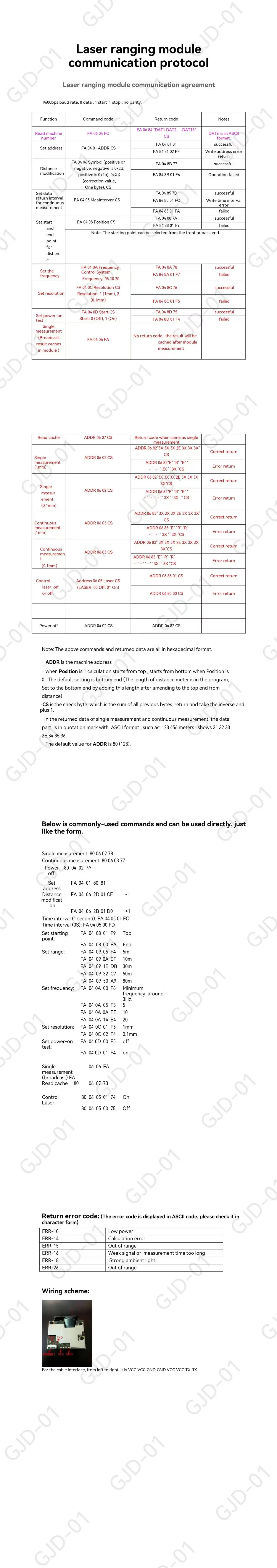

• ADDR Device Address

•Postion is 1, count from the top , when item is 0, count from the end (FA 04 08 01 F9),The default setting is from end

•CS check byte, it sums all the bytes in front,Returns the reverse, plus 1, in the data returned by single measurements and successive measurements, in which the quotes are part of the data,Format is ASCII sample:123.456 m display 31 32 33 2E 34 35 36 ADDR Default value  80(128)

The command to read data when the parameter is factory setting:Single measurement:80 06 02 78  Continuous measurement:80 06 03 77

Shutdown device:

80 04 02 7A

Set address:

FA 04     01   80   81

Distance modification:

FA 04     06   2D   01   CE  -1

FA 04     06   2B   01   D0   +1

time interval (1S) :

FA 04 05 01 FC

Set start point:

FA 04 08 01 F9    Top

FA 04 08       00   FA   back ends

Set range:

FA 04 09       05   F4   5m

FA 04 09       0A   EF   10m

FA 04 09       1E   DB  30m

FA   04   09   32   C7   50m

FA   04   09   50   A9   80m

Set frequency:

FA   04   0A   00   F8

FA   04   0A   05   F3   5

FA   04   0A   0A   EE   10

FA   04   0A   14   E4   20

Set resolution:

FA   04   0C   01   F5   1mm

FA   04   0C   02   F4   0.1mm

Set start the measurement when power on:

FA   04   0D   00   F5   turn off

FA   04   0D   01   F4   turn on

Single measurement (broadcast)

FA   06   06   FA

Read cache:

80   06   07   73

Control laser:

80   06   05   01   74   open

80   06   05   00   75   Close

NOTICE:

If you need to get a higher frequency, you need to sacrifice the accuracy of the measurement. When set

to 20hz (send FA 04 0A 14 E4), the accuracy in continuous measurement mode will become +-4mm; if the

frequency is set to the lowest frequency (send FA) 04 0A 00 F8), the accuracy in continuous

measurement mode will be within 1mm.

In single measurement mode (send 80 06 02 78), the accuracy is always within 1 mm.
